Roll Centre / Bump Steer mod - worth doing?
#64
Scooby Regular
iTrader: (17)
They are Hardrace, which were purchased through apex performance.
http://www.apexperformance.co.uk/cat...oducts_id=1861
http://www.apexperformance.co.uk/cat...oducts_id=1861
#65
Scooby Regular
iTrader: (18)
Bought mine last year, fitted last week and alignment tmrw. But won't be able to comment to difference as I have changed almost every other suspension part at the same time! Though I did not get the black cone fitting cap, had to reuse from old std ball joints.But they definitely do raise the ball joint mounting point.
#66
Scooby Regular
iTrader: (25)
Join Date: Feb 2008
Location: MSOC
Posts: 3,135
Likes: 0
Received 0 Likes
on
0 Posts

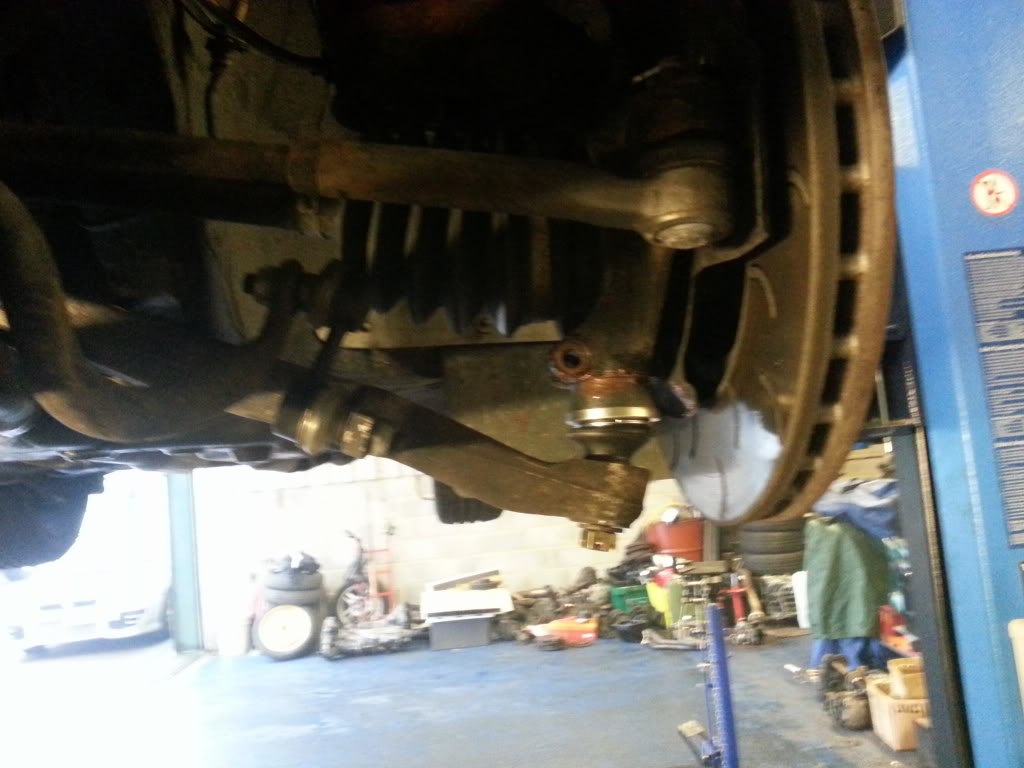

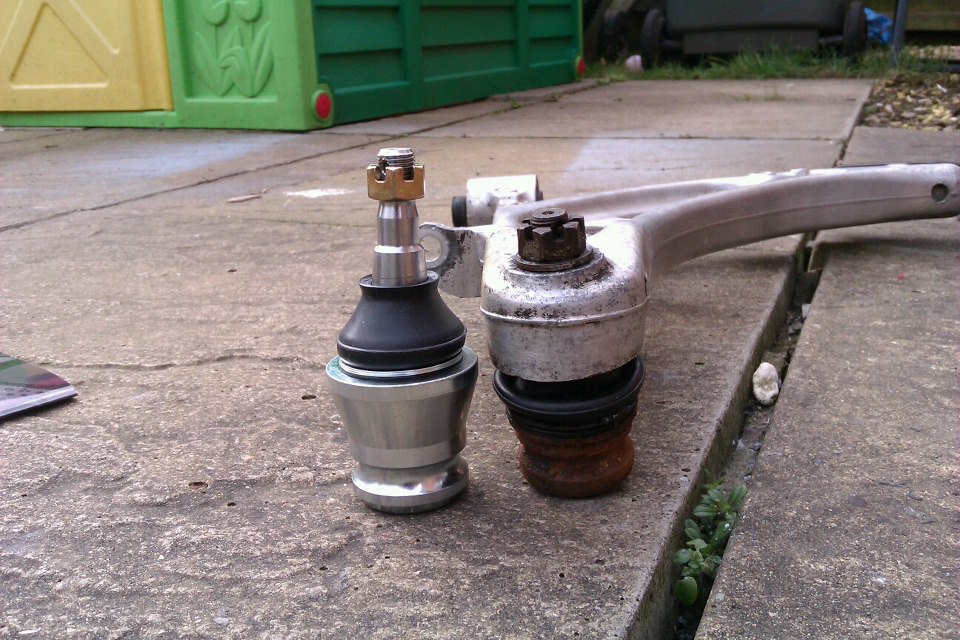

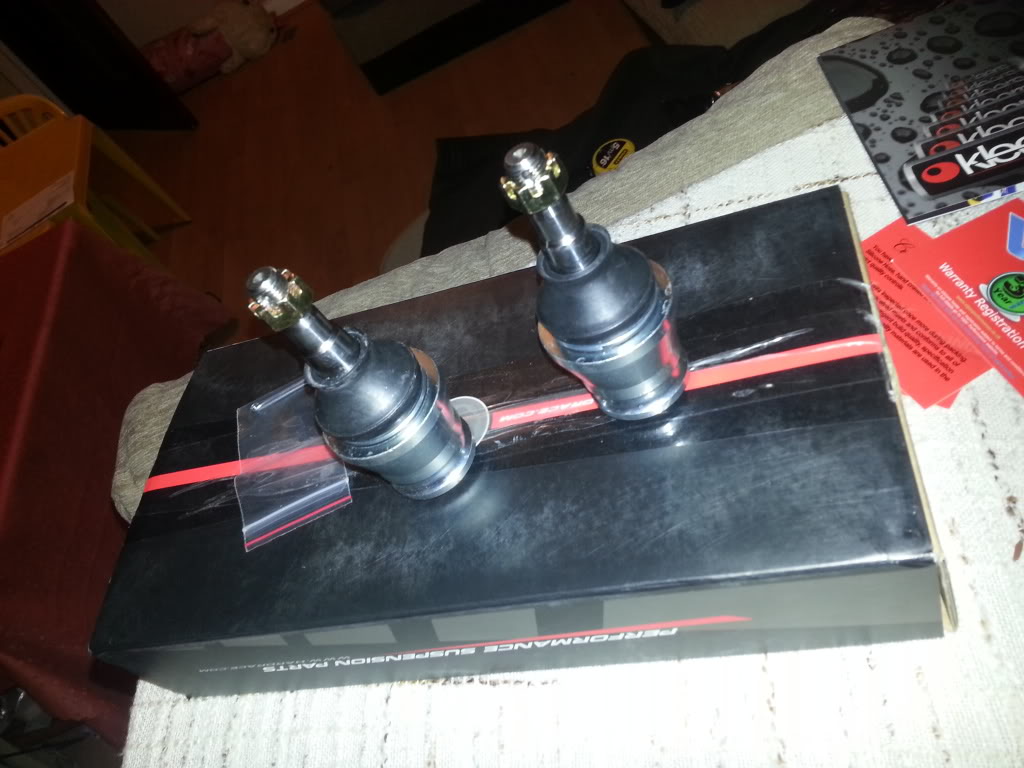

Got it fitted eventualy... Havent done the geometry yet, but it made the car less nervous on the bumps , tramlining gone as well... Will have to put the rear ARB on medium to see if that helps even more .... ATM i'd say it's a worth doing mod if your car is lowered... It's the mod that you can actually feel phisicaly , like the rear ARB and such..

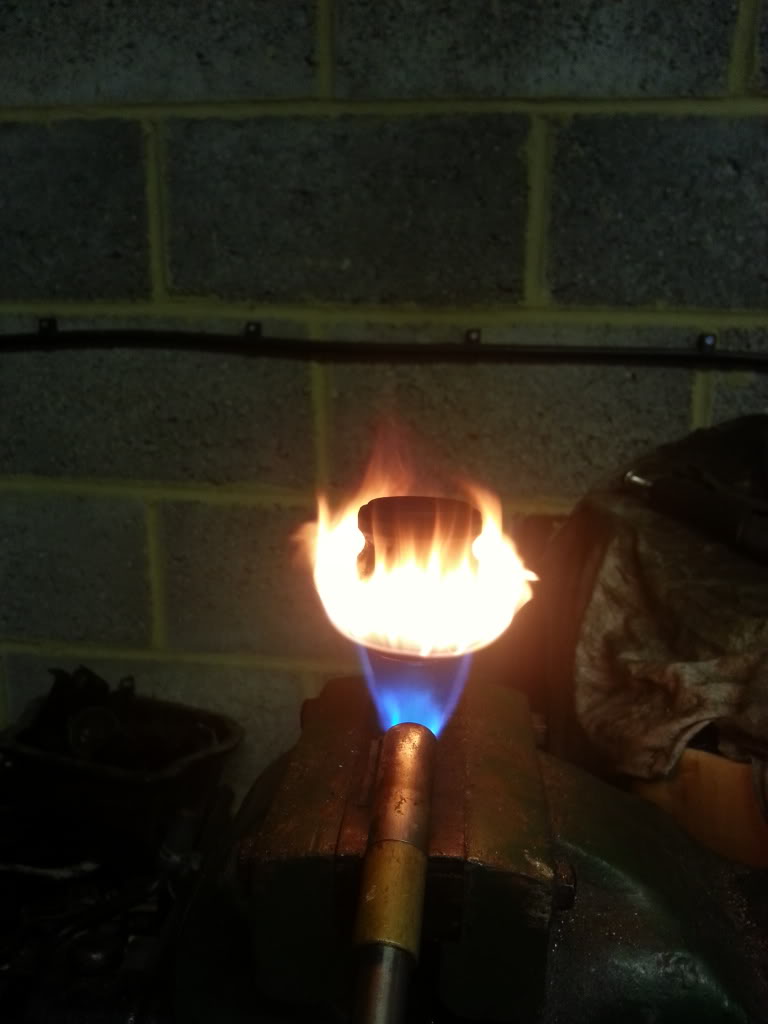

There was only one problem, taking the metal tops that had to be put on the Hardrace onces, so we sorted it in that kind of way...
There was only one problem, taking the metal tops that had to be put on the Hardrace onces, so we sorted it in that kind of way...
#68
Got it fitted eventualy... Havent done the geometry yet, but it made the car less nervous on the bumps , tramlining gone as well... Will have to put the rear ARB on medium to see if that helps even more .... ATM i'd say it's a worth doing mod if your car is lowered... It's the mod that you can actually feel phisicaly , like the rear ARB and such..
There was only one problem, taking the metal tops that had to be put on the Hardrace onces, so we sorted it in that kind of way...
There was only one problem, taking the metal tops that had to be put on the Hardrace onces, so we sorted it in that kind of way...
#69
Scooby Regular
iTrader: (25)
Join Date: Feb 2008
Location: MSOC
Posts: 3,135
Likes: 0
Received 0 Likes
on
0 Posts
#72
Well I went for the Whiteline kit in the end as Indigo-GT have a group buy offer on the revised roll centre correction kit (that fixes the issue with the ball joints), and a set of heavy duty front drop links (the ones with dust boots).
Should turn up tomorrow.
Should turn up tomorrow.
#75
Scooby Regular
iTrader: (25)
Join Date: Feb 2008
Location: MSOC
Posts: 3,135
Likes: 0
Received 0 Likes
on
0 Posts
The only downside is that they induce the tramlining cause of the stiff sidewalls, but it's not bothering me to much as i'm not driving it everyday, long journeys...
Eibach springs..... Oh well, definately not best on a track but ok for normal/fast road driving...Theres not alot of choice , thats the only reason i'm keeping them. My standart springs are tired but probably would handle not much worse than Eibachs, they felt stiffer also... But the gap between the arches is horendeous ....Keeping on browsing for options, maybe i'll find something thats suitable soon...
#77
Scooby Regular
iTrader: (9)
^^ Well, I've been looking at your pic above and really, it doesn't look too bad. In fact, the outside wheel & tyre looks fine. The camber seems to be holding and the tyre isn't folding under itself. If the car is a pure track toy then yes a little more roll resistance might be OK, but if it's for road/track, then I would be happy
Compare yours to my JDM 370 at tight & twisty Anglesey. That car was really weight handicapped there. The super soft walled Toyo's didn't help. Was running 22/24 arb's which was awesome for road
Compare yours to my JDM 370 at tight & twisty Anglesey. That car was really weight handicapped there. The super soft walled Toyo's didn't help. Was running 22/24 arb's which was awesome for road
#78
Scooby Regular
iTrader: (25)
Join Date: Feb 2008
Location: MSOC
Posts: 3,135
Likes: 0
Received 0 Likes
on
0 Posts
The pic above as i found out was on RE070s , thats why the sidewall stayed in tact there another pic..
And heres the pic with Pirellis....it wasnt sharp corner as above but even then they werent excellent....
And heres the pic with Pirellis....it wasnt sharp corner as above but even then they werent excellent....
#79
Scooby Regular
iTrader: (3)
Join Date: Jan 2013
Location: Telford
Posts: 254
Likes: 0
Received 0 Likes
on
0 Posts
Sorry to resurrect an old thread but I feel an answer wasn't really given
So which is the best kit to get?
Options are;
A) Whiteline
B) Apex
C) Superpro
Are the track rod ends required or not?
WhiteLine don't have a very good reliability reputation at the moment according to a few forums so I think I'm gonna steer () clear of them.
Any advice guys?
BTW I'm running a V5 Type R, WL ALK, 22mm rear ARB (soon to fit front 22mm ARB), WL droplinks F&R and Tein Superstreets with a drop of ABOUT 25-30mm and I'm getting bump steer
Many thanks,
Paul.
So which is the best kit to get?
Options are;
A) Whiteline
B) Apex
C) Superpro
Are the track rod ends required or not?
WhiteLine don't have a very good reliability reputation at the moment according to a few forums so I think I'm gonna steer () clear of them.
Any advice guys?
BTW I'm running a V5 Type R, WL ALK, 22mm rear ARB (soon to fit front 22mm ARB), WL droplinks F&R and Tein Superstreets with a drop of ABOUT 25-30mm and I'm getting bump steer
Many thanks,
Paul.
Last edited by 4evernewbie; 09 June 2013 at 01:32 AM.
#80
Scooby Regular
Join Date: Apr 2012
Location: biggleswade
Posts: 1,775
Likes: 0
Received 0 Likes
on
0 Posts
also interested in this, got a trackday in july and want my car to handle and perform perfectly, lowered a fair bit with 24mm rear antiroll, solid drop links, Bc coil overs on hardest compression, Toyo R888, Alk and fast road alignment
which bump steer kit is best to go for?
which bump steer kit is best to go for?
#81
Scooby Regular
iTrader: (5)
Join Date: Oct 2012
Location: North Yorkshire / Boston, MA
Posts: 1,907
Likes: 0
Received 1 Like
on
1 Post
Just jumping on the bandwagon. I'm still not 100% comfortable with the handling of my Scoob despite throwing a fair few "go-to" parts at it.
So far on my widetrack I've got:
Refurbed (grease nipple) OEM shocks
Prodrive red springs
Whiteline ALK
CDF Front and Rear ARBs
CDF Solid Droplinks
I can't quite put my finger on exactly what my problem is. I don't push hard enough on the road to get under or oversteer, but I've had it twitch on me a few times when accelerating through a bend... as if the car just becomes unsettled as the weight is shifting down onto one side.
I'm hoping to get on track in a controlled environment where I can push it into a bit of under/oversteer (somewhere with a lot of run off!) and do some proper testing to see if I can get some consistent results.
As far as the roll centre mod, it's probably fair to say my car isn't particularly low on the prodrive springs and my arms are sat pretty much horizontal when the car is sat... so I'm not sure if this upgrade will be my "golden goose", but I'd be interested to hear opinions.
So far on my widetrack I've got:
Refurbed (grease nipple) OEM shocks
Prodrive red springs
Whiteline ALK
CDF Front and Rear ARBs
CDF Solid Droplinks
I can't quite put my finger on exactly what my problem is. I don't push hard enough on the road to get under or oversteer, but I've had it twitch on me a few times when accelerating through a bend... as if the car just becomes unsettled as the weight is shifting down onto one side.
I'm hoping to get on track in a controlled environment where I can push it into a bit of under/oversteer (somewhere with a lot of run off!) and do some proper testing to see if I can get some consistent results.
As far as the roll centre mod, it's probably fair to say my car isn't particularly low on the prodrive springs and my arms are sat pretty much horizontal when the car is sat... so I'm not sure if this upgrade will be my "golden goose", but I'd be interested to hear opinions.
#82
Scooby Regular
iTrader: (25)
Join Date: Feb 2008
Location: MSOC
Posts: 3,135
Likes: 0
Received 0 Likes
on
0 Posts
Ok , not sure if that helps , but what i've noticed since the mod. I'd suggest getting the Super Pro kit , the ball joints and rods as it actually might be the case of steering rack still not aligning properly if fitting just extended ball joints..
Using re070s the car still had a little bump steer , but changing to Vredies it eased up a bit, so i decided to get the track rod ends to feel the difference and guess what BTW its hard race stuff.. The rods separately cost 120 quid ,IMHO i dont think their kit is better than Super Pro kit which consists of both... So for 120-150 not sure what it costs now i'd get Super Pro kit. Talking about whitleline , nothing is forever , and "good quality" things breaks too, it so much matters on the environment it has been used in etc etc..... Until it wasn't compared to different companies in the same conditions you cant really judge , just my 2 p worth

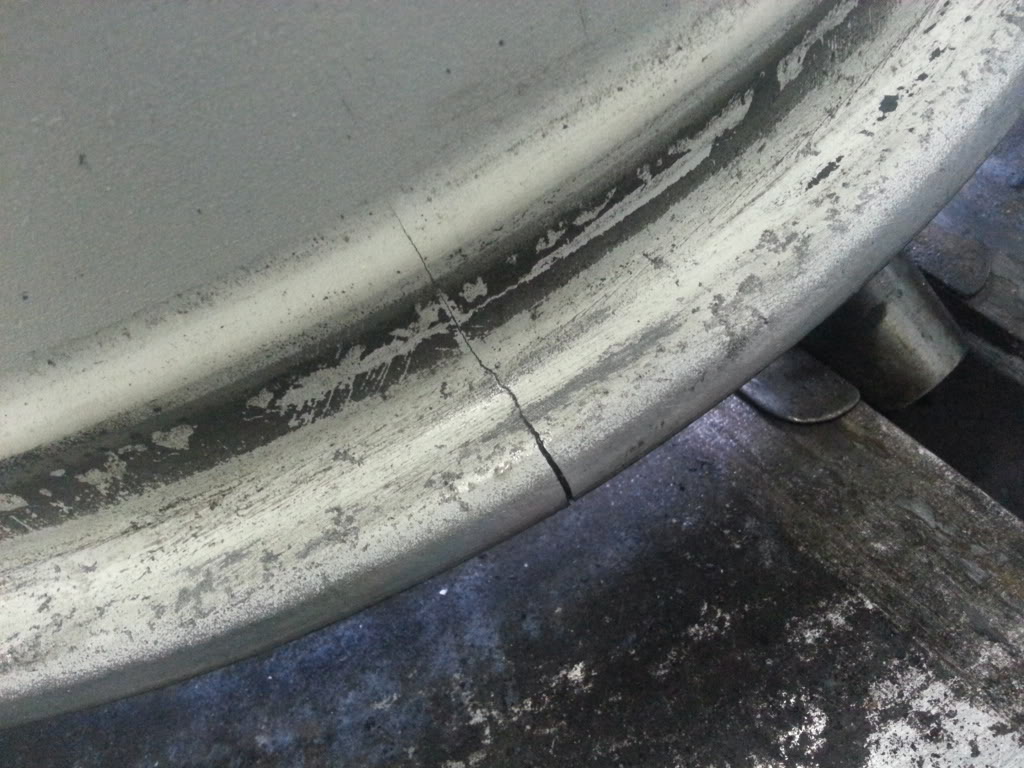

These are Work emotions CR kai forged wheels.... Does it make them **** quality , i don't think so, it's all about the circumstances...
Using re070s the car still had a little bump steer , but changing to Vredies it eased up a bit, so i decided to get the track rod ends to feel the difference and guess what BTW its hard race stuff.. The rods separately cost 120 quid ,IMHO i dont think their kit is better than Super Pro kit which consists of both... So for 120-150 not sure what it costs now i'd get Super Pro kit. Talking about whitleline , nothing is forever , and "good quality" things breaks too, it so much matters on the environment it has been used in etc etc..... Until it wasn't compared to different companies in the same conditions you cant really judge , just my 2 p worth
These are Work emotions CR kai forged wheels.... Does it make them **** quality , i don't think so, it's all about the circumstances...
#83
Scooby Regular
iTrader: (9)
Just jumping on the bandwagon. I'm still not 100% comfortable with the handling of my Scoob despite throwing a fair few "go-to" parts at it.
So far on my widetrack I've got:
Refurbed (grease nipple) OEM shocks
Prodrive red springs
Whiteline ALK
CDF Front and Rear ARBs
CDF Solid Droplinks
I can't quite put my finger on exactly what my problem is. I don't push hard enough on the road to get under or oversteer, but I've had it twitch on me a few times when accelerating through a bend... as if the car just becomes unsettled as the weight is shifting down onto one side.
I'm hoping to get on track in a controlled environment where I can push it into a bit of under/oversteer (somewhere with a lot of run off!) and do some proper testing to see if I can get some consistent results.
As far as the roll centre mod, it's probably fair to say my car isn't particularly low on the prodrive springs and my arms are sat pretty much horizontal when the car is sat... so I'm not sure if this upgrade will be my "golden goose", but I'd be interested to hear opinions.
So far on my widetrack I've got:
Refurbed (grease nipple) OEM shocks
Prodrive red springs
Whiteline ALK
CDF Front and Rear ARBs
CDF Solid Droplinks
I can't quite put my finger on exactly what my problem is. I don't push hard enough on the road to get under or oversteer, but I've had it twitch on me a few times when accelerating through a bend... as if the car just becomes unsettled as the weight is shifting down onto one side.
I'm hoping to get on track in a controlled environment where I can push it into a bit of under/oversteer (somewhere with a lot of run off!) and do some proper testing to see if I can get some consistent results.
As far as the roll centre mod, it's probably fair to say my car isn't particularly low on the prodrive springs and my arms are sat pretty much horizontal when the car is sat... so I'm not sure if this upgrade will be my "golden goose", but I'd be interested to hear opinions.
You haven't changed things too much from std. The blue Prodrive springs don't over lower, the ALK will help, and a little more stiffening is a good thing (what dia bars have you fitted?)
See link here
#84
Scooby Regular
iTrader: (5)
Join Date: Oct 2012
Location: North Yorkshire / Boston, MA
Posts: 1,907
Likes: 0
Received 1 Like
on
1 Post
Thanks Bonesetter, interesting comments in the link. I'll be honest, my CDF bushes seem to have plenty of movement when I jack the car up and the suspension unloads - not sure if they've changed their design or whether I'm just understanding the post incorrectly.
My Prodrive springs are red, not that that matters - I think the WRX ones were blue?
I've got the 24mm rear and 22mm front ARBs with the front set on "hard" and the rear set on "soft":
Car was aligned by a specialist, but thinking that perhaps a second opinion elsewhere might be worthwhile. I've got no idea what settings they used tbh.
Edit: Also got camber bolts on the rear.
My Prodrive springs are red, not that that matters - I think the WRX ones were blue?
I've got the 24mm rear and 22mm front ARBs with the front set on "hard" and the rear set on "soft":
Car was aligned by a specialist, but thinking that perhaps a second opinion elsewhere might be worthwhile. I've got no idea what settings they used tbh.
Edit: Also got camber bolts on the rear.
Last edited by Fonzey; 10 June 2013 at 08:35 PM. Reason: addition
#86
Scooby Regular
iTrader: (5)
Join Date: Oct 2012
Location: North Yorkshire / Boston, MA
Posts: 1,907
Likes: 0
Received 1 Like
on
1 Post
Is there an idiots guide as to what settings will have what impact when it comes to front/rear ARBs? I'll happily do some experimenting, but would like to know the theory behind it before I begin - to make sure placebo isn't creeping in!
#87
Scooby Regular
iTrader: (9)
The CDF dl's are the same as they have always been with the flat headed 'top hat' bushings. You may think they have a fair amount of movement, but respectfully, what have you compared it to?
24/22 is my favourite combo for new age & classic cars (yours is a new age, right?) and works brilliantly
Does the rear bar have 2 or 3 settings? If it has 3 and yours on the hardest (nearest bar) I would say you may have a little too much roll correction. I've always settled on the middle setting (Whiteline bar).
Thing is, swapping holes is a very quick job and easy to see the differences. The differences are usually quite big with rarb stiffness changes. My Type R will go from understeer to nice & neutral, swapping from hard to middle rear
24/22 is my favourite combo for new age & classic cars (yours is a new age, right?) and works brilliantly
Does the rear bar have 2 or 3 settings? If it has 3 and yours on the hardest (nearest bar) I would say you may have a little too much roll correction. I've always settled on the middle setting (Whiteline bar).
Thing is, swapping holes is a very quick job and easy to see the differences. The differences are usually quite big with rarb stiffness changes. My Type R will go from understeer to nice & neutral, swapping from hard to middle rear
#88
Scooby Regular
iTrader: (5)
Join Date: Oct 2012
Location: North Yorkshire / Boston, MA
Posts: 1,907
Likes: 0
Received 1 Like
on
1 Post
Thanks again Bonesetter, I can't compare my links to other aftermarket ones - but the angle which the connection is at has got a fair range, compared to my OEM ones (though obviously not as much).
My Front ARB has two settings, and it's on the hardest of those. The rear has three settings and it's on the softest of those.
My Front ARB has two settings, and it's on the hardest of those. The rear has three settings and it's on the softest of those.
#89
Scooby Regular
iTrader: (9)
Thanks again Bonesetter, I can't compare my links to other aftermarket ones - but the angle which the connection is at has got a fair range, compared to my OEM ones (though obviously not as much).
My Front ARB has two settings, and it's on the hardest of those. The rear has three settings and it's on the softest of those.
My Front ARB has two settings, and it's on the hardest of those. The rear has three settings and it's on the softest of those.
