litchfield twin scroll turbo

Old 25 June 2012, 11:11 PM
  #1201
BIG FUD
Scooby Regular
iTrader: (84)

BIG FUD's Avatar

Join Date: Jan 2004
Location: In my own world..
Posts: 7,918
Smile

Originally Posted by Shaun View Post
Personally I wouldn't go any bigger than the LM450 for sprint use imo on the 2ltr.

If you want bang for buck (and great spool / driveability) just stick the LM400 on (with a remap of course) with everything else OEM.

LM450 needs other items to suit (FMIC, injectors, Induction Kit etc etc)
Think thats what im going for when i decide to upgrade cheers all,Thanks shaun.
BIG FUD is offline
Old 17 August 2012, 11:06 AM
  #1202
joz8968
Scooby Regular
iTrader: (13)

joz8968's Avatar

Join Date: Aug 2006
Location: Indochina......hiding inside a bowl of rice
Posts: 23,708
Default

Russia's finest Vodka in the tank? Should give the turbo some pep!
joz8968 is offline
Old 17 August 2012, 05:16 PM
  #1203
apac
Scooby Regular
iTrader: (2)

Join Date: Oct 2005
Location: Spec C Ltd 385/407
Posts: 1,135
Default

why not get a dual map done and add 20% methanol for one of the maps?
apac is offline
Old 18 August 2012, 01:32 PM
  #1204
Ilya
Scooby Regular
Thread Starter

Join Date: Nov 2007
Location: Moscow
Posts: 233
Default

first the LM goes back in and than we see
Ilya is offline
Old 18 August 2012, 02:22 PM
  #1205
Shaun
1st - ScoobySprint Final

Shaun's Avatar

Join Date: Mar 2000
Location: 5 beats 4 - RS3 Rulez!!!
Posts: 8,556
Default

Ilya,
Who is telling you 2ron will make 1000-1500rpm spool difference? I think they need to stop drinking it and start putting it in their tanks!

With regards to fuels, I'm not sure you can come up with general conclusions that the better the fuel the quicker the spool. You may actually find the opposite!
Shaun is offline
Old 19 August 2012, 04:39 PM
  #1206
Ilya
Scooby Regular
Thread Starter

Join Date: Nov 2007
Location: Moscow
Posts: 233
Default

Originally Posted by Shaun View Post
Ilya,
Who is telling you 2ron will make 1000-1500rpm spool difference? I think they need to stop drinking it and start putting it in their tanks!

With regards to fuels, I'm not sure you can come up with general conclusions that the better the fuel the quicker the spool. You may actually find the opposite!
i absolutely see what you are saying, but the thing is that in RUS petrol station do not sell real 98 ron, it is 95 with some additives, and the result is ****ty petrol. so guys are not saying 2 ron will make such difference in principle I think, but that 98 ron that is sold in Moscow is of poor quality. for u guys it is simple, u go to shell and buy 98 and u get 98, here it is a different story. i remember i re-fuelled on the very first petrol station of the ferry in Germany, and it felt that my car was re-mapped or something, real difference. so guys are saying in order to be able to compare results u have on shell 98 and i here on our 98, i need to get some decent petrol to start with

Last edited by Ilya; 19 August 2012 at 04:47 PM.
Ilya is offline
Old 19 August 2012, 05:04 PM
  #1207
johnfelstead
Scooby Regular

Join Date: Oct 1999
Posts: 11,341
Default

As of April this year the fuel sold by Gazprom Neft from it's Moscow refinery meets all Euro 4 standards, so it cant be that crap.
johnfelstead is offline
Old 19 August 2012, 05:10 PM
  #1208
johnfelstead
Scooby Regular

Join Date: Oct 1999
Posts: 11,341
Default

and even if you only had 95RON fuel, spool wont be that affected, certainly not the amount you are claiming.

Maybe you could sumerise your full engine spec, because something doesnt add up.
johnfelstead is offline
Old 20 August 2012, 12:00 AM
  #1209
harvey
Former Sponsor
iTrader: (48)

Join Date: Mar 2001
Location: Darlington
Posts: 10,419
Default

The difference from 95 to V-Power might credibly be 100 to 150 RPM in spool to 1 bar.
Are you sure someone does not have the shakes on the keyboard accounting for an extra 0? Sounds like too much Vodka.
harvey is offline
Old 20 August 2012, 10:21 AM
  #1210
Ilya
Scooby Regular
Thread Starter

Join Date: Nov 2007
Location: Moscow
Posts: 233
Default

because I am no expert I take part in this forum 4 advice, so I hear what u are saying I just had my hopes up

my engine is stock 2.0 JDM 06 spec C Ra
fujitsubo exh man + decat Milltek
air filter

and my billet LM400 spools to 1 bar at 4000rpm in fourth
the strange thing is that my original vf36 spoools as it is supposed to
so atm I am open to any suggestions, even the ones I shared few posts back

Last edited by Ilya; 20 August 2012 at 10:27 AM.
Ilya is offline
Old 20 August 2012, 01:18 PM
  #1211
johnfelstead
Scooby Regular

Join Date: Oct 1999
Posts: 11,341
Default

Put the stock headeers back on the car!
johnfelstead is offline
Old 20 August 2012, 01:28 PM
  #1212
TimH
member for 20 years!
iTrader: (11)

TimH's Avatar

Join Date: Oct 1998
Location: JT Innovations Ltd.
Posts: 1,822
Default

Will second that - I used lateral/tomei/kakomoto type headers on my 2.5 twinscroll build at first, thinking they would be better. Bad move as they completely killed spool. Refitted OEM twinscroll headers and all was good again.
TimH is offline
Old 20 August 2012, 02:29 PM
  #1213
Ilya
Scooby Regular
Thread Starter

Join Date: Nov 2007
Location: Moscow
Posts: 233
Default

Originally Posted by johnfelstead View Post
Put the stock headeers back on the car!
i thought of that, but why do these headers support decent spool on vf36?
Ilya is offline
Old 20 August 2012, 03:24 PM
  #1214
johnfelstead
Scooby Regular

Join Date: Oct 1999
Posts: 11,341
Default

Vf36 spools quite a bit faster than the lm400, so the effect of slow gas speed won't be as noticable.

Best twin scroll headers by far are the stock items, you always see worse spool using aftermarket.
johnfelstead is offline
Old 05 October 2012, 10:28 PM
  #1215
Shaun
1st - ScoobySprint Final

Shaun's Avatar

Join Date: Mar 2000
Location: 5 beats 4 - RS3 Rulez!!!
Posts: 8,556
Default

Time for another update and time for more LM power related goodness please.

https://www.scoobynet.com/846290-sta...awkeye-37.html

Latest results on my car.
Shaun is offline
Old 07 October 2012, 04:16 PM
  #1216
Shaun
1st - ScoobySprint Final

Shaun's Avatar

Join Date: Mar 2000
Location: 5 beats 4 - RS3 Rulez!!!
Posts: 8,556
Default

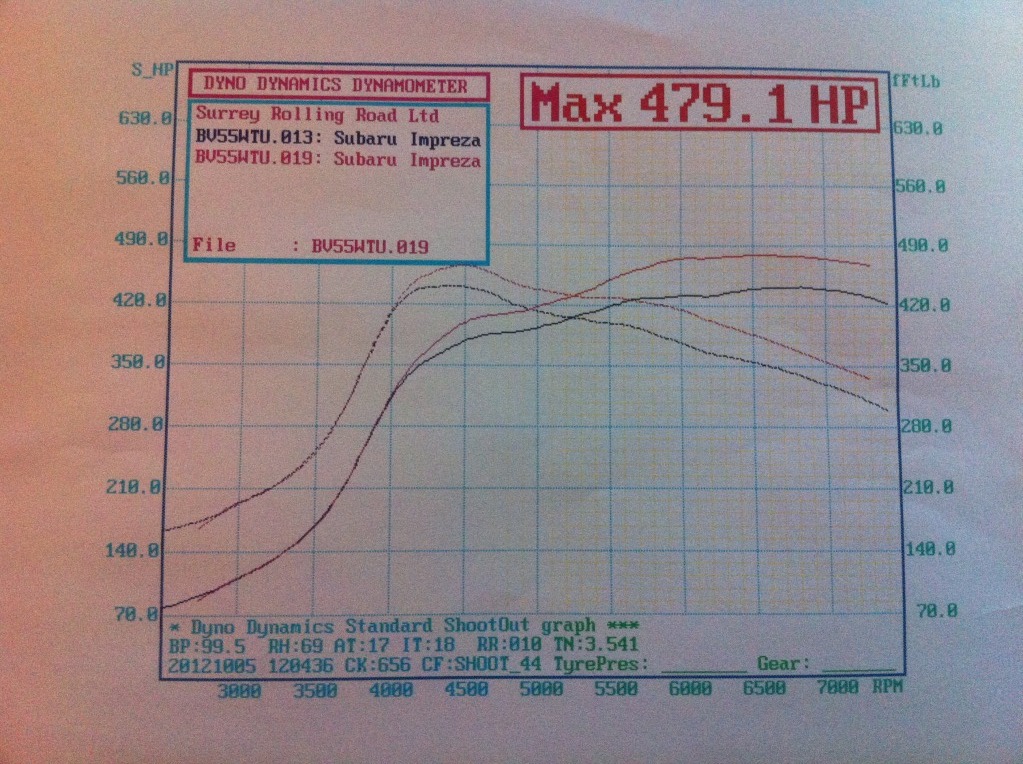

479.1bhp / 465ftlb - Red Line Meth Mix - Blue Line Straight VPower
Name:  IMG_1324.jpg
Views: 0
Size:  273.6 KB
Shaun is offline
Old 16 November 2012, 02:38 PM
  #1217
Cannon Fodder
Orange Club
iTrader: (100)

Cannon Fodder's Avatar

Join Date: Oct 2008
Location: Planet Earth
Posts: 13,684
Default

Bit of a revisit to this thread but has anyone had their LM turbo sent back for upgrading say from a LM400 billet to a LM450 billet?

I have fired off various emails to Litchfield Imports and never got an answer, called them and no return calls.

I'd really like to get a costing on this as my car is off the road for a while and will be having the Simtek/Alcatek upgrade plus a Toucan and sensors fitted, so now would be the ideal time for get it all done together.
Cannon Fodder is offline
Old 16 November 2012, 02:43 PM
  #1218
dazdavies
Scooby Regular
iTrader: (22)

dazdavies's Avatar

Join Date: Oct 2000
Location: Back in Sunny Donny
Posts: 6,943
Default

195 + delivery + vat.

Just had an LM450 upgraded, it cost 316 Including vat, delivery and a repair to the actuator.

You're also better of dealing with Turbo Dynamics directly. I did and they were very helpful.
dazdavies is offline
Old 16 November 2012, 02:56 PM
  #1219
Cannon Fodder
Orange Club
iTrader: (100)

Cannon Fodder's Avatar

Join Date: Oct 2008
Location: Planet Earth
Posts: 13,684
Default

Originally Posted by dazdavies View Post
195 + delivery + vat.

Just had an LM450 upgraded, it cost 316 Including vat, delivery and a repair to the actuator.

You're also better of dealing with Turbo Dynamics directly. I did and they were very helpful.
Thanks, I have just called them and they were very helpful indeed.

They are going to ring me back with a price.
Cannon Fodder is offline
Old 16 November 2012, 03:08 PM
  #1220
B0DSKI
Scooby Regular
iTrader: (17)

B0DSKI's Avatar

Join Date: May 2004
Location: Owner of BrCarDetailing
Posts: 10,611
Default

Originally Posted by Cannon Fodder View Post
Bit of a revisit to this thread but has anyone had their LM turbo sent back for upgrading say from a LM400 billet to a LM450 billet?

I have fired off various emails to Litchfield Imports and never got an answer, called them and no return calls.

I'd really like to get a costing on this as my car is off the road for a while and will be having the Simtek/Alcatek upgrade plus a Toucan and sensors fitted, so now would be the ideal time for get it all done together.
Spends more time offroad than It does on it
B0DSKI is offline
Old 16 November 2012, 03:15 PM
  #1221
Cannon Fodder
Orange Club
iTrader: (100)

Cannon Fodder's Avatar

Join Date: Oct 2008
Location: Planet Earth
Posts: 13,684
Default

Originally Posted by B0DSKI View Post
Spends more time offroad than It does on it
Perfection takes time, as I am sure you would know Boyd.
Cannon Fodder is offline
Old 16 November 2012, 03:29 PM
  #1222
B0DSKI
Scooby Regular
iTrader: (17)

B0DSKI's Avatar

Join Date: May 2004
Location: Owner of BrCarDetailing
Posts: 10,611
Default

Originally Posted by Cannon Fodder View Post
Perfection takes time, as I am sure you would know Boyd.
Never got there last time mate and I'm sure I won't get there this time either
B0DSKI is offline
Old 16 November 2012, 04:56 PM
  #1223
T20Driver
Scooby Regular
iTrader: (3)

T20Driver's Avatar

Join Date: May 2005
Location: Southampton(ish)
Posts: 494
Default

Originally Posted by dazdavies View Post
195 + delivery + vat.

Just had an LM450 upgraded, it cost 316 Including vat, delivery and a repair to the actuator.

You're also better of dealing with Turbo Dynamics directly. I did and they were very helpful.
That's what I did with my 420 some time back .. can't remember the costs tbh .. by dealt with TD direct
T20Driver is offline
Old 31 July 2013, 07:55 AM
  #1224
johnny_0
Scooby Regular

Join Date: Jan 2009
Location: in my home
Posts: 67
Default

This is the sounds of my SPEC C RA with LM450 turbo (stock ECU and with MAF removed) in 2nd, 3rd and a part of 4th with the Tomei TI exhaust (only 5.6 kg).

johnny_0 is offline
Old 31 July 2013, 08:16 AM
  #1225
Shaun
1st - ScoobySprint Final

Shaun's Avatar

Join Date: Mar 2000
Location: 5 beats 4 - RS3 Rulez!!!
Posts: 8,556
Default

That's way too loud for my old ears!

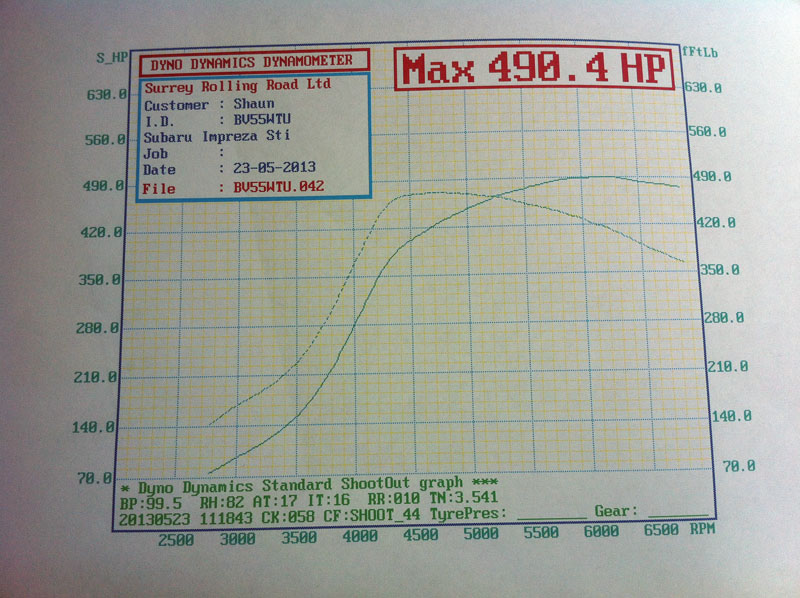

For completeness in providing information for this thread, here is my latest dyno graph for the LM450 Billet on 20% Methanol:
Name:  bob8.jpg
Views: 0
Size:  140.5 KB

Last edited by Shaun; 31 July 2013 at 08:46 AM.
Shaun is offline
Old 02 August 2013, 10:45 AM
  #1226
johnny_0
Scooby Regular

Join Date: Jan 2009
Location: in my home
Posts: 67
Default

Come on Shaun with this system some ps more on your car and your ears will be improved .
johnny_0 is offline
Old 14 August 2013, 04:09 PM
  #1227
T20Driver
Scooby Regular
iTrader: (3)

T20Driver's Avatar

Join Date: May 2005
Location: Southampton(ish)
Posts: 494
Default

You have seen your engine check light come on from time to time in the clip haven't you ?
T20Driver is offline
Old 18 September 2016, 04:39 PM
  #1228
PrinceVegeta
Scooby Newbie

Join Date: Sep 2016
Location: Singapore
Posts: 3
Default Twin Scroll vs Twin Entry

Hey everyone,

I am an avid Twin Scroll Fan and had the chance to own several Twin Scroll Turbos.

I read the first couple of pages and saw that there was a discussion about:

Twin SCROLL vs Twin ENTRY

Kindly allow me to clear everything up.

Based on my findings, the HKS 2835 Twin "Scroll" Turbo is actually Twin ENTRY.

The HKS Exhaust housing does not have the same dividing scrolls from your VF Twin Scroll Turbos.

Pics below will explain everything.

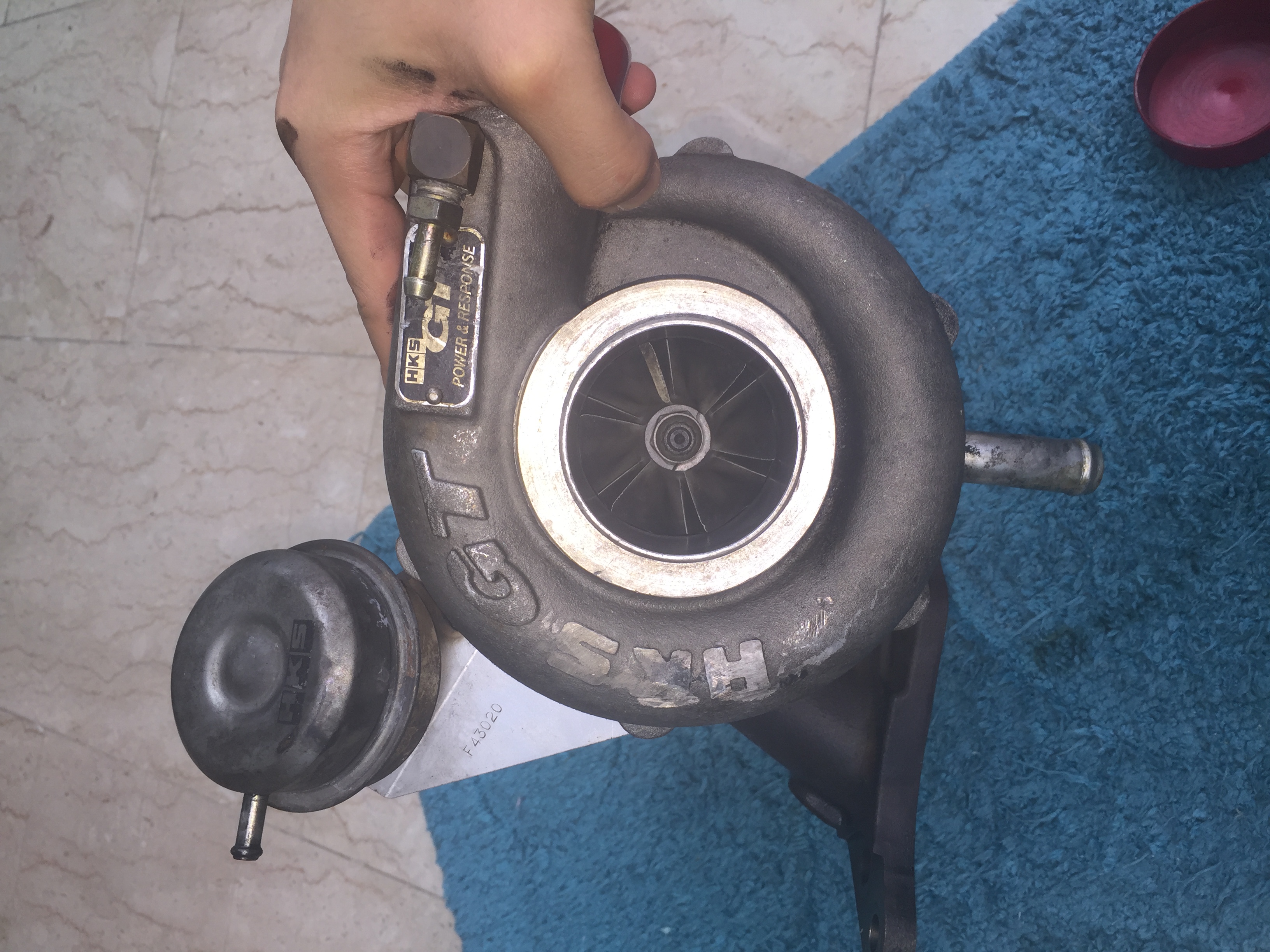

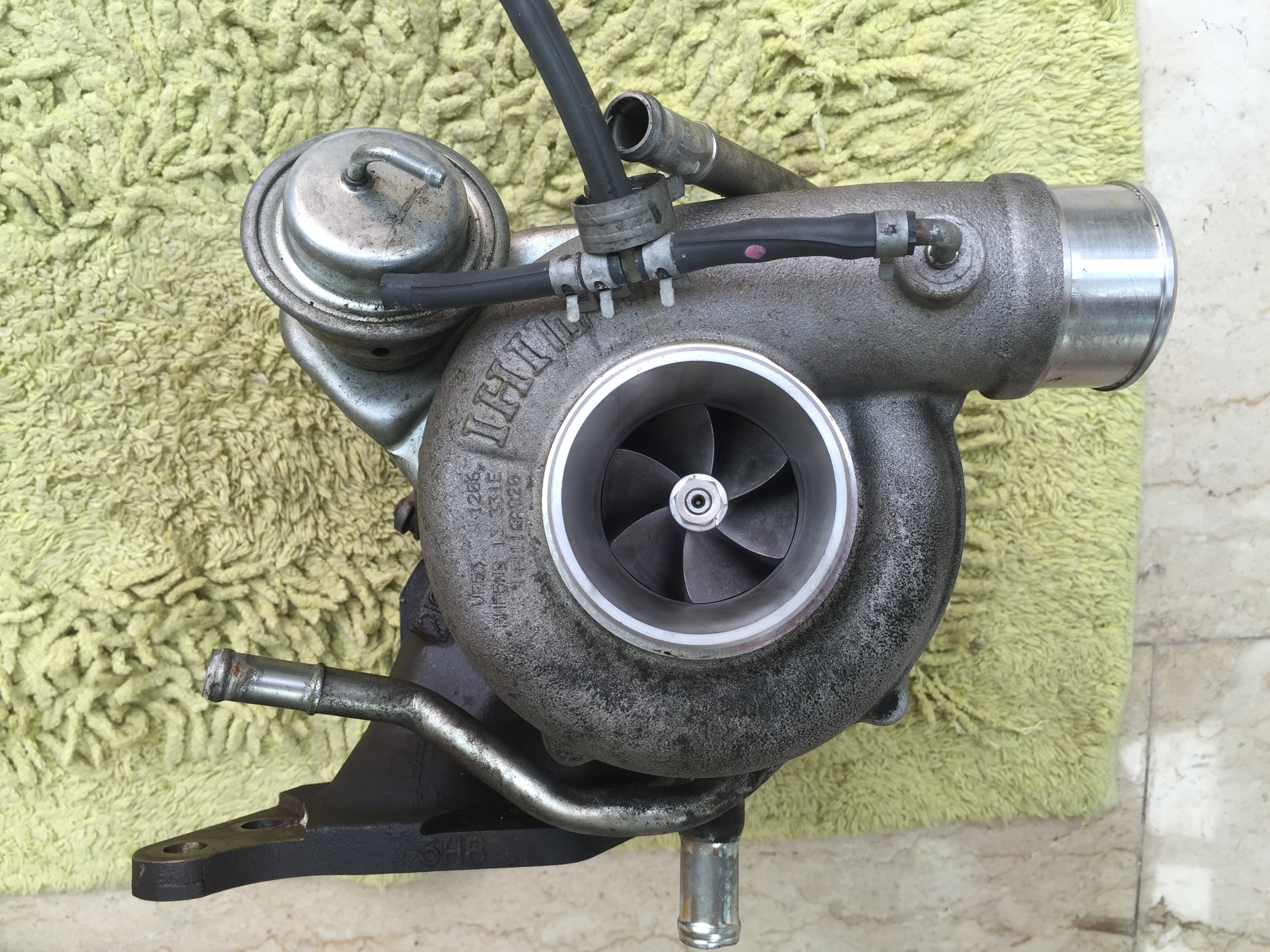

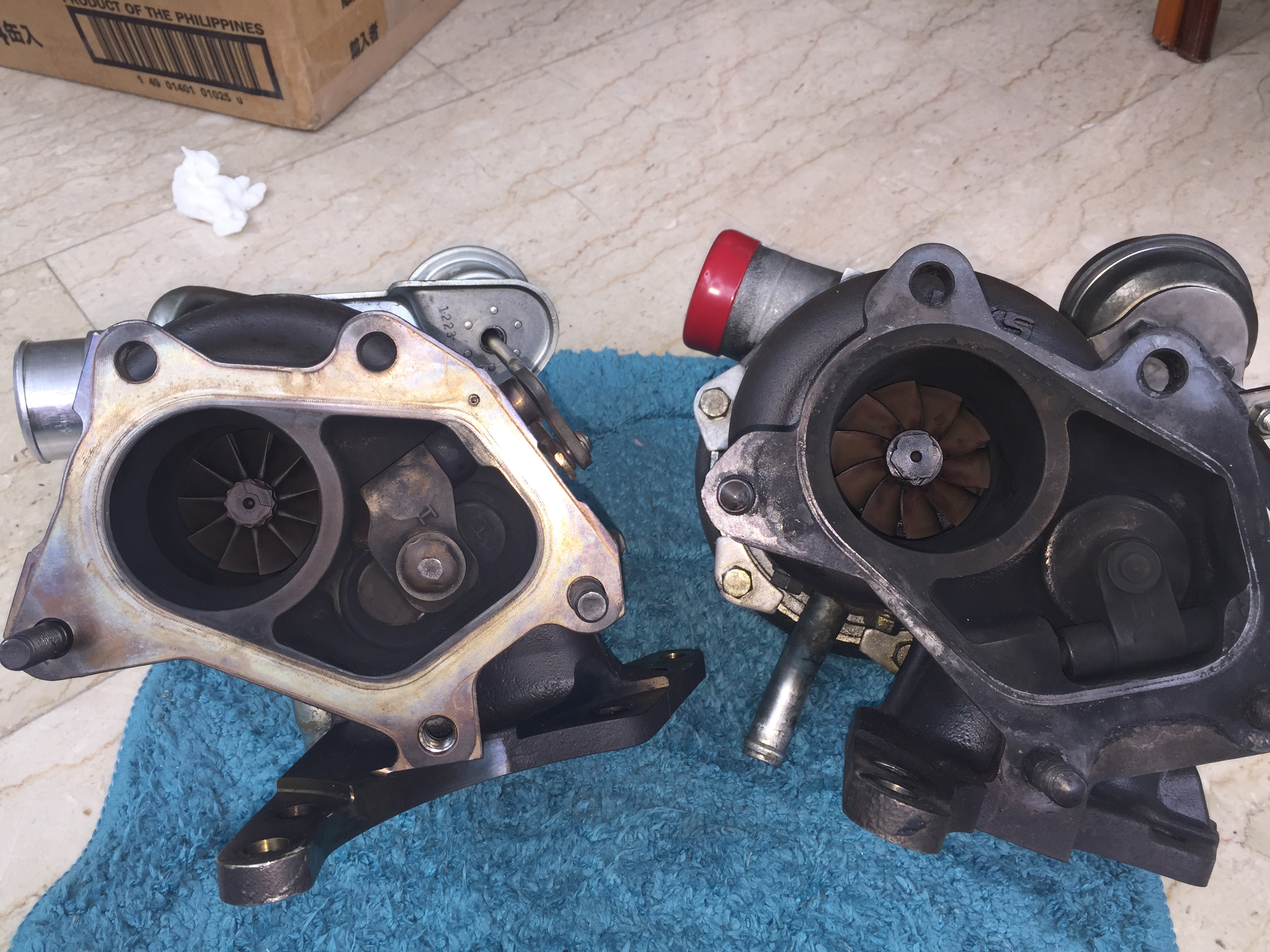

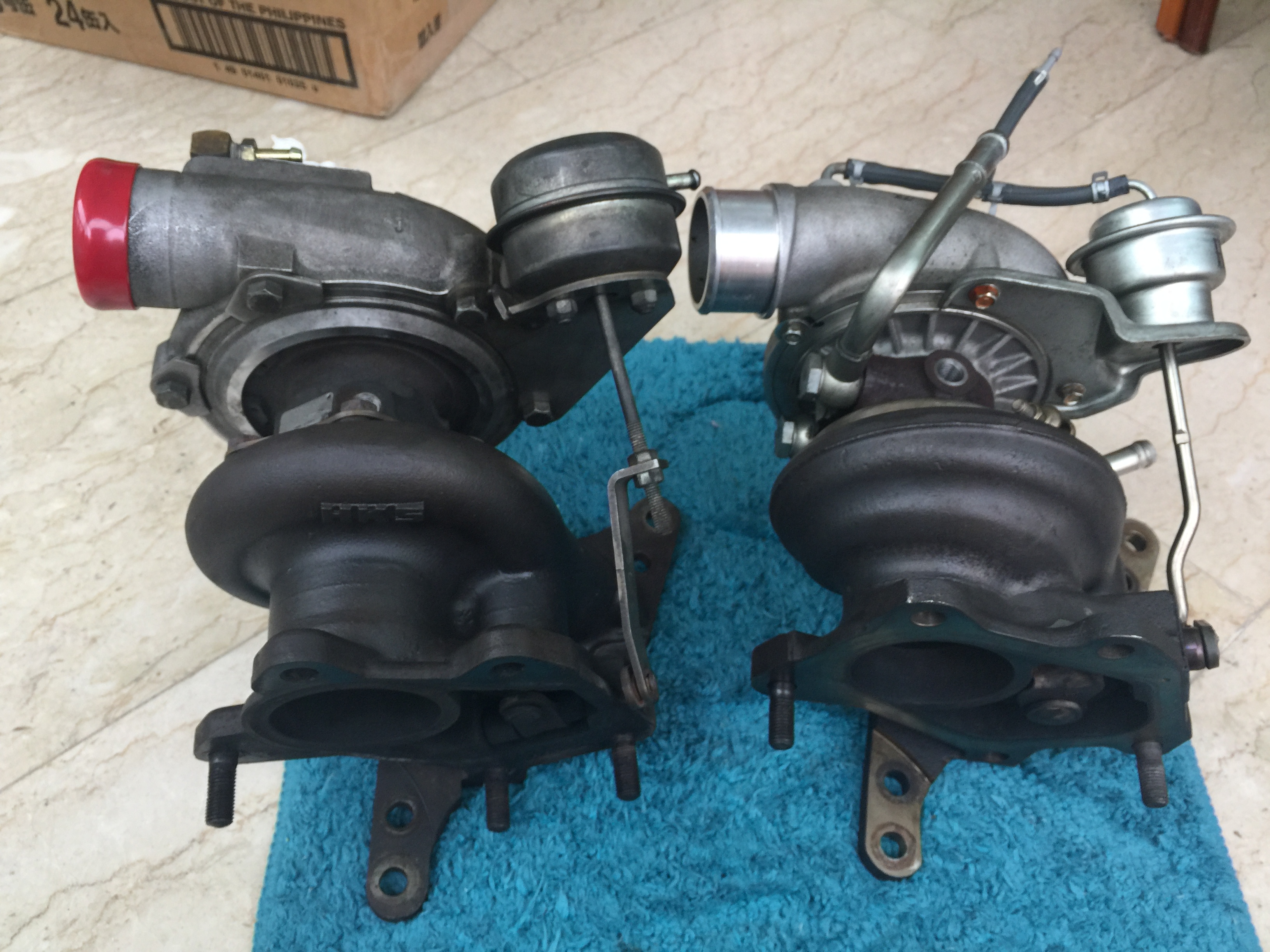

Comparison is between HKS 2835 Twin "Scroll" and VF53 Twin Scroll Turbo.

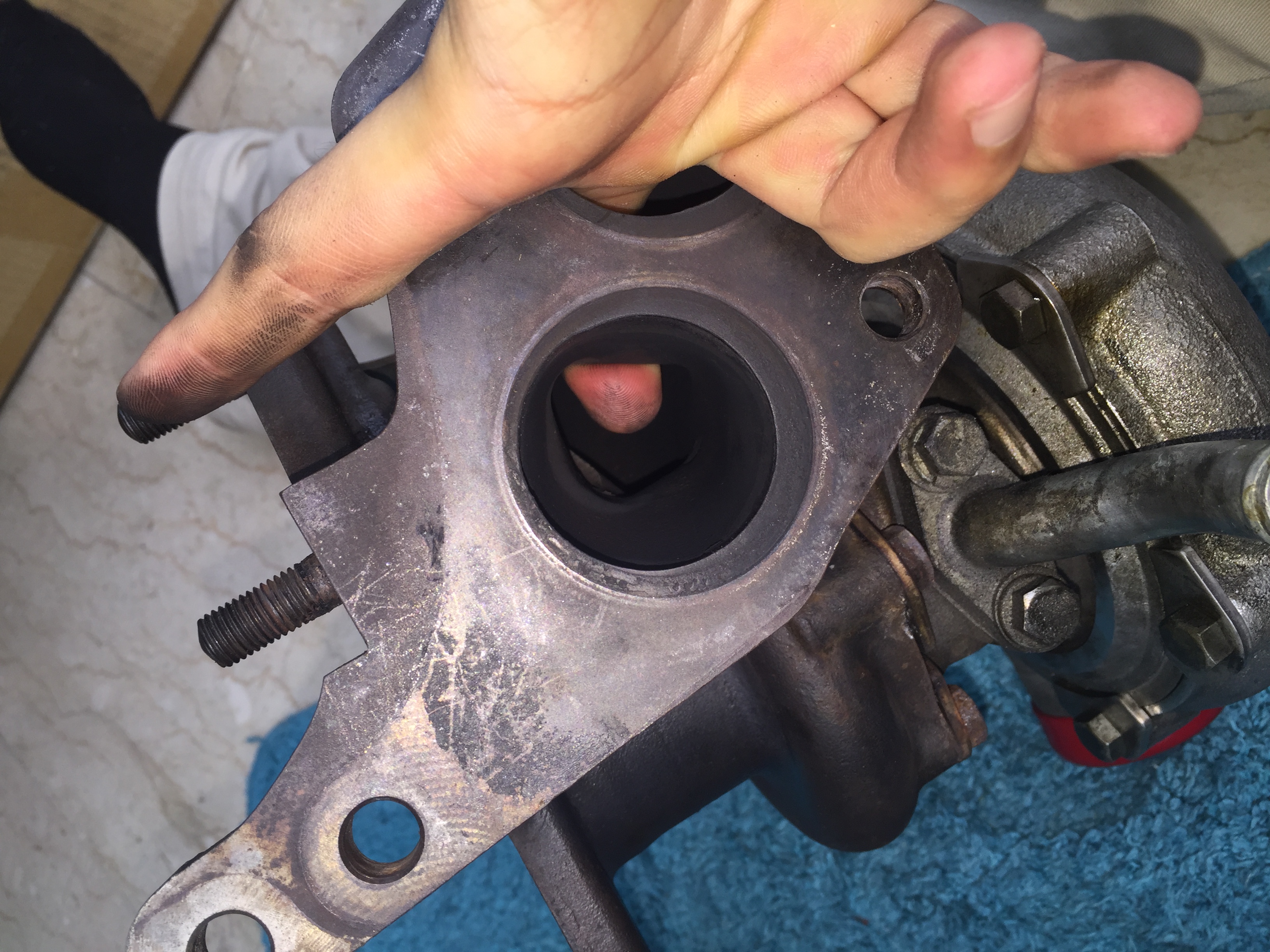

Notice in the last pic, where my finger is able to go through the 2 ports of the HKS Twin "Scroll" Turbo.

Hence, it is evident that the HKS turbo is Twin ENTRY.

That being said, I have not seen any conclusive evidence of the Litchfield LM400/420/450 Twin "Scroll" Unit.

Would anyone like to share if the Litchfield Unit is a True Twin Scroll or Twin ENTRY?


Cliff notes: HKS Twin "Scroll" Turbo is actually Twin ENTRY as it does not have the dividing scrolls like the VF36/37/49/53 Twin Scroll Turbo.
Attached Thumbnails Click image for larger version

Name:	Photo 17-5-16, 4 54 50 PM.jpg
Views:	0
Size:	1.96 MB
ID:	21472   Click image for larger version

Name:	Photo 12-9-15, 4 42 38 PM.jpg
Views:	0
Size:	2.19 MB
ID:	21473   Click image for larger version

Name:	Photo 17-5-16, 5 07 03 PM.jpg
Views:	0
Size:	2.26 MB
ID:	21474   Click image for larger version

Name:	Photo 17-5-16, 5 13 16 PM.jpg
Views:	0
Size:	1.85 MB
ID:	21475   Click image for larger version

Name:	Photo 17-5-16, 5 08 27 PM (1).jpg
Views:	0
Size:	2.22 MB
ID:	21476

PrinceVegeta is offline
Old 18 September 2016, 05:40 PM
  #1229
joz8968
Scooby Regular
iTrader: (13)

joz8968's Avatar

Join Date: Aug 2006
Location: Indochina......hiding inside a bowl of rice
Posts: 23,708
Default

It's all about those volutes!
joz8968 is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
KAS35RSTI
Subaru
24
07 March 2019 12:06 AM
[email protected] Developments
Full Cars Breaking For Spares
28
28 December 2015 11:07 PM
[email protected] Developments
Full Cars Breaking For Spares
12
18 November 2015 07:03 AM
InTurbo
Other Marques
20
08 October 2015 08:59 PM
Ganz1983
Subaru
5
02 October 2015 09:22 AM


Thread Tools
Search this Thread
Quick Reply: litchfield twin scroll turbo


Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
