Carbon Fibre wide arch classic
Scooby Regular
Joined: Oct 2005
Posts: 483
Likes: 0
From: Great Totham
Just got in, from fitting the sub frame and brakes. Me and my mate started at 2 this afternoon and finish at 9.30. What an afternoon and evening so tired. I write it up tomorrw some time got loads of picture's. Going to bed in a min for some.
Scooby Regular
Joined: Oct 2005
Posts: 483
Likes: 0
From: Great Totham
And ABW do it.
Scooby Regular
Joined: Oct 2005
Posts: 483
Likes: 0
From: Great Totham
Ok, what I'll do is right this up over the next couple of days.

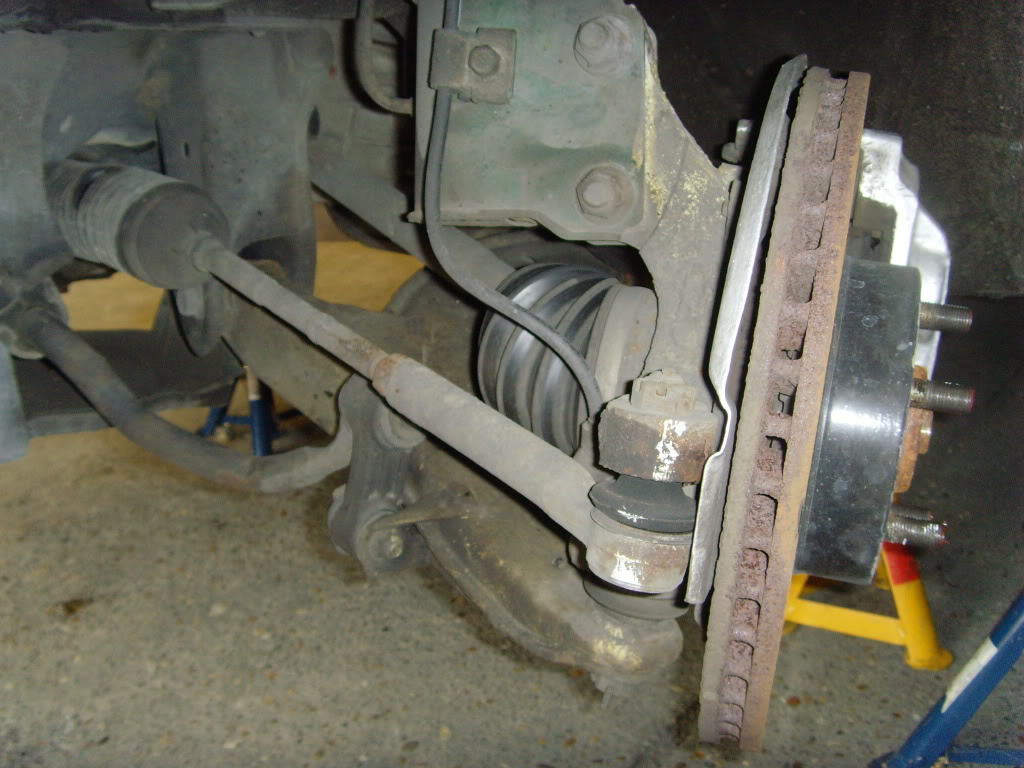

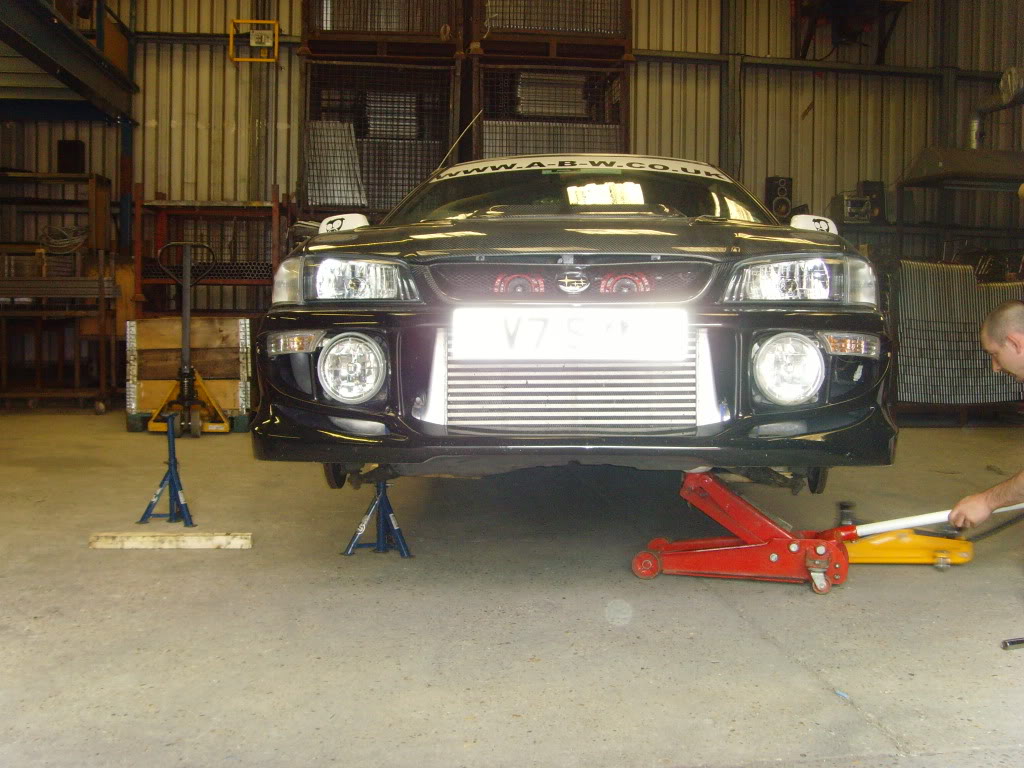

- first thing to do is jack the car up. So we can work under it.
- These are the parts that are coming of.

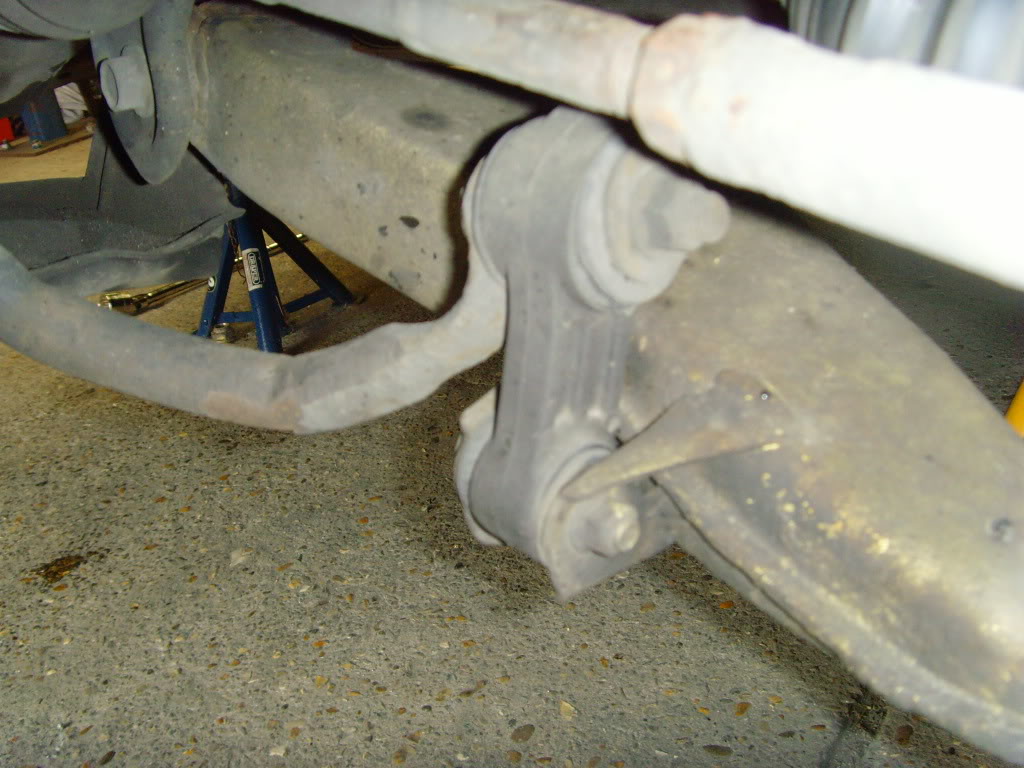

- Anti-Roll Bars
- Drop links

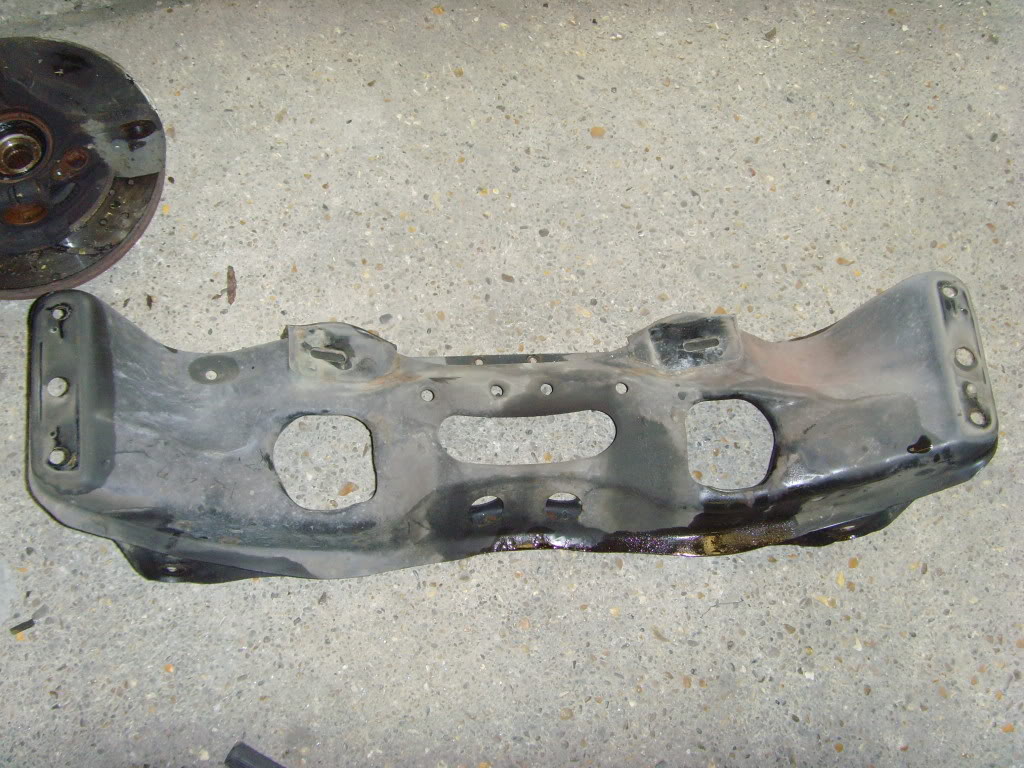

- sub frame

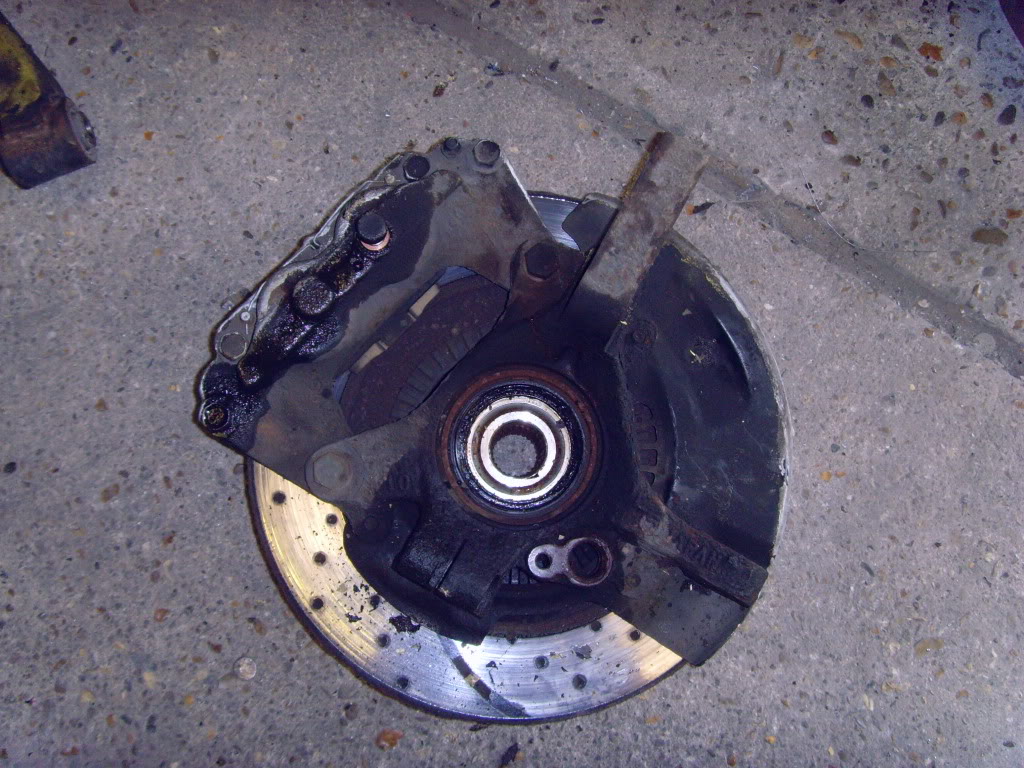

- Hubs

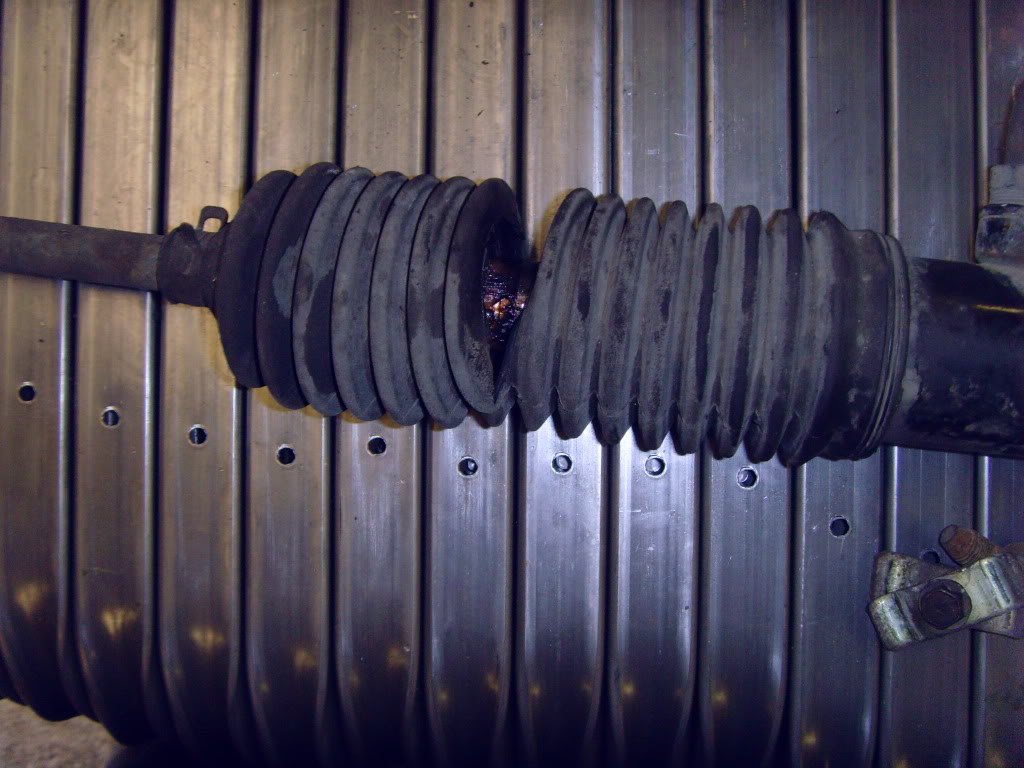

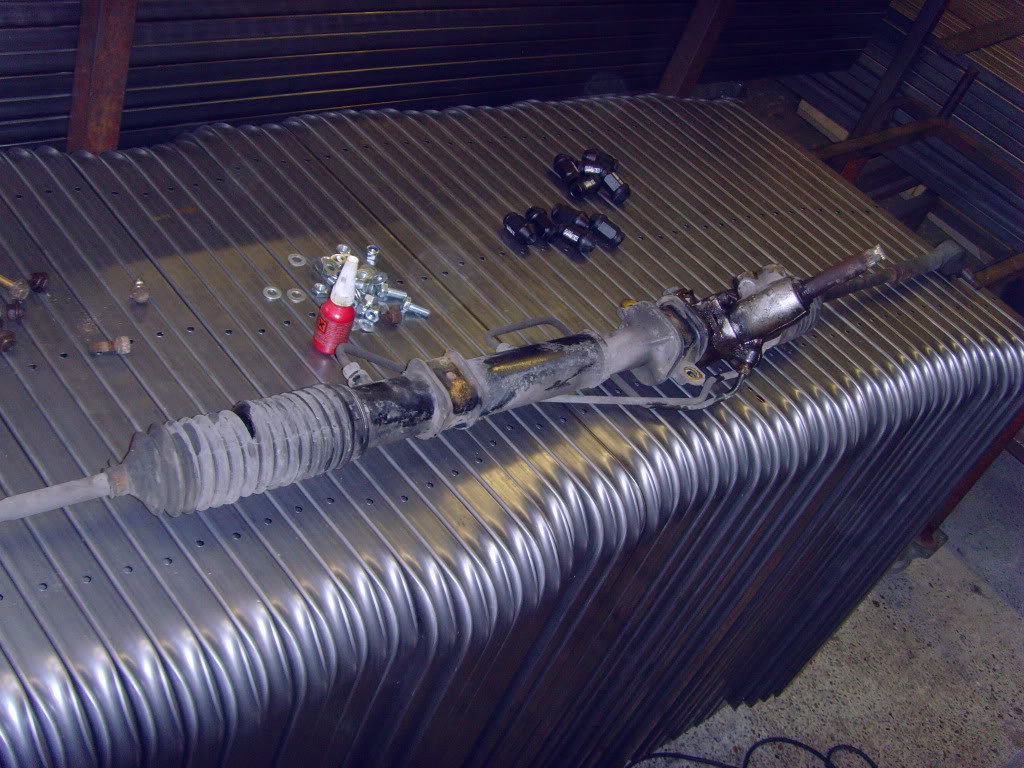

- Steering Rack

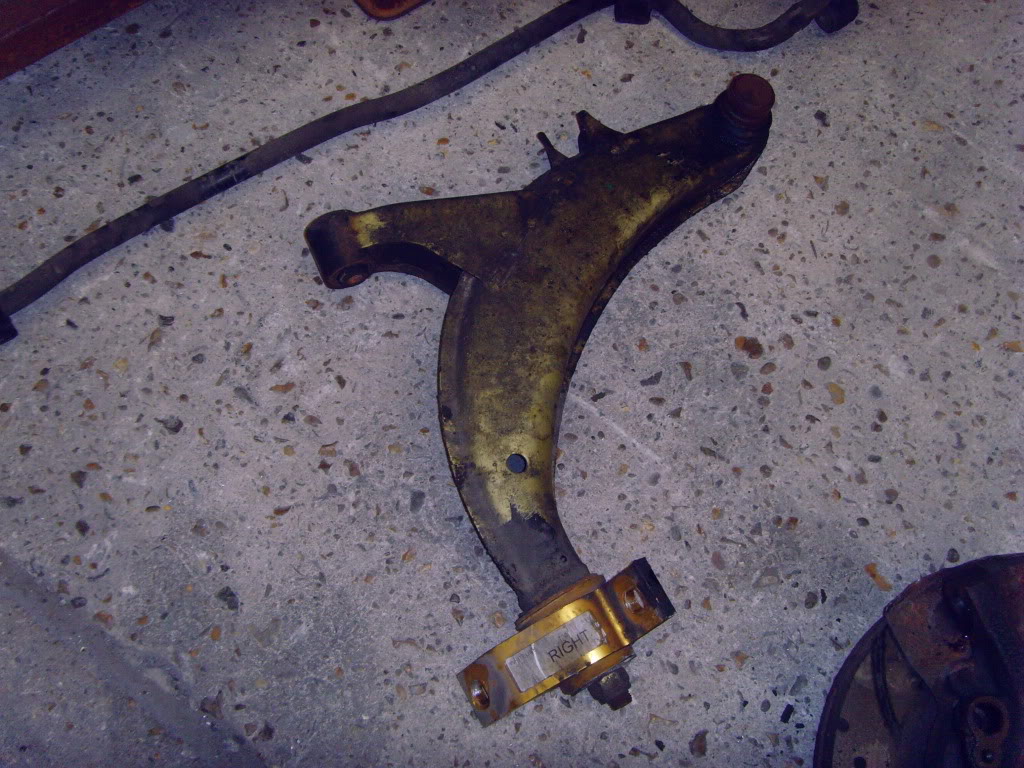

- Wishbones

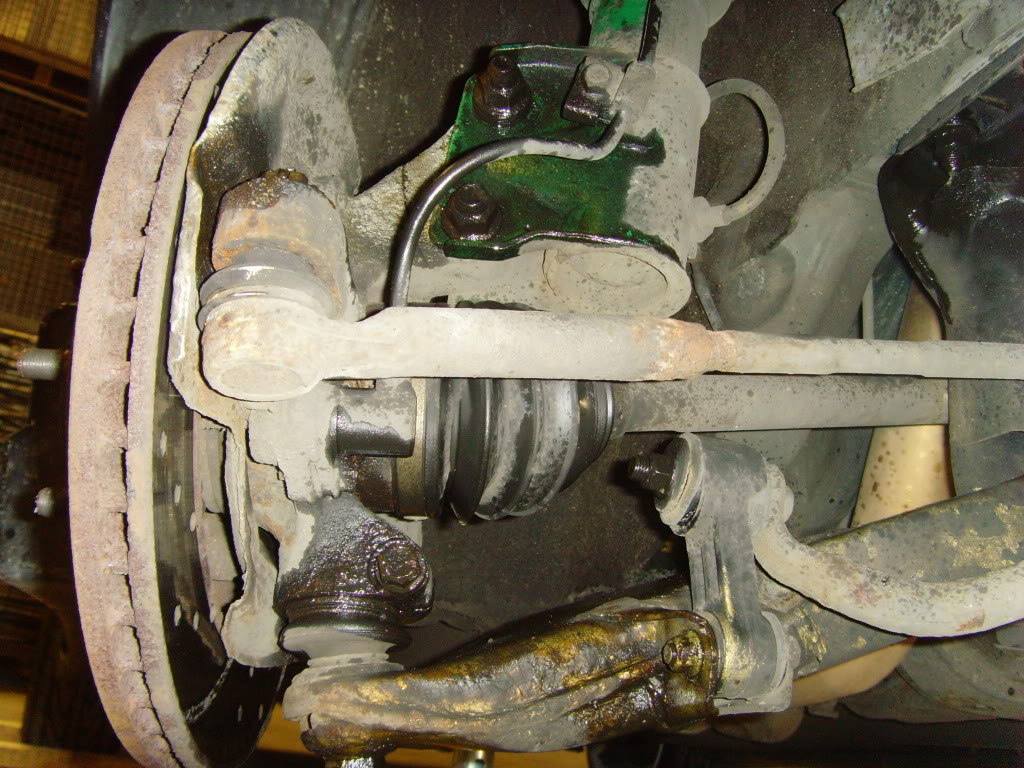

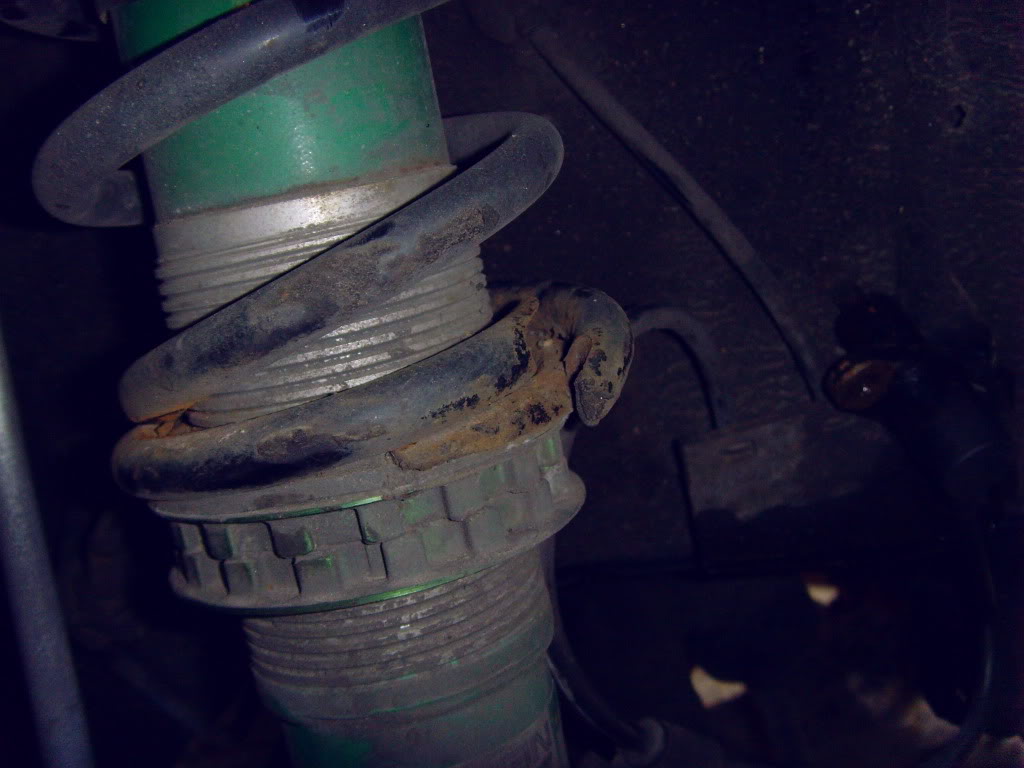

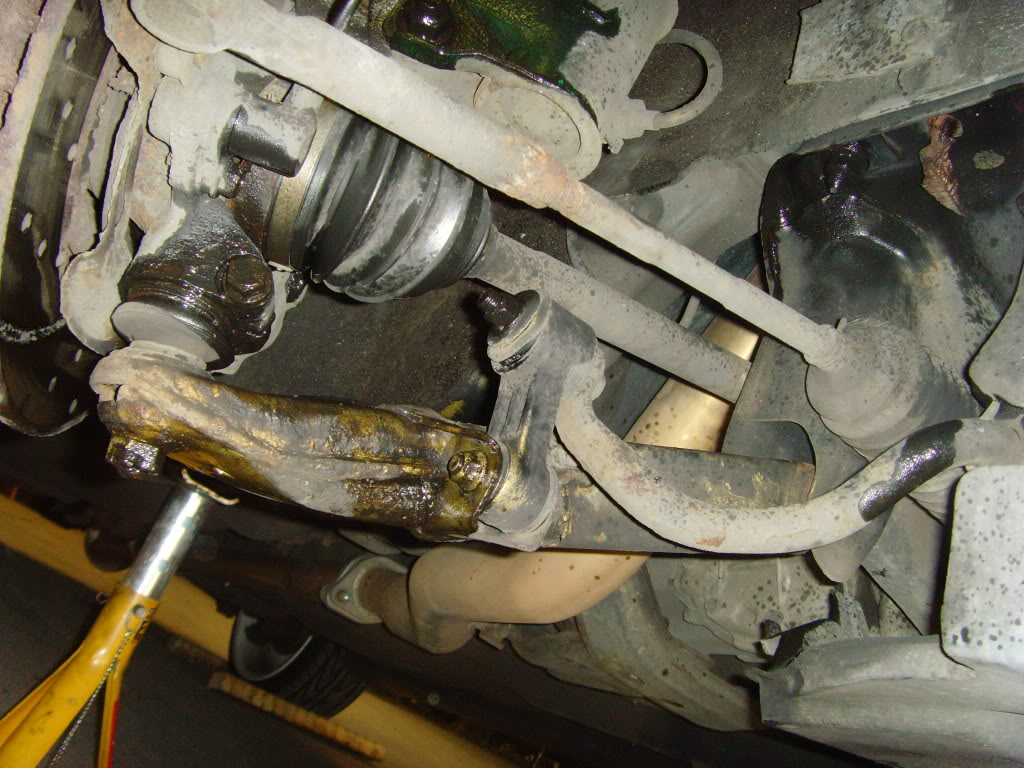

- Spay all the bolts with WD40 just to losen the rust a little.

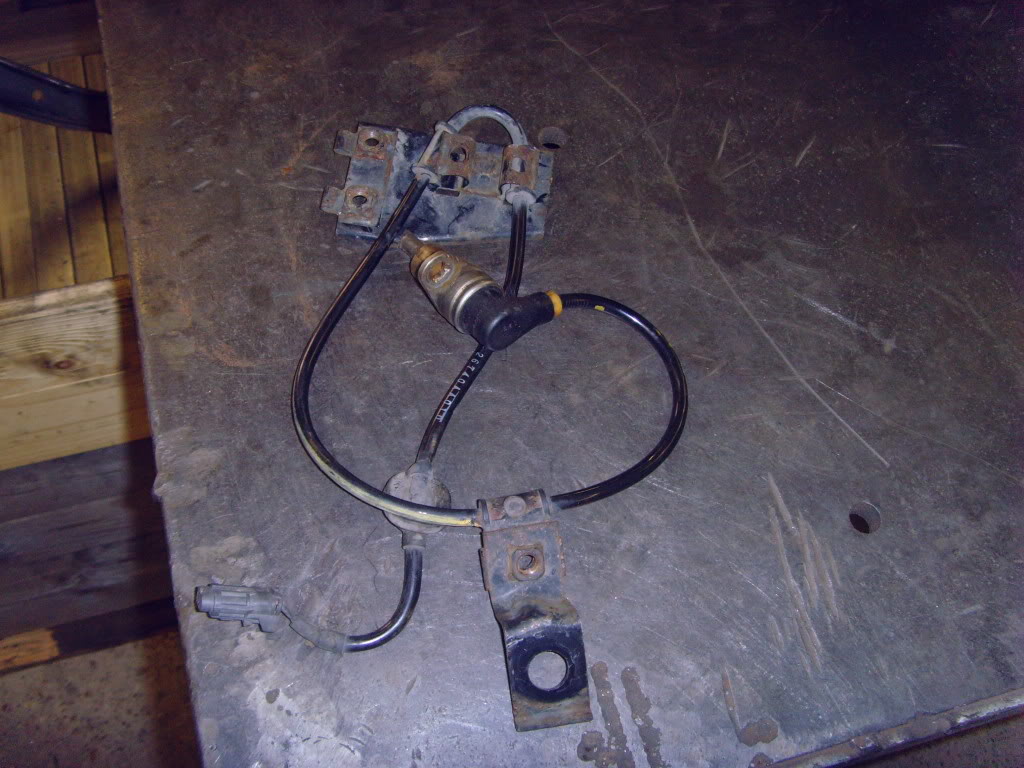

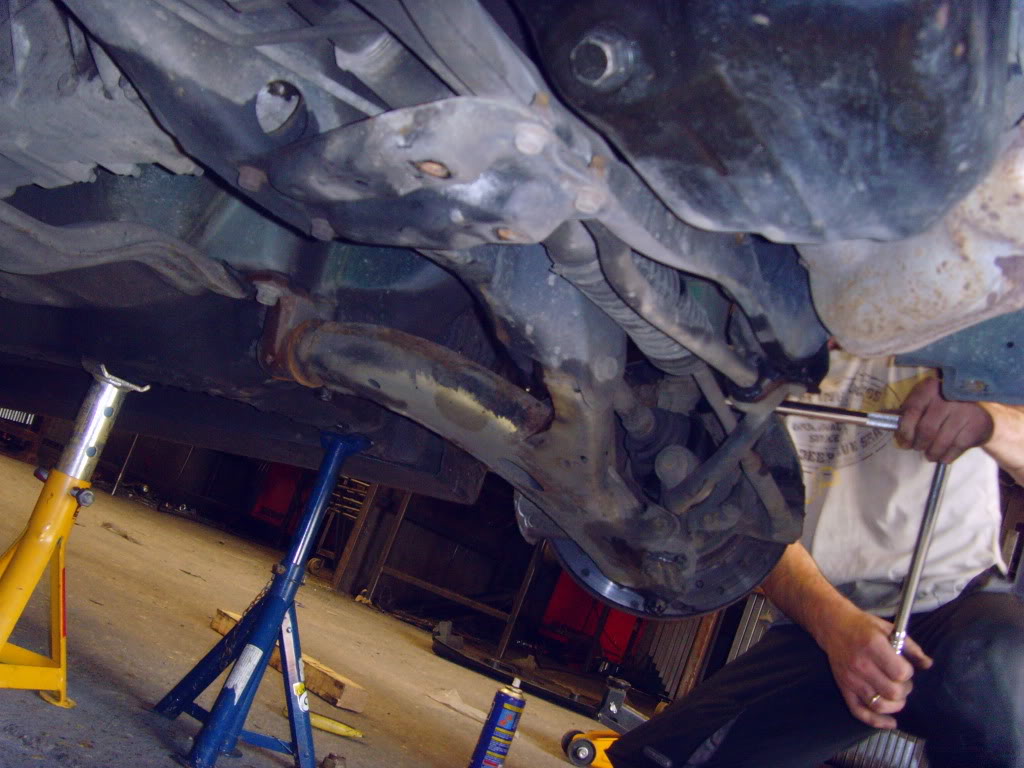

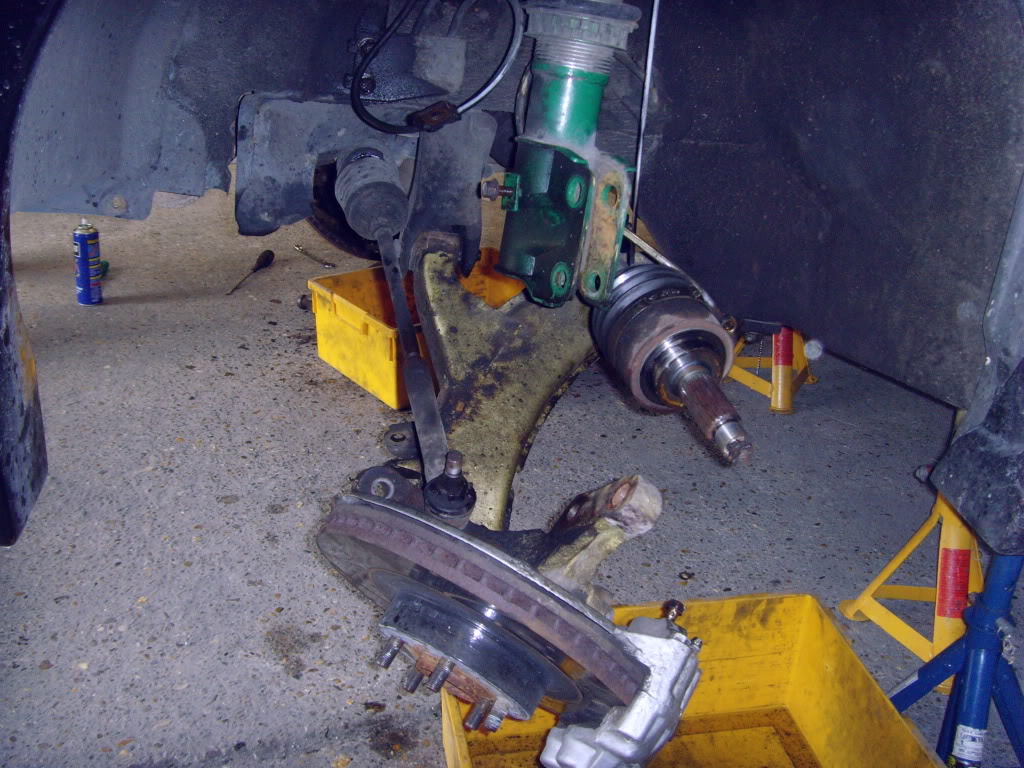

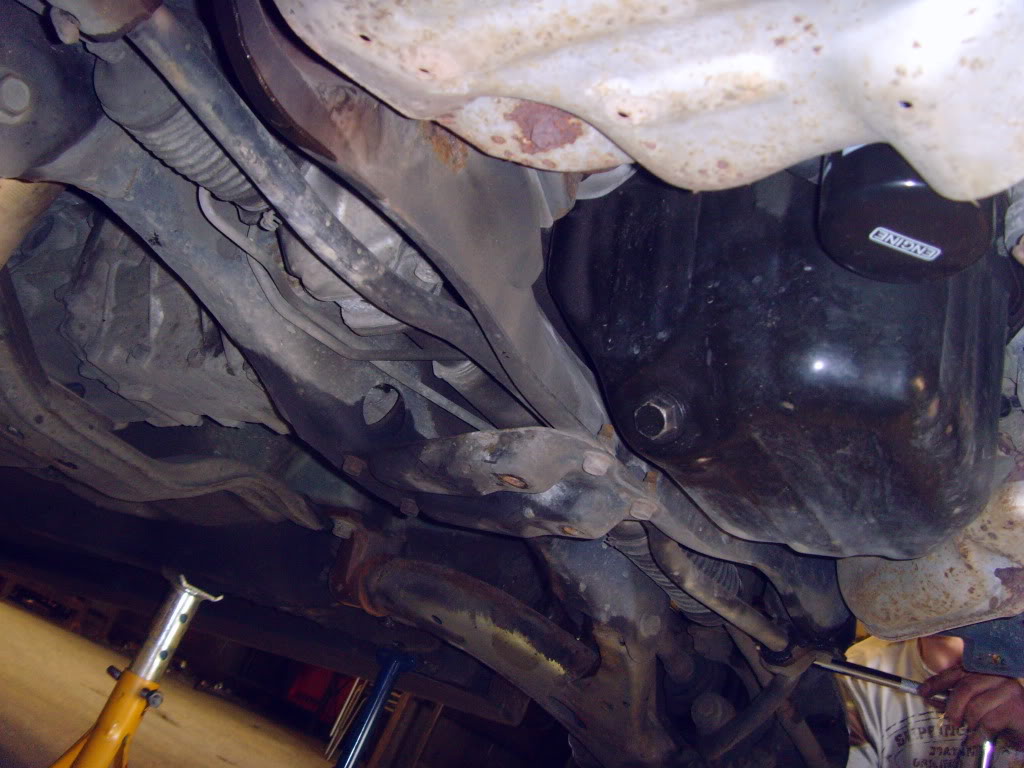

- Then start removing the parts one by one.

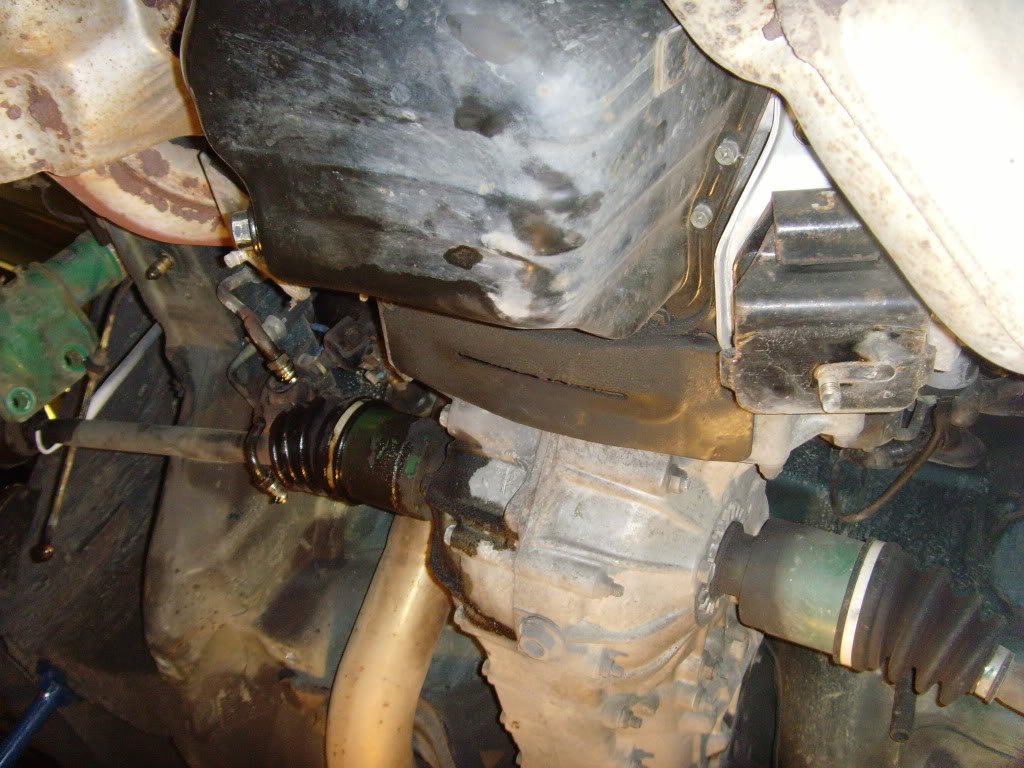

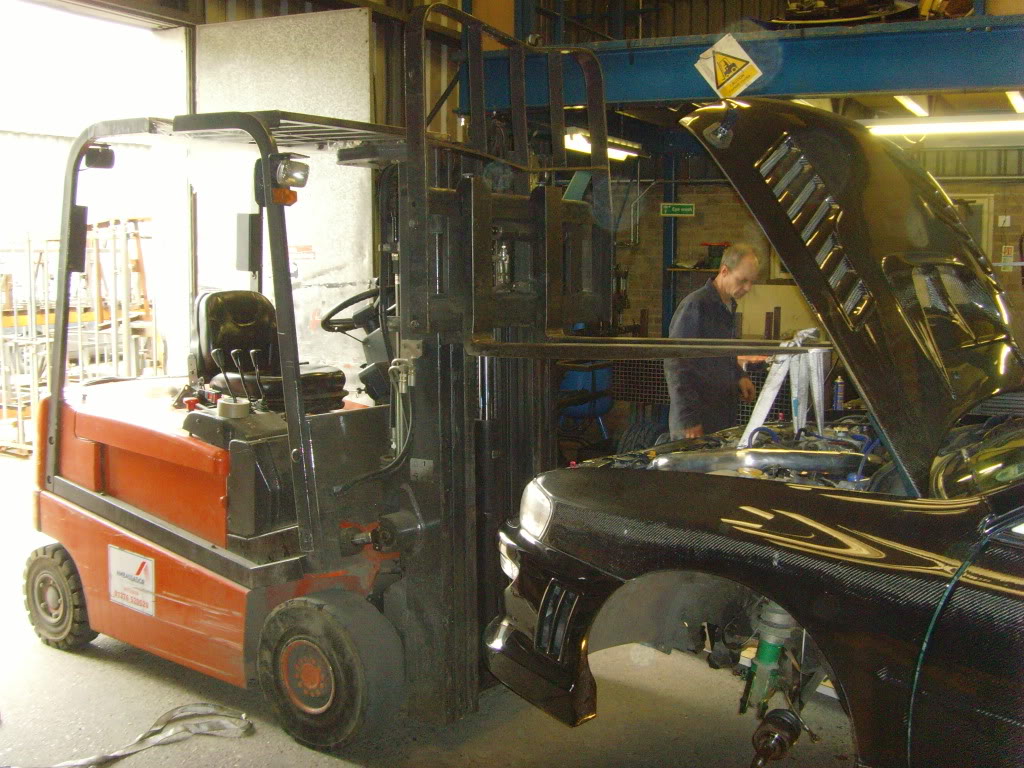

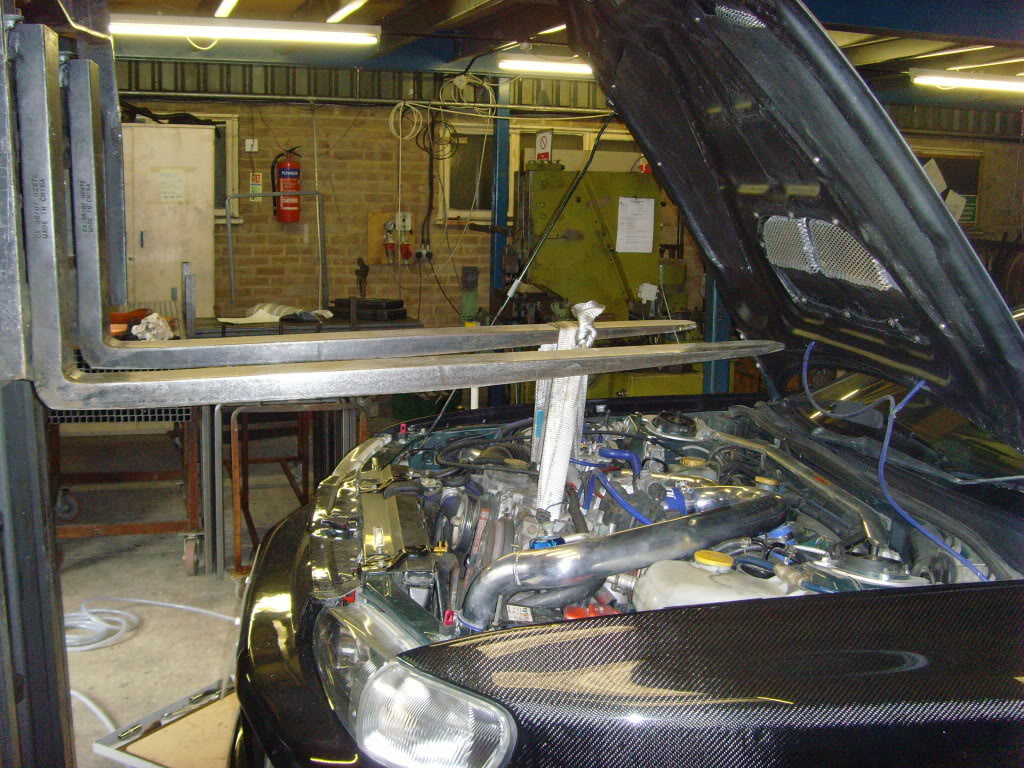

- Because the sub frame was remove we had to support the engine, the best thing to use would of been an engine hoist but I did'nt have one. So I had to use the next best thing a fork truck.

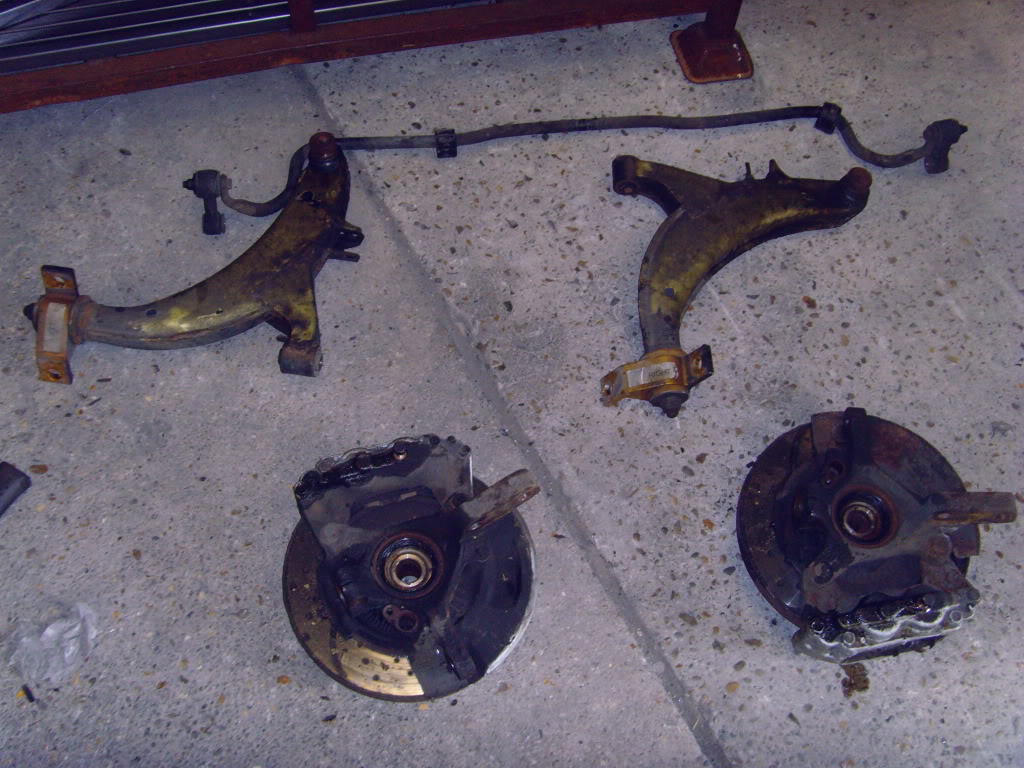

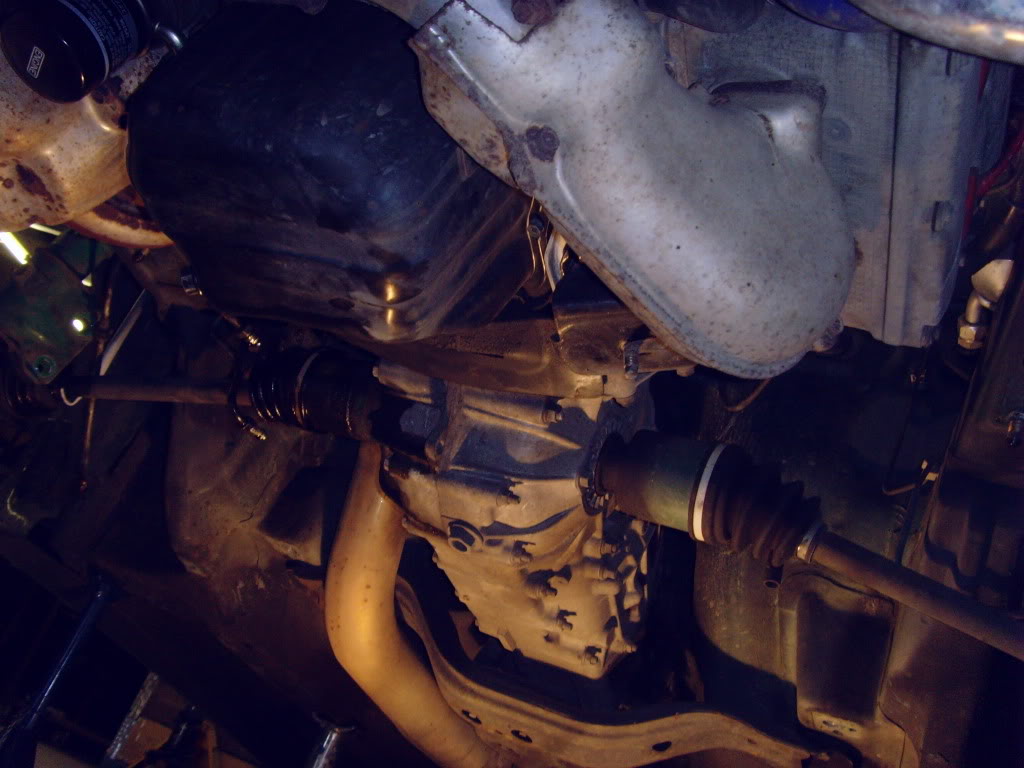

- Its all remove now just have to put it back together with the new painted parts.
Last edited by V7 SYN; Jun 20, 2009 at 10:10 PM.
Should be fun.
,reagards the front droplinks i think you will have to take them off once fitted to car as you will find they sit at a very severe angle, there was a post on here from ages ago where a fellla thought he had bent his just turns out he had alloy wishbones, also i wouldnt use the whitline ones as they bang like hell on a day to day basis and also rust very quickly, i even managed to snap one of mine,
this is what i went back to:
IMPREZA PARTS 2.0I TURBO GC8/GF8 EJ20G EJ205 93 TO 2000 IMPORT Front Droplinks - 90-100mm Balljoint Type - Impreza IMPREZA 2.0i Turbo GC8/GF8 EJ20G EJ205 93 TO 2000 Import :: £57.74 :: Subaru Impreza Turbo Parts, Tuning, Spares & Accessories :: 2.0i
tried and tested
Hope this is of some help.
Rich
Scooby Regular
Joined: Oct 2005
Posts: 483
Likes: 0
From: Great Totham
Cars looking good fella,
reagards the front droplinks i think you will have to take them off once fitted to car as you will find they sit at a very severe angle, there was a post on here from ages ago where a fellla thought he had bent his just turns out he had alloy wishbones, also i wouldnt use the whitline ones as they bang like hell on a day to day basis and also rust very quickly, i even managed to snap one of mine,
this is what i went back to:
IMPREZA PARTS 2.0I TURBO GC8/GF8 EJ20G EJ205 93 TO 2000 IMPORT Front Droplinks - 90-100mm Balljoint Type - Impreza IMPREZA 2.0i Turbo GC8/GF8 EJ20G EJ205 93 TO 2000 Import :: £57.74 :: Subaru Impreza Turbo Parts, Tuning, Spares & Accessories :: 2.0i
tried and tested
Hope this is of some help.
Rich
,reagards the front droplinks i think you will have to take them off once fitted to car as you will find they sit at a very severe angle, there was a post on here from ages ago where a fellla thought he had bent his just turns out he had alloy wishbones, also i wouldnt use the whitline ones as they bang like hell on a day to day basis and also rust very quickly, i even managed to snap one of mine,
this is what i went back to:
IMPREZA PARTS 2.0I TURBO GC8/GF8 EJ20G EJ205 93 TO 2000 IMPORT Front Droplinks - 90-100mm Balljoint Type - Impreza IMPREZA 2.0i Turbo GC8/GF8 EJ20G EJ205 93 TO 2000 Import :: £57.74 :: Subaru Impreza Turbo Parts, Tuning, Spares & Accessories :: 2.0i
tried and tested
Hope this is of some help.
Rich
Scooby Regular
Joined: Oct 2005
Posts: 483
Likes: 0
From: Great Totham
These are the painted bits fitted.

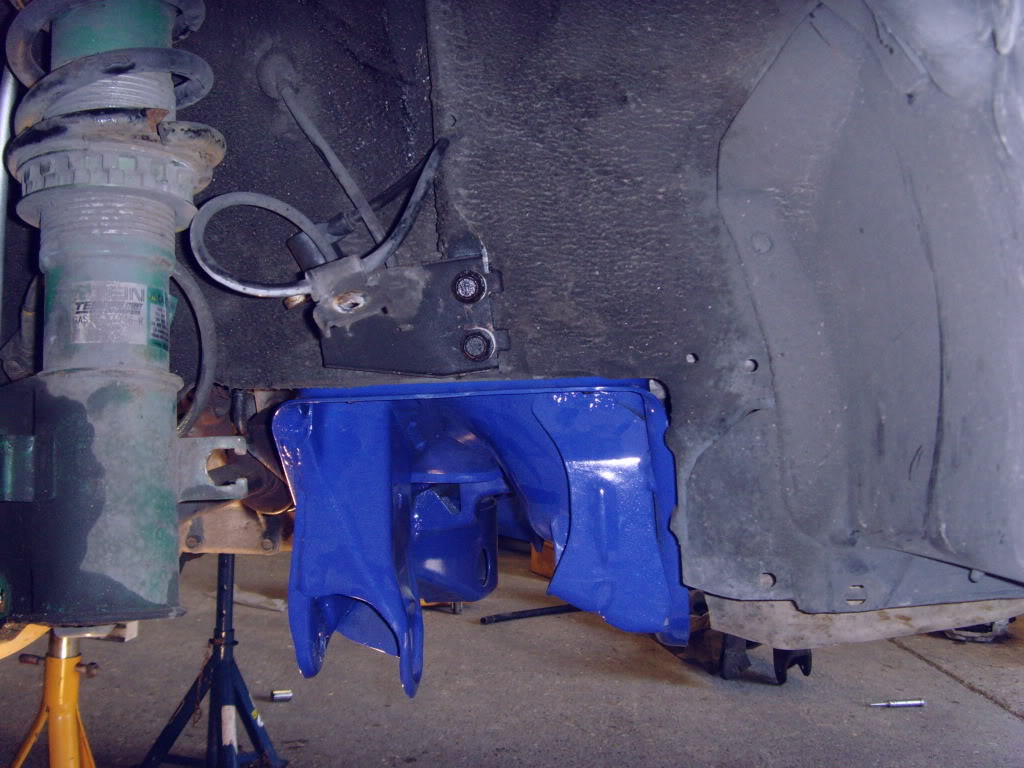

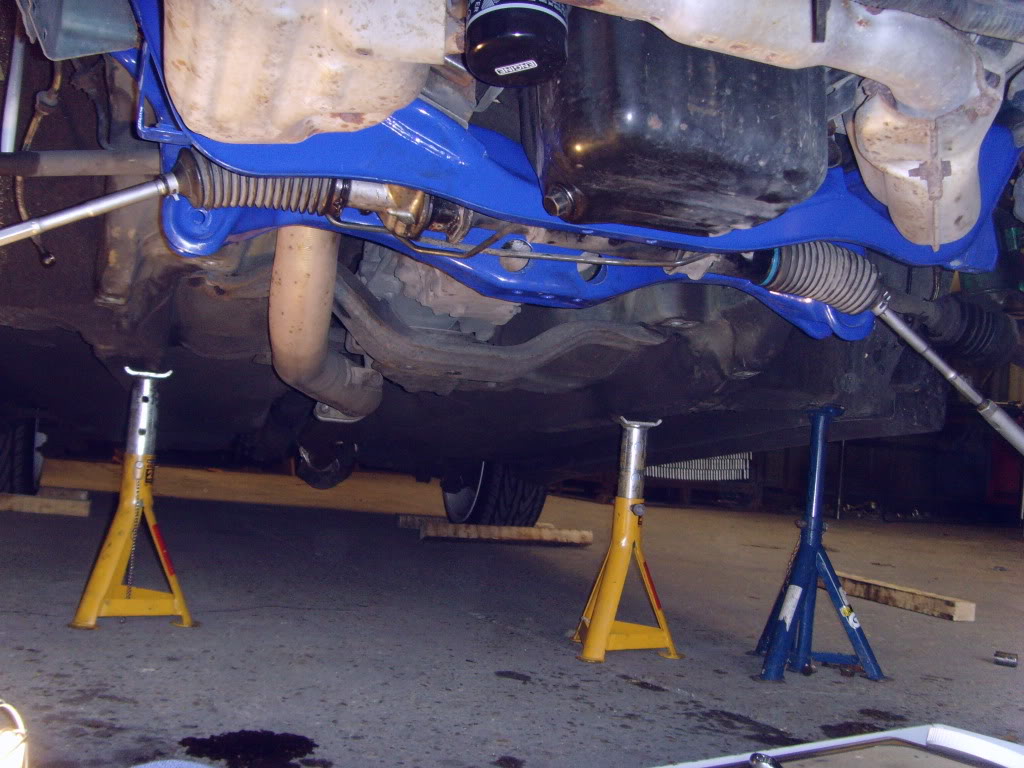

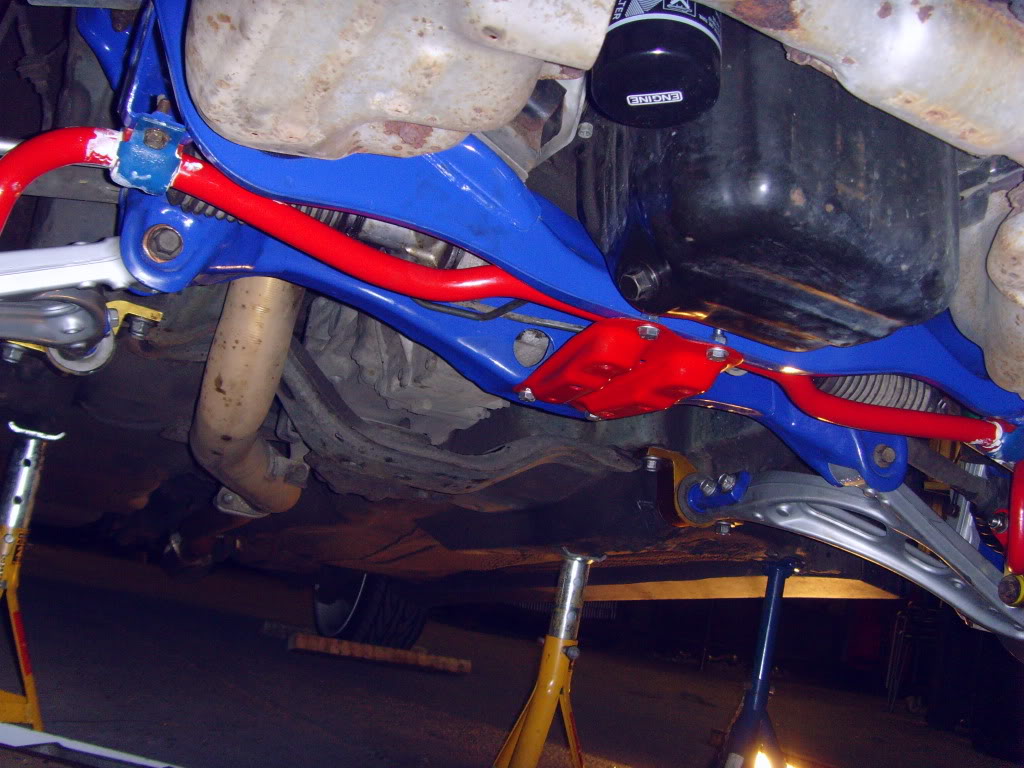

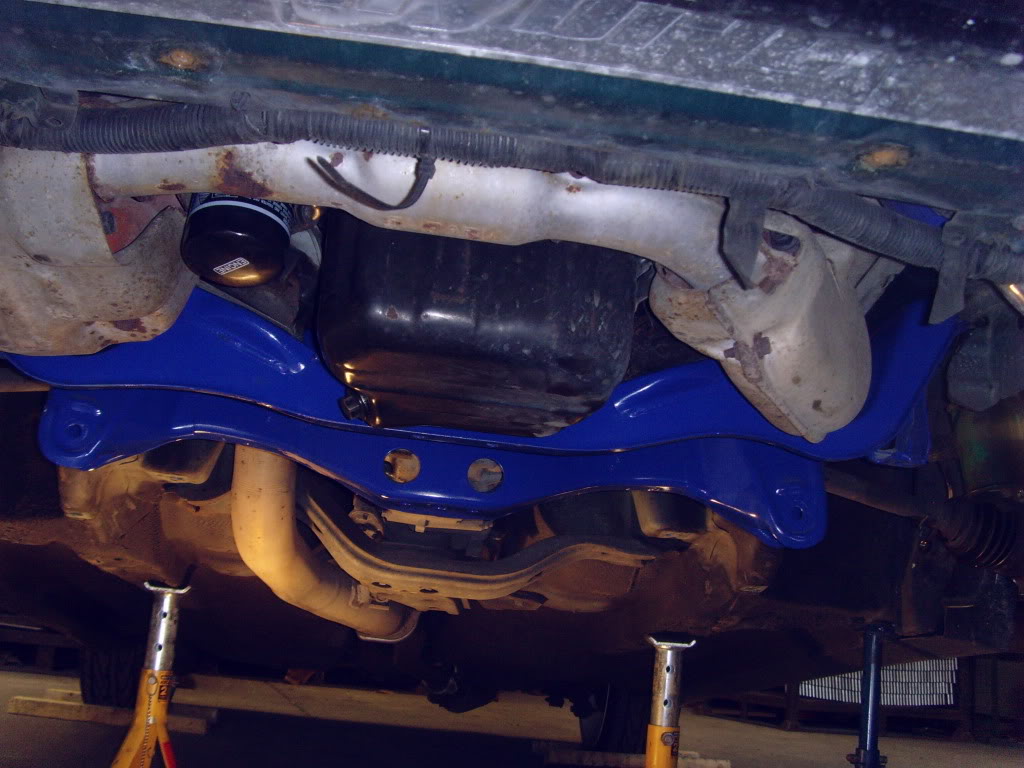

- Subframe

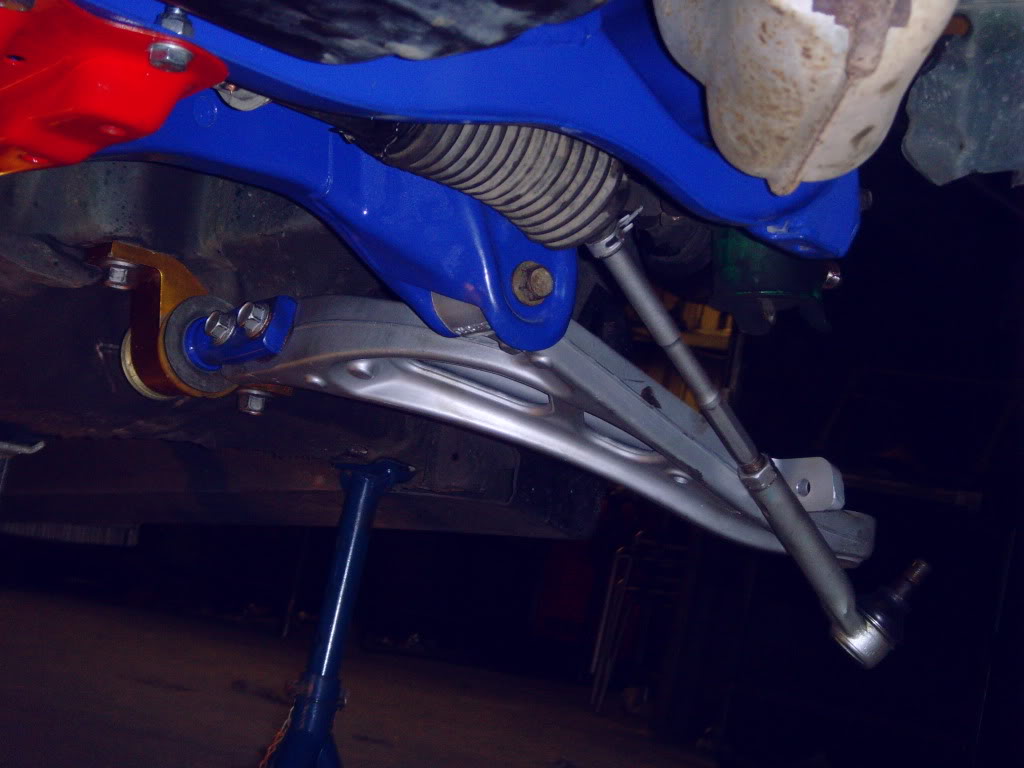

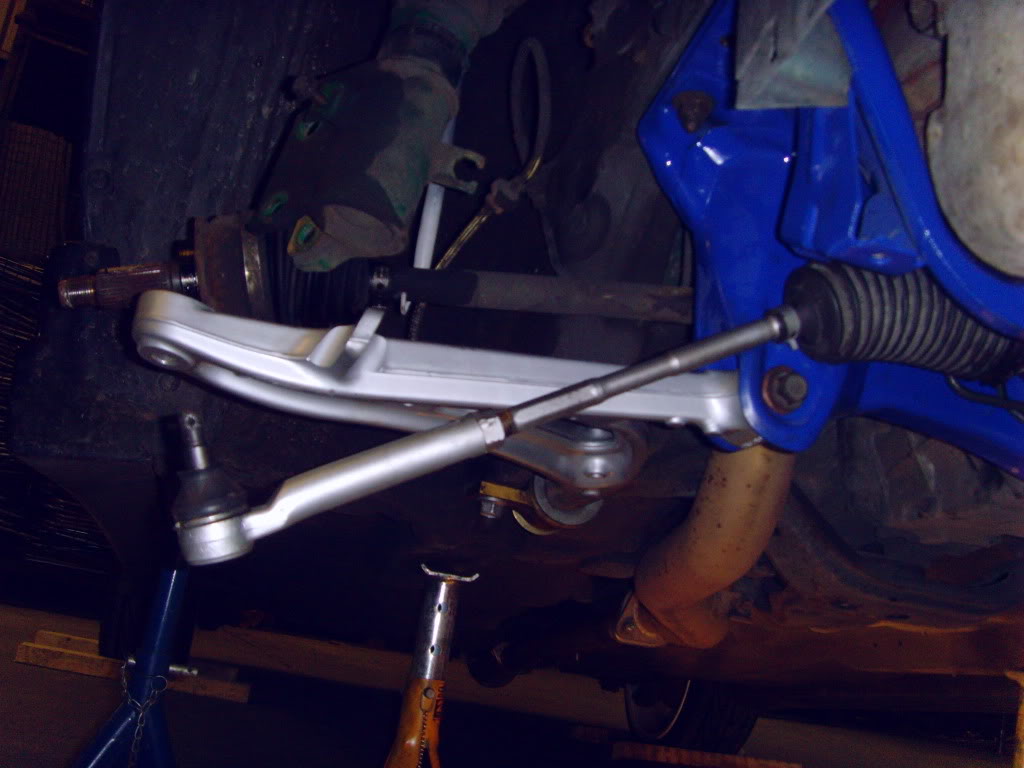

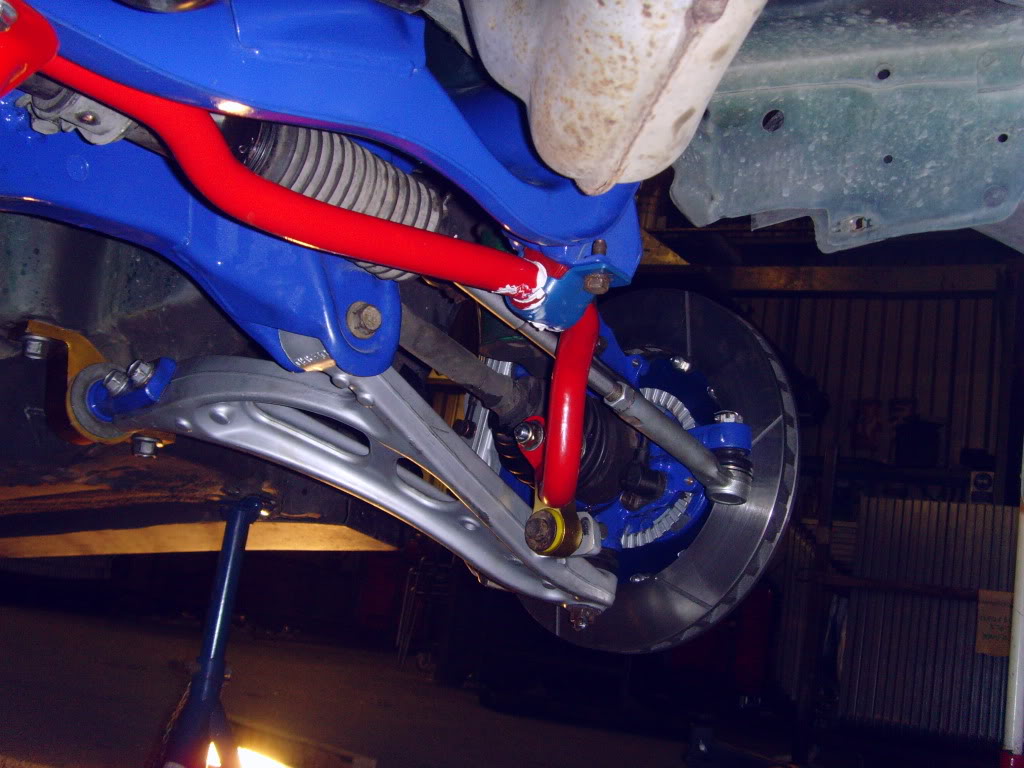

- Steering rack and wishbones

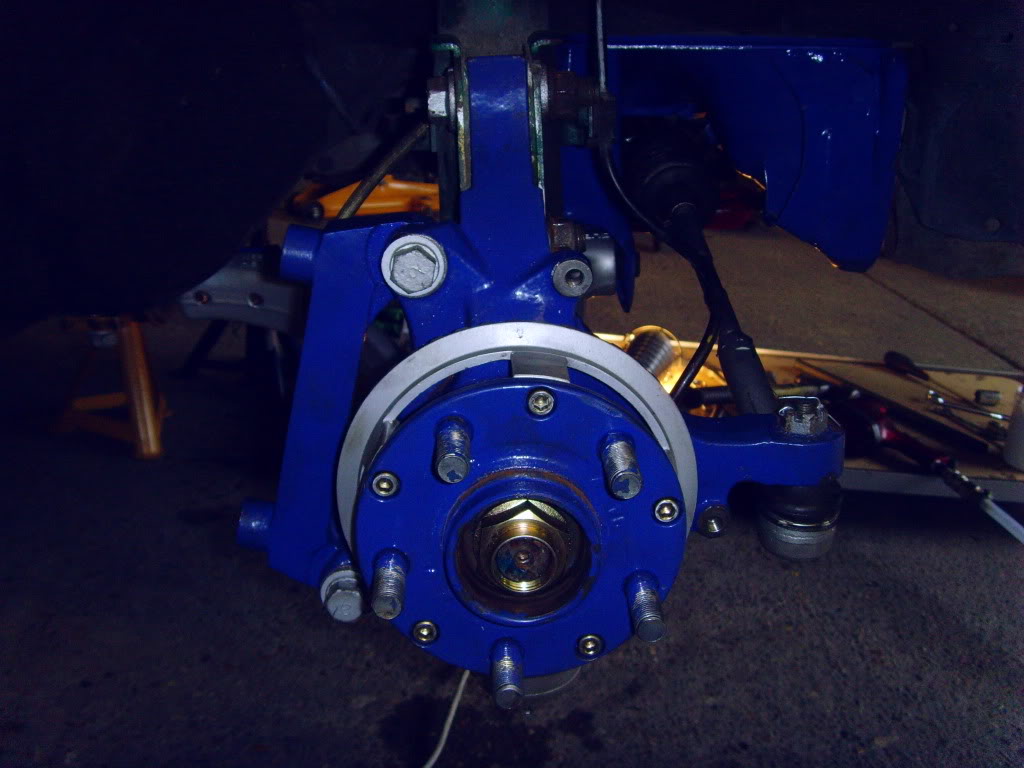

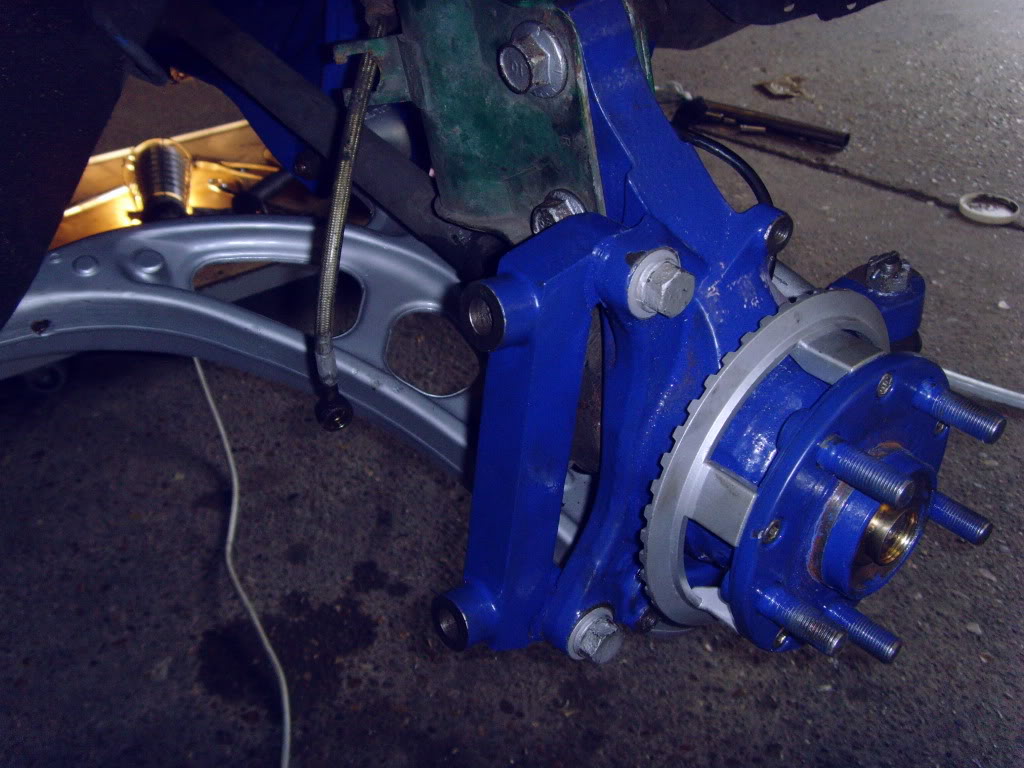

- Hubs

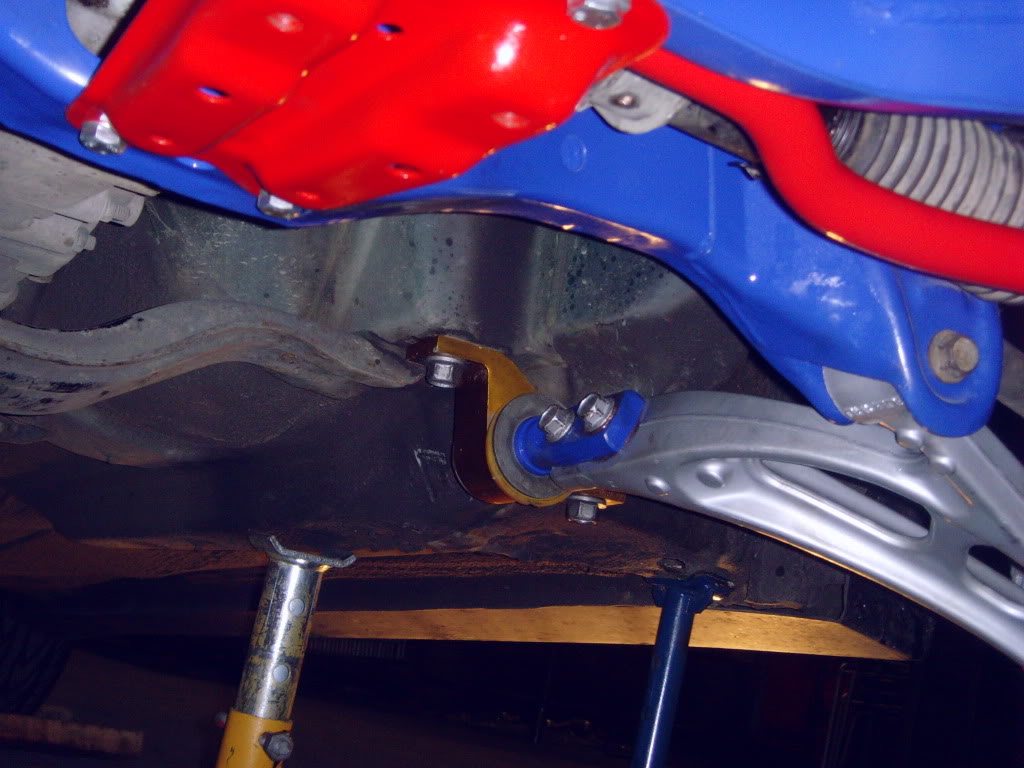

- Anti-roll bars and anti lift kit.

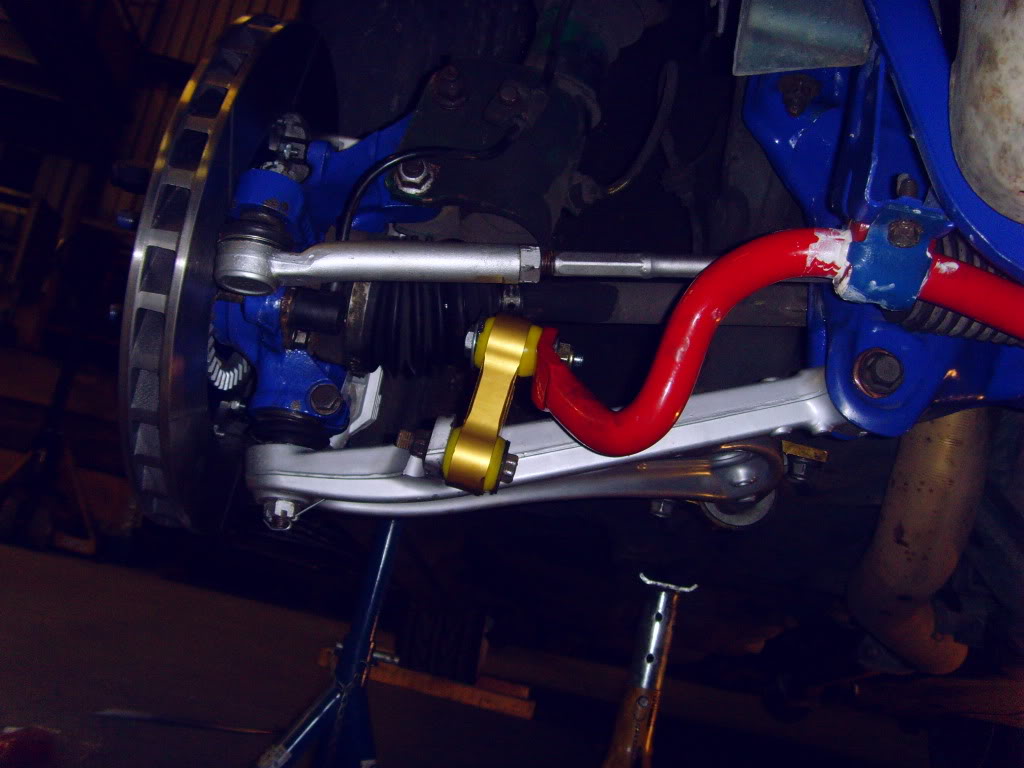

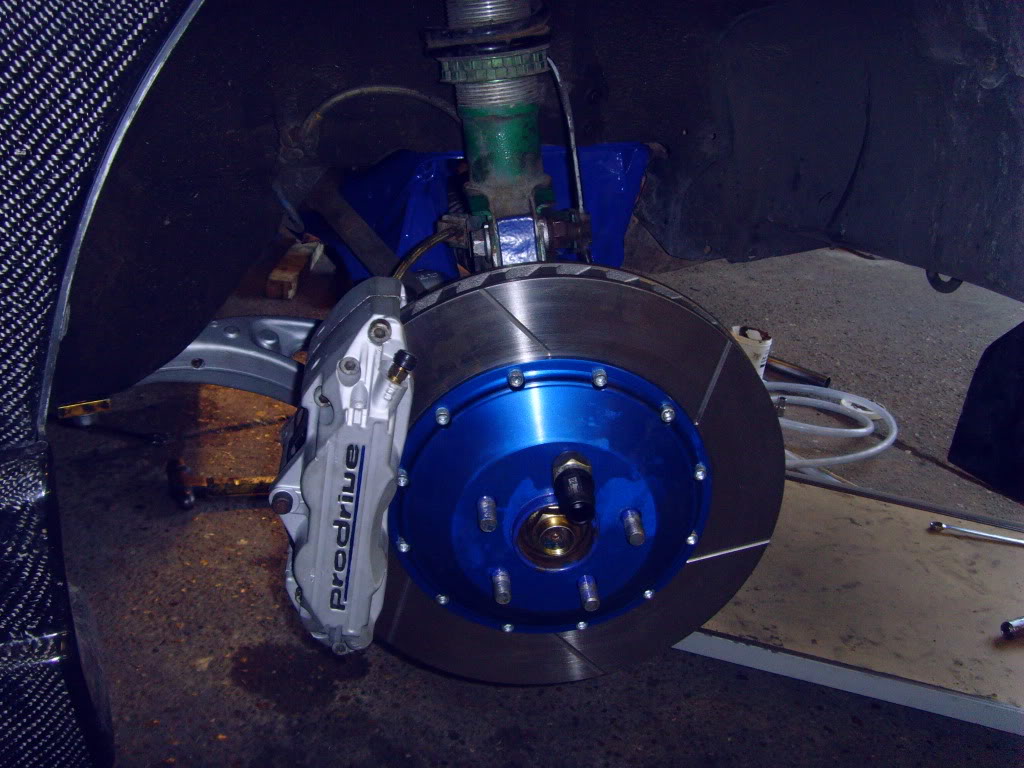

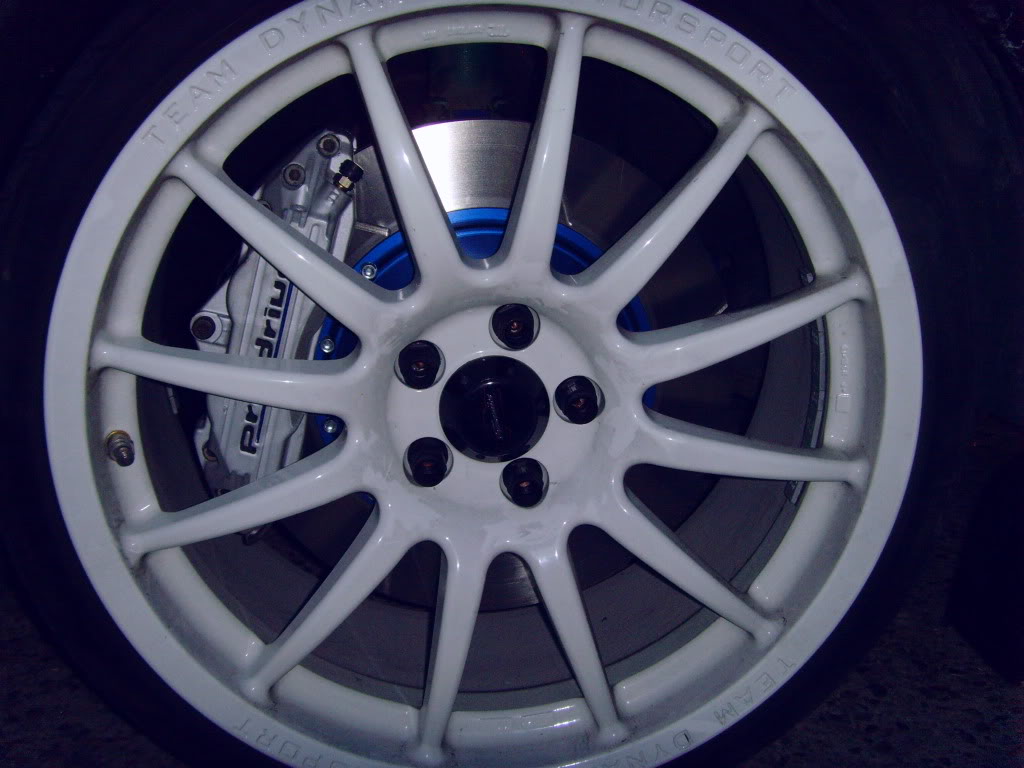

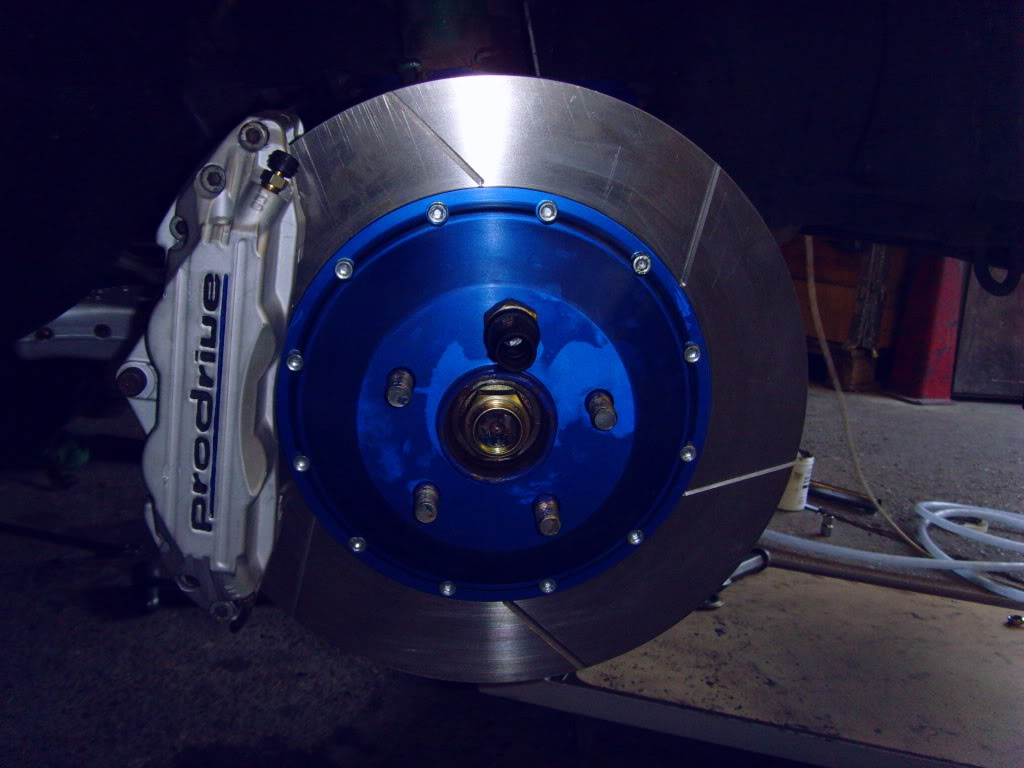

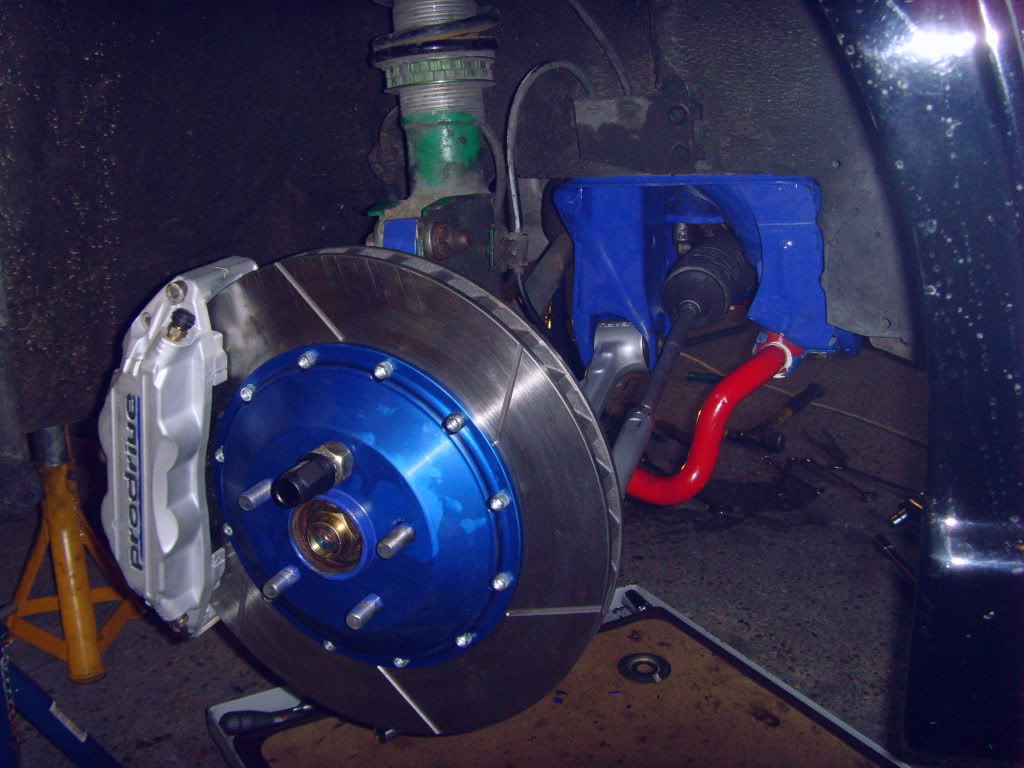

- Brakes and drop links
- With it all on the only things to do were to bleed the brakes and get it 4 wheel align.
Scooby Senior
iTrader: (3)
Joined: Jun 2006
Posts: 14,333
Likes: 0
From: Slowly rebuilding the kit of bits into a car...
Couple of wee spacers will sort the drop-links, IIRC mine actually came with some.
HTH
dunx
P.S. Having seen this car up close I have to say I love it....
HTH
dunx
P.S. Having seen this car up close I have to say I love it....
Cars looking good fella,
reagards the front droplinks i think you will have to take them off once fitted to car as you will find they sit at a very severe angle, there was a post on here from ages ago where a fellla thought he had bent his just turns out he had alloy wishbones, also i wouldnt use the whitline ones as they bang like hell on a day to day basis and also rust very quickly, i even managed to snap one of mine,
this is what i went back to:
IMPREZA PARTS 2.0I TURBO GC8/GF8 EJ20G EJ205 93 TO 2000 IMPORT Front Droplinks - 90-100mm Balljoint Type - Impreza IMPREZA 2.0i Turbo GC8/GF8 EJ20G EJ205 93 TO 2000 Import :: £57.74 :: Subaru Impreza Turbo Parts, Tuning, Spares & Accessories :: 2.0i
tried and tested
Hope this is of some help.
Rich
,reagards the front droplinks i think you will have to take them off once fitted to car as you will find they sit at a very severe angle, there was a post on here from ages ago where a fellla thought he had bent his just turns out he had alloy wishbones, also i wouldnt use the whitline ones as they bang like hell on a day to day basis and also rust very quickly, i even managed to snap one of mine,
this is what i went back to:
IMPREZA PARTS 2.0I TURBO GC8/GF8 EJ20G EJ205 93 TO 2000 IMPORT Front Droplinks - 90-100mm Balljoint Type - Impreza IMPREZA 2.0i Turbo GC8/GF8 EJ20G EJ205 93 TO 2000 Import :: £57.74 :: Subaru Impreza Turbo Parts, Tuning, Spares & Accessories :: 2.0i
tried and tested
Hope this is of some help.
Rich
Scooby Regular
Joined: Oct 2005
Posts: 483
Likes: 0
From: Great Totham
The car is staying now, went out a bought a peogeot 107 55 plate as a little run about, so the mods can continue. I've been contact with one of the mags to feature the car and had a photo shoot done a week ago.

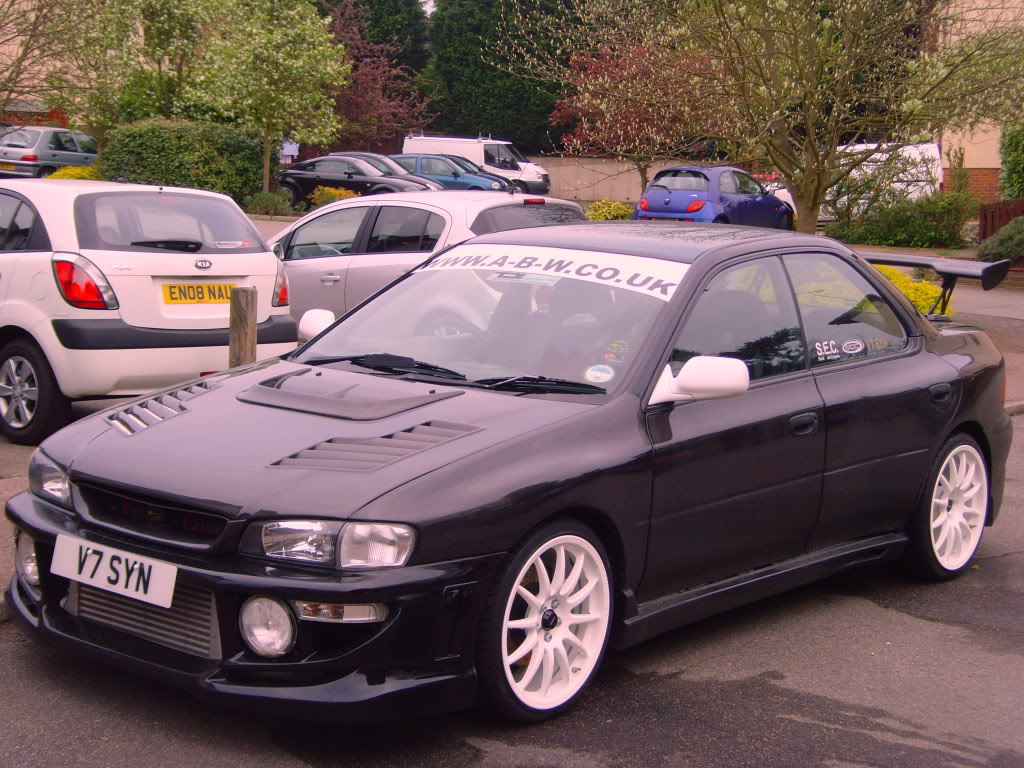

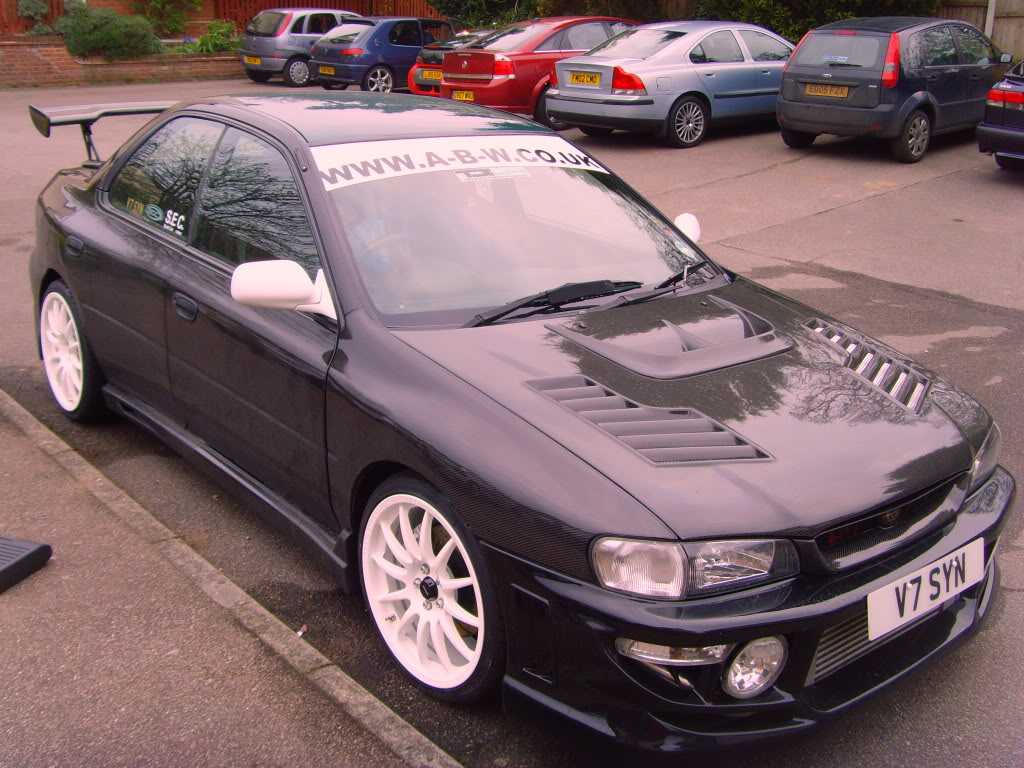

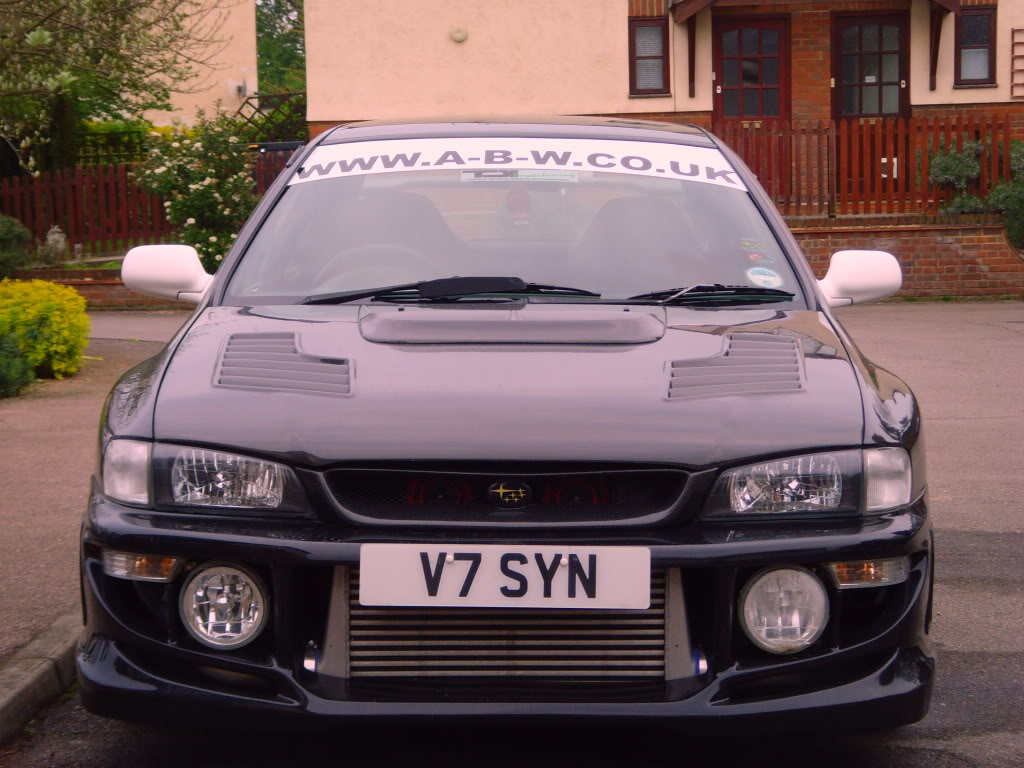

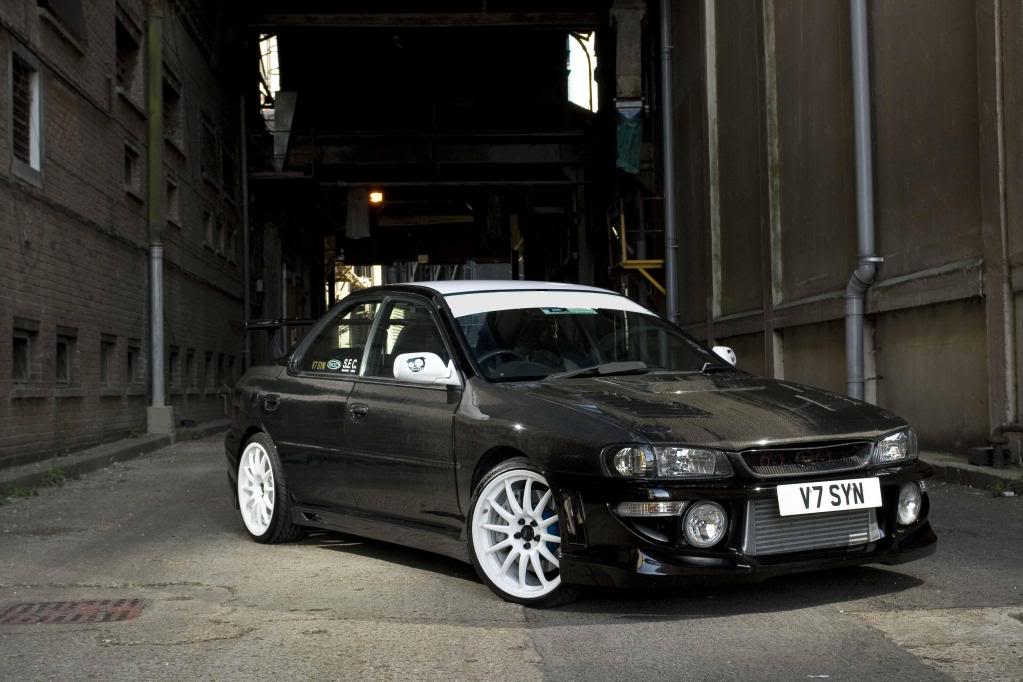

Here is one of the pics,
It should be in a mag by xmas.
Here is one of the pics,
It should be in a mag by xmas.
Scooby Regular
Joined: Oct 2005
Posts: 483
Likes: 0
From: Great Totham
The rear wing is from Mad motors, you'll get a great service from there.
Alloy Wheels and Tyres, Car Body Kits, Car Side Skirts, Mad Motors
Alloy Wheels and Tyres, Car Body Kits, Car Side Skirts, Mad Motors
looks real nice, but i dnt like the white roof/rims/wing mirrors and would prefer a v5/6 sti carbon fibre spoiler just my opinion, but well done on all work mate very good job 10/10
Scooby Newbie
Joined: Jan 2001
Posts: 4
Likes: 0
From: Northern California, USA
I understand this post is waaaaay behind the power curve, haven't been over to this side of the online pond in a while... Anyway the rust removal with the Malt Vinegar looks awesome, but I wanted to suggest Coca-Cola... A friend of mine back in school, her Step-Dad used to go to the local swap meet and buy old nasty rusted tools and soak them for a few days in tubs of Coca-Cola and it would just suck the rust right off just about anything he threw in the vat...
As for the car, that looks amazing, I would agree the multi-tone color scheme isn't my taste/style but thats the whole point isn't it, we each do our own and appreciate everything we see, build off it, modify it etc... I have to admit also that the seams between the metal and the CF are gorgeous, I still don't understand the bonding process between materials like that, any chance you have a sec to share even a light explanation?
As for the car, that looks amazing, I would agree the multi-tone color scheme isn't my taste/style but thats the whole point isn't it, we each do our own and appreciate everything we see, build off it, modify it etc... I have to admit also that the seams between the metal and the CF are gorgeous, I still don't understand the bonding process between materials like that, any chance you have a sec to share even a light explanation?
