Old 22 February 2019, 09:42 AM
  #541
LewisScoob
Scooby Regular
iTrader: (5)

LewisScoob's Avatar

Join Date: Oct 2008
Location: Aberdeenshire
Posts: 732
Default

Originally Posted by Itamar_M View Post
How long did it all take from ordering them till actually receiving them?
9 weeks but was over Xmas/NY also. As I said above. this was all due to Samco. NOT AS Perfomance.
LewisScoob is offline
Old 22 February 2019, 11:06 AM
  #542
Ste333
Scooby Regular
iTrader: (3)

Ste333's Avatar

Join Date: Sep 2008
Location: Solihull, UK
Posts: 1,055
Default

not a mod, but might wash the car this week. For the first time since purchase.....5 months ago.
Ste333 is offline
Old 22 February 2019, 10:06 PM
  #543
Simon STi
Scooby Regular
iTrader: (3)

Join Date: Jun 2006
Posts: 507
Default


Simon STi is online now
Old 23 February 2019, 06:55 AM
  #544
ZANY
Scooby Regular

Join Date: Oct 2014
Location: ESSEX INIT
Posts: 5,519
Default

Originally Posted by Simon STi View Post

very nice
did you just buy the one for drivers side?
ZANY is offline
Old 23 February 2019, 09:37 AM
  #545
Simon STi
Scooby Regular
iTrader: (3)

Join Date: Jun 2006
Posts: 507
Default

Yes, driver side only. My wife don’t like it
Simon STi is online now
Old 23 February 2019, 10:59 AM
  #546
scooby2.5maz
Scooby Regular
iTrader: (16)

scooby2.5maz's Avatar

Join Date: Oct 2006
Location: WORCESTER
Posts: 1,446
Default

Not fitted yet but brought a clinic gt35 billet
scooby2.5maz is offline
Old 23 February 2019, 06:30 PM
  #547
the shreksta
Scooby Regular
iTrader: (20)

the shreksta's Avatar

Join Date: Apr 2011
Location: hinckley
Posts: 7,206
Default

Originally Posted by scooby2.5maz View Post
Not fitted yet but brought a clinic gt35 billet
oofff nice, is that for the 2.5?
the shreksta is offline
Old 23 February 2019, 07:43 PM
  #548
BrownPantsRacing
Scooby Regular
iTrader: (6)

BrownPantsRacing's Avatar

Join Date: Oct 2010
Location: Herts & Bucks
Posts: 8,057
Default

Originally Posted by scooby2.5maz View Post
Not fitted yet but brought a clinic gt35 billet
Ooh. Go big or go home! Nicely done.
BrownPantsRacing is offline
Old 23 February 2019, 09:50 PM
  #549
scooby2.5maz
Scooby Regular
iTrader: (16)

scooby2.5maz's Avatar

Join Date: Oct 2006
Location: WORCESTER
Posts: 1,446
Default

Originally Posted by the shreksta View Post
oofff nice, is that for the 2.5?

Na , having a 2.35 Built up for early march so taking off the clinic gt30 to try the 35 . Lol. Sold my 2.5 short block as wanted potential for more power . Clinic gt30 billet will be for sale shortly if any interests . Lol .
scooby2.5maz is offline
Old 23 February 2019, 09:57 PM
  #550
the shreksta
Scooby Regular
iTrader: (20)

the shreksta's Avatar

Join Date: Apr 2011
Location: hinckley
Posts: 7,206
Default

Originally Posted by scooby2.5maz View Post
Na , having a 2.35 Built up for early march so taking off the clinic gt30 to try the 35 . Lol. Sold my 2.5 short block as wanted potential for more power . Clinic gt30 billet will be for sale shortly if any interests . Lol .
standard location? What's it good for and how old?

Who's doing the build for you?
the shreksta is offline
Old 23 February 2019, 10:14 PM
  #551
scooby2.5maz
Scooby Regular
iTrader: (16)

scooby2.5maz's Avatar

Join Date: Oct 2006
Location: WORCESTER
Posts: 1,446
Default

rotated scooby clinic gt30 billet . depending on boost 530/550 and meth mix 20 percent was 580 . Only done 10 k miles tops . Paul wheeler @ position 1 is doing the build. Facebook position 1 . He does big builds , rally cars , makes his own panels .

Maz
scooby2.5maz is offline
Old 25 February 2019, 08:29 AM
  #552
cosbros
Scooby Regular

Join Date: Aug 2013
Location: devon
Posts: 37
Default

Originally Posted by scooby2.5maz View Post
rotated scooby clinic gt30 billet . depending on boost 530/550 and meth mix 20 percent was 580 . Only done 10 k miles tops . Paul wheeler @ position 1 is doing the build. Facebook position 1 . He does big builds , rally cars , makes his own panels .

Maz
Edit, I'm Paul from Position 1 @scooby2.5maz mentioned, although that will have to change to scooby2.35maz very soon!

A few pics of work in progress...







Last edited by cosbros; 26 February 2019 at 01:36 PM.
cosbros is offline
Old 25 February 2019, 09:20 PM
  #553
scooby2.5maz
Scooby Regular
iTrader: (16)

scooby2.5maz's Avatar

Join Date: Oct 2006
Location: WORCESTER
Posts: 1,446
Default

Great stuff .
scooby2.5maz is offline
Old 26 February 2019, 05:41 AM
  #554
semih
Scooby Regular

semih's Avatar

Join Date: Mar 2016
Location: Turkey
Posts: 82
Default

good work, could you give information about setup?
semih is offline
Old 26 February 2019, 10:56 AM
  #555
cosbros
Scooby Regular

Join Date: Aug 2013
Location: devon
Posts: 37
Default

Originally Posted by semih View Post
good work, could you give information about setup?
Car specs...

Chassis & Suspension



• Group N Front and Rear Top Mounts
• STI V5/6 P1 “Pink” Inverted Shocks
• Eibach P11L (P1 height & rate) springs
• Eibach P11L Matched Front 23mm Anti Roll Bar
• Eibach P11L Matched Rear 24mm Anti Roll Bar
• OEM 2008 on Hatch WRX Front Uprights
• NTN bolt on 5x100mm wheel bearings
• STI GC8 Alloy arms
• SuperPro “Track” Caster Increase bushes
• SuperPro Roll Centre Correction Lower Joints & Rod Ends
• STI Quick steer 13:1 Steering Rack
• OEM STI Rear R180 New age Hubs
• Rear S201 STI Pillow Ball Lateral Links
• Rear S201 STI Anti Roll Bar Link Kit
• Rear S201 STI Pillow Ball Trailing Arms
• SuperPro Bushes used throughout for non STI mountings

Brakes

• Brake Calipers - Front Prodrive Alcon Upgrade 4 Pot
• Brake Pads (Track) CL Brakes RC6
• Brake Pads (Road) Project MU NS400
• AS Performance Alloy Bells & Performance Friction 330X28mm Rotors
• Brake Calipers - Rear Subaru 2 Pot
• Brake Pads (Track) CL Brakes RC5+
• Brake Pads (Road) Project MU NS400
• EBC Performance Disks
• Hel Performance Custom Braided Brake Lines


Transmission

• 2007 STI TY856WG7KA DCCD Centre Diff 6 Speed Gearbox
• OEM STI Short throw gearshift mechanism
• DCCD Pro Spider Controller with Auto/Manual and Left Foot Braking
• Extreme KSU20520-2B 200mm Ceramic Twin Plate Clutch
• Position 1 RPE Concentric Release Bearing Adaptor (Push Type Clutch)
• AP Racing CP6859-1245 Concentric Release Bearing
• HEL Performance Custom Clutch Bearing Lines
• STI Group N Engine Mounts
• STI Group N Gearbox Mount
• Front Diff - STI Helical Torque Sensing
• Rear Diff - R180 Plated Rear Limited Slip (increased pre-load)
• Front Driveshafts 2006 Hawkeye WRX
• Rear Driveshafts 2002 Bugeye STI R180
• OEM STI 6 Speed Prop shaft
• Wheels (Road) Speedline ST2 7JX17
• Tyres (Road) Yokohama AD08R 215/45 R17
• Wheels (Track) OZ Racing P1 7Jx17
• Tyres (Track - Dry) Pirelli P Zero Trofeo R 225/45 R17
• Tyres (Track - Wet) Pirelli P Zero Rain W/H 225/625 R17

Engine & Supporting Ancillaries

• EJ22T Closed Deck Block (1991 USDM Legacy Turbo)
o Rear Thrust Bearing Conversion
o 14mm Head Stud Conversion
o Enhanced Exhaust Waterway block machining
o Bored & Honed to 97.00mm
o Block Decks Skimmed
o Oil galleries ported to improve flow
• Subaru Nitrided 2.5 79mm Stroke Crankshaft
• ACL Race Series Main Bearings
• Arrow Steel Conrods with ARP Bolts
• Mahle Motorsport Big End Bearings
• RCM Omega 97.00mm 2.35 Stroker Pistons, Pins & Rings
• RCM Modified 11mm Oil Pump
• RCM Head Gaskets
• RCM 14/12mm Head studs
• JDM Large Port Single AVCS (Spec C) Heads
o Combustion Chambers De-squished
o Spark Plug Seats lowered by 1.5mm
o Inlet ports matched to Process West Billet TGV Deletes
o Inlet & Exhaust ports smoothed & blended
• OEM Gaskets & Seals throughout
• Supertech Nitrided Inlet Valves
• Supertech Inconel Exhaust Valves
• Supertech Double Valve Springs, Retainers & Seats
• Supertech Buckets & Shims
• RCM1570 Inlet & Exhaust Fast Road Cams
• OEM AVCS Inlet Cam Pulleys
• Tomei Adjustable Vernier Exhaust Cam Pulleys
• RCM High Grip Cam Belt Tensioner
• OEM Timing Belt “WRC” Style Mechanical Tensioner
• OEM Timing Belt Idlers
• OEM STI “Pink” Timing Belt
• Process West Inlet Manifold
• Process West Billet Short TGV Deletes
• Borg Warner EFR8374 Internal Waste Gated Turbo
• Custom Exhaust Blown/Vacuum Catch Can Breather
• Custom Twin Scroll equal length Exhaust Manifold
• Custom Rotated Twinscroll Up Pipe
• Custom Rotated V Band Down Pipe
• Cobra Track Day Friendly 3” Exhaust System
• Simtek V5/6 ECU
• Custom Front Mount Intercooler/Cooling Pack
• RCM Matt Black Silicone Coolant & Boost Hoses
• RCM Injector Dynamics 1000cc Injectors
• RCM Fuel Rails
• Wahlbro 240 in tank fuel lift pump
• Bosch 044 Motorsport Fuel Pump
• Custom 1.0l Swirl Pot
• JDM Spec C OEM 2 Port Water Pump
• Hel Performance External Oil Cooler & custom pipes
• RCM Track Attack Crankcase Breather/Catch Tank System
cosbros is offline
Old 26 February 2019, 05:40 PM
  #556
cosbros
Scooby Regular

Join Date: Aug 2013
Location: devon
Posts: 37
Default

cosbros is offline
Old 26 February 2019, 05:41 PM
  #557
cosbros
Scooby Regular

Join Date: Aug 2013
Location: devon
Posts: 37
Default

cosbros is offline
Old 27 February 2019, 07:05 AM
  #558
scooby2.5maz
Scooby Regular
iTrader: (16)

scooby2.5maz's Avatar

Join Date: Oct 2006
Location: WORCESTER
Posts: 1,446
Smile

Originally Posted by cosbros View Post
Car specs...

Chassis & Suspension



• Group N Front and Rear Top Mounts
• STI V5/6 P1 “Pink” Inverted Shocks
• Eibach P11L (P1 height & rate) springs
• Eibach P11L Matched Front 23mm Anti Roll Bar
• Eibach P11L Matched Rear 24mm Anti Roll Bar
• OEM 2008 on Hatch WRX Front Uprights
• NTN bolt on 5x100mm wheel bearings
• STI GC8 Alloy arms
• SuperPro “Track” Caster Increase bushes
• SuperPro Roll Centre Correction Lower Joints & Rod Ends
• STI Quick steer 13:1 Steering Rack
• OEM STI Rear R180 New age Hubs
• Rear S201 STI Pillow Ball Lateral Links
• Rear S201 STI Anti Roll Bar Link Kit
• Rear S201 STI Pillow Ball Trailing Arms
• SuperPro Bushes used throughout for non STI mountings

Brakes

• Brake Calipers - Front Prodrive Alcon Upgrade 4 Pot
• Brake Pads (Track) CL Brakes RC6
• Brake Pads (Road) Project MU NS400
• AS Performance Alloy Bells & Performance Friction 330X28mm Rotors
• Brake Calipers - Rear Subaru 2 Pot
• Brake Pads (Track) CL Brakes RC5+
• Brake Pads (Road) Project MU NS400
• EBC Performance Disks
• Hel Performance Custom Braided Brake Lines


Transmission

• 2007 STI TY856WG7KA DCCD Centre Diff 6 Speed Gearbox
• OEM STI Short throw gearshift mechanism
• DCCD Pro Spider Controller with Auto/Manual and Left Foot Braking
• Extreme KSU20520-2B 200mm Ceramic Twin Plate Clutch
• Position 1 RPE Concentric Release Bearing Adaptor (Push Type Clutch)
• AP Racing CP6859-1245 Concentric Release Bearing
• HEL Performance Custom Clutch Bearing Lines
• STI Group N Engine Mounts
• STI Group N Gearbox Mount
• Front Diff - STI Helical Torque Sensing
• Rear Diff - R180 Plated Rear Limited Slip (increased pre-load)
• Front Driveshafts 2006 Hawkeye WRX
• Rear Driveshafts 2002 Bugeye STI R180
• OEM STI 6 Speed Prop shaft
• Wheels (Road) Speedline ST2 7JX17
• Tyres (Road) Yokohama AD08R 215/45 R17
• Wheels (Track) OZ Racing P1 7Jx17
• Tyres (Track - Dry) Pirelli P Zero Trofeo R 225/45 R17
• Tyres (Track - Wet) Pirelli P Zero Rain W/H 225/625 R17

Engine & Supporting Ancillaries

• EJ22T Closed Deck Block (1991 USDM Legacy Turbo)
o Rear Thrust Bearing Conversion
o 14mm Head Stud Conversion
o Enhanced Exhaust Waterway block machining
o Bored & Honed to 97.00mm
o Block Decks Skimmed
o Oil galleries ported to improve flow
• Subaru Nitrided 2.5 79mm Stroke Crankshaft
• ACL Race Series Main Bearings
• Arrow Steel Conrods with ARP Bolts
• Mahle Motorsport Big End Bearings
• RCM Omega 97.00mm 2.35 Stroker Pistons, Pins & Rings
• RCM Modified 11mm Oil Pump
• RCM Head Gaskets
• RCM 14/12mm Head studs
• JDM Large Port Single AVCS (Spec C) Heads
o Combustion Chambers De-squished
o Spark Plug Seats lowered by 1.5mm
o Inlet ports matched to Process West Billet TGV Deletes
o Inlet & Exhaust ports smoothed & blended
• OEM Gaskets & Seals throughout
• Supertech Nitrided Inlet Valves
• Supertech Inconel Exhaust Valves
• Supertech Double Valve Springs, Retainers & Seats
• Supertech Buckets & Shims
• RCM1570 Inlet & Exhaust Fast Road Cams
• OEM AVCS Inlet Cam Pulleys
• Tomei Adjustable Vernier Exhaust Cam Pulleys
• RCM High Grip Cam Belt Tensioner
• OEM Timing Belt “WRC” Style Mechanical Tensioner
• OEM Timing Belt Idlers
• OEM STI “Pink” Timing Belt
• Process West Inlet Manifold
• Process West Billet Short TGV Deletes
• Borg Warner EFR8374 Internal Waste Gated Turbo
• Custom Exhaust Blown/Vacuum Catch Can Breather
• Custom Twin Scroll equal length Exhaust Manifold
• Custom Rotated Twinscroll Up Pipe
• Custom Rotated V Band Down Pipe
• Cobra Track Day Friendly 3” Exhaust System
• Simtek V5/6 ECU
• Custom Front Mount Intercooler/Cooling Pack
• RCM Matt Black Silicone Coolant & Boost Hoses
• RCM Injector Dynamics 1000cc Injectors
• RCM Fuel Rails
• Wahlbro 240 in tank fuel lift pump
• Bosch 044 Motorsport Fuel Pump
• Custom 1.0l Swirl Pot
• JDM Spec C OEM 2 Port Water Pump
• Hel Performance External Oil Cooler & custom pipes
• RCM Track Attack Crankcase Breather/Catch Tank System

Blimey
scooby2.5maz is offline
Old 03 March 2019, 03:14 PM
  #559
Itamar_M
Scooby Regular

Join Date: Jan 2019
Location: Israel
Posts: 48
Default

I second that!
Itamar_M is offline
Old 06 March 2019, 09:32 AM
  #560
RobsyUK
Scooby Regular
iTrader: (1)

RobsyUK's Avatar

Join Date: May 2009
Location: Milk on Beans
Posts: 5,286
Default

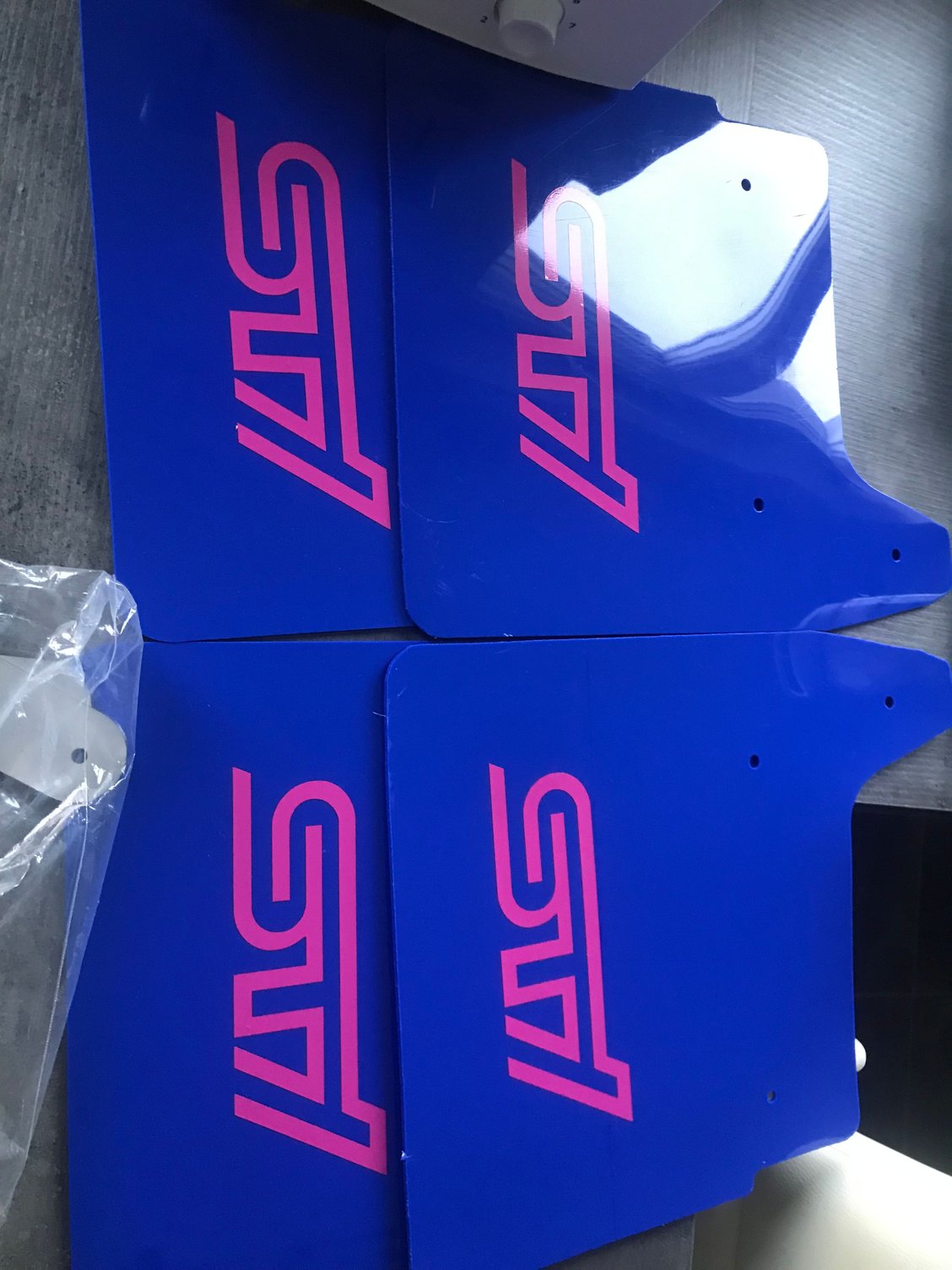

Been planning to fit my scooybworld mud flaps since jan.
nerve damage in my arm makes it hard to use force on my arm so can’t attempt taking the wheels off yet.

they will go on!
RobsyUK is offline
Old 06 March 2019, 09:48 AM
  #561
wrx2005
BANNED

Join Date: Jan 2019
Location: manchester
Posts: 234
Default

Originally Posted by RobsyUK View Post


Been planning to fit my scooybworld mud flaps since jan.
nerve damage in my arm makes it hard to use force on my arm so can’t attempt taking the wheels off yet.

they will go on!
you've been doing the sleeping Beauty too much (urban dictionary)
it can cause nerve damage if yo do it too long, can also affect your eye sight
wrx2005 is offline
Old 06 March 2019, 09:52 AM
  #562
joz8968
Scooby Regular
iTrader: (13)

joz8968's Avatar

Join Date: Aug 2006
Location: Indochina......hiding inside a bowl of rice
Posts: 23,708
Default

Originally Posted by wrx2005 View Post
you've been doing the sleeping Beauty too much (urban dictionary)...

AKA...

"Stranger"

joz8968 is offline
Old 06 March 2019, 10:58 AM
  #563
AbbasSTI
Scooby Regular
iTrader: (37)

AbbasSTI's Avatar

Join Date: Apr 2009
Location: Stalybridge
Posts: 1,009
Default

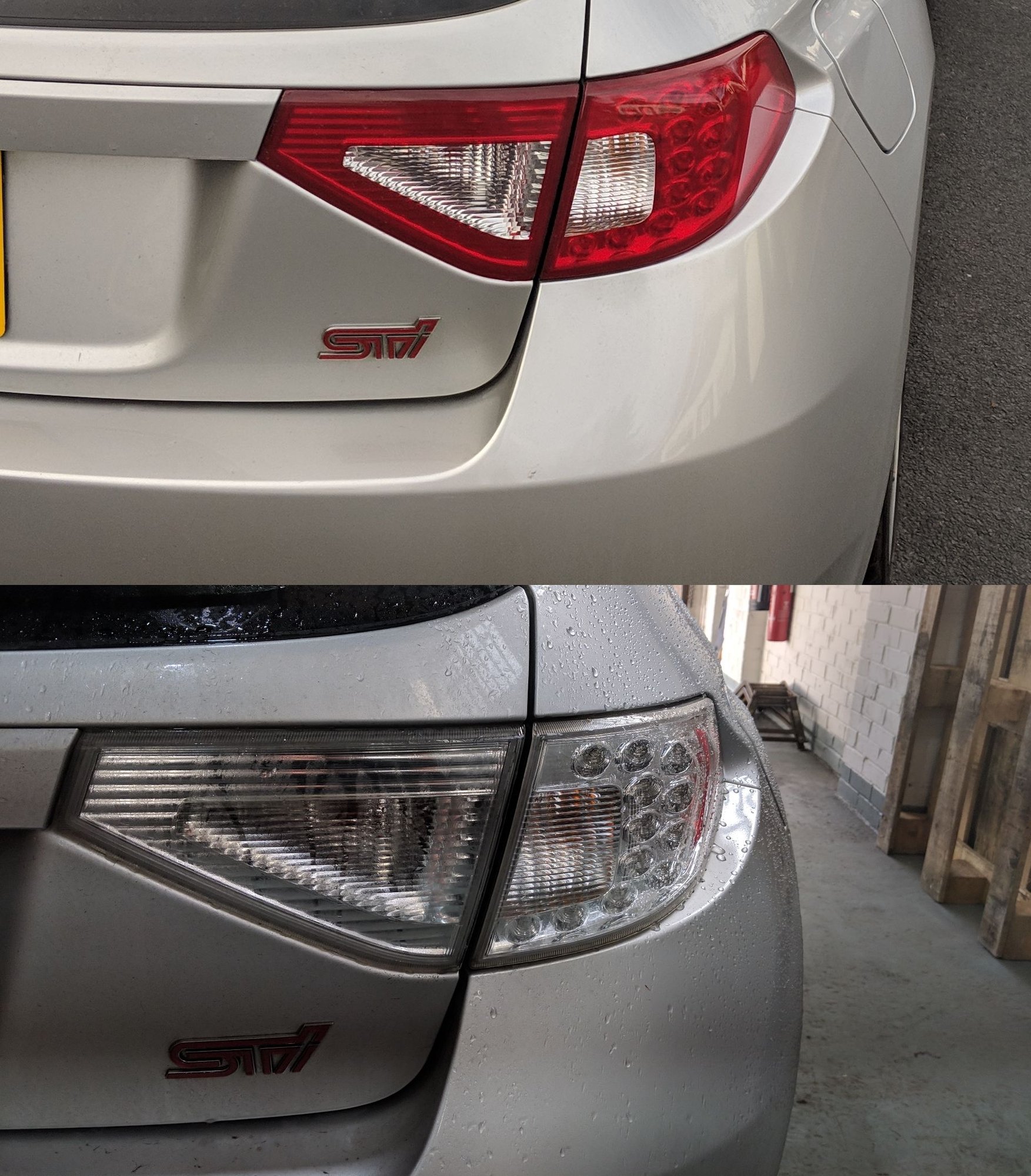

I got the overlays fitted that were supplied by Phil,
AbbasSTI is offline
Old 06 March 2019, 11:15 AM
  #564
BrownPantsRacing
Scooby Regular
iTrader: (6)

BrownPantsRacing's Avatar

Join Date: Oct 2010
Location: Herts & Bucks
Posts: 8,057
Default

Looks loads better.
BrownPantsRacing is offline
Old 06 March 2019, 11:39 AM
  #565
LewisScoob
Scooby Regular
iTrader: (5)

LewisScoob's Avatar

Join Date: Oct 2008
Location: Aberdeenshire
Posts: 732
Default

Yep, night and day difference. This week I bought myself a new set of gauges. Got 60mm prosport gauges with an ATI pod, second hand but will be much nicer than the piddly wee 52mm ones in the scoobyworld pod.
LewisScoob is offline
Old 06 March 2019, 12:04 PM
  #566
Rusti
Scooby Regular
iTrader: (3)

Rusti's Avatar

Join Date: Sep 2014
Location: Hampshire
Posts: 910
Default

Arrived this morning, uprated pump and brake lines.

Rusti is offline
Old 06 March 2019, 07:13 PM
  #567
Ravolouso
Scooby Regular

Join Date: Oct 2017
Location: Derby
Posts: 33
Default


Fitted this marmite spoiler .
I hate marmite but I love this spoiler ��
Ravolouso is offline
Old 07 March 2019, 09:18 AM
  #568
LewisScoob
Scooby Regular
iTrader: (5)

LewisScoob's Avatar

Join Date: Oct 2008
Location: Aberdeenshire
Posts: 732
Default

Thats not a marmite spoiler, some people like marmite. I actually cant remember the last time I sa a standard backbox too!
LewisScoob is offline
Old 07 March 2019, 09:28 AM
  #569
wrx2005
BANNED

Join Date: Jan 2019
Location: manchester
Posts: 234
Default

Originally Posted by Ravolouso View Post

Fitted this marmite spoiler .
I hate marmite but I love this spoiler ��
thats the second funniest picture i have seen on here after zany's jeremy kyle esq picture of him washing his car on the shameless council estate.
wrx2005 is offline
Old 07 March 2019, 02:32 PM
  #570
semih
Scooby Regular

semih's Avatar

Join Date: Mar 2016
Location: Turkey
Posts: 82
Default

laser cut for crank pulley removal tool







Last edited by semih; 07 March 2019 at 02:38 PM.
semih is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
