my DIY alloy wheel colour change (project: Peppermint)
10 October 2011, 11:00 PM
#1
Scooby Senior
Thread Starter
my DIY alloy wheel colour change (project: Peppermint)

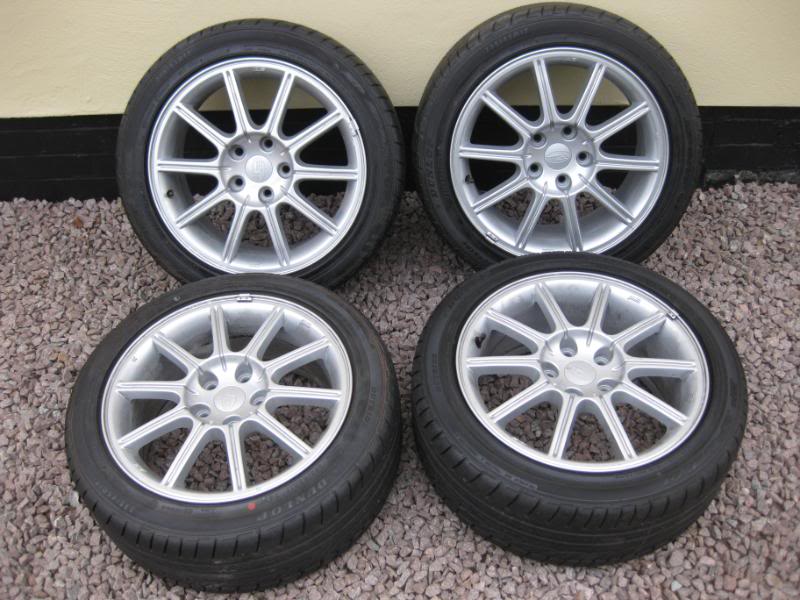

After getting the alloys off Ebay (brand new 2009 STi Alloys with Brand new tyres for £339)
I thought I'll use these as winter wheels, but I want to have a different colour.
I'm looking at Pepermint green as those are the cans of spray they had enough of in a colour I liked
This is my DIY thread on how to change their colour
I'll update as the job progresses.
TOOLS/Materials needed:
120grade wet n dry sand paper, already worn down.
wet/dry sanding pads, already worn down.
degreaser & brake cleaner
etch primer
spray paint
clear lacquer
low tac masking tape
news paper
The alloys had the tyres removed today (thanks to Mr Tire in Nottm)

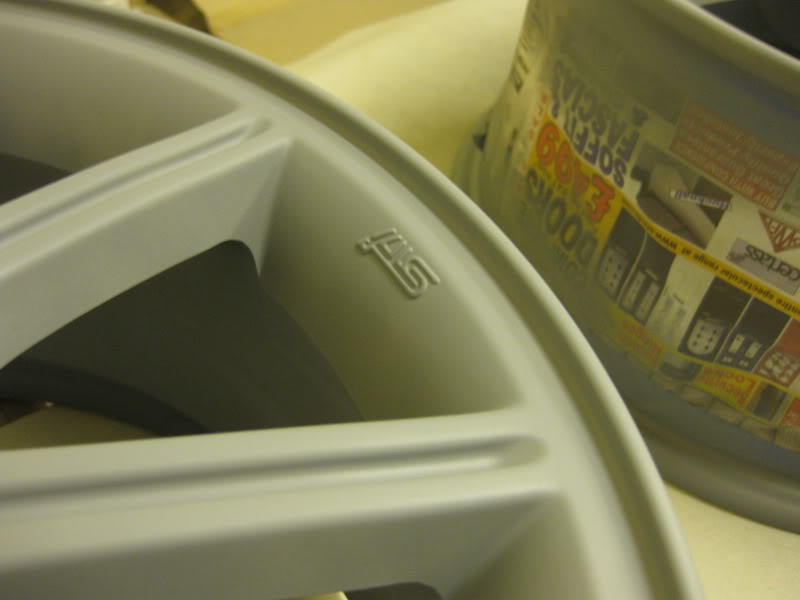

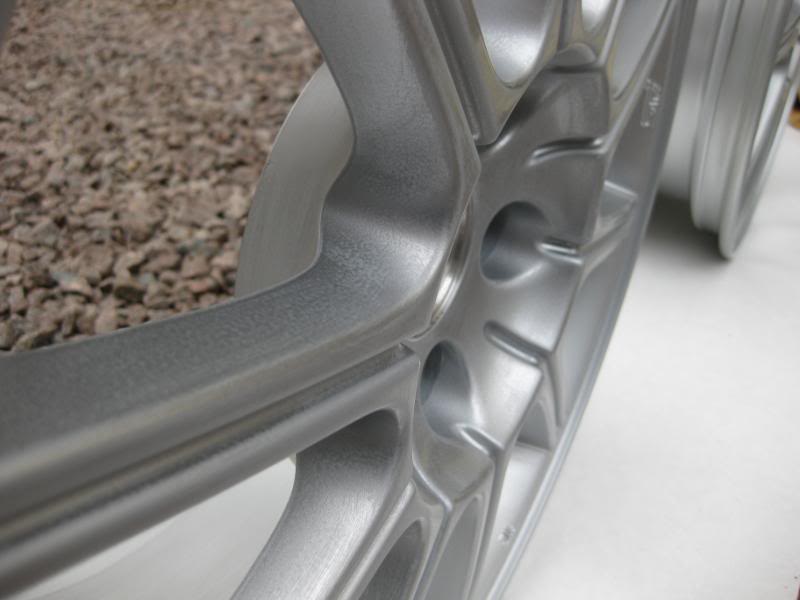

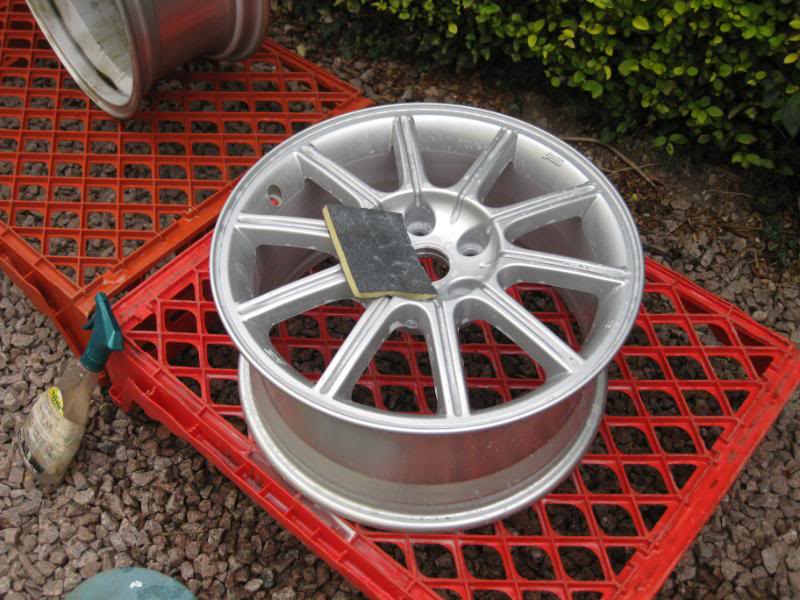

I've cleaned, sanded and de greased. Dried off and first job is to etch prime the alloys.

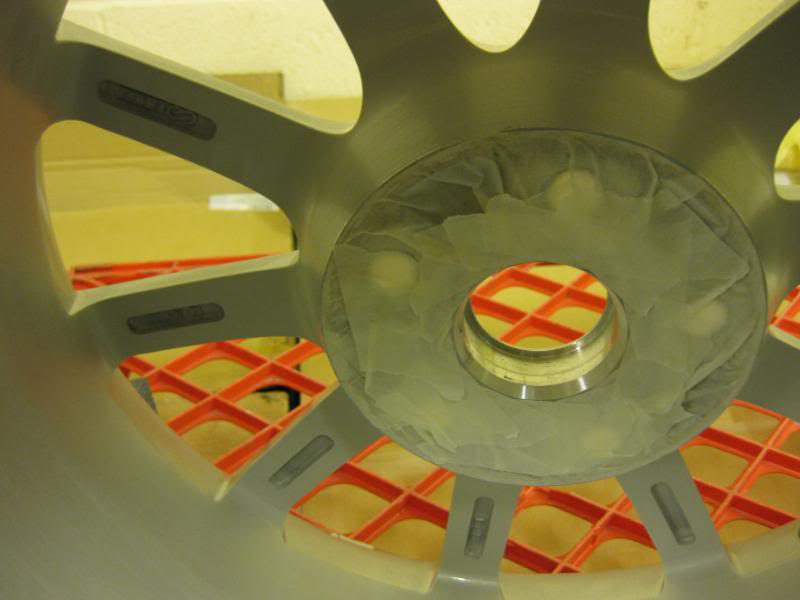

once dry I taped up the parts I don't wnat to get spray on..
I've just done the insides this evening and ran out of paint.. so this will allow the inners to dry off before I etch prime the frace of the alloys tomorrow. Also I felt a bit funny with the fumes
Next update tomorrow
I thought I'll use these as winter wheels, but I want to have a different colour.
I'm looking at Pepermint green as those are the cans of spray they had enough of in a colour I liked
This is my DIY thread on how to change their colour
I'll update as the job progresses.TOOLS/Materials needed:
120grade wet n dry sand paper, already worn down.
wet/dry sanding pads, already worn down.
degreaser & brake cleaner
etch primer
spray paint
clear lacquer
low tac masking tape
news paper

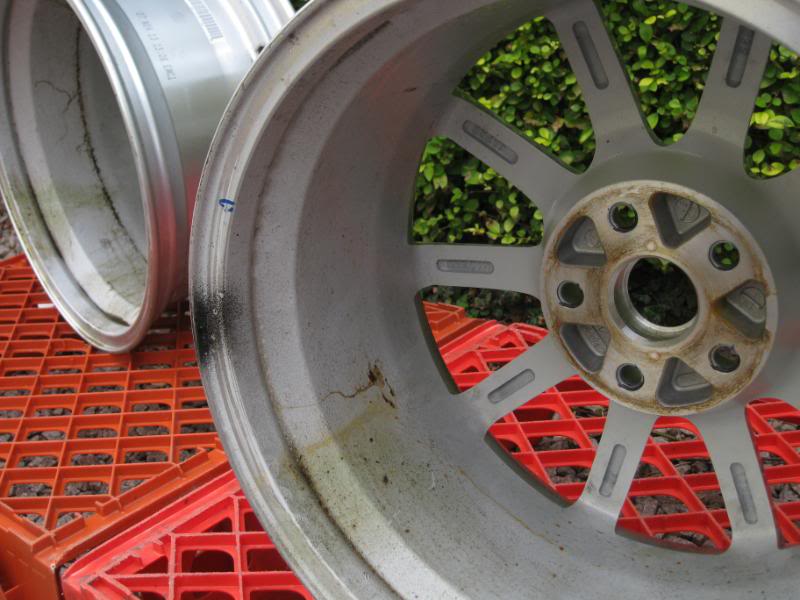

The alloys had the tyres removed today (thanks to Mr Tire in Nottm)

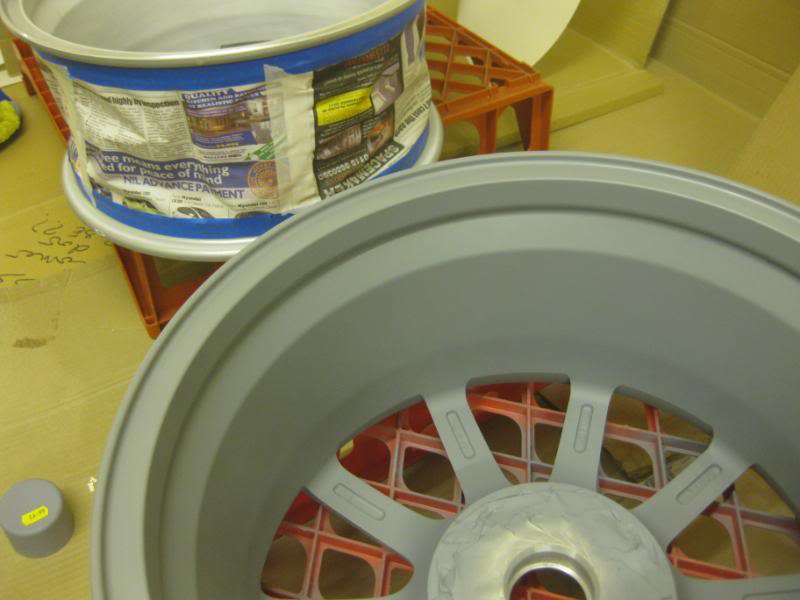

I've cleaned, sanded and de greased. Dried off and first job is to etch prime the alloys.

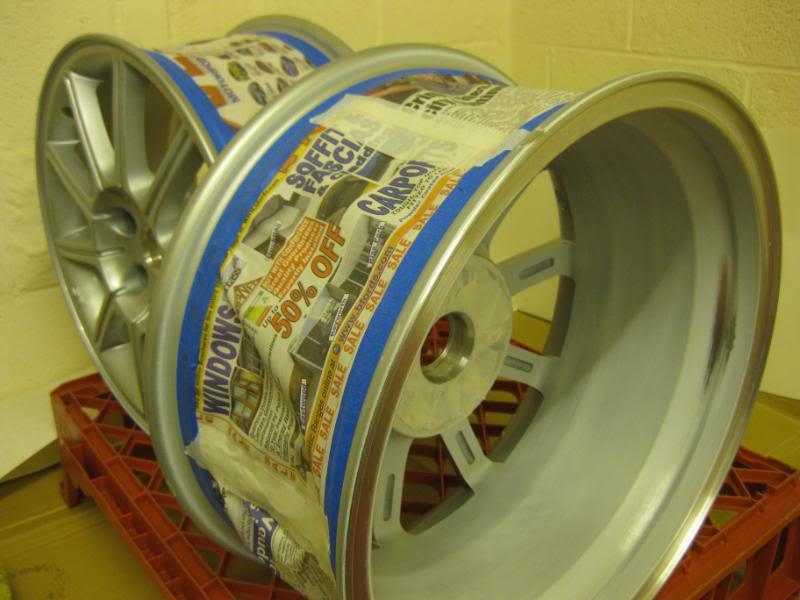

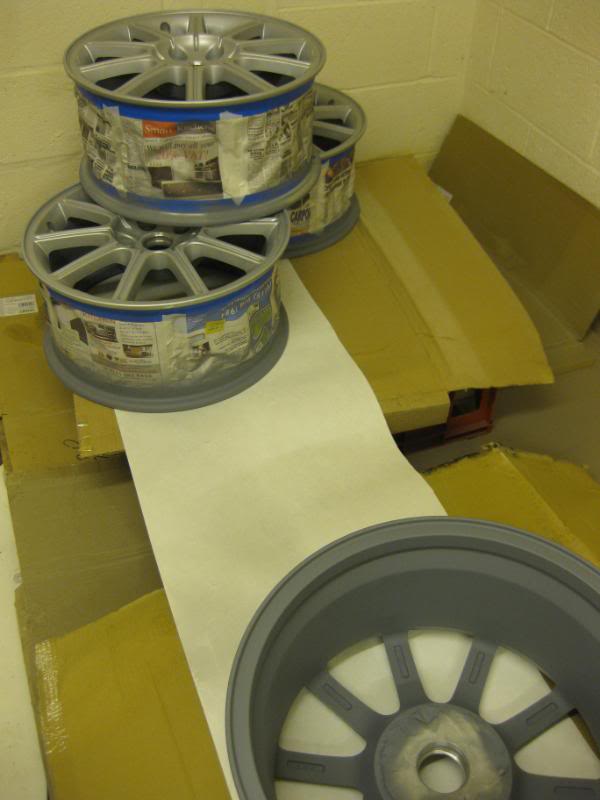

once dry I taped up the parts I don't wnat to get spray on..

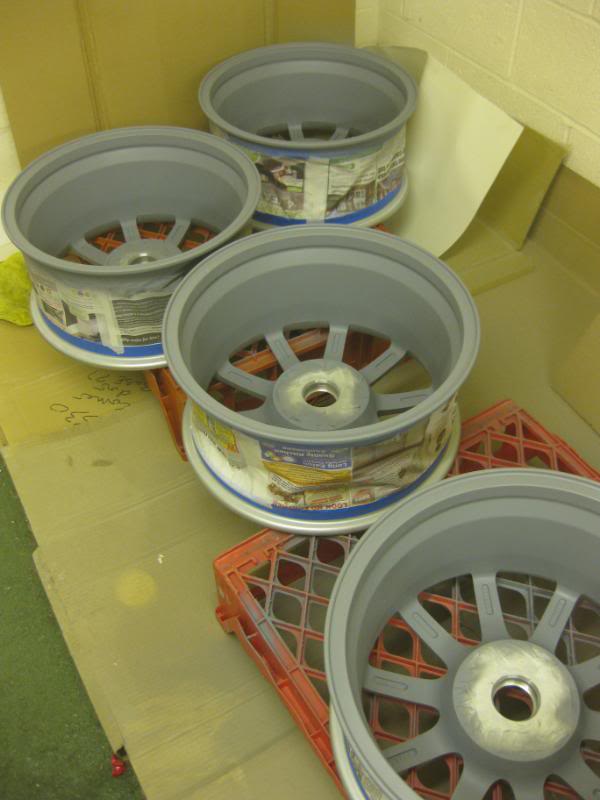

I've just done the insides this evening and ran out of paint.. so this will allow the inners to dry off before I etch prime the frace of the alloys tomorrow. Also I felt a bit funny with the fumes
Next update tomorrow
11 October 2011, 08:50 PM
#2
Scooby Regular
Join Date: Mar 2008
Location: Gatwick
Posts: 56
Likes: 0
Received 0 Likes
on
0 Posts
I will be following this with interest!
I too have just got some cheap alloys, but unlike yours they have already had a very dodgy paint job.
Painted black but the weights where left on and where the nuts go in they have started to chip off.
I was thinking of painting them and doing a good job as it's going to take a while for the winter/snow tyres I ordered to get here.
What sort of primer have you used?
Does it have the etching in the primer?
Good luck hope you get the desired effect!
What colour is your car? Like to see what it would look like with peppermint green!
I too have just got some cheap alloys, but unlike yours they have already had a very dodgy paint job.
Painted black but the weights where left on and where the nuts go in they have started to chip off.
I was thinking of painting them and doing a good job as it's going to take a while for the winter/snow tyres I ordered to get here.
What sort of primer have you used?
Does it have the etching in the primer?
Good luck hope you get the desired effect!
What colour is your car? Like to see what it would look like with peppermint green!
11 October 2011, 08:58 PM
#3
Scooby Senior
Thread Starter
yep, used etch Primer.. £6.99 for a 500ml can... used two cans in total.
the spray paint is £3.99 for 300mls... I've got three cans with another 3 on order
Clear Laquer is £5.99 for a 500ml can.. got two of those.. so far
Will give product details when I've finish
I have a WHITE 330s
colour edit!!!!
They will now be in SIGNAL GREEN... not Peppermint :P
As I anaged to get a better colour green from The RANGE

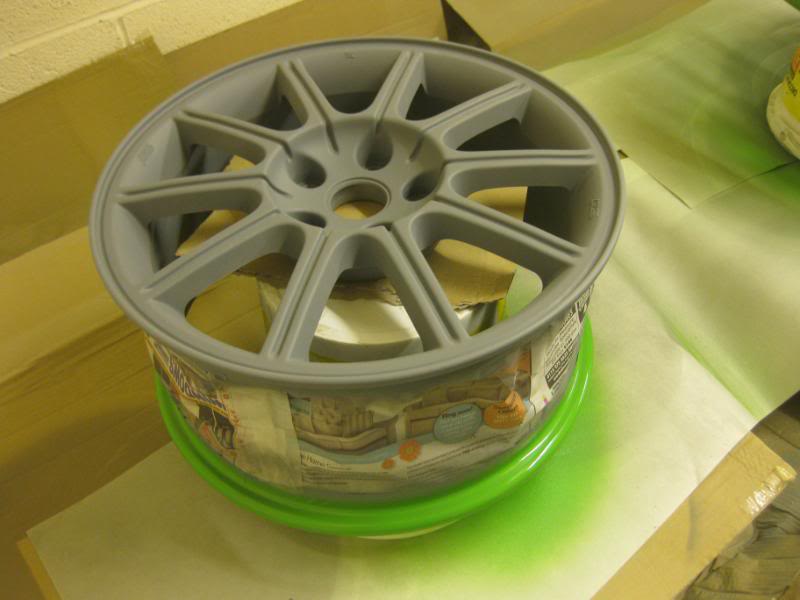

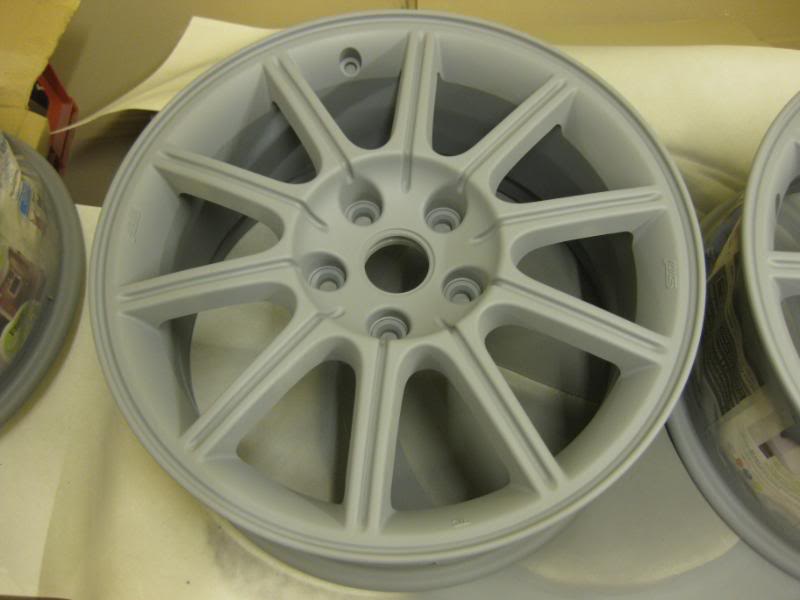

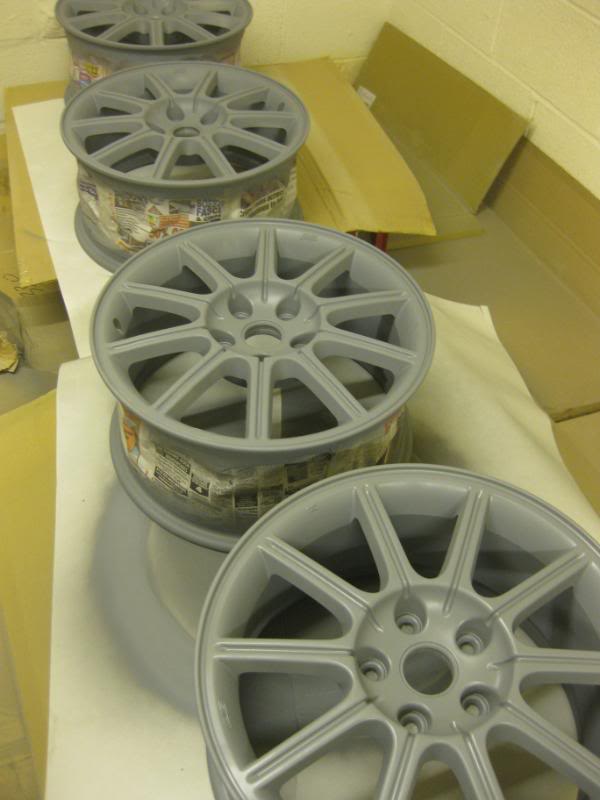

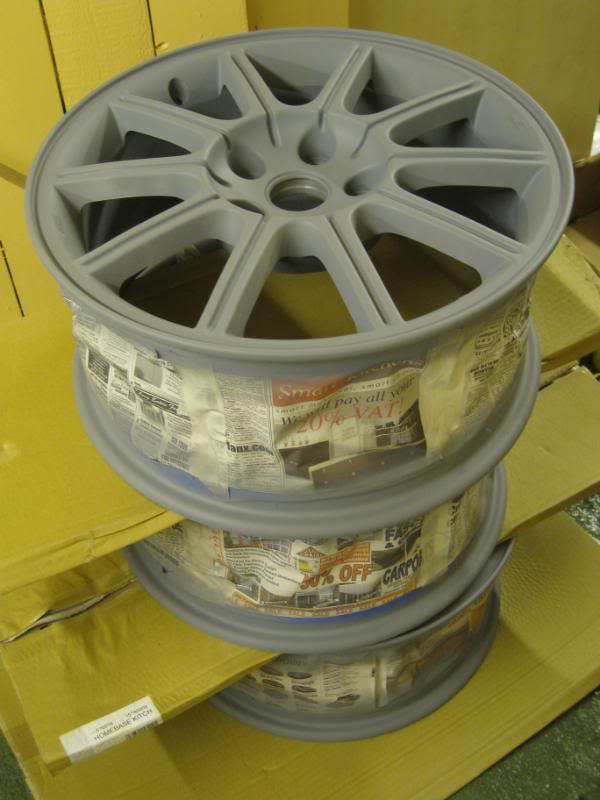

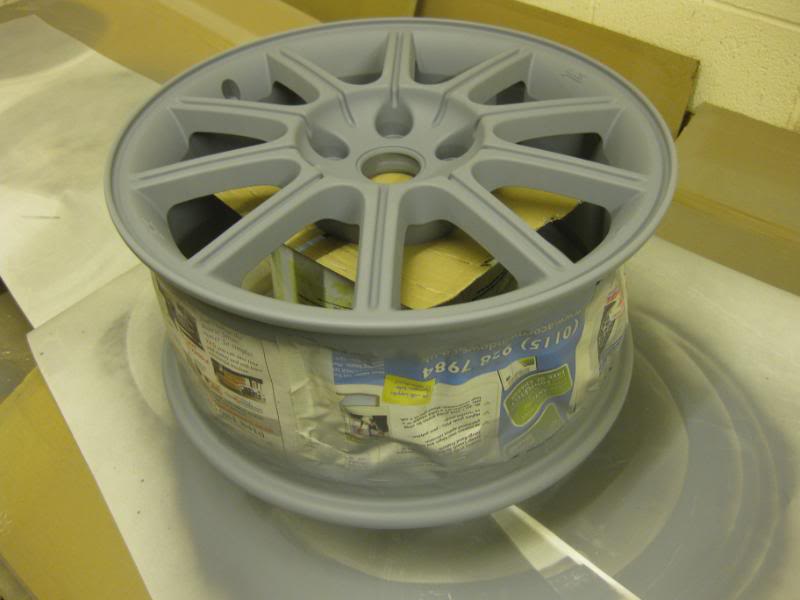

Got another can of etch primer today and the faces sprayed up tonight....
the spray paint is £3.99 for 300mls... I've got three cans with another 3 on order
Clear Laquer is £5.99 for a 500ml can.. got two of those.. so far
Will give product details when I've finish
I have a WHITE 330s
colour edit!!!!
They will now be in SIGNAL GREEN... not Peppermint :P
As I anaged to get a better colour green
from The RANGEGot another can of etch primer today and the faces sprayed up tonight....
Last edited by salsa-king; 11 October 2011 at 09:00 PM.
white and green yum
12 October 2011, 09:02 PM
#6
Scooby Senior
Thread Starter

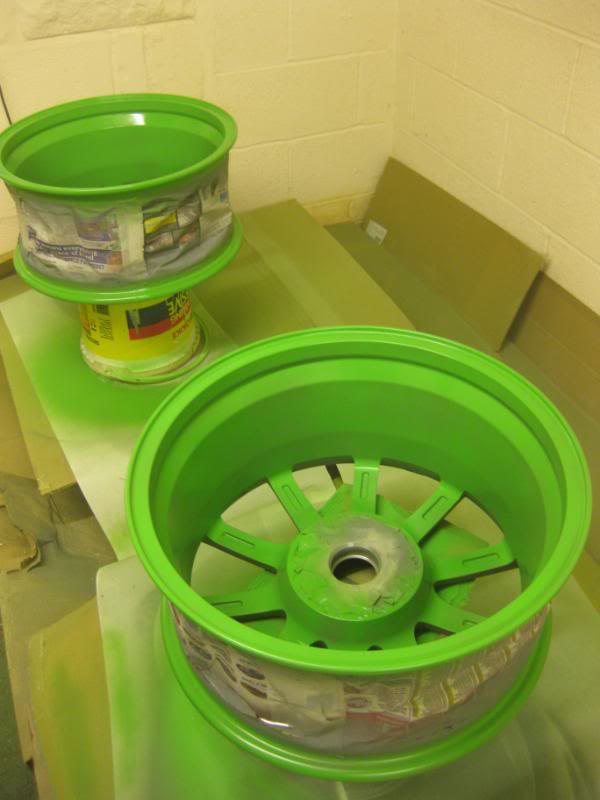

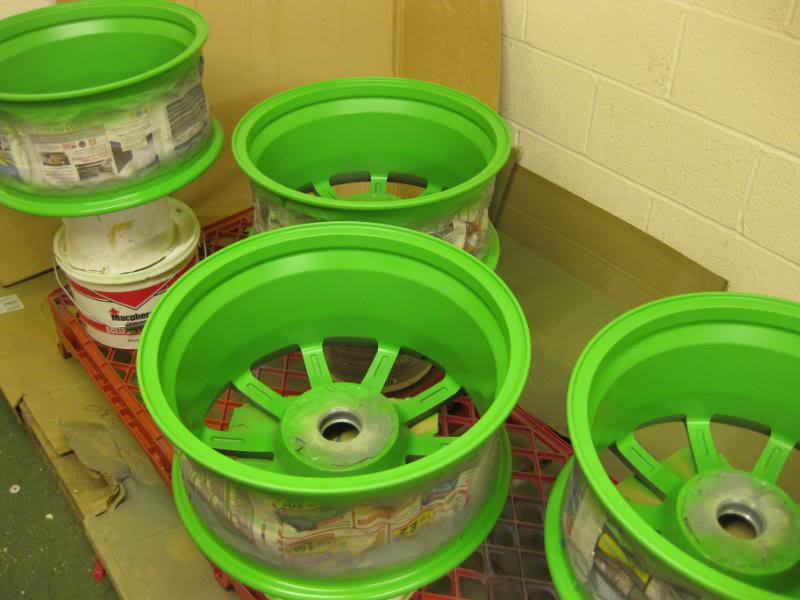

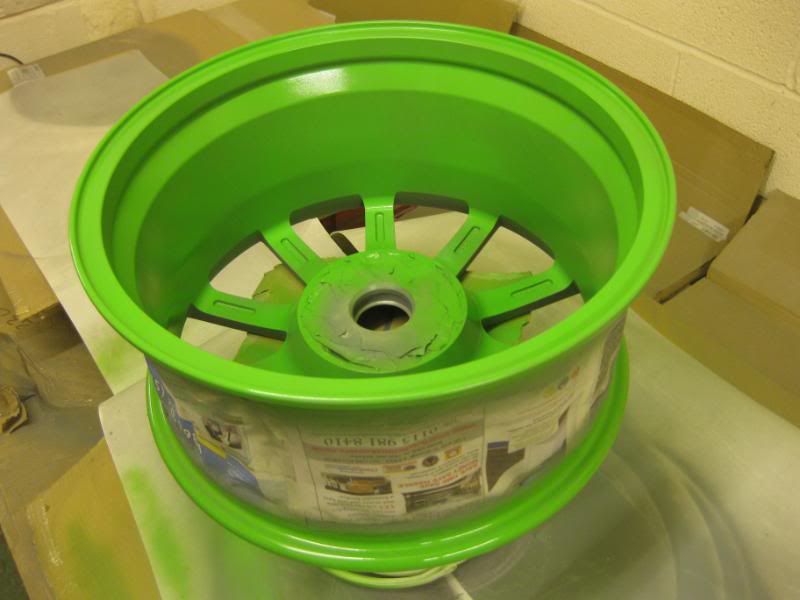

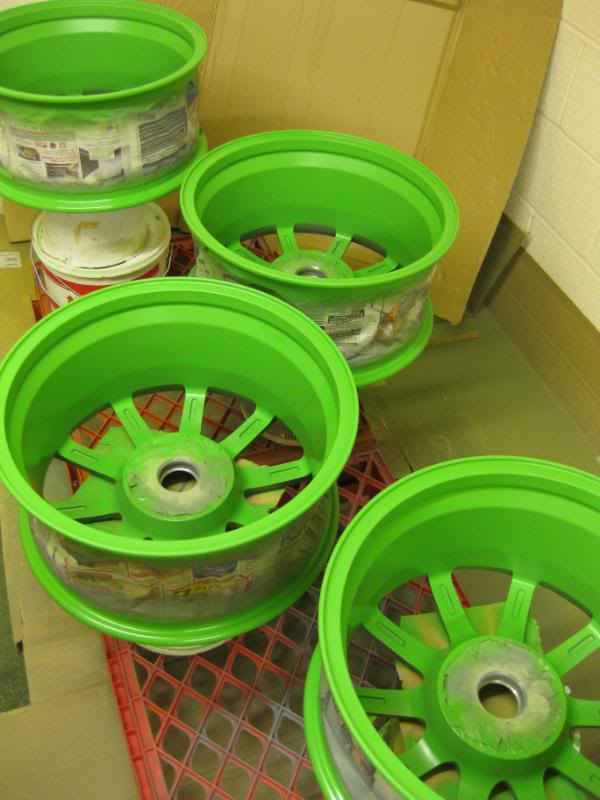

1st coat of the green went on this evening on the back part of the rim.
one can is 300ml.. I've used about 1.5 cans to to all 4 alloys on the inside and the back rim of the face.... just to make sure it gets coated up well.
I've put the alloys on an upturned bucket with a piece of card on it, so I can easily rotate the wheel round to spray it.
Plan for tomorrow is to 2nd coat the green I've done tonight, then before its full dry give a spray of the clear coat laquer, so it will fuse to the green paint and dry hard before I start spraying the face of the alloys.
one can is 300ml.. I've used about 1.5 cans to to all 4 alloys on the inside and the back rim of the face.... just to make sure it gets coated up well.
I've put the alloys on an upturned bucket with a piece of card on it, so I can easily rotate the wheel round to spray it.
Plan for tomorrow is to 2nd coat the green I've done tonight, then before its full dry give a spray of the clear coat laquer, so it will fuse to the green paint and dry hard before I start spraying the face of the alloys.
Trending Topics
13 October 2011, 07:50 AM
#10
Scooby Senior
Thread Starter
get The Wheel Specialist to do them, there should be one local to you as they're up and down the country.
I had the Nottm branch do my wifes car.. top job done £235 for 17"
I had the Nottm branch do my wifes car.. top job done
£235 for 17"
14 October 2011, 02:34 PM
#15
Scooby Senior
Thread Starter
Got the paint from THE RANGE.. It's Holts car paint, (Ford) Signal Green

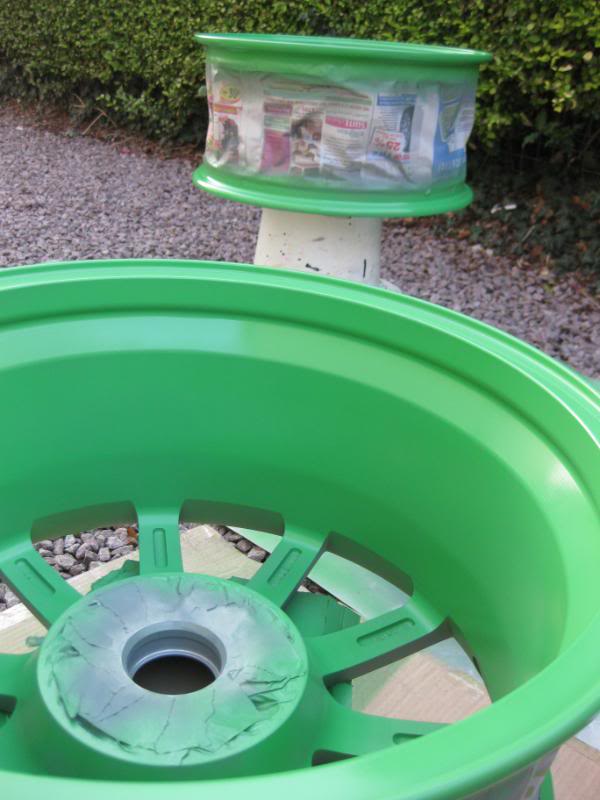

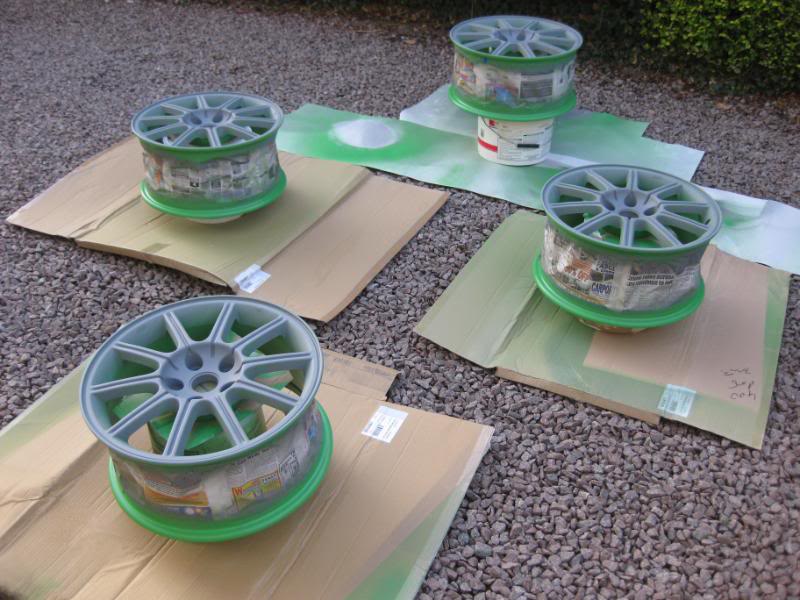

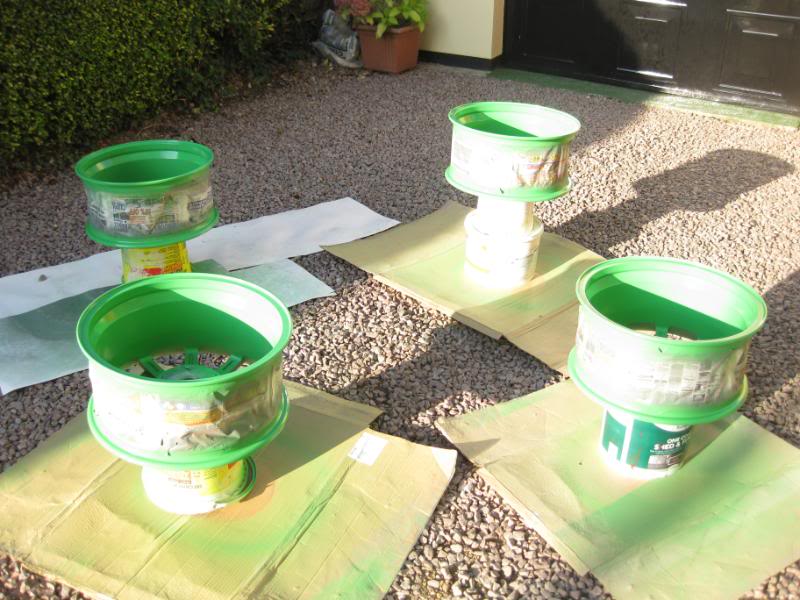

I managed to spray outside late this yesterday afternoon and got the 2nd and final coat on the inside part of the rim, then left it about 40mins and then 1st coat of lacquer on the inner part too. Hope to get a 2nd and final lacquer coat on the inside rim later today.
Then it'll be the waiting game till the other cans of signal green come in.
The plan will be to give three coats to the main face of the alloys, then two/three coats of lacquer to give them plenty of protection.
I brought them back in the garage to harden off.. left a fan heater on just to warm the air.. to help aid drying all seemed hard this morning when I checked on them.
I managed to spray outside late this yesterday afternoon and got the 2nd and final coat on the inside part of the rim, then left it about 40mins and then 1st coat of lacquer on the inner part too. Hope to get a 2nd and final lacquer coat on the inside rim later today.
Then it'll be the waiting game till the other cans of signal green come in.
The plan will be to give three coats to the main face of the alloys, then two/three coats of lacquer to give them plenty of protection.
I brought them back in the garage to harden off.. left a fan heater on just to warm the air.. to help aid drying
all seemed hard this morning when I checked on them.
14 October 2011, 09:37 PM
#16
Scooby Senior
Thread Starter
2nd coat of lacquer went on this afternoon to the inner rims.
As I'd ran out of the green spray cans, I nipped out and picked up two more cans from a local car parts shop.. same colour but not same brand of paint. So used one can as a waft 1st coat on the main outside face of the wheel, I'll give them a 2nd coat tomorrow. Then wait till I can get the same brand of paint to finish off the face of the wheels before three lacquer coats go on.
So far I'm happy with how they are building up.
As I'd ran out of the green spray cans, I nipped out and picked up two more cans from a local car parts shop.. same colour but not same brand of paint. So used one can as a waft 1st coat on the main outside face of the wheel, I'll give them a 2nd coat tomorrow. Then wait till I can get the same brand of paint to finish off the face of the wheels before three lacquer coats go on.
So far I'm happy with how they are building up.
15 October 2011, 08:05 PM
#19
Scooby Senior
Thread Starter
Look good BLU, Ford Signal Green is fab... is it the same as whatt he Ford Fiesta ST came in??
anyway......
came back from Golf at Lunch time.. tee off as 7:17am... it was just light!! lol

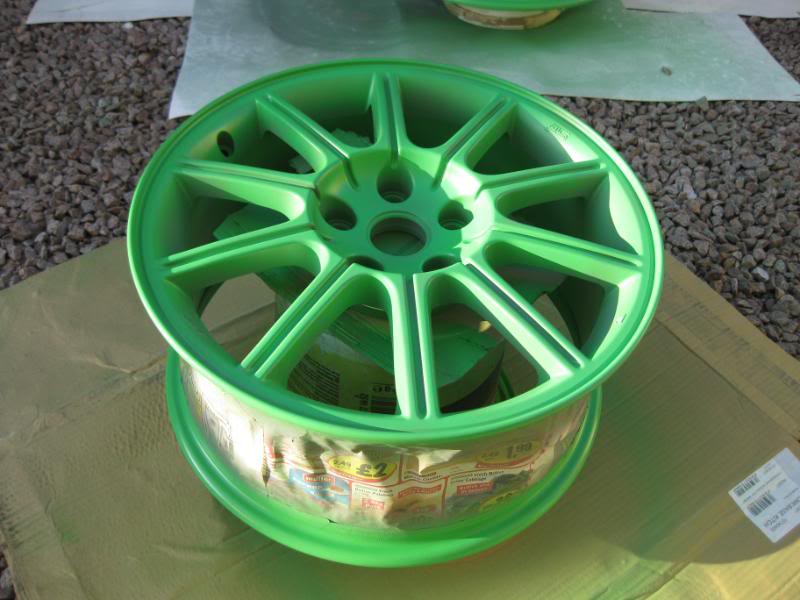

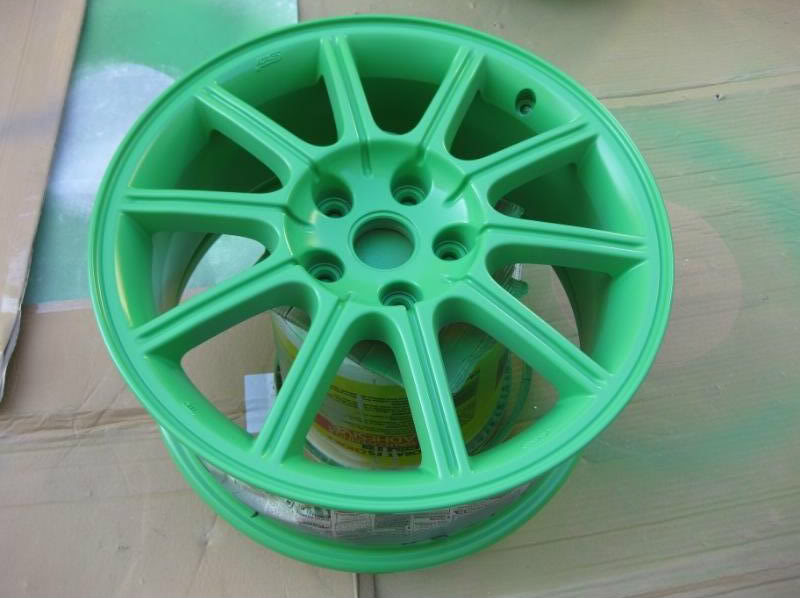

Got the wheels out and nibbed down and gave a 2nd coat to the face of the wheels.
Using the different brand paint (AutoCare) isn't as good as the HOLTS spray cans.. but as thse were just the first couple of coats it doesn't matter as when the HOLTS paint comes back into stock I'll be finishing them with that... its so much easier to use as it sprays 'finer' and generally better, if you get what I mean about spraying.

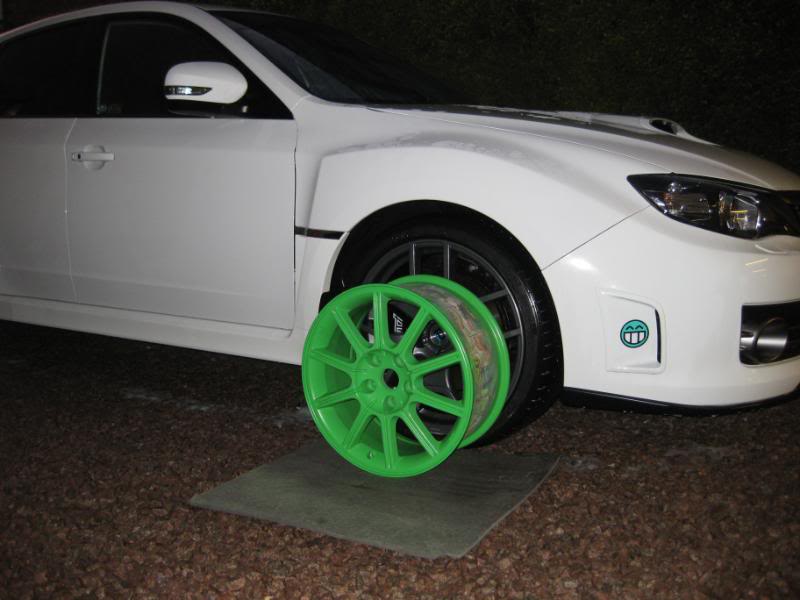

after washing the car this evening I wanted to offer up the alloy to see how it goes with the white car..
I think it will go ace
anyway......
came back from Golf at Lunch time.. tee off as 7:17am... it was just light!! lol
Got the wheels out and nibbed down and gave a 2nd coat to the face of the wheels.
Using the different brand paint (AutoCare) isn't as good as the HOLTS spray cans.. but as thse were just the first couple of coats it doesn't matter as when the HOLTS paint comes back into stock I'll be finishing them with that... its so much easier to use as it sprays 'finer' and generally better, if you get what I mean about spraying.
after washing the car this evening I wanted to offer up the alloy to see how it goes with the white car..
I think it will go ace
15 October 2011, 08:53 PM
#20
Scooby Regular
Join Date: Mar 2008
Location: Gatwick
Posts: 56
Likes: 0
Received 0 Likes
on
0 Posts
Looking good Salsa! nice going!
How many times have you done DIY spraying?
i have struggled when it came to doing a spoiler, it was the lacker which I couldn't get right. I tried the warming the can in hot water.
I digress your wheels look F-ing cool well done!
How many times have you done DIY spraying?
i have struggled when it came to doing a spoiler, it was the lacker which I couldn't get right. I tried the warming the can in hot water.
I digress your wheels look F-ing cool well done!
15 October 2011, 08:59 PM
#21
Ford had a good colour choice back in the 60's and 70's. My car is painted in 1968 Ford electric blue
Wheels are gonna look ace, almost match the smiley
You do know it doesn't actually need lacquer don't you?
Last edited by BLU; 15 October 2011 at 09:00 PM.
15 October 2011, 09:19 PM
#22
Look good BLU, Ford Signal Green is fab... is it the same as whatt he Ford Fiesta ST came in??
anyway......
came back from Golf at Lunch time.. tee off as 7:17am... it was just light!! lol
Got the wheels out and nibbed down and gave a 2nd coat to the face of the wheels.
Using the different brand paint (AutoCare) isn't as good as the HOLTS spray cans.. but as thse were just the first couple of coats it doesn't matter as when the HOLTS paint comes back into stock I'll be finishing them with that... its so much easier to use as it sprays 'finer' and generally better, if you get what I mean about spraying.
after washing the car this evening I wanted to offer up the alloy to see how it goes with the white car..
I think it will go ace
anyway......
came back from Golf at Lunch time.. tee off as 7:17am... it was just light!! lol
Got the wheels out and nibbed down and gave a 2nd coat to the face of the wheels.
Using the different brand paint (AutoCare) isn't as good as the HOLTS spray cans.. but as thse were just the first couple of coats it doesn't matter as when the HOLTS paint comes back into stock I'll be finishing them with that... its so much easier to use as it sprays 'finer' and generally better, if you get what I mean about spraying.
after washing the car this evening I wanted to offer up the alloy to see how it goes with the white car..
I think it will go ace
You're putting those on a Rover 25???????
Oh, sorry, NOW I see it's a (sort of) Scoob...........
15 October 2011, 11:17 PM
#23
Scooby Senior
Thread Starter
no, a Mazda 3
17 October 2011, 04:39 PM
#25
Scooby Senior
Thread Starter
would you buy one though
18 October 2011, 10:47 PM
#26
Scooby Senior
Thread Starter

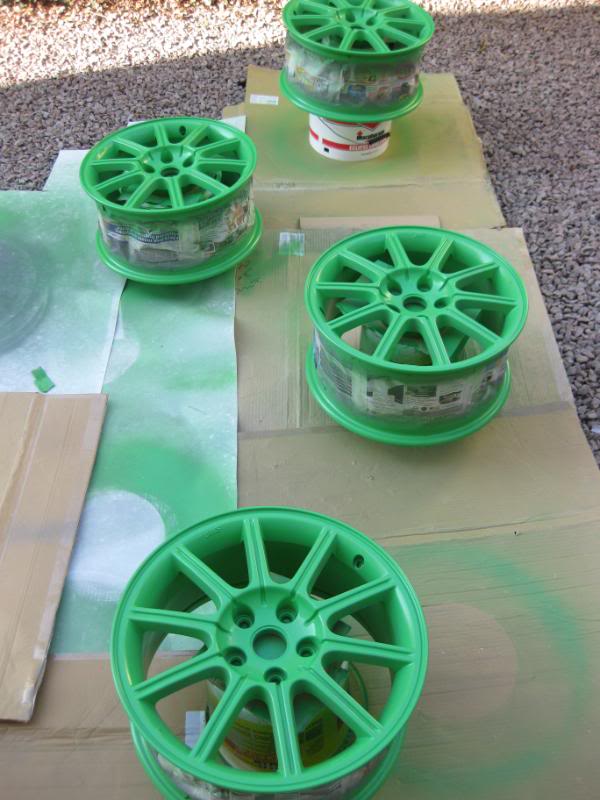

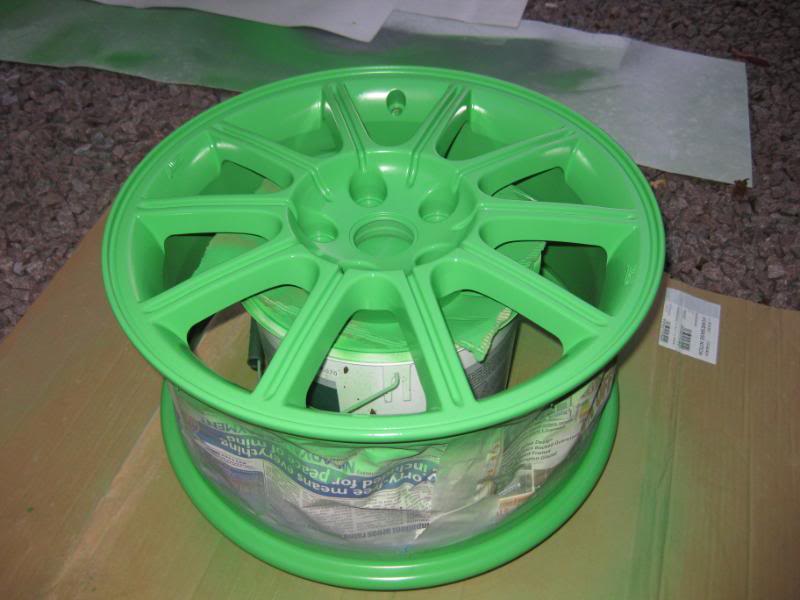

I got two more coats on the face late this afternoon.
2nd coat today went on about 10/15mins after 1st coat, so it allows it to fuse into each other.
I have to say the more coats going on the better they look.
Will get final coats on tomorrow before the lacquer goes on.
Now looking for some nice centre caps.
2nd coat today went on about 10/15mins after 1st coat, so it allows it to fuse into each other.
I have to say the more coats going on the better they look.
Will get final coats on tomorrow before the lacquer goes on.
Now looking for some nice centre caps.
19 October 2011, 10:04 PM
#28
Scooby Senior
Thread Starter

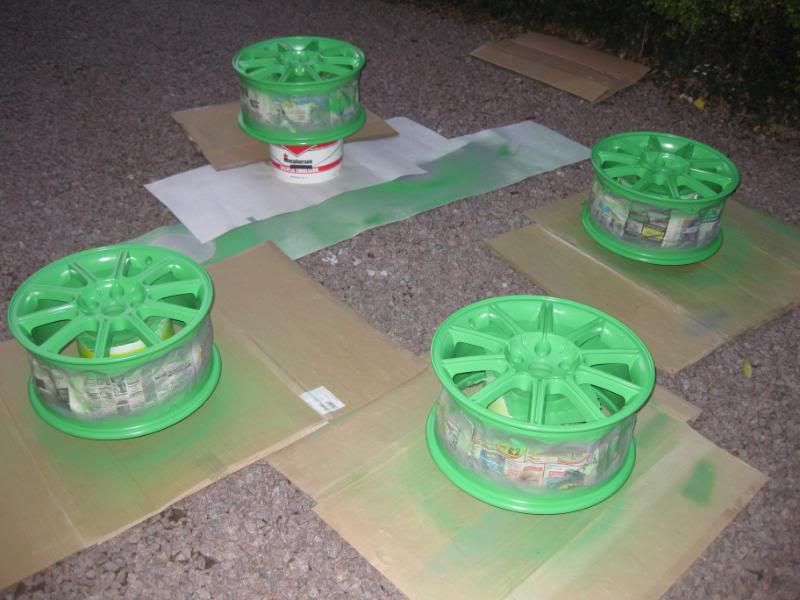

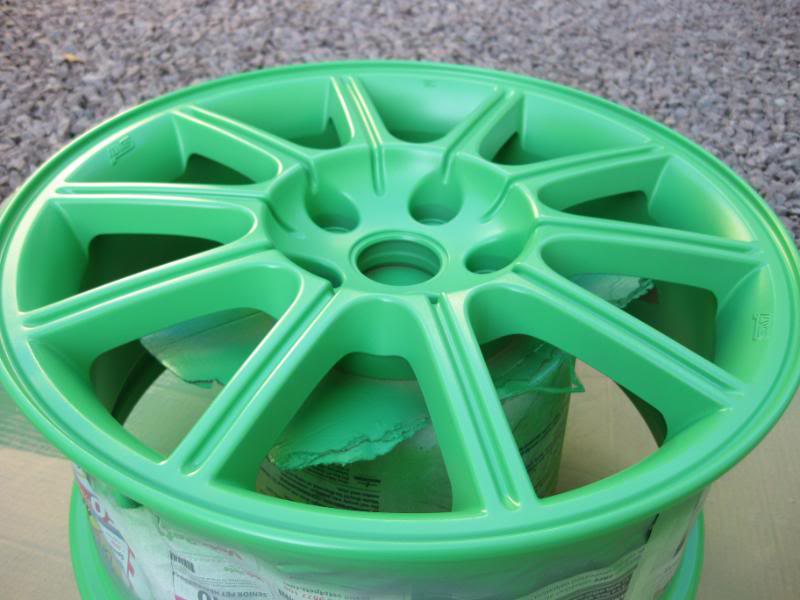

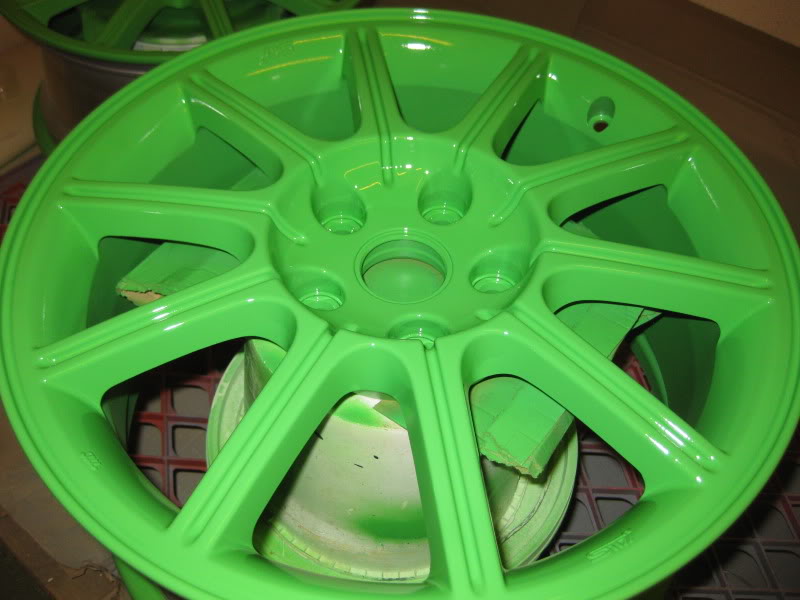

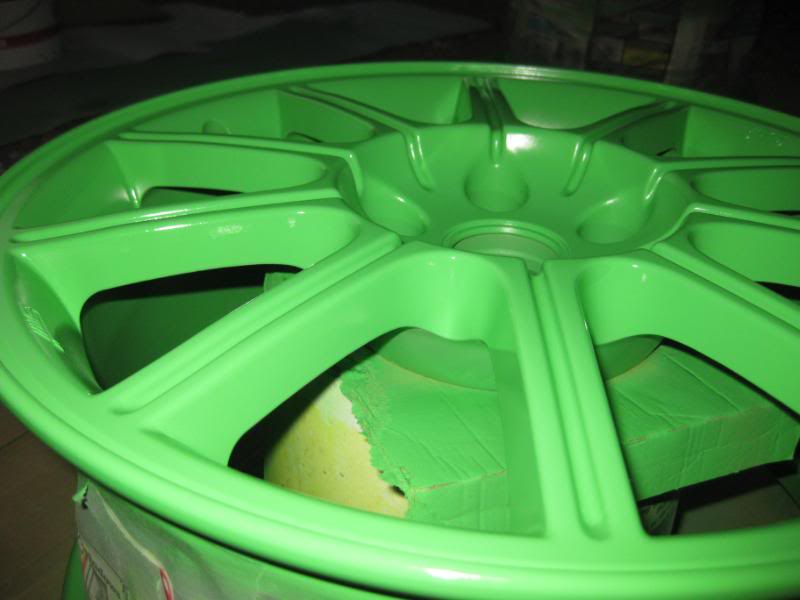

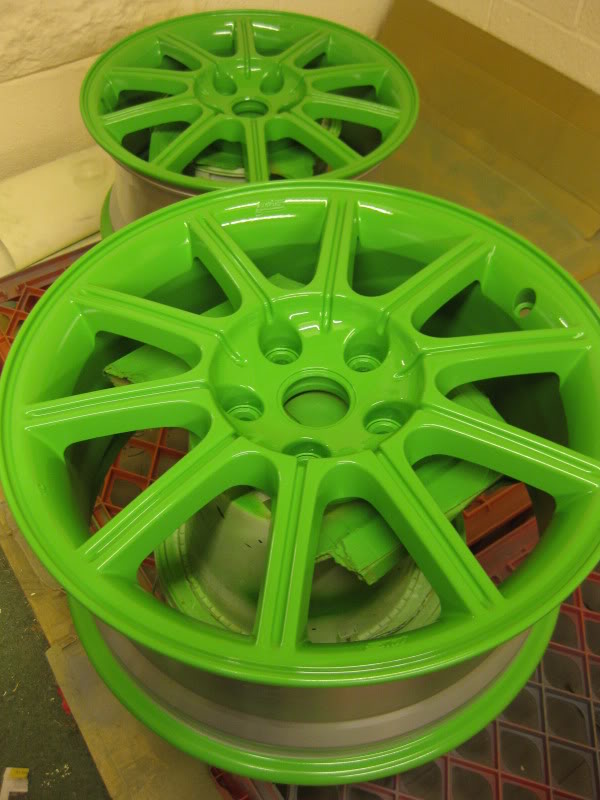

The finishing coats of the shine green went on this afternoon... 15mins between coats, then after about 45mins the 1st coat of lacquer went on after removing the newspaper making around the centre.
Two hours later a 2nd coat of lacquer.
The pictures don't do the finish justice to how good they look
A final lacquer coat will go on tomorrow to finish them off. Then a general check round to make sure all is good then I'll leave a few days to harden off before the rubber goes back on.
Two hours later a 2nd coat of lacquer.
The pictures don't do the finish justice to how good they look
A final lacquer coat will go on tomorrow to finish them off. Then a general check round to make sure all is good then I'll leave a few days to harden off before the rubber goes back on.
