Prodrive GT1 fitment?

Old 07 March 2019, 10:04 PM
  #1
kgs66
Scooby Newbie
Thread Starter

kgs66's Avatar

Join Date: Oct 2012
Location: Glasgow
Posts: 18
Default Prodrive GT1 fitment?

New to the forum, recently taken delivery of 07 Hawk STI my (second one). Its running on prodrive GT1 18 x 8.5Jís with 53 offset. Most sites say this is the correct size for the car but the front tyres are rubbing inner top arch on full turn. Tyres are 225 x 40 x 18. Anyone else had problems with these wheels?
kgs66 is offline
Old 07 March 2019, 10:33 PM
  #2
Chrisp11981
Scooby Regular
iTrader: (1)

Join Date: Jan 2013
Location: Helensburgh
Posts: 163
Default

Has it been lowered? Or maybe got some spacers fitted?
Chrisp11981 is offline
Old 07 March 2019, 10:54 PM
  #3
kgs66
Scooby Newbie
Thread Starter

kgs66's Avatar

Join Date: Oct 2012
Location: Glasgow
Posts: 18
Default

Hi, thanks for getting in touch. No spacers but yeah itís on coilivers and is set a little lower but not so much as Iíd thought Iíd have a problem, especially with the lower profile tyres. I tried raising it back up a bit bit still the same rubbing. Iíll maybe try spacers if I can get away without having to roll the fenders. Thanks again
k
kgs66 is offline
Old 08 March 2019, 08:35 AM
  #4
LewisScoob
Scooby Regular
iTrader: (5)

LewisScoob's Avatar

Join Date: Oct 2008
Location: Aberdeenshire
Posts: 721
Default

Thats the standard wheel and tyre size for RB320. You really shouldnt be having issues with arch rubbing if near standard height. Got any pics of the car as it sits?
LewisScoob is offline
Old 08 March 2019, 08:02 PM
  #5
kgs66
Scooby Newbie
Thread Starter

kgs66's Avatar

Join Date: Oct 2012
Location: Glasgow
Posts: 18
Default

Hi Lewis
i think you replied on another of my posts re the second engine rebuild. Itís the same car! If Carlberg did bad buys 😭

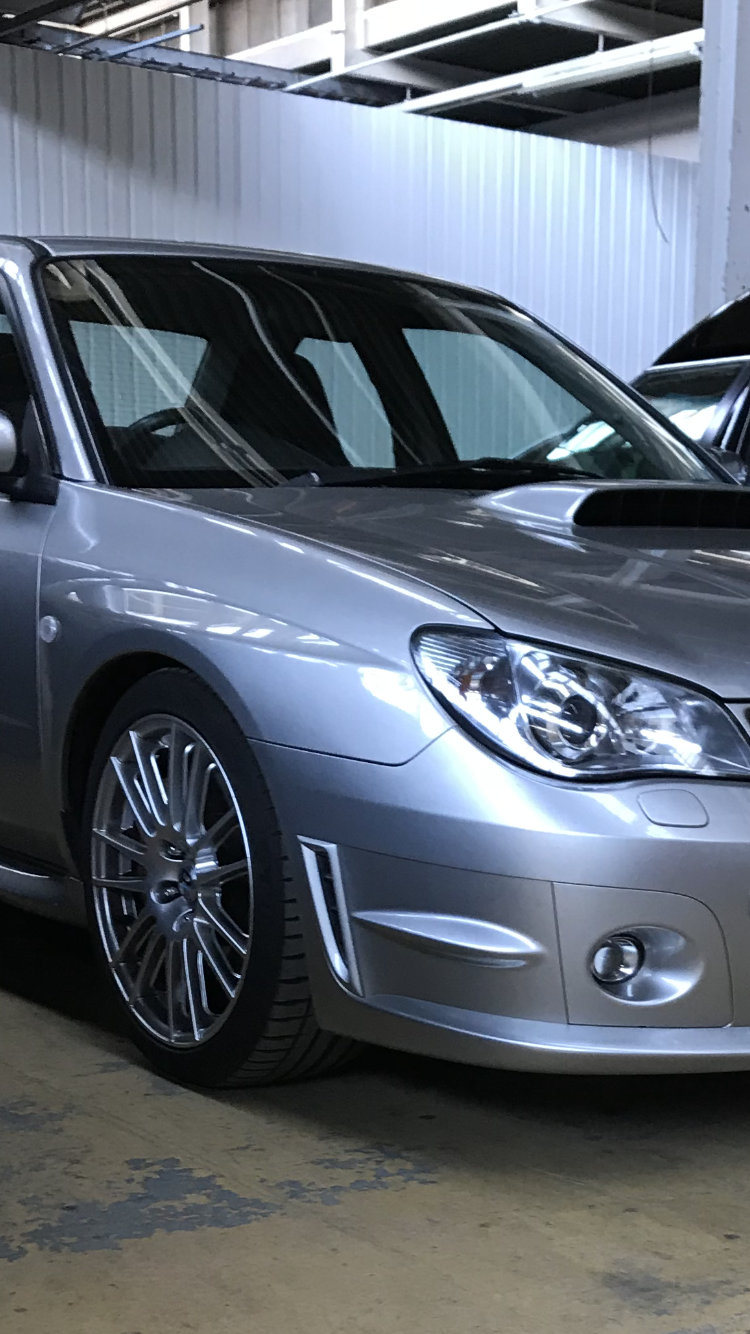

The car isnít here, itís garaged with the guy whoís quoting on the rebuild. Only pic I have is attached but itís not a great angle.

kgs66 is offline
Old 08 March 2019, 09:06 PM
  #6
2pot
Scooby Regular
iTrader: (3)

2pot's Avatar

Join Date: Feb 2010
Location: Birmingham
Posts: 1,438
Default

RB320 tyres 235/40 x 18
Ride heights 355mm front 365mm rear.
Tyres rarely measure their stated width.
What front and rear camber?
Hitting inside strut or outside arch? Front and rear?

Last edited by 2pot; 08 March 2019 at 09:17 PM.
2pot is offline
Old 09 March 2019, 08:14 AM
  #7
kgs66
Scooby Newbie
Thread Starter

kgs66's Avatar

Join Date: Oct 2012
Location: Glasgow
Posts: 18
Default

2spot, itís the inside, front only, and sounds worse on drive side. Itís not rubbing the suspension components, just the plastic plate that lines the arch. Which made me think it was maybe the tyre profile too high. Garage felt the car was set up at a nice ride height, and rather than adjusting it, they tried heating the plastic plate to soften it and push it in a bit. Iím back in the garage today and will def check the ride height though compared to the RB320 spec you advised. Thanks.
kgs66 is offline
Old 09 March 2019, 09:10 AM
  #8
scotty boy 80
Scooby Regular
iTrader: (5)

Join Date: Jan 2011
Location: Ecosse
Posts: 662
Default

Rubbing mudflaps maybe?
scotty boy 80 is offline
Old 09 March 2019, 10:16 AM
  #9
kgs66
Scooby Newbie
Thread Starter

kgs66's Avatar

Join Date: Oct 2012
Location: Glasgow
Posts: 18
Default

Cheers but thereís no mudflaps fitted, itís a spec D (for now &#128527
kgs66 is offline
