Bugeye sti suspension question
#1
Scooby Newbie
Thread Starter
Bugeye sti suspension question
New on here recently purchased a bugeye sti it has bc coilovers which I find to harsh , question is do I try another brand of coilovers or do I go back to Subaru stuff thanks
#3
Scooby Newbie
Thread Starter
The following 3 users liked this post by Michelle2000:
#4
Scooby Regular
iTrader: (1)
Hi.. I've had numerous set ups on the same car.. Had Bc that I found good for the price points.. not to harsh.. Of the four different set ups my current ST X coil overs( requiring OEM/GP N top mounts) have been the best for comfort and feel.. The price point is similar to going down the KYB and eibach spring path..
The following users liked this post:
#5
Scooby Regular
I had meister crd+ 8/7 springs, to hard setup for UK roads ,crashy like bc br ,swapped them for oem struts with GroupN top mounts ,not bad but did not like a look of car ,still to hard on rear and bouncy,started knocking at rear( common issue) swapped them for meisterr gt1's 6/5 springs and like them a lot on softest settings,really comfy with very good handling. Did not like them on 20/16 from hard,rear was to bouncy need to play with them yet.
Had bc br 6/5 on wrx,crashy but had them 6 years with no issues at all.
Had bc br 6/5 on wrx,crashy but had them 6 years with no issues at all.
Last edited by JdmSti2006; 12 June 2023 at 04:08 PM.
The following users liked this post:
#6
Scooby Regular
iTrader: (1)
@@Michelle2000, How old is the BC set on the car.. If it they quite new it could be worth reaching out to BC and see if changing the springs for something soft was an option.
#7
Scooby Regular
Nothing better on the market than gt1's for road car,was thinking about b16 but to stiff(chevron fit softer springs on their sets) kw v3 are not bad but not for me ,ast are double a price but fail quickly,nitron and exe tc expensive and more track focused ,doubt nitron r1 are better maybe r3 but 4.5k ,ohlins dfv available for 08 and above imprezas. Silvers 2 way adjustable coilovers will be my 2nd choice.
Trending Topics
#9
Scooby Newbie
Hi I'm just trying to find the very best fast road setup for my 2001 bug sti wagon. Planning on keeping the red KYB struts at the mo and replacing springs with an uprated kit but struggling for info on spring rate for the rear as it's slightly different for the wagon than the saloon. My other scoob is blob wrx wagon with Meister R Zeta CRDs which handles very well now especially with 8" wheels but still bangs a fair bit on rough surfaces so was going try eliminate this crashing but try to replacate the handling ability.of the coilovers using the original struts. Not sure if it's possible, can't find the correct spring rate for the Eibach kit for a wagon so looking into whiteline kit atm and will also consult Chevron Motorsport in Stafford. Might wind up spending a lot on some high end coilovers in the end anyway but any input on this would be appreciated !!
The following users liked this post:
#11
Scooby Newbie
Thread Starter
I had meister crd+ 8/7 springs, to hard setup for UK roads ,crashy like bc br ,swapped them for oem struts with GroupN top mounts ,not bad but did not like a look of car ,still to hard on rear and bouncy,started knocking at rear( common issue) swapped them for meisterr gt1's 6/5 springs and like them a lot on softest settings,really comfy with very good handling. Did not like them on 20/16 from hard,rear was to bouncy need to play with them yet.
Had bc br 6/5 on wrx,crashy but had them 6 years with no issues at all.
Had bc br 6/5 on wrx,crashy but had them 6 years with no issues at all.
#13
Scooby Newbie
Thread Starter
@@Michelle2000, How old is the BC set on the car.. If it they quite new it could be worth reaching out to BC and see if changing the springs for something soft was an option.
#15
Scooby Regular
You can order meisterr with other rate springs.
Last edited by JdmSti2006; 19 June 2023 at 08:26 PM.
The following users liked this post:
#16
Scooby Regular
iTrader: (3)
OEM Subaru inverted
Koni inserts non-inverted
KYB agx non-inverted
KYB ultra sr inverted
KYB ultra sr non-inverted
Bilstein inverted
Haven't tried with Tein enduropro plus.
Dampers are designed to control spring oscillations. Adjustable dampers are not designed adjust ride comfort. If that's what you are trying to effect, your springs are too stiff.
Road car springs are selected by ride frequency (Hz). Which is a calculation based on:
weight distribution
unsprung weight
wheel base
vehicle speed
motion ratio
More than around 1.8Hz at the rear, is going to be a handful on a b-road. Coilovers rarely take ride frequencies into account - which is why coilovers can be too stiff and suffer from pitch = their front spring rate is often too high, compared too the rear spring rate.
Bump travel and droop travel are important. Whenever, I've specified a damper, I maximize these measurements, taking into account the spring design.
Distance to bump stop engagement and bump stop durometer is critical. Too low a ride-height means you are running on the bump stops.
Last edited by 2pot; 20 June 2023 at 07:21 AM.
#17
Scooby Regular
Nothing better on the market than gt1's for road car,was thinking about b16 but to stiff(chevron fit softer springs on their sets) kw v3 are not bad but not for me ,ast are double a price but fail quickly,nitron and exe tc expensive and more track focused ,doubt nitron r1 are better maybe r3 but 4.5k ,ohlins dfv available for 08 and above imprezas. Silvers 2 way adjustable coilovers will be my 2nd choice.
#18
Scooby Newbie
Thread Starter
#19
Scooby Regular

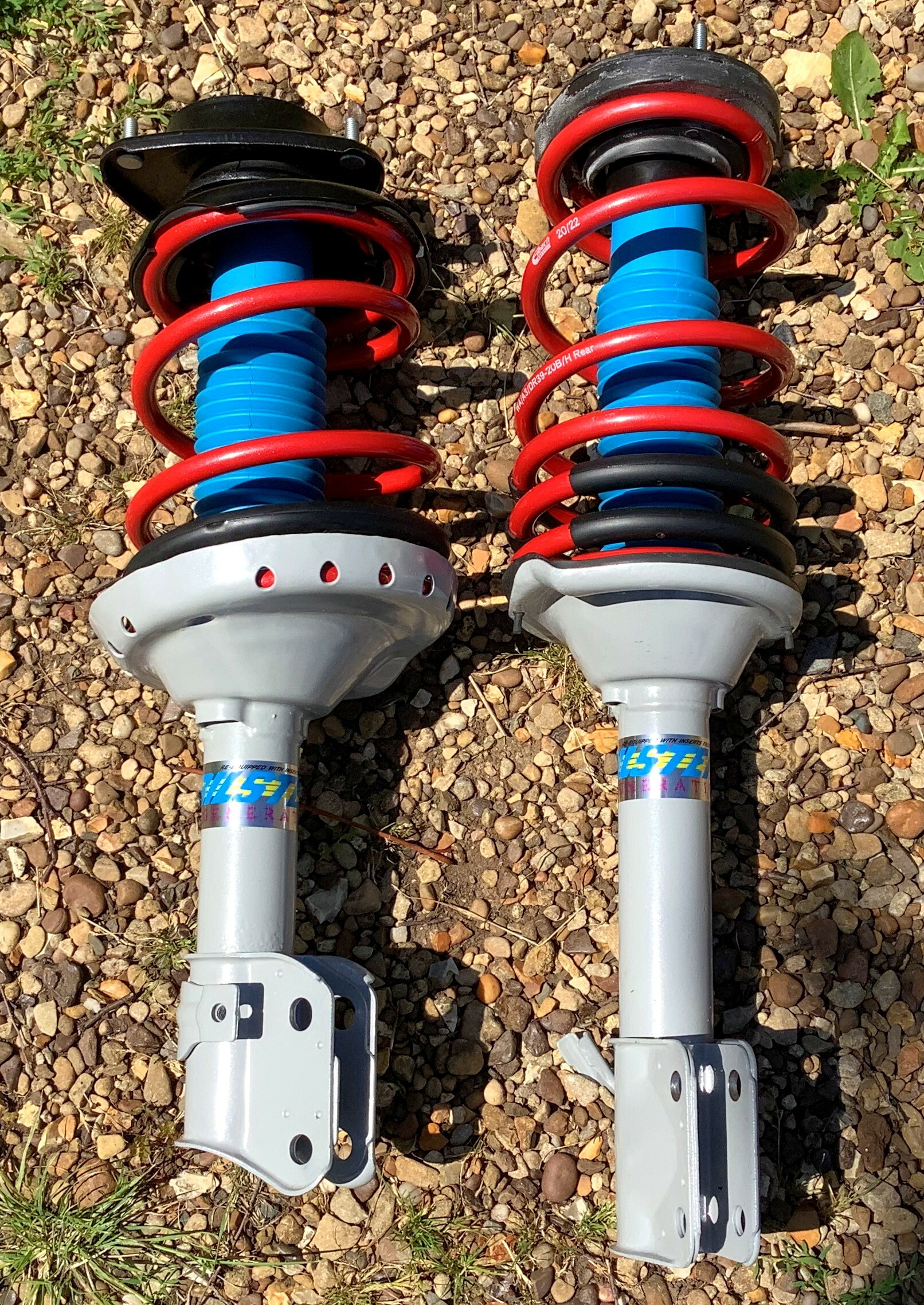

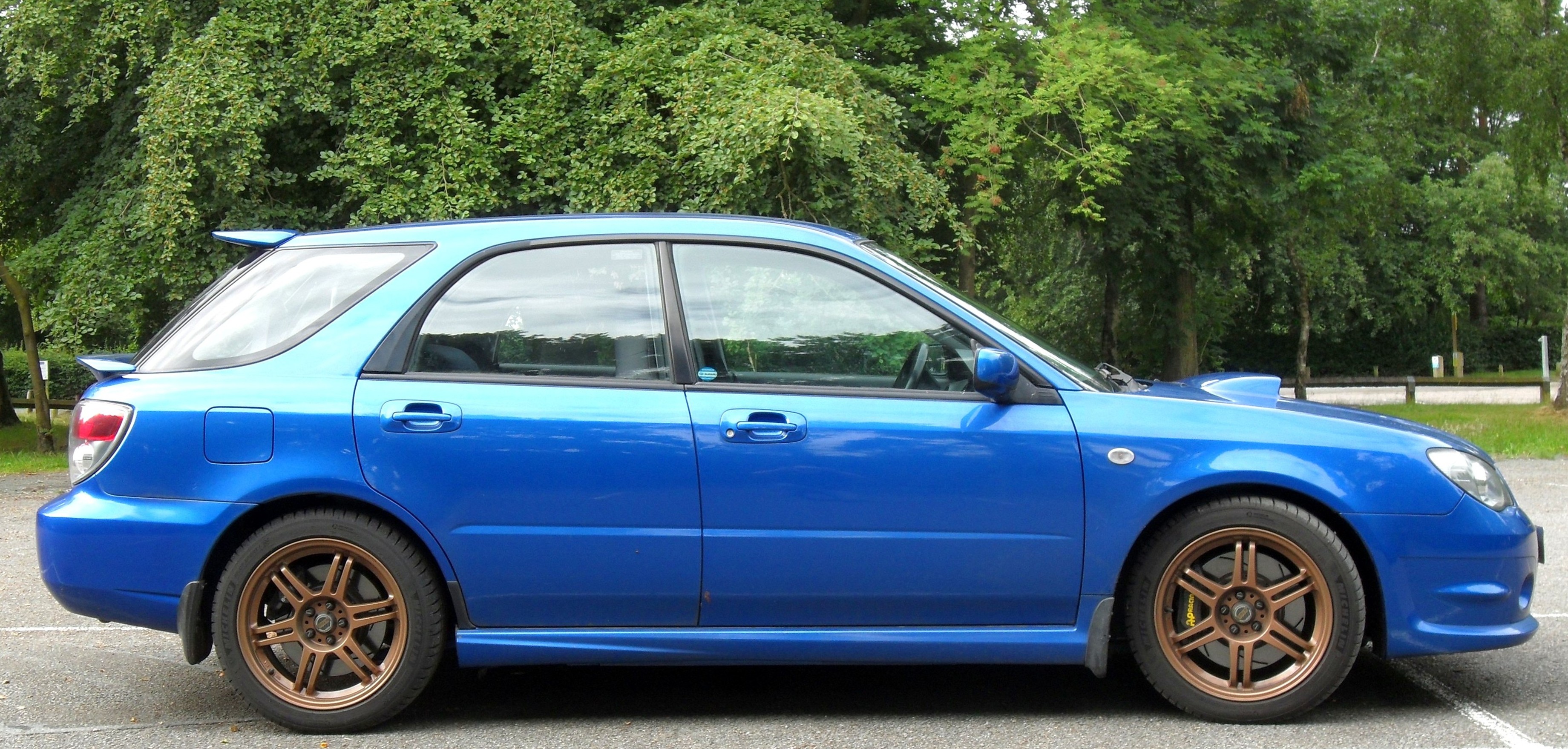

Fitted , not to low.
oem below,did not like a stance
found pic with crd+
Last edited by JdmSti2006; 26 June 2023 at 06:01 PM.
#21
Scooby Regular
Can't find anything OEM for £250 ? Your cars looking good !!
a just watched this guy's kinda put me off the GT1's
https://youtu.be/Be_CuqLZZ6Y
a just watched this guy's kinda put me off the GT1's
https://youtu.be/Be_CuqLZZ6Y
