Fitting winglets to an O3 Blobeye WRX
I have just read to instructions on the forum on how to fit the STI winglets to an 03 Blobeye WRX and am still a bit confused.
My main question is do the Winglet panels (part no 57742FE010/000) just fit right over the top of the existing WRX bumper?
I have just had a look at my car and as it is (with the standard bumper) where the winglets would fit on it is all the same width. The bottom part doesn't stick out at all. So if the winglet parts do just sit on the top, surely they would stick out by the thickness off the material they're made from.
I don't think I've written that so you'll understand me easily but I hope you get the jist!
As you can see I'm a bit confused so if someone who's done the mod or knows about it could set me straight that would be great.
Cheers
My main question is do the Winglet panels (part no 57742FE010/000) just fit right over the top of the existing WRX bumper?
I have just had a look at my car and as it is (with the standard bumper) where the winglets would fit on it is all the same width. The bottom part doesn't stick out at all. So if the winglet parts do just sit on the top, surely they would stick out by the thickness off the material they're made from.
I don't think I've written that so you'll understand me easily but I hope you get the jist!
As you can see I'm a bit confused so if someone who's done the mod or knows about it could set me straight that would be great.
Cheers
#2
Scooby Regular
iTrader: (3)
Join Date: Jan 2008
Location: Wolves
Posts: 564
Likes: 0
Received 0 Likes
on
0 Posts
I have just read to instructions on the forum on how to fit the STI winglets to an 03 Blobeye WRX and am still a bit confused.
My main question is do the Winglet panels (part no 57742FE010/000) just fit right over the top of the existing WRX bumper?
I have just had a look at my car and as it is (with the standard bumper) where the winglets would fit on it is all the same width. The bottom part doesn't stick out at all. So if the winglet parts do just sit on the top, surely they would stick out by the thickness off the material they're made from.
I don't think I've written that so you'll understand me easily but I hope you get the jist!
As you can see I'm a bit confused so if someone who's done the mod or knows about it could set me straight that would be great.
Cheers
My main question is do the Winglet panels (part no 57742FE010/000) just fit right over the top of the existing WRX bumper?
I have just had a look at my car and as it is (with the standard bumper) where the winglets would fit on it is all the same width. The bottom part doesn't stick out at all. So if the winglet parts do just sit on the top, surely they would stick out by the thickness off the material they're made from.
I don't think I've written that so you'll understand me easily but I hope you get the jist!
As you can see I'm a bit confused so if someone who's done the mod or knows about it could set me straight that would be great.
Cheers
#3
Scooby Regular
Thread Starter
iTrader: (3)
Join Date: Feb 2007
Location: Inverness
Posts: 743
Likes: 0
Received 0 Likes
on
0 Posts
Hi man, thanks, had a look at your pics but it isn't clear. Think I know what you're saying though.
The one of the front of your motor is the best pic cos its the biggest and clearest but cant really tell cos of the angle its taken from. Nice motor.
I'm scared to order the parts incase it just doesn't look right.
The one of the front of your motor is the best pic cos its the biggest and clearest but cant really tell cos of the angle its taken from. Nice motor.
I'm scared to order the parts incase it just doesn't look right.
#4
yes they do stand proud by the material thickness, also have a black rubber seal around them that goes around the joint where it sits proud of the bumper similar to the seal on the sideskirts, but they look fine that is how they are supposed to be.
Trending Topics
#9
Scooby Regular
iTrader: (1)
Join Date: Aug 2007
Location: Glasgow
Posts: 265
Likes: 0
Received 0 Likes
on
0 Posts
I got a set of winglets of HT autos, painted them myself not sure if HT autos paints them. came with the rubber seal thingy, still havent fitted them tho,what side does the rubber seal go, the longer leg that runs under the bumper at the bottom of the winglet... does the rubber seal go between the car bumper and the under hangybit of the winglet ? dunno if u get what im trying to say.
#12
Scooby Regular
Join Date: Dec 2007
Location: North Wales/Chester
Posts: 795
Likes: 0
Received 0 Likes
on
0 Posts

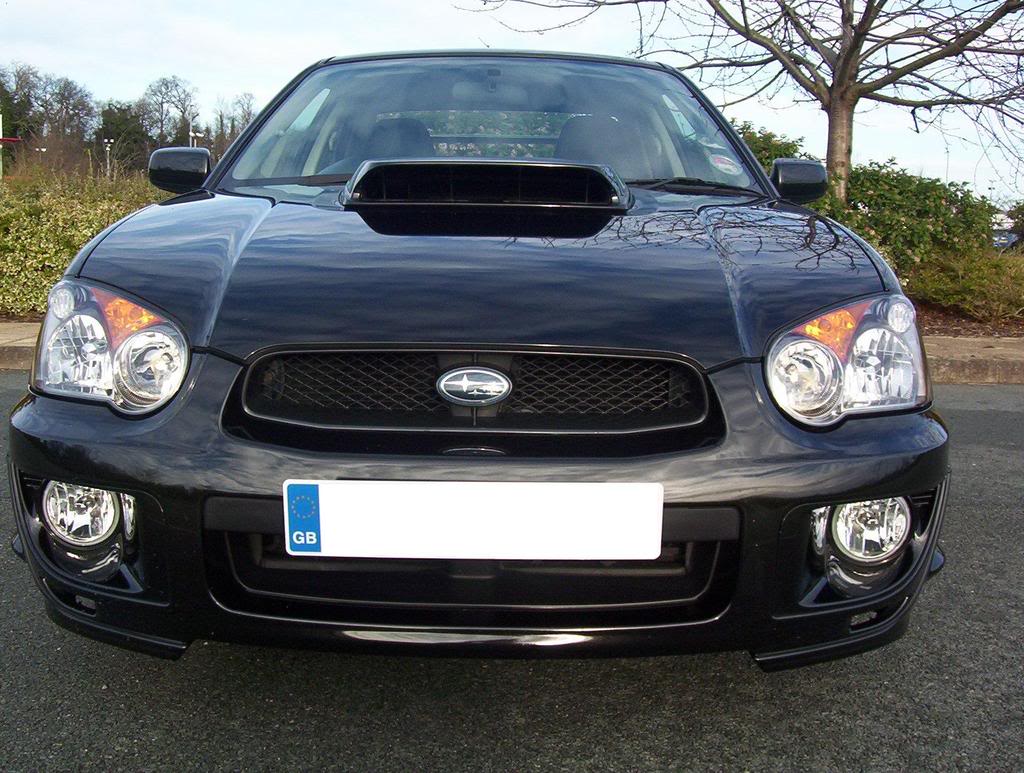

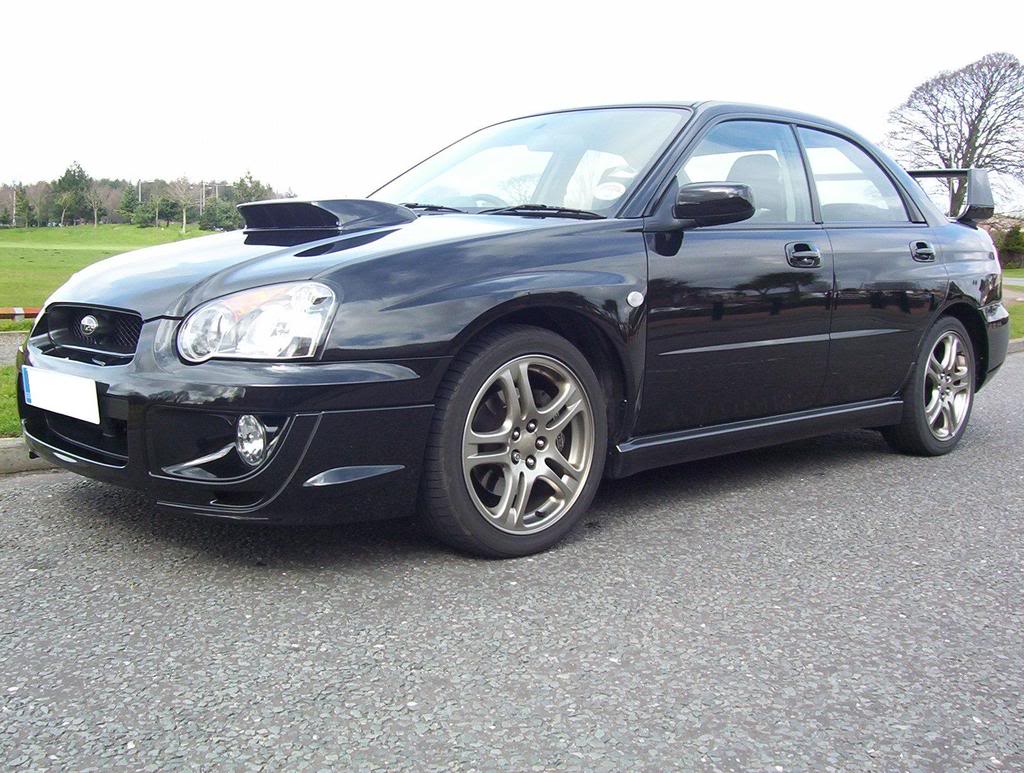

As fitted to my old WRX......
I didn't fit them though because I was too busy/too numpty the garage that did them did them in a hour though, and it was there first time
I didn't fit them though because I was too busy/too numpty the garage that did them did them in a hour though, and it was there first time
#14
Scooby Regular
Join Date: Dec 2007
Location: North Wales/Chester
Posts: 795
Likes: 0
Received 0 Likes
on
0 Posts
There was ever such a slight gap between my seal and the bumper so I used some black silicone and a small spatch (didn't want any mud or silt getting in behind it)
#17
Scooby Regular
Thread Starter
iTrader: (3)
Join Date: Feb 2007
Location: Inverness
Posts: 743
Likes: 0
Received 0 Likes
on
0 Posts
I phoned my local dealer yesterday and got a price for the winglets, £63.91 + VAT per side (£75.09 inc Vat). Don't know though if all dealer prices are the same. This was from Aird Motors in Beauly, Inverness-shire.
#18
Scooby Regular
iTrader: (1)
Join Date: Sep 2007
Location: yorkshire (mostly)
Posts: 1,865
Likes: 0
Received 0 Likes
on
0 Posts
yes i did the same exactly the same price that was from doncaster subaru it took ages for him to find them even though i gave him the correct code and £34 +vat each fog cover
#19
Scooby Regular
Thread Starter
iTrader: (3)
Join Date: Feb 2007
Location: Inverness
Posts: 743
Likes: 0
Received 0 Likes
on
0 Posts
You got a better deal on the fog light cover than I did. They quoted me £37.84 + VAT (£44.46 inc). Ordered and picking them up tomorrow. Reckon Revolution in Newcastle are at it though, they are charging about £180 for them!! Still genuine parts.
I have not bodywork experience whatsoever, but I am meticulous in what I do, so does everyone reckon fitting the winglets is easy as long as I take my time then?
I have not bodywork experience whatsoever, but I am meticulous in what I do, so does everyone reckon fitting the winglets is easy as long as I take my time then?
#20
Scooby Regular
iTrader: (1)
Join Date: Jun 2000
Location: Essex
Posts: 2,818
Likes: 0
Received 0 Likes
on
0 Posts
Others have used a product such as Sikaflex to glue them on, with good results. Prefer the slots myself.
Allan
#23
Scooby Regular
iTrader: (6)
Join Date: Jun 2001
Location: Northampton, Xbox GamerTag - Neanderthal1976
Posts: 6,850
Likes: 0
Received 0 Likes
on
0 Posts
I had a body shop put mine on whilst it was in getting colour coded almost 2 years ago now. I posted a thread cause they've started to come away from the bumper. My winglets didn't have the 'lugs' on it so it was held on purely by what looks like sticky backed foam. Still haven't decided whether to take them off and refit them completely or try to stick down the edge that's come away.
I know which one I should do, but I'm not very confident about doing it!
I know which one I should do, but I'm not very confident about doing it!
#25
Scooby Regular
iTrader: (1)
Join Date: Jun 2000
Location: Essex
Posts: 2,818
Likes: 0
Received 0 Likes
on
0 Posts
I had a body shop put mine on whilst it was in getting colour coded almost 2 years ago now. I posted a thread cause they've started to come away from the bumper. My winglets didn't have the 'lugs' on it so it was held on purely by what looks like sticky backed foam. Still haven't decided whether to take them off and refit them completely or try to stick down the edge that's come away.
I know which one I should do, but I'm not very confident about doing it!
I know which one I should do, but I'm not very confident about doing it!
In your case you don't have many options, you could remove them and clean off all the old tape and re-fit them with something like Sikaflex. The only problem I can see is that looking at the inside of the panel, I'm not sure how much of it is in contact with bumper. You need to offer it up and try and see where would be the best place to use the adhesive to best effect.
By my reckoning the only reason to glue them on is so that you don’t have to cut the bumper, which is only an issue if you ever wanted to remove them. However the glue will probably destroy your paint, if I want to remove mine I only have one tiny slot to repair.
Failing that it looks like you might need a new set.
Allan
#28
Scooby Regular
Thread Starter
iTrader: (3)
Join Date: Feb 2007
Location: Inverness
Posts: 743
Likes: 0
Received 0 Likes
on
0 Posts
First I put some masking tape across the bumper along top and bottom of the wee groove so I could exactly mark where the slots had to be cut. To mark them I just held the winglet inplace with a bit a pressure so a nice tight fit then marked on the tape with a pencil.
I used a 3mm drill to cut the slots, I did either edge of the slot first then drilled the holes as close together as I could to take out the middle bit. Then cleaned it up with a scalpul then a small file.
I found the slots at 3mm weren't quite wide enough so I enlarged the middle of the slot, only the bottom part though with a 4mm bit. this was to fit the tab on the winglet into. Then cleaned up the slot agian.
With trial and error a constant checking for fittment I got it done. But to be honest after the first hole was drilled and my pulse rate settled it was a piece of p1ss!
Take you time, measure twice (or 3 times!) and cut once.
When I figure out how to put a photo in a thread I will post one!
#30
Scooby Regular
Thread Starter
iTrader: (3)
Join Date: Feb 2007
Location: Inverness
Posts: 743
Likes: 0
Received 0 Likes
on
0 Posts
The winglets are held on at the back and at the bottom with bolts so it aint gona come off but I just thought 3 at the top was better than one. As for the 2 white plastic clips, I popped them out and used a 10mm drill bit (just in my hand cos the plastic is so soft) to take the top off the riveted part. Once the plastic bracket was removed I used a scalpul to trim the rest down to a nice flush surface. Then just tidied things up with a piece of scotchbrite.
