Default Crank pulley removal help!!!

Hi all I have some CDF pulleys to install and was wondering what's the easiest way to do this on my driveway as I know the crank can be a pain in the a***
And also is the pas pump easy to remove and replace?? Thanks in advance
Reply
Old Aug 8, 2012 | 02:45 PM
  #2
Themexican's Avatar
Themexican
BANNED
iTrader: (5)

Joined: Jun 2011
Posts: 318
Likes: 0
From: West Midlands
Default

when I took mine off the crank was easiest, it was the alternator that was a pain in the ***. Just leave the belts on and you should be able to crack the nuts off.
Reply
Old Aug 8, 2012 | 03:07 PM
  #3
Gotheridge2007's Avatar
Gotheridge2007
Thread Starter
Scooby Regular
iTrader: (2)

Joined: Mar 2012
Posts: 179
Likes: 0
From: Nottingham
Default

Nuts off the crank pully was pretty easy. But the pulley seems to be seized on tight. Will a few hits with the hammer help it lol
Reply
Old Aug 8, 2012 | 03:31 PM
  #4
The Trooper 1815's Avatar
The Trooper 1815
18 June 1815 - Waterloo
iTrader: (31)

Joined: Dec 2004
Posts: 19,156
Likes: 15
From: To the valley men!
Default

Originally Posted by Gotheridge2007
Hi all I have some CDF pulleys to install and was wondering what's the easiest way to do this on my driveway as I know the crank can be a pain in the a***
And also is the pas pump easy to remove and replace?? Thanks in advance
There are holes in the old pulley that you can wedge something strong into. Rotate the engine round until whatever you have used is wedged against the chassis below the radiator.

It may sound like a pain but I took my radiator out, it also prevents you slipping off the bolt head and twatting the rad.

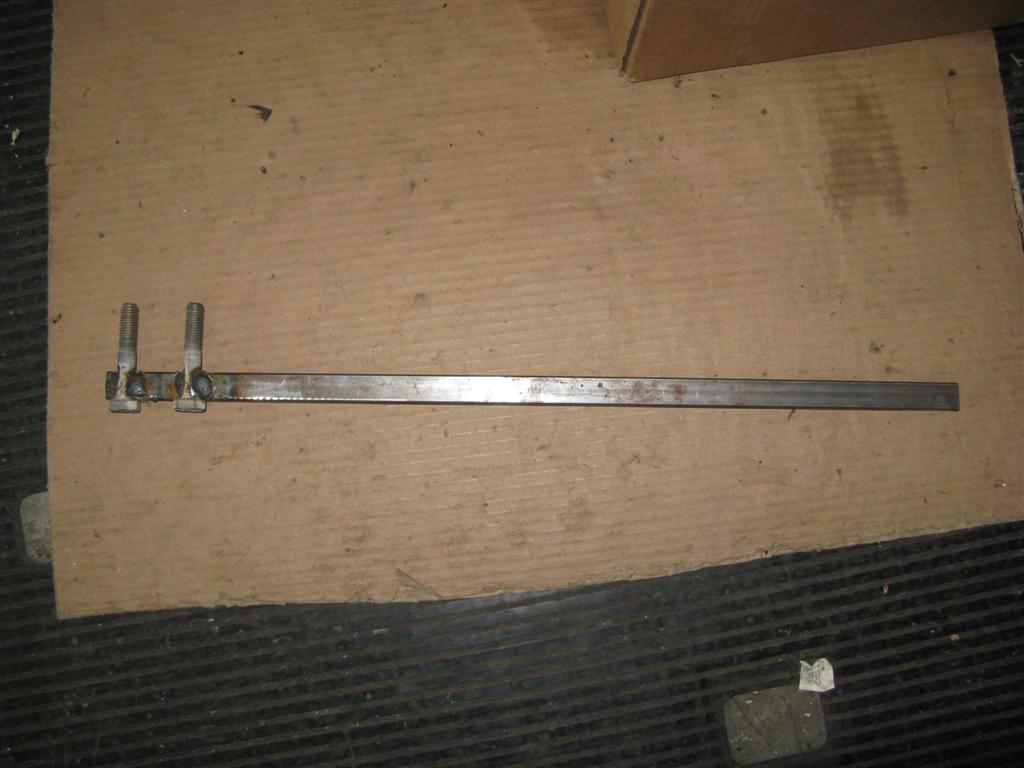

Or measure the distance between the holes, get some bolts welded to a bar and use it to lock the pulley, I borrowed one. JDM car's have different distances between the holes to a UK car.

Subaru do have a special tool if you know someone who's very friendly at the local Dealer.

Oh and mine was a JDM V5 STi.
Attached Thumbnails Click image for larger version

Name:	TIPM%20005%20%28Large%29.jpg
Views:	0
Size:	78.2 KB
ID:	9190
Reply
Old Aug 8, 2012 | 06:07 PM
  #5
Gotheridge2007's Avatar
Gotheridge2007
Thread Starter
Scooby Regular
iTrader: (2)

Joined: Mar 2012
Posts: 179
Likes: 0
From: Nottingham
Default

Thanks for the suggestions people all done now
