What are AVCS heads?

Thread Tools

Search this Thread

Old 25 April 2012, 08:55 PM
  #2
tubbytommy
BANNED
iTrader: (20)

tubbytommy's Avatar

Join Date: Mar 2010
Location: crawley :)
Posts: 16,950
Likes: 0
Received 1 Like on 1 Post
Default

alter the valve timing, sort of subarus vtec system

Last edited by tubbytommy; 25 April 2012 at 08:56 PM.
Old 25 April 2012, 08:55 PM
  #3
Ciaran
Scooby Regular
iTrader: (16)

Ciaran's Avatar

Join Date: Apr 2003
Location: Curlew FPSO
Posts: 2,771
Likes: 0
Received 0 Likes on 0 Posts
Default

They are cylinder heads from new age sti's the have variable valve timing which assist turbo spool.
Old 25 April 2012, 08:56 PM
  #4
daz1968
Scooby Regular
iTrader: (13)

daz1968's Avatar

Join Date: Jun 2007
Posts: 2,481
Likes: 0
Received 0 Likes on 0 Posts
Default

They are newage heads with Active valve control system, think some just on inlet cam, they are controlled by the ecu, think it helps spool and low down torque. Newage sti and I think all newage 2.5 litre have them, to fit though needs a compatible ecu to control them.

3 answers at same time, I should have typed quicker
Old 25 April 2012, 08:56 PM
  #5
The Pink Ninja
Scooby Regular
iTrader: (23)

The Pink Ninja's Avatar

Join Date: Apr 2008
Location: ...
Posts: 6,703
Likes: 0
Received 2 Likes on 2 Posts
Default

Originally Posted by Ciaran
They are cylinder heads from new age sti's the have variable valve timing which assist turbo spool.
Spot on
Old 25 April 2012, 09:01 PM
  #7
tubbytommy
BANNED
iTrader: (20)

tubbytommy's Avatar

Join Date: Mar 2010
Location: crawley :)
Posts: 16,950
Likes: 0
Received 1 Like on 1 Post
Default

Originally Posted by HT04
Ahhh ok. So would my 04' STi have them?

Dan
yes
Old 26 April 2012, 09:22 PM
  #9
YE5 1 SUB
Scooby Regular
iTrader: (2)

YE5 1 SUB's Avatar

Join Date: Feb 2009
Posts: 349
Likes: 0
Received 0 Likes on 0 Posts
Default

do all jdm wrx,s newage come with acvs.
Old 26 April 2012, 10:27 PM
  #10
Midlife......
Scooby Regular
iTrader: (2)

Midlife......'s Avatar

Join Date: Feb 2004
Posts: 11,583
Likes: 0
Received 4 Likes on 4 Posts
Default

yep, Jap bug WRX's came with AVCS, there is a bit of debate as to wether they were only on one bank of valves but yes they did.

UK bug WRX's have no AVCS at all which is a real pain for people like me when it comes to upgrading

Shaun
Old 26 April 2012, 10:31 PM
  #11
Don Clark
Scooby Regular

Don Clark's Avatar

Join Date: Feb 2003
Location: Harpenden
Posts: 7,604
Received 760 Likes on 631 Posts
Default

Originally Posted by HT04
As the title says really. Im hearing of them alot lately and id like to be kept up to speed so to speak. Lol.

Dan

http://drive2.subaru.com/Win05_WhatsInside.htm


Latest STi's have both Inlet and Exhaust AVCS

Last edited by Don Clark; 26 April 2012 at 10:32 PM.
Old 27 April 2012, 06:10 AM
  #12
BlueBugEye
Scooby Regular
iTrader: (12)

BlueBugEye's Avatar

Join Date: Apr 2007
Location: Littlehampton
Posts: 2,427
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by Midlife......

UK bug WRX's have no AVCS at all which is a real pain for people like me when it comes to upgrading

Shaun
Mines running AVCS - but did have to buy a Syvecs to get it working!
Old 01 December 2014, 09:18 PM
  #13
scooby87
Scooby Regular
iTrader: (5)

scooby87's Avatar

Join Date: Aug 2009
Location: Hertfordshire
Posts: 663
Likes: 0
Received 0 Likes on 0 Posts
Default

Digging up a old one here, but does anyone know how the variable valve timing improves the spool?

What are the actual physical differences in the heads ? lairy cams in one?
Old 01 December 2014, 10:19 PM
  #14
Ciaran
Scooby Regular
iTrader: (16)

Ciaran's Avatar

Join Date: Apr 2003
Location: Curlew FPSO
Posts: 2,771
Likes: 0
Received 0 Likes on 0 Posts
Default

I love google
http://en.m.wikipedia.org/wiki/Activ...control_system
Old 04 December 2014, 08:42 AM
  #15
scooby87
Scooby Regular
iTrader: (5)

scooby87's Avatar

Join Date: Aug 2009
Location: Hertfordshire
Posts: 663
Likes: 0
Received 0 Likes on 0 Posts
Default

Thanks.

So its a bit like a high lift cam system except it can vary itself depending on the sensors and ECU controlling it.

So by fitting some more aggressive cams you would have the same system in wrx heads? Except without the ability to vary it obviously and no smoothness on idle or economy?
Old 04 December 2014, 02:30 PM
  #16
Fat Boy
Scooby Regular

Fat Boy's Avatar

Join Date: Aug 2000
Posts: 4,262
Likes: 0
Received 1 Like on 1 Post
Default

Not really no.

High lift cams generally shift the whole map to the right i.e. a better top end at the expense of some spool. I have high lift cams in my 2.35 non avcs engine, and its very much a top end engine although the extra displacement/torque helps a bit on the spool front.
AVCS allows you to have the best of both worlds - earlier spool and the better top end (plus idling etc). I will be putting AVCS heads on in the New Year though to widen the power band by improving spool.
Old 04 December 2014, 02:50 PM
  #17
boosted
Scooby Regular

boosted's Avatar

Join Date: Jul 2011
Location: harlow
Posts: 2,514
Likes: 0
Received 1 Like on 1 Post
Default

Yes variable cam timing not variable valve lift or duration. Lift and duration remains the same, intercam timing I what is controlled. Inlet cam is usually where it's at, most cars controlling the exhaust cam are for emissions rather than power. Very old technology now, but then the jap stuff is usually quite behind on the technology front
Old 05 December 2014, 10:10 AM
  #18
scooby87
Scooby Regular
iTrader: (5)

scooby87's Avatar

Join Date: Aug 2009
Location: Hertfordshire
Posts: 663
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by Fat Boy
Not really no.

High lift cams generally shift the whole map to the right i.e. a better top end at the expense of some spool. I have high lift cams in my 2.35 non avcs engine, and its very much a top end engine although the extra displacement/torque helps a bit on the spool front.
AVCS allows you to have the best of both worlds - earlier spool and the better top end (plus idling etc). I will be putting AVCS heads on in the New Year though to widen the power band by improving spool.
Cheers that makes sense.

In a nut shell, avcs are pretty much the best option for heads on the impreza.
Old 05 December 2014, 11:27 AM
  #19
The Trooper 1815
18 June 1815 - Waterloo
iTrader: (31)

The Trooper 1815's Avatar

Join Date: Dec 2004
Location: To the valley men!
Posts: 19,156
Received 14 Likes on 12 Posts
Default

Originally Posted by scooby87
Cheers that makes sense.

In a nut shell, avcs are pretty much the best option for heads on the impreza.
Standard fit on Newage JDM WRX's hence the out of the box figures of 250PS.
Old 05 December 2014, 11:40 AM
  #20
boosted
Scooby Regular

boosted's Avatar

Join Date: Jul 2011
Location: harlow
Posts: 2,514
Likes: 0
Received 1 Like on 1 Post
Default

Is it PWM or on-off?
Old 09 December 2014, 01:44 PM
  #21
boosted
Scooby Regular

boosted's Avatar

Join Date: Jul 2011
Location: harlow
Posts: 2,514
Likes: 0
Received 1 Like on 1 Post
Default

Originally Posted by boosted
Is it PWM or on-off?
No one know then lol
Old 09 December 2014, 02:56 PM
  #22
Don Clark
Scooby Regular

Don Clark's Avatar

Join Date: Feb 2003
Location: Harpenden
Posts: 7,604
Received 760 Likes on 631 Posts
Default

Originally Posted by boosted
Is it PWM or on-off?
Originally Posted by boosted
No one know then lol

Did you not read this link further back in the thread??

http://drive2.subaru.com/Win05_WhatsInside.htm

A download that may be of use

ECU I/O signals

Last edited by Don Clark; 09 December 2014 at 03:14 PM.
Old 09 December 2014, 02:59 PM
  #23
banny sti
Scooby Senior
iTrader: (68)

banny sti's Avatar

Join Date: Oct 2004
Location: Type R
Posts: 16,598
Received 22 Likes on 16 Posts
Default

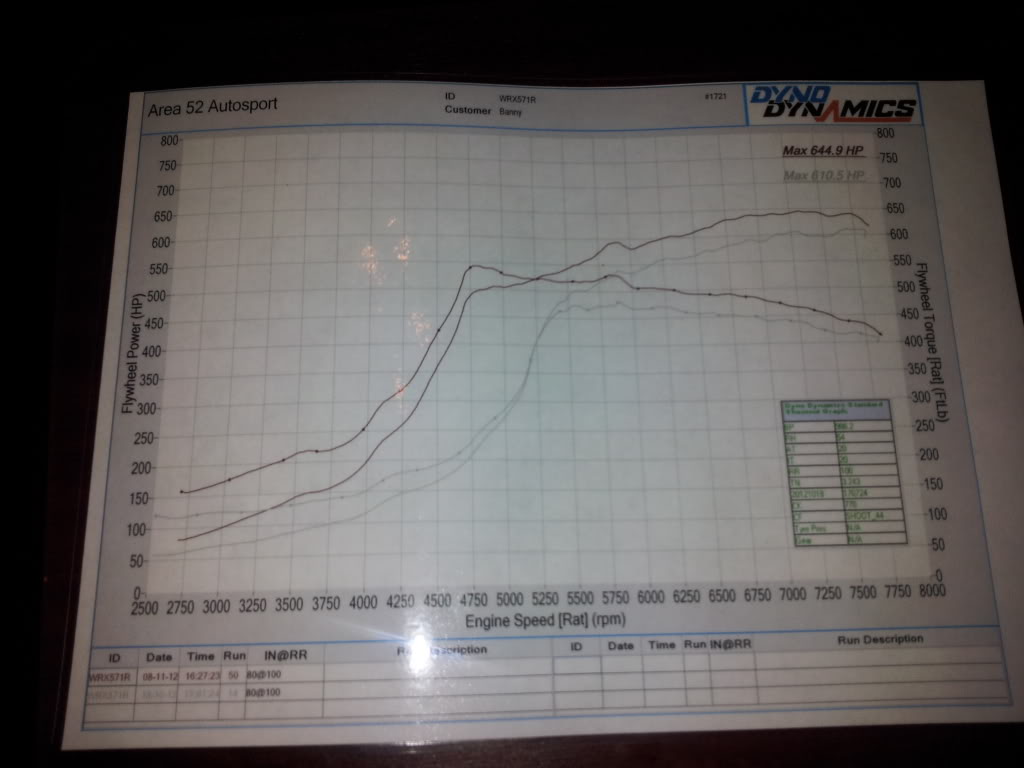

Avcs not working (v power map) and avcs working with 15% meth (the difference between non avcs and avcs would be at least 500rpm)

Name:  vvtvnovvt.jpg
Views: 0
Size:  63.8 KB
Old 09 December 2014, 03:21 PM
  #24
boosted
Scooby Regular

boosted's Avatar

Join Date: Jul 2011
Location: harlow
Posts: 2,514
Likes: 0
Received 1 Like on 1 Post
Default

Originally Posted by Don Clark
Did you not read this link further back in the thread??

http://drive2.subaru.com/Win05_WhatsInside.htm

A download that may be of use

ECU I/O signals
No, I'm reading this thread. But I will go look at it.
Old 09 December 2014, 03:24 PM
  #25
banny sti
Scooby Senior
iTrader: (68)

banny sti's Avatar

Join Date: Oct 2004
Location: Type R
Posts: 16,598
Received 22 Likes on 16 Posts
Default

It is a PWM signal at around 300hz
Old 09 December 2014, 03:28 PM
  #26
boosted
Scooby Regular

boosted's Avatar

Join Date: Jul 2011
Location: harlow
Posts: 2,514
Likes: 0
Received 1 Like on 1 Post
Default

Originally Posted by banny sti
It is a PWM signal at around 300hz
Just scanned the link, I see it varies the amount of overlap so guessed it had to be PWM. Interesting about the light load egr thing, less of that thanks!
Old 09 December 2014, 06:38 PM
  #27
joe v3sti
Scooby Regular
iTrader: (8)

joe v3sti's Avatar

Join Date: Dec 2011
Location: yorkshire
Posts: 3,244
Likes: 0
Received 23 Likes on 17 Posts
Default

They are cylinder heads full of voodoo!
Old 09 December 2014, 09:27 PM
  #28
veerinder9
Scooby Regular
iTrader: (1)

veerinder9's Avatar

Join Date: Jul 2012
Location: wolverhampton
Posts: 1,743
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by banny sti
Avcs not working (v power map) and avcs working with 15% meth (the difference between non avcs and avcs would be at least 500rpm)

Is that 500rpm with avcs and meth or just 500rpm difference with avcs?
Old 16 December 2014, 02:39 PM
  #29
Fat Boy
Scooby Regular

Fat Boy's Avatar

Join Date: Aug 2000
Posts: 4,262
Likes: 0
Received 1 Like on 1 Post
Default

Yes, a 500rpm + improvement just with AVCS .

You can see that if you look at the graph you can see a much larger than 500 rpm gap between the meth and v power traces - for example, look along the 300bhp line and compare the difference.

In addition, don't forget that cars spool up earlier on road than when on the dyno by an additional few hundred rpm as well.
