leecalcars

iTrader: (37)

Getting one fitted next year and interested in how they fit in with the dash ,is there any cutting out to be done ?

phil739

iTrader: (30)

not if you buy the cusco dash dodger

Steve Whitehorn

iTrader: (13)

Best one to get is one that dodges the dash.
Think about where you are going to mount the harnesses
Not all Harness bars work with all cages
Sometimes you can mount the harnesses on the cage

I will see if I can dig some pics out

Steve Whitehorn

iTrader: (13)

In actual fact Phil have you the pics of the cage you sold me?

phil739

iTrader: (30)

just for you ...lol
you fitted it yet

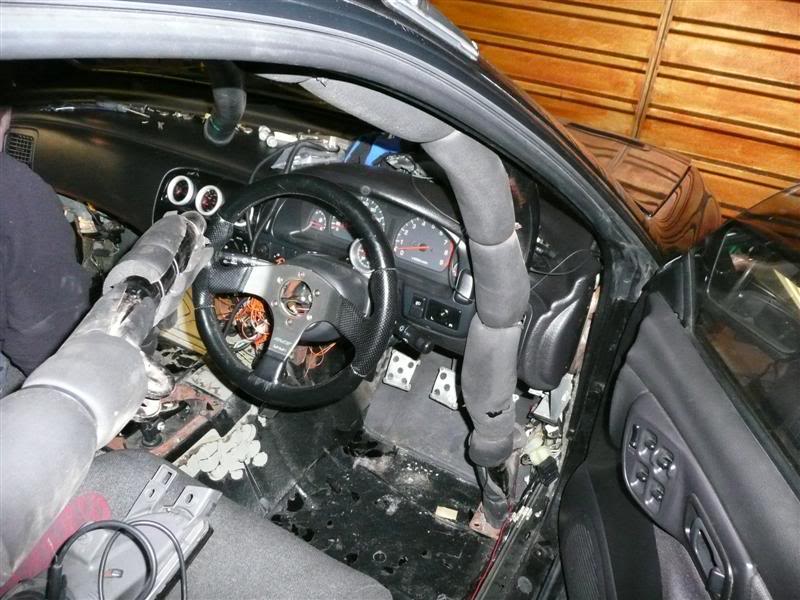

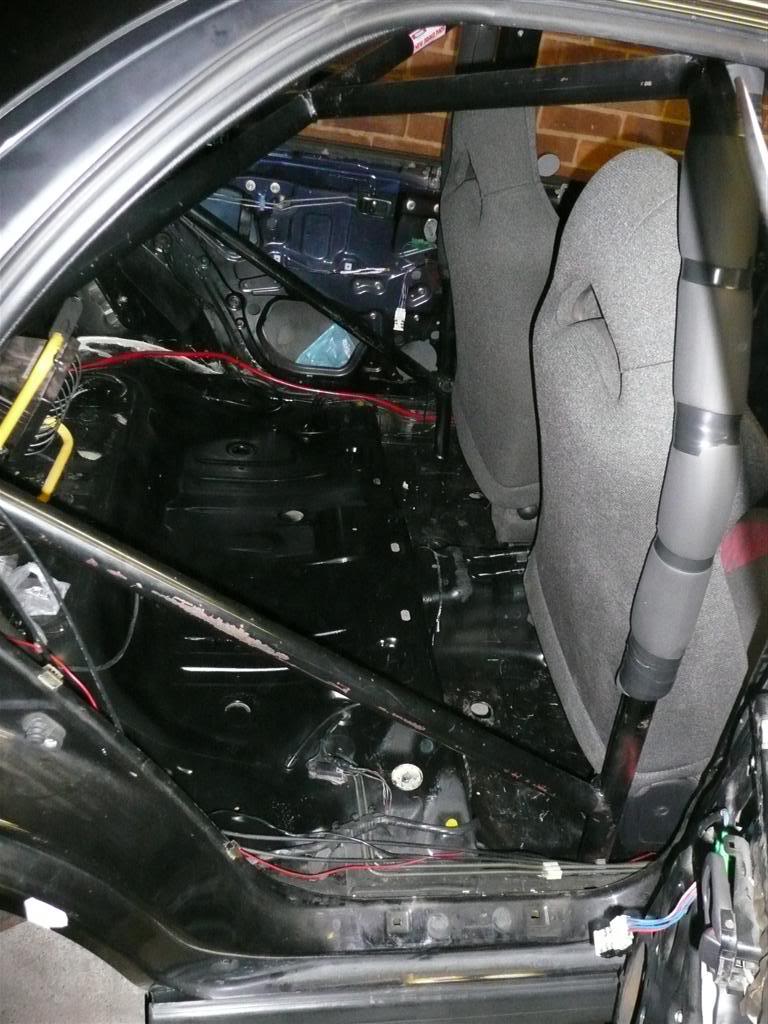

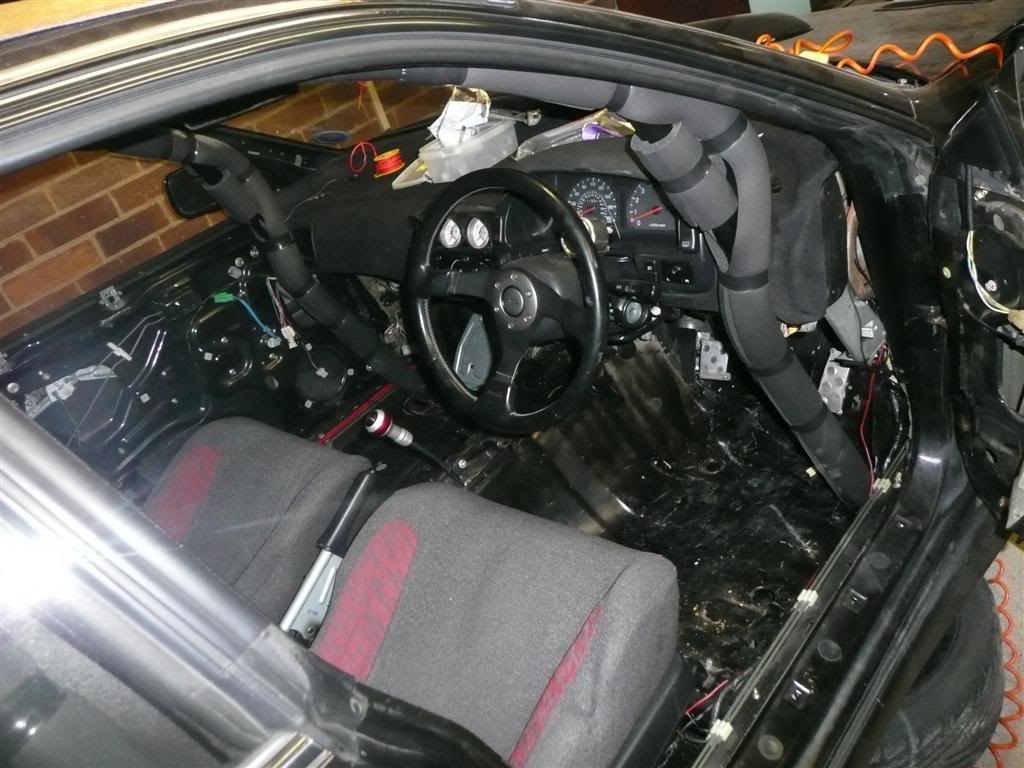

you can just see in the last pic how it misses the dash
sorry no better pics

phil739

iTrader: (30)

here you go look here
roll cage for sale and pics show how it fit better than my pics

https://www.scoobynet.com/private-fo...-for-sale.html

and just to say i dont know the seller ...lol

leecalcars

iTrader: (37)

Thanks now i see things clearer.

Do the harnesses fasten to the rear bar or is it best to have anchor points fitted for better safety ?

Jamz_

iTrader: (12)

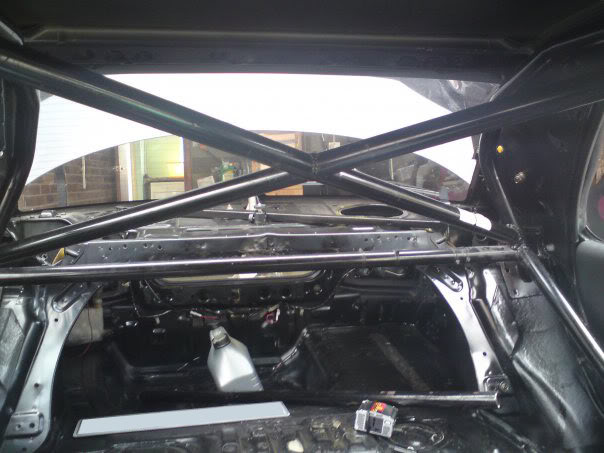

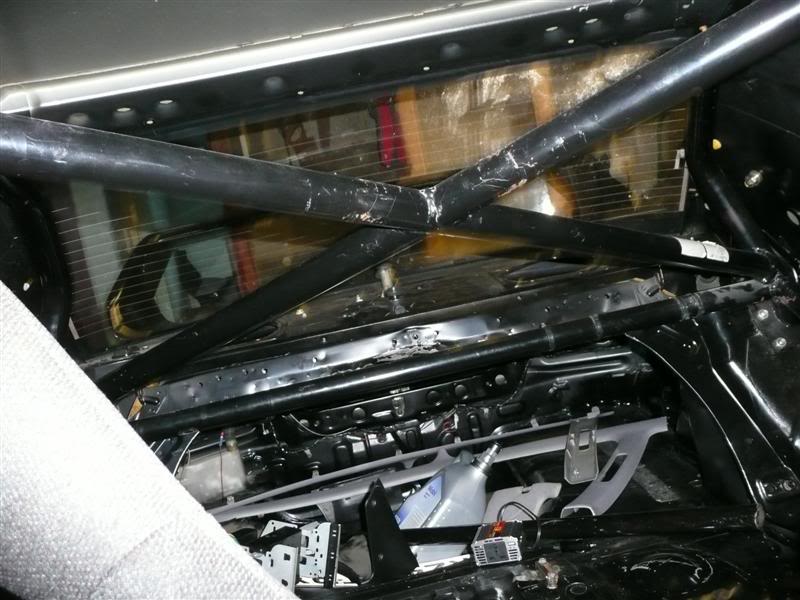

Cusco Dash Doger







Can kinda see it here

leecalcars

iTrader: (37)

Great pictures thanks so the cusco dash dodger is looking favourable , is this approved ?

rooferman

iTrader: (6)

I chose a safety devices cage as they are far more substantial and approved for motorsport use....the tubing used is bigger in diameter and you have to weld boxes to the floor to fit rather than just bolting the cage through the cars floorpan....scoobyclinic are stockists and offer fitting.

badgersport

Don't use the dash dodger type cage if you plan to do any form of MSA regulated motorsport that requires a roll cage. There has been a huge clampdown on this type of cage recently as they don't comply with the MSA rules.

In rallying there have been many cases of crews not being allowed to start if the cage is remotely like those pictured above. The only exception being if the cage design has been tested to an approved loading and has a certificate to prove it passed.

Jamz_

iTrader: (12)

Hmm strange, as I got my roll cage out of a group n rally shell

rooferman

iTrader: (6)

Group n cars have weld in sectional cages....not bolt in cages with no certificate....someone did mention to me that the new design cusco safety 21 cages were fia approved but think they went through the dash.still not competent enough for group n specs though surely ?
