Anyone running TD05 20g - Post your power,torque,boost etc.
#1
Scooby Regular
Thread Starter
iTrader: (6)
Join Date: Jan 2007
Location: Gloucestershire
Posts: 2,541
Likes: 0
Received 0 Likes
on
0 Posts
Anyone running TD05 20g - Post your power,torque,boost etc.

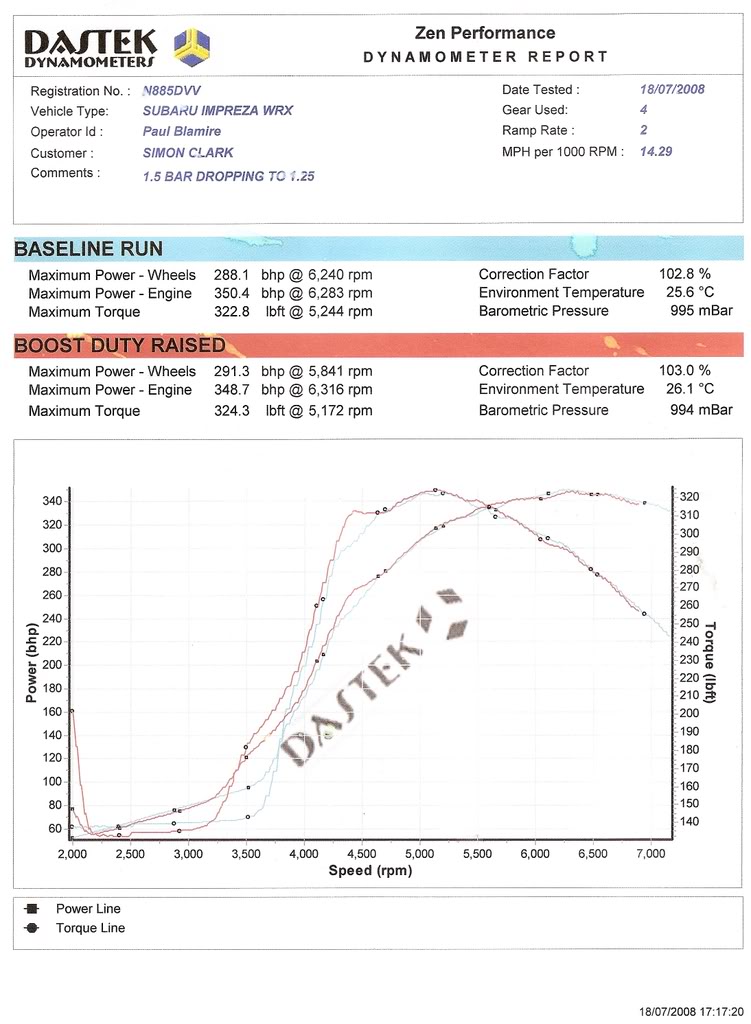

I'm running an Andy Forrest TD05 20g on my '96 classic and had it dyno'd yesterday at Zen Performance where it made 350bhp/323lb/ft - boost was 1.5 bar but dropped to 1.2 bar above 6000rpm. This was with a new actuator fitted to try and hold 1.5 bar above 6000rpm but it's still dropping off.
I'm interested to see what power/boost other people have got with their 20g's and what spec so you are running to support it,so post them up
I'm interested to see what power/boost other people have got with their 20g's and what spec so you are running to support it,so post them up
#2
Scooby Regular
iTrader: (2)
Join Date: Sep 2007
Location: will be back in another scooby in time....
Posts: 2,554
Likes: 0
Received 0 Likes
on
0 Posts
740cc injectors a bit too big but gives me a better scope for the future
i have built 2ltr block with forged pistons and sti 9 rods,
groupe s header heat rapped
blitz filter
apexi PFC
apexi avcr
autobhan front mount
zigen s/s
decat
fuel presure regulator from lateral performance
Tdo5 20G purchised from lateral perfomance
oil cooler
oil breather tank
reverse inlet manifold parrelel fuel rails
All put together and mapped by Neil from Slowboy racing
runing 10% meth and 90% shell v power
i dun 4 runs and it was all consistantley over 400 bhp with highest been 402bhp with 365 tourque all at only 1.5 bar. On the road it gets to about 1.7 bar and it spools up so quick. could of got a lot more but the intake Temp was too high according to the guys at Dyno dynamics at luton. the car is back at Slow boy racing to move the induction kit to the wing on a classic with direct cold air feed il posting the results when all dun.
i didnt change my actuator and my car holds boost fine il have acces to a scanner later this week and il post my graph.
i have built 2ltr block with forged pistons and sti 9 rods,
groupe s header heat rapped
blitz filter
apexi PFC
apexi avcr
autobhan front mount
zigen s/s
decat
fuel presure regulator from lateral performance
Tdo5 20G purchised from lateral perfomance
oil cooler
oil breather tank
reverse inlet manifold parrelel fuel rails
All put together and mapped by Neil from Slowboy racing
runing 10% meth and 90% shell v power
i dun 4 runs and it was all consistantley over 400 bhp with highest been 402bhp with 365 tourque all at only 1.5 bar. On the road it gets to about 1.7 bar and it spools up so quick. could of got a lot more but the intake Temp was too high according to the guys at Dyno dynamics at luton. the car is back at Slow boy racing to move the induction kit to the wing on a classic with direct cold air feed il posting the results when all dun.
i didnt change my actuator and my car holds boost fine il have acces to a scanner later this week and il post my graph.
#4
Scooby Regular
Thread Starter
iTrader: (6)
Join Date: Jan 2007
Location: Gloucestershire
Posts: 2,541
Likes: 0
Received 0 Likes
on
0 Posts
My full spec is here:
STI RA V-LIMITED ENGINE-Closed deck block,under piston oil squirters etc
Andy Forrest TD05 20g Turbo
Carl Davey refurbished red inlet manifold
Carl Davey inlet manifold insulators
Carl Davey head tank insulators
Custom made parallel fuel system
300zx TT Z32 Maf
GT SPEC GEN II ceramic coated headers & upipe
550cc injectors
hybrid FMIC
apexi power fc and commander
apexi power fc boost controller
sx fuel pressure regulator
walbro 255 fuel pump
straight through s/s exhaust,hayward and scott
K&N 57i induction kit
Mapped by Jolly Green Monster.
I should add that I still have a 90 degree inlet on the 20g rather than front entry but Andy Forrest said that I shouldn't lose much power due to this.
Paul@Zen said if I can get the boost to hold 1.5 bar above 6000rpm then I may see 370bhp.
From my spec then,what power would you expect ?
#5
Scooby Regular
iTrader: (2)
Join Date: Sep 2007
Location: will be back in another scooby in time....
Posts: 2,554
Likes: 0
Received 0 Likes
on
0 Posts
im not profesional it may be a good idea to get one of the tuners on here to shed some light, one thing i can assure u is dont chase dyno figure and figures can very between dyno to dyno depending on make of dyno, shoot mode,tempreture and mapper.ive raced an s13 thats are runing 450 bhp but it only has 450bhp for a split second as it only reved to 7200 u mite line up next to me and u mite just blow my doors off LOL it all depends on the driver and how the car is setup and bare in mind on the road you will be runinng more power. simon jolly green monster is very very very respected in the mapping so im sure there a reason to why your car is only runing so much power.
#6
Scooby Regular
Thread Starter
iTrader: (6)
Join Date: Jan 2007
Location: Gloucestershire
Posts: 2,541
Likes: 0
Received 0 Likes
on
0 Posts
The biggest issue is with the boost dropping off. I originally thought the actuator supplied with the turbo from Andy Forrest was weak so got another one from him but it still seems to open too early.
Paul thinks an uprated actuator could prevent the boost from dropping off so I need to look into that.
Paul thinks an uprated actuator could prevent the boost from dropping off so I need to look into that.
#7
Scooby Regular
iTrader: (5)
353bhp / 354lbft (deltadash road dyno) on a new-age wrx with the mods in "view my scooby". It holds 1.6 bar up to the redline.
Initially I felt like, what, only 353 bhp, but it goes like stink anyway so I'm over it. I've got quite a nice power band now IMO and 354lbft is not to be sniffed at.
Edit: my exhaust is 2.5"
Initially I felt like, what, only 353 bhp, but it goes like stink anyway so I'm over it. I've got quite a nice power band now IMO and 354lbft is not to be sniffed at.
Edit: my exhaust is 2.5"
Trending Topics
#8
Scooby Regular
Thread Starter
iTrader: (6)
Join Date: Jan 2007
Location: Gloucestershire
Posts: 2,541
Likes: 0
Received 0 Likes
on
0 Posts
353bhp / 354lbft (deltadash road dyno) on a new-age wrx with the mods in "view my scooby". It holds 1.6 bar up to the redline.
Initially I felt like, what, only 353 bhp, but it goes like stink anyway so I'm over it. I've got quite a nice power band now IMO and 354lbft is not to be sniffed at.
Edit: my exhaust is 2.5"
Initially I felt like, what, only 353 bhp, but it goes like stink anyway so I'm over it. I've got quite a nice power band now IMO and 354lbft is not to be sniffed at.
Edit: my exhaust is 2.5"
#11
Scooby Regular
iTrader: (2)
Join Date: Sep 2007
Location: will be back in another scooby in time....
Posts: 2,554
Likes: 0
Received 0 Likes
on
0 Posts
350 on the dyno ur propberly getting more on the road.the Tdo5 20g turbo is a very good turbo it produces figures from 350mimum to 380bhp. but when u add meth octatne booster u can get up to 440, i think andy forests own car was runing 440 or 430 not 100% sure.
#16
402 on the DD remember only peaked at 1.5, it didn't even hold that boost to the end.
I think it was at around 1.3ish near the tail on the dyno due to cooling....
On the road it peaks at around 1.7 and easily holds 1.5/6 to the end...
#17
Scooby Regular
iTrader: (2)
Join Date: Sep 2007
Location: will be back in another scooby in time....
Posts: 2,554
Likes: 0
Received 0 Likes
on
0 Posts
Lol, Regardless of figures your car drives as if it is in that power band.
402 on the DD remember only peaked at 1.5, it didn't even hold that boost to the end.
I think it was at around 1.3ish near the tail on the dyno due to cooling....
On the road it peaks at around 1.7 and easily holds 1.5/6 to the end...
402 on the DD remember only peaked at 1.5, it didn't even hold that boost to the end.
I think it was at around 1.3ish near the tail on the dyno due to cooling....
On the road it peaks at around 1.7 and easily holds 1.5/6 to the end...
you keep talking like that ur injecting too much confidence me, i feel like i can enter TOTB na js messing im more than happy with the way it drives how would u compare it to your old spec on the 18g???? and when is the bullet coming out???
#18
Scooby Regular
iTrader: (1)
I had a 20G on my 2.5 uk with standard heads that made 336bhp @ Powerstation rollers a few years ago. This was on 1.2 bar flat across the rev range. It was then remappped to 1.55bar and though it was never RR it was a much quicker car than at 1.2bar.
I would of thought you should see 380bhp at 1.5-1.6bar from a 20G
I would of thought you should see 380bhp at 1.5-1.6bar from a 20G
#19
Scooby Regular
Thread Starter
iTrader: (6)
Join Date: Jan 2007
Location: Gloucestershire
Posts: 2,541
Likes: 0
Received 0 Likes
on
0 Posts
I had a 20G on my 2.5 uk with standard heads that made 336bhp @ Powerstation rollers a few years ago. This was on 1.2 bar flat across the rev range. It was then remappped to 1.55bar and though it was never RR it was a much quicker car than at 1.2bar.
I would of thought you should see 380bhp at 1.5-1.6bar from a 20G
I would of thought you should see 380bhp at 1.5-1.6bar from a 20G
#21
Scooby Regular
Thread Starter
iTrader: (6)
Join Date: Jan 2007
Location: Gloucestershire
Posts: 2,541
Likes: 0
Received 0 Likes
on
0 Posts
Nobody seems to know why it's low or why it won't hold boost above 6000rpm !
#22
You should be happy it is a bullet in the making!...
It spools near enough identical to my okd spec, but just pulls so much harder at the top, it just wants to keep on going... You should be able to see a midd 11 with that at the pod...
With regards to the Bullet, just watch this space....
#26
Scooby Regular
iTrader: (5)
It seems like your car is really flat low down? Was the run started "from low down", so to speak, or was it from 3500 RPM onwards?

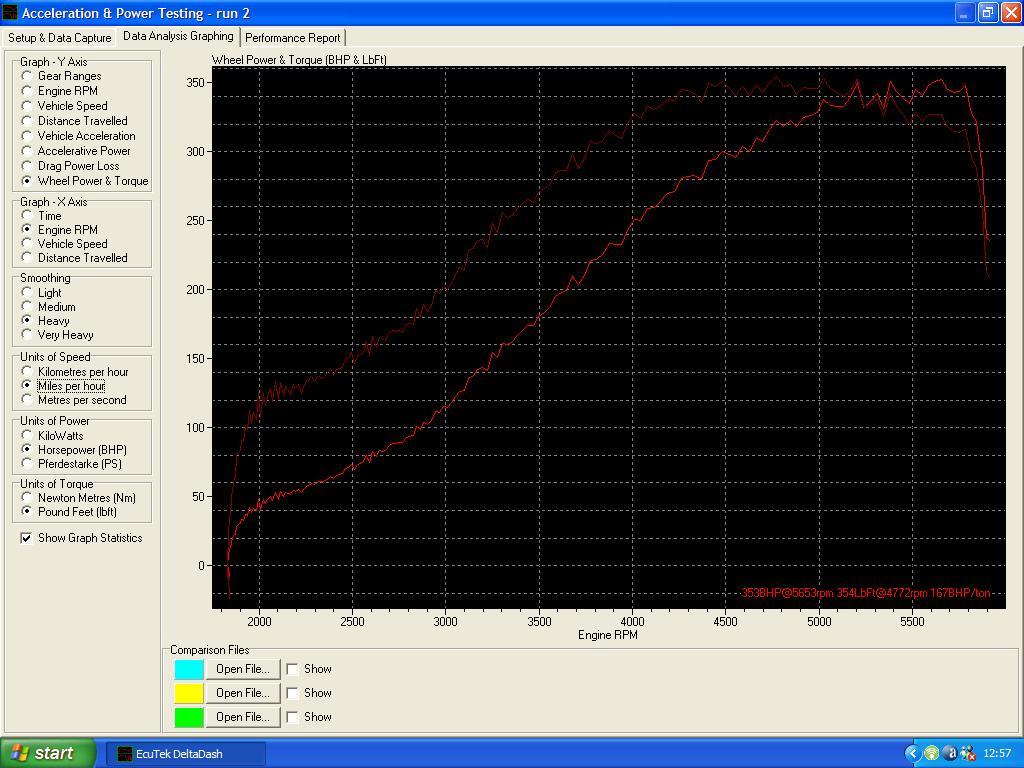

For comparison, here's my delta-dash: http://www.bilar.co.uk/subaru/graphs/jgm-2007-05-13.jpg
Mine makes 200lb/ft by 3000 RPM and your one seems to be making it at about 3750 if I'm reading the graph right? It's dropping off quite quickly as well after the torque peak... Is your exhaust blocked?
For comparison, here's my delta-dash: http://www.bilar.co.uk/subaru/graphs/jgm-2007-05-13.jpg
Mine makes 200lb/ft by 3000 RPM and your one seems to be making it at about 3750 if I'm reading the graph right? It's dropping off quite quickly as well after the torque peak... Is your exhaust blocked?
#27
Scooby Regular
Thread Starter
iTrader: (6)
Join Date: Jan 2007
Location: Gloucestershire
Posts: 2,541
Likes: 0
Received 0 Likes
on
0 Posts
It seems like your car is really flat low down? Was the run started "from low down", so to speak, or was it from 3500 RPM onwards?
For comparison, here's my delta-dash: http://www.bilar.co.uk/subaru/graphs/jgm-2007-05-13.jpg
Mine makes 200lb/ft by 3000 RPM and your one seems to be making it at about 3750 if I'm reading the graph right? It's dropping off quite quickly as well after the torque peak... Is your exhaust blocked?
For comparison, here's my delta-dash: http://www.bilar.co.uk/subaru/graphs/jgm-2007-05-13.jpg
Mine makes 200lb/ft by 3000 RPM and your one seems to be making it at about 3750 if I'm reading the graph right? It's dropping off quite quickly as well after the torque peak... Is your exhaust blocked?
Paul did say it seemed quite laggy although I don't think it's too bad on the road.
#28
Scooby Regular
Join Date: Jul 2000
Location: Glasgow
Posts: 3,040
Likes: 0
Received 0 Likes
on
0 Posts
From 2003 on 98RON Optimax (pre V-power). MY99 2.0 on aftermarket headers. With a change to std ported headers it made something like 350 odd bhp and 320-330Ib ft torque but felt a lot quicker cause it spooled up a lot quicker. Was nicer on the road with the std headers.
Meant to add that was with 1.4 bar across the board.
Meant to add that was with 1.4 bar across the board.
Last edited by AlanG; 19 July 2008 at 06:17 PM. Reason: Forgot to mention what boost pressure was running.
#29
Scooby Regular
Thread Starter
iTrader: (6)
Join Date: Jan 2007
Location: Gloucestershire
Posts: 2,541
Likes: 0
Received 0 Likes
on
0 Posts
From 2003 on 98RON Optimax (pre V-power). MY99 2.0 on aftermarket headers. With a change to std ported headers it made something like 350 odd bhp and 320-330Ib ft torque but felt a lot quicker cause it spooled up a lot quicker. Was nicer on the road with the std headers.
Meant to add that was with 1.4 bar across the board.
Meant to add that was with 1.4 bar across the board.
