Decent rear suspension?

Thread Tools

Search this Thread

Old 28 January 2023, 07:43 AM
  #1
Hawkeye D
Scooby Regular
Thread Starter

Hawkeye D's Avatar

Join Date: Jun 2012
Location: Aldershot
Posts: 2,258
Received 136 Likes on 103 Posts
Default Decent rear suspension?

Hi all,

2007 STI Hawk.
Like everyone, I'm sick of the rubbish quality / knocking of the standard rear struts. Cost me a fortune going new standard struts about 4 years ago. Springs are fine.

With a budget of say £500 to £600 fitted, what struts are good quality, similar or same spec for an STi, and don't knock after a few years?
Old 28 January 2023, 08:54 AM
  #2
JdmSti2006
Scooby Regular

JdmSti2006's Avatar

Join Date: Mar 2021
Location: UK
Posts: 921
Received 196 Likes on 171 Posts
Default

I put oem refurbed with bleed nipple mod and groupN top mounts ,all good for 2.5 years but knock come back few months ago and i bought meisterR gt1's.
Not sure You will find something decent for rear, maybe rb320 suspension but will cost more with fronts and difficult to find now.
Old 28 January 2023, 11:51 AM
  #3
2pot
Scooby Regular
Support Scoobynet!
iTrader: (3)

2pot's Avatar

Join Date: Feb 2010
Location: Birmingham
Posts: 1,838
Received 90 Likes on 78 Posts
Default

You could use non-inverted struts at the rear instead:

KYB 324030 https://www.ebay.co.uk/itm/393954324...Bk9SR7y8hYK_YQ

KYB324031 https://www.ebay.co.uk/itm/303815738...Bk9SR77ymIK_YQ

You would need a pair of rear bump stops as well.
Old 28 January 2023, 12:22 PM
  #4
2pot
Scooby Regular
Support Scoobynet!
iTrader: (3)

2pot's Avatar

Join Date: Feb 2010
Location: Birmingham
Posts: 1,838
Received 90 Likes on 78 Posts
Default

Originally Posted by JdmSti2006
I put oem refurbed with bleed nipple mod and groupN top mounts ,all good for 2.5 years but knock come back few months ago and i bought meisterR gt1's.
Not sure You will find something decent for rear, maybe rb320 suspension but will cost more with fronts and difficult to find now.
The rear RB320 struts had the same issue - not enough upper bearing. Also, the RB320 lower rear spring perch is a different diameter - his current spring wouldn't fit. You can increase the rear bearing upper surface area. Bilstein did this: from 20mm to 40mm - I use 50mm.

Last edited by 2pot; 28 January 2023 at 12:40 PM.
Old 28 January 2023, 02:13 PM
  #5
joelle king
BANNED

joelle king's Avatar

Join Date: May 2022
Location: canada
Posts: 61
Likes: 0
Received 12 Likes on 10 Posts
Default

Originally Posted by Hawkeye D
Hi all,

2007 STI Hawk.
Like everyone, I'm sick of the rubbish quality / knocking of the standard rear struts. Cost me a fortune 192.168.100.1 192.168.1.1 going new standard struts about 4 years ago. Springs are fine.

With a budget of say £500 to £600 fitted, what struts are good quality, similar or same spec for an STi, and don't knock after a few years?
can you share a photo to it ?

Last edited by joelle king; 28 January 2023 at 05:55 PM.
Old 28 January 2023, 04:04 PM
  #6
Hawkeye D
Scooby Regular
Thread Starter

Hawkeye D's Avatar

Join Date: Jun 2012
Location: Aldershot
Posts: 2,258
Received 136 Likes on 103 Posts
Default

I can't as the struts are still on the car....
Old 28 January 2023, 04:36 PM
  #7
JdmSti2006
Scooby Regular

JdmSti2006's Avatar

Join Date: Mar 2021
Location: UK
Posts: 921
Received 196 Likes on 171 Posts
Default

Originally Posted by 2pot
The rear RB320 struts had the same issue - not enough upper bearing. Also, the RB320 lower rear spring perch is a different diameter - his current spring wouldn't fit. You can increase the rear bearing upper surface area. Bilstein did this: from 20mm to 40mm - I use 50mm.
looks like is best to pay for parts and fee for assembly to You than You could send it to me for example.
Struts You posted plus Yours rb320 springs ,bump stops ,top mounts etc
The ones You posted are prone to be knock free?

Last edited by JdmSti2006; 28 January 2023 at 04:38 PM.
Old 29 January 2023, 10:47 AM
  #8
2pot
Scooby Regular
Support Scoobynet!
iTrader: (3)

2pot's Avatar

Join Date: Feb 2010
Location: Birmingham
Posts: 1,838
Received 90 Likes on 78 Posts
Default

It hasn't got to be Bilstein housings. With modifications, you can fit Bilstein inserts into KYB housings. That way you are not tied to RB320 rear springs.

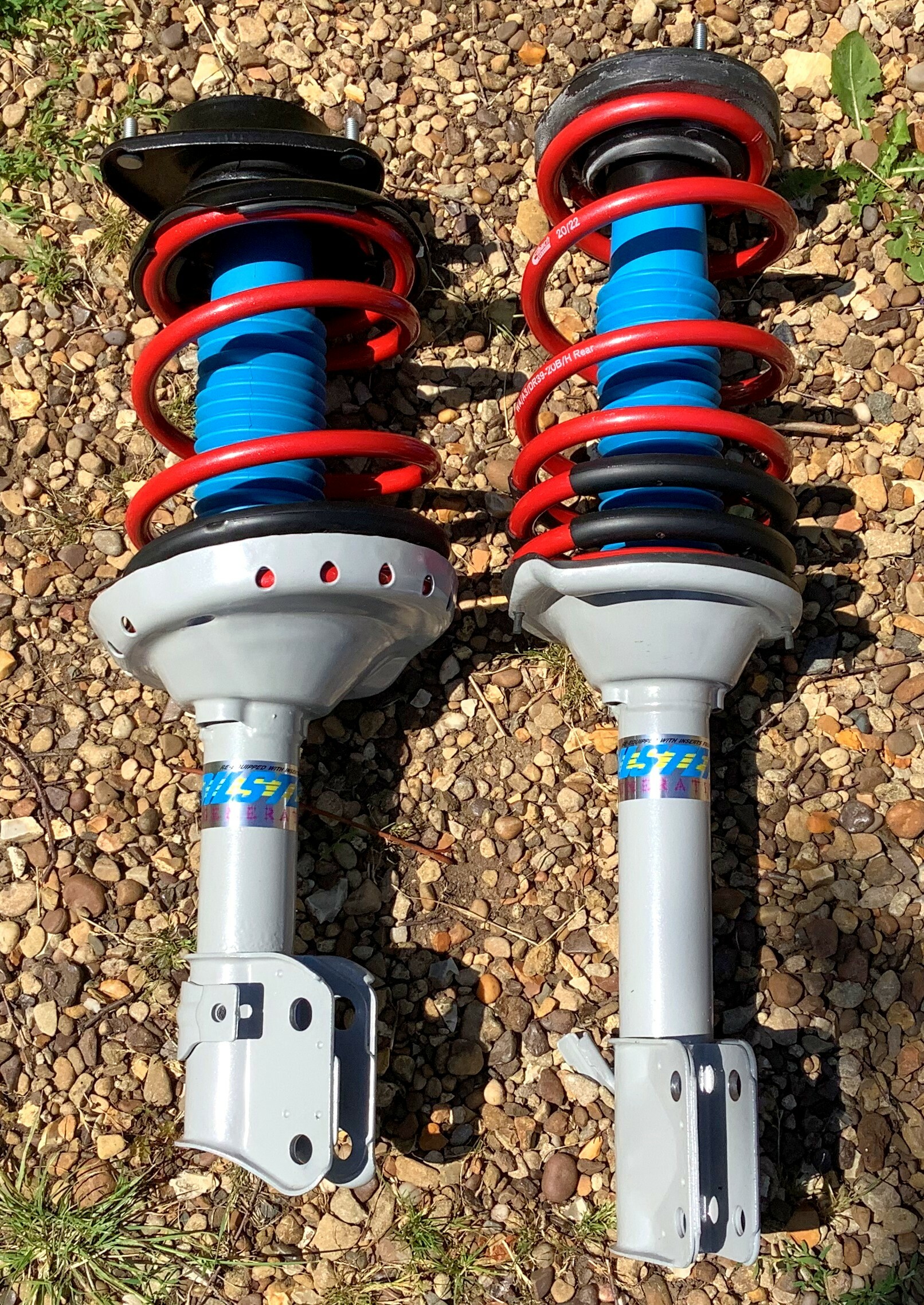

Bilstein damper inserts into KYB housings:
Attached Thumbnails Click image for larger version

Name:	KYB gd inverted housing Bilstien inserts.jpeg
Views:	0
Size:	1.30 MB
ID:	72995

Last edited by 2pot; 29 January 2023 at 10:50 AM.
The following users liked this post:
