crofrivia

Hi guys,

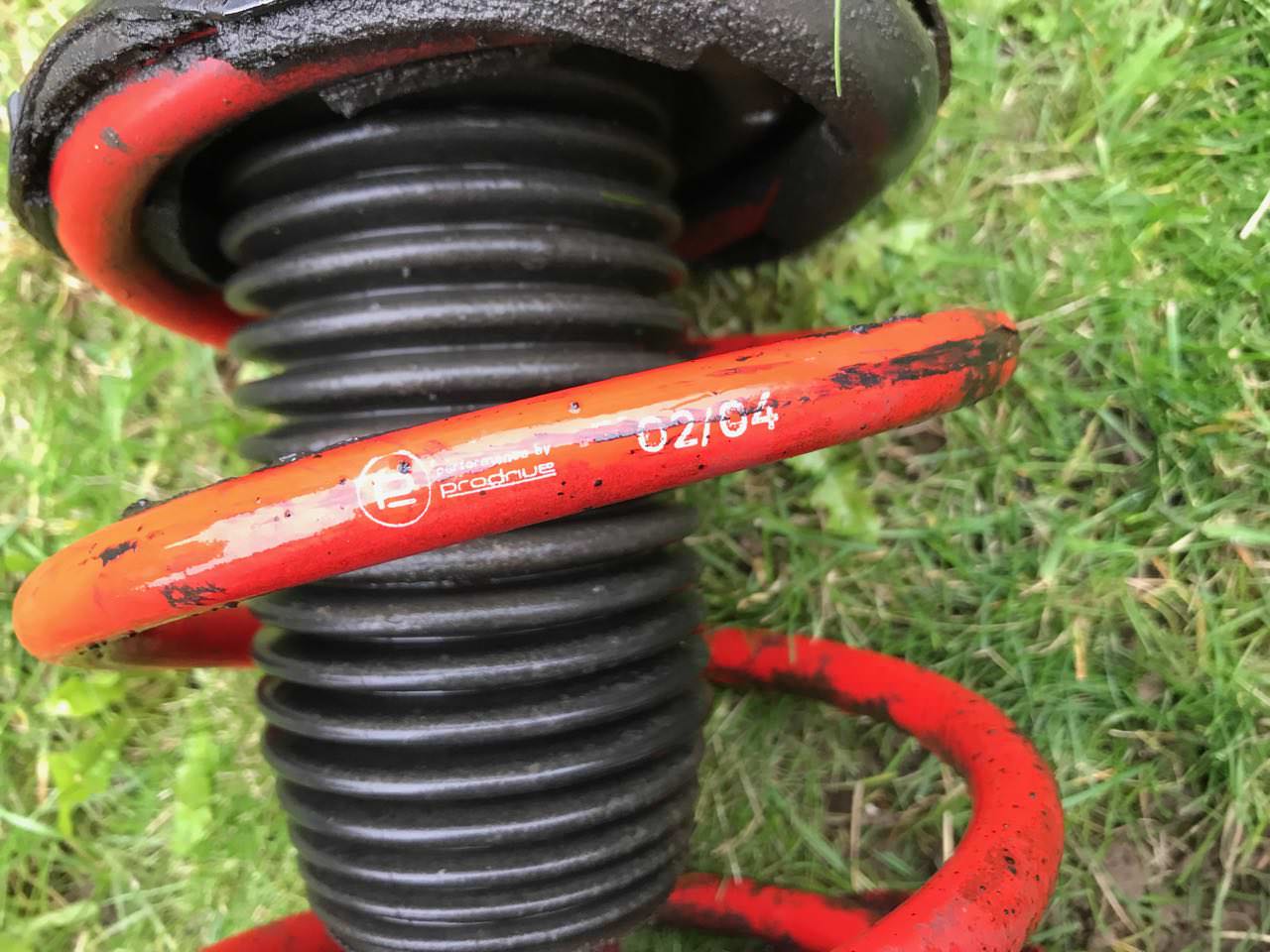

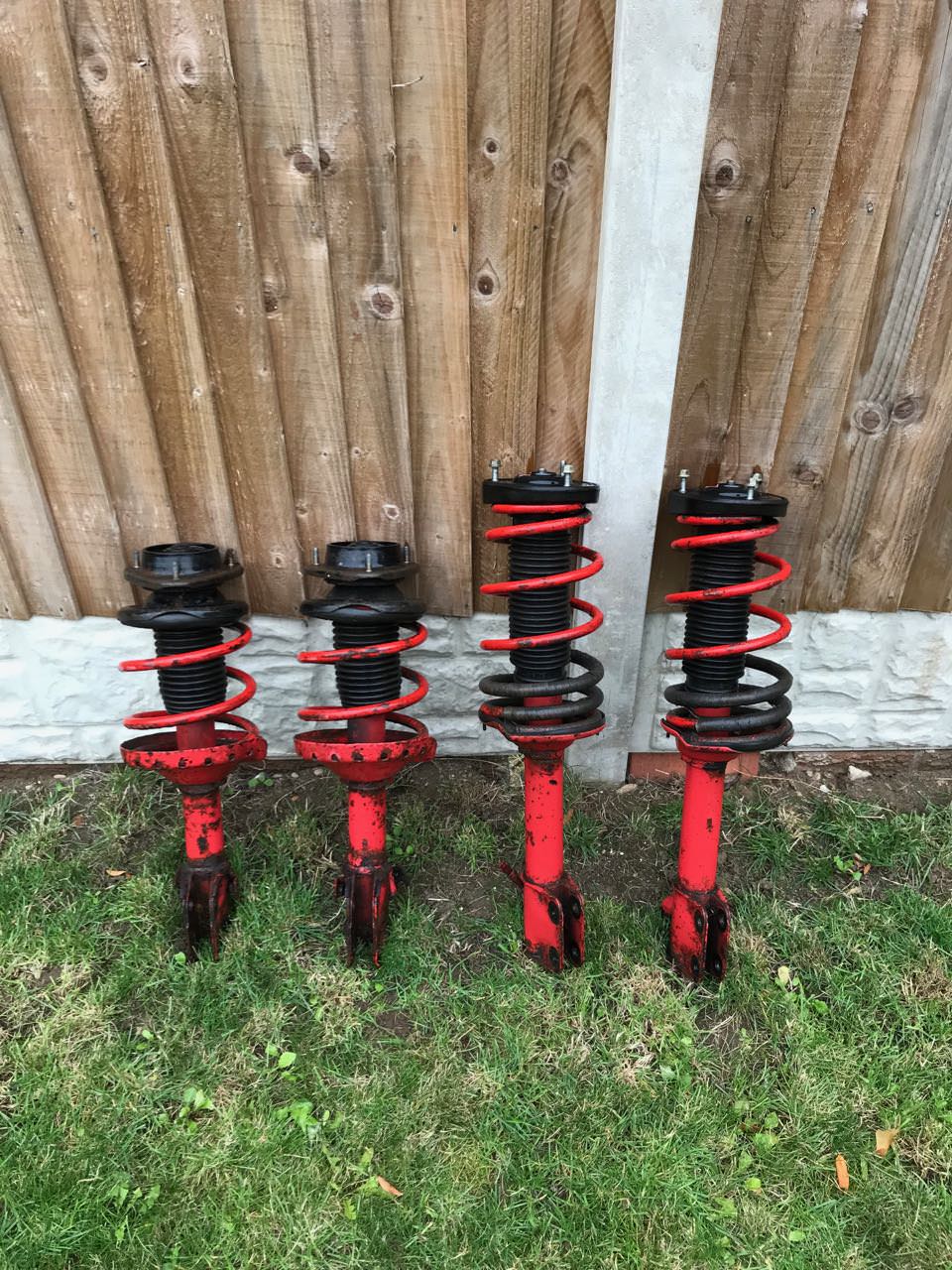

Apologies for the abrupt first post but can anyone help identify the suspension in the pictures below?

I can't find any reference on of the model numbers on the net unless I'm being blind.

Obviously it's from an STI and it's Prodrive, and i'm assuming an Impreza but what age and spec?

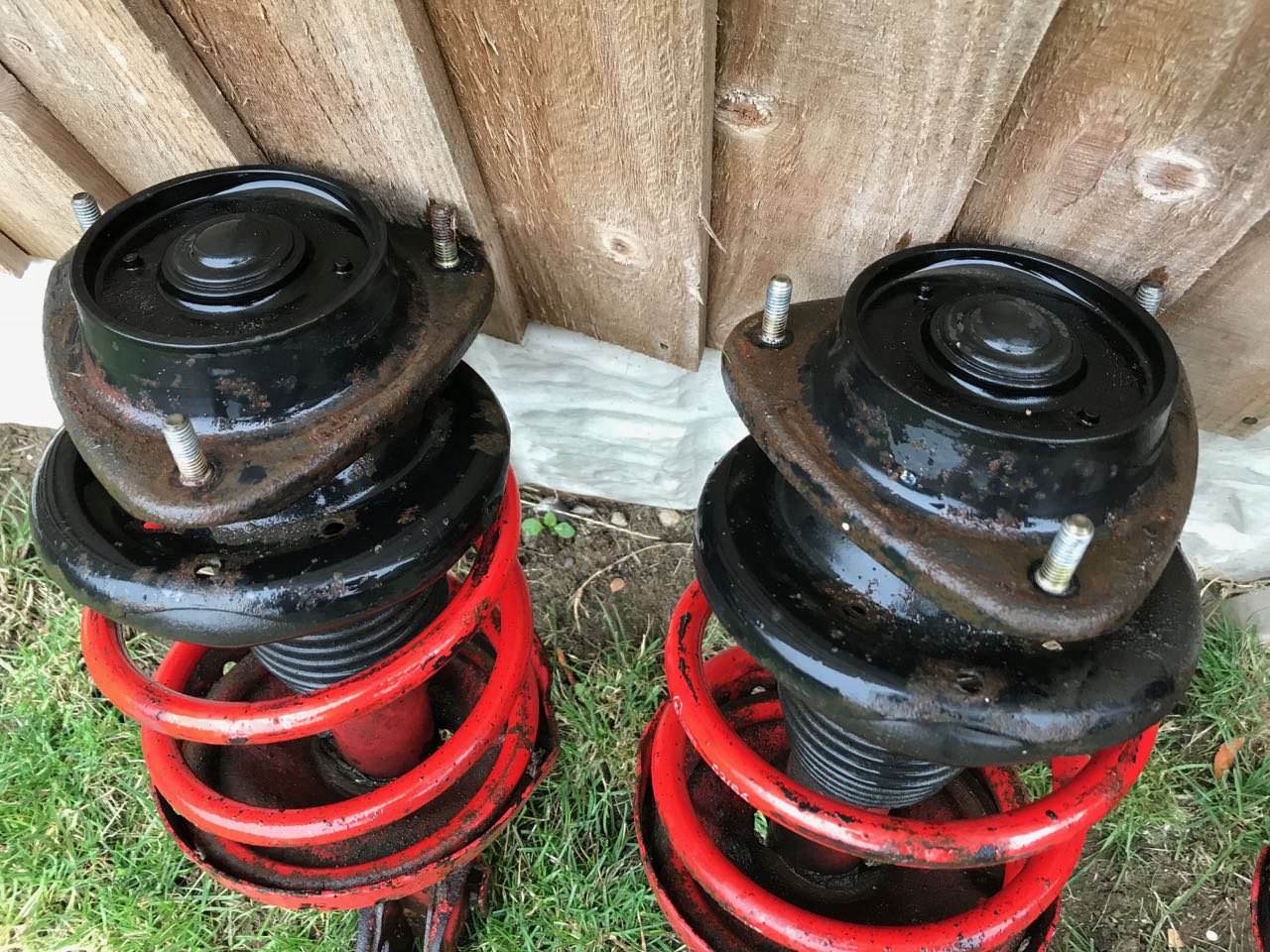

It's in good condition with no leaks and the top hats spin freely so it deserves to be on a car.

Thanks in advance -

jaygsi

iTrader: (46)

Don or 2pots should be able to help.

jay vr6

iTrader: (3)

Maybe not impreza ? found this on a search
here were two versions of the Prodrive Red springs manufactured for newage cars:

- The early version, part number S03/D5/001 - these are a little softer and were used on the WR1.
- The later version, part number S05/D5/001 are firmer and were originally offered for widetrack cars although will fit non-widetrack as well.

Both Prodrive Red versions are interchangeable in terms of fitting.

RB320 springs, part numbers LE07/D5/001 and LE07/D5/002, are black in colour and are comparable in rate to the later Prodrive Red (S05) springs.

T5NYW

iTrader: (4)

look like 2002 to 2004 standard sti struts with Red prodrive spring upgrde kit.if off a impreza.

IIRC wrx are blue. Use Part no. on strut to comfirm.

Measure distance between hole centres in bottom hub brackets. foot of strut, on both front and rear

if front and rear are both the same distance apart 02-04 sti 02- 07 wrx pcd 100
if different distances then 05-07 Sti widetrack pcd 114

​​​​​​​Tony

crofrivia

Thanks guys, both front and rear hole distance is roughly 65mm

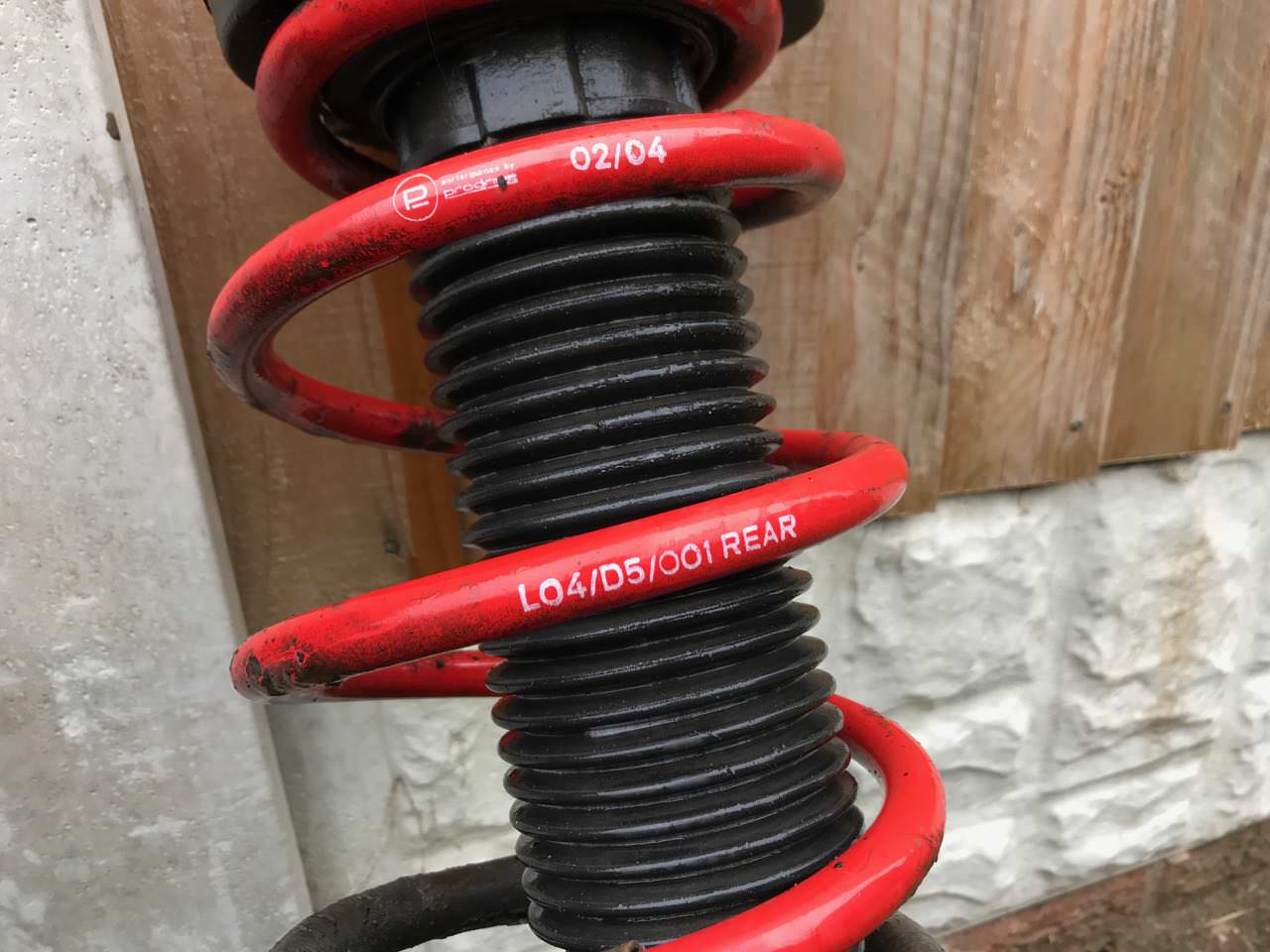

It's wierd that the part number starting with the L doesn't throw anything up on a search though, everything seems to start with an S

Don Clark

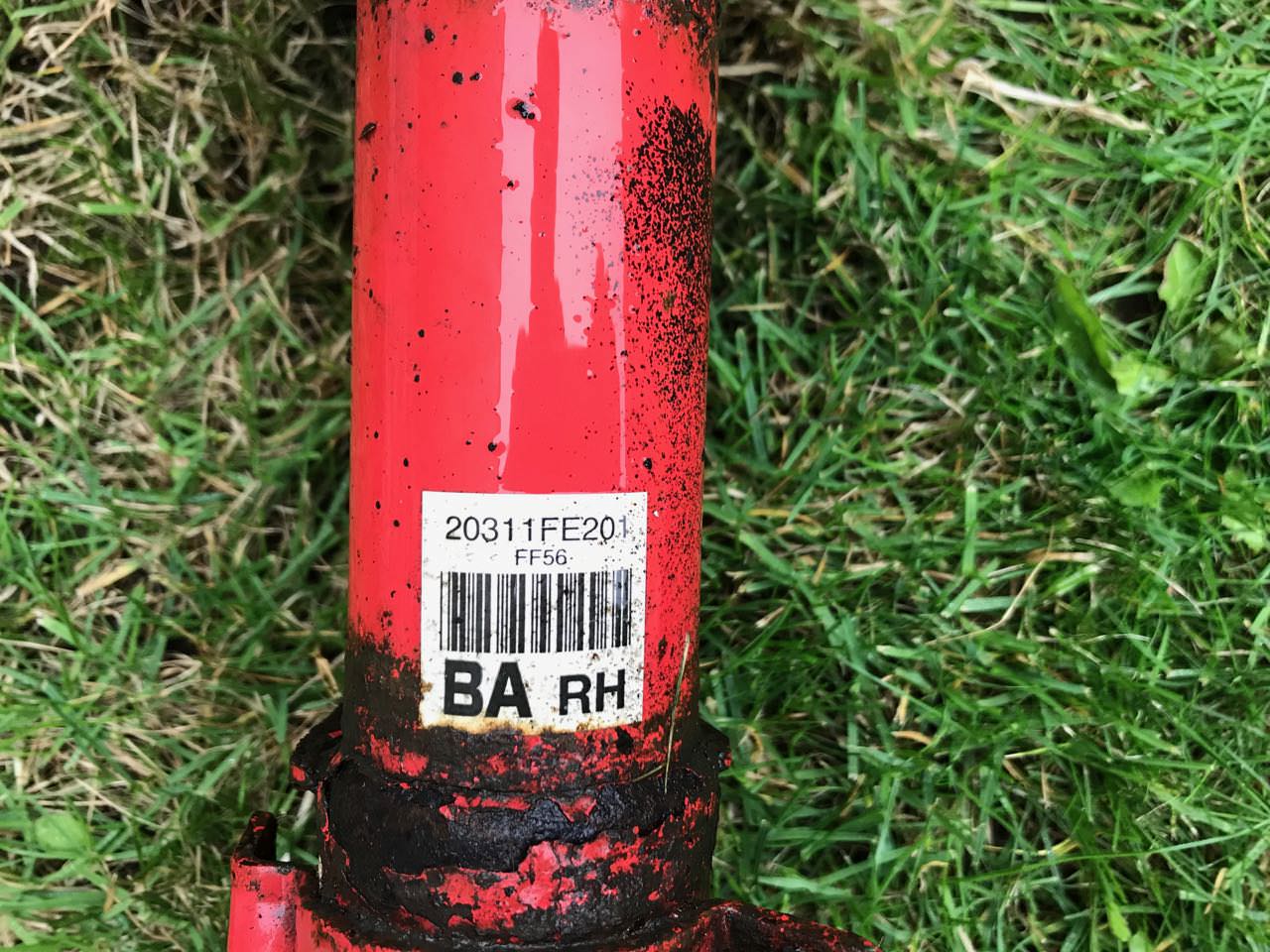

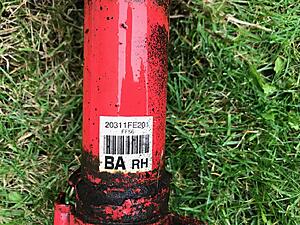

Strut 20311FE201 relates to MY04 STi

crofrivia

Thanks Don - daft question, are they worth anything?
