just me

iTrader: (3)

I would line to fit one of these mounts and a rear arb to a widetrack blob, but on the drivers side the fuel filler neck is in the way.

Does this need to come off in order to fit? As I may take it to a garage instead.

Thanks

jazzyjembreaze

iTrader: (11)

Are you referring to the "stout mounts "
If so , the drivers side is a bit "fidly " esp the forward bolt - however you don't need to remove the filler neck .. I found it easier tightening the bolt from placing my arm in the ( trailing arm ) direction ..

just me

iTrader: (3)

Yes the stout mounts, I think I'll try ehat you suggested.

just me

iTrader: (3)

Tried fitting the stout mounts today, on the drivers side is the mount supposed to fit in the carbon canister bracket?

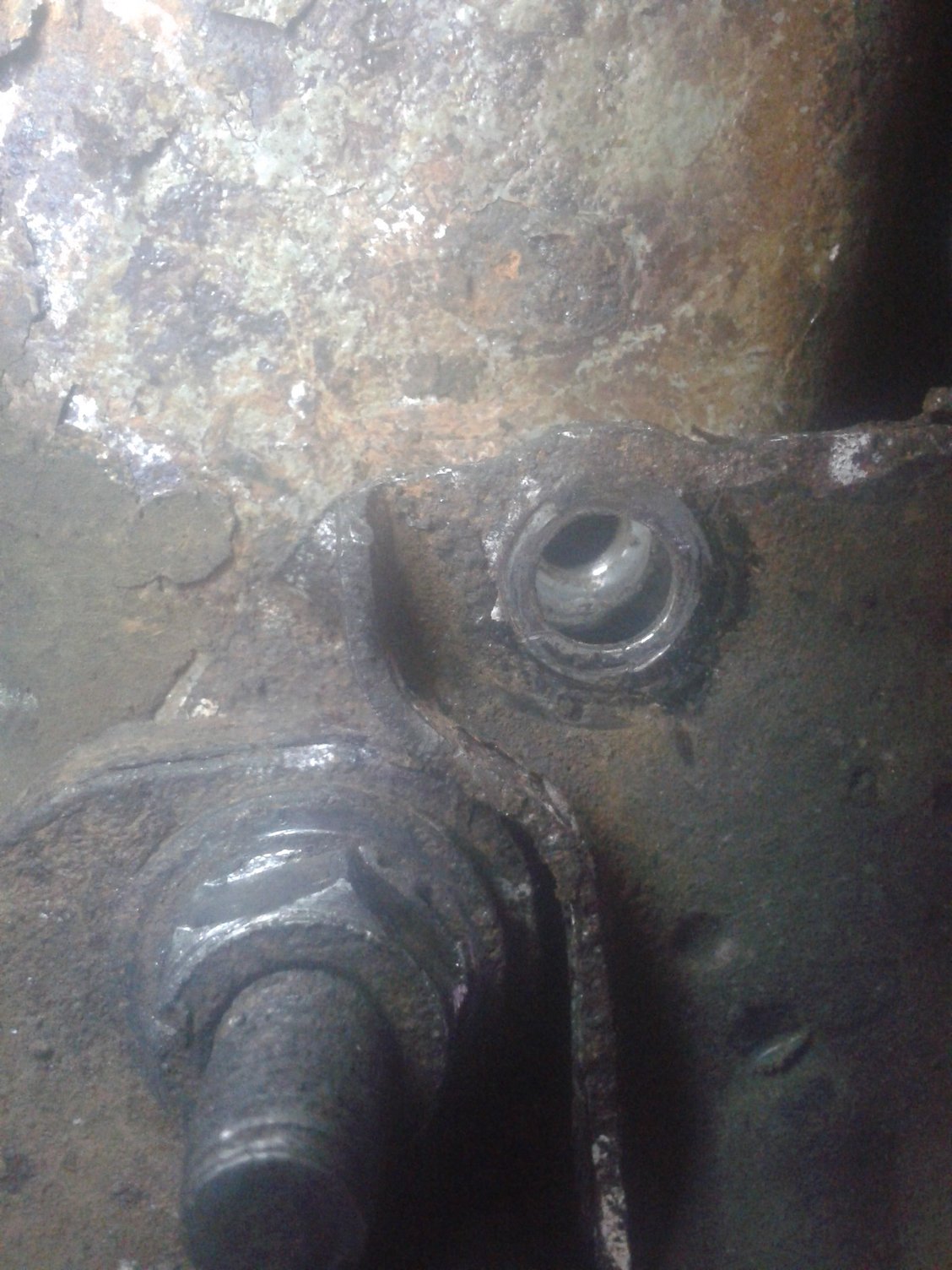

The canister bracket was over the standard mount, I'm struggling to remove one of the canister bolts which has started to round off, but when I place the mount over the canister bracket the holes are misaligned by a few mm.


Or are you supposed to take the canister bracket off? When I get the holes lined up, the stout mount sits on the left edge of the canister bracket.

jazzyjembreaze

iTrader: (11)

edit

jazzyjembreaze

iTrader: (11)

edit

jazzyjembreaze

iTrader: (11)

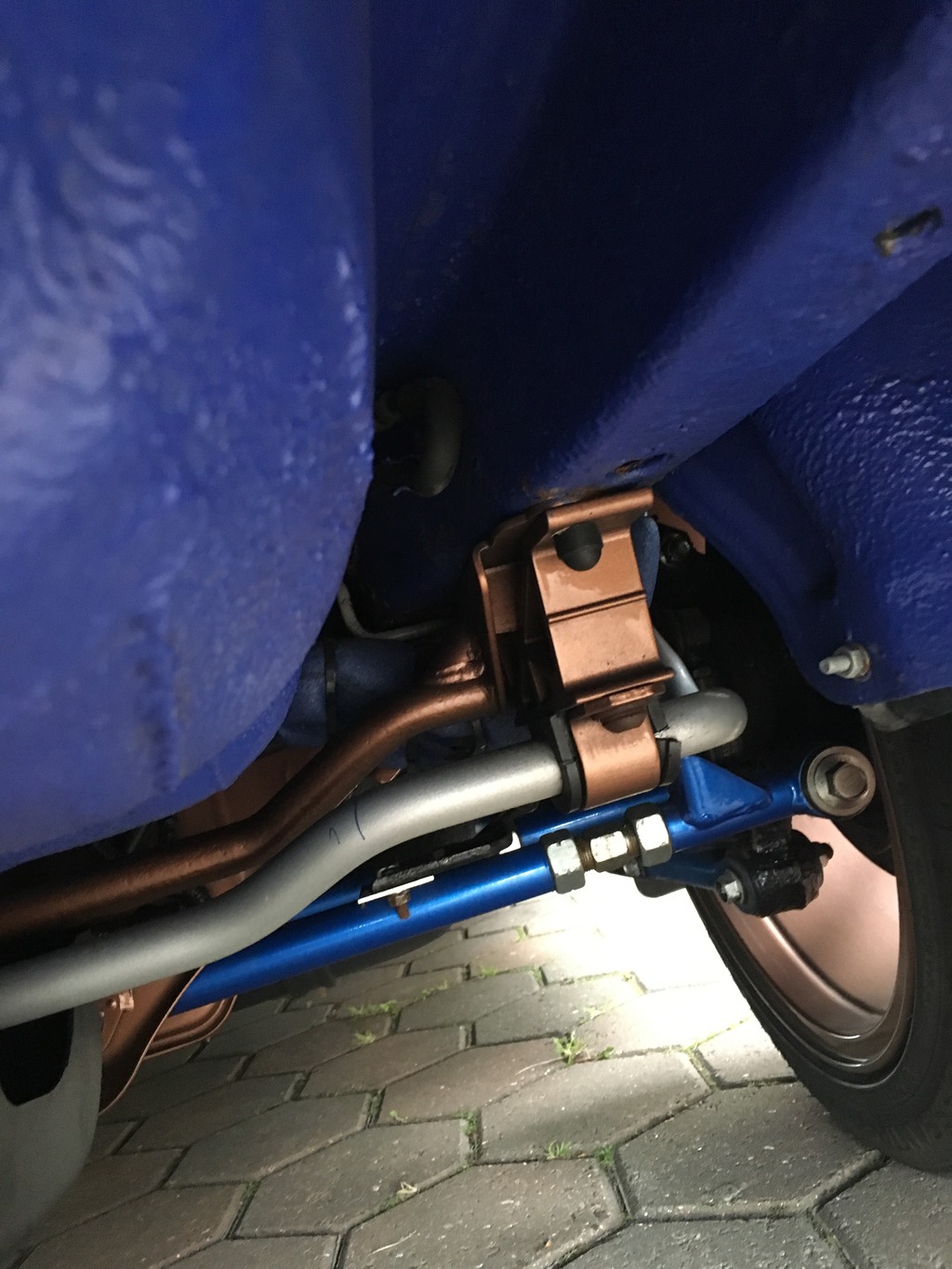

Here you go
Should mount like this / although my carbon canister is removed

53

iTrader: (41)

Have you got them the right way round. It's tight but all the ones I have done just bolt in fine. Never had to remove anything.

just me

iTrader: (3)

Thanks for the pic Jazzy, you have a very clean car underneath, puts mine to shame!

just me

iTrader: (3)

The line in the centre of the mounts should be facing the rear bumper as far as I'm aware, or is that wrong?

just me

iTrader: (3)

I found fitting instructions on the whiteline website, the instructions state the the line in the mounts should be facing the front, but the actual pic on their website shows it facing the rear

Cant believe something so simple has turned into a pain in the ****.

jazzyjembreaze

iTrader: (11)

Well mine are on correct , there is a Ciusco brace sitting in the middle of that lot wich I had to modify to fit as its not designed to be used with stout mounts / ....

jazzyjembreaze

iTrader: (11)

Well your correct according to that installation guide / I'll take them off but pretty sure they only line up 1 way / plot thickens

jazzyjembreaze

iTrader: (11)

jazzyjembreaze

iTrader: (11)

jazzyjembreaze

iTrader: (11)

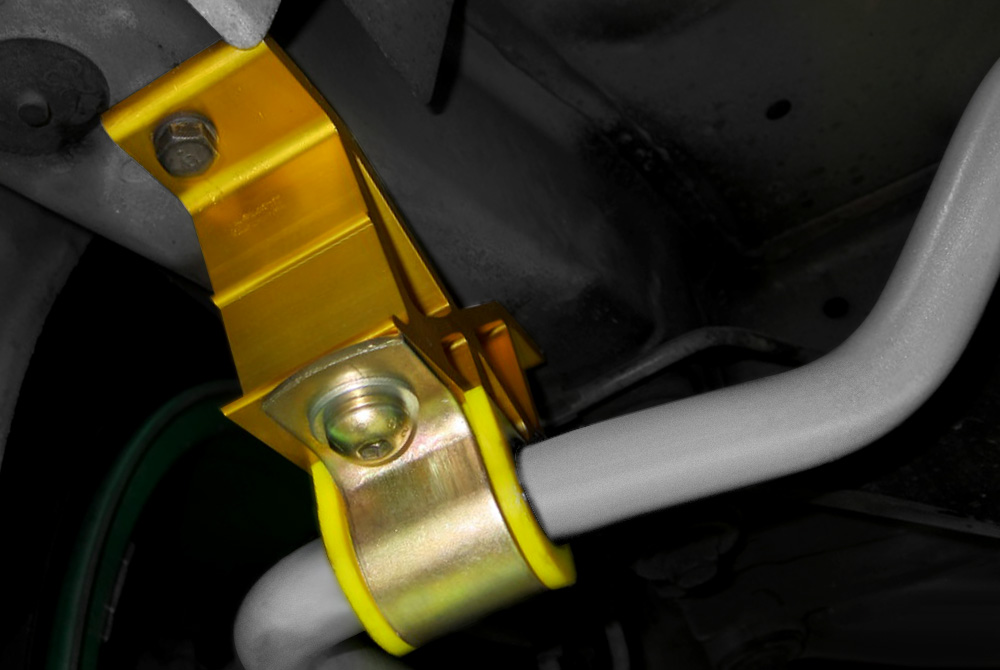

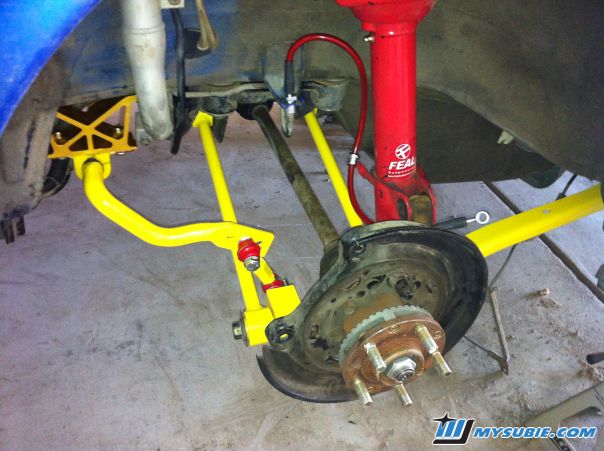

All the pics I can find on cars installed the rib is at the rear - so **** knows what that install guide is about

just me

iTrader: (3)

Thanks for all your help, arb is installed now, I tried the mounts in both directions, it doesn't seem to make a difference as there is still an overhang
