Evap purge valve location?
I've worked on a lot of cars and engines in the past but will be honest and say that I'm a total noob with Subaru's. A friend deployed and is about to come home but her 2010 Subaru Impreza hatchback threw a CEL code P0458. After some searching, I see it's the EVAP purge solenoid control and people have had a variety of problems stemming from this code but none of them seem to cover where it's located. If I reset the code it comes back after 2-3 restarts. Car drives fine at least.

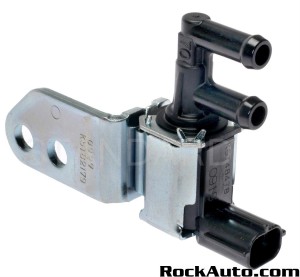

I can see the part looks like the attachment from RockAuto's site but I can't find the thing to even check it out before buying the part.
Any idea where this thing is located? I looked all over the engine bay and didn't find anything close.
I can see the part looks like the attachment from RockAuto's site but I can't find the thing to even check it out before buying the part.
Any idea where this thing is located? I looked all over the engine bay and didn't find anything close.
#2
Scooby Regular
iTrader: (3)
not looking hard enuff, squint your eyes between the inlet manifold and the alternator, follow the vac pipes down and you'll see it bolted onto the manifold with a bunch of pipes going in/out of it
if it's giving you grief you can go the JDM style route and just remove it:
it's number 2 there - then find someone to map the codes out for you
if it's giving you grief you can go the JDM style route and just remove it:
it's number 2 there - then find someone to map the codes out for you
#3
Scooby Newbie
Thread Starter
Join Date: Mar 2016
Location: GA
Posts: 2
Likes: 0
Received 0 Likes
on
0 Posts
not looking hard enuff, squint your eyes between the inlet manifold and the alternator, follow the vac pipes down and you'll see it bolted onto the manifold with a bunch of pipes going in/out of it
if it's giving you grief you can go the JDM style route and just remove it:
it's number 2 there - then find someone to map the codes out for you
if it's giving you grief you can go the JDM style route and just remove it:
it's number 2 there - then find someone to map the codes out for you
Thanks!
Looks like a broken wire is causing the issues. Hopefully that is the only problem.
Last edited by jfw432; 03 March 2016 at 10:05 PM.
