Project Twin Scroll 2003 WRX STi
I was not going to do any mods to my car in the near future but Harvey put a post up on Scoobynet wanting a guinea pig for his new age intercooler. I had previously enquired with Harvey about porting my headers and upppipe but due to it being a twin scroll he would not be able to offer an exchange service and so would need my car for a few days. So this was an ideal time to do the lot in one go so I handed my car over to Harvey for a full week.
During that week the following was done;
FMIC
CAIK
VTA BOV
Ported OEM Headers (for twin scroll)
Ported uppipe (for twin scroll)
full 3" exhaust fitted.
EGT probe fitted.

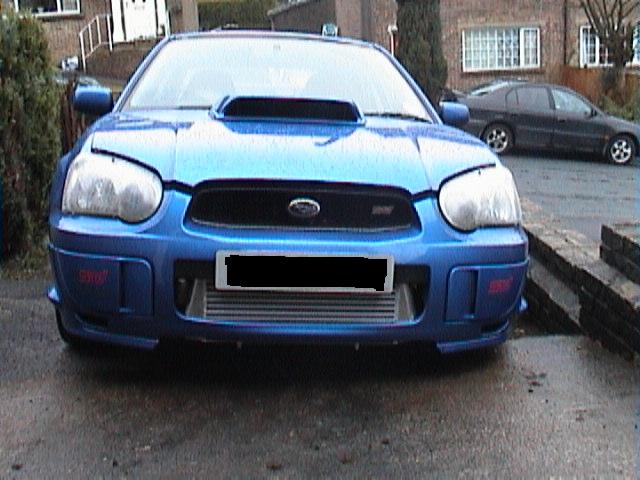

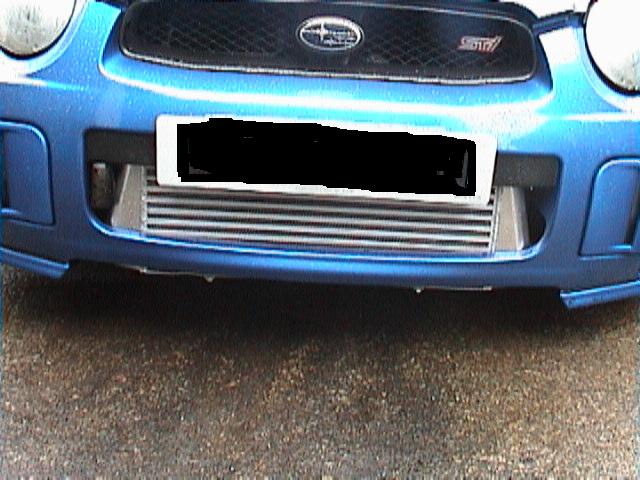

Front views of intercooler,

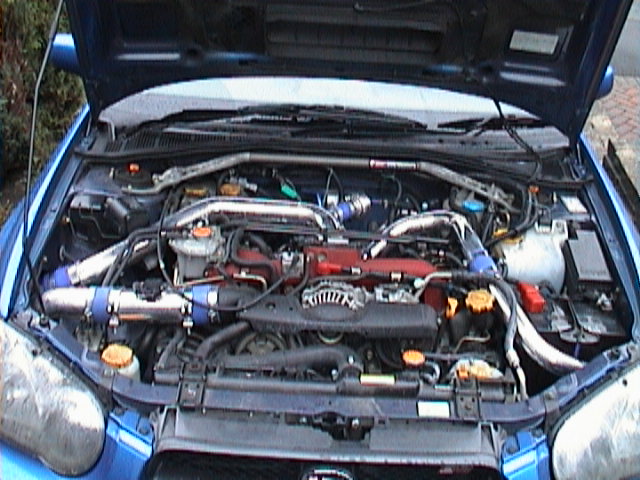

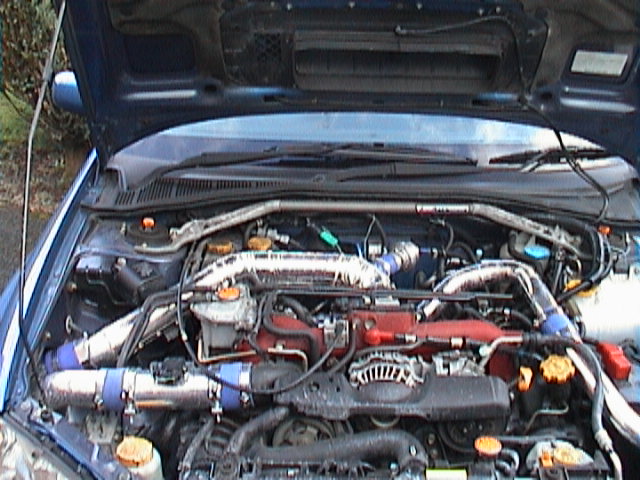

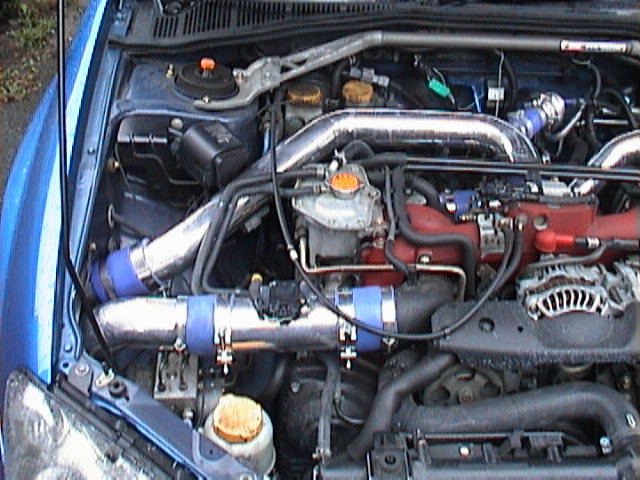

Full under bonnet pic,

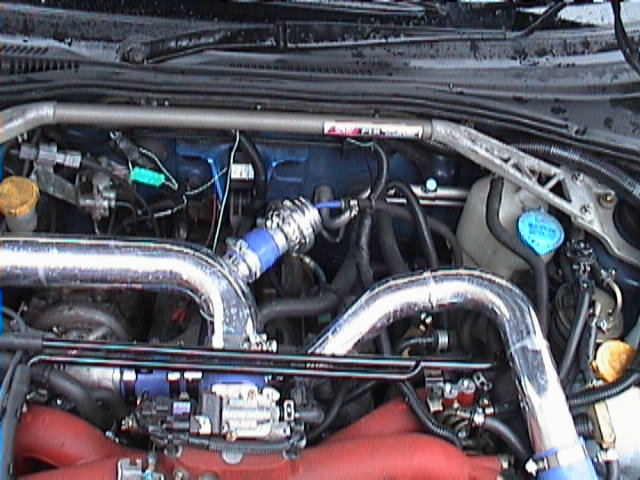

Closer pic of CAIK,

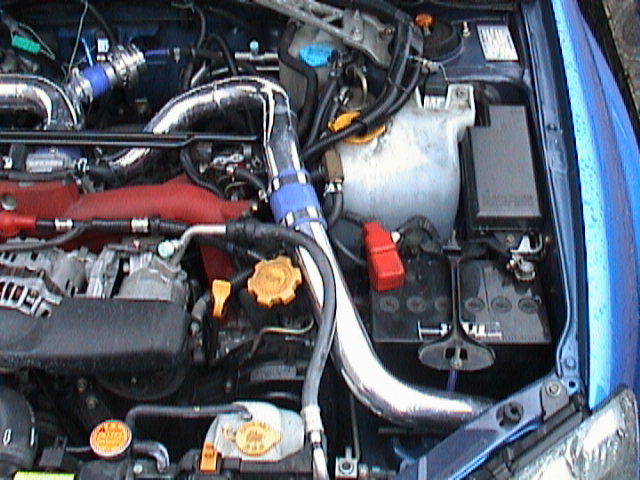

Pic showing new smaller battery and tight fit of pipework,

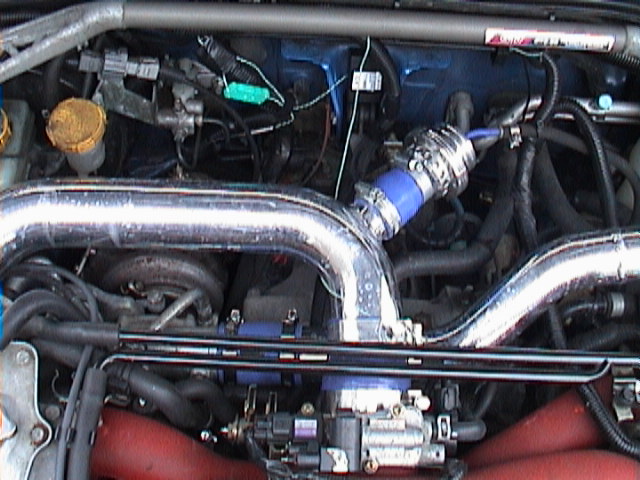

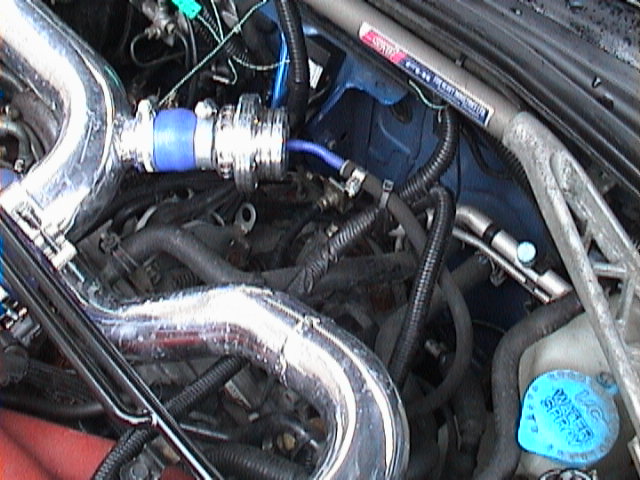

Closer Pics to show VTA BOV,

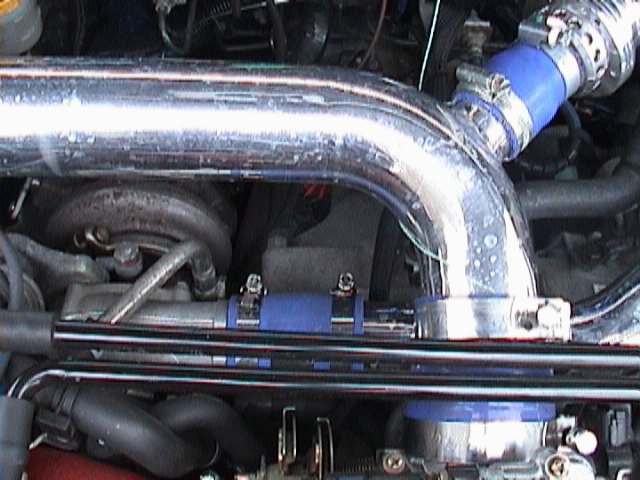

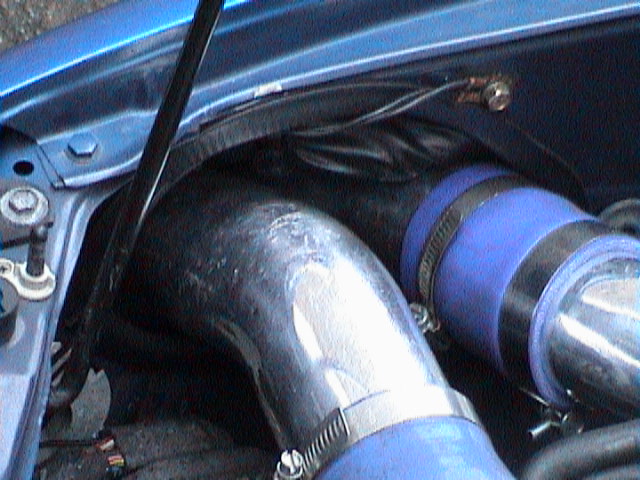

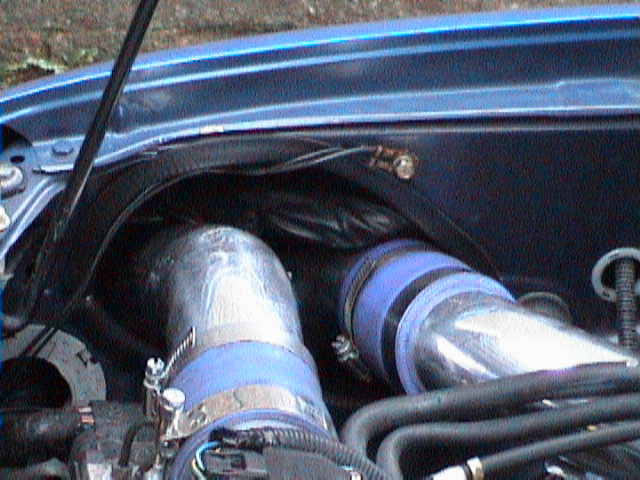

Closer pic showing path of intercooler pipework from turbo,
When I collected the car I was very impressed with how neat and tidy it looked.
I then discussed with Harvey about some heat insulation and it was decided to bring my car back the week after as it needed an oil change anyway.
On my journey home travelling at a steady 70mph and approx 3,500rpm my inlet temp into the throttle body was roughly 4 degrees above ambient.
The week after doing the same with the insulation work resulted in 2 degrees below ambient and so a dramatic improvement. See pics below;

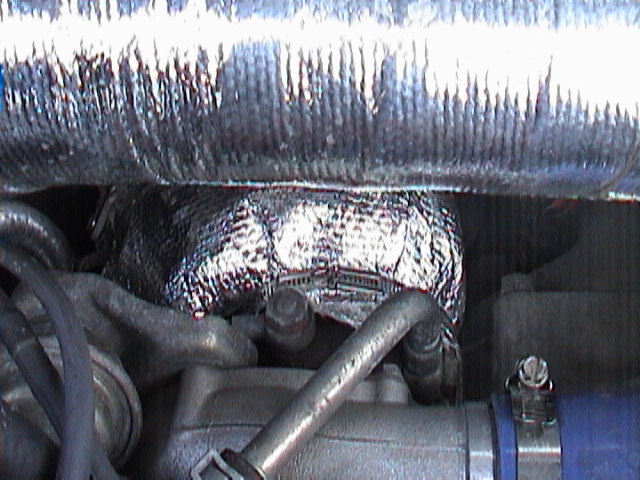

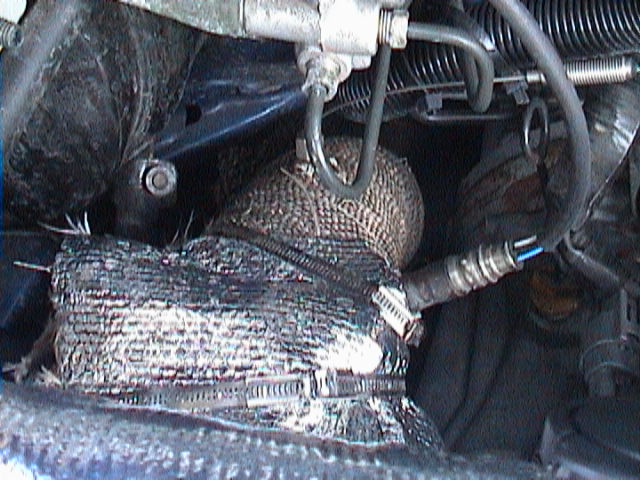

Turbo Blanket,

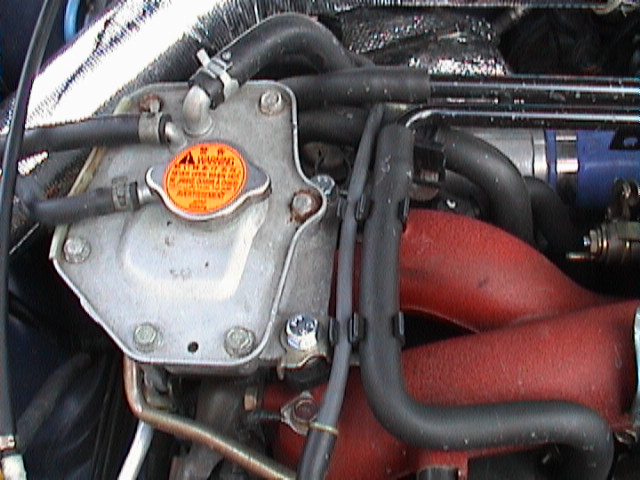

Simple mod of adding spacers to header tank,

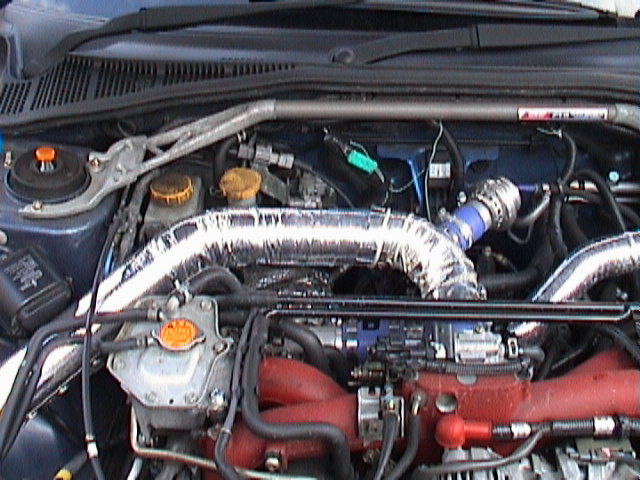

Heat insulation work done on intercooler pipework feeding into throttle body,
I can’t comment on results yet in terms of drivability as I am waiting for the car to be mapped mid March so I will report back then. In the meantime I am running the car off boost and it runs no problems at all like this. Following mapping I will also look to attend a rolling road to get an idea of what it is putting out but I won't rush to do this as I am not a dyno queen.
If anyone is interested in having any of this work and prices you are best sending a PM or e-mail to Harvey Smith for more details.
p.s. I must thank Harvey Smith and Paul Stabler Tuning in their efforts so far as they have been very good
Damian.
