Danjo

So I thought I better start a “proper” project thread as this is now becoming a proper project. You can see the car’s progress up until now on the link below…

https://www.scoobynet.com/1062096-my2015-wrx-sti-updates-7.html

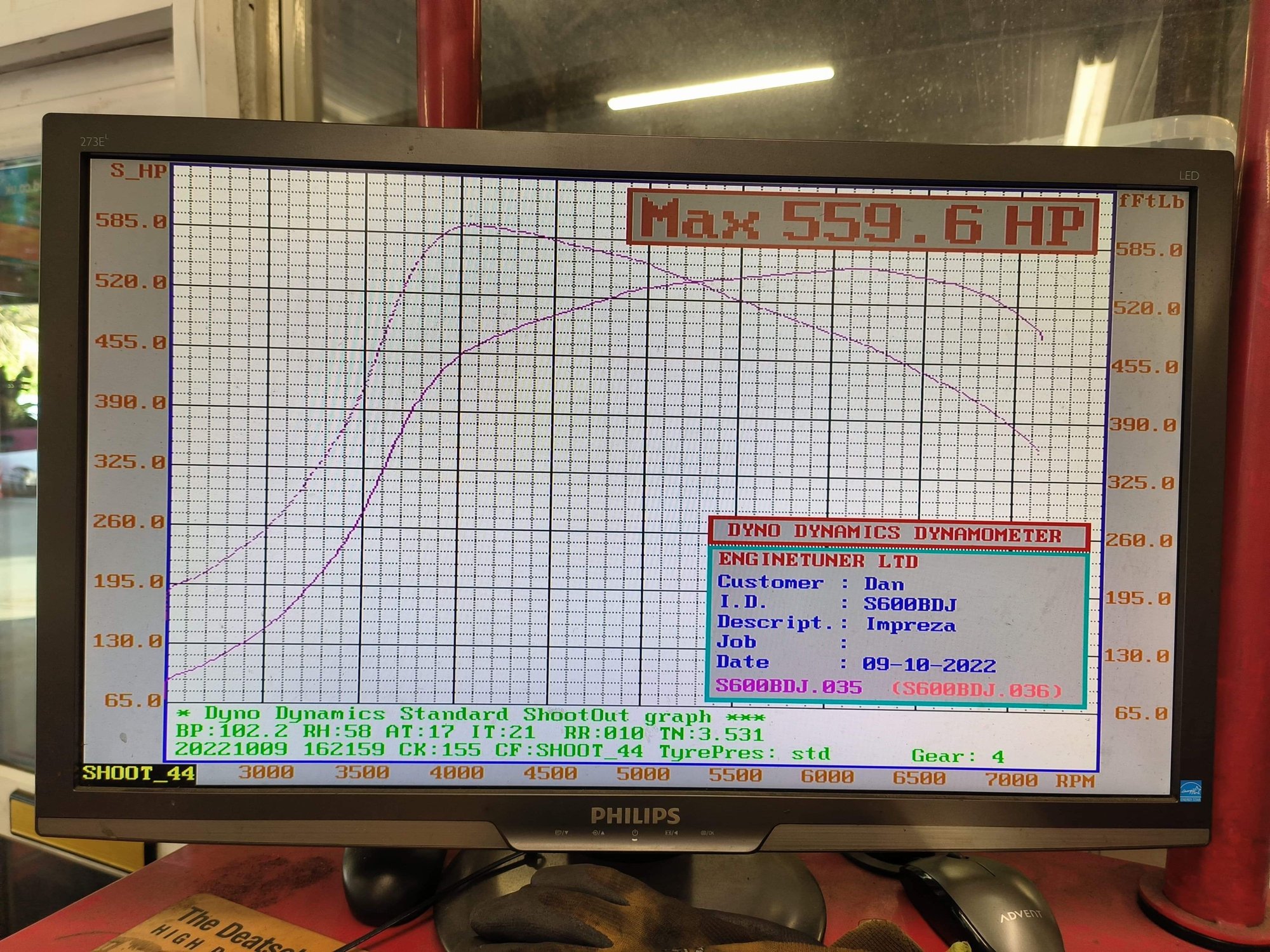

To summarise, the engine has been built by Enginetuner with most of the rest of the work done by myself. As it stands it is making 560bhp/600lbft with 20% meth, and 520bhp/540lbft on 99. The car is built to handle much more than this, the spec list is below…

Engine:

-EJ25 block
-Closed deck conversion
-ASP HD Ductile Iron sleeves
-Mahle mororsport 2618 pistons
-Manley H-Tuff Plus conrods
-ARP 625+ rod bolts
-EJ25 nitrided crank
-ACL race bearings
-Balanced rotating assembly
-14mm RCM head stud conversion
-RCM stopper head gaskets
-Cosworth timing belt kit
-12mm oil pump
-New water pump
-RCM low temp thermostat
-Brian Crower stage 2 camshafts
-Supertech cam followers
-Supertech double valve springs
-Supertech titanium retainers
-Supertech nitrided inlet valves
-Supertech inconel exhaust valves
-Supertech valve seats
-Supertech viton valve stem seals
-KillerB windage tray
-KillerB oil baffle plate
-KillerB oil pickup pipe
-Competition Clutch Stage 3 clutch
-New OEM flywheel
-Emtron standalone ECU (speed density)
-Flex fuel sensor
-Fast response air intake temp kit
-Genuine STI TGV deletes
-10mm Thermal inlet spacers
-Fuji parallel fuel rails
-Fuji parallel fuel lines
-Fuji adjustable FPR
-1300cc injectors
-Radium dual fuel pump hanger
-Radium fuel pump wiring kit
-2 x RCM 340lph fuel pumps
-Precision 5530 stock location turbo
-Invidia 3” decat bellmouth downpipe
-Perrin cold air intake
-RCM equal length headers (Wrapped)
-Wideband O2 sensor
-Invidia R400 exhaust system
-RCM Track Attack Catch Tank
-PCV deleted
-ETS 3.5” FMIC
-GFB response blow off valve
-3 port boost solenoid
-Secondary air pump deleted
-Evap system delete
-Koyorad radiator
-STI group n engine, pitch stop and gearbox mounts

Chassis and braking:

-H&R Coilovers
-New sti strut tops, bump stops and conical washers
-Whiteline front and rear sway bars with adjustable end links
-Alcon Extreme Advantage 6 pots with 365mm disks
-Braided brake lines
-Dot 5 brake fluid
-Ferrodo DS2500 pads
-Motegi MR145 Traklite 3.0 18x9.5 et35

Interior:

-Personal Neo Grinta steering wheel
-Snap off steering boss

Exterior:

-VIS carbon bonnet
-Final edition front bumper
-Fog lights deleted
-Diode dynamics switchback c-lights
-HT Autos lip kit
-Perrin wing, boost solenoid and alternator covers

My immediate plan was to put a big turbo on straight away and run north of 700bhp. My ultimate aim is to build a full weight 10 second street car, I estimate that I’ll need around 750bhp seeing as this car weighs around 1500kg (maybe a little less now with some of the modifications it’s now carrying).

When the engine was built and run it, it was done on a stock location Precision 5530, which is similarly sized to a GT3076R. I was never that concerned about the power it made but have since been extreme impressed with the car in this particular state of tune, it makes for a very fast road car with very little lag and lots of torque.

I have taken it to Santa Pod once where it ran a 11.9 quarter mile on its second run, I gave up after that as fourth gear synchro wasn’t happy and launch control hasn’t been set up yet, but I’d estimate there’s a solid mid-11 second run in the car as it stands.

So next on the list will be a larger stock location turbo, something like the new Precision Gen 2 58mm or a GTX3576R and see how close that gets me. I’m under no illusions that I’ll have to go to a full rotated setup to get into the 10’s, but I’ve not seen many people really push the stock location envelope.

One thing I would like to do in the future is a sequential gearbox, that would definitely shave some time off! But that’s further down the line. For now in just want to have some fun with the car and see where it ends up.

hedgecutter

iTrader: (5)

He hasn't been able to log in for IT reasons

grahamc

iTrader: (10)

What kind of excuse is that?!?

My old GTR running 650BHP was 10.6 consistently at an event - ok, different car but heavier and not silly power. SEQ make a huge difference I would think, maybe even enough? Do you need the turbo if you go full sequential and flat shifting? Id be rather interested to see what sort of SEQ options you find and still keep it a semi-road car.
