After years of RWD track days I decided I’d like to try 4WD.

Soooo

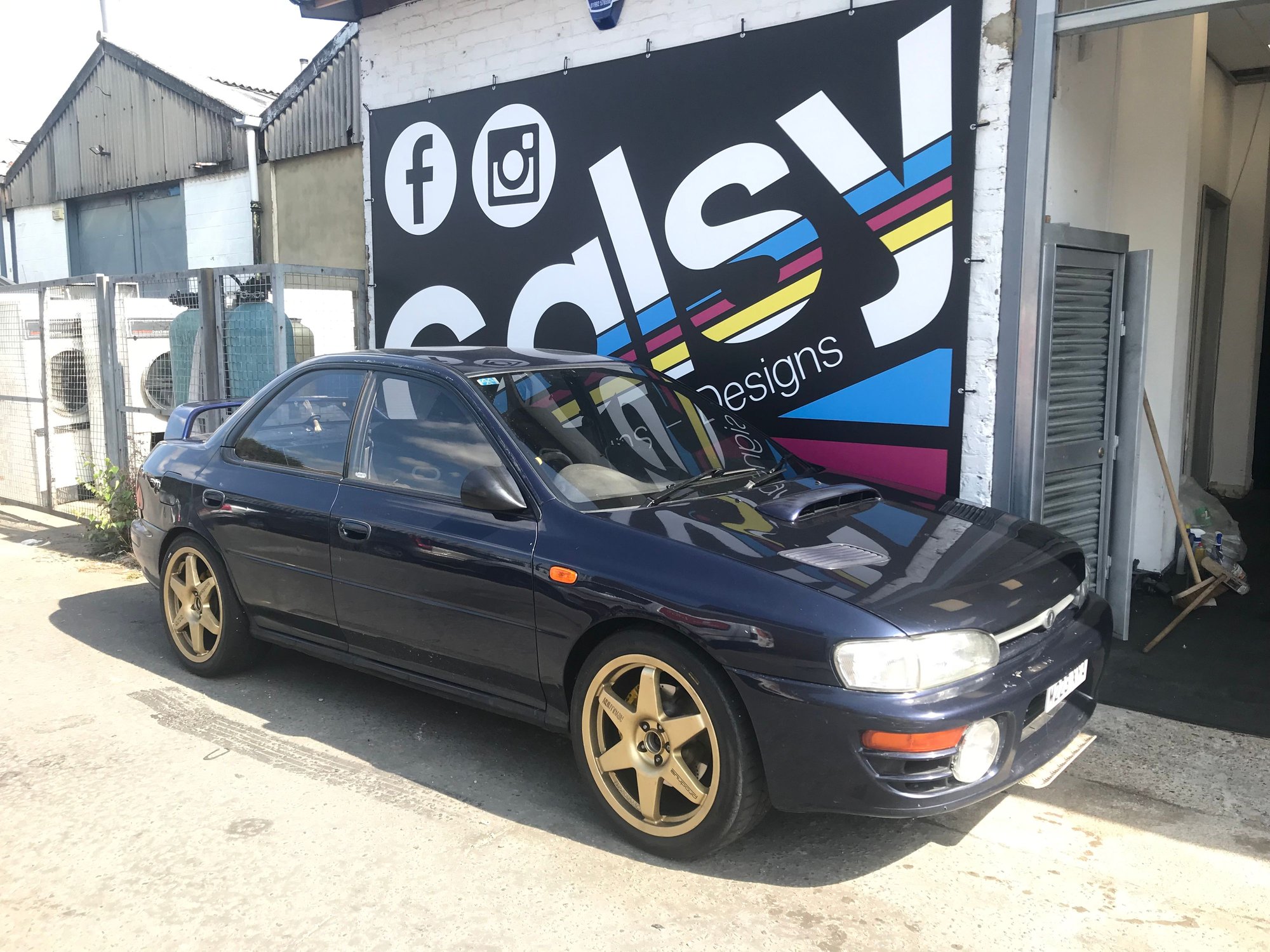

i purchased this tatty little razza



With this in mind

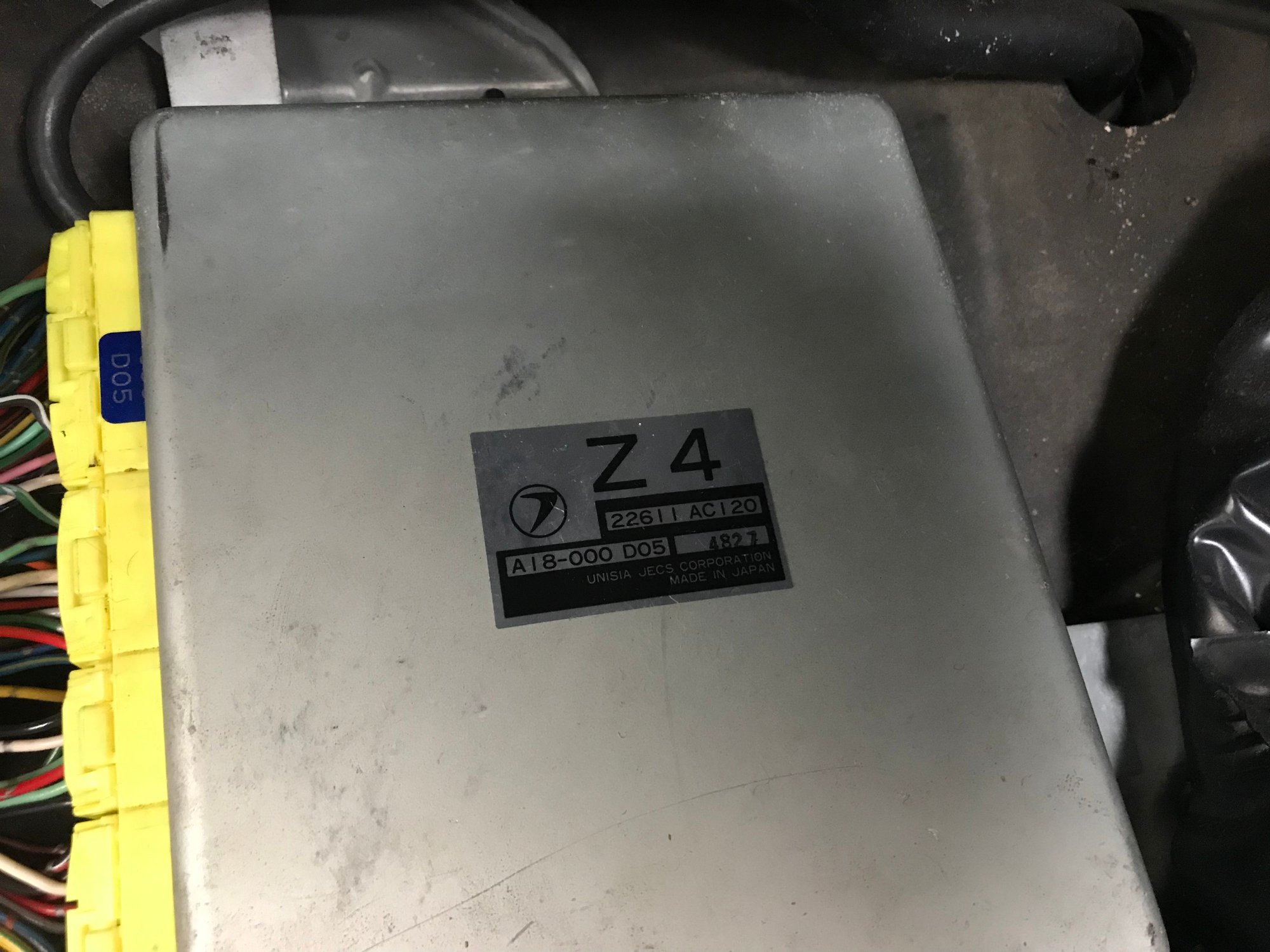

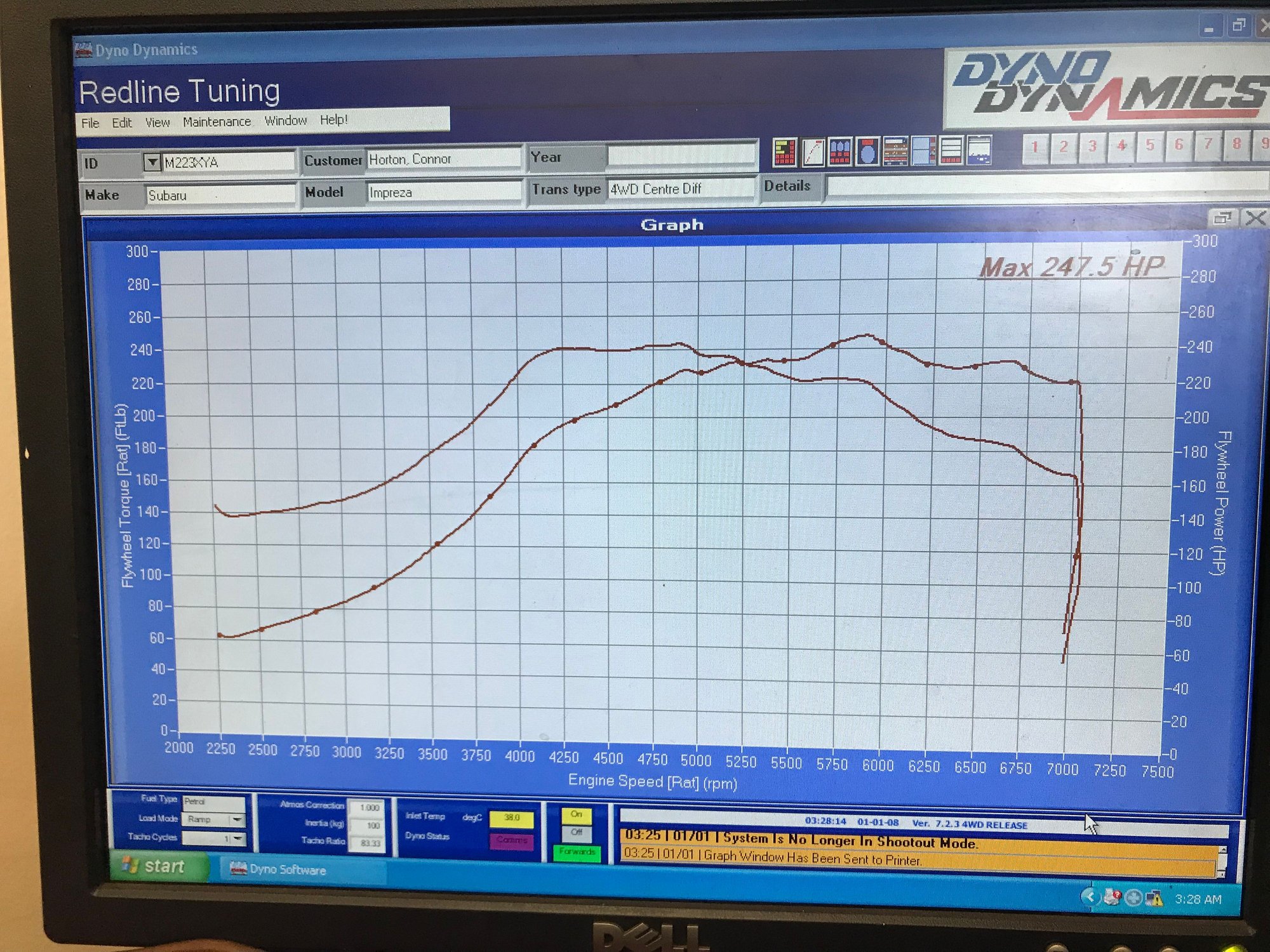

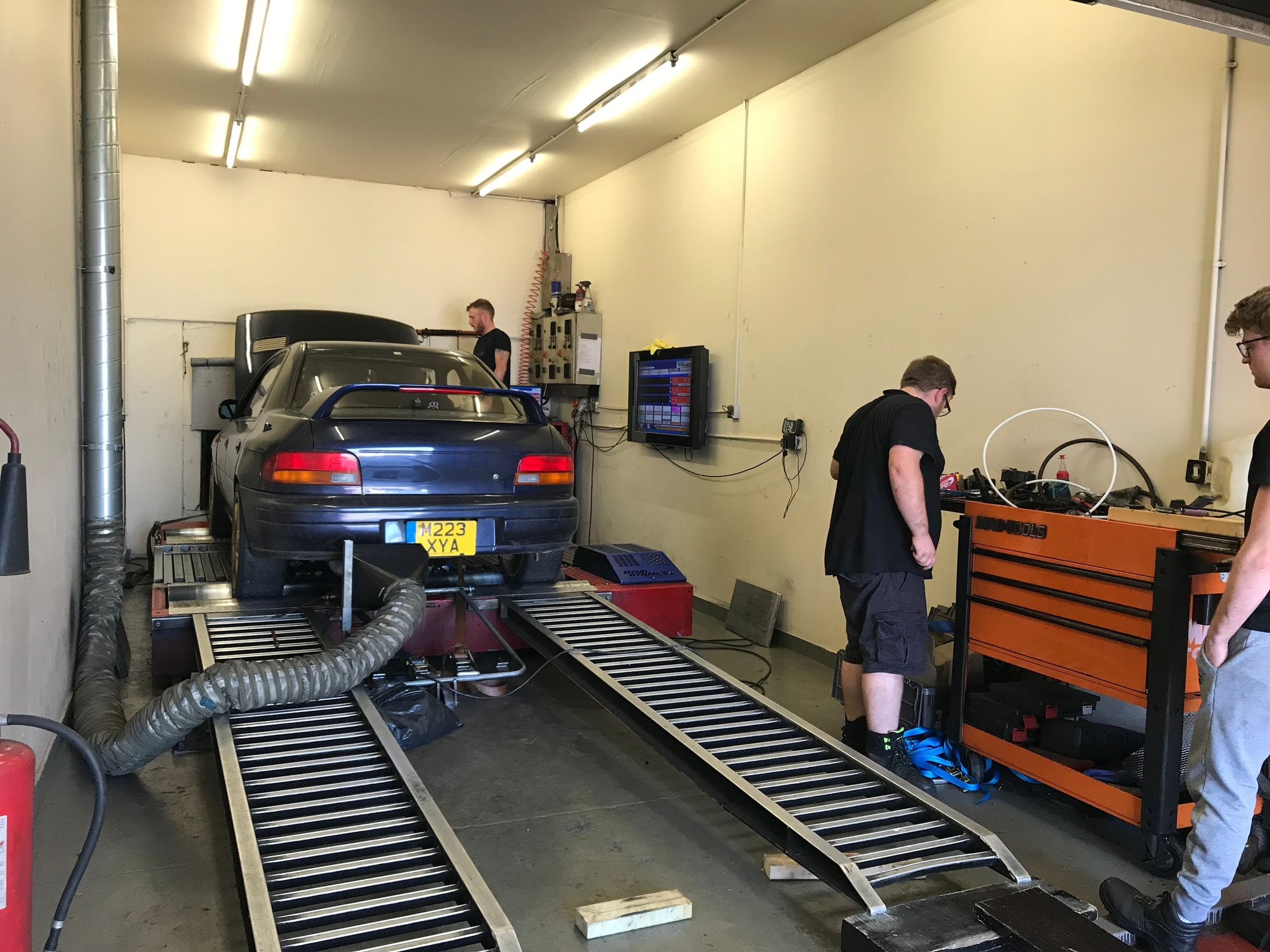

First thing was to put it in the dyno to check the map was safe as it’s got a chipped ecu






All good. Plenty safe tune.

Dyno video is on my company Instagram

calsy_ssd

its is amongst all our recent work so you will need to scroll back a while to get to it.



Next up was wheels and removal of bits I didn’t care for



Did all the boring stuff like new disk and pads, full service etc.

Understeer was no no good for me.

I then slotted the struts for a lot more front camber, Added a Whiteline rear anti roll bar, Sticky tyres and got the alignment done with as little rear camber set as possible on stock arms. The stock shocks and springs are pink ones and very stiff. Feel very well damped so I’m gonna leave them for now.

Understeer was reduced massively.

Poly bushed the diff mounts and outriggers. Fitted a solid engine steady bar. Simplified the intake system.

Welded the rear diff. Yep. Chill out. It’s fine.

No pics of all this I’m afraid

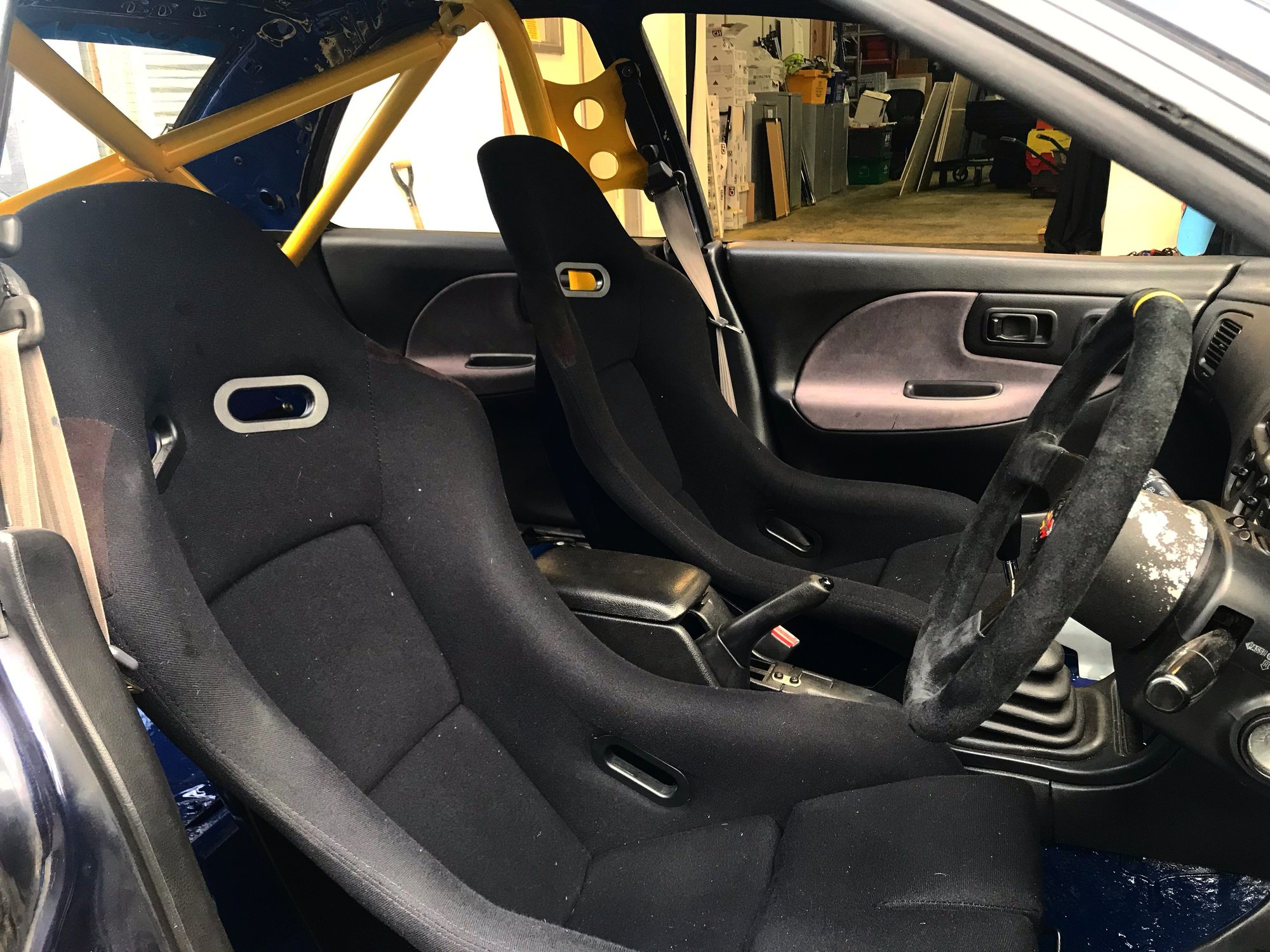

Then moved onto the interior.

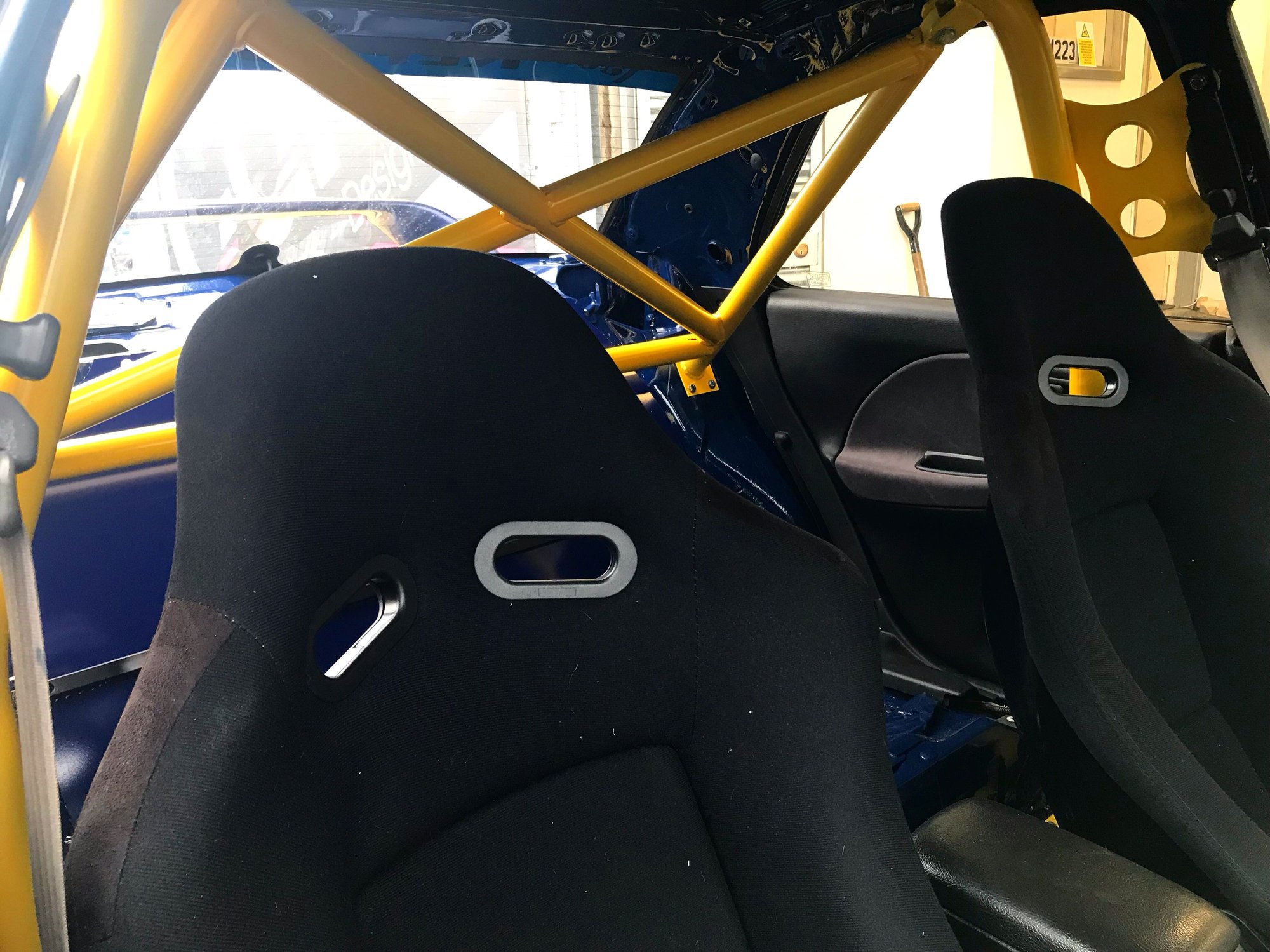

Stripped in and painted it blue, added buck seats, a rear cage and harnesses.

Had to build my my own short shifter as I couldn’t find one for the v1 classic.

Added a rear coolant temp gauge and boost gauge.

Cleaned up an few other bits and adjusted the pedals to suit heel toe better for myself.





*harnesses aren’t fitted in these pics

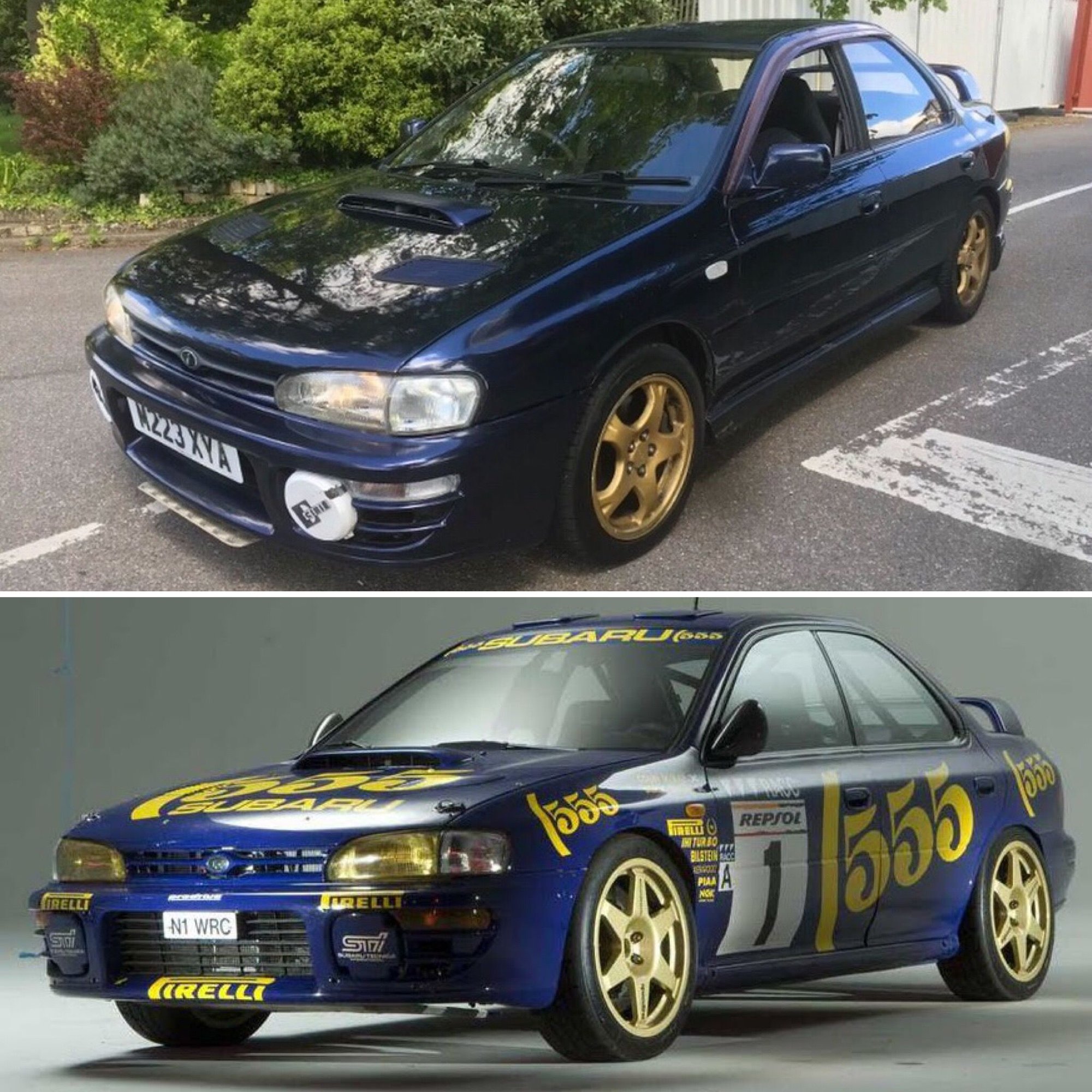

Then onto the livery. Now I realise this isn’t the correct blue and is a bit too dark. My company does do full vehicle wraps but the body work on this is very tatty although it is virtually rust free. Because of this I decided to apply the livery to the factory blue and the car will get abused. And judging from my previous track cars probably crashed too 😉



I’m a graphic designer so designed the full livery myself as I wasn’t happy with all the available kits and..well...I own a signs and graphics company ha



So that’s how it currently stands. First track day for this car will be November the 4th at Bedford as my girlfriend would like to learn to drive on track I thought it best we go to a track with a lot of run off.

Mechanically the car seems good but we shall see ha. I’m not holding my breath...

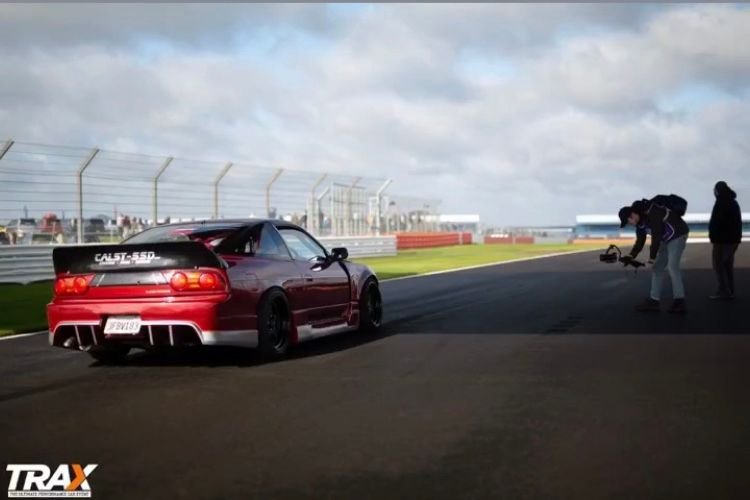

For good measure here’s a load of pics of our cars and cars we sponsor



















you can find more pics and plenty of track time videos on our Instagram

calsy_ssd

you will need to scroll down as fair but as they are mixed with our business posts

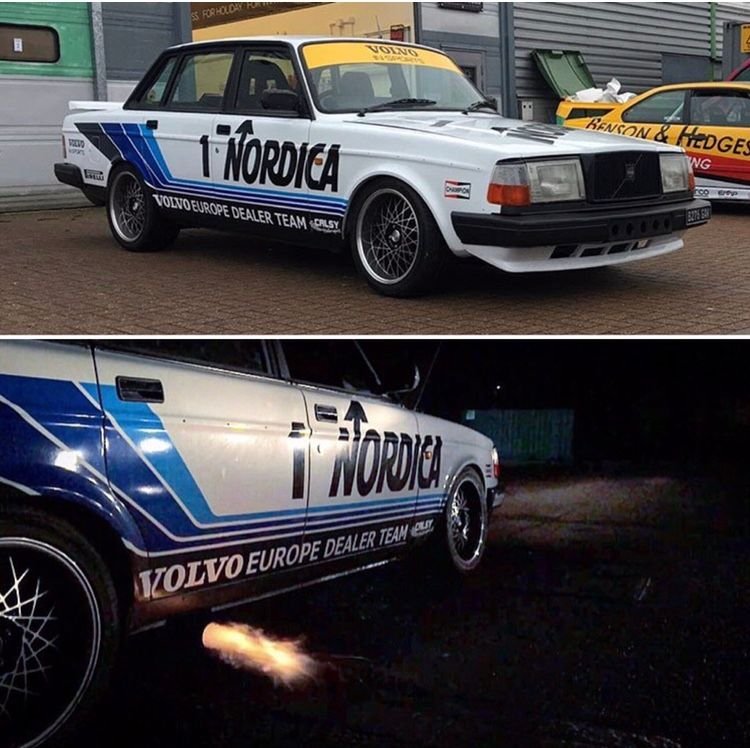

That Volvo

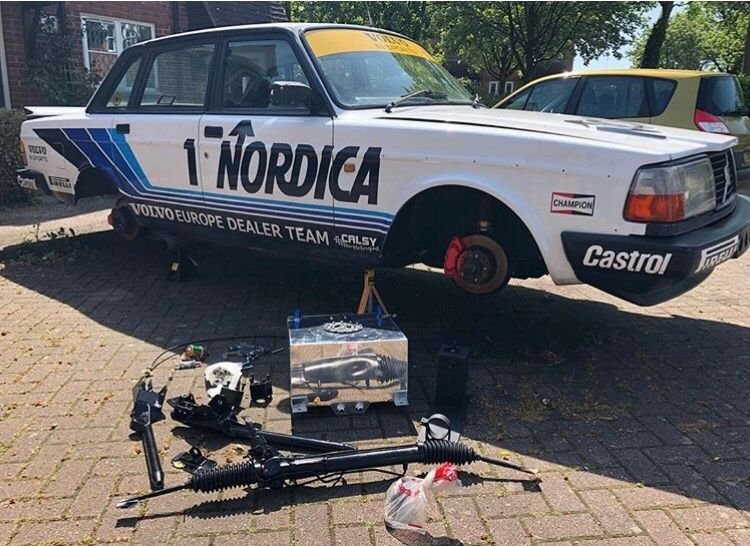

Currently off the road. Forged engine built and sitting in the stand in our unit but haven’t got round to re fitting it yet.



car looks great

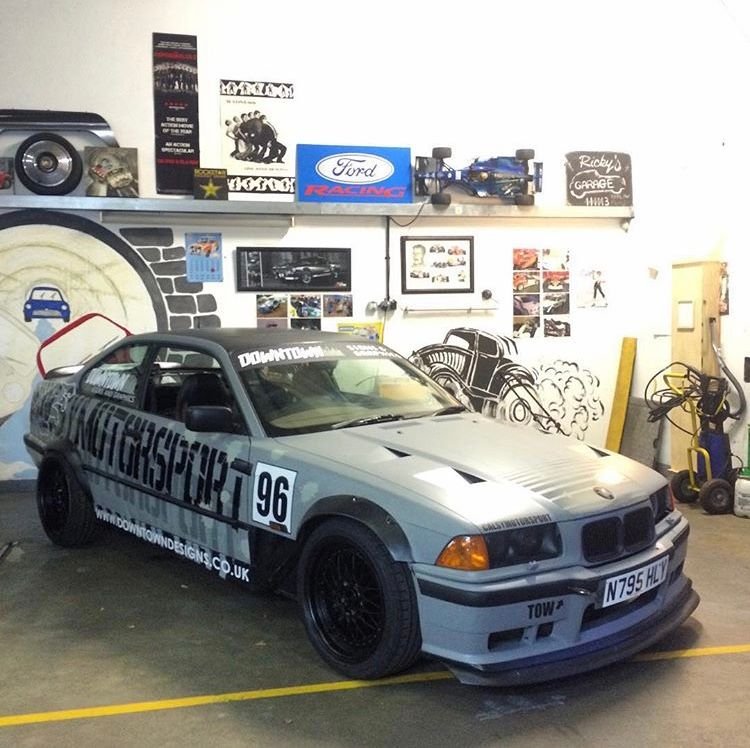

Car looks great, what mirrors are they? Big fan of the e36 too.

Interested to hear your thoughts on the welded rear diff? Been umm and ahhing about doing it to mine, so would be great to have some feedback!



I’ve had a lot of cars with welded diffs so I know what to expect but yeah it’s not very nice for parking and slow manoeuvres. Years ago I had welded diffs in my daily drivers but I’m too old for that now ha.

it’s first track day is November the 4th so I’ll see how it is then.

but if you watch this recent carfection video about the wrc impreza he says they actually ran a rear spool (completely locked diff) and the centre diff set to 50/50. I thought that was quite interesting and after some more internet research I believe he is actually correct.
so I’m sure it’ll be fine.

It doesn’t lift off over steer as much now which I’m a bit disappointed about. It does however do mental 4wd on the spot donuts ha. Haven’t had it fast enough in the road to really see how it’ll behave but I’ll know after the track day. i have a spare diff to replace it or build a lsd if I hate it.



Omg, I love that Volvo! Fond memories of going sideways in winter in one



The Volvo is my business partners car. It’s still a ways off but it’s got some pretty special suspension on it and we’ve just finished the forged engine for it so it should be a 80s monster once it’s done.



Track day clips on my Calsy_ssd Instagram page. Under the track day clips story highlight.

black flagged for “drifting”



Lol, some organisers dont like "drifting".

Nice thread btw, i like what you've done with the car.

I notice you've mentioned running sticky tyres. Do you have any plans for, or have you considered oil migration issues? Subaru's are renowned for getting killed on long fast bends due to oil shifting from the oil pick up pipe...



nope no plans.

I just keep the oil level very full 😉 over full ha

if it breaks it breaks.

im trying not to do anything unless it needs doing
