Talking Job on!

The oem subaru boost gauge arrived and although I'm chuffed and the kit is extremely comprehensive save for the instructions, I'm thinking yes it's still gonna be a bit of a job.

Any help with regard to installation? Not sure whether to pay someone to install it!

Have trawled the net however just unsure as to the exact connection point of the wiring looms in the car

Cheers

Tommy

Happy New Year btw scoobynetters

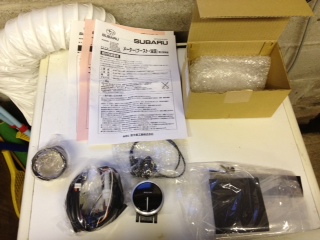

Attached Thumbnails Click image for larger version

Name:	Sub Boost Gauge.jpg
Views:	0
Size:	39.7 KB
ID:	7408
Reply
Old Dec 31, 2011 | 01:37 PM
  #2
Tommy2396's Avatar
Tommy2396
Thread Starter
Scooby Regular

Joined: Jan 2010
Posts: 144
Likes: 0
From: NOYFB
Default

I'll have a crack at it ; )
Reply
Old Dec 31, 2011 | 03:48 PM
  #3
JonMc's Avatar
JonMc
Scooby Senior
iTrader: (51)

Joined: Nov 2005
Posts: 20,491
Likes: 2
From: Wherever I park my car, that's my home
Default

I would, aftermarket ones are straightforward enough so I can imagine one designed to fit should be a piece of cake
Reply
Old Dec 31, 2011 | 05:17 PM
  #4
Tommy2396's Avatar
Tommy2396
Thread Starter
Scooby Regular

Joined: Jan 2010
Posts: 144
Likes: 0
From: NOYFB
Default

Aye just had a proper read up and the only question outstanding is the plug and play lead! Not had a good look under the steering column yet ; )

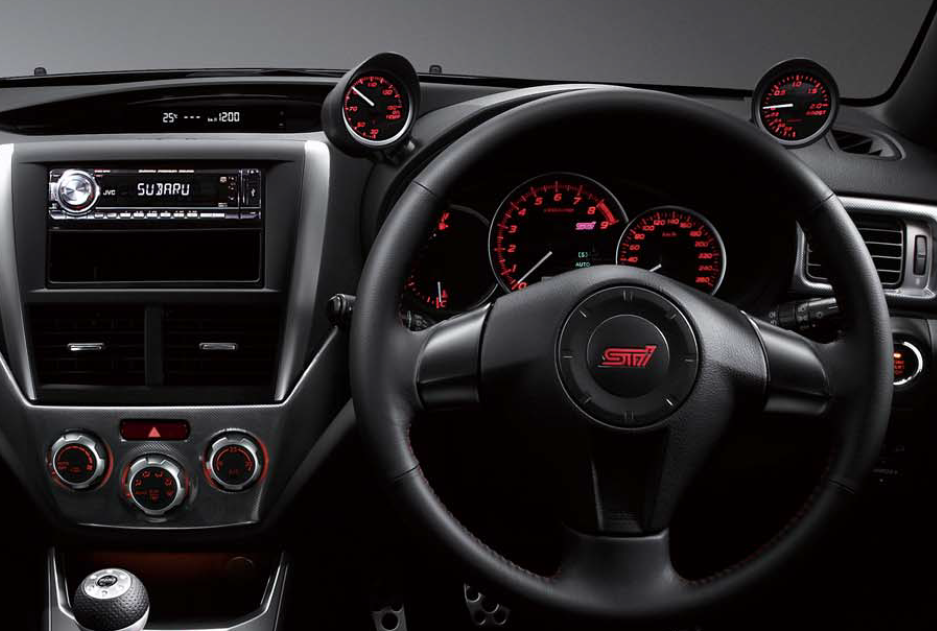

Longest job will be digging out the foam in the firewall to get the connector through, assuming it will fit through and making a custom mount so the gauge sits at the right angle on the column without obstructing the main clocks. Good piece of kit noticed on the transducer the words "Defi" though! Just paying extra for the Subaru emblem and maybe the lead!
Reply
Old Dec 31, 2011 | 06:54 PM
  #6
Tommy2396's Avatar
Tommy2396
Thread Starter
Scooby Regular

Joined: Jan 2010
Posts: 144
Likes: 0
From: NOYFB
Default

Cheers Dan will have a look.
Reply
Old Jan 1, 2012 | 02:13 PM
  #7
Tommy2396's Avatar
Tommy2396
Thread Starter
Scooby Regular

Joined: Jan 2010
Posts: 144
Likes: 0
From: NOYFB
Default

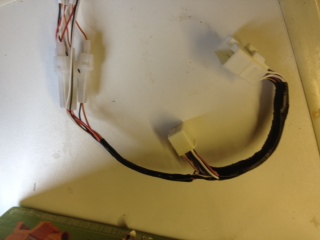

Ok so this is a pic of the wire harness now I'm guessing the female end is to serve an additional gauge and the male end plugs into by the ignition as opposed to the clock/radio area.

Could anyone kindly clarify the location and exact fitting of plug.

Cheers

Tom
Attached Thumbnails Click image for larger version

Name:	Wire harness.JPG
Views:	0
Size:	24.8 KB
ID:	7422
Reply

Trending Topics

Old Jan 1, 2012 | 02:45 PM
  #8
rob84's Avatar
rob84
Scooby Regular
15 Year Member
iTrader: (5)

Joined: Jun 2006
Posts: 5,287
Likes: 12
From: somewhere out there
Default

The harness shown looks like its an interupting loom, basically you unplug one end from the switch/accesory and fit the loom in the middle and it takes a splice of power from it.

looking at the harness, it looks like it plugs in to a loom around the fuse panel area but dont quote me on that. surly the instructions will tell you where its location is ??
Reply
Old Jan 1, 2012 | 03:07 PM
  #9
Tommy2396's Avatar
Tommy2396
Thread Starter
Scooby Regular

Joined: Jan 2010
Posts: 144
Likes: 0
From: NOYFB
Default

Thanks Rob. I initially thought that it was plug in plug out but the more I look at the Japanese instructions it appears it could just even plug in and the spare adapter is for the oil temp gauge, sounds to simplistic I know!

I have trawled IWSTI, NASIOC and the Subaru tech pages but only the English manuals for the spt style gauge and wiring off the clock cluster.

Thinking could it just wire off the radio however instructions does illustrate from ignition area (but not clearly, obviously!)

The part number is for the gauge is H5017FG000. I cannot find the PDF of the jap instructions to post up!

Dubious about just plugging it up under the ignition area. Will have a proper root around tomorrow round the ignition, have noticed a white block connector just hanging down round that area. Or it's the white adaptor which plugs into the back of the fuse board.

Last edited by Tommy2396; Jan 1, 2012 at 03:54 PM.
Reply
Old Jan 1, 2012 | 11:44 PM
  #10
Tommy2396's Avatar
Tommy2396
Thread Starter
Scooby Regular

Joined: Jan 2010
Posts: 144
Likes: 0
From: NOYFB
Default

Ok so found the english manual for the subaru oem boost gauge!

http://www.defi-shop.com/media/rg60_...ual_1109_e.pdf

However the question over harness plug remains as the manual above is of course not Subaru specific so a bit more digging in the car and on the internet should clear it up with any luck.

Cheers
Reply
Old Jan 2, 2012 | 12:01 AM
  #11
rob84's Avatar
rob84
Scooby Regular
15 Year Member
iTrader: (5)

Joined: Jun 2006
Posts: 5,287
Likes: 12
From: somewhere out there
Default

If I get chance tomorrow, I'll pull some internal panels from my car and find that plug location and take a photo for you mate, I'm nearly certain its located around the top of the fusebox area, maybe located on a relay.
Reply
Old Jan 2, 2012 | 08:28 AM
  #12
Tommy2396's Avatar
Tommy2396
Thread Starter
Scooby Regular

Joined: Jan 2010
Posts: 144
Likes: 0
From: NOYFB
Default

Cheers mate much appreciated!
Reply
Old Jan 4, 2012 | 06:59 PM
  #13
rob84's Avatar
rob84
Scooby Regular
15 Year Member
iTrader: (5)

Joined: Jun 2006
Posts: 5,287
Likes: 12
From: somewhere out there
Default

I've had a look around the fuse box area for the possible connector for your loom to plu into, Now the only one I can see is up behind the brownish coloured fuse panel, looks like you would undo the harness connector and fit that one you've listed in place in between if that makes sence. If you could email me a copy of your jap instructions I'll run through them for you
Reply
Old Jan 4, 2012 | 09:03 PM
  #14
Tommy2396's Avatar
Tommy2396
Thread Starter
Scooby Regular

Joined: Jan 2010
Posts: 144
Likes: 0
From: NOYFB
Default

Thanks for that Rob. I'll get the instructions scanned in.

Unclipped the side panel and had a root around but nothing I could see that would match however it's very likely I haven't looked properly!

Thinking is it possible that the lead could be a red herring as its JDM supplied.
Reply
Old Jan 4, 2012 | 10:11 PM
  #15
rob84's Avatar
rob84
Scooby Regular
15 Year Member
iTrader: (5)

Joined: Jun 2006
Posts: 5,287
Likes: 12
From: somewhere out there
Default

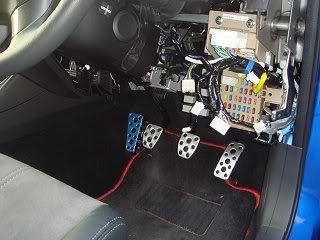

really you need to remove the whole under dash panel so you gain better access to the fuse box. that lead should fit I'm almost certain it should
Reply
Old Jan 4, 2012 | 10:43 PM
  #16
Tommy2396's Avatar
Tommy2396
Thread Starter
Scooby Regular

Joined: Jan 2010
Posts: 144
Likes: 0
From: NOYFB
Default

Ok cheers mate will remove on weekend and have a proper look
Reply
Old Mar 3, 2021 | 10:16 PM
  #17
salsa-king's Avatar
salsa-king
Scooby Senior
25 Year Member
Liked
Loved
Community Favorite

Joined: Feb 2000
Posts: 15,078
Likes: 46
From: Nottm
Default

Originally Posted by Tommy2396
Ok cheers mate will remove on weekend and have a proper look

9yrs on... Did you Fit it... How did it go?
Look good?
Reply
Old Mar 4, 2021 | 07:06 AM
  #18
Don Clark's Avatar
Don Clark
Scooby Regular
20 Year Member
Liked
Loved
Community Favorite

Joined: Feb 2003
Posts: 7,841
Likes: 834
From: Harpenden
Default

9 yrs on the OP hasn't logged onto the forum for more than 3 years.
But to answer your question, if you know where the "OP (output) connector" is situated, it's basically plug and play.





You could probably mount it else where but side airbags may need to be taken into account






Last edited by Don Clark; Mar 4, 2021 at 07:10 AM.
Reply
Old Mar 5, 2021 | 07:44 AM
  #19
salsa-king's Avatar
salsa-king
Scooby Senior
25 Year Member
Liked
Loved
Community Favorite

Joined: Feb 2000
Posts: 15,078
Likes: 46
From: Nottm
Default

cheers don, I knew someone might know...... where's the OP connectors? lol
Reply
Old Mar 5, 2021 | 08:55 AM
  #20
Don Clark's Avatar
Don Clark
Scooby Regular
20 Year Member
Liked
Loved
Community Favorite

Joined: Feb 2003
Posts: 7,841
Likes: 834
From: Harpenden
Default

Have you been communicating with Fivos ??

For MY08 Imprezas onwards plus other Forester (MY09 (SH) onwards) and Legacy ( as early as MY03 onwards?) models

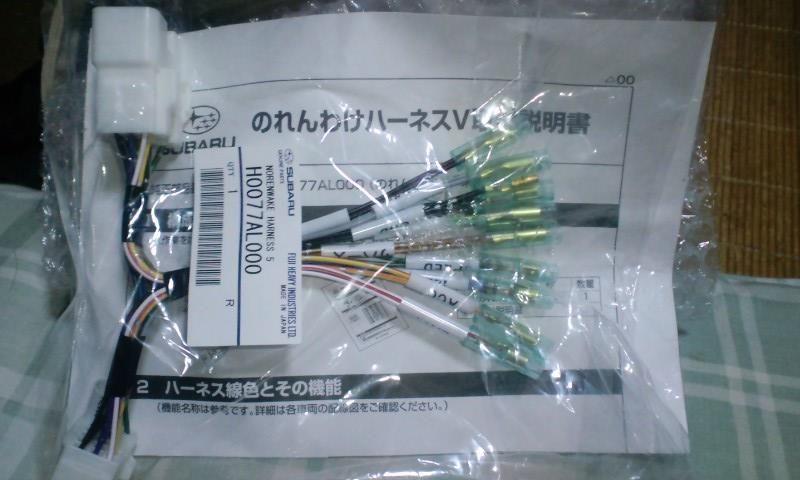

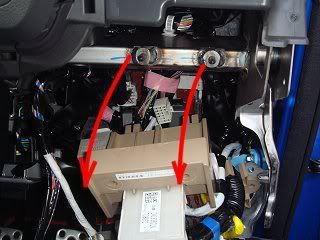

The OP connector is where Subaru bring the main feeds that are used for "add ons" out to a single 15 pin connector.
For JDM all 15 outputs are used
For UK/Europe only 8 outputs are wired
For US - not fitted

UK




If it hasn't been used it usually sits up behind the fuse box taped up with pink tape as shown here






Usually you would need to buy what translates from japanese as a "goodwill connector" to save splicing into it
All 15 pins are fully wired through (so you can daisy chain if needed) but only the 8 listed above brought out for use as bullet connectors.
Current part number H0077AG021


There is now a version that has all 15 as take offs but not much use for UK cars.

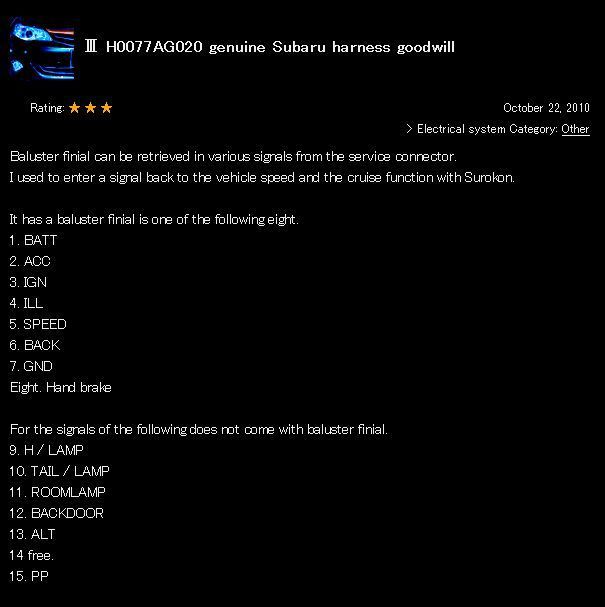

Below lists the complete 15 JDM available pinouts/outputs * only the first 8 applies to UK cars


* for H0077AG021 Pin 14 is wired as well and labelled BKUP +B

For Subaru UK Pioneer satnav upgrades fitted (MY11 onwards?) Pioneer do their own version specifically for their needs to tap the three extra inputs the sat nav required.(comes as part of the fitting kit)


I've also fitted the JDM auto folding mirrors and auto lights/semi auto wipers using this OPconnection plus feeds for my Angel eye DRL's

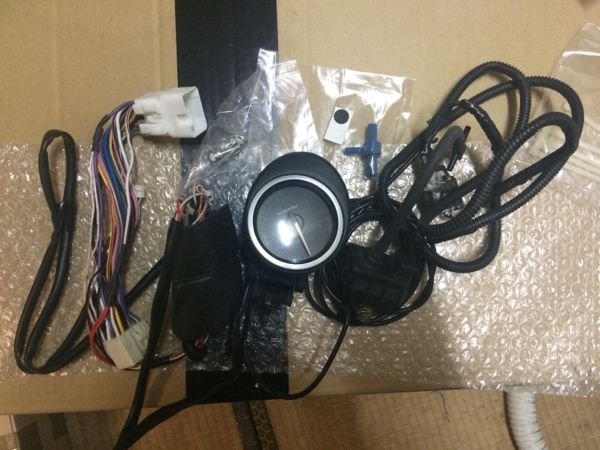

HOWEVER all the above is the back story as the boost gauge this thread refers to comes with, (I believe) it's own version "goodwill connector" as shown below (leftside of picture).




Last edited by Don Clark; Mar 5, 2021 at 10:29 AM.
Reply
Old Mar 5, 2021 | 10:15 AM
  #21
fpan's Avatar
fpan
Scooby Regular
15 Year Member
Liked
Loved
Community Favorite
iTrader: (11)

Joined: Jan 2007
Posts: 3,434
Likes: 177
From: UK
Default

Just seen this thread.
Don, Phil has bought it
Thanks for clarifying here about its fitment
Yes it comes with its own goodwill connector.
For some reason I can't post a photo of it here.

Last edited by fpan; Mar 5, 2021 at 10:16 AM.
Reply
Old Mar 5, 2021 | 10:38 AM
  #22
Don Clark's Avatar
Don Clark
Scooby Regular
20 Year Member
Liked
Loved
Community Favorite

Joined: Feb 2003
Posts: 7,841
Likes: 834
From: Harpenden
Default

The 330s, I believe, comes with the factory fit Sat Nav system (?) so the OP connector may not have been needed to connect it up as the required connections are already in the wiring loom.



Whereas with just Audio H/S they are not.

Last edited by Don Clark; Mar 5, 2021 at 10:39 AM.
Reply
Old Mar 6, 2021 | 08:03 PM
  #23
salsa-king's Avatar
salsa-king
Scooby Senior
25 Year Member
Liked
Loved
Community Favorite

Joined: Feb 2000
Posts: 15,078
Likes: 46
From: Nottm
Default

Originally Posted by Don Clark
The 330s, I believe, comes with the factory fit Sat Nav system (?) so the OP connector may not have been needed to connect it up as the required connections are already in the wiring loom.



Whereas with just Audio H/S they are not.

omg.... I'm totally lost now lol what's that diagram for?

anyone wanna buy a boost gauge?
Reply
Old Mar 6, 2021 | 10:18 PM
  #24
Don Clark's Avatar
Don Clark
Scooby Regular
20 Year Member
Liked
Loved
Community Favorite

Joined: Feb 2003
Posts: 7,841
Likes: 834
From: Harpenden
Default

Originally Posted by salsa-king
omg.... I'm totally lost now lol what's that diagram for?

anyone wanna buy a boost gauge?

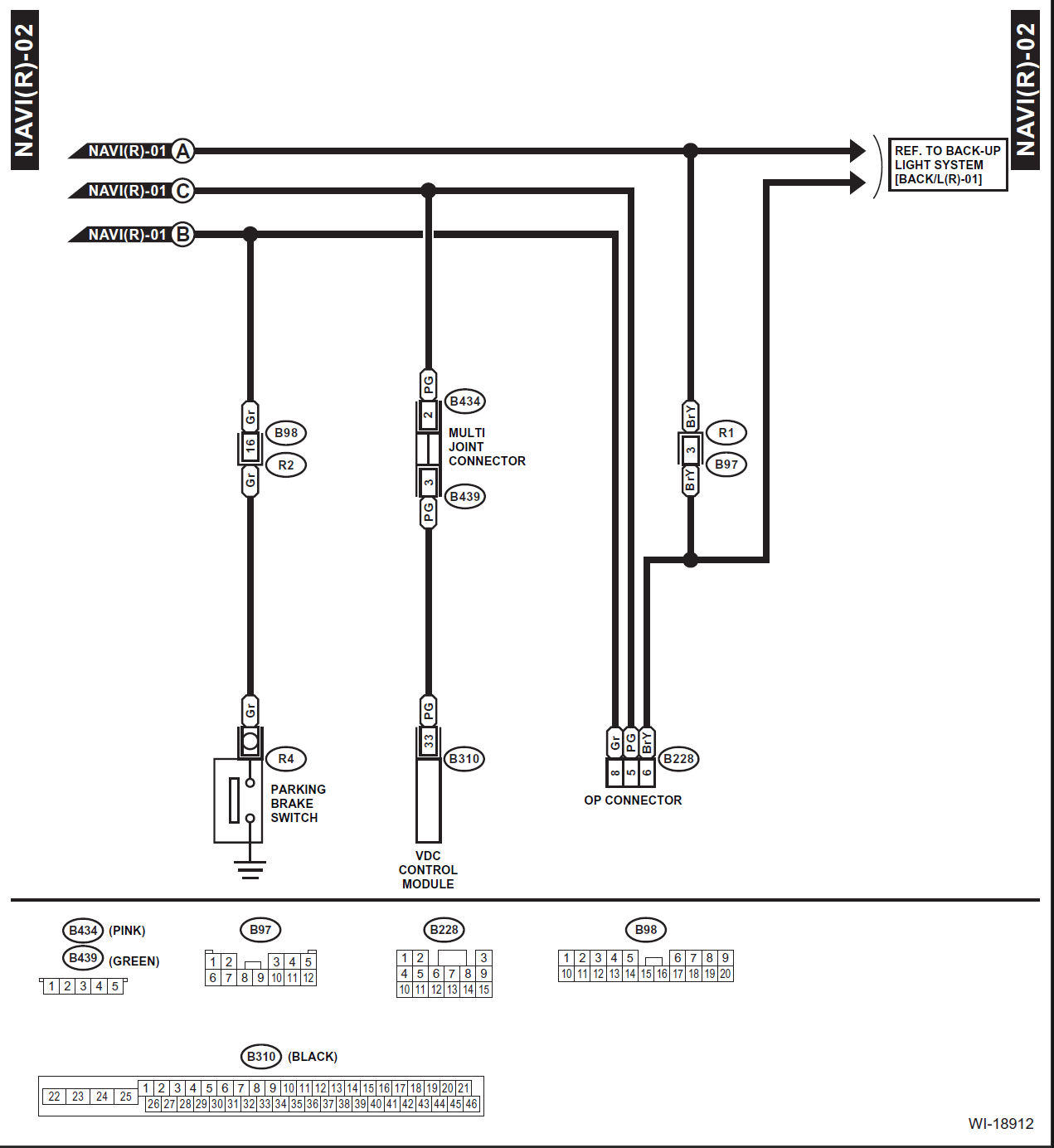

It just shows the integrated connections with a factory fit sat nav.

Just follow the pictures in the installation instructions........
Reply
Old Mar 6, 2021 | 11:30 PM
  #25
salsa-king's Avatar
salsa-king
Scooby Senior
25 Year Member
Liked
Loved
Community Favorite

Joined: Feb 2000
Posts: 15,078
Likes: 46
From: Nottm
Default

where's best to put the T bar in and take the pipe/hose off/from?
Reply
Old Mar 7, 2021 | 08:43 AM
  #26
Don Clark's Avatar
Don Clark
Scooby Regular
20 Year Member
Liked
Loved
Community Favorite

Joined: Feb 2003
Posts: 7,841
Likes: 834
From: Harpenden
Default

Originally Posted by salsa-king
where's best to put the T bar in and take the pipe/hose off/from?
All the details should all be in the fitting instruction sheets as well as where to mount the pressure sensor as the wiring loom supplied will be made location specific.

Last edited by Don Clark; Mar 7, 2021 at 08:44 AM.
Reply
Old Mar 7, 2021 | 08:50 PM
  #27
salsa-king's Avatar
salsa-king
Scooby Senior
25 Year Member
Liked
Loved
Community Favorite

Joined: Feb 2000
Posts: 15,078
Likes: 46
From: Nottm
Default

Originally Posted by Don Clark
All the details should all be in the fitting instruction sheets as well as where to mount the pressure sensor as the wiring loom supplied will be made location specific.
looks all Greek to me lol
Reply
Old Mar 7, 2021 | 10:41 PM
  #28
Don Clark's Avatar
Don Clark
Scooby Regular
20 Year Member
Liked
Loved
Community Favorite

Joined: Feb 2003
Posts: 7,841
Likes: 834
From: Harpenden
Default

Originally Posted by salsa-king
looks all Greek to me lol
Now there's your problem it's Japanese
Reply
Old Mar 8, 2021 | 09:20 PM
  #29
salsa-king's Avatar
salsa-king
Scooby Senior
25 Year Member
Liked
Loved
Community Favorite

Joined: Feb 2000
Posts: 15,078
Likes: 46
From: Nottm
Default

Originally Posted by Don Clark
Now there's your problem it's Japanese

once I know where the surge tank and fuel regulator are, I should be cooking on gas lol
Reply
Old Mar 9, 2021 | 07:20 AM
  #30
salsa-king's Avatar
salsa-king
Scooby Senior
25 Year Member
Liked
Loved
Community Favorite

Joined: Feb 2000
Posts: 15,078
Likes: 46
From: Nottm
Default

i've done google translate on the japanesse instructions.. it says come off the BV pipe
Reply



All times are GMT +1. The time now is 08:54 PM.
