Well, had my sti wagon for around 2 years now so about time i put up a few pics and specs, been through a few changes while in my hands,but its nearly where id like it.
Its my daily driver, and cover around 250 miles a week in it so keeping it reliable and nice to drive was key.

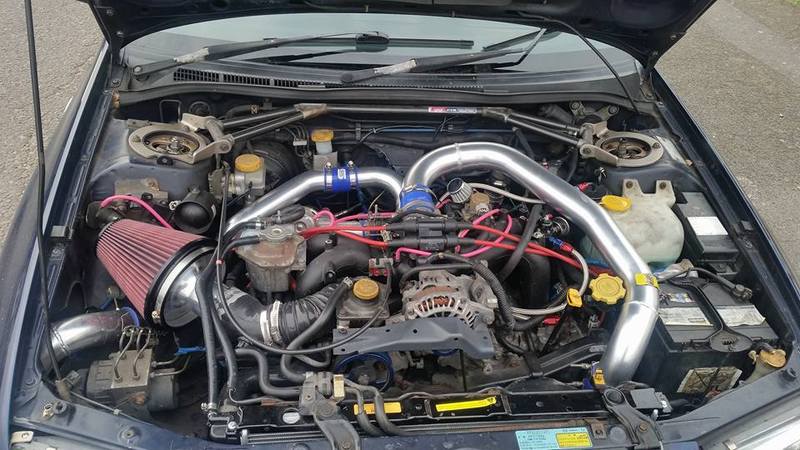

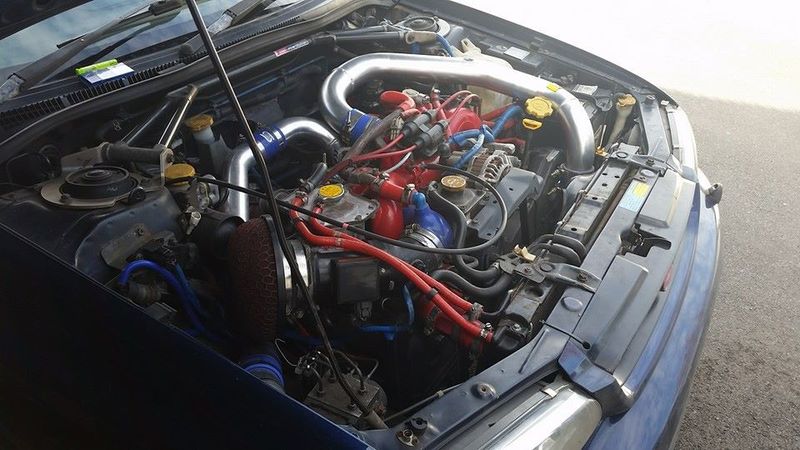

quick spec is:
ver8 sti ej207 short block
ver4 sti heads
arp head studs
cosworth head gaskets
750cc injectors, billet rails, parallel lines and AEM fuel reg
AET bolt on gt30 with 70mm intake
fmic kit
Apexi turbo back exhaust system

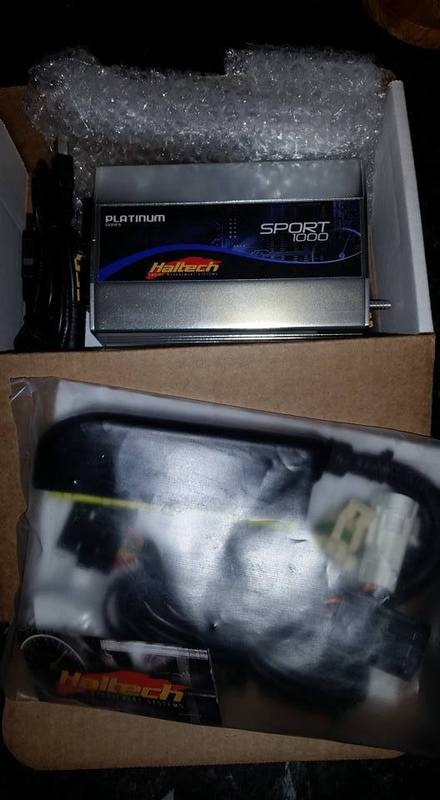

Haltech platinum sport ecu
BC coilovers
few pics:

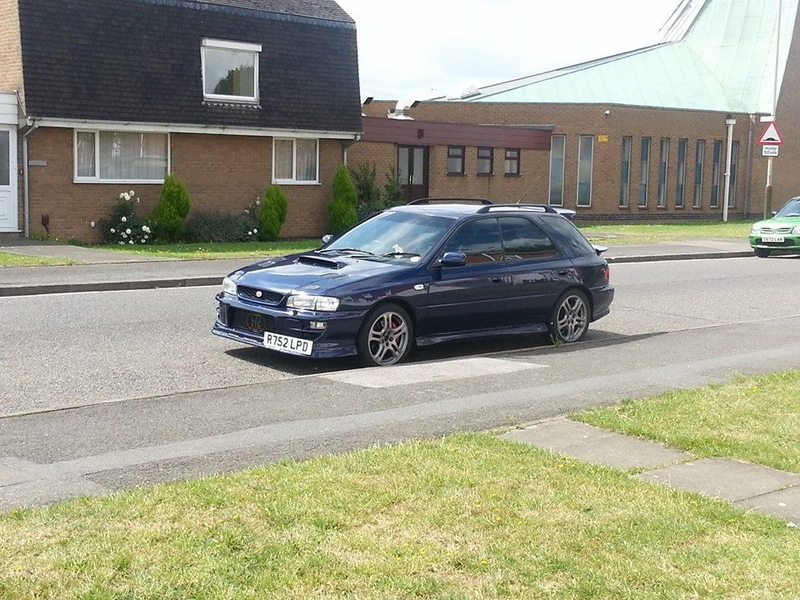

1st day of owning

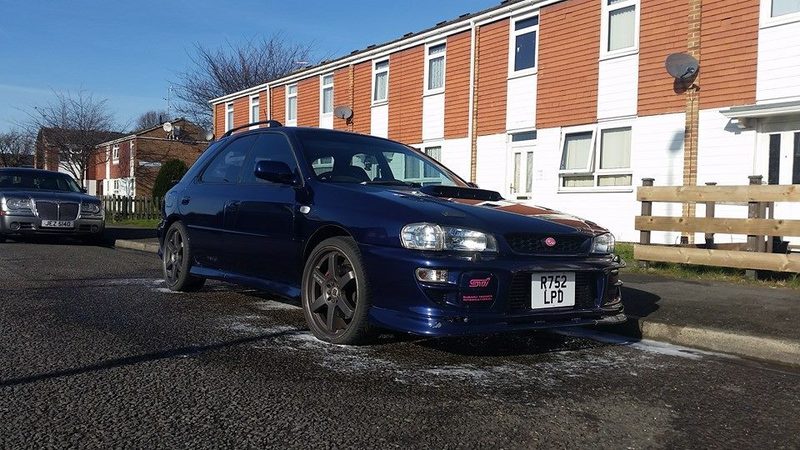

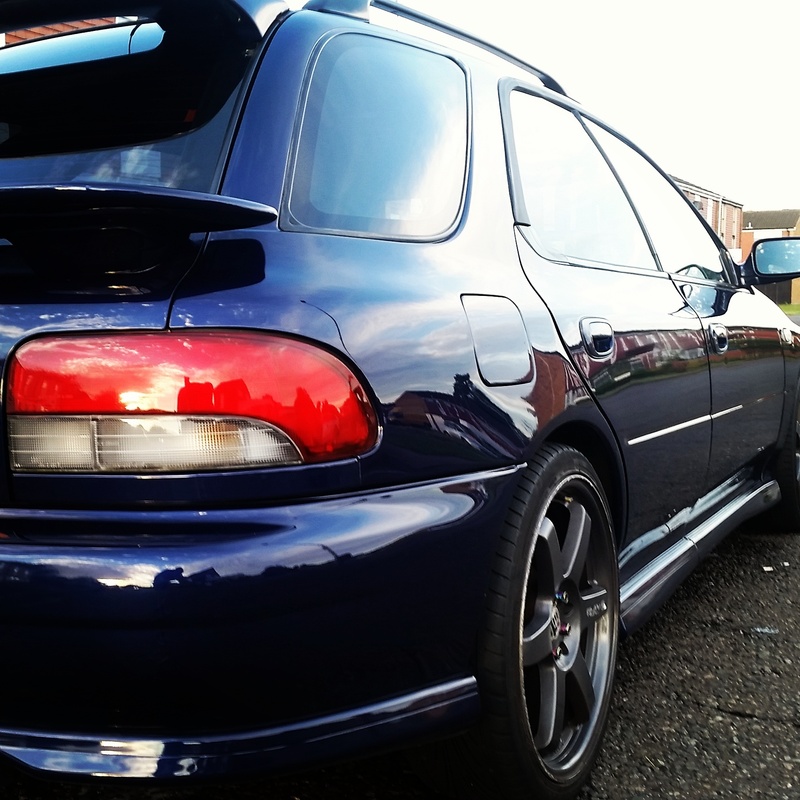

new rims

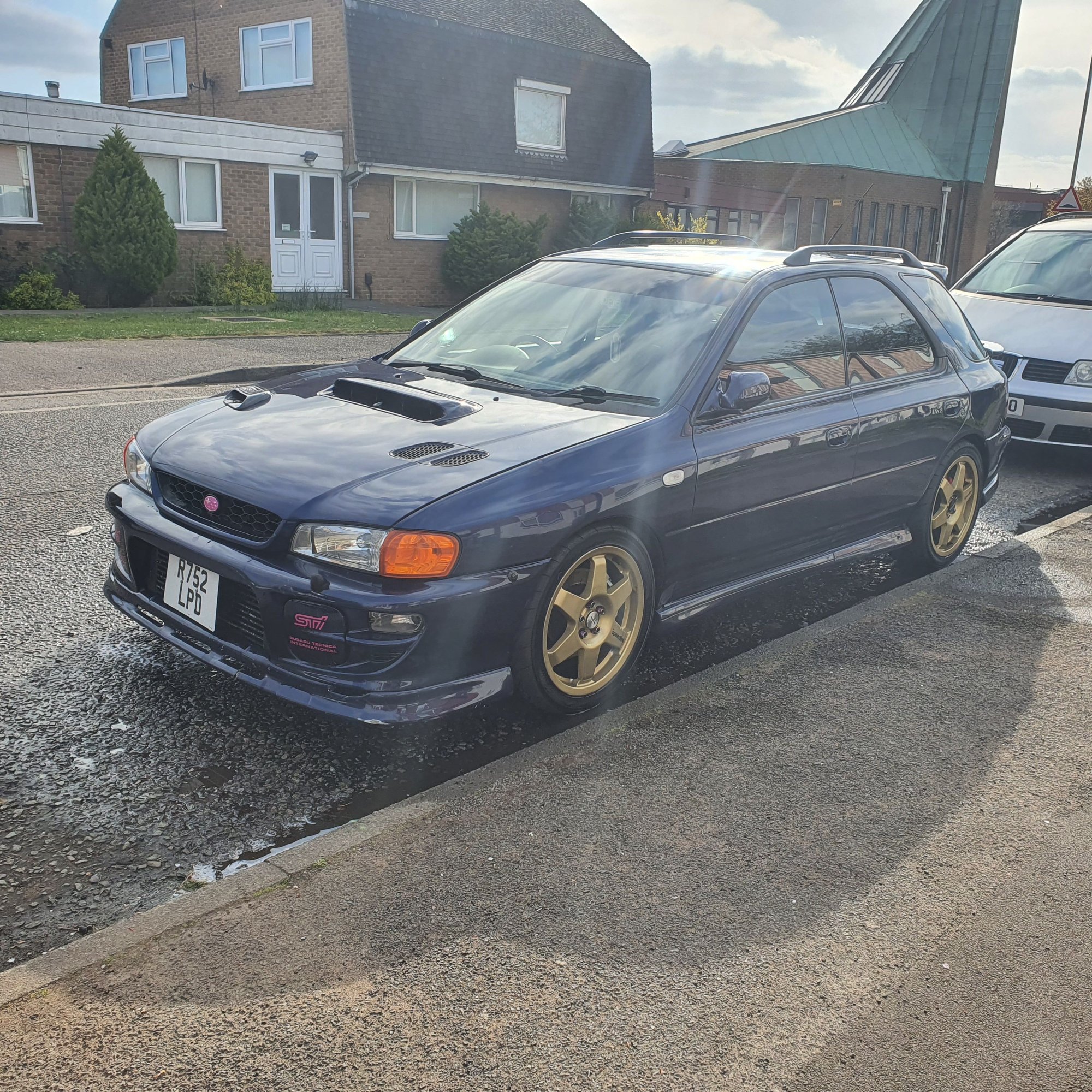

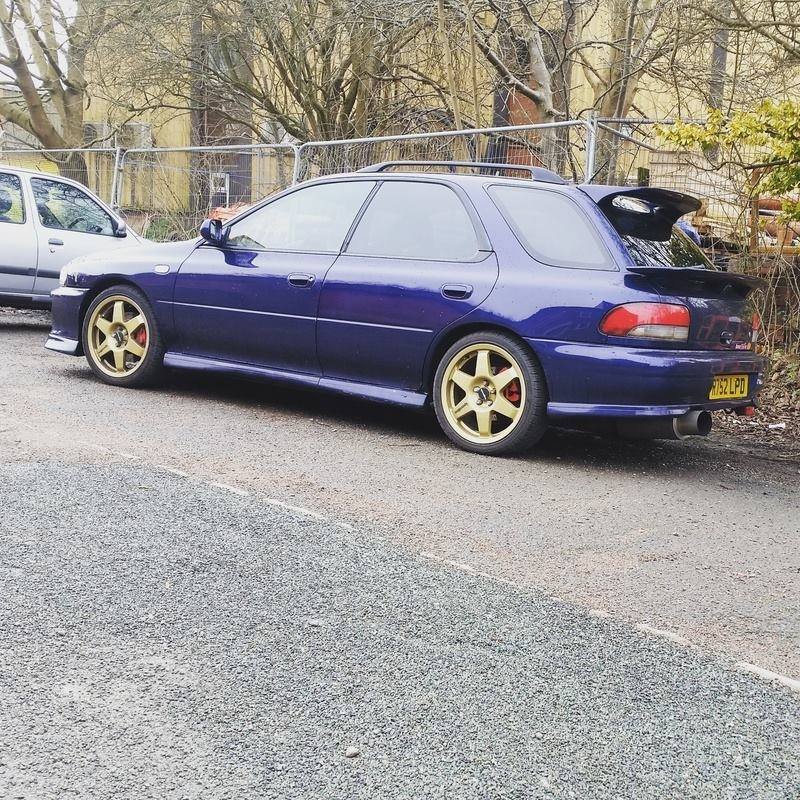

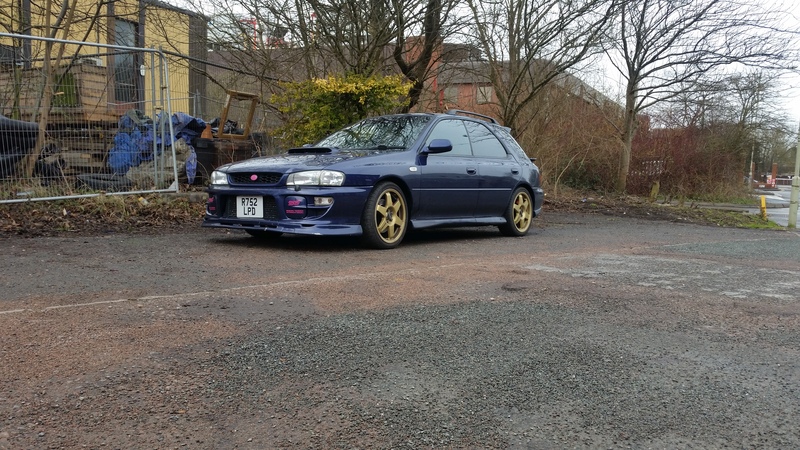

18s ruined the car in my opinion, so then switched to speedlines, and this is how the car sits today
Last edited by sean turbo2000; Jul 23, 2021 at 10:15 PM.
no figures just yet, its running around 1.3 bar at the min, just waiting for my gt spec headers to arrive then il get the mapping finished on the dyno, still on the sti 5 speed at the min though so untill i get a 6 speed set up it will be capped off to 400ish in a vain attempt to make it last untill then.
JGlanzaV, no, to be honest i have still not fully explored the haltech features, is rotational idle the turbo cool down?
Out of curiosity i gave the ALS a try with the rotational idle enabled, throttle only jacked open around 10%, on the base haltech settings, was seeing around 5 psi on the gauge when off the throttle, and just below 0 when on idle, wont be used again though as there is now no baffle left in my apexi system haha.
also just received my gt spec headers, currently in the process of wrapping them.
having problems with my actuator sticking open after reaching peak boost,have enquired about a new actuator but was told i have to send the complete turbo back, so i am really considering modding the gt spec up pipe to run an external gate while i have easy access to the up pipe,
well another 15k zero issue miles covered this year!
have not really done anything to it for a while other than drive,
have this near new precision 5431e turbo lying around that im going to be fitting once all this xmas/near year stuff is out of the way,
really not enjoying the lag from the aet gt30, its a few years old now so probably a little tired.
Try nice wagon! Puts mine to shame good to see it on the speedlines. Iv been searching high and low for a set. To no avail as of yet. Perfect option for a wagon imo. How do you find the bcs? They're on the ever growing list.
cheers all.
the bc's ride nice, but i have gone through 2 sets of front top mount bearings since they have been on, also adjusters have seized, despite a good coat of anti seize when they was fitted,
actually on my to change list.
Quite a change to the wagon since my last posts, it was returned back to standard and sat in the garage for the past 2 years.
How ever it has not stayed that way for long, been gathering parts over the past couple of months to push for 500bhp+.
changes are:
rcm rotated kit
turbosmart 45mm wastegate
boostlabs 5855 duel ball bearing billet turbo (gt30 based)
racinglines filtered oil feed kit
rcm oil drain kit
injector dynamics idx1050 injectors
fuji racing top feed fuel rail kit
rcm fuel reg
rcm track attack breather tank kit
advanced automotive 10mm o-ringed inlet spacers
advanced automotive 4"air filter
haltech elite 1500 ecu
powersteering lines swapped to teflon
just a couple of boost pipes to make up then i can make a start on a low boost tune while i source and fit a 6 speed setup, should be fun!
Well things have changed just a little since my last post.

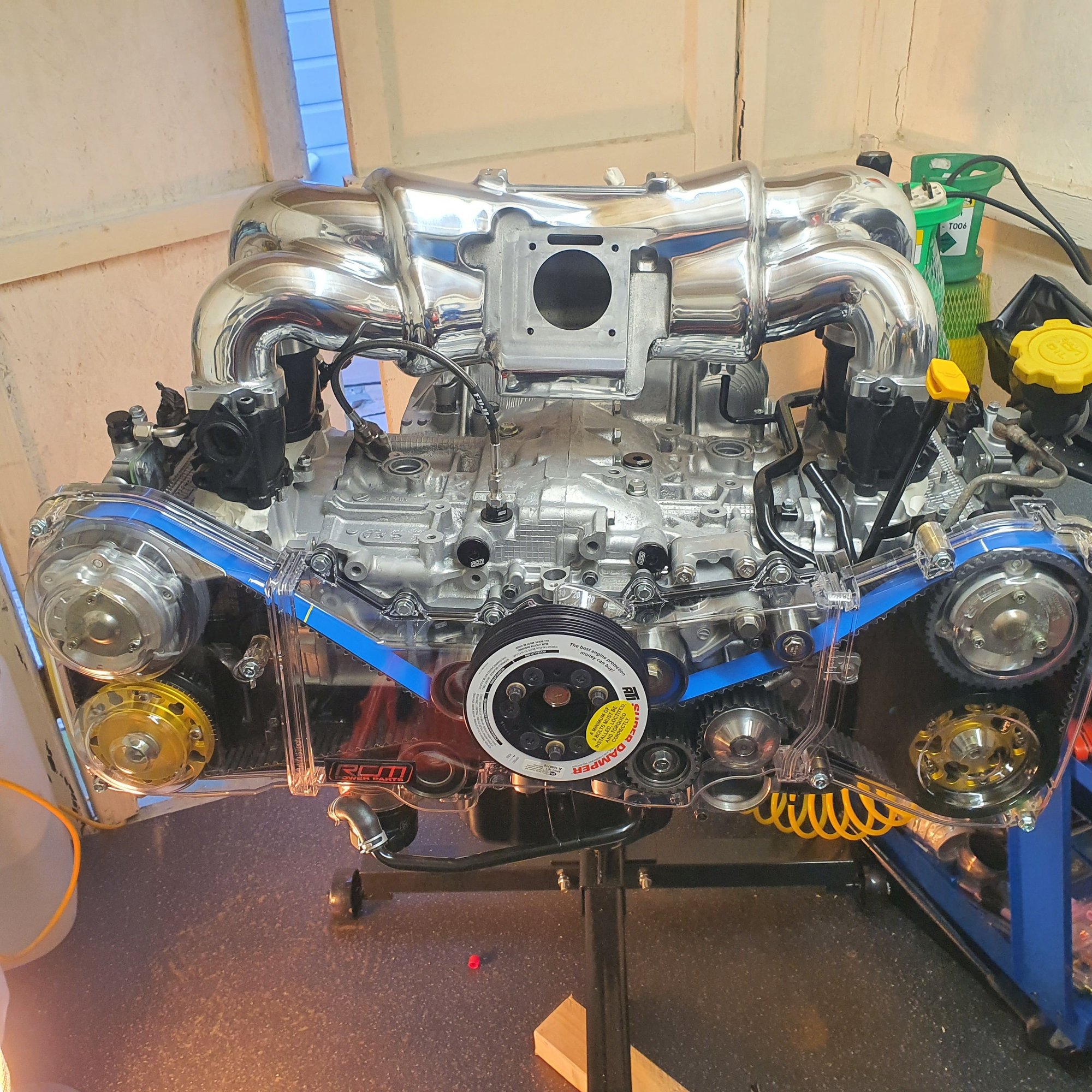

complete new setup consisting of:
shortblock
Ej20 cdb
79mm crank
Wiseco boostline conrods
Mahle pistons
King main and big end bearings
Rcm 11mm oil pump
Rcm oil control sump kit
Rcm billet block blanking kit
As performance 14mm HD headstuds
Rcm head gaskets
Spec c water pump
ati crank damper
assembled by alyn at as performance.
Heads
V7 avcs heads
Gsc super alloy exhaust valves, stainless intake
Brian crower springs and titanium retainer
Custom grind cams to cosworth s2/bc stage 3 specs
All new avcs solenoids and pulleys
Bc vernier exhaust pulleys
rcm billet tgvs, fuel rails
Cosworth inlet manifold converted to drive by cable
Rcm clear timing covers
Gates racing cam belt
lateral performance race version fmic/rad combo
Turbo is now a gen 2 gtx3582r, however maybe switching out to a 6266 or 6466 depending how far the gtx35 will go.
still running on the haltech elite 1500.
Just need to tidy up a few things such as powersteering relocation, and weld up some new boost pipes to suit the new fmic setup then can start the running in.
Last edited by sean turbo2000; Apr 25, 2021 at 09:03 PM.
Well hired a dyno today to do a little bit of engine break in and get a decent base map on it.
far exceeded my expectations and produced 542bhp and 584nm tourqe at only 23psi on v power and very Conservative timing while only revving to 7000rpm.
Ran out of wastegate spring unfortunately and couldn't make over 23psi however more than happy with how its heading, next step is to put a few more miles on it, change the wastegate spring and do a few pulls on x85 race fuel I have.
My gf8 sti *getting faster*
