after owning this hatchback sti 330s for about 6 months now i thought it was about time i did a thread to show whats been done over that time
it came with a few mods like the forged engine and wheels but the rest iv done myself with the help of a couple of close friends
330s,, 2009 ,keyless entry and keyless start (so just leave them in your pocket ) plus a few other bits I'm still finding out about lol
Fully forged engine , wossner pistons , Carrillo rods , closed deck inserts , acl bearings , 2ltr sump and pick up , 14mm head studs , 12mm oil pump ,
Forced performance red turbo (none billet) standard postision
Forced performance 84mm inlet pipe
Forced performance turbo oil feed
TGV delete and air pump delete
HRC 340 fuel pump
Asnu 800cc injectors
GT spec 3 bolt headers coloured white
3" japspeed exhaust
Teg sport custom made front mount intercooler (sprayed with perrin logo)
RCM 80mm indutcion kit & custom 80mm maf housing
Classic 3 post boost solenoid
Perrin 4bar map sensor
Defi link display , oil pressure , oil temp and boost ,, will also do water temp , exhaust temp , speedo , and a few other bits once the other senders are brought
Separate defi boost gauge
Jdm roof vent
Team heko wind deflectors
Carbon v-style Front splitter
Rear diffuser
Rear light overlays
small race style battery
Racerom with launch control ,flat foot shifting and auto blip mapped by bob
Power is currently 531bhp @1.75bar ,, 515 torque
Rota grid 18" x 8.5 &Goodyear f1 tyres
D1 spec wheel nuts
AP front calipers 365mm & rears painted to match
Matching pair of Carbon bride stradias 2 seats
Damd flat bottom steering wheel
Cherry red sti gear ****
Cherry red stop start button
Flocked dash and dash trim sprayed black
Crinkle black engine bay parts
Daylight driving lights (disconnected)
Red pin stripe details
, amp Adapter and nos bottle style sub in boot
Sti carpets
Mirror matic Automatic folding mirror upgrade
Privacy glass
Private 555 number plate
Hella style horns

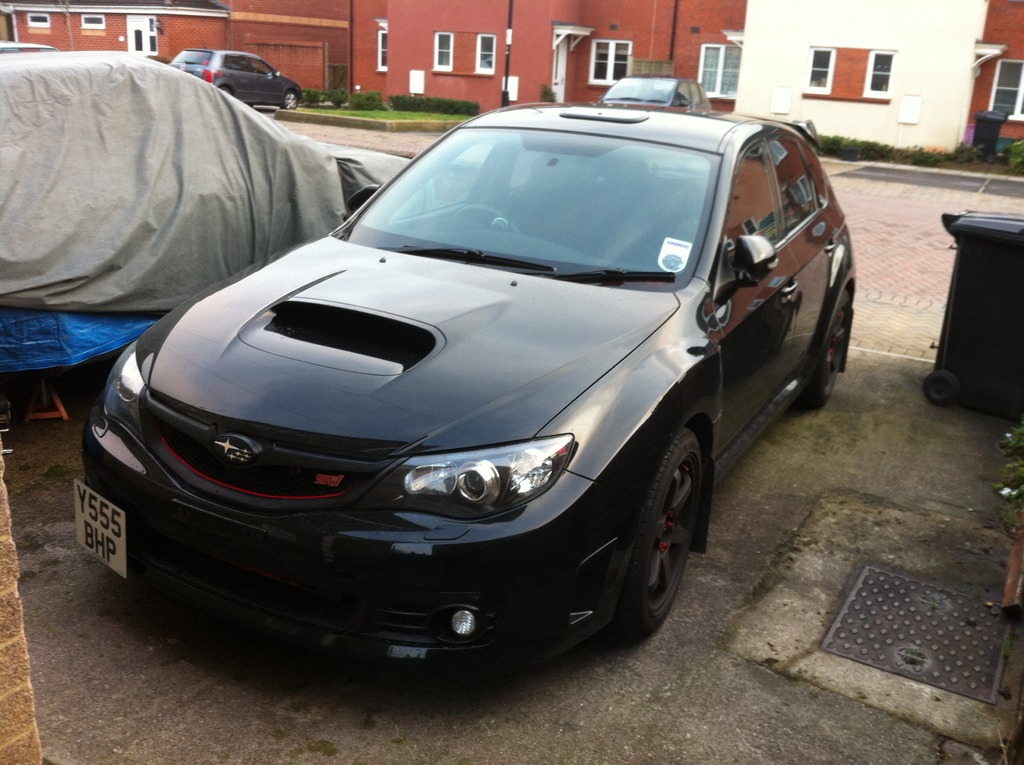

dont have many pics but here she is
Last edited by domino46; 14 August 2016 at 09:37 PM.
after owning this hatchback sti 330s for about 6 months now i thought it was about time i did a thread to show whats been done over that time
it came with a few mods like the forged engine and wheels but the rest iv done myself with the help of a couple of close friends
Fully forged engine , wossner pistons , Carrillo rods , closed deck inserts , acl bearings , 2ltr sump and pick up , 14mm head studs , 12mm oil pump ,
TGV delete and air pump delete
HRC 340 fuel pump
ported headers
3" japspeed exhaust
Teg sport custom made front mount intercooler (sprayed with perrin logo lol)
Billet vf48
Indutcion kit
Classic 3 post boost solenoid
Defi link display , oil pressure , oil temp and boost ,, will also do water temp , exhaust temp , speedo , and a few other bits once the other senders are brought
Separate defi boost gauge
Perrin strut brace
Perrin rad shroud
Perrin brake cosy
Perrin boost selonoid cover
Perrin rear wing risers
Perrin SI drive cover
Perrin stubby aerial
Perrin fuel rails ( still need fitting)
Perrin number plate relocation
Perrin battery clamp
Jdm roof vent
Front splitter (currently being resprayed)
Rear diffuser
Rear light overlays
Racerom with launch control ,flat foot shifting and auto blip mapped by bob rawle
Running 397bhp 443lbft @ 1.5bar
Rota grid 18" x 8.5 &Goodyear f1 tyres
D1 spec wheel nuts
AP front calipers 365mm & rears painted to match
Matching pair of corbeau bucket seats
Damd flat bottom steering wheel
Cherry red sti gear ****
Cherry red stop start button
Flocked dash and dash trim sprayed black
Crinkle black engine bay parts
Daylight driving lights (disconnected)
Red pin stripe details front and rear
Kenwood double din , amp & slim line sub in boot
Sti carpets
Mirror matic Automatic folding mirror upgrade
Privacy glass
Private 555 number plate
as always there is still more to do
parts waitng to be fitted
Lovely car, choice mods. Bet that's a fantastic road car.
Thanks ,, yeah it's defo getting there , still a few more things to sort out before I'm 100% happy with it as none of the underside has been updated yet really so still room to improve things before it gets un road worthy lol
What's the japspeed exhaust like, thinking of fitting one during my engine rebuild. Is it very loud or just bassy?
How much fettling was involved with fitting those seats? I could be tempted.....
the exhaust is fairly quite so I'll prob be getting a louder one at some point ,, the seats fitted ok with a bracket made up for one rear mount but most of the hard work was done when I brought them

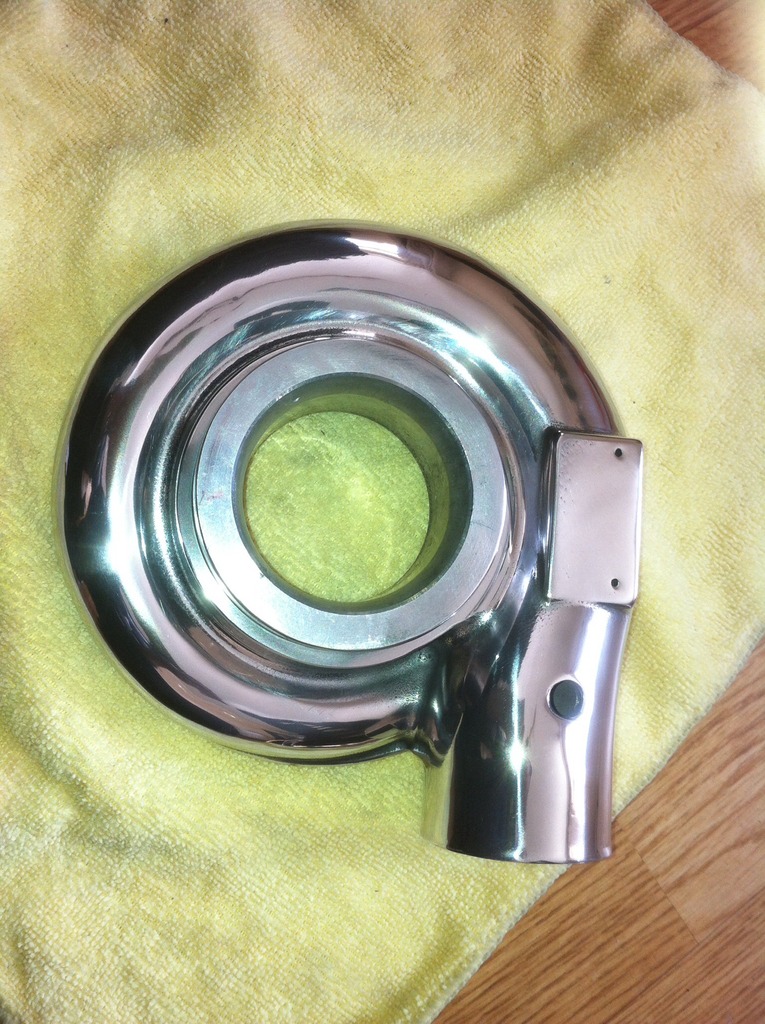

Just got my forced performance red housing polished by a chap local to me , he only charged me £25 which I thought was a bargain and looks awesome ,, won't be fitting it just yet as got other things to do first
can't believe you'd swap the recaro for the fixed seat.. and why did you swap the head unit?
The recaros were nice but the sides were wearing very fast so my mind was made up to replace them with fixed back seats and store them , then I got offered a very good price for the recaros so ended up selling them as everything has a price lol
As for the stereo iv still got the original unit but mine does far more and I can control my phone and charge it via my headunit it unlike the original one

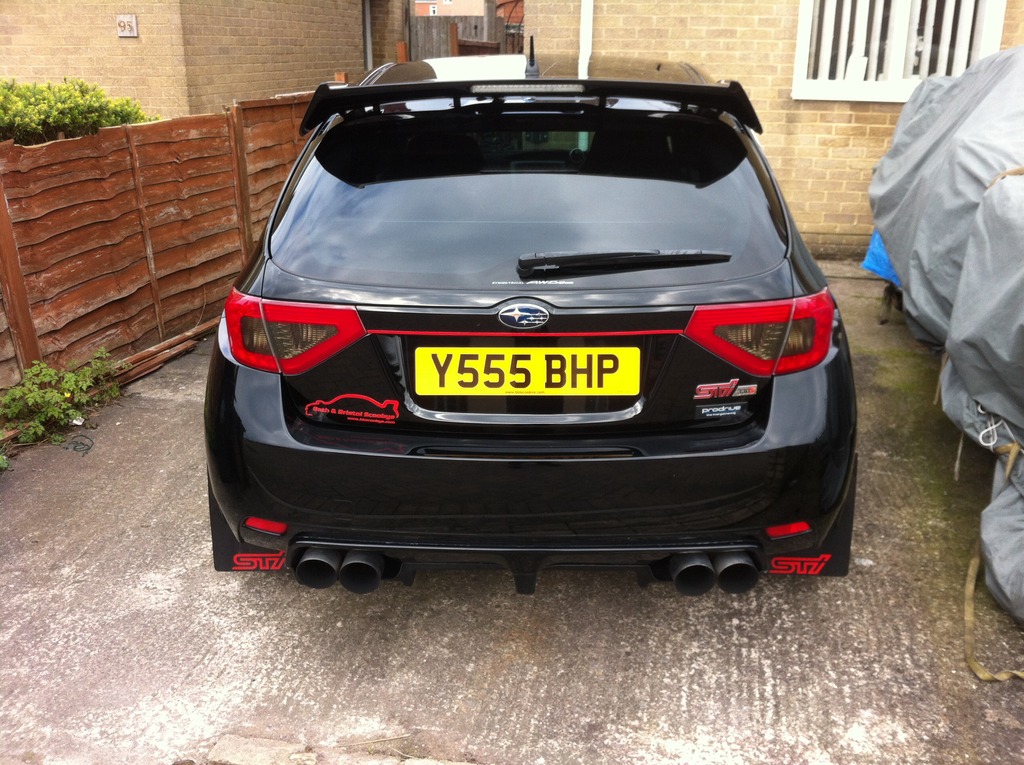

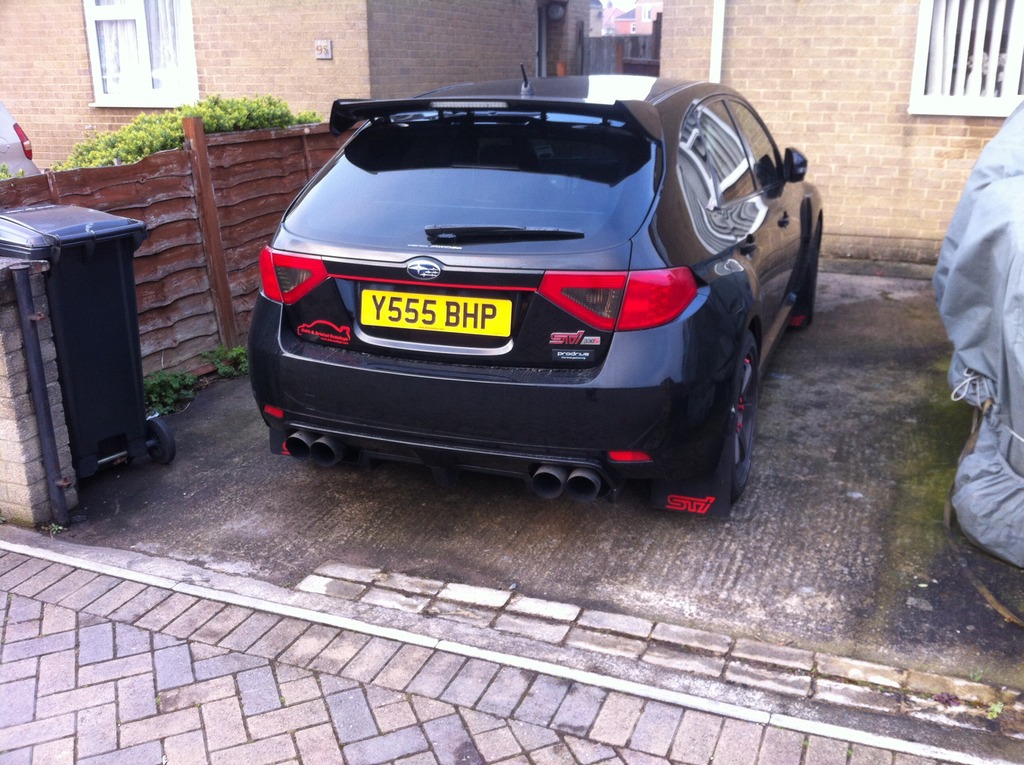

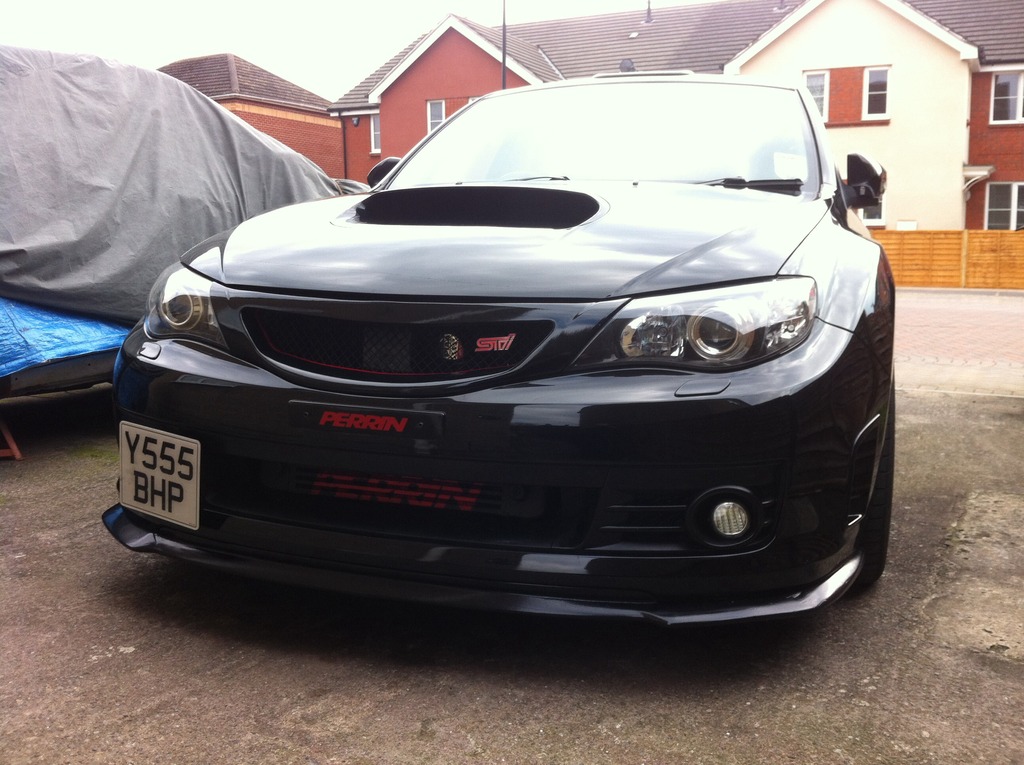

Ended up changing the rear light overlays to ones with tinted indicators as mine were left red before ,, and went badgeless on the grill , I know some don't like this look but I like it , and done a perrin number plate delete
Last edited by domino46; 05 April 2015 at 06:52 PM.
Ended up changing the rear light overlays to ones with tinted indicators as mine were left red before ,, and went badgeless on the grill , I know some don't like this look but I like it , and done a perrin number plate delete
How much did you get for the recaros by the way? I really want a set but can't find a used set anywhere lol

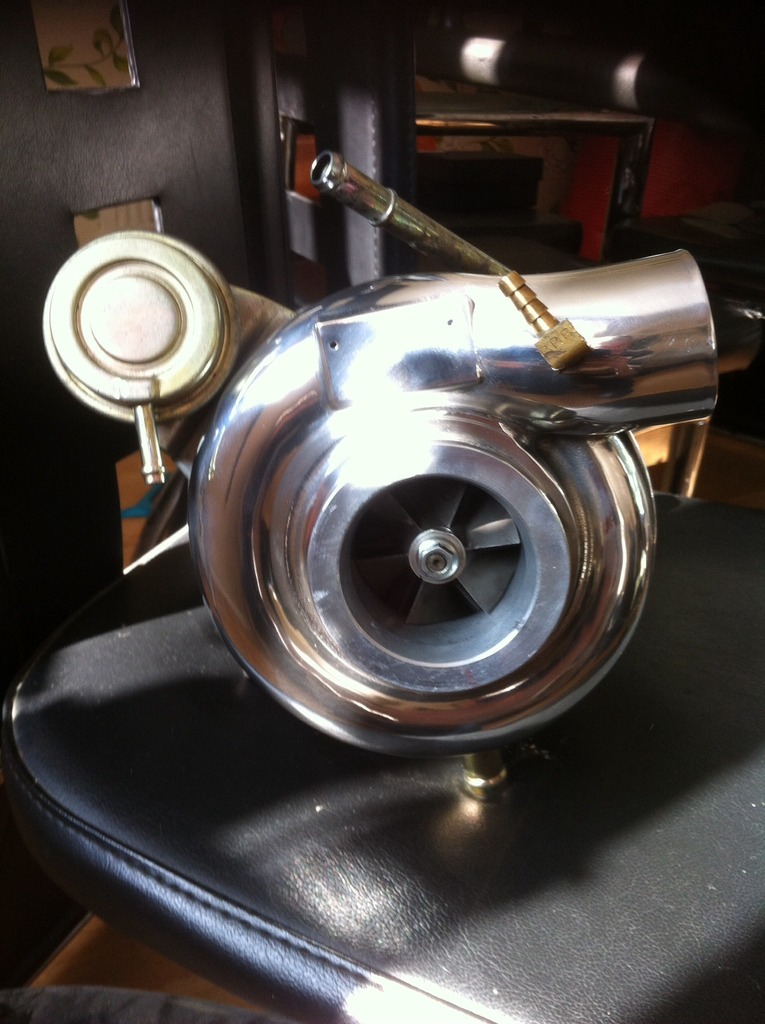

Forced performance red turbo has now been fitted (hoping for 450)
Forced performance 84mm inlet pipe
80mm induction kit and maf housing
GT spec headers
Front mount now plumbed in
Battery relocated to boot to make room for a swirl pot but this was done after the pics lol
16 March 2015, 09:59 AM
my hatchback Sti 330s (531bhp)
,, thanks for the kind comment
