Default Fitting additional driving/spot lights

I've replaced the bulbs in the G/F's car with some +80% and they made a BIG difference, but we're out in the sticks with very little road lighting, so i was thinking of fitting some additional driving/spot lights.

Just want to fit them onto the main beam. I'm not electrical minded and this will be a first. Only thing i've done before now is add a horn on the STi.

Is it easily done? Anyone recommend some good lights (that don't cost the earth)

It's on one of these: http://4carpictures.com/wp-content/u...nt-595x446.jpg
Old 11 December 2010, 06:34 PM
  #2
GazTheHat
Scooby Regular
Thread Starter

GazTheHat's Avatar

Join Date: Aug 2005
Location: 392/361 MY04 STi
Posts: 7,638
Likes: 0
Received 0 Likes on 0 Posts
Default

Ended up getting a set of these from eBay:
- Ring RL020 Road Runner Round Driving Lights Pair 155mm (£15)
Old 12 December 2010, 05:37 PM
  #3
alcazar
Scooby Regular
iTrader: (2)

alcazar's Avatar

Join Date: Jun 2002
Location: Rl'yeh
Posts: 40,781
Received 27 Likes on 25 Posts
Default

You OK with the wiring? DON'T just loop them into the main beams
Old 25 December 2010, 12:14 AM
  #4
midnight
Scooby Regular
iTrader: (10)

midnight's Avatar

Join Date: Oct 2009
Location: Coventry
Posts: 2,321
Likes: 0
Received 1 Like on 1 Post
Default

The cibie oscars fitted on mine are also wired to the main beam,but as i use 100w bulbs i have a relay fitted by the battery terminal.,not really that hard to do and worse case ,a half decent auto electrician wont charge you much to wire them up.

Last edited by midnight; 25 December 2010 at 12:16 AM.
Old 31 December 2010, 12:31 AM
  #5
Dutch Scooby lover
Scooby Regular
iTrader: (3)

Dutch Scooby lover's Avatar

Join Date: Jan 2003
Location: Oss, The Netherlands
Posts: 749
Likes: 0
Received 0 Likes on 0 Posts
Default

I have fitted some Hella FF1000's with a cheap (CHEAP being the key word here) Xenon set.Made a mounting bracket myself, and job done.

Wired them to come on with the High beams, and have been ok for over 3 years.
However, prices on the 1000FF's seem to have gone throught the roof.I had mine for less then 120€ shipped, for a complete set with wiring, relay and fuses, now they seem to be way more.
Old 31 December 2010, 08:09 AM
  #6
JonMc
Scooby Senior
iTrader: (51)

JonMc's Avatar

Join Date: Nov 2005
Location: Wherever I park my car, that's my home
Posts: 20,491
Likes: 0
Received 2 Likes on 2 Posts
Default

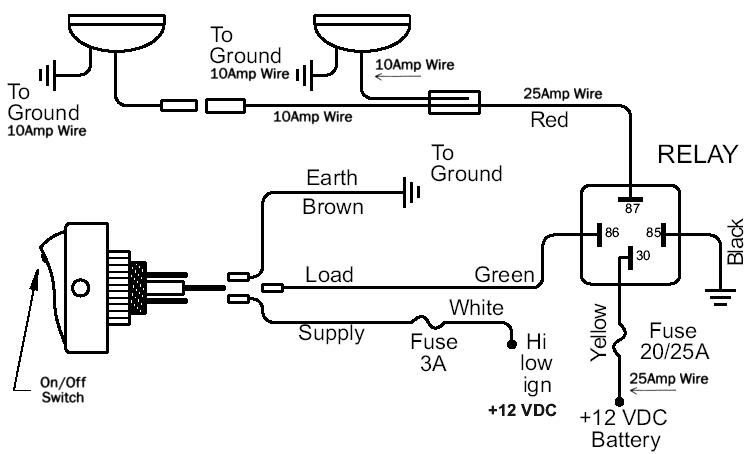

Ensure you wire them up with a relay; take a new, fused, live from the battery and use the main beam live to switch the relay - a scotch lock will splice that nicely without cutting the factory loom.

If you don't fit a separate switch then effectively the white and green wires become one and that will be spliced from you hi-beam
Attached Thumbnails Click image for larger version

Name:	relay-diagram.gif
Views:	0
Size:	17.8 KB
ID:	4791

Last edited by JonMc; 31 December 2010 at 08:11 AM.
