prodrive.greeny

iTrader: (3)

Is there a fuse that powers the steering wheel controls? I've just got my car back from engine rebuild and my airbag warning light is on.

Just gone to use my horn and that's not working either. Then checked cruise control and nothing works..

Checked the fuse book and there's one for horn and airbag. Checked the relevant fuses and they're both intact. Is there a fuse specifically to power the steering wheel controls?

Ta

Don Clark

No there is no specific fuse.
The four main systems on the steering wheel are airbag, cruise, audio and horn.

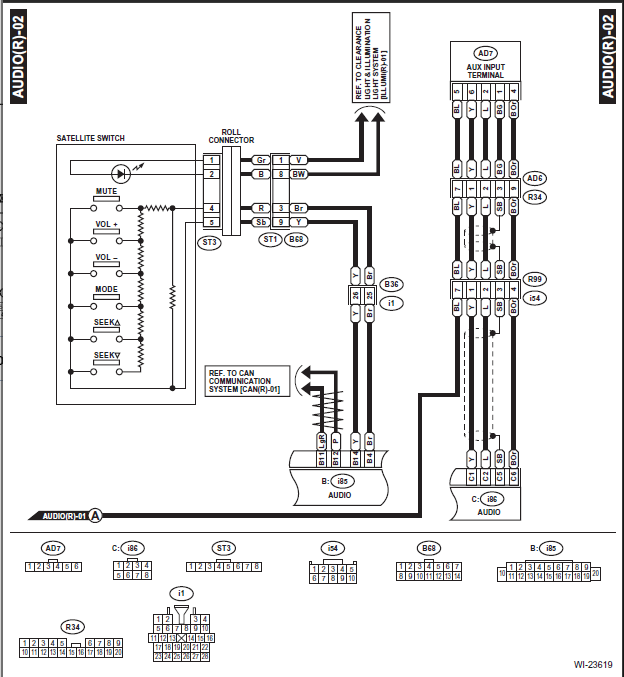

The only common item for all four, AFAIK, is the roll connector and its connections.

prodrive.greeny

iTrader: (3)

Thanks Don, is there a fuse for the roll connector. Just seems more likely a fuse when the engine was taken out / put back in..

Don Clark

Nope. the only common fuses between Air Bags and Cruise is Fuse board (Drivers right knee) No:4 and Audio and Cruise FB no:8

Audio uses FB fuses nos:8 and 24


Horn uses Main board fuseNo:9


Airbags use FB fuses Nos: 4,5,13 and 25


Cruise uses FB fuses Nos: 4,8 and 12 plus the additional 7.5A fuse on the relay block shown below


Have you spoken to your engine builder??
