Impreza gx 2.0 headlights to sti projector headlights
#1
Scooby Newbie
Thread Starter
Join Date: Aug 2019
Location: Magherafelt
Posts: 11
Likes: 0
Received 0 Likes
on
0 Posts
Impreza gx 2.0 headlights to sti projector headlights
Hi guys, i don’t know if there is already a thread regarding this subject so bear with me. I have a bugeye 2.0 gx. I was trying to change my headlamps with the projector ones (ICHIKOH non hid), i think it is for STI? We’ll i was so naive to think that i can plug and play it, obviously, i was wrong. It has different connectors. So, my question is, how do i convert it, what do i need? Is it possible? Or simple? Thanks!
#2
Scooby Regular
Your starter for ten, Headlight bulbs/wiring
Standard Bugeye headlights using H4 twin element bulbs
STI uses separate HB3 and H1 bulbs?
Standard Bugeye headlights using H4 twin element bulbs
STI uses separate HB3 and H1 bulbs?
Last edited by Don Clark; 06 February 2021 at 03:28 PM.
#4
Scooby Regular
#5
Scooby Newbie
Thread Starter
Join Date: Aug 2019
Location: Magherafelt
Posts: 11
Likes: 0
Received 0 Likes
on
0 Posts
Thank you, Don Clark! I also think its possible but Has it been done before? I mean has many people done it before? I don’t see many threads with this conversion.
#6
Scooby Regular
Most people used to fit morrettes which came with their own difficulties.
your current setup
your hopeful setup - the various HB3/H1 plugs/sockets required all appear available on ebay.
your current setup
your hopeful setup - the various HB3/H1 plugs/sockets required all appear available on ebay.
Last edited by Don Clark; 31 August 2019 at 08:25 PM.
#7
Scooby Newbie
Thread Starter
Join Date: Aug 2019
Location: Magherafelt
Posts: 11
Likes: 0
Received 0 Likes
on
0 Posts
Thank you again for your response Don Clark. I just want to know if it easy and possible, then i’ll do my own research on the details. But if you have any info on how exactly its done and the exact items needed, i would appreciate it if you can share it with me. Cheers lad! Thanks!
Trending Topics
#8
Scooby Regular
It's as "easy and possible" as making up an adaptor loom for each light similar to these.
This is for converting US bugeye headlights to the non HID STI bugeye lights. The only difference to what you would require is that the US car has an OEM HB5/9007 twin filament headlight bulb and the UK uses an OEM H4 twin filament bulb so a different "blue plug" is required to suit.

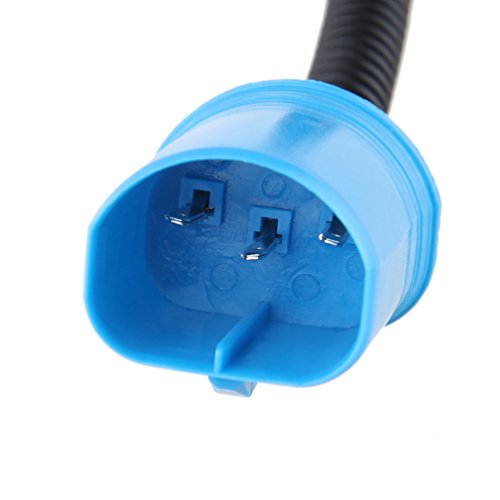

HB5/9007 adaptor plug as shown
