HID bulb blown but cannot identify it
#1
Scooby Regular
Thread Starter
HID bulb blown but cannot identify it
Hi Folks,
I bought my 2004 WRX wagon last year, it had an aftermarket HID kit fitted. I have had a bulb go and I cannot find a replacement that matches what I have taken out. Can anyone help identify it? Some pics below, the silver label on the wire says 6000K on one side and 282941 on the other
I bought my 2004 WRX wagon last year, it had an aftermarket HID kit fitted. I have had a bulb go and I cannot find a replacement that matches what I have taken out. Can anyone help identify it? Some pics below, the silver label on the wire says 6000K on one side and 282941 on the other
Last edited by scooobydont; 21 August 2019 at 11:19 PM.
#2
Scooby Regular
The Canbus Pro ballast is very generic and is used in many many kits.
https://www.xenonbulbs.co.uk/Accesso...35W-CANBUS-PRO
The bulb you posted seems to be missing its mounting flange for fitting/retaining it in the headlight. Is the flange still clamped in the headlamp body?
I would also be assuming that the ballast supply wiring from the OEM bulb socket is still in place on the car?
Assuming bulb is for Dip beam and is an H1 fitment then any suitable 6000K H1 35W bulb for a conversion kit should be OK although the wiring connectors may need to be modified / tidied up.
For example
https://www.xenonbulbs.co.uk/Xenon-H...by-Size-H1-35W
https://www.xenonbulbs.co.uk/Accesso...35W-CANBUS-PRO
The bulb you posted seems to be missing its mounting flange for fitting/retaining it in the headlight. Is the flange still clamped in the headlamp body?
I would also be assuming that the ballast supply wiring from the OEM bulb socket is still in place on the car?
Assuming bulb is for Dip beam and is an H1 fitment then any suitable 6000K H1 35W bulb for a conversion kit should be OK although the wiring connectors may need to be modified / tidied up.
For example
https://www.xenonbulbs.co.uk/Xenon-H...by-Size-H1-35W
#3
Scooby Regular
Thread Starter
Many thanks Don for replying. I nipped out last night to take a look at the back of the headlight after your reply. The flange is indeed still in the back of the headlight, it's held in with a large washer (somehow). It looks like something has broken back there previously and a little bodging applied. Yes, the ballast wiring is in the car. I will pick up a couple of bulbs with the sane connectors and see if I can get the flange sorted.
I was looking for flangeless bulbs which was throwing me off track.
I was looking for flangeless bulbs which was throwing me off track.
#6
Scooby Regular
Thread Starter
Well hit a bit if a brick wall with this so far. I ordered 2 bulb from ebay that arrived today:
https://www.ebay.co.uk/itm/35W-H1-H3...72.m2749.l2649

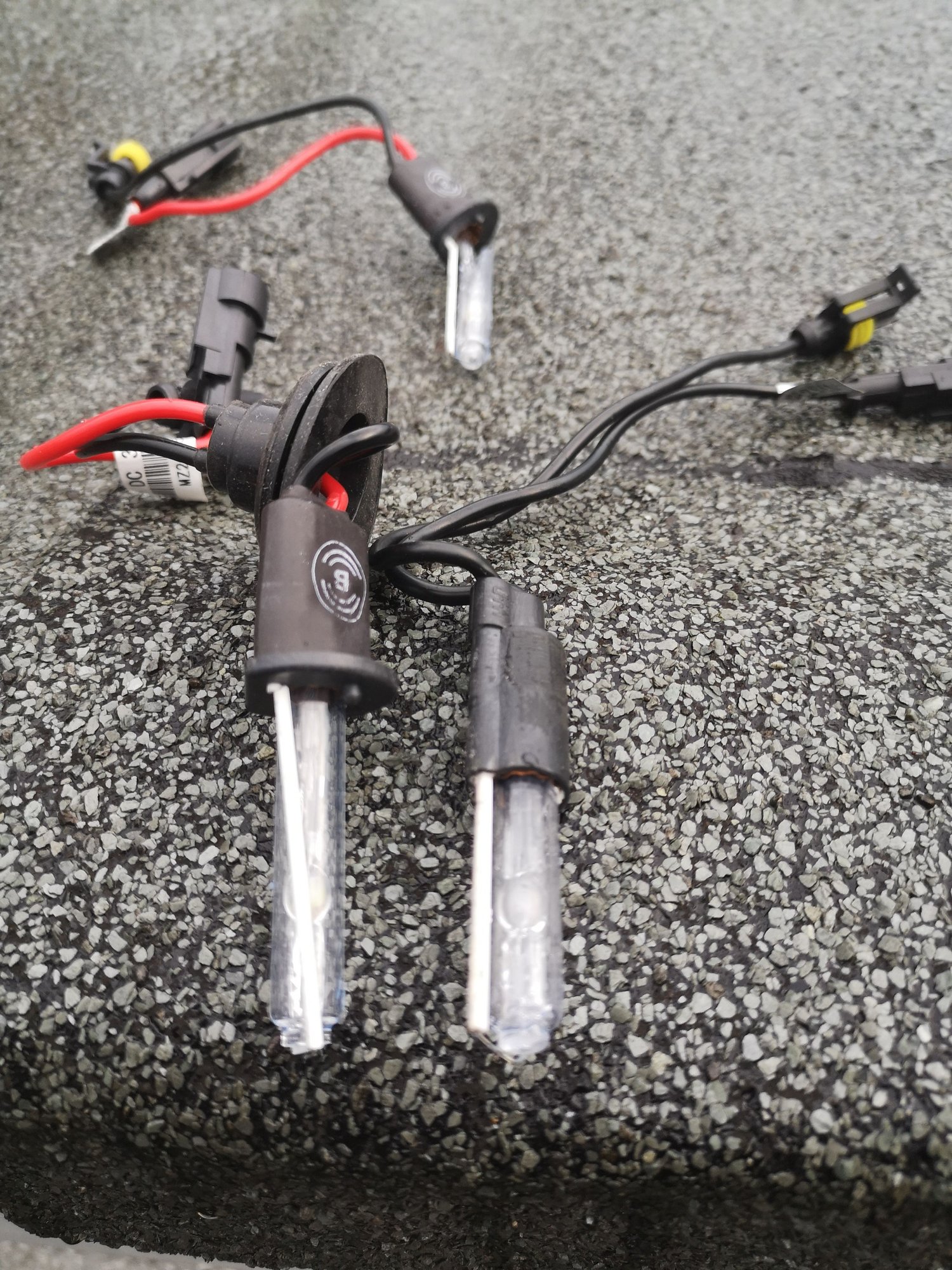

They have the flanges on the bulb holder and both have snapped as they dont fit in far enough to the headlight bulb bolder (new bulb on left):
The back of the headlight showing the original bulb back in place just to demonstrate below, it fits snug in place. The 'filing' I though had been done to the original was in fact just the thread from the headlight, the original bulb I took out had not been modified or filed:
Here is a pic of the headlight in case its not standard (sorry first Subaru, still learning) if that helps:
Any thoughts chaps?
https://www.ebay.co.uk/itm/35W-H1-H3...72.m2749.l2649
They have the flanges on the bulb holder and both have snapped as they dont fit in far enough to the headlight bulb bolder (new bulb on left):
The back of the headlight showing the original bulb back in place just to demonstrate below, it fits snug in place. The 'filing' I though had been done to the original was in fact just the thread from the headlight, the original bulb I took out had not been modified or filed:
Here is a pic of the headlight in case its not standard (sorry first Subaru, still learning) if that helps:
Any thoughts chaps?
Last edited by scooobydont; 27 August 2019 at 07:45 PM. Reason: typo's
#7
Scooby Regular
Comparing yours to a standard headlight and comparing the bulb shroud reflector yours have been converted to a projector type using non standard bulbs.
In your photo you can see the mod to the original bulb holder and the projector unit retaining ring (Headlight would have been taken apart to do this)
Something similar to these below although these are bi-xenon type (main and dip from single bulb) (yours maybe also) and use the original type (wire spring) bulb holder and H1 type HID bulbs.
Watch the fitting vid in this link
https://www.retrofitlab.com/en/subar...non-mh1-1.html
Last edited by Don Clark; 27 August 2019 at 09:14 PM.
Trending Topics
#9
Scooby Regular
Thread Starter
Noone seems to stock these any more but some of the retailers did recognise it. I have found some from China that I have ordered up:
https://www.aliexpress.com/item/32812987632.html
Will take about 3 weeks to get here so all ears if anyone else comes across any!
https://www.aliexpress.com/item/32812987632.html
Will take about 3 weeks to get here so all ears if anyone else comes across any!
