hackisfun

Hi All,

Had a bit of bad luck, hit a bird while window/headlight washers on and one of the washers is damaged

Its the driver side one, anyone able help me with a part number or when to get a replacement

MrNoisy

iTrader: (28)

Try http://jp-carparts.com - Don Clark put me onto them, fantastic diagrams and you can grab the part numbers from there.
Import Car Parts may be able to help, they can get OEM Subaru stuff but for cheaper than dealership.

Don Clark

Assuming its for a Hawkeye.......... all part numbers shown here

http://opposedforces.com/parts/impre...d_lamp_washer/

hackisfun

not able to load the page for some reason on phone or work internet.

any chance someone can get me the part number

Don Clark

Cover assembly-lamp washer nozzle, right, 86636FE240VW

Last two letters of part number is paint finish code for obsidian black pearl (assuming that's the colour)
Probably now only available in primer so last two letters may become NN (usually)
Cover comes with jet attached.

hackisfun

looks about right, colour not an issue ill get it sprayed. so ive ordered it as ill need it replaced for mot next year

eafertynyne

iTrader: (1)

pjarvis6666

iTrader: (1)

i hope you got the birds number and details

Don Clark

Different systems.
Headlight washers only work when headlights are on



If levelling ECU is uplugged you probably have one or both levelling sensors damaged - most common is water damage in the plug connectors leading to electrical pin failure.

eafertynyne

iTrader: (1)

hackisfun

Got the part for the washer. The part is correct but I'm still missing a part that's not on the diagram.

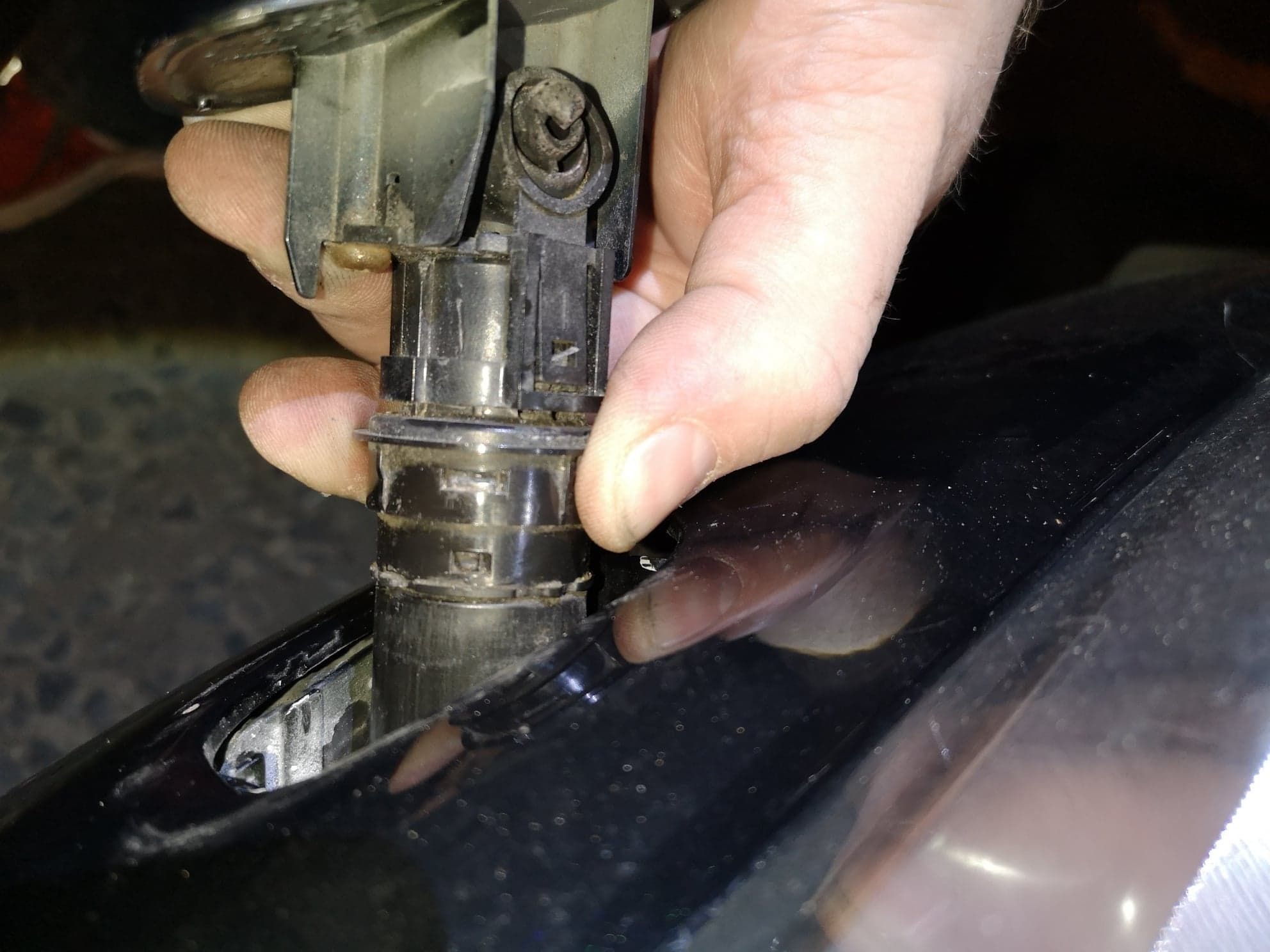

The plastic bit that connects the cover the the sliding jet is missing (part that my thumbs on) can't see it on the diagram

hackisfun

I think I need the whole assembly

86636FE220

Can't find one in stock

Don Clark

It would appear so

Seems to be scarce New. Have you tried a Breakers?

hackisfun

Think I've found one it Latvia but reluctant to spend £50 if it doesn't have the full part so asked for further pictures

I tried Matty at md development but no stock and he's breaking alot on a regular basis

Markyscoob

It's unfortunate but when they break it is exactly where your thumb is and that's the main body part. Often the top bit can be salvaged and still works....

Difficult to get from breakers, and about £75 for the pair. In a frontal the bumper often gets detached and springs out, ripping the washer jets out, and they break right at the point your's did. Even a smallish bump can do it. as well as breaking off both the inner lugs on the headlights. Almost as if it was designed to do as much damage as possible......... or am I just cynical...
