TreborD

Hi all! I having a big headache right now. I am going to re install my engine in my car tomorrow but im confused about how the vacum hoses to my HKS EVC should be connected.

Here are som pictures with som thoughts and questions.

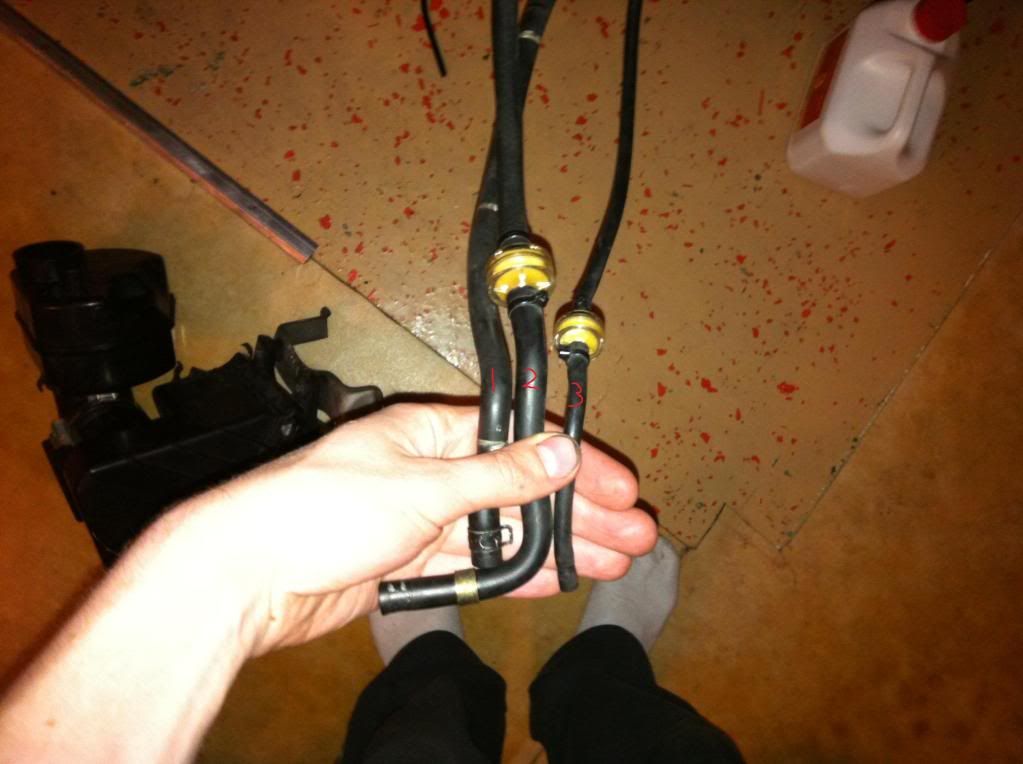

I have thes three hoses which im going to connect to the EVC. this end i know where to connect them but in the other end im a bit confused :P

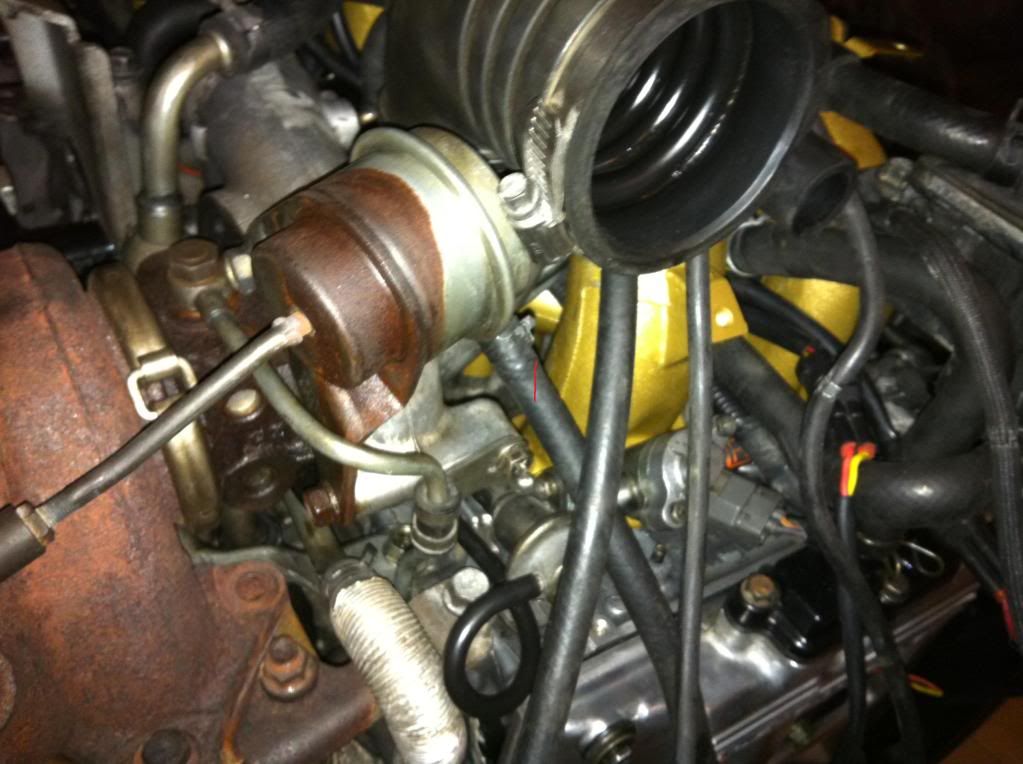

So Number 1 I have connected to the Wastegate like this.

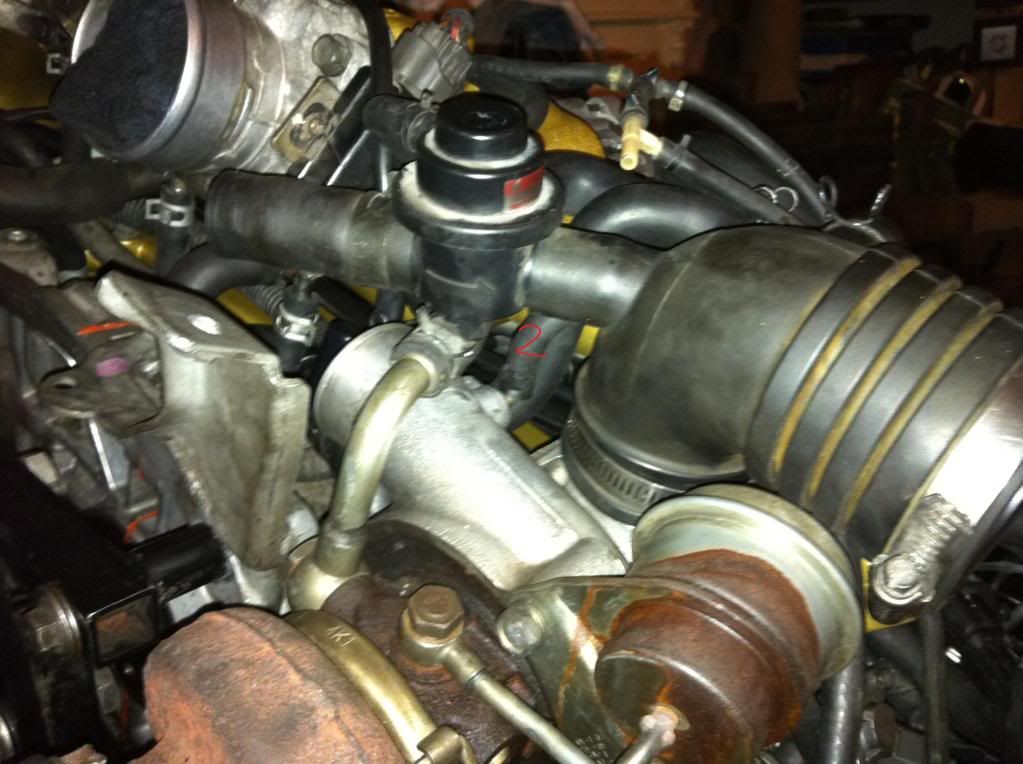

And number 2 to the turbo like this.


And the third hose is connected to the intake through this T connection, Which is the one whos confusing me because i still have one connection more than hoses :/ Any ideas what i might done wrong, or have the owner before med installed it in a stupid way? :P

(this picture is upside down, i dont know why)

GpMarty

iTrader: (7)

have you got a boost gauge fitted that might plug onto that

TreborD

Yes I have a boost gauge, maybe i just cant find the hose for it in the engine room :P

Thanks for the tip!
