Default V3 STI Heads

Hello,
I'm looking at getting some STI V3 heads but wondered if there is a part number stamped on the case of the heads of anyway or visually checking that they are the right one's before buying?.
Also any idea what the current value of these heads with cam's would be around? These would be used on my early WRX CDB.
Thank you.

Last edited by Kwik; 10 February 2012 at 07:45 AM.
Kwik is offline
Old 10 February 2012, 08:42 AM
  #2
ditchmyster
Scooby Regular
iTrader: (7)

Join Date: Dec 2007
Location: Living the dream
Posts: 13,610
Likes: 0
Received 0 Likes on 0 Posts
Default

The under bucket shims are the give away, and there are markings on the camshafts as in the rings around them, but i don't know how to tell what they mean,presumably there will be some info somewhere, the v4 also have the shims but the wilder cams are supposed to be on the v3.

As for value, that depends on supply as always, anywhere between 200 and 350, but i'll be hanging on to mine for a while yet as they can only go up, and i might recommission the type r in a few years.
ditchmyster is offline
Old 10 February 2012, 08:43 AM
  #3
d13ano
Scooby Regular
iTrader: (1)

Join Date: Apr 2010
Location: birmingham
Posts: 287
Likes: 0
Received 0 Likes on 0 Posts
Default

Hi i've got an excellent set of v3/v4 sti heads that i removed from my v4 sti due to bottom end failure. The sti heads come with under bucket shims which look like a 5p. The wrx heads just come with hydraulic lifters. So basically to tell they are genuine sti you unbolt one of the cams take one of the lifters out and inside there will be a shim that looks like a 5p and these are removable and not part of the lifter. I'm looking for 300 for my heads if your interested. Or 320 posted. I've also got a set of v3 sti heads that are in excellent order also 350 or 370 delivered

Last edited by d13ano; 10 February 2012 at 08:45 AM.
d13ano is offline
Old 10 February 2012, 09:38 AM
  #4
Kwik
Scooby Regular
Thread Starter
iTrader: (10)

Kwik's Avatar

Join Date: Feb 2007
Location: Gone Dark
Posts: 6,140
Likes: 0
Received 0 Likes on 0 Posts
Default

Mine (V1) are hydraulic. So the V3 standard WRX heads are also hydraulic and the one's taken from an actual STI are shim and bucket?. Are the wilder cam's marked up in anyway does anyoe know?
The prices on here are what i expected really.
Kwik is offline
Old 10 February 2012, 12:04 PM
  #5
d13ano
Scooby Regular
iTrader: (1)

Join Date: Apr 2010
Location: birmingham
Posts: 287
Likes: 0
Received 0 Likes on 0 Posts
Default

yes thats right mate all uk and wrx are hydraulic where the sti's are shim and bucket.
the markings on the v3 cams are as follows:
drivers side:
inlet LB R4IN and 2 R4IN
exhaust LB R4EX and 4 R4EX
passenger side:
inlet KG L4IN and 4 L4IN
exhaust M4 L4EX and 3 L4EX

And the markings on the v4 cams are as follows:
drivers side:
inlet GE R4IN and 2 R4IN
exhaust G2 R4EX and 14 R4EX
passenger side:
inlet FH L4IN and 2 L4IN
exhaust GF L4EX and 4 L4EX

I haven't got a clue what difference the markings mean but no doubt some one on here will be able to tell us.
d13ano is offline
Old 10 February 2012, 12:07 PM
  #6
Kwik
Scooby Regular
Thread Starter
iTrader: (10)

Kwik's Avatar

Join Date: Feb 2007
Location: Gone Dark
Posts: 6,140
Likes: 0
Received 0 Likes on 0 Posts
Default

Excellent thanks d13ano, thats exactly what i needed. Are there any markings on the head casings at all?
Kwik is offline
Old 10 February 2012, 12:23 PM
  #7
d13ano
Scooby Regular
iTrader: (1)

Join Date: Apr 2010
Location: birmingham
Posts: 287
Likes: 0
Received 0 Likes on 0 Posts
Default

v3 casings:
passenger side top 07 japan bottom LH B tk 07
drivers side top 04 japan bottom RH B tk 04

v4 casings:
passenger side top 02 japan bottom LH B tk 02
drivers side top 01 japan bottom RH B tk 01
d13ano is offline
Old 10 February 2012, 12:46 PM
  #8
Kwik
Scooby Regular
Thread Starter
iTrader: (10)

Kwik's Avatar

Join Date: Feb 2007
Location: Gone Dark
Posts: 6,140
Likes: 0
Received 0 Likes on 0 Posts
Default

D13ano you're the man! Thank you!
Kwik is offline
Old 10 February 2012, 10:38 PM
  #9
Kwik
Scooby Regular
Thread Starter
iTrader: (10)

Kwik's Avatar

Join Date: Feb 2007
Location: Gone Dark
Posts: 6,140
Likes: 0
Received 0 Likes on 0 Posts
Default

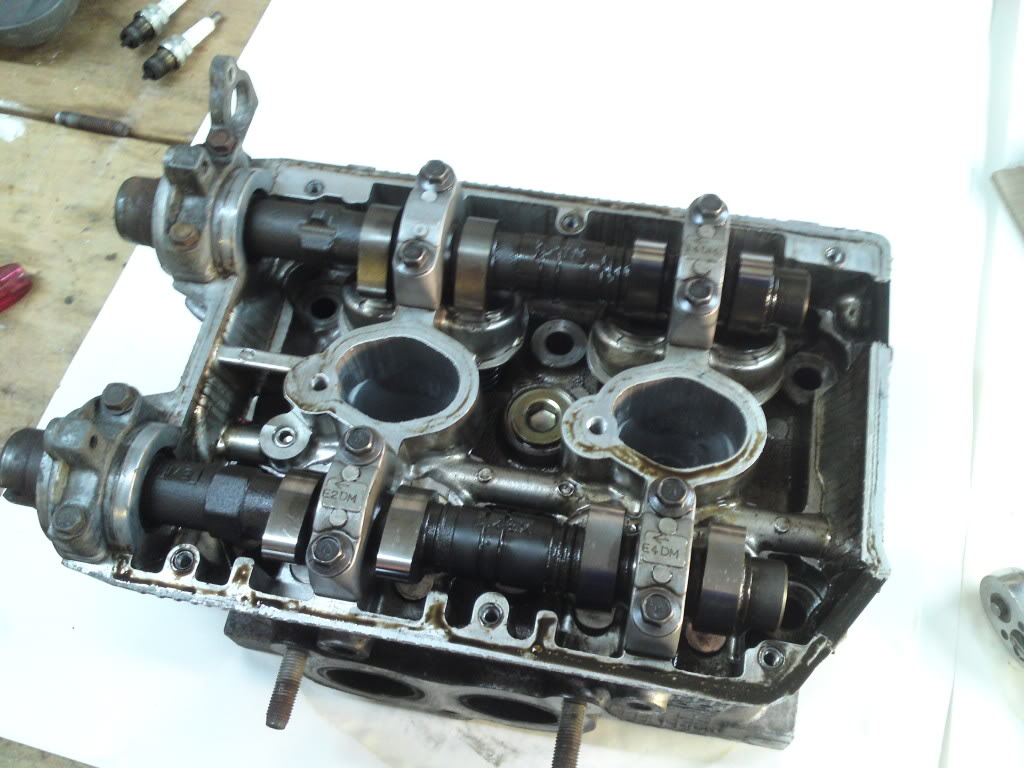

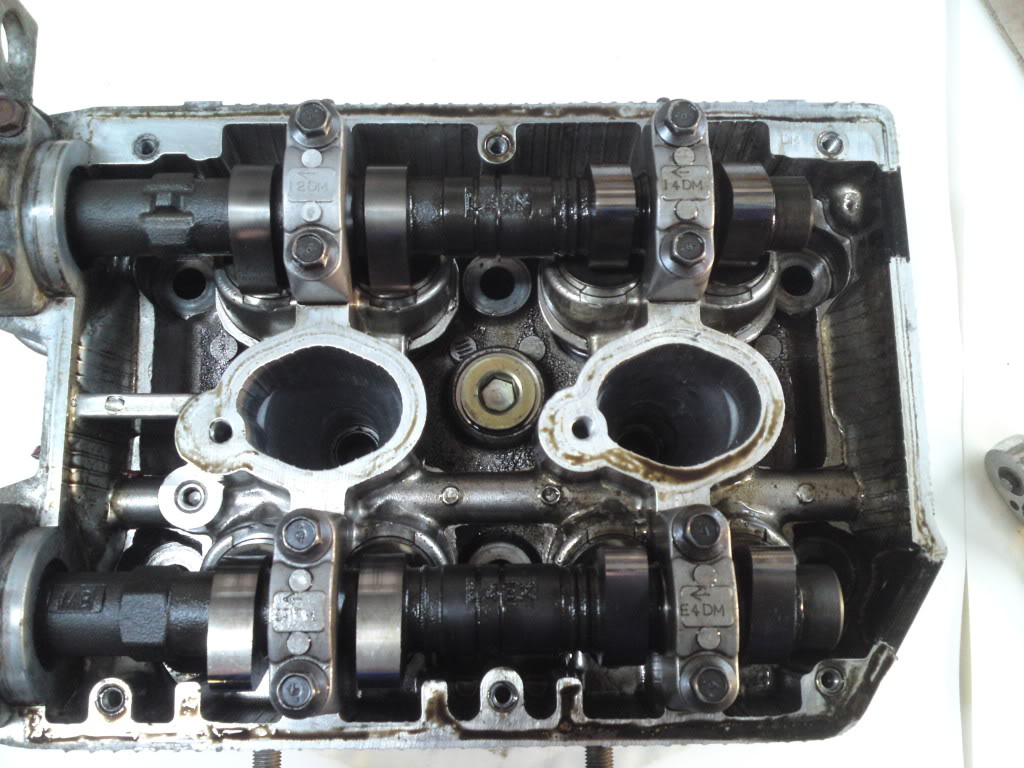

Look right? got some pictures sent...
Name:  P22-01-09_1925.jpg
Views: 0
Size:  108.5 KB
Name:  P22-01-09_192501.jpg
Views: 0
Size:  128.2 KB

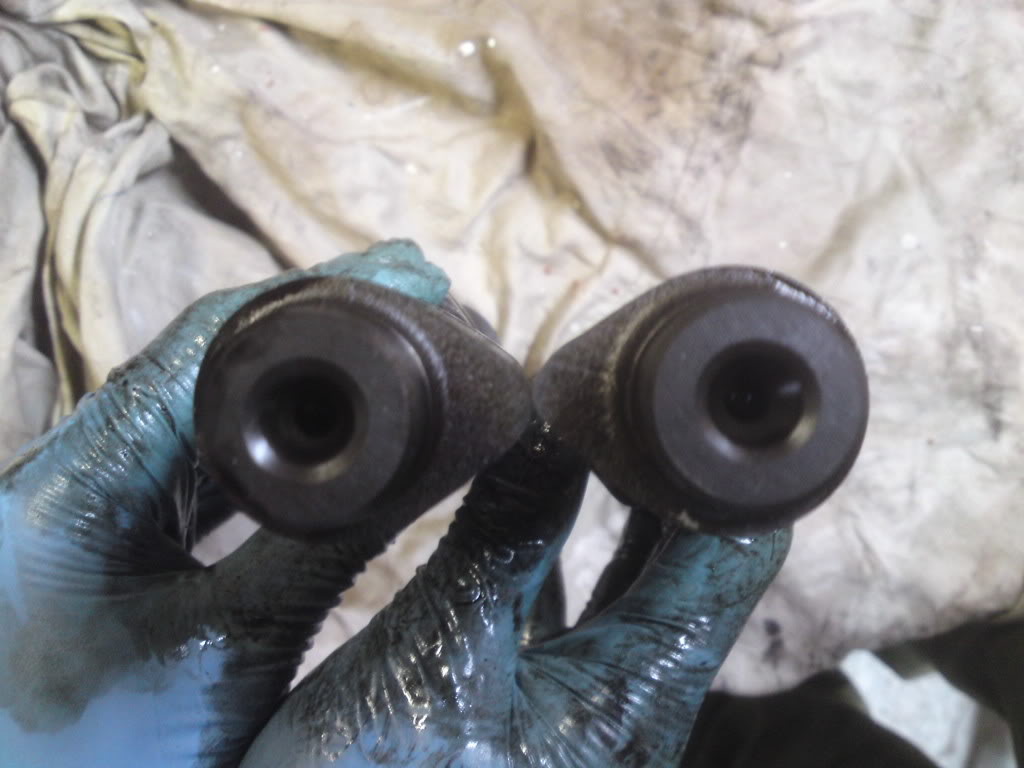

And the Wilder cams vs the std WRX cams.
Name:  P02-03-09_2100.jpg
Views: 0
Size:  76.1 KB
