Help Identify Subaru Pistons and Con Rods please, Probably Impreza, definitly turbo
17 August 2011, 08:31 AM
#1
Scooby Regular
Thread Starter
iTrader: (2)
Join Date: Apr 2007
Location: NE England
Posts: 412
Likes: 0
Received 0 Likes
on
0 Posts
Help Identify Subaru Pistons and Con Rods please, Probably Impreza, definitly turbo

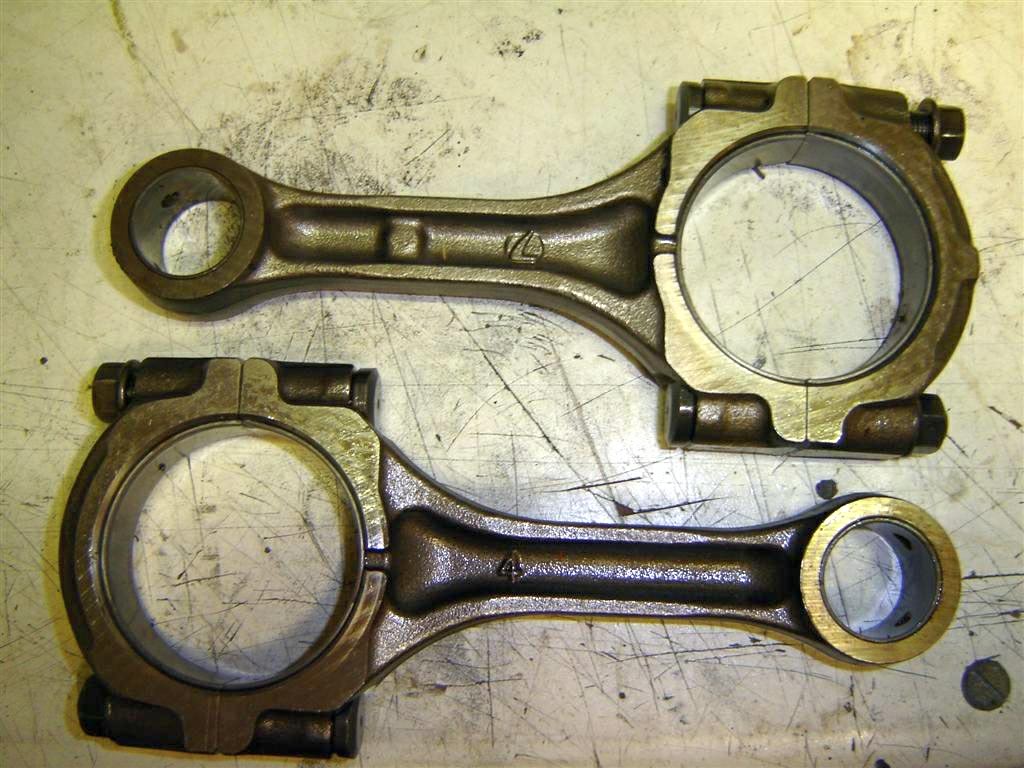

Got these out of a scrapped bottom end, I'd like to know what model they are from:
and just for a laugh, this is why it was it was scrapped:
Any Ideas?
and just for a laugh, this is why it was it was scrapped:
Any Ideas?
17 August 2011, 12:07 PM
#4
Scooby Regular
iTrader: (2)
Join Date: Nov 2008
Location: holywell
Posts: 453
Likes: 0
Received 0 Likes
on
0 Posts
STI engines have forged pistons, the underside is smooth and marked with HF1/2/3/4 depending on the piston type/year. Yours have a hatching on the underside which means they are cast WRX type, the piston crown is the type used in the Phase 2 and later WRX engines, they could be 1999/2000 classic? but not STI.
17 August 2011, 01:20 PM
#5
Scooby Regular
Thread Starter
iTrader: (2)
Join Date: Apr 2007
Location: NE England
Posts: 412
Likes: 0
Received 0 Likes
on
0 Posts
Ta!
a lot newer than I thought.
It had the alloy cover behind the flywheel which dates it as well I suppose.
I think I might need some new piston rings for that last one.
Shame there's an inch of con rod missing as well, as my mate has a mig welder I can borrow, and the hole in the crankcase has filled over nicely with some of that plastic metal stuff.
a lot newer than I thought.
It had the alloy cover behind the flywheel which dates it as well I suppose.
I think I might need some new piston rings for that last one.
Shame there's an inch of con rod missing as well, as my mate has a mig welder I can borrow, and the hole in the crankcase has filled over nicely with some of that plastic metal stuff.
17 August 2011, 06:57 PM
#6
STI engines have forged pistons, the underside is smooth and marked with HF1/2/3/4 depending on the piston type/year. Yours have a hatching on the underside which means they are cast WRX type, the piston crown is the type used in the Phase 2 and later WRX engines, they could be 1999/2000 classic? but not STI.
HB twin dot pistons are 1999~2000 WRX.
Newage WRX went over to HBR twin dot pistons.
Mick
06 October 2016, 11:12 AM
#7
Scooby Newbie
Join Date: Oct 2016
Location: Palnerston north
Posts: 1
Likes: 0
Received 0 Likes
on
0 Posts
Ta!
a lot newer than I thought.
It had the alloy cover behind the flywheel which dates it as well I suppose.
I think I might need some new piston rings for that last one.
Shame there's an inch of con rod missing as well, as my mate has a mig welder I can borrow, and the hole in the crankcase has filled over nicely with some of that plastic metal stuff.
a lot newer than I thought.
It had the alloy cover behind the flywheel which dates it as well I suppose.
I think I might need some new piston rings for that last one.
Shame there's an inch of con rod missing as well, as my mate has a mig welder I can borrow, and the hole in the crankcase has filled over nicely with some of that plastic metal stuff.
