hello guys. am having an overboosting issue wid my scoob since i bought it. its overboosting to 1.5 + bar n boost is not smooth. wat cud have gone wrong? how cud i test the actuator on the turbo?
i have included soe pics thx







[IMG]http://i273.photobucket.com/albums/jj228/lekid/bbe12123.jpg

[/IMG]

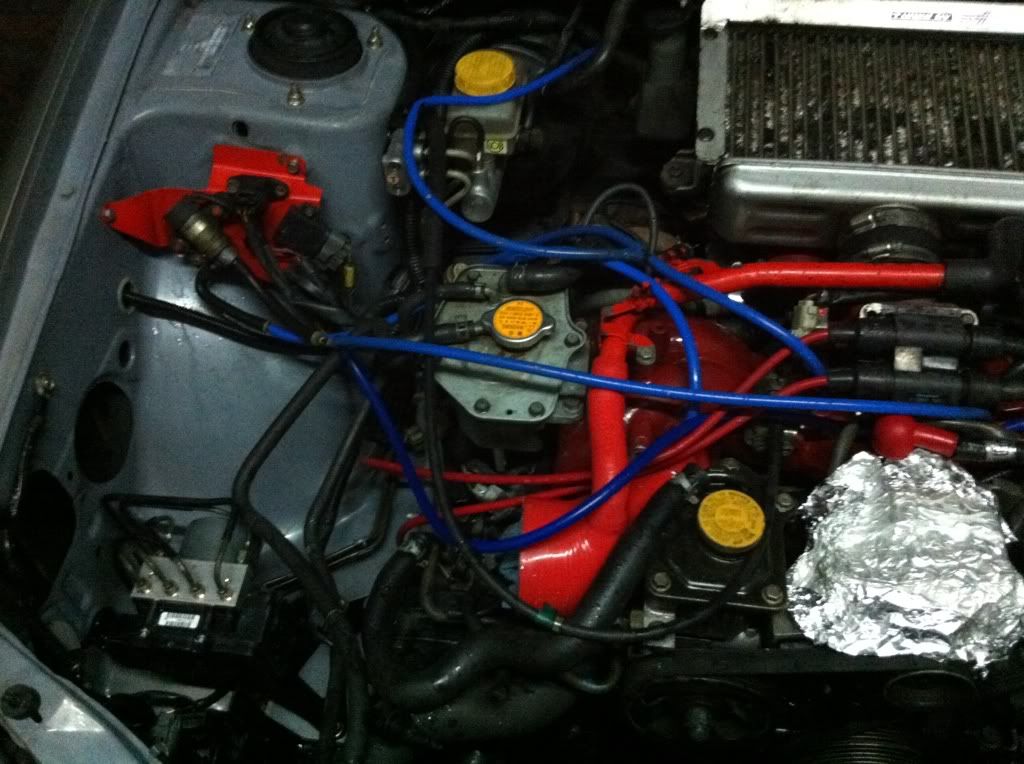

its a blob eye converted. engine is from a 99 wrx or sti. turbo is a vf28



has it been mapped properly for all the changes and mods?



well it was just an engine swap from a 1.6 ts to this engine. it wasnt overboosting when i test drove it.



the engine looks stock jut from upgraded piping. cud u tell which boost solenoid i got?



I see a T on the line going to the boost solenoid. Any Ts should be on hoses from the manifold nipples since I expect them to go to boost gauges etc. If the third hose is leaking, you will get overboost issues.

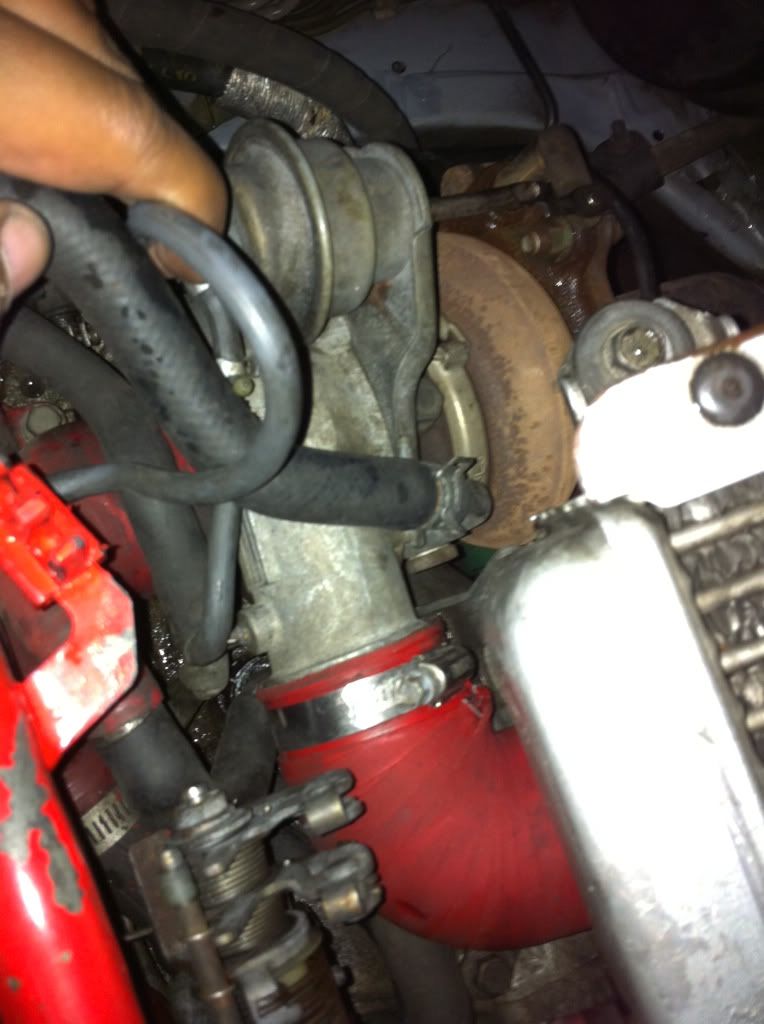

from the t one goes to the manifold n one to boost gauge. but from the pipe of the actuator to turbo. theres a nipple in the middle as u can see from the picture n theres no pipe connected to it. shud i change the pipe?



That's your problem there.

Your boost control hoses should be like in the linked page:

http://www.cobbtuning.com/info/?ID=3482



well i just checkd the bottom pipe of the solenoid goes to the inlet turbo pipe. n top one goes to the manifold left nipple :P n the other one goes to the dump valve. then the boost gauge pipe comes from something else that looks like a tap n with a T connector another pipe goes to the right nipple on the manifold.
will i need another t connector to connect a pipe from the top pipe of the solenoid to the actuator turbo pipe?
