98 Map Sensor into 93 Classic
15 June 2011, 10:40 PM
#1
Scooby Regular
Thread Starter
iTrader: (12)
Join Date: Jan 2009
Location: Co. Durham
Posts: 2,291
Likes: 0
Received 0 Likes
on
0 Posts
98 Map Sensor into 93 Classic
Anyone done the above conversion....
The wire colours do not match between the two, so what wires go to what?
The wire colours do not match between the two, so what wires go to what?
15 June 2011, 10:54 PM
#2
hope this helps.
MY92-96 MAP sensor Wiring
=========================
Red = +12V
White = Sensor
Green = Gnd
MY97-00 MAP sensor
==================
Looking into connector with pressure pipe down:
Left = +12v
Center = Signal
Right = Gnd
Pin Numbers/Wire colours:
1 = Blue
2 = Yellow-Black
3 = Red
MY92-96 MAP sensor Wiring
=========================
Red = +12V
White = Sensor
Green = Gnd
MY97-00 MAP sensor
==================
Looking into connector with pressure pipe down:
Left = +12v
Center = Signal
Right = Gnd
Pin Numbers/Wire colours:
1 = Blue
2 = Yellow-Black
3 = Red
17 June 2011, 11:12 AM
#3
Scooby Regular
Thread Starter
iTrader: (12)
Join Date: Jan 2009
Location: Co. Durham
Posts: 2,291
Likes: 0
Received 0 Likes
on
0 Posts
Hmm just doing mine now, and the colours are completely different
On the new map sensor, I have
Pin 1 = Black w/ Yellow Line
Pin 2 = Yellow w/ Black Line
Pin 3 = Red
On the new map sensor, I have
Pin 1 = Black w/ Yellow Line
Pin 2 = Yellow w/ Black Line
Pin 3 = Red
17 June 2011, 01:17 PM
#4

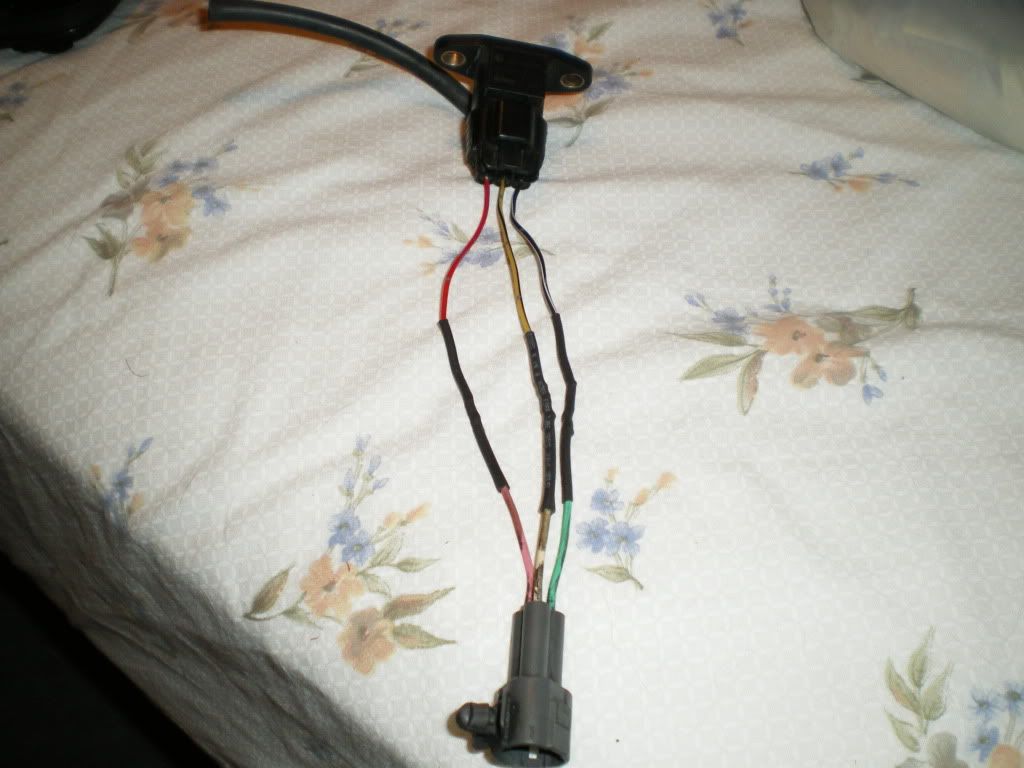

this should help, to fit i just hack the loom off of the old map sensor of soldered to new one so it was easy to put back to standard if need be.
