The Rig

iTrader: (13)

As title really, without too much work involved,currently have the slanted style on my 95 WRX.

what yr/model should i be looking for for easiest fit ?

what does fit with work ?

i take it id have to change the underscoop splitter to suit the TMIC ?

cheers

g7prs

iTrader: (5)

The easiest option would be an earlt sti slanted intercooler and yes you would need to get the spliter and rubber seal that matches that intercooler to gain the best from it.

The Rig

iTrader: (13)

O.k,cheers.

so something like an RB5 from a 99 model wouldnt be any good

Also,is it just version 1 and 2 STI i can use ?

g7prs

iTrader: (5)

The later ones can be used but there is more work involved. If you look in the technical section below this one you should find a couple of write ups on whats involved.

The Rig

iTrader: (13)

cheers,will do.

lastly,how can i tell a v1 or 2 sti intercooler from say a later model etc ?

g7prs

iTrader: (5)

They will also be slanted, mines was when it was removed to be replaced by a front mount. Unfortunatey i no longer have it.

The Rig

iTrader: (13)

Cheers.
Just had a look on the bay and cars listed as 94/95 sti`s seem to have the same I/C as i have,the black slanted thin one ??

then,the 96 onwards ones have the silver straight looking I/C

cant find any slanted different looking ones to the one i already have

g7prs

iTrader: (5)

I cant find the pictures of my old one but it wasnt black it was silver. I will have a search for some pictures on the net.

mach

literally just doing the same job to a v1 sti.the slanted wrx and sti intercoolers are exactly the same bar one is painted black and one isn't(heat retention is the only thing i can think).whatever one you fit it requires a new under bonnet scoop and i couldn't find anyone selling anything that would remotely fit so you'll have to fabricate one.all the retro fit oe tmic's i found were for the v1.5 onwards and after buying 4 intercooler's of different versions none are a straightforward fit(just depends on how much welding you can get done at a realistic price before front mount becomes appealing).the v 2/3 seem to be the nearest fit but you'll still need to cut the front bov pipe off and weld a blank plate on it(it fouls on the inlet manifold).i'm using a new age wrx but have had to cut 15mm out of the back plenum,move the 2 lower pipes forward 10mm,weld 2 new brackets on the front and left side(can use the pick up brackets of your intercooler) and weld up the bov(luckily have an ali welding contact so cost £40 the lot)and fabricate a new side bracket.plus the clutch mastercylinder is in the way(more than on a later one)so i've had to use a newage sti one(remote resevoir).if you want to do the mod i can let you have the templates when i'm done(next couple of weeks hopefully) for the scoop and the side bracket,plus iv'e got a couple of later tmic in the garage i can let you have cheap(£10 each plus post).it's a lot of work but if you don't mind a bit of fetteling it's not that bad.

Marx Mcrae

iTrader: (4)

Dont bother!!

Just get a fmic!

mit

iTrader: (10)

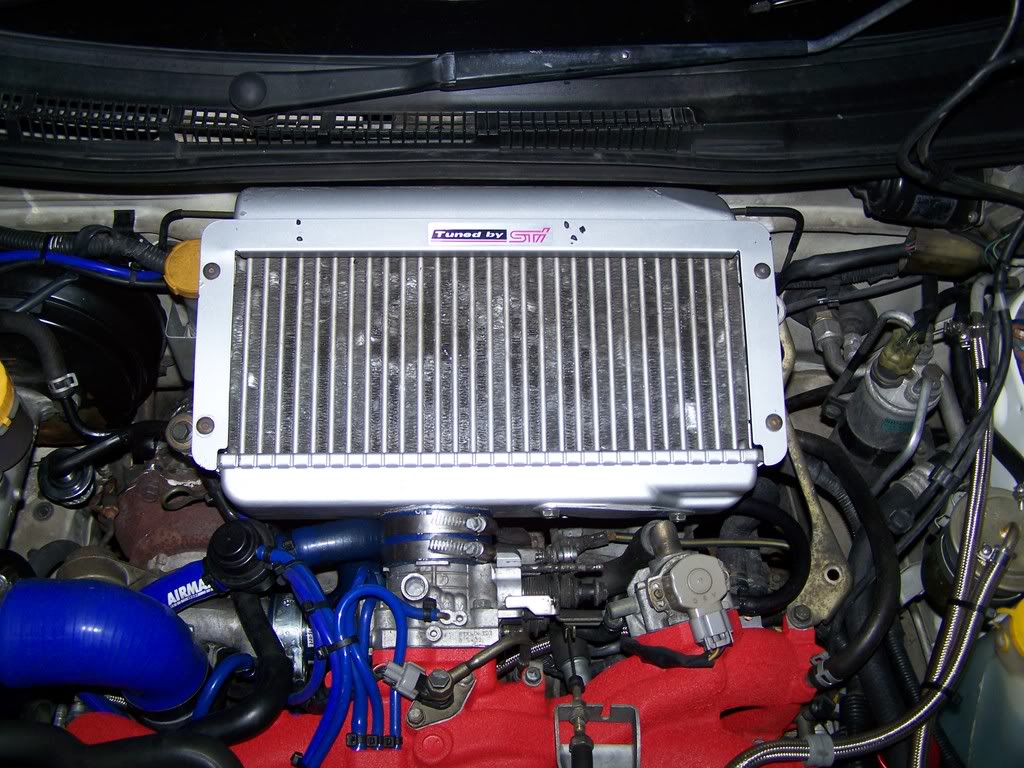

Sti v6 tmic in a 95 RA:


See this for a guide:https://www.scoobynet.com/projects-4...-my95-wrx.html

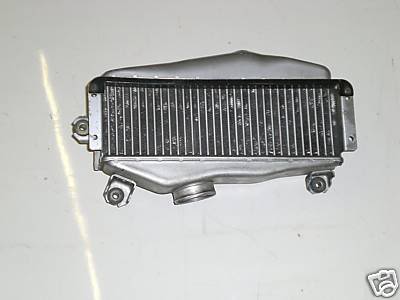

This is a early sti tmic, with the all important metal pipe:




Mit

mach

tried the same size i/c as the v6(black one from a v7 wrx i think) and it seemed a bit too close to the bulkhead.
do you not have problems rubbing the pipes and loom on the bulkhead?(if not, i've made sh1tloads of work for myself doh!!!)
the plus is the later one is a bit bigger but weather it's that much better after a re-map, time will tell i supose.if you factor the cost of later oe part's(not sti one's though just buy the next version up's wrx and cover in paint stripper) and making them fit against the price of buying and the making a front mount fit i recon the first option is still cheaper and for reasonable power gains.

mit

iTrader: (10)

Im happy(for now!) with the power i have, which the sti6 tmic is good for, just!
I did move the pipe and loom you mention mach, not too much hastle.
I will probably want more power soon, at which point i'll be investing in a fmic. I fitted one to my last car, not too much hastle, just didn't want to spend £300 for a Hybrid i/c yet!

The Rig

iTrader: (13)

Cheers for the input guys.

Been offered this,not sure what its from tho ??

g7prs

iTrader: (5)

There is a guy selling one in the foresale section called arch thats ready to fit.

g7prs

iTrader: (5)

https://www.scoobynet.com/private-sa...nce-parts.html


Speak to arch and he will help you out i am sure.

mit

iTrader: (10)

That looks like a V3/4 sti tmic. Hope it's cheep, looks a bit tatty!

The Rig

iTrader: (13)

£30

yeah,it does look a bit rough !

mit

iTrader: (10)

I'd go for the above i/c in the link, direct fit he says, it's also larger.Chances are the one you've been offered may need a different pipe to fit, also the dv pipe will need some work as it's on the wrong side, unless you have a vta dv.

g7prs

iTrader: (5)

The clue is in the first line, blobeye wrx

mit

iTrader: (10)

No, the one rig posted a pic of!!!

g7prs

iTrader: (5)

DOH

The Rig

iTrader: (13)

cheers for input guys.

that blobeye one Arch is selling, is that a good TMIC to fit then ? i guess it is ?

wonder if it still has the fitment issues of banging away the engine bracket etc to make it fit ????

The Rig

iTrader: (13)

1 other thing,with that blobeye TMIC,what underbonnet scoop/splitter would be needed, a classic design one or a blobeye one ??

g7prs

iTrader: (5)

Send arch a pm he may have all the bits you need . He is the best person to speak to.
