Testing OEM dump valve
#1
Scooby Regular
Thread Starter
Testing OEM dump valve

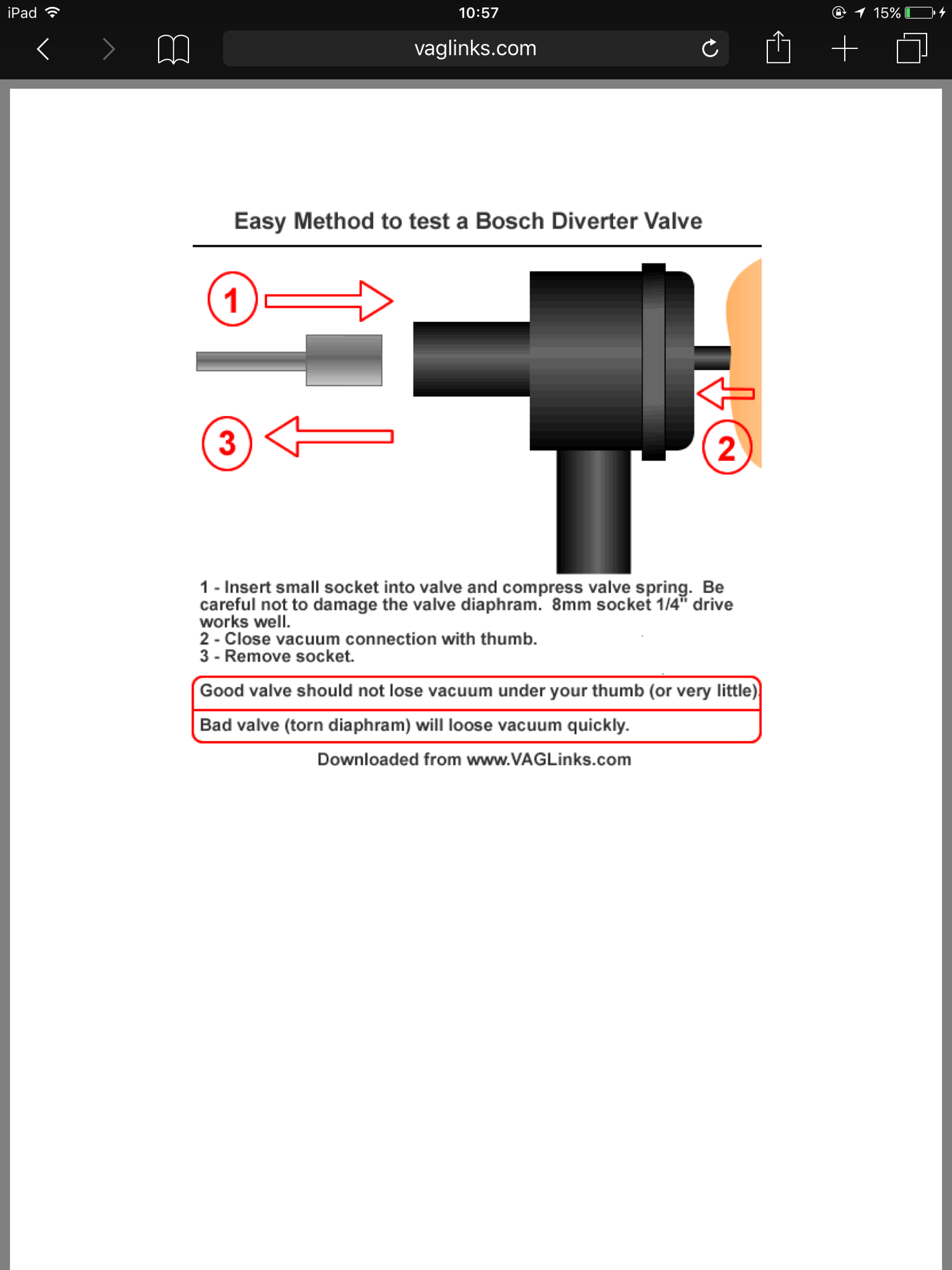

Can a standard dump valve be tested by pushing the valve open, sticking your finger over the vacuum connector and seeing if the valve stays open? I've tried that on mine and there seems to be very little vacuum there at all - i.e. the valve just pops back down again.
#2
I would guess that it would have to be tested in the closed position for any gas leakage, and at what pressure the spring compresses to release the pressure. Like I say, I am making an educated guess. Will look forward to any other post's..
Dan..
Dan..
#3
Scooby Regular
Join Date: May 2006
Location: Under the bonnet...still!
Posts: 592
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by silent running
Can a standard dump valve be tested by pushing the valve open, sticking your finger over the vacuum connector and seeing if the valve stays open? I've tried that on mine and there seems to be very little vacuum there at all - i.e. the valve just pops back down again.
#5
if there is boost on the vac side, surely it would help to hold it in the closed pos and help it retain boost
if it doesnt work, you would surely hear 'wastegate chatter' (the turbo stalling)
I dunno, 'I'm just a girl'
if it doesnt work, you would surely hear 'wastegate chatter' (the turbo stalling)
I dunno, 'I'm just a girl'
#6
Scooby Regular
iTrader: (5)
Join Date: May 2008
Location: uk
Posts: 269
Likes: 0
Received 0 Likes
on
0 Posts
Is there any way to check the standard recirculating valve and is there any benefit from fitting a aftermarket recirculating valve such as forge or gfb , car is remapped running 1.4 bar boost , and no I'm not after the pfffttt sound every time I change gear
#7
Scooby Regular
Yes you can test it with a vacuum pump to check that it opens , but being a sealed unit it's difficult to check anything else.
It's also a diaphragm valve and after high mileage the diaphragm can become damaged/split and leak.
Full thread here......
http://www.scoobymods.com/showthread...rth-12353.html
With a Forge or GFB, you can get spare parts, change the spring rating and both are (AFAIK) piston type giving better shut off and response.
Article worth reading......
http://www.gfb.com.au/tech/tech-arti...low-off-valves
Trending Topics
#9
Scooby Regular
iTrader: (5)
Join Date: May 2008
Location: uk
Posts: 269
Likes: 0
Received 0 Likes
on
0 Posts
Another thread resurrection
Yes you can test it with a vacuum pump to check that it opens , but being a sealed unit it's difficult to check anything else.
It's also a diaphragm valve and after high mileage the diaphragm can become damaged/split and leak.
Full thread here......
http://www.scoobymods.com/showthread...rth-12353.html
With a Forge or GFB, you can get spare parts, change the spring rating and both are (AFAIK) piston type giving better shut off and response.
Article worth reading......
http://www.gfb.com.au/tech/tech-arti...low-off-valves
Yes you can test it with a vacuum pump to check that it opens , but being a sealed unit it's difficult to check anything else.
It's also a diaphragm valve and after high mileage the diaphragm can become damaged/split and leak.
Full thread here......
http://www.scoobymods.com/showthread...rth-12353.html
With a Forge or GFB, you can get spare parts, change the spring rating and both are (AFAIK) piston type giving better shut off and response.
Article worth reading......
http://www.gfb.com.au/tech/tech-arti...low-off-valves
Hi thanks for the information I've looked at the gfb Mach 2 recirculating valve as it states 30% quicker boost after gear changes , my car has done 75.000 miles so might go for it , another thread resurrection due to me using the search function
#10
Scooby Regular
iTrader: (2)
if the car is performing to what is expected of it, the DV is probably ok. If the DV is bleeding boost back into the intake, the car will loose available power, the turbo will overwork creating higher charge temps. I know this as it happened to me.
I swapped my OEM valve out for a Turbosmart re-circ dv and the car then ran more boost, 2bar instead of 1.6bar. The car was re-mapped, meth inclusion was increased from 10%to 20%, power increased 40hp, from 380hp to 420hp.
If the valve is going to leak it will be at high boost and I don't know how you would test that. I monitor compressor wheel out temps, normally about 130c on full boost but where running 180c with the faulty valve.
Trev
I swapped my OEM valve out for a Turbosmart re-circ dv and the car then ran more boost, 2bar instead of 1.6bar. The car was re-mapped, meth inclusion was increased from 10%to 20%, power increased 40hp, from 380hp to 420hp.
If the valve is going to leak it will be at high boost and I don't know how you would test that. I monitor compressor wheel out temps, normally about 130c on full boost but where running 180c with the faulty valve.
Trev
#11
Scooby Regular
iTrader: (5)
Join Date: May 2008
Location: uk
Posts: 269
Likes: 0
Received 0 Likes
on
0 Posts
if the car is performing to what is expected of it, the DV is probably ok. If the DV is bleeding boost back into the intake, the car will loose available power, the turbo will overwork creating higher charge temps. I know this as it happened to me.
I swapped my OEM valve out for a Turbosmart re-circ dv and the car then ran more boost, 2bar instead of 1.6bar. The car was re-mapped, meth inclusion was increased from 10%to 20%, power increased 40hp, from 380hp to 420hp.
If the valve is going to leak it will be at high boost and I don't know how you would test that. I monitor compressor wheel out temps, normally about 130c on full boost but where running 180c with the faulty valve.
Trev
I swapped my OEM valve out for a Turbosmart re-circ dv and the car then ran more boost, 2bar instead of 1.6bar. The car was re-mapped, meth inclusion was increased from 10%to 20%, power increased 40hp, from 380hp to 420hp.
If the valve is going to leak it will be at high boost and I don't know how you would test that. I monitor compressor wheel out temps, normally about 130c on full boost but where running 180c with the faulty valve.
Trev
#12
Scooby Regular
iTrader: (2)
if the car is performing to what is expected of it, the DV is probably ok. If the DV is bleeding boost back into the intake, the car will loose available power, the turbo will overwork creating higher charge temps. I know this as it happened to me.
I swapped my OEM valve out for a Turbosmart re-circ dv and the car then ran more boost, 2bar instead of 1.6bar. The car was re-mapped, meth inclusion was increased from 10%to 20%, power increased 40hp, from 380hp to 420hp.
If the valve is going to leak it will be at high boost and I don't know how you would test that. I monitor compressor wheel out temps, normally about 130c on full boost but where running 180c with the faulty valve.
Trev
I swapped my OEM valve out for a Turbosmart re-circ dv and the car then ran more boost, 2bar instead of 1.6bar. The car was re-mapped, meth inclusion was increased from 10%to 20%, power increased 40hp, from 380hp to 420hp.
If the valve is going to leak it will be at high boost and I don't know how you would test that. I monitor compressor wheel out temps, normally about 130c on full boost but where running 180c with the faulty valve.
Trev
#13
Scooby Regular
iTrader: (2)
Trev
#14
Scooby Regular
iTrader: (2)
mines a Turbosmart Plumback Single Port. I've had it for around 4 years now.
It doesn't seem to be available anywhere. There is one on Demon Tweeks which has a universal fitting but not a straight fit as with mine. Dual port which either re-circ or vta are available but pricey.
The Turbosmart has a soft spring which reacts well to equalisation/ changes in pressure eitherside of the valve.
Trev
there is one on Demon Tweeks priced at £292.21 + postage
Last edited by trevsjwood; 20 October 2016 at 05:43 PM.
#15
Scooby Regular
iTrader: (5)
Join Date: May 2008
Location: uk
Posts: 269
Likes: 0
Received 0 Likes
on
0 Posts
I'm going to order a turbosmart kompact recurcilating valve but there are a few different sizes . 20mm 25mm or 34mm anyone know what size I need for mine which is a 1997 wrx v4 facelift
Thanks
Thanks
Last edited by supshon; 20 October 2016 at 07:06 PM.
#16
Scooby Regular
iTrader: (5)
Join Date: May 2008
Location: uk
Posts: 269
Likes: 0
Received 0 Likes
on
0 Posts
Took my recirc valve off today and measured it , it's a 34mm fitment . while it was off I tested it
My oem valve seems to be fine ,I was thinking about buying a turbosmart kompact recirc as the website says it's a improvement over standard with some graphs to show gains on dyno , not sure now as reading on here the best valve available is the one I have
My oem valve seems to be fine ,I was thinking about buying a turbosmart kompact recirc as the website says it's a improvement over standard with some graphs to show gains on dyno , not sure now as reading on here the best valve available is the one I have
