Mirror autofold kit for SG9 Forester?
The following users liked this post:
#3
Scooby Regular
It's probably possible.

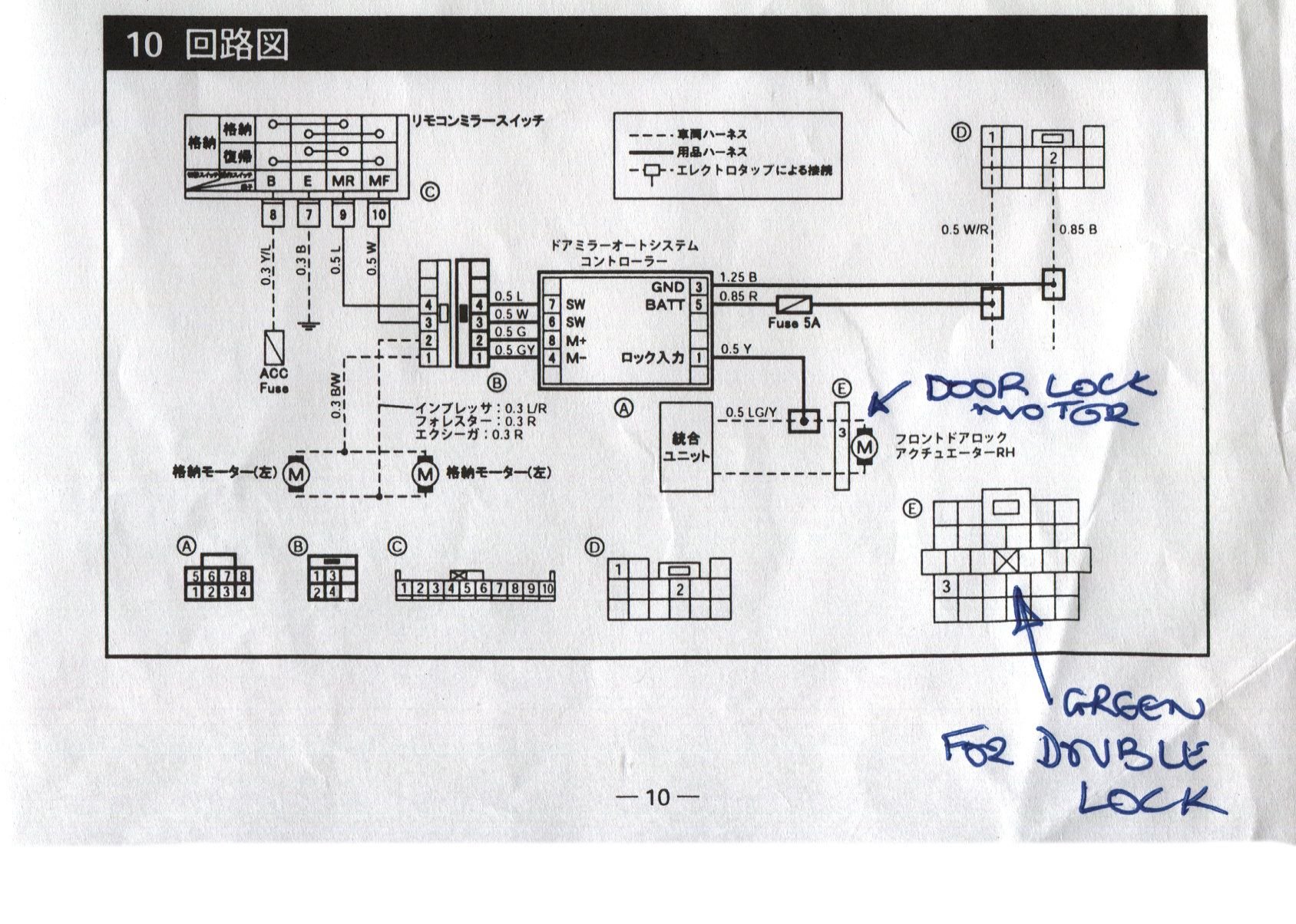

This is the wiring diag for the JDM MY08-14 WRX STI version of the above, which fits the UK MY08-14 WRXSTI with a minor alteration for the trigger wire due to UK Double locking door locks.
Attached below are the wiring diagrams for the MY07 Forester and the MY16 WRXSTI / LEVORG which seem very similar
The MY07 Forester also comes with the OP Connector (connector D on above drawing) not fitted to pre MY06 Foresters.
This is the wiring diag for the JDM MY08-14 WRX STI version of the above, which fits the UK MY08-14 WRXSTI with a minor alteration for the trigger wire due to UK Double locking door locks.
Attached below are the wiring diagrams for the MY07 Forester and the MY16 WRXSTI / LEVORG which seem very similar
The MY07 Forester also comes with the OP Connector (connector D on above drawing) not fitted to pre MY06 Foresters.
Last edited by Don Clark; 13 October 2023 at 07:49 PM.
The following users liked this post:
#4
i used this one on my hatchback sti and it worked a treat
https://www.amazon.co.uk/dp/B095NQZX...dY4QNkxIDJCaxE
hope this helps
https://www.amazon.co.uk/dp/B095NQZX...dY4QNkxIDJCaxE
hope this helps
#5
It's probably possible.
This is the wiring diag for the JDM MY08-14 WRX STI version of the above, which fits the UK MY08-14 WRXSTI with a minor alteration for the trigger wire due to UK Double locking door locks.
Attached below are the wiring diagrams for the MY07 Forester and the MY16 WRXSTI / LEVORG which seem very similar
The MY07 Forester also comes with the OP Connector (connector D on above drawing) not fitted to pre MY06 Foresters.
This is the wiring diag for the JDM MY08-14 WRX STI version of the above, which fits the UK MY08-14 WRXSTI with a minor alteration for the trigger wire due to UK Double locking door locks.
Attached below are the wiring diagrams for the MY07 Forester and the MY16 WRXSTI / LEVORG which seem very similar
The MY07 Forester also comes with the OP Connector (connector D on above drawing) not fitted to pre MY06 Foresters.
As always, thanks Don! I'll investigate.
