Cambelt gone GB270 damage?

Thread Tools

Search this Thread

Old Jul 24, 2017 | 05:32 PM
  #1
Gulfb's Avatar
Gulfb
Thread Starter
Scooby Newbie

Joined: Nov 2013
Posts: 16
Likes: 0
From: London
Default Cambelt gone GB270 damage?

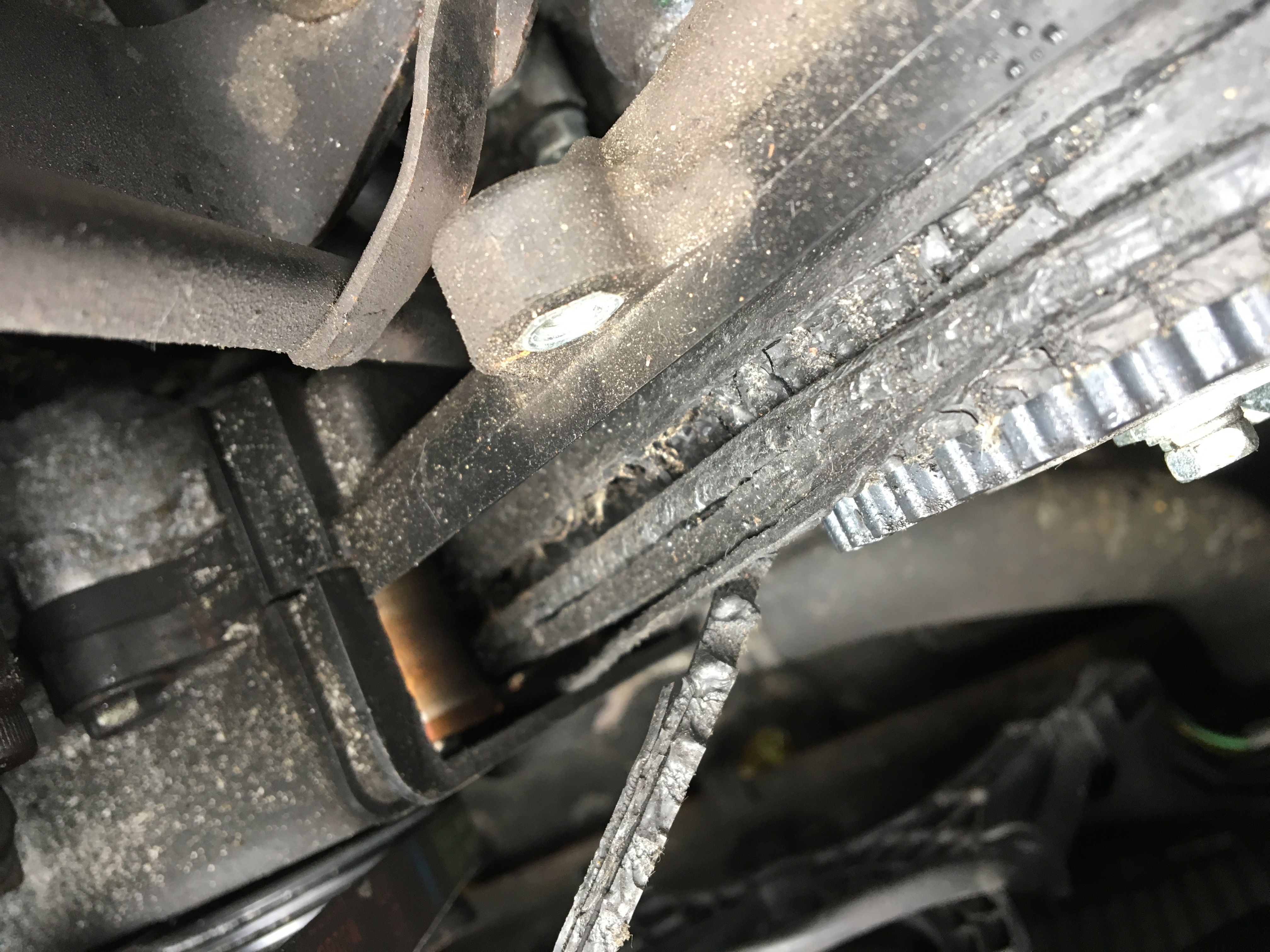

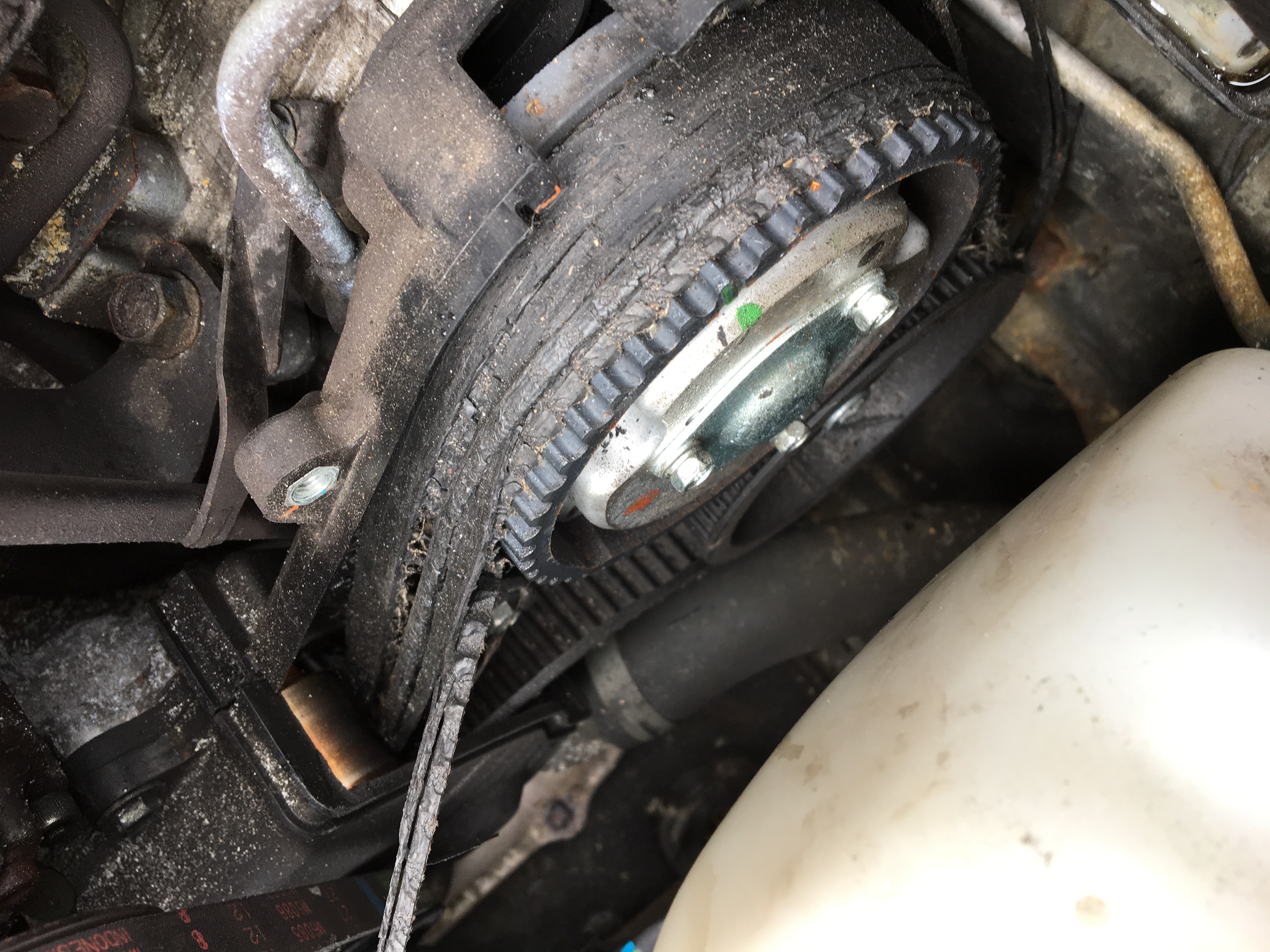

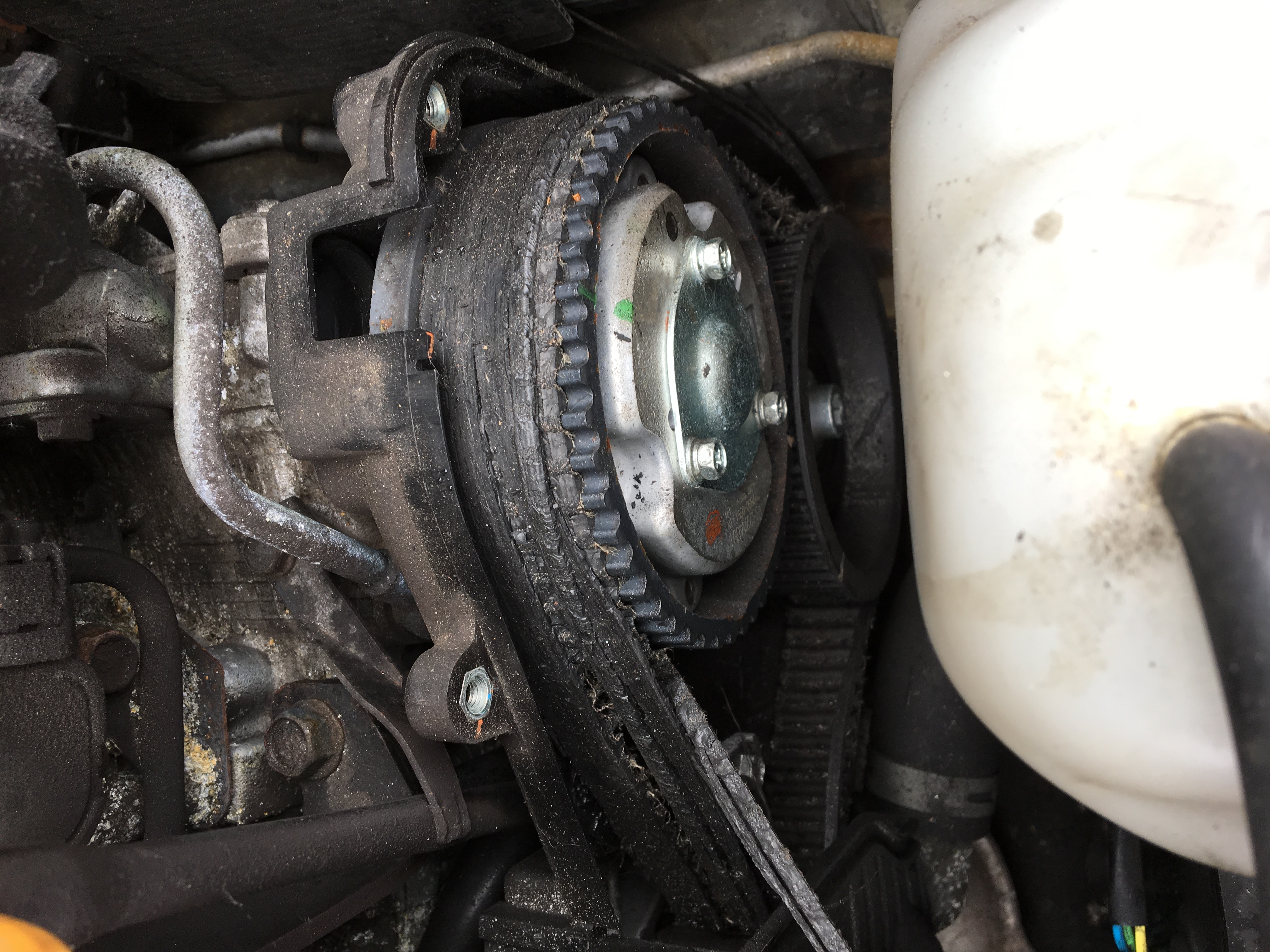

Cambelt shredded but not completely snapped, happened at low speed pulling into petrol station. Photographs hopefully attached although this is my first attempt!
Likely damage? Worth putting a belt on and see as per some posts?
Likely cost to repair or cheaper to plonk a new engine in?
Also anyone Sussex borders decent rate £ to do the job?
Attached Thumbnails Click image for larger version

Name:	IMG_2924.JPG
Views:	0
Size:	2.58 MB
ID:	23034   Click image for larger version

Name:	IMG_2926.JPG
Views:	0
Size:	2.55 MB
ID:	23035   Click image for larger version

Name:	IMG_2928.JPG
Views:	0
Size:	2.21 MB
ID:	23036
Reply
Old Jul 24, 2017 | 05:36 PM
  #2
Peedee's Avatar
Peedee
Scooby Regular
iTrader: (4)

Joined: Jun 2009
Posts: 2,168
Likes: 0
From: W / London
Default

To be fair, even though it's shredded, if it held together and continued to turn the cams until you realised and switched off, you might have got lucky mate.
Reply
Old Jul 24, 2017 | 05:40 PM
  #3
Gulfb's Avatar
Gulfb
Thread Starter
Scooby Newbie

Joined: Nov 2013
Posts: 16
Likes: 0
From: London
Default

Ha ha thanks for that and I do hope so not the climate for big bills!!
How would I best go about checking? Stick a new belt on and try and turn over by hand? Any help appreciated and thanks Peedee.
Reply
Old Jul 24, 2017 | 06:01 PM
  #4
lewis87's Avatar
lewis87
Scooby Regular
iTrader: (1)

Joined: Aug 2016
Posts: 130
Likes: 0
From: Angus
Default

You could be lucky here, how did you notice it was happening?

I would stick a new belt on and see what happens, it's a mess but looks mostly intact.
Reply
Old Jul 24, 2017 | 06:11 PM
  #5
Pross's Avatar
Pross
Scooby Regular
iTrader: (3)

Joined: Oct 2013
Posts: 539
Likes: 2
From: Devon
Default

Check the timing marks with the old belt on, if they are still lined up you may be in luck.
Reply
Old Jul 24, 2017 | 09:55 PM
  #6
johned's Avatar
johned
Scooby Regular
15 Year Member

Joined: Jan 2010
Posts: 2,002
Likes: 16
From: derbyshire
Default

But why did it shred.
Reply
Old Jul 24, 2017 | 09:56 PM
  #7
360ste's Avatar
360ste
Scooby Regular
iTrader: (1)

Joined: Apr 2005
Posts: 2,892
Likes: 0
From: In the Flatlands of Lincolnshire
Default

Remove the plugs and turn it over by hand if all goes well then line up the timing marks and fit a new belt. I got a set of Sealey locking tools when I did my belt.


https://www.ebay.co.uk/i/15161354287...1899693&crdt=0
Reply
Old Jul 24, 2017 | 09:57 PM
  #8
360ste's Avatar
360ste
Scooby Regular
iTrader: (1)

Joined: Apr 2005
Posts: 2,892
Likes: 0
From: In the Flatlands of Lincolnshire
Default

Check the idler pulleys and water pump for free rotation. For the cost it would be worth changing them to be on the safe side.
Reply
Old Jul 24, 2017 | 10:17 PM
  #9
Gulfb's Avatar
Gulfb
Thread Starter
Scooby Newbie

Joined: Nov 2013
Posts: 16
Likes: 0
From: London
Default

Evening, thanks for the replies and advice. Sorry if sounding like a numpty but would you remove the plugs first and turn over with the remains of the belt or fit a new one before moving?
Agree re idler pulleys and water pimp but as above after I have moved by hand or with replacement belt? Wouldn't want to waste a lot of money on those extra parts if it's gone to pot or is that the risk I have to take?
Sorry and thanks.
Ps who does the best kit quality/£?
Reply
Old Jul 26, 2017 | 04:47 PM
  #10
Gambit's Avatar
Gambit
Scooby Regular
20 Year Member
Liked
Loved
Community Favorite
iTrader: (6)

Joined: May 2003
Posts: 3,420
Likes: 282
From: Belfast
Default

Originally Posted by Pross
Check the timing marks with the old belt on, if they are still lined up you may be in luck.
as said above...check it before you start taking belts off/replacing belts
Reply
