How do I fit bucket seats correctly?

Thread Tools

Search this Thread

Old 10 October 2016, 12:13 PM
  #1
Jay Cartay
Scooby Regular
Thread Starter
iTrader: (3)

Jay Cartay's Avatar

Join Date: Feb 2006
Location: Leeds, West Yorkshire
Posts: 1,521
Received 3 Likes on 3 Posts
Default How do I fit bucket seats correctly?

Bear with me, but I have bought a couple of Corbeau seats and have never fitted buckets before. I want sliders, at this moment in time, so do I need to look for rails that the seats mount directly to, or do you usually use separate side mounts and then find rails that they bolt to?

Apologies for the stupid question!
Old 10 October 2016, 12:20 PM
  #2
DoZZa
Scooby Regular
iTrader: (4)

DoZZa's Avatar

Join Date: Sep 2007
Location: JDM MY97 Type R - 2.1 Stroker
Posts: 1,008
Likes: 0
Received 0 Likes on 0 Posts
Default

Depends on the seat really, but usually rails will fit direct to the seat and the mounts bolt onto the rails.
Old 10 October 2016, 12:36 PM
  #3
Jay Cartay
Scooby Regular
Thread Starter
iTrader: (3)

Jay Cartay's Avatar

Join Date: Feb 2006
Location: Leeds, West Yorkshire
Posts: 1,521
Received 3 Likes on 3 Posts
Default

Which are best? Because I am pretty sure I have seen rails that have side mountings built into them but I don't know if these tend to be better/worse.

Also, if running Corbeau XL seats I'm not sure if the rails will need to be different?
Old 10 October 2016, 01:44 PM
  #4
wrxyz
Scooby Regular
iTrader: (2)

wrxyz's Avatar

Join Date: Feb 2012
Location: Aberdeenshire
Posts: 460
Likes: 0
Received 0 Likes on 0 Posts
Default

I bolted Buddy Club extra low seat mounts to Sparco seat 'side' mounts; then bolted the whole lot to the bottom half of the Subaru seat slider assembly.

that meant that I could use a universal slider assembly and the Subaru bottom rail which fitted the floor mounts exactly. And it was the cheapest I could think of
Old 10 October 2016, 01:52 PM
  #5
The Pink Ninja
Scooby Regular
iTrader: (23)

The Pink Ninja's Avatar

Join Date: Apr 2008
Location: ...
Posts: 6,703
Likes: 0
Received 2 Likes on 2 Posts
Default

You'll need proper rails to make them slide and fit safely, these are from buddy club
Old 10 October 2016, 03:17 PM
  #6
bustaMOVEs
Scooby Regular
iTrader: (31)

bustaMOVEs's Avatar

Join Date: Jan 2012
Location: The 2dr club
Posts: 12,979
Likes: 0
Received 30 Likes on 21 Posts
Default

As said. Buy aftermarket Subaru specific sliding rails, if you bought your seats new they will have come with side mounts, if not you need side mounts too, bolt it all together and done.

I have bride rails, and they were £300 for the pair second hand so not cheap.
Old 10 October 2016, 04:23 PM
  #7
The Grift
Scooby Regular

The Grift's Avatar

Join Date: Aug 2003
Posts: 350
Likes: 0
Received 0 Likes on 0 Posts
Default

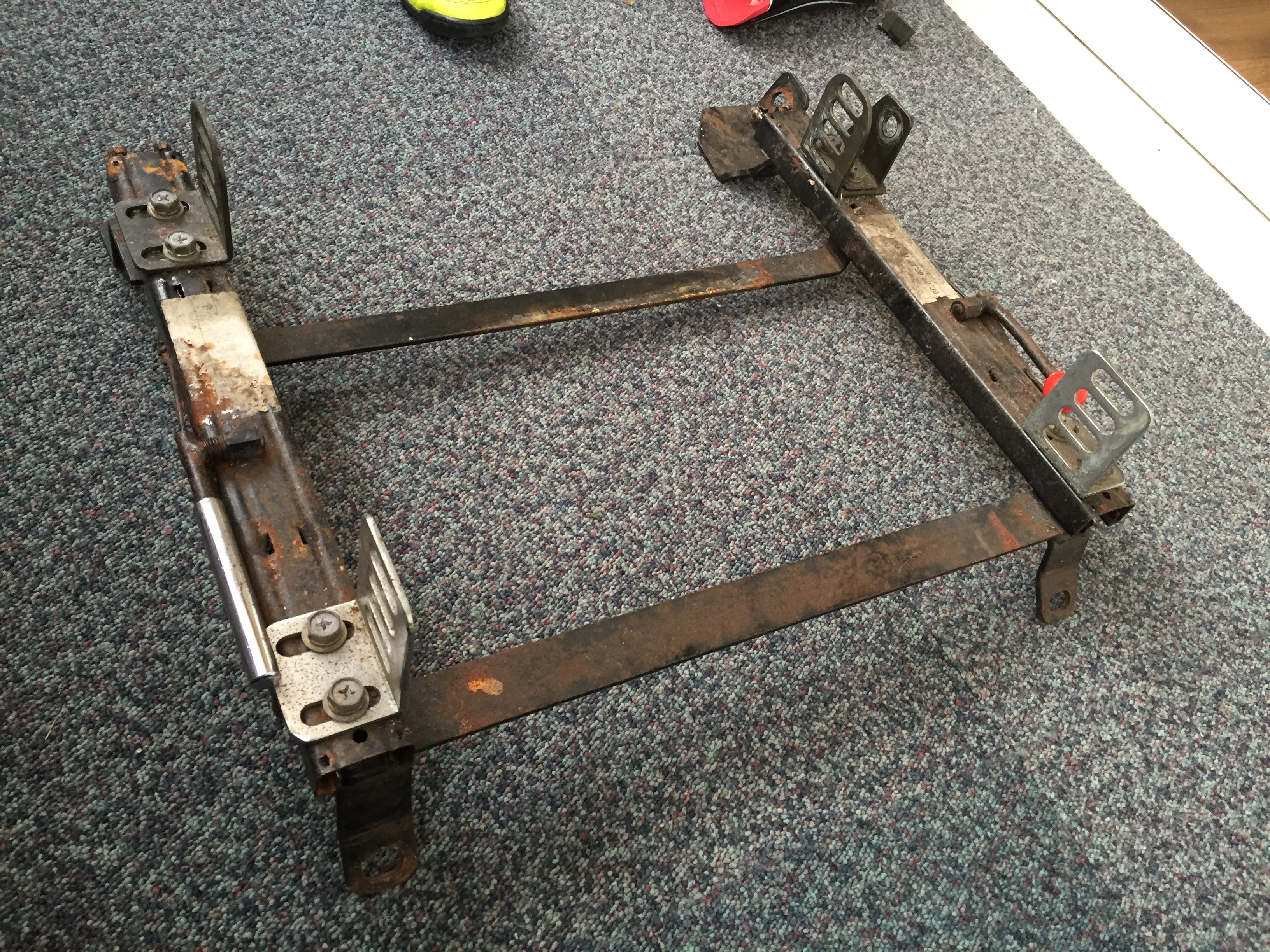

I've got a drivers side base you can have for nothing and have a play around with, only at Huddersfield. It's on ebay but not selling. Let me know.
Attached Thumbnails Click image for larger version

Name:	IMG_1041.JPG
Views:	0
Size:	3.98 MB
ID:	21553

Trending Topics

Old 12 October 2016, 12:26 PM
  #8
Jay Cartay
Scooby Regular
Thread Starter
iTrader: (3)

Jay Cartay's Avatar

Join Date: Feb 2006
Location: Leeds, West Yorkshire
Posts: 1,521
Received 3 Likes on 3 Posts
Default

Originally Posted by The Grift
I've got a drivers side base you can have for nothing and have a play around with, only at Huddersfield. It's on ebay but not selling. Let me know.
Cheers for the offer If I need it I'll give you a shout.

I've actually seen these, the Buddy Club ones as mentioned above. Looks like they are all I'd need?
http://www.sportseats4u.co.uk/buddy-...prod_1415.html

Just not entirely sure if they fit the XL seats or not.
Old 12 October 2016, 05:53 PM
  #9
The Pink Ninja
Scooby Regular
iTrader: (23)

The Pink Ninja's Avatar

Join Date: Apr 2008
Location: ...
Posts: 6,703
Likes: 0
Received 2 Likes on 2 Posts
Default

Yes they look the same to me but you can buy them direct for less, I have a GT passenger seat and they seem to work fine albeit a little stiff...both of them lol.

M2's are £115 with vat and the buddy club low rails are £150
http://www.spdautomotive.co.uk/cgi-b...%2ehtml#SID=69
Old 13 October 2016, 08:54 AM
  #10
AS Performance
Former Sponsor
iTrader: (4)

AS Performance's Avatar

Join Date: Feb 2013
Location: north east
Posts: 2,227
Likes: 0
Received 0 Likes on 0 Posts
Default

we stock and supply the specific BC style rails - best option IMO as the seat height, etc. is not overly high

0191-4103770
