How to id an sti engine?
12 May 2016, 03:15 PM
#1
Scooby Newbie
Thread Starter
Join Date: May 2016
Location: Cheltenham
Posts: 5
Likes: 0
Received 0 Likes
on
0 Posts

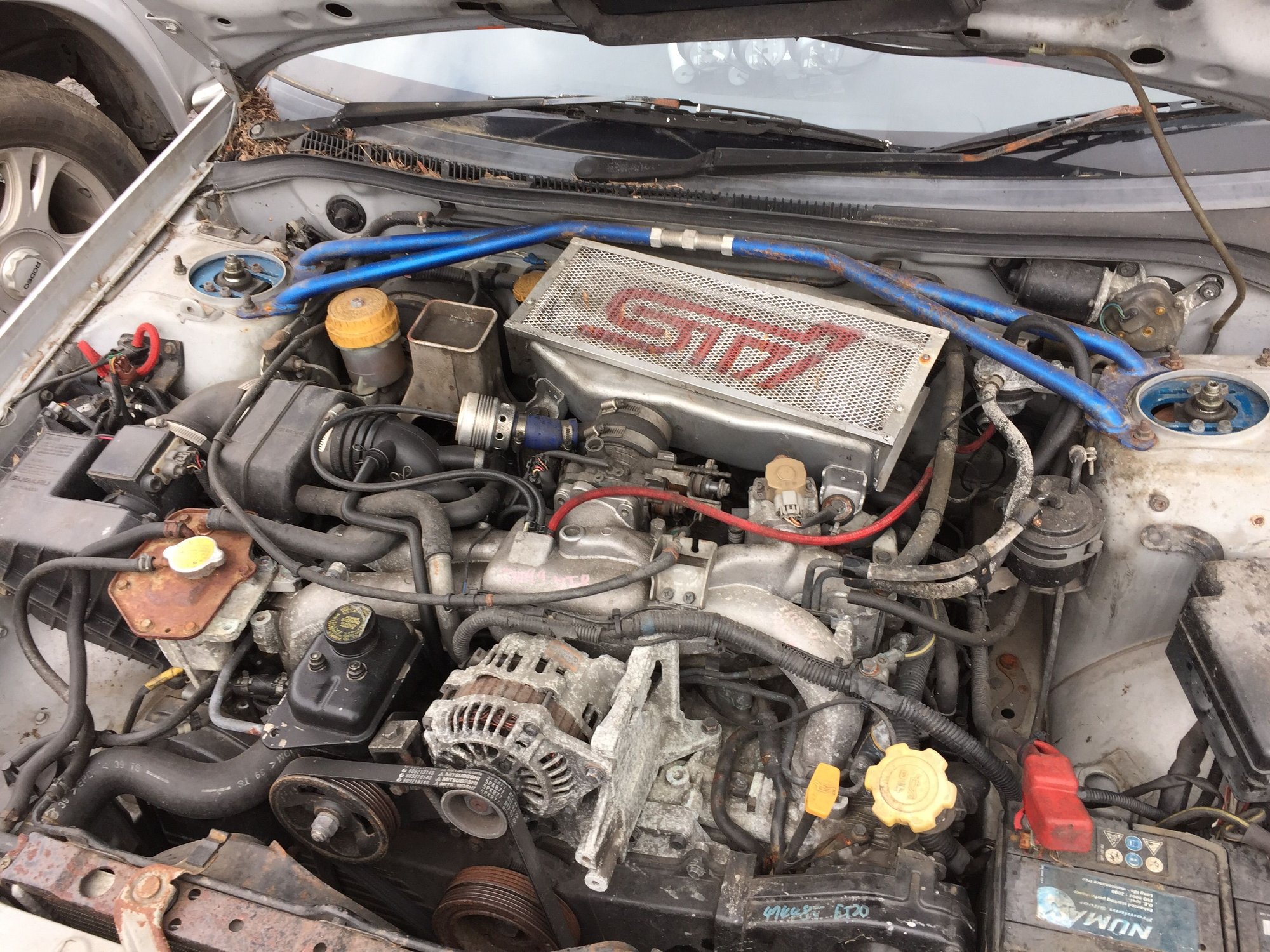

How to id an sti engine?
Good day,
I've recently purchased a version 1 wrx import. It's had a fair amount of work done to it and been used as a track car. I'm led to believe it should originally have a cdb but there are no cross hatch marks on the block and the amount of work/money spent on it would suggest it probably isn't a cheap turbo 2000 replacement engine thrown in. Is there any way to identify the actual engine from wrx/sti etc? It doesn't have a red manifold..........
Last edited by Mrskinnylegs; 12 May 2016 at 03:16 PM.
15 May 2016, 08:23 PM
#3
The best I can do for you is give you this info.....
Subaru Impreza Engines with closed deck blocks
EJ20GDW1HD 1992-05-01 to 1993-08-31 WRX.EJ20G
EJ20GDW1HE 1992-05-01 to 1993-08-31 WRX.EJ20G
EJ20GDW1HJ 1992-05-01 to 1993-08-31 WRXRA.EJ20G
EJ20GDW1HR 1992-05-01 to 1993-08-31 WRXRA.EJ20G
EJ20GDW2HD 1993-05-01 to 1994-09-30 S.WRX.MT.EJ20G
EJ20GDW2HE 1993-05-01 to 1994-09-30 S.WRX.MT.EJ20G
EJ20GDW2HJ 1993-05-01 to 1994-09-30 WRXRA.EJ20G
EJ20GDW2HR 1993-05-01 to 1994-09-30 WRXRA.EJ20G
EJ20GDW4HJ 1993-06-01 to 1995-08-31 WRXRA.EJ20G
The only external way seems to be the cross hatching by the alternator bracket, although the odd one has surfaced over the years with out this.
And you point out the car is of that age who knows what is in there
It is a V1/2 engine but that is all I can say.
Subaru Impreza Engines with closed deck blocks
EJ20GDW1HD 1992-05-01 to 1993-08-31 WRX.EJ20G
EJ20GDW1HE 1992-05-01 to 1993-08-31 WRX.EJ20G
EJ20GDW1HJ 1992-05-01 to 1993-08-31 WRXRA.EJ20G
EJ20GDW1HR 1992-05-01 to 1993-08-31 WRXRA.EJ20G
EJ20GDW2HD 1993-05-01 to 1994-09-30 S.WRX.MT.EJ20G
EJ20GDW2HE 1993-05-01 to 1994-09-30 S.WRX.MT.EJ20G
EJ20GDW2HJ 1993-05-01 to 1994-09-30 WRXRA.EJ20G
EJ20GDW2HR 1993-05-01 to 1994-09-30 WRXRA.EJ20G
EJ20GDW4HJ 1993-06-01 to 1995-08-31 WRXRA.EJ20G
The only external way seems to be the cross hatching by the alternator bracket, although the odd one has surfaced over the years with out this.
And you point out the car is of that age who knows what is in there
It is a V1/2 engine but that is all I can say.
Last edited by Steve Whitehorn; 15 May 2016 at 09:02 PM.
