Default My subaru has some serious oil issues and im getting concerned.

Okay guys, starting about a few weeks ago I have noticed my car smoking and a oil burning smell. And today I decided to crawl under it to see what is going and I have noticed that I am down maybe two litres of oil or more and theres oil all over the place. I have poked my head everywhere and can't see a direct leak. I see oil just all over the place. Its on the passenger side directly above the passenger wheel axle. As well when I crawl under the car theres a lot of oil there. What are common causes for subaru oil leaks on the passenger side? Its burning off on my exhaust as well. I've had it to a garage and they told me they can't find where its coming from.


Car is : 2006 Subaru Impreza 2.5i Stock other then a cold air intake and muffler. 170,000 km's on it.

Any input would be greatly appreciated. My subaru has never caused my any troubles at all up until now. Quite sad.

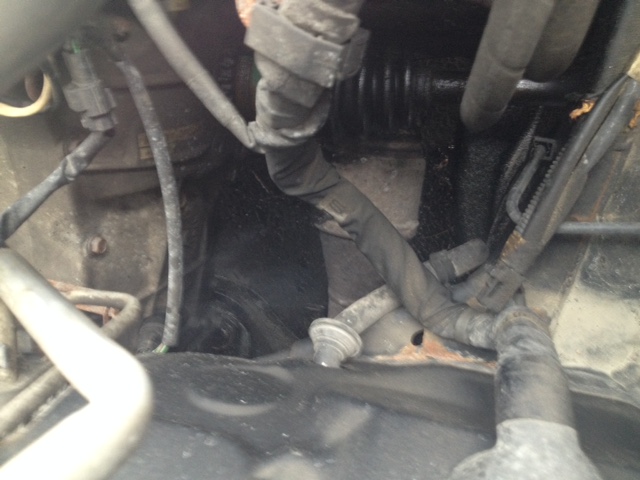

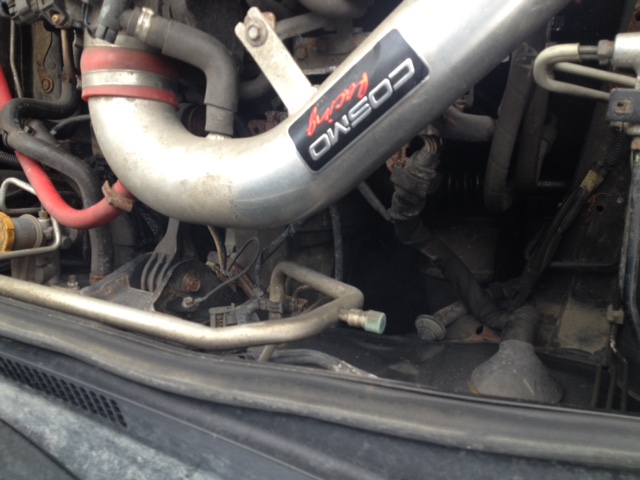

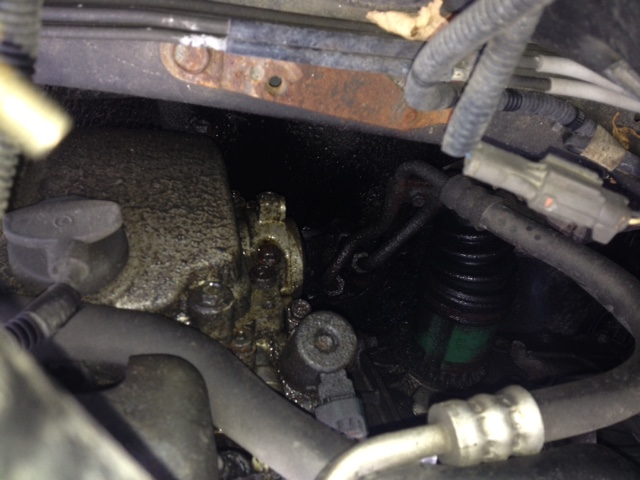

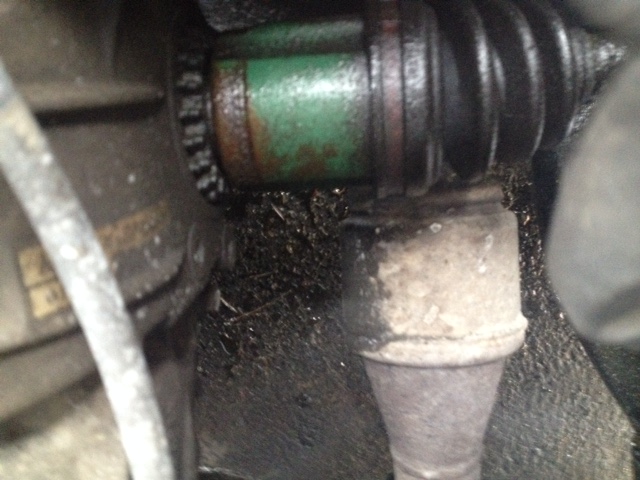

I have attached a few pics.
Attached Thumbnails Click image for larger version

Name:	IMG_1070.JPG
Views:	0
Size:	95.2 KB
ID:	20392   Click image for larger version

Name:	IMG_1071.JPG
Views:	0
Size:	112.8 KB
ID:	20393   Click image for larger version

Name:	IMG_1072.JPG
Views:	0
Size:	98.3 KB
ID:	20394   Click image for larger version

Name:	IMG_1073.JPG
Views:	0
Size:	97.6 KB
ID:	20395
Nlburden is offline
Old 01 April 2016, 07:24 PM
  #2
albob
Scooby Regular

Join Date: May 2000
Posts: 2,870
Likes: 0
Received 0 Likes on 0 Posts
Default

rocker box cover??
albob is offline
Old 01 April 2016, 07:41 PM
  #3
Nlburden
Scooby Newbie
Thread Starter

Join Date: Apr 2016
Location: Canada
Posts: 5
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by albob View Post
rocker box cover??
What makes you believe its a rocker box cover? Not trying to seem to be a smart *** just curious? What does the rocker box cover do? Does it contain pressurized oil? Also I've noticed everywhere I go now, I leave a trail of oil behind me, small drips everywhere I go. I also attached a video to show !

Thanks for the input
Nlburden is offline
Old 01 April 2016, 08:20 PM
  #4
Don Clark
Scooby Regular

Don Clark's Avatar

Join Date: Feb 2003
Location: Harpenden
Posts: 4,965
Likes: 0
Received 0 Likes on 0 Posts
Default

From your comment, "What does the rocker box cover do? Does it contain pressurized oil", we will have to assume you are not familar with these engines.

Given the location/area of the oil contamination, it's a pretty good guess that it's the rocker cover gasket. (item 5)


http://opposedforces.com/parts/impre...llustration_1/

However, the only way to confirm, or otherwise, will be to clean the whole area up, so that the exact site of the leak can be isolated/located.
Don Clark is offline
Old 01 April 2016, 09:08 PM
  #5
merlin24
Scooby Regular
iTrader: (1)

merlin24's Avatar

Join Date: May 2006
Location: RM Performance
Posts: 3,003
Likes: 0
Received 0 Likes on 0 Posts
Default

As above in #4 - pressure wash the area clean and then check for the source of the leak.
Seems quite wet around the AVCS solenoid in the last picture.

Mick
merlin24 is offline
Old 01 April 2016, 09:45 PM
  #6
albob
Scooby Regular

Join Date: May 2000
Posts: 2,870
Likes: 0
Received 0 Likes on 0 Posts
Default

"What makes you believe its a rocker box cover?.." It is a very common area to leak on the impresa, which then drops on to the exhaust. Having said that, it is normally only a drip - yours seems 'excessive'....
albob is offline
Old 03 April 2016, 12:52 AM
  #7
Nlburden
Scooby Newbie
Thread Starter

Join Date: Apr 2016
Location: Canada
Posts: 5
Likes: 0
Received 0 Likes on 0 Posts
Default

Perfect thank you highly for the input and diagram. I will clean it down tomorrow and monitor it while it is stationary to see where the oil comes from initially. Is it a big job to change over the rocker box gasket? As well, No I am not familiar with the subaru engines myself. I've never needed to do any engine work up until this point. I've have a few jeep projects but they are 4.0 straight 6's. Most garages I call don't like to work on the Subaru engines , however I don't mind carrying out my own maintenance.
Nlburden is offline
Old 03 April 2016, 01:14 AM
  #8
albob
Scooby Regular

Join Date: May 2000
Posts: 2,870
Likes: 0
Received 0 Likes on 0 Posts
Default

not for your model - but an 'insight'

http://www.subaru-impreza.org/forum/...er-gasket.html

(of course - may not be the rocker cover casket..)
albob is offline
Old 03 April 2016, 01:23 AM
  #9
Nlburden
Scooby Newbie
Thread Starter

Join Date: Apr 2016
Location: Canada
Posts: 5
Likes: 0
Received 0 Likes on 0 Posts
Default

Perfect Thank you highly. It makes sense in diagram based off the location the whole bottom of the engine is covered with oil as well. Do you have a diagrams of other major gaskets? The car had a new clutch installed a year or two ago. Maybe some bolts backed loose somewhere as well.

That rocker cover gasket doesn't look hard to inspect as its not buried too deep in the engine.
Nlburden is offline
Old 03 April 2016, 07:31 AM
  #10
Don Clark
Scooby Regular

Don Clark's Avatar

Join Date: Feb 2003
Location: Harpenden
Posts: 4,965
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by Nlburden View Post
Do you have a diagrams of other major gaskets?

All parts diagrams and most part numbers are available from this link............


http://opposedforces.com/parts/impreza/us_g11/type_10/
Don Clark is offline
Old 03 April 2016, 12:37 PM
  #11
merlin24
Scooby Regular
iTrader: (1)

merlin24's Avatar

Join Date: May 2006
Location: RM Performance
Posts: 3,003
Likes: 0
Received 0 Likes on 0 Posts
Default

Cam cover/rocker cover gasket and seals on your SOHC engine is an easy job to do.

Mick
merlin24 is offline
Old 04 April 2016, 12:35 PM
  #12
ScottyPPP
Scooby Regular

Join Date: Mar 2013
Location: Hampshire
Posts: 1,489
Likes: 0
Received 0 Likes on 0 Posts
Default

Could also be leaking from the HG on an N/A 2.5.
ScottyPPP is offline
Old 04 April 2016, 01:04 PM
  #13
Nlburden
Scooby Newbie
Thread Starter

Join Date: Apr 2016
Location: Canada
Posts: 5
Likes: 0
Received 0 Likes on 0 Posts
Default

I assume the only route is to just wash it and look around the head gasket for leaks? I am just waiting on the weather here. Been very cold lately.. too cold to run a hose or pressure washer to clean it up.
