water temperture gauge
I about to fit a water temperture gauge and was asking my zelf what's the best position to fit the sensor.
I thought my self I could do it in the radiator hose but does any one no what the diameter is of the hose for a sti type-r v6.
For if I want to buy a adapter for the temperature sensor.
I thought my self I could do it in the radiator hose but does any one no what the diameter is of the hose for a sti type-r v6.
For if I want to buy a adapter for the temperature sensor.
#4
Scooby Regular
iTrader: (2)
I seem to remember when I did mine it was 38mm i/d?
Do you have a digital caliper? If so, measure the external diameter in the centre, then the wall thickness at the end, and subtract twice the wall thickness.
Mine was a 98 UK car, but afaik, the hoses and rads are the same.
Tip: use a new hose. Manipulating the old one will probably cause it to crack internally, and spring a leak a week or so after you've done the job. How do I know this???
Tip 2: Make sure your adaptor has provision for running an earth wire, the senders have only one wire, and earth through the engine block.
Tip 3: Better to put the new, accurate sender where the old one is, extend the old one and put it in the top hose
Do you have a digital caliper? If so, measure the external diameter in the centre, then the wall thickness at the end, and subtract twice the wall thickness.
Mine was a 98 UK car, but afaik, the hoses and rads are the same.
Tip: use a new hose. Manipulating the old one will probably cause it to crack internally, and spring a leak a week or so after you've done the job. How do I know this???
Tip 2: Make sure your adaptor has provision for running an earth wire, the senders have only one wire, and earth through the engine block.
Tip 3: Better to put the new, accurate sender where the old one is, extend the old one and put it in the top hose
#7
Scooby Regular
iTrader: (1)
Join Date: Aug 2015
Location: north west
Posts: 440
Likes: 0
Received 0 Likes
on
0 Posts

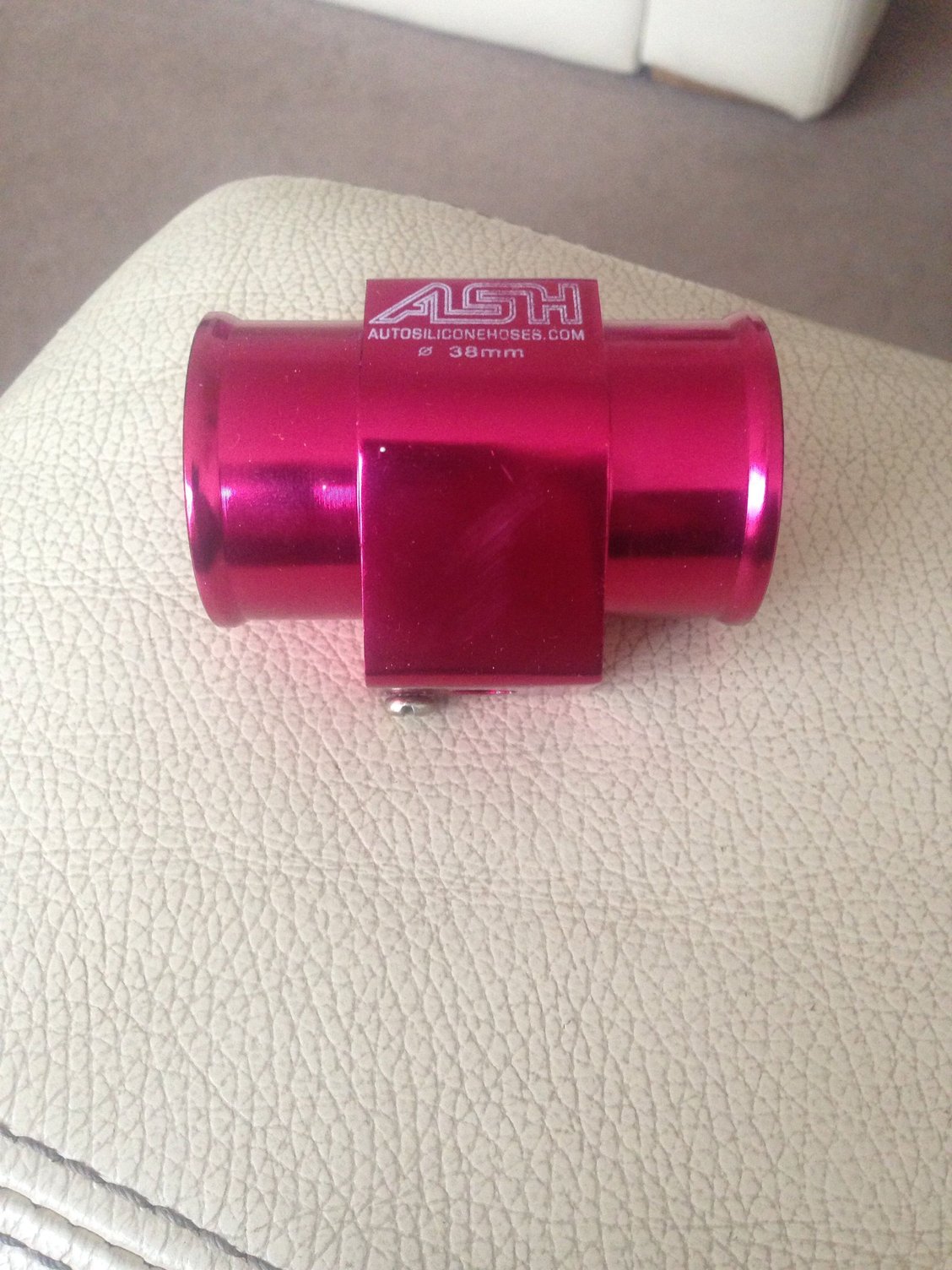

I had this one fitted on the top rad hose, no issues and fits well
http://www.ebay.co.uk/itm/3614089229...%3AMEBIDX%3AIT
http://www.ebay.co.uk/itm/3614089229...%3AMEBIDX%3AIT
