Problem with my hatch, advice please.
#1
Scooby Regular
Thread Starter
Join Date: Mar 2013
Location: Rossendale
Posts: 130
Likes: 0
Received 0 Likes
on
0 Posts
Problem with my hatch, advice please.
Yesterday I was gently driving along the m66 when my Impreza decided to miss fire then 15 seconds later cut out on me. I coasted to the hard should and tried to restart it but had no joy. I initially thought the timing belt had gone and possibly engine had gone bye bye but it turns freely off the pulley so I don't think this is the case.
Now when I turn the ignition on the dash is like a Christmas tree with my map selection flashing and no read out what so ever for my central diff settings. In addition to this when I turn the key to try and start the engine absoloutly nothing happens what so ever apart from the clock in the centre of the dash going blank for the duration of the key being in the position. Any ideas ?
Now when I turn the ignition on the dash is like a Christmas tree with my map selection flashing and no read out what so ever for my central diff settings. In addition to this when I turn the key to try and start the engine absoloutly nothing happens what so ever apart from the clock in the centre of the dash going blank for the duration of the key being in the position. Any ideas ?
#5
Scooby Regular
Thread Starter
Join Date: Mar 2013
Location: Rossendale
Posts: 130
Likes: 0
Received 0 Likes
on
0 Posts
So I've done all the basic checks and all grounds seem fine and voltage is reaching the right places. I've also used another battery to eliminate the current batteries as a possibility. My friend has just popped round with his snap on engine fault code reader and nothing there. Is seems to be immobilised but I don't understand why.
#7
Scooby Regular
Thread Starter
Join Date: Mar 2013
Location: Rossendale
Posts: 130
Likes: 0
Received 0 Likes
on
0 Posts
I've just been to check that and it's all secure. I unplugged it and Plugged it back in to double check but still the same. Thanks for the suggestion, anything else will be appreciated
Trending Topics
#8
Scooby Regular
Sounds like you cannot give the starter enough amps but why i am not sure if all connections are ok and remembering that testing with a multimeter does not take the amps of a starter motor but will show the correct voltage so do the headlights work ok and if yes do they still work when trying to start the car.
#9
Scooby Regular
Thread Starter
Join Date: Mar 2013
Location: Rossendale
Posts: 130
Likes: 0
Received 0 Likes
on
0 Posts
I don't think it's a case of not supplying enough power as my car was running fine and then cut out. I think it's more loss of signal from the ecu or along those line. The reason I say this is the map is flashing and won't allow me to choose between different maps and the c diff settings also aren't functioning correctly.
#10
Scooby Regular
Thread Starter
Join Date: Mar 2013
Location: Rossendale
Posts: 130
Likes: 0
Received 0 Likes
on
0 Posts
This isn't me arguing and being pedantic I'm very greatful of all your help I'm just replying with my thoughts and trying to make sense of all this.
#12
Scooby Regular
iTrader: (2)
you tried this:
https://www.scoobynet.com/scoobynet-...lt-lights.html
I also read on NASIOC that there was a common fault with a connection at the fuse box getting water into it. Subaru issued a notice about it, but unfortunately cant find it for now.
https://www.scoobynet.com/scoobynet-...lt-lights.html
I also read on NASIOC that there was a common fault with a connection at the fuse box getting water into it. Subaru issued a notice about it, but unfortunately cant find it for now.
#13
Scooby Regular
I don't think it's a case of not supplying enough power as my car was running fine and then cut out. I think it's more loss of signal from the ecu or along those line. The reason I say this is the map is flashing and won't allow me to choose between different maps and the c diff settings also aren't functioning correctly.
Had you read any EML codes present ??
#15
Scooby Regular
Even if it won't start the "map is flashing and won't allow me to choose between different maps and the c diff settings also aren't functioning correctly" indicates limp mode
"Now when I turn the ignition on the dash is like a Christmas tree with my map selection flashing and no read out what so ever for my central diff settings."
If it lights up like a christmas tree then he should be able to get any codes read from the ECU
Until then it could be anything.
"Now when I turn the ignition on the dash is like a Christmas tree with my map selection flashing and no read out what so ever for my central diff settings."
If it lights up like a christmas tree then he should be able to get any codes read from the ECU
Until then it could be anything.
#17
Scooby Regular
iTrader: (1)
As said this is a main power problem, ie main connections at battery (2 big round plugs) or fusebox, could even be a slack connector at the ecu or a power wire rubbed through, could be there for ever trying to guess what the issue is, if your not good with electrical systems would get a auto electrician or take it to a subaru specialist as doubt very much it will be sorted out on the forum as could be anything.
#18
Scooby Regular
Thread Starter
Join Date: Mar 2013
Location: Rossendale
Posts: 130
Likes: 0
Received 0 Likes
on
0 Posts
I've done basic check if the main power circuit as I work as a cnc maintenance engineer I have an average understanding of electrical circuits. Everything seems to check out but that doesn't mean I havnt missed something I'm only human haha. I've got a mobile auto electrician coming to take a look for me this week so hopefully it will be sorted. Thanks for all your continued input guys I really appreciate it.
#19
Scooby Regular

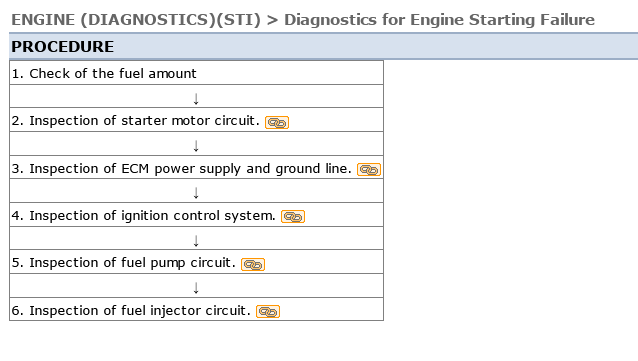

This may help you get started...............
NOTE:
You may need to download the following pdf's to get the full text.
(My Acrobat Viewer in Win 10 only shows the basic diagrams and table layouts)
Start Motor curcuit.pdf
Power Supply.pdf
Ignition control.pdf
Fuel Pump.pdf
Fuel Injector.pdf
NOTE:
You may need to download the following pdf's to get the full text.
(My Acrobat Viewer in Win 10 only shows the basic diagrams and table layouts)
Start Motor curcuit.pdf
Power Supply.pdf
Ignition control.pdf
Fuel Pump.pdf
Fuel Injector.pdf
Last edited by Don Clark; 18 November 2019 at 03:49 PM.
#26
Scooby Regular
iTrader: (5)
The last one we did we changed the body module and programmed it to the vehicle. really speaking it should also have 2 brand new keys coded to it as that's the recommended repair.
The communication issue stops the body module talking to the Engine control module so its immobilised good and proper.
Without seeing the vehicle I can only advise on what I found on the last one I had that wouldn't start, But it does sound very similar. Ours was a police hatch that cut out on active duty and wouldn't re start.
#27
Scooby Regular
These diagrams of the car's CAN (controller area network) will add to Rob's reply/ explanation...
Low Speed CAN pdf
High Speed CAN pdf
Low Speed CAN pdf
High Speed CAN pdf
Last edited by Don Clark; 18 November 2019 at 03:52 PM.
#29
Scooby Regular
Thread Starter
Join Date: Mar 2013
Location: Rossendale
Posts: 130
Likes: 0
Received 0 Likes
on
0 Posts

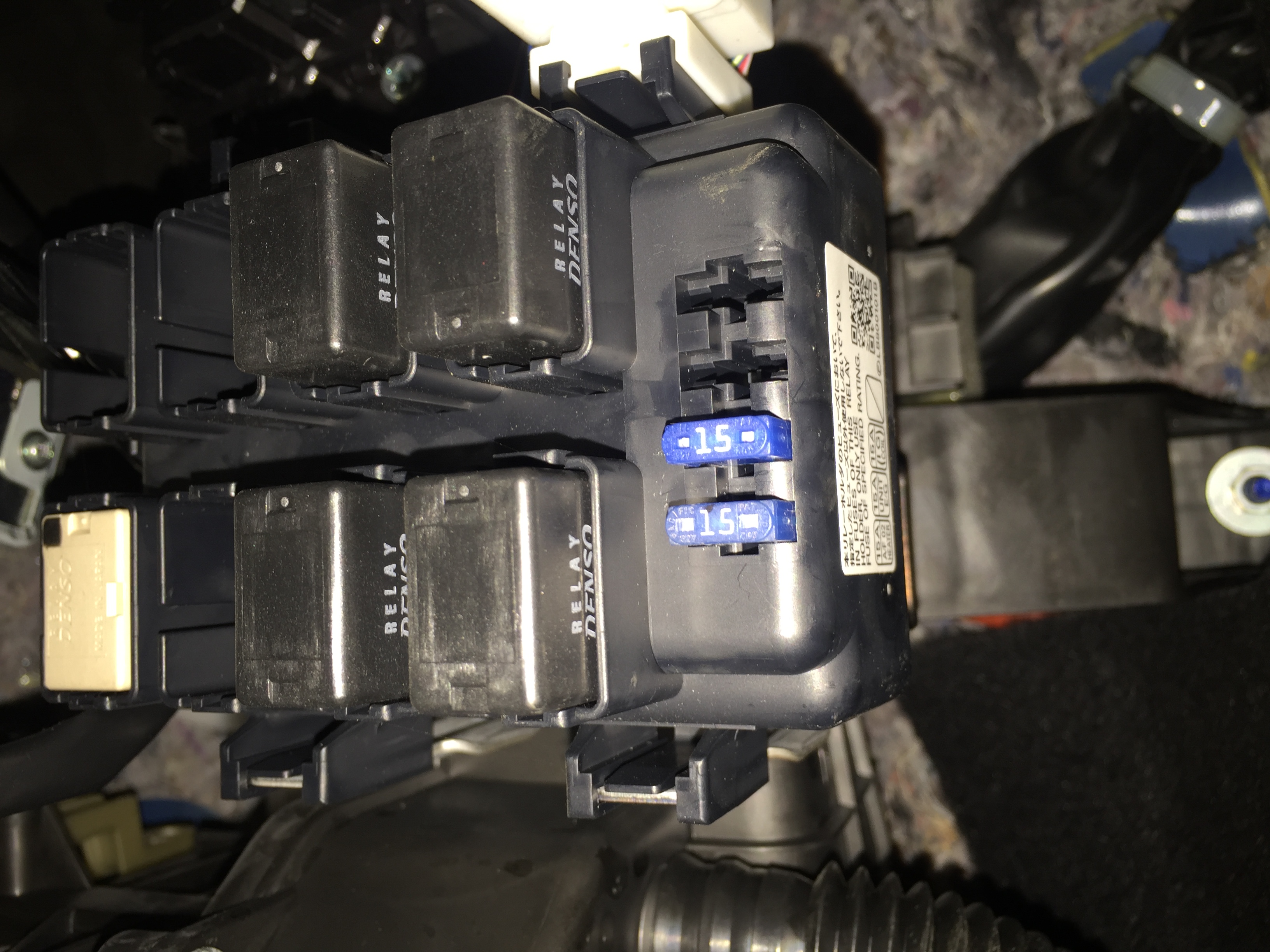

So all this was caused by a fuse located in the passenger foot well, I'm not sure what this module is but there is a 15 amp fuse blown there. Any ideas guys ?
#30
Scooby Regular
Location wise that is the B220 fuse (relay block) for the following:-
A/F Oxygen sensor relay
Fuel pump relay
IG relay
Main relay
Electronic throttle control relay
The main relay supplies most of the other sensors.
Glad it turned out not as bad as it could have been.
Would be renewing both of those fuses to be on the safe side
Last edited by Don Clark; 18 November 2019 at 03:59 PM.
