Default Big water leak classic

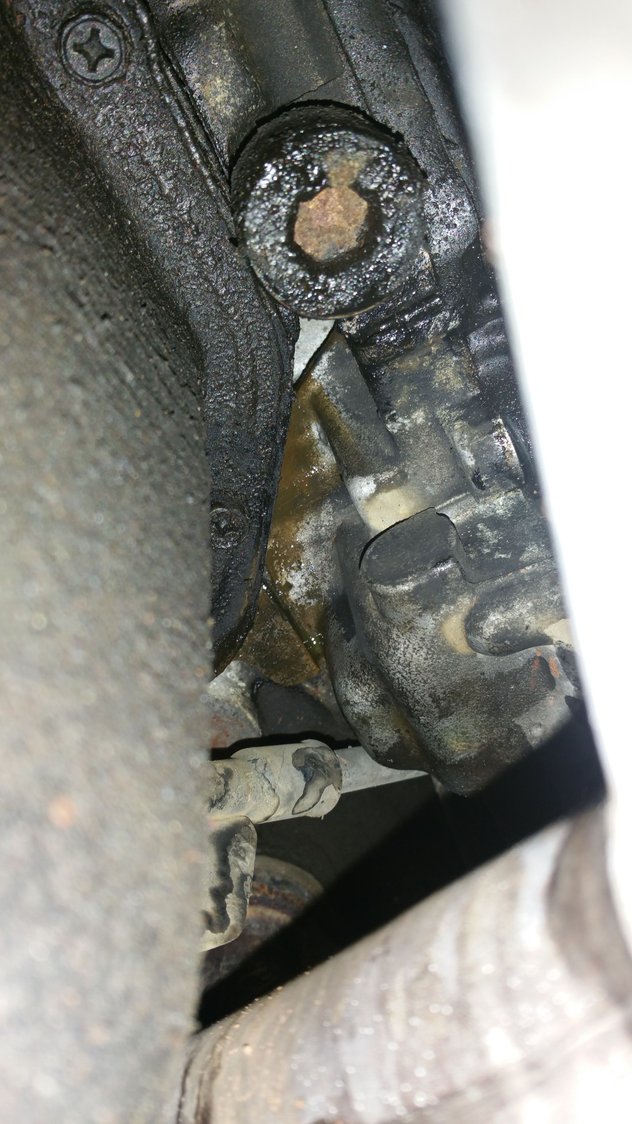

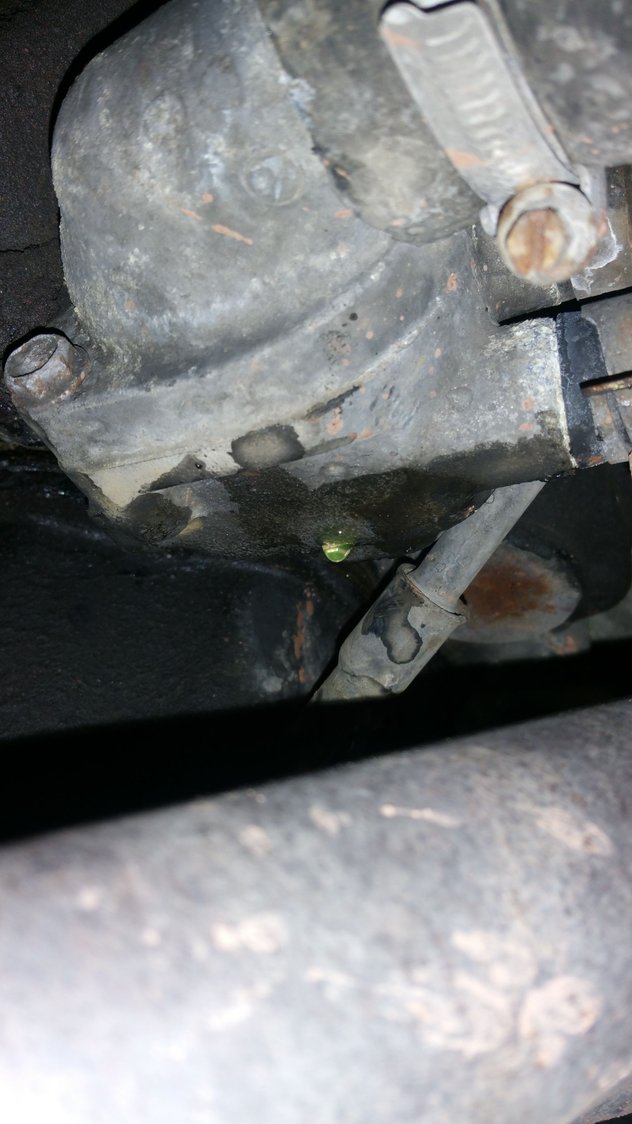

My 96 classic has developed a pretty bad leak from the coolant. I've managed to locate it to somewhere behind the thermostat housing. There is no leak from the pipe or the gasket but as you can see from below picture it's a pretty constant drip when the car isnt even running (no pressure).
Am topping it up daily but due to work sometimes I don't have time to top her up for a very fast 4mile journey and don't wanna do any damage.





Last edited by Evansawd; Nov 21, 2015 at 05:18 PM.
Reply
Old Nov 21, 2015 | 04:38 PM
  #2
1509joe's Avatar
1509joe
Scooby Regular
15 Year Member
Liked
Loved
Community Favorite
iTrader: (2)

Joined: Jan 2009
Posts: 3,487
Likes: 318
From: Not sure
Default

Timing belt change and or water pump and gasket.
Reply
Old Nov 21, 2015 | 05:19 PM
  #3
Evansawd's Avatar
Evansawd
Thread Starter
Scooby Regular

Joined: Apr 2014
Posts: 303
Likes: 0
From: Loughborough
Default

Originally Posted by 1509joe
Timing belt change and or water pump and gasket.
Was going to do a timing belt change but is it definitely water pump. Not got money to throw at it lol.
Reply
Old Nov 21, 2015 | 06:05 PM
  #4
ossett2k2's Avatar
ossett2k2
Scooby Regular
iTrader: (9)

Joined: Jan 2007
Posts: 6,433
Likes: 39
From: Leeds
Default

Originally Posted by Evansawd
Idiot
Who?

I had same on my old v3,was water pump,might as well do timing belt at same time.
AS Performance did me a good deal on belt kit and water pump.
Reply
Old Nov 21, 2015 | 06:10 PM
  #5
little'un's Avatar
little'un
Scooby Regular
iTrader: (9)

Joined: Oct 2003
Posts: 6,120
Likes: 0
From: InTheSticks
Default

Water pump failure - there's a bleed hole that allows coolant out of the pump when the seal fails. That's where it's coming from
Reply
Old Nov 21, 2015 | 07:08 PM
  #6
Evansawd's Avatar
Evansawd
Thread Starter
Scooby Regular

Joined: Apr 2014
Posts: 303
Likes: 0
From: Loughborough
Default

Originally Posted by ossett2k2
Who?

I had same on my old v3,was water pump,might as well do timing belt at same time.
AS Performance did me a good deal on belt kit and water pump.
There was some idiot user writing abuse on loads of thread's.

I'll have a look at water pumps then and Yeh timing belt needs doing so I guess forces me to do it. Are they much work??
Reply
Old Nov 21, 2015 | 07:25 PM
  #7
mickywrx's Avatar
mickywrx
Unmapped 12.4s @ 105
20 Year Member
iTrader: (29)

Joined: Apr 2005
Posts: 11,778
Likes: 4
From: Newcastle. 330bhp-289lb/ft @ 1bar boost - 12.4s @ 105mph
Post

Originally Posted by Evansawd
There was some idiot user writing abuse on loads of thread's.

I'll have a look at water pumps then and Yeh timing belt needs doing so I guess forces me to do it. Are they much work??
Not done a timing belt myself, I don't trust myself to not **** it up. Fiddly with the engine in place, easier than an inline 4 though. Radiator out makes things easier space wise.

Make sure the timing is right though. Friend of mine got someone to fit a belt for him, "specialised" in Mazda's. N/S cylinder head, the cams were 180 degrees out. It ran of a fashion.

If in doubt, pay someone that knows what they are doing to do it.
Reply

Trending Topics

Old Nov 21, 2015 | 07:38 PM
  #8
ossett2k2's Avatar
ossett2k2
Scooby Regular
iTrader: (9)

Joined: Jan 2007
Posts: 6,433
Likes: 39
From: Leeds
Default

Originally Posted by Evansawd
There was some idiot user writing abuse on loads of thread's.

I'll have a look at water pumps then and Yeh timing belt needs doing so I guess forces me to do it. Are they much work??
Ahh I missed the idiot troll lol!!
It's a bit of a pig of a job but if you're ok with mechanics you should be ok,it's a big old belt and having more than 2 hands helps.
There are some good guides about and I think a few YouTube vids which might help you out.
A good Subaru specialist will make fast easy work of it and the don't generally charge too much.
Reply
Old Nov 21, 2015 | 07:51 PM
  #9
1509joe's Avatar
1509joe
Scooby Regular
15 Year Member
Liked
Loved
Community Favorite
iTrader: (2)

Joined: Jan 2009
Posts: 3,487
Likes: 318
From: Not sure
Default

Simple enough job as said. It gets far easier with practice you don't need many tools until something goes T*Ts up. 10,12,14,17,22mm sockets and spanners. Screw driver jackstands and a vice to squeeze the tensioner.
Reply
Old Nov 22, 2015 | 11:54 AM
  #10
alcazar's Avatar
alcazar
Scooby Regular
20 Year Member
Liked
Loved
Community Favorite
iTrader: (2)

Joined: Jun 2002
Posts: 40,788
Likes: 30
From: Rl'yeh
Default

Could it be the crossover pipe at the base of the engine? Common for it to rust right through.
