Ever seen inside a Prodrive backbox? Take a look...

Old 18 September 2014, 11:04 PM
  #1
JayUK91
Scooby Regular
Thread Starter

JayUK91's Avatar

Join Date: Sep 2012
Location: Northants
Posts: 84
Default Ever seen inside a Prodrive backbox? Take a look...

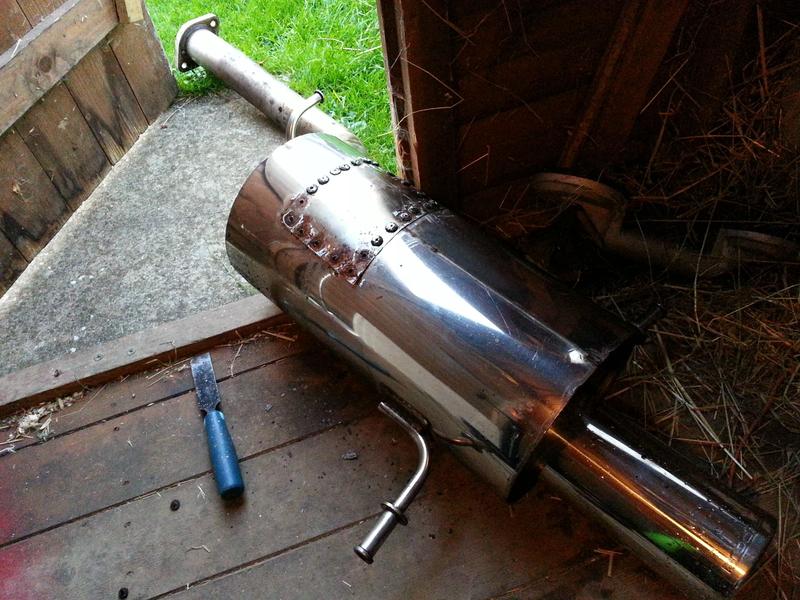

A little backstory. This is the original Prodrive exhaust recently removed from my Blob STi PPP. Upon taking the exhaust off the car, and cleaning it up a little, I was greeted with this:

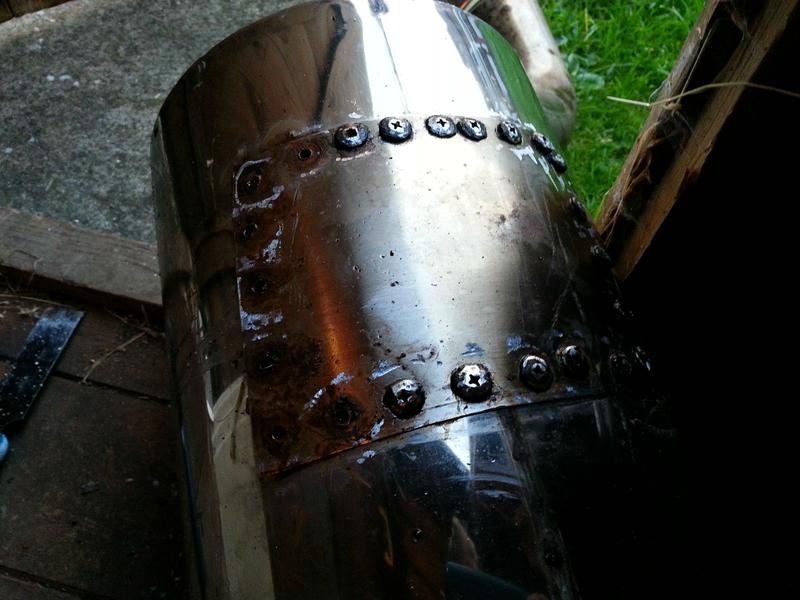

A nice big hole and an attempt to cover it up!

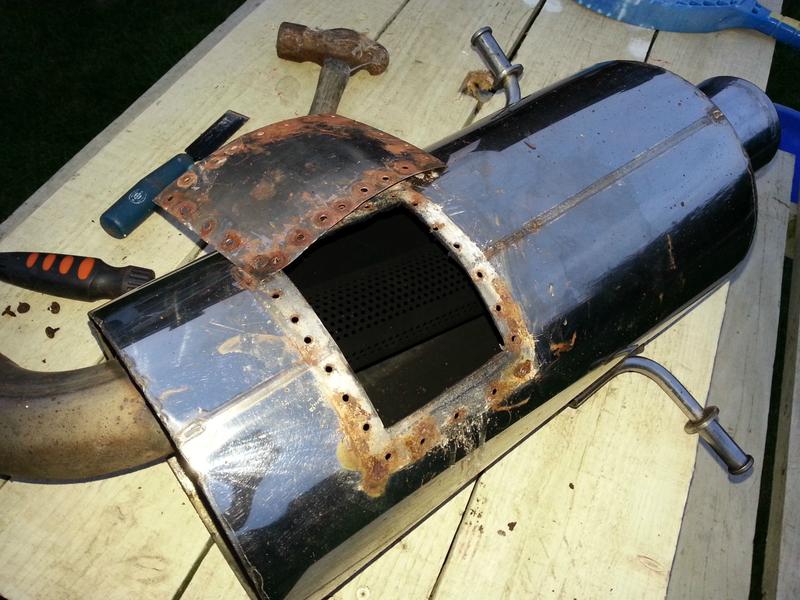

So being the inquisitive fella I am, I had to take the plate off and take a peek inside (after stripping every screw head and resorting to blunt force):

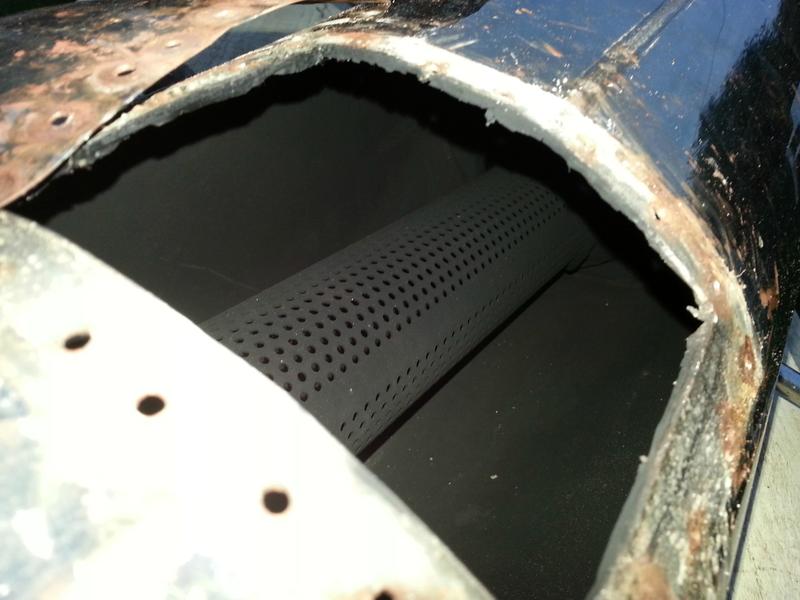

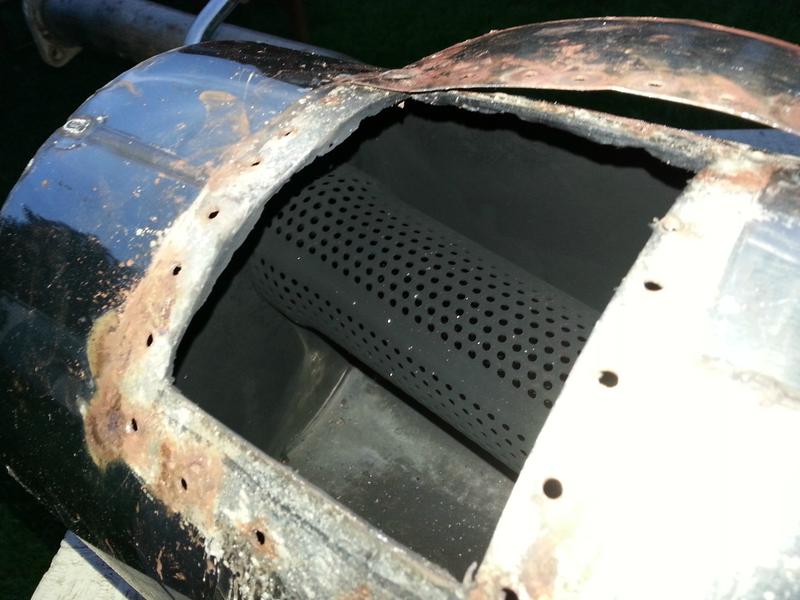

Just a single, perforated pipe.

Now I'm not a technical guy, but I can only assume that perhaps there was once a packing material in here to help muffle the sound?

So this got me thinking. For a bit of fun, now that there's a gaping hole in my spare backbox, is there any way I can try to alter the sound?

Just a couple of ideas:
  • Sleeve the perforated inner pipe with a sheet of aluminium, clamp it on and effectively have a 'straight through' backbox?
  • Tightly pack the chamber with material and have a makeshift 'Glasspack' exhaust?
Would this make any difference at all? I'm thinking not much - but is it something worth trying?
JayUK91 is offline
Old 18 September 2014, 11:10 PM
  #2
XDevil666
Scooby Regular

Join Date: Nov 2012
Location: leeds
Posts: 1,260
Default

Buy some exaust turbo whistles and put a few in there, would be good to see how it sounds lol

http://m.ebay.co.uk/itm/131103369294?nav=SEARCH
XDevil666 is offline
Old 18 September 2014, 11:41 PM
  #3
jaygsi
Scooby Regular
iTrader: (46)

jaygsi's Avatar

Join Date: Apr 2007
Location: uk
Posts: 12,085
Default

Hmmm, interesting, wouldn't bother with straight threw.

If you covered up some of the holes may give a deeper sound
jaygsi is offline
Old 19 September 2014, 06:27 AM
  #4
Turbotits
Scooby Regular
iTrader: (2)

Turbotits's Avatar

Join Date: Jan 2004
Location: Hertfordshire
Posts: 4,312
Default

I think that box has been cut open and had the sound deadening removed. So no a true likeness of the inside of a prodrive box.
Turbotits is offline
Old 19 September 2014, 09:27 AM
  #5
jazzyjembreaze
Scooby Regular
iTrader: (11)

jazzyjembreaze's Avatar

Join Date: Feb 2011
Location: Newcastle upon tyne
Posts: 2,731
Default

Wadding
jazzyjembreaze is offline
Old 19 September 2014, 10:21 AM
  #6
JayUK91
Scooby Regular
Thread Starter

JayUK91's Avatar

Join Date: Sep 2012
Location: Northants
Posts: 84
Default

Originally Posted by XDevil666 View Post
Buy some exaust turbo whistles and put a few in there, would be good to see how it sounds lol

http://m.ebay.co.uk/itm/131103369294?nav=SEARCH
Oh god, I don't think I could bring myself to do it.

Originally Posted by jaygsi View Post
Hmmm, interesting, wouldn't bother with straight threw.

If you covered up some of the holes may give a deeper sound
Is that a fact? I'm trying to visualise how the muffler chamber alters the sound but I'm clueless.

Originally Posted by Turbotits View Post
I think that box has been cut open and had the sound deadening removed. So no a true likeness of the inside of a prodrive box.
I bought and fitted a TSL Group N backbox to my car to replace this, but at the moment I'm a little disappointed with it. This is more than likely because this Prodrive exhaust was already louder than it was supposed to be with the wadding material removed.
JayUK91 is offline
Old 19 September 2014, 10:59 AM
  #7
53
Scooby Senior
iTrader: (41)

Join Date: Dec 2005
Location: Standing Up
Posts: 16,742
Default

That is proper pikey lol
53 is offline
Old 19 September 2014, 11:40 AM
  #8
JayUK91
Scooby Regular
Thread Starter

JayUK91's Avatar

Join Date: Sep 2012
Location: Northants
Posts: 84
Default

Originally Posted by 53 View Post
That is proper pikey lol
Tell me about it, I was gutted when I took it off the car - was hoping to sell it on, but no chance of that!
JayUK91 is offline
Old 19 September 2014, 12:14 PM
  #9
Rusti
Scooby Regular
iTrader: (3)

Rusti's Avatar

Join Date: Sep 2014
Location: Hampshire
Posts: 894
Default

Oh dear! that is a gash job.
Rusti is offline
