ecu remap
15 January 2013, 11:18 PM
#1
Scooby Regular
Thread Starter
iTrader: (1)
Join Date: Jan 2012
Location: south wales
Posts: 189
Likes: 0
Received 0 Likes
on
0 Posts
ecu remap
how can i tell if my car has been remapped?
the guy i bought it from said its been mapped and has a daughterboard fitted?
my cars a 1998 uk turbo
do these look different to a normal board on a ecu?
thanks guys
the guy i bought it from said its been mapped and has a daughterboard fitted?
my cars a 1998 uk turbo
do these look different to a normal board on a ecu?
thanks guys
15 January 2013, 11:21 PM
#2
What modifications has your car got, because if you say "this and that", then you'd be best getting it looked at anyway. I wouldnt trust anyone's word when buying a car unless I knew or trusted them.
A novice's tweak here and there followed by a 3" decat = Bang!
You do right to ask though
Rob
A novice's tweak here and there followed by a 3" decat = Bang!
You do right to ask though
Rob
16 January 2013, 12:16 AM
#3
Scooby Regular
Thread Starter
iTrader: (1)
Join Date: Jan 2012
Location: south wales
Posts: 189
Likes: 0
Received 0 Likes
on
0 Posts
its had a decat and stainless straight through its real loud and pops,its got front mount intercooler on it,and the guy said its been remapped and is at 285bhp now but it really dont feel like. my revs aint going down quick enough either when changing gear so dont know what the cause of this would be, iv sprayed the cable with WD40 and cleaned idle control valve but still the same.
16 January 2013, 02:28 AM
#4
Without going into lots if detail, you need to get it looked at , as you don't need front mount intercooler for the power you got, if its not mapped your on borrowed time if not already too late ;(
Last edited by Rob Day; 16 January 2013 at 02:32 AM.
16 January 2013, 09:04 AM
#5
Scooby Regular
iTrader: (1)
Join Date: May 2011
Location: Nottingham
Posts: 2,263
Likes: 0
Received 0 Likes
on
0 Posts
You've really got 2 options mate
Either ask they guy who you purchased it from , who mapped the car , then speak with the mapper ( most decent ones will have records )
Or get it plugged in by a mapper and they will know straight away if and what's been done
Either ask they guy who you purchased it from , who mapped the car , then speak with the mapper ( most decent ones will have records )
Or get it plugged in by a mapper and they will know straight away if and what's been done
16 January 2013, 10:34 AM
#6
Scooby Regular
Join Date: Dec 2012
Location: England
Posts: 282
Likes: 0
Received 0 Likes
on
0 Posts
Start with the basics first like fault codes, air leaks, checking sensors. Make sure what you've got is working.
Regarding the ecu, take it out of the car (it's under the carpet in passenger footwell under a metal plate) and take the cover off the ecu. You can see if a daughter boards been added. Check here for details http://www.chip-racing.ch/en/chip-ra...u-my1992-1998/
If you're not sure what to do then you need to take it to an expert, don't guess and don't keep replacing parts until it fixes it like most do. Be careful where you go as not all experts are experts.
edit - 1998 year car could be a v4 or v5. if it's a v5 a daughter board wouldn't be needed. V4 would be yellow connections on ecu and v5 would be grey.
Regarding the ecu, take it out of the car (it's under the carpet in passenger footwell under a metal plate) and take the cover off the ecu. You can see if a daughter boards been added. Check here for details http://www.chip-racing.ch/en/chip-ra...u-my1992-1998/
If you're not sure what to do then you need to take it to an expert, don't guess and don't keep replacing parts until it fixes it like most do. Be careful where you go as not all experts are experts.
edit - 1998 year car could be a v4 or v5. if it's a v5 a daughter board wouldn't be needed. V4 would be yellow connections on ecu and v5 would be grey.
Last edited by jason_2013; 16 January 2013 at 10:38 AM.
16 January 2013, 10:44 AM
#7
Scooby Regular
iTrader: (1)
Join Date: May 2011
Location: Nottingham
Posts: 2,263
Likes: 0
Received 0 Likes
on
0 Posts
Start with the basics first like fault codes, air leaks, checking sensors. Make sure what you've got is working.
Regarding the ecu, take it out of the car (it's under the carpet in passenger footwell under a metal plate) and take the cover off the ecu. You can see if a daughter boards been added. Check here for details http://www.chip-racing.ch/en/chip-ra...u-my1992-1998/
If you're not sure what to do then you need to take it to an expert, don't guess and don't keep replacing parts until it fixes it like most do. Be careful where you go as not all experts are experts.
edit - 1998 year car could be a v4 or v5. if it's a v5 a daughter board wouldn't be needed. V4 would be yellow connections on ecu and v5 would be grey.
Regarding the ecu, take it out of the car (it's under the carpet in passenger footwell under a metal plate) and take the cover off the ecu. You can see if a daughter boards been added. Check here for details http://www.chip-racing.ch/en/chip-ra...u-my1992-1998/
If you're not sure what to do then you need to take it to an expert, don't guess and don't keep replacing parts until it fixes it like most do. Be careful where you go as not all experts are experts.
edit - 1998 year car could be a v4 or v5. if it's a v5 a daughter board wouldn't be needed. V4 would be yellow connections on ecu and v5 would be grey.
First port of call if I were the op would be a decent mapper , who might at the same time be able to identify any obvious faults
Trending Topics
17 January 2013, 08:51 PM
#9
Try not to run it period.
If you have to run it to say get it to a garage, then run it off boost, say uinder 2'500 revs or on light load, this is obviously assuming that its something as simple as bad vac pipe issue and not something more sinister!
I see your in South wales, Im not sure who to recommend to you down there other than Alan Jeffery's (Engine Tuner) which might be a little OTT for what issue(s) you have.
Rob
If you have to run it to say get it to a garage, then run it off boost, say uinder 2'500 revs or on light load, this is obviously assuming that its something as simple as bad vac pipe issue and not something more sinister!
I see your in South wales, Im not sure who to recommend to you down there other than Alan Jeffery's (Engine Tuner) which might be a little OTT for what issue(s) you have.
Rob
18 January 2013, 08:30 PM
#15
Ecu Specialist
If you want to take the cover off the ecu, mail me a clear pic of it I will be able to tell you if its had an ESL upgrade fitted or something other.
then you can make some informed decisions iyswim.
cheers
bob
then you can make some informed decisions iyswim.
cheers
bob
18 January 2013, 10:06 PM
#16
Scooby Regular
Thread Starter
iTrader: (1)
Join Date: Jan 2012
Location: south wales
Posts: 189
Likes: 0
Received 0 Likes
on
0 Posts
yes plenty of snow with us here and a shame i cant use my scooby

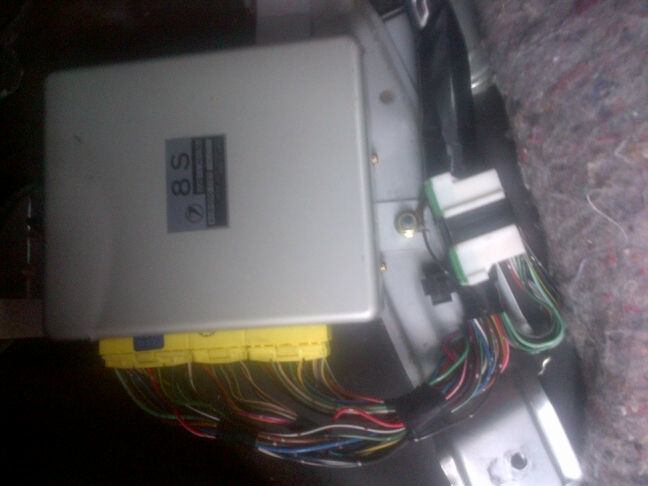

thanks bob will do that and post a pic here
THIS WAS THE EXACT TXT THAT I HAD OFF PREVIOUS OWNER.

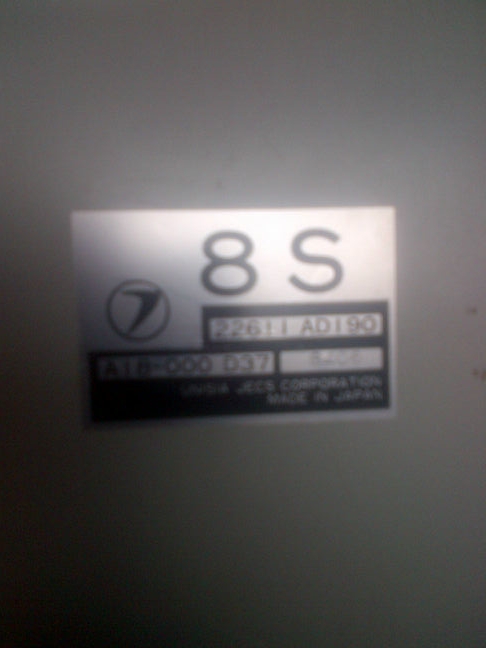

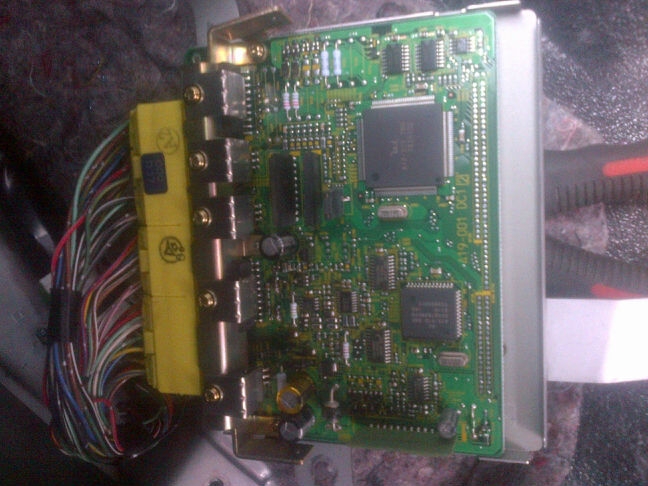

its got a y7 ecu ( standard ) with an esl daughterboard fitted, the casing had ecutek and date on it.
whatever that mean i dont no as im useless but i will get a clear pic of it and put it up tommorow.
thanks bob will do that and post a pic here
THIS WAS THE EXACT TXT THAT I HAD OFF PREVIOUS OWNER.
its got a y7 ecu ( standard ) with an esl daughterboard fitted, the casing had ecutek and date on it.
whatever that mean i dont no as im useless
but i will get a clear pic of it and put it up tommorow.
Last edited by ryanscooby25; 18 January 2013 at 10:15 PM.
18 January 2013, 10:46 PM
#17
Scooby Regular
iTrader: (1)
Join Date: May 2011
Location: Nottingham
Posts: 2,263
Likes: 0
Received 0 Likes
on
0 Posts
It's what map it's running that's important , not the hardware , he's aware it's esl but that in itself is no indication of how it's set up
He needs to take it to a mapper or find out who mapped it
He needs to take it to a mapper or find out who mapped it
19 January 2013, 07:25 PM
#19
Scooby Regular
Thread Starter
iTrader: (1)
Join Date: Jan 2012
Location: south wales
Posts: 189
Likes: 0
Received 0 Likes
on
0 Posts
drove my car home from work this morning as i had no other way of getting home and it drove as it should and the boost is at 1.5bar where it was boosting since i bought the car so its back to normal dont no what went on with it.
19 January 2013, 07:32 PM
#20
Either way you need it looking at.
I would be more concerned if it was my car now than when it was blatently running poorly, as now it could repeat when you least expect under bad conditions, and next time it might not be as straight to get it running normal (engine damage)
I would be more concerned if it was my car now than when it was blatently running poorly, as now it could repeat when you least expect under bad conditions, and next time it might not be as straight to get it running normal (engine damage)
19 January 2013, 07:39 PM
#21
Scooby Regular
iTrader: (1)
Join Date: May 2011
Location: Nottingham
Posts: 2,263
Likes: 0
Received 0 Likes
on
0 Posts
Restrictor pill blocked a little , numerous things
Like rob said you would be best getting it checked over even if it don't occur again at least you will get a little more peace of mind
19 January 2013, 07:45 PM
#22
Scooby Regular
Thread Starter
iTrader: (1)
Join Date: Jan 2012
Location: south wales
Posts: 189
Likes: 0
Received 0 Likes
on
0 Posts
im awaiting reply on my facebook from indigo gt to get it booked in.1 thing i have noticed is strong smell of petrol all the time.
Last edited by ryanscooby25; 19 January 2013 at 07:50 PM.
20 January 2013, 08:18 PM
#26
Scooby Regular
Thread Starter
iTrader: (1)
Join Date: Jan 2012
Location: south wales
Posts: 189
Likes: 0
Received 0 Likes
on
0 Posts
my friend said the same thing.its been boosting at 1.5 bar since iv owned the car and iv had it a few months,also got decat straight thro and front mount intercooler and pipercross cone ( sponge filter ) on it so im lost with what to do next.
thanks for reply.
thanks for reply.
20 January 2013, 08:24 PM
#27
Scooby Regular
iTrader: (6)
Join Date: May 2012
Location: Cardiff
Posts: 3,221
Likes: 0
Received 0 Likes
on
0 Posts
If its a 2000 ecu it may have the ecutek map as I believe they didn't require a ESL board, and if it had a ecutek sticker on there I would be inclined to think that's what it's got if that's the case
I'm sure somebody will correct me if I'm wrong
EFA :- just seen the pics so its not even the ecu he said it had, just get it up to indigo if that's your preferred choice and see what they say
I'm sure somebody will correct me if I'm wrong
EFA :- just seen the pics so its not even the ecu he said it had, just get it up to indigo if that's your preferred choice and see what they say
Last edited by Infected by sti; 20 January 2013 at 08:29 PM.
20 January 2013, 08:25 PM
#28
Scooby Regular
iTrader: (1)
Join Date: May 2011
Location: Nottingham
Posts: 2,263
Likes: 0
Received 0 Likes
on
0 Posts
Take it to a mapper and get it plugged in , they will tell you instantly if its been mapped , if it hasn't get it mapped
Or keep driving it ( not that advisable ) unless you're gonna take it very steady even then you could be playing with fire
They are you're only options at this moment in time mate
Or keep driving it ( not that advisable ) unless you're gonna take it very steady even then you could be playing with fire
They are you're only options at this moment in time mate
