Swapping esl board from ecu

Old 01 October 2018, 10:12 AM
  #1
jaygsi
Scooby Regular
Thread Starter
iTrader: (46)

jaygsi's Avatar

Join Date: Apr 2007
Location: uk
Posts: 12,085
Default Swapping esl board from ecu

Just after abit of advice on swapping over an esl board on a JDM ecu to my uk ecu. I know I could swap is it crank sensor connection over. But prefer it on original Ecu.
jaygsi is offline
Old 02 October 2018, 09:45 AM
  #2
bludgod
Scooby Regular
iTrader: (3)

bludgod's Avatar

Join Date: Feb 2007
Location: Belfast
Posts: 1,738
Default

the install docs are on the website mr:
ESL DOCS

So reverse the process to remove the board and set the JDM ecu back to standard, then follow the instructions to install the board on your UK ecu. I wouldn't bother myself if its in the JDM ecu now and working just swap the pins over and fire it up rather than risk damaging either ECU or the ESL board itself.
bludgod is offline
Old 02 October 2018, 11:47 PM
  #3
jaygsi
Scooby Regular
Thread Starter
iTrader: (46)

jaygsi's Avatar

Join Date: Apr 2007
Location: uk
Posts: 12,085
Default

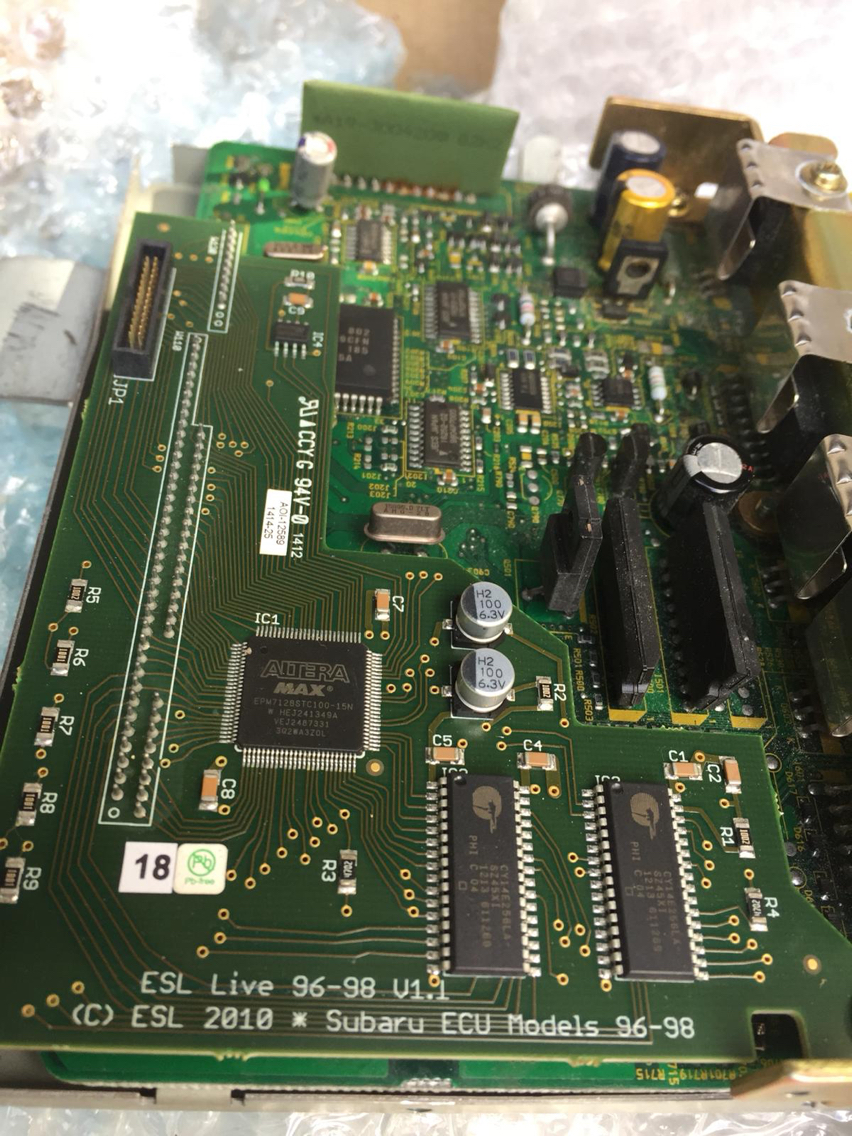

Ok cheers I did think about that. Will need it sending off to reset ecu to standard. Picture below of board.


Click image for larger version

Name:	photo4294967206.jpg
Views:	0
Size:	1.00 MB
ID:	72363
jaygsi is offline
Old 03 October 2018, 09:43 AM
  #4
bludgod
Scooby Regular
iTrader: (3)

bludgod's Avatar

Join Date: Feb 2007
Location: Belfast
Posts: 1,738
Default

I think that's the old ESL board the v1.1 - pretty sure the current ones are v2.0 now so may not be worth re-using it as the software is tricky to get working and it's not as flexible as the new 2.0 board.
bludgod is offline
Old 03 October 2018, 02:21 PM
  #5
The Rig
Scooby Regular
iTrader: (13)

The Rig's Avatar

Join Date: Dec 2002
Posts: 7,793
Default

That board isnt even mappable, only the v1.1a was back i the day.
The Rig is offline
Old 03 October 2018, 09:29 PM
  #6
ossett2k2
Scooby Regular
iTrader: (9)

ossett2k2's Avatar

Join Date: Jan 2007
Location: Leeds
Posts: 6,183
Default

It's the latest board,the only one for the v3/4 car.
The early v1 board was pre96 afaik

Last edited by ossett2k2; 03 October 2018 at 09:31 PM.
ossett2k2 is online now
Old 03 October 2018, 09:33 PM
  #7
ossett2k2
Scooby Regular
iTrader: (9)

ossett2k2's Avatar

Join Date: Jan 2007
Location: Leeds
Posts: 6,183
Default

Did it come with motorsport pack jay?
ossett2k2 is online now
Old 03 October 2018, 10:49 PM
  #8
jaygsi
Scooby Regular
Thread Starter
iTrader: (46)

jaygsi's Avatar

Join Date: Apr 2007
Location: uk
Posts: 12,085
Default

Cheers for info Rich thought there was only one board for the v3,v4. Not sure about motorsport pack, guessing its just software and no visual evidence.


Originally Posted by ossett2k2 View Post
It's the latest board,the only one for the v3/4 car.
The early v1 board was pre96 afaik
jaygsi is offline
Old 03 October 2018, 10:57 PM
  #9
jaygsi
Scooby Regular
Thread Starter
iTrader: (46)

jaygsi's Avatar

Join Date: Apr 2007
Location: uk
Posts: 12,085
Default

Nearly gave me a heart attack





Originally Posted by The Rig View Post
That board isnt even mappable, only the v1.1a was back i the day.


jaygsi is offline
Old 04 October 2018, 08:20 AM
  #10
ossett2k2
Scooby Regular
iTrader: (9)

ossett2k2's Avatar

Join Date: Jan 2007
Location: Leeds
Posts: 6,183
Default

Originally Posted by jaygsi View Post
Cheers for info Rich thought there was only one board for the v3,v4. Not sure about motorsport pack, guessing its just software and no visual evidence.
Correct jay,you'll need to plug in to see if you've got the motorsport
if you've got the data cable you will be able to reset it back to the OE map to save you sending it off,all you'll need is a copy of the 8s rom.
ossett2k2 is online now
Old 04 October 2018, 11:17 AM
  #11
jaygsi
Scooby Regular
Thread Starter
iTrader: (46)

jaygsi's Avatar

Join Date: Apr 2007
Location: uk
Posts: 12,085
Default

Will ask Andy how much, just what 2 maps for now standard and Prodrive. Then will get it mapped. will do some searches, think someone on here had a cable up for grabs.
jaygsi is offline
Old 04 October 2018, 11:57 AM
  #12
The Rig
Scooby Regular
iTrader: (13)

The Rig's Avatar

Join Date: Dec 2002
Posts: 7,793
Default

Ha lucky 1 of us on here looks a bit further, i just saw the writing, didnt even think to look at the shape of the board , sorry lol
The Rig is offline
Old 04 October 2018, 03:27 PM
  #13
jaygsi
Scooby Regular
Thread Starter
iTrader: (46)

jaygsi's Avatar

Join Date: Apr 2007
Location: uk
Posts: 12,085
Default

Lucky didn't bin it in frustration


Originally Posted by The Rig
Ha lucky 1 of us on here looks a bit further, i just saw the writing, didnt even think to look at the shape of the board , sorry lol
jaygsi is offline
Old 28 October 2018, 07:06 PM
  #14
jaygsi
Scooby Regular
Thread Starter
iTrader: (46)

jaygsi's Avatar

Join Date: Apr 2007
Location: uk
Posts: 12,085
Default

Guessing if I did that it wouldn't get rid of motor sport pack not that I think it's on there? Guy I bought it off said it came of his Terzo so guessing that will be straight swap no need for swapping ecu connections around.


Originally Posted by ossett2k2
Correct jay,you'll need to plug in to see if you've got the motorsport
if you've got the data cable you will be able to reset it back to the OE map to save you sending it off,all you'll need is a copy of the 8s rom.
jaygsi is offline
Old 28 October 2018, 09:41 PM
  #15
chrispy200+
Scooby Regular
iTrader: (2)

Join Date: Oct 2002
Location: Aldershot
Posts: 1,861
Default

I've got the 1.2 v3/4 board in mine and been told it's pretty much had it in that the software to map isn't there so they would need to resurrect it.
the v2 is current
chrispy200+ is offline
Old 28 October 2018, 10:49 PM
  #16
jaygsi
Scooby Regular
Thread Starter
iTrader: (46)

jaygsi's Avatar

Join Date: Apr 2007
Location: uk
Posts: 12,085
Default

You sure bud as ESL website doesn't mention v2?
jaygsi is offline
Old 29 October 2018, 01:22 AM
  #17
ossett2k2
Scooby Regular
iTrader: (9)

ossett2k2's Avatar

Join Date: Jan 2007
Location: Leeds
Posts: 6,183
Default

Originally Posted by jaygsi View Post
Guessing if I did that it wouldn't get rid of motor sport pack not that I think it's on there? Guy I bought it off said it came of his Terzo so guessing that will be straight swap no need for swapping ecu connections around.
Nice one,no need to swap pins from uk terzo.
No you wouldn't lose motorsport.

Originally Posted by chrispy200+ View Post
I've got the 1.2 v3/4 board in mine and been told it's pretty much had it in that the software to map isn't there so they would need to resurrect it.
the v2 is current
It's the v1.1 and the only version for 97/98 afaik,I run it and map mine,the software is nice to use.
ossett2k2 is online now
Old 29 October 2018, 09:20 AM
  #18
chrispy200+
Scooby Regular
iTrader: (2)

Join Date: Oct 2002
Location: Aldershot
Posts: 1,861
Default

That came from esl direct, messaged them
chrispy200+ is offline
Old 29 October 2018, 10:20 AM
  #19
ossett2k2
Scooby Regular
iTrader: (9)

ossett2k2's Avatar

Join Date: Jan 2007
Location: Leeds
Posts: 6,183
Default

From esl website,same board I use.
Have you got a cable with yours?
Software is rediliy available and works fine for me.

ossett2k2 is online now
