Ecu pin out help with pics

Can any one help?

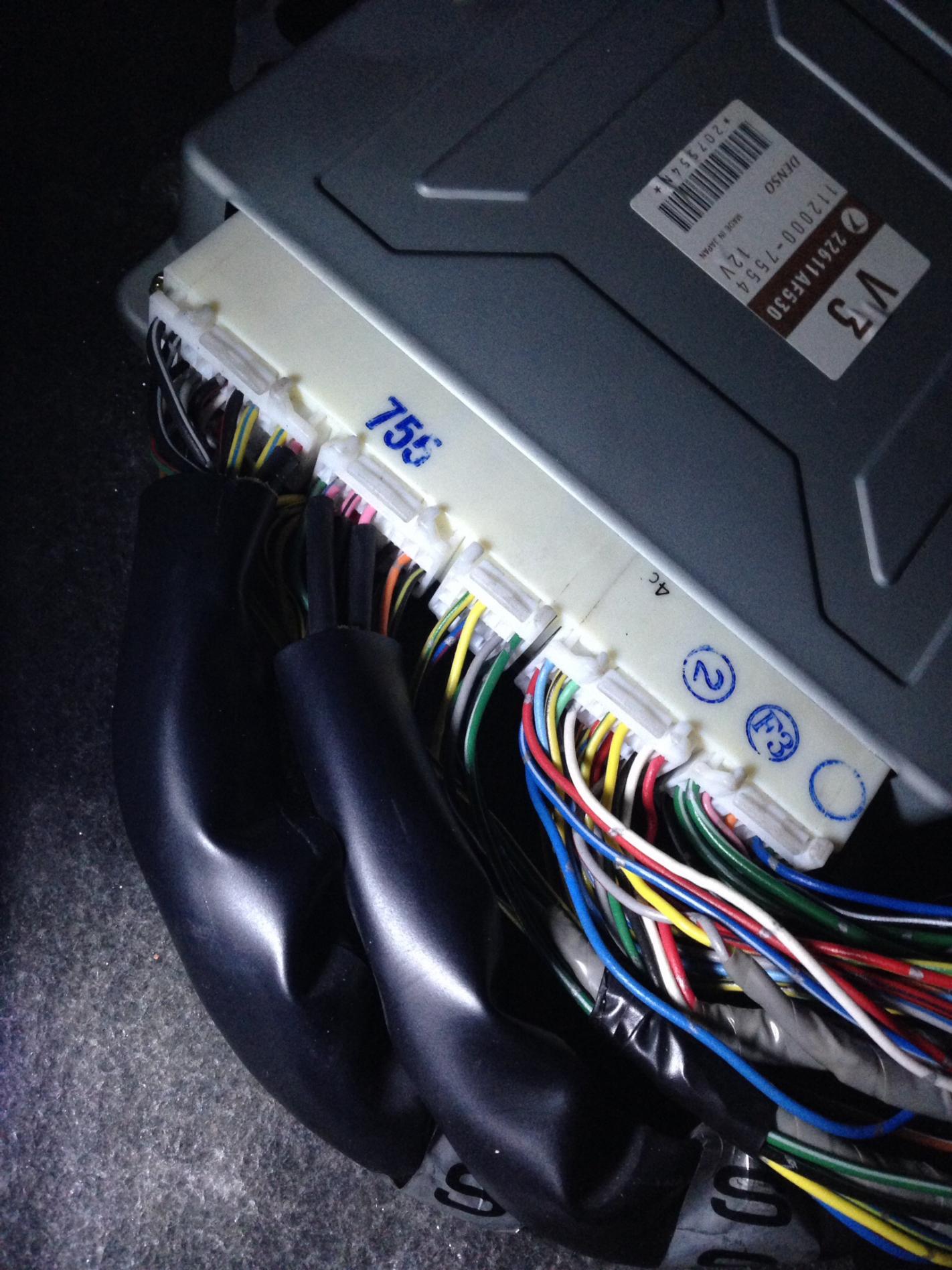

I need a wireing diagram for this ecu! I'm wiring in a apexi avcr. I've looked everywhere but carnt seem to be getting anywhere.

Thanks in advance

Attached Thumbnails

Click image for larger version

Name: image.jpg
Views: 0
Size: 292.2 KB
ID: 16290

Reply Like

05 May 2014, 10:43 PM

piehole1983

Scooby Regular

iTrader: (7)

Join Date: Mar 2013

Location: Belfast

Posts: 2,999

Likes: 0

Received 0 Likes on 0 Posts

Have you looked here?

http://ken-gilbert.com/impreza-manuals

Reply Like

05 May 2014, 10:44 PM

piehole1983

Scooby Regular

iTrader: (7)

Join Date: Mar 2013

Location: Belfast

Posts: 2,999

Likes: 0

Received 0 Likes on 0 Posts

What exactly are you trying to connect to?

Reply Like

06 May 2014, 10:28 AM

SCOOBYNIPPA

Scooby Regular

Thread Starter

iTrader: (3)

Join Date: Jan 2009

Location: Midlands

Posts: 343

Likes: 0

Received 0 Likes on 0 Posts

I'll have a look at that bud thanks.

These are the wires from my apexi avcr I need to wire into the ecu

Red wire (ig power)
Purple wire (rpm signal)
Green wire (ground)
Black wire (ground)
Gray wire (throttle signal)
White wire (speed signal)
