Subaru Impreza (all models) ABS Delete Kits.
Full abs delete kits available for all makes and models.
These kits replace all the standard hard lines throughout the car, from the master cylinder to the wheel arches (calliper lines available seperately) replacing them for high performance Teflon lined stainless steel braided hoses in a wide range of colours, removing the factory abs units which isnt up to much and has been known to be extremely dangerous.

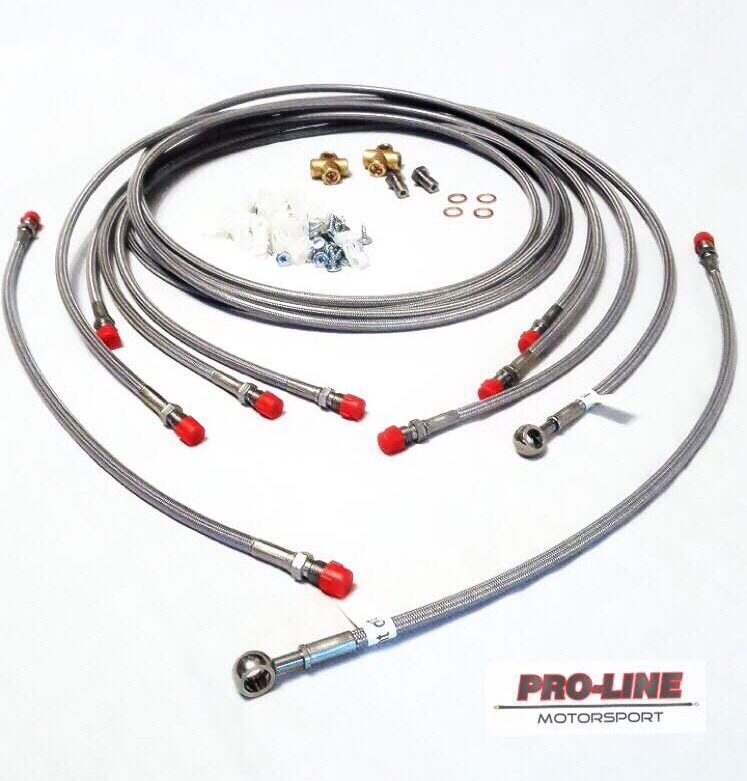

Kit will include:
Line from BMC to front tee piece
2x lines from front tee piece to inner wings
Line from BMC to rear tee piece
2x Lines from rear tee piece to inner wings
2x Tee pieces
20x Nylon P clips
20x Self tapping screws
2x New banjo bolts
4x Copper washers
Half kit also available, which is consists of:
Line from BMC to front tee piece
2x lines from front tee piece to inner wings
Line from BMC to a tee piece to connect existing hard lines to.
2x Tee pieces
10x Nylon P clips
10x Self tapping screws
2x New banjo bolts
4x Copper washers
Full bulkhead kit also available, see below.
We can also supply custom kits to your requirements, through car bulkhead fittings/hydraulic handbrake connections and bias valves. Bias valves also available, Wilwood, Tilton and AP Racing.
All of our brake lines are professionally assembled in house using Hel performance fittings.
Full kit £184.99
Half kit £139.99
Full kit with bulkhead fittings £195.....this kit is designed for cars with stripped interiors where no rear seats are in place etc as the lines run the centre of the car and split across the rear in place of the bench, includes lines with bulkhead fittings for a more proffesional, neater install.
These kits replace all the standard hard lines throughout the car, from the master cylinder to the wheel arches (calliper lines available seperately) replacing them for high performance Teflon lined stainless steel braided hoses in a wide range of colours, removing the factory abs units which isnt up to much and has been known to be extremely dangerous.
Kit will include:
Line from BMC to front tee piece
2x lines from front tee piece to inner wings
Line from BMC to rear tee piece
2x Lines from rear tee piece to inner wings
2x Tee pieces
20x Nylon P clips
20x Self tapping screws
2x New banjo bolts
4x Copper washers
Half kit also available, which is consists of:
Line from BMC to front tee piece
2x lines from front tee piece to inner wings
Line from BMC to a tee piece to connect existing hard lines to.
2x Tee pieces
10x Nylon P clips
10x Self tapping screws
2x New banjo bolts
4x Copper washers
Full bulkhead kit also available, see below.
We can also supply custom kits to your requirements, through car bulkhead fittings/hydraulic handbrake connections and bias valves. Bias valves also available, Wilwood, Tilton and AP Racing.
All of our brake lines are professionally assembled in house using Hel performance fittings.
Full kit £184.99
Half kit £139.99
Full kit with bulkhead fittings £195.....this kit is designed for cars with stripped interiors where no rear seats are in place etc as the lines run the centre of the car and split across the rear in place of the bench, includes lines with bulkhead fittings for a more proffesional, neater install.
Last edited by Pro-Line Motorsport; 20 April 2016 at 08:43 PM.
21 January 2016, 01:47 PM
#4
Scooby Regular
So would the car pass an MOT with the kit fitted as the car came with ABS so now it is not standard and how would insurance be affected.
Last edited by johned; 21 January 2016 at 01:48 PM. Reason: extra info.
21 January 2016, 02:07 PM
#5
I have this kit(not fitted yet)
It doesn't come with any instructions but a member on here(piehole) was very helpful
He also sent me this link regarding MOT so all seems good if done correctly,not sure on insurance but if its ok for MOT then i can't see a problem.
http://www.motuk.co.uk/manual_340.htm
It doesn't come with any instructions but a member on here(piehole) was very helpful
He also sent me this link regarding MOT so all seems good if done correctly,not sure on insurance but if its ok for MOT then i can't see a problem.
http://www.motuk.co.uk/manual_340.htm
21 January 2016, 02:42 PM
#6
Scooby Regular
Hey there could you please educate uneducated regarding this kit.
I assume this is for race/track application? I just dont understand how this would benefit me taking my ABS off... I was under impression that ABS was a safety feature...
Thanks in advance
I assume this is for race/track application? I just dont understand how this would benefit me taking my ABS off... I was under impression that ABS was a safety feature...
Thanks in advance
21 January 2016, 02:49 PM
#7
From what i feel on hard(and sometimes not so hard) braking then the subaru ABS system if far from safe,i do have a non standard brake set up tho so can only tell you how it feels on my car,6 pot fronts,brembo 2 pot rears,and i wanted the kit so i could brake hard with confidence.
Last edited by ossett2k2; 21 January 2016 at 02:51 PM.
Trending Topics
21 January 2016, 06:33 PM
#8
Former Sponsor
Thread Starter
Join Date: Sep 2015
Location: south east
Posts: 220
Likes: 0
Received 0 Likes
on
0 Posts
Yes as long as it is removed correctly then will pass an mot no problem.
The reasoning behind the delete kits is that the abs units on subarus, in fact most japanese cars is horrendous, very dangerous and causes more accidents than saved ones. With the kits fitted it gives a true and positive feel to the brakes putting you the driver in control, not a unit that should have undergone a bit more of a thorough check before leaving the factory.
It is more of a race/track application as abs (especially bad abs) isnt good for hard breaking on track, although seems many are using on the road cars to rid the problems also.
All kits are now supplied with instructions
The reasoning behind the delete kits is that the abs units on subarus, in fact most japanese cars is horrendous, very dangerous and causes more accidents than saved ones. With the kits fitted it gives a true and positive feel to the brakes putting you the driver in control, not a unit that should have undergone a bit more of a thorough check before leaving the factory.
It is more of a race/track application as abs (especially bad abs) isnt good for hard breaking on track, although seems many are using on the road cars to rid the problems also.
All kits are now supplied with instructions
21 January 2016, 07:20 PM
#9
Mitch,is there any chance you can fire over some instructions for me please?
Think I have got to grips with it,where the lines go ect but instructions would be good
If it's possible for you to email/pm them I would be grateful
Edit: doesn't matter tbh,piehole who is pretty switched on when it comes to this kind of thing has helped me out.
It was the ends that fit to the bmc I couldn't get my head around but it seem you have put different ends on to the oem brake lines and put banjo ends on instead.
Think I have got to grips with it,where the lines go ect but instructions would be good
If it's possible for you to email/pm them I would be grateful
Edit: doesn't matter tbh,piehole who is pretty switched on when it comes to this kind of thing has helped me out.
It was the ends that fit to the bmc I couldn't get my head around but it seem you have put different ends on to the oem brake lines and put banjo ends on instead.
Last edited by ossett2k2; 21 January 2016 at 07:38 PM.
21 January 2016, 09:17 PM
#10
Former Sponsor
Thread Starter
Join Date: Sep 2015
Location: south east
Posts: 220
Likes: 0
Received 0 Likes
on
0 Posts
Hi Rich, if you do still require instructions or any help with any queries you may have just ask mate you can call, text, email pm etc and il be happy to help.
Yes the oem fittings are replaced in the kits with banjos, only real reason is for neatness, i can make them however you wish though, i have made kits on request using 90degree fittings, twin entry banjos, double banjo and bolt (eliminating the tee pieces) etc etc. Doesnt effect performance at all, just personal preference
Yes the oem fittings are replaced in the kits with banjos, only real reason is for neatness, i can make them however you wish though, i have made kits on request using 90degree fittings, twin entry banjos, double banjo and bolt (eliminating the tee pieces) etc etc. Doesnt effect performance at all, just personal preference
21 January 2016, 09:40 PM
#11
Hi Rich, if you do still require instructions or any help with any queries you may have just ask mate you can call, text, email pm etc and il be happy to help.
Yes the oem fittings are replaced in the kits with banjos, only real reason is for neatness, i can make them however you wish though, i have made kits on request using 90degree fittings, twin entry banjos, double banjo and bolt (eliminating the tee pieces) etc etc. Doesnt effect performance at all, just personal preference
Yes the oem fittings are replaced in the kits with banjos, only real reason is for neatness, i can make them however you wish though, i have made kits on request using 90degree fittings, twin entry banjos, double banjo and bolt (eliminating the tee pieces) etc etc. Doesnt effect performance at all, just personal preference
Looking forward to fitting this kit and removing the cr@p ABS
21 January 2016, 10:38 PM
#13
If an ABS or ESC system has been intentionally rendered inoperative, the whole system must be removed. However, this does not apply to sensor rings or other ABS components which are an integral part of another component e.g. brake disc or drive shaft.
22 January 2016, 12:12 PM
#15
I don't think it's safe so it's going in the bin
If it's totally road legal to do so as stated in the UK MOT manual then why would the insurance company not like it?
Personally I think my 6 pots will be more than safe enough and imo the oem brakes would work better without the Subaru's attempt at an ABS system.
22 February 2016, 01:43 PM
#19
Scooby Regular
iTrader: (18)
Join Date: May 2006
Location: Middx / Herts / Bucks / Essex
Posts: 3,420
Likes: 0
Received 1 Like
on
1 Post
Had my ABS kit supplied and fitted by Mitch at Proline, very happy with the results, top guy and excellent workmanship!
The car handles so much better without the ABS I highly recommend this especially if your tracking your car!
The car handles so much better without the ABS I highly recommend this especially if your tracking your car!
15 March 2016, 05:36 PM
#23
Former Sponsor
Thread Starter
Join Date: Sep 2015
Location: south east
Posts: 220
Likes: 0
Received 0 Likes
on
0 Posts
Hi Phil, pretty sure its only the non abs cars that have a factory bias valve as its the abs module that does the biasing.
But yes, a stock non abs bias valve can be used as long as we are aware upon making your order.
Bare in mind its not adjustable though.
Regards.
But yes, a stock non abs bias valve can be used as long as we are aware upon making your order.
Bare in mind its not adjustable though.
Regards.
