TMIC cleaning
#1
Scooby Regular
Thread Starter
iTrader: (2)
Join Date: Jan 2008
Posts: 149
Likes: 0
Received 0 Likes
on
0 Posts
TMIC cleaning
Has anyone cleaned the top mount intercooler before ? More so a newage STi TMIC's.
As happens through time it fades and begins to look a little grubby. Be good to know what products/techniques were used to clean it up and then effectively protect it.
Failing it being able to be cleaned can it be painted safely ?? With what ?
As happens through time it fades and begins to look a little grubby. Be good to know what products/techniques were used to clean it up and then effectively protect it.
Failing it being able to be cleaned can it be painted safely ?? With what ?
#4
Former Sponsor
iTrader: (3)
Join Date: Feb 2006
Location: AB51 0TH
Posts: 2,562
Likes: 0
Received 0 Likes
on
0 Posts
There have been several threads posted about this over the last year, many showing the processs with pictures - try searching for threads started by mneame and swisstony. In short, you'll need a strong engine degreaser and a set of detailing brushes to enable access to all of the hard to reach bits. A pressure washer set to low is also very useful, but mind you keep it on low so as not to damage the fins. Suitable products and brushes can be found here...
http://www.polishedbliss.co.uk/acata...dressings.html
and a generic engine bay cleaning guide here...
http://www.polishedbliss.co.uk/acata...n-engines.html
http://www.polishedbliss.co.uk/acata...dressings.html
and a generic engine bay cleaning guide here...
http://www.polishedbliss.co.uk/acata...n-engines.html
#5
Scooby Regular
iTrader: (2)
Rich at PB can supply all you need. Megs Super Degreaser, a spray bottle, chemical spray head (or go for the r222 and it's ready to spray) and various soft brushes. To finish and protect 303 aerospace sealant.
The key is to take your time and repeat the proceedure rather than go heavy handed.
Couple of before and after. I'll try and find a previous thread for the process I use. If not I'll type it up for you

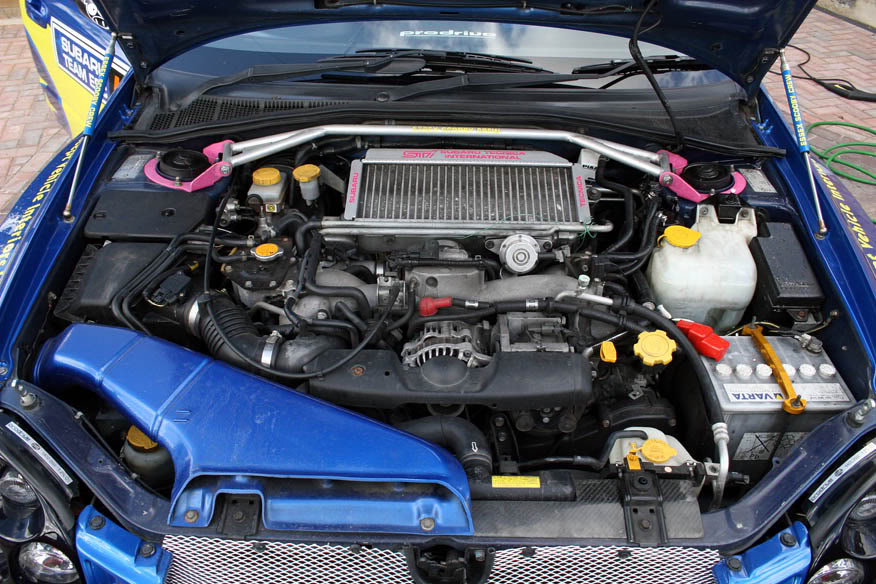

Before:

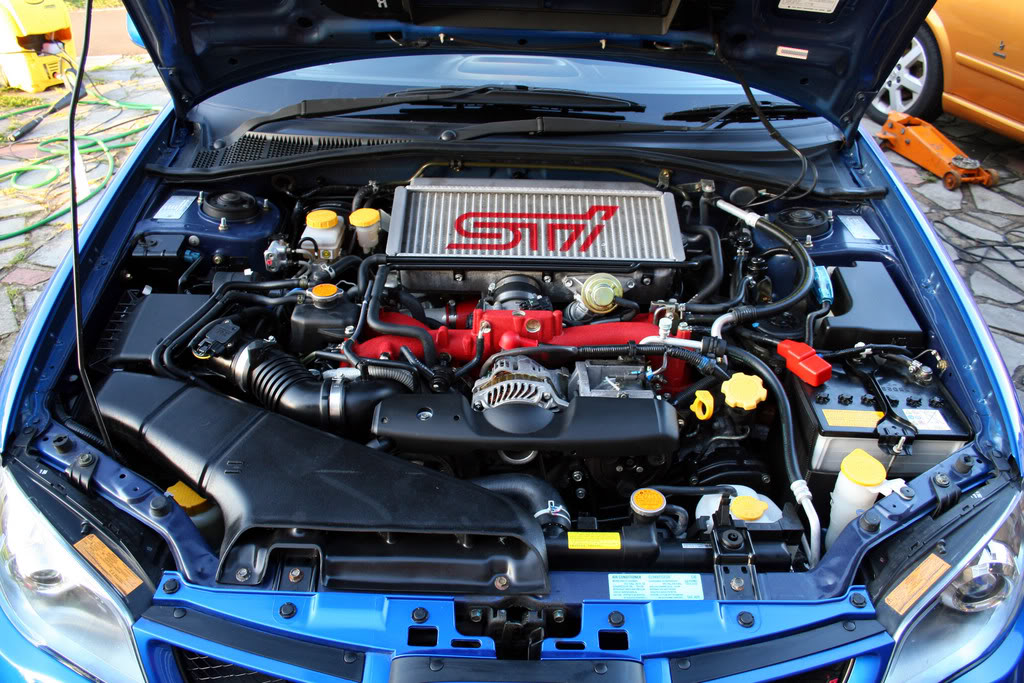

After:
The key is to take your time and repeat the proceedure rather than go heavy handed.
Couple of before and after. I'll try and find a previous thread for the process I use. If not I'll type it up for you

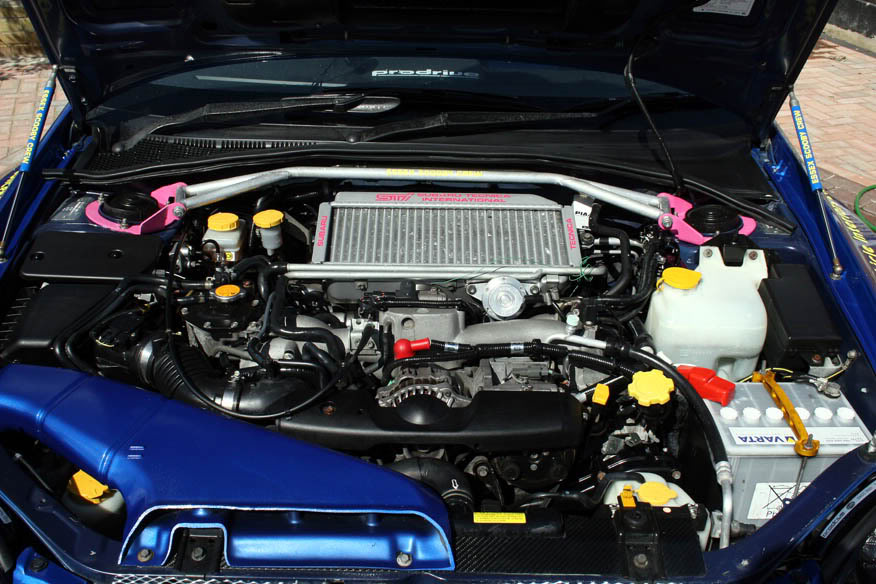

Before:

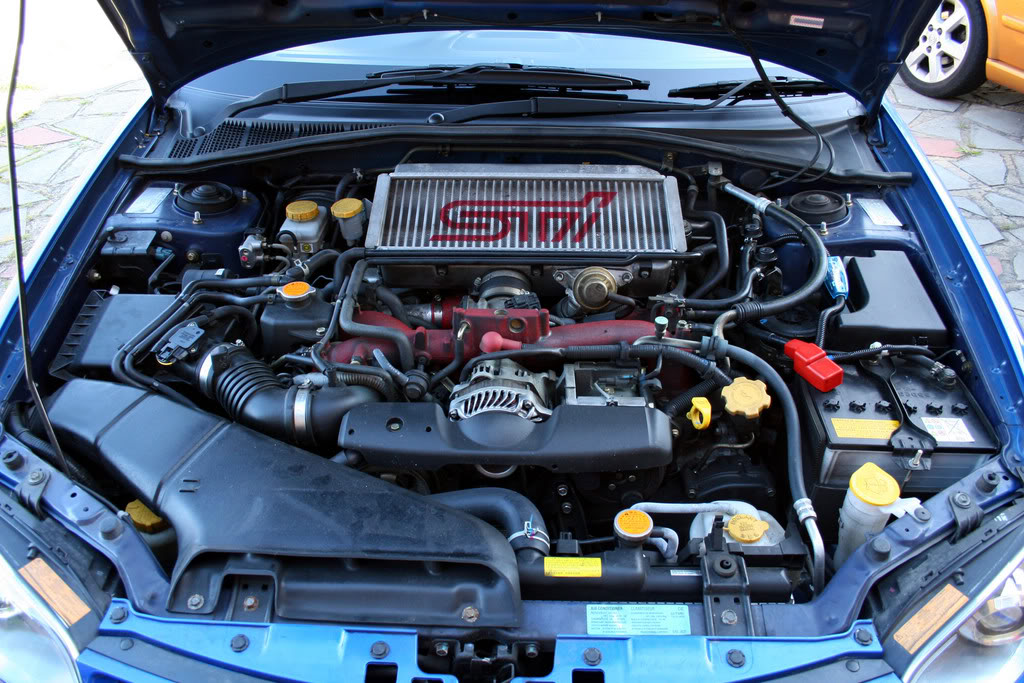

After:
#7
Scooby Regular
Thread Starter
iTrader: (2)
Join Date: Jan 2008
Posts: 149
Likes: 0
Received 0 Likes
on
0 Posts
The difference on the STi one is much more obvious.
So basically the intercooler can be cleaned the same way the rest, e.g. the manifold, is with degreaser ? Have plenty of required cleaning products it was just what to clean it with that needed to know.
Also, was the red STI writing on the last pic reapplied, just looks very fresh/bright.
If you have the process, more so for the intercooler part, that that would be great.
Ta.
So basically the intercooler can be cleaned the same way the rest, e.g. the manifold, is with degreaser ? Have plenty of required cleaning products it was just what to clean it with that needed to know.
Also, was the red STI writing on the last pic reapplied, just looks very fresh/bright.
If you have the process, more so for the intercooler part, that that would be great.
Ta.
Trending Topics
#8
Scooby Regular
iTrader: (2)
The way I tackle the engine bay and the IC is:
cover the relevant parts you don't wish to get water in, alternator etc
warm the engine for a few mins - cold engines don't like water. by warming it it'll help the water to evaporate off and not sit in places.
apply the megs super degreaser or similar and leave to dwell for 3 - 5 mins
apply another round of msd and then gently, very gently, aggitate with a long bristle, soft brush
start the engine again and rinse with the open end of a hose or pressure washer on it's lowest pressure settle. don't use full pressure as it'll bend the fins.
repeat until it's as clean as you want it to be.
if you have a compressor, use the air attachment to blow off excess water, if not leave the engine to idle until the water has evaporated off
turn the engine off and mop up water from places where it won't evaporate from or you can't blow it out of
apply 303 and follow instructions for this.
Nope the red wasn't reapplied. The engine was still covered in the protective gunk it comes with from the dealer so had gathered a fair bit of road grime. Cleaning simply removed the grime.
cover the relevant parts you don't wish to get water in, alternator etc
warm the engine for a few mins - cold engines don't like water. by warming it it'll help the water to evaporate off and not sit in places.
apply the megs super degreaser or similar and leave to dwell for 3 - 5 mins
apply another round of msd and then gently, very gently, aggitate with a long bristle, soft brush
start the engine again and rinse with the open end of a hose or pressure washer on it's lowest pressure settle. don't use full pressure as it'll bend the fins.
repeat until it's as clean as you want it to be.
if you have a compressor, use the air attachment to blow off excess water, if not leave the engine to idle until the water has evaporated off
turn the engine off and mop up water from places where it won't evaporate from or you can't blow it out of
apply 303 and follow instructions for this.
Nope the red wasn't reapplied. The engine was still covered in the protective gunk it comes with from the dealer so had gathered a fair bit of road grime. Cleaning simply removed the grime.
#11
Scooby Regular
Join Date: Feb 2006
Location: Essex/E London
Posts: 779
Likes: 0
Received 0 Likes
on
0 Posts
Just to add, I did the whole warming up thing and then used P21S or whatever they call it these days and it left a horrible residue on all the rubber hoses. If I were doing it again with that stuff (which is fantastic but expensive IMHO) I'd do the whole job on a cold engine.
Megs seems to not mind about the heat then?
Megs seems to not mind about the heat then?
#12
Scooby Regular
iTrader: (2)
Just to add, I did the whole warming up thing and then used P21S or whatever they call it these days and it left a horrible residue on all the rubber hoses. If I were doing it again with that stuff (which is fantastic but expensive IMHO) I'd do the whole job on a cold engine.
Megs seems to not mind about the heat then?
Megs seems to not mind about the heat then?
I used the p21s, now r222, before I started using the megs. Only reason I swapped was because of the cost. Doing a couple of bays a week it bumped the cost up somewhat. Cracking product though.
#13
Scooby Regular
Join Date: Feb 2006
Location: Essex/E London
Posts: 779
Likes: 0
Received 0 Likes
on
0 Posts
If I'm honest I'd say heading towards hot rather than warm. From memory, I started approx an hour after a good run which was my mistake I know.
I agree totally with you, if it had been cheaper I'd still be using it now but then I quite like the megs so not too fussed.
I agree totally with you, if it had been cheaper I'd still be using it now but then I quite like the megs so not too fussed.
#15
Scooby Regular
Join Date: Feb 2006
Location: Essex/E London
Posts: 779
Likes: 0
Received 0 Likes
on
0 Posts
Correct again. It was an 04 STi and I bought it in 05 with 9k miles so I doubt very much whether anyone had been under there before to clean bits.
All this talk of R222 has got me thinking, I might treat my Noble to a nice squirt of it when I reorder from PB soon
All this talk of R222 has got me thinking, I might treat my Noble to a nice squirt of it when I reorder from PB soon
#17
Scooby Regular
iTrader: (8)
Join Date: Jun 2009
Location: Somerset
Posts: 695
Likes: 0
Received 0 Likes
on
0 Posts
I am always worried about water in my engine bay so have never bothered (no doubt my fears are unfounded, but it just dont sound right lol) I always just use microfibre cloths and meguiars rubber/vinyl cleaner and some Goddards metal polish, i have yet to do the I/C, just waiting for a sunny day with some time to myself. I also use brass head rotary bits for my Aldi dremmel rip off :-)
#20
Scooby Regular
iTrader: (2)
I am always worried about water in my engine bay so have never bothered (no doubt my fears are unfounded, but it just dont sound right lol) I always just use microfibre cloths and meguiars rubber/vinyl cleaner and some Goddards metal polish, i have yet to do the I/C, just waiting for a sunny day with some time to myself. I also use brass head rotary bits for my Aldi dremmel rip off :-)
