Old 11 February 2015, 10:23 PM
  #151
b3nmw
Scooby Regular

b3nmw's Avatar

Join Date: Mar 2009
Location: sunny wales
Posts: 1,100
Default

Good work there m8
b3nmw is offline
Old 15 February 2015, 08:52 AM
  #152
GazJenno
Scooby Regular

Join Date: Jan 2006
Location: North Wales
Posts: 924
Default

Can I ask where you get your hardline tube from? I cant seem to find any 3/8" stuff to use with 6an fittings in the UK. Thanks
GazJenno is offline
Old 15 February 2015, 09:56 AM
  #153
seventune
Scooby Regular
Thread Starter

Join Date: Aug 2013
Location: Esher, Surrey
Posts: 213
Default

Originally Posted by GazJenno View Post
Can I ask where you get your hardline tube from? I cant seem to find any 3/8" stuff to use with 6an fittings in the UK. Thanks
Think I ended up getting the second lot from aluminium warehouse online. You can get it from Earl's through Think Automotive but it's far more expensive than buying it in lengths. I'll see if I can find the invoice at the shop Monday.
seventune is offline
Old 15 February 2015, 11:12 AM
  #154
GazJenno
Scooby Regular

Join Date: Jan 2006
Location: North Wales
Posts: 924
Default

Thanks that would be great. Was it just straight lengths or did aluminium warehouse coil it up?
GazJenno is offline
Old 15 February 2015, 11:45 AM
  #155
seventune
Scooby Regular
Thread Starter

Join Date: Aug 2013
Location: Esher, Surrey
Posts: 213
Default

No just straight lengths. Personally I think it's easier to work with from straights.
seventune is offline
Old 15 February 2015, 02:09 PM
  #156
JGlanzaV
Scooby Regular
iTrader: (3)

Join Date: May 2009
Posts: 5,021
Default

Originally Posted by seventune View Post
No just straight lengths. Personally I think it's easier to work with from straights.
Totally agree. You spend ages trying to straighten it out and it never looks as good....
JGlanzaV is offline
Old 15 February 2015, 02:19 PM
  #157
GazJenno
Scooby Regular

Join Date: Jan 2006
Location: North Wales
Posts: 924
Default

Yea I'd thought that would be easier to work with. They sell 3/8" x 16SWG... is that what you used?
GazJenno is offline
Old 18 February 2015, 12:12 AM
  #158
seventune
Scooby Regular
Thread Starter

Join Date: Aug 2013
Location: Esher, Surrey
Posts: 213
Default

Think mine was 1.2mm. So closer to an swg18.

Very frustrating day today. Or morning should I say. I have a leak from the main rear oil seal. No idea how that has happened. New one ordered from RCM tomorrow incase the one in there is damaged. Suspected oil seal because it only leaks when your cranking.

One other fault also that has stopped play if the lack of injectors fire fuel into the bores. Used a node light to make sure they are getting a trigger signal and they are indeed. I need to check the voltage and amperage to make sure its all strong/high enough to hold the injectors open. Also resistance test across the injectors to make sure that they are not knackered. I'd be surprised if all four injectors have gone down because none of the bores are wet at all so the fault appears to be affecting all four. Fuel pressure is good but I may throw another FPR in there just to eliminate that as a problem.

Will do some tests on Thursday morning.
seventune is offline
Old 19 February 2015, 08:50 AM
  #159
birchy2010
Scooby Regular
iTrader: (12)

Join Date: Nov 2010
Location: West Midlands
Posts: 1,807
Default

That switch panel!
birchy2010 is offline
Old 24 February 2015, 10:14 PM
  #160
seventune
Scooby Regular
Thread Starter

Join Date: Aug 2013
Location: Esher, Surrey
Posts: 213
Default

Well............

Got the old girl running.

BUT its never as simple as that is it. After ordering the new seal and a couple of other bits off of RCM I got around to getting the beast running. As I wasn't 100% where to start looking given the injectors had a pulse signal. SO I pulled them out and ran them through the injector cleaner. Remade some of the earthing points on the chassis and engine. Re checked earths on the ECU and AEM unit along with power supplies. Changed the battery for a new larger item. Refitted it all and pressed the button. She tried so hard to fire it was agitating. So. Swapped the plugs from 8's to 6's. And turn the fuel pressure down on the FPR. Pressed the button again and she fired up a treat

Happy days.

Having had the car the fired it was time to replace the oil seal. Personally I find it quicker to pull the motor than drop the gearbox. Undo the bolts unplug the wiring harness and bosch, out. Anyway before that, oil out. Aweful lot of debris. Turns out the crank ate the rear thrust bearing. Long story short when the 2.1 engine let go the crank went off to a specialist to be analysed, checked and all that. It came back with the ok to be reused in the new build. Cranking the motor over and running it proved other wise.

Absolutely everything has been scrutinised at the end of which a new EJ257 crank/big end and main bearings has been ordered from RCM and should be with me in the next couple of days so I can rebuild the old girl again. Hopefully this time to a more positive out come.

On we go.....

Last edited by seventune; 14 August 2015 at 01:42 AM.
seventune is offline
Old 26 February 2015, 10:48 AM
  #161
seventune
Scooby Regular
Thread Starter

Join Date: Aug 2013
Location: Esher, Surrey
Posts: 213
Default

Woohoo




Last edited by seventune; 14 August 2015 at 01:44 AM.
seventune is offline
Old 27 February 2015, 12:57 AM
  #162
bioforger
Scooby Regular
iTrader: (1)

bioforger's Avatar

Join Date: Jan 2002
Location: Pig Hill, Wiltsh1te
Posts: 16,977
Default

Dam that's a bit of a bummer mate, good excuse for a fresh rebuild though i guess
bioforger is online now
Old 27 February 2015, 06:03 PM
  #163
seventune
Scooby Regular
Thread Starter

Join Date: Aug 2013
Location: Esher, Surrey
Posts: 213
Default

I knew really that I should have replaced the crank when it went together before for piece of mind. But could not afford it at the time. Still, done now. Hopefully get the bottom end together tonight / tomorrow morning.

Not having time to do it today I got the Aerocatchs in instead.


Last edited by seventune; 14 August 2015 at 01:45 AM.
seventune is offline
Old 28 February 2015, 07:34 PM
  #164
seventune
Scooby Regular
Thread Starter

Join Date: Aug 2013
Location: Esher, Surrey
Posts: 213
Default

Well bottom end back together. Pressing on to get the engine back in and running by the weekend.

I want my scoob back on the road.


Last edited by seventune; 14 August 2015 at 01:46 AM.
seventune is offline
Old 07 March 2015, 05:05 PM
  #165
seventune
Scooby Regular
Thread Starter

Join Date: Aug 2013
Location: Esher, Surrey
Posts: 213
Default

Several years later.....


Last edited by seventune; 14 August 2015 at 01:46 AM.
seventune is offline
Old 20 March 2015, 11:14 PM
  #166
seventune
Scooby Regular
Thread Starter

Join Date: Aug 2013
Location: Esher, Surrey
Posts: 213
Default

Well the motor is now 100% built and ready to go back in. I have been even more scrupulous with checking and re checking everything to avoid the crank issue happening again. There was no obvious cause for the crank mashing the rear face of the thrust bearings.

First big thing to change was the piston to head clearance. With the new crank the piston where 20 thou higher than previously. At lowest tilt they where .013" above deck and on full tilt at their highest .031". With the 1.5mm ( .059") head gasket there was no real room to allow for rod stretch. In the turbo bike we allow .040" rod stretch so I took some meet off the top of the pistons to gain the extra clearance.

Crank then the new nitrated crank got clearance, re clearance and clearanced again on both main and big ends.

End float was checked I don't know how many times which I just right ;D

There was one other concern that I had come across before. This invovled the hydraulic clutch bearing. I've seen it before where the spacer behind the bearing has been too thick and when the engine is installed the sits butt up against the clutch cover. Not only not having and air gap as it should but actually being forced up into the clutch cover and also taking up the end float in the crank and mashing thrust bearings. That also being a concern the heights where check over again and on both the engine and gearbox side and was all fine as I had hoped with the required 2.4mm air gap.

With every thing checked it ready to go back in. Plan is for Monday.

Last edited by seventune; 14 August 2015 at 01:47 AM.
seventune is offline
Old 21 March 2015, 12:56 AM
  #167
s450oby
Scooby Regular
iTrader: (13)

s450oby's Avatar

Join Date: Jul 2010
Location: hengoed
Posts: 398
Default

Awesome awesome awesome
s450oby is offline
Old 20 April 2015, 10:29 AM
  #168
seventune
Scooby Regular
Thread Starter

Join Date: Aug 2013
Location: Esher, Surrey
Posts: 213
Default

Thanks dude,

There are a couple of issues to report but it's a bit long winded on the phone so i will do that bit later on the lap top but in the mean time.....



There is a bit of adjusting to do but the vent is just sitting in there at the moment.

Last edited by seventune; 03 June 2015 at 12:59 AM.
seventune is offline
Old 03 May 2015, 10:15 AM
  #169
seventune
Scooby Regular
Thread Starter

Join Date: Aug 2013
Location: Esher, Surrey
Posts: 213
Default

So then. Electrical gremlins are a real pig. But ever cloud has a silver lining. As you know the car is fitted it an AlcaTek ECU. I have been trying to get them to talk to me about making some changes to the ecu for absolutely months. Eventually I decided to not have any changes made to the ecu and just buy a proper one buy in the mean time just get it mapped for the current mods. Anyway reinstalling the loom and engine this time has unearthed an underlying electrical issue. It's started with sensor ground wires carrying 8volt live feeds. Which I traced back into the loom then the ecu. Once that was sorted other singles appeared to be incorrect. The loom that had seen far better days before I had even got into looking for the faults. After finding bare wires, doggy taped up and crimped connections I was time to start fresh. Given the lack of contact and lack of support from AlcaTek I decided that if I was building a new loom it wouldn't be for that ecu. So I bought this instead

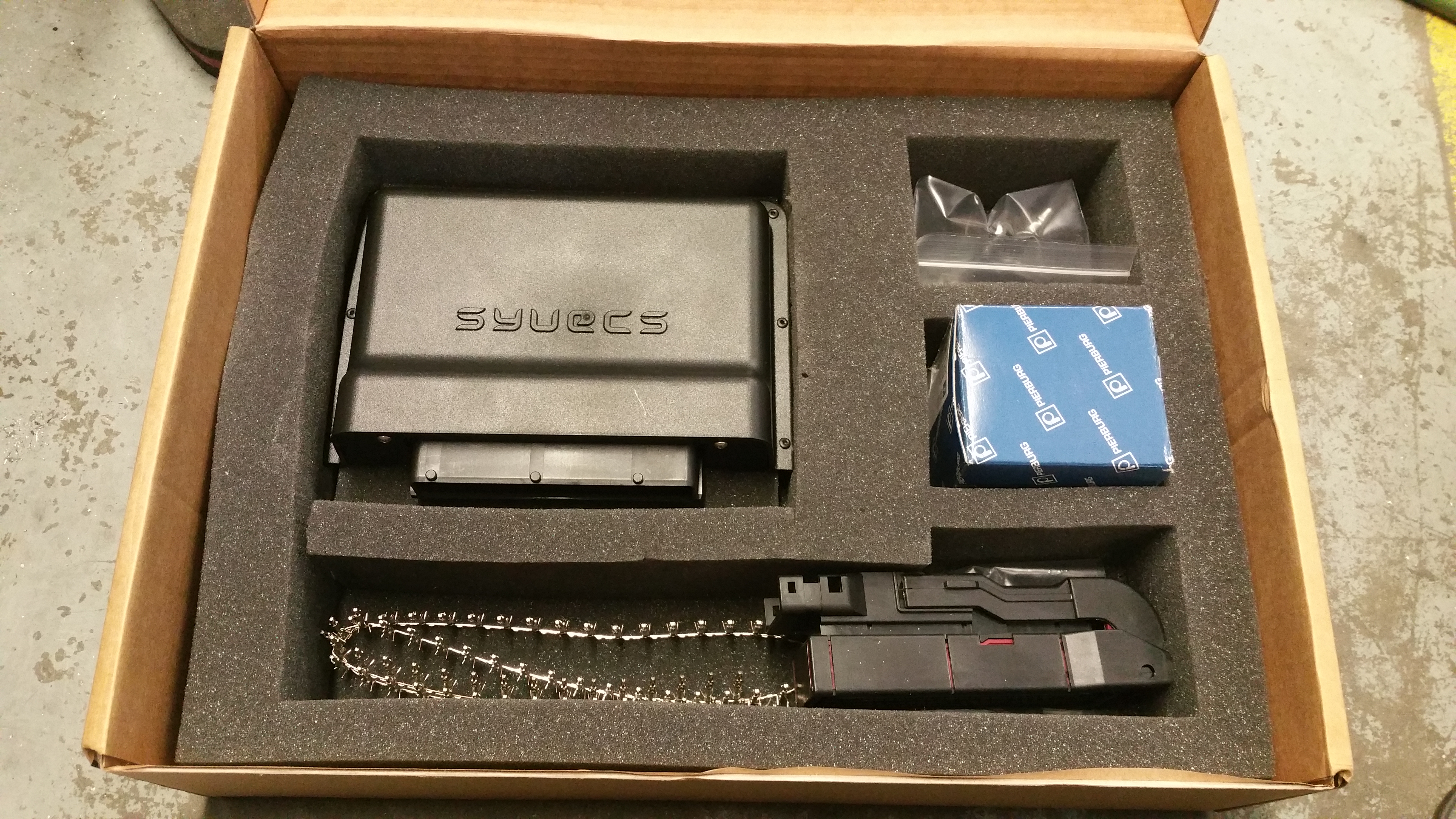

Nice Syvecs S6

Name:  20150428_091838_zpsimbriifn.jpg
Views: 0
Size:  5.54 MB

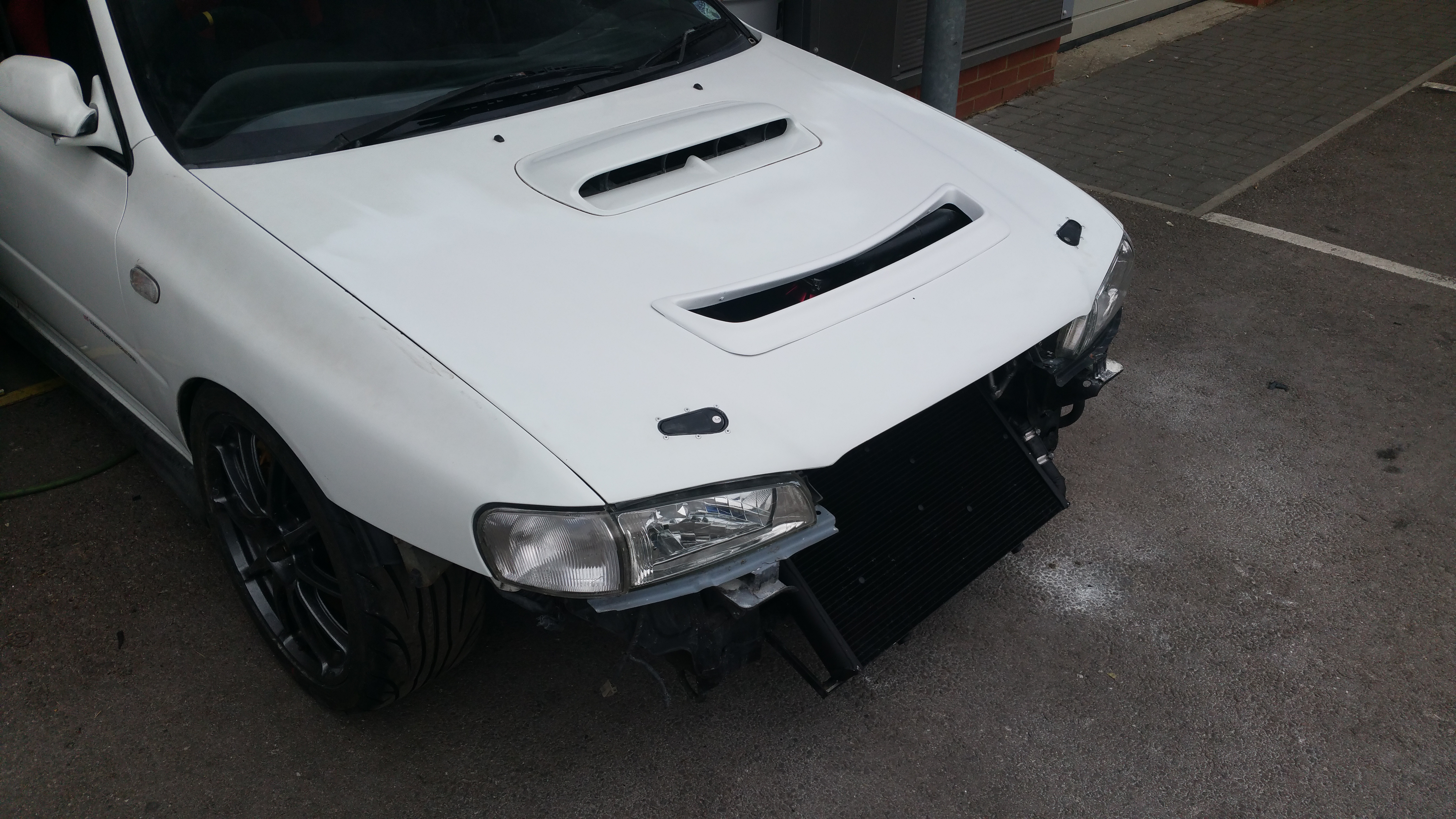

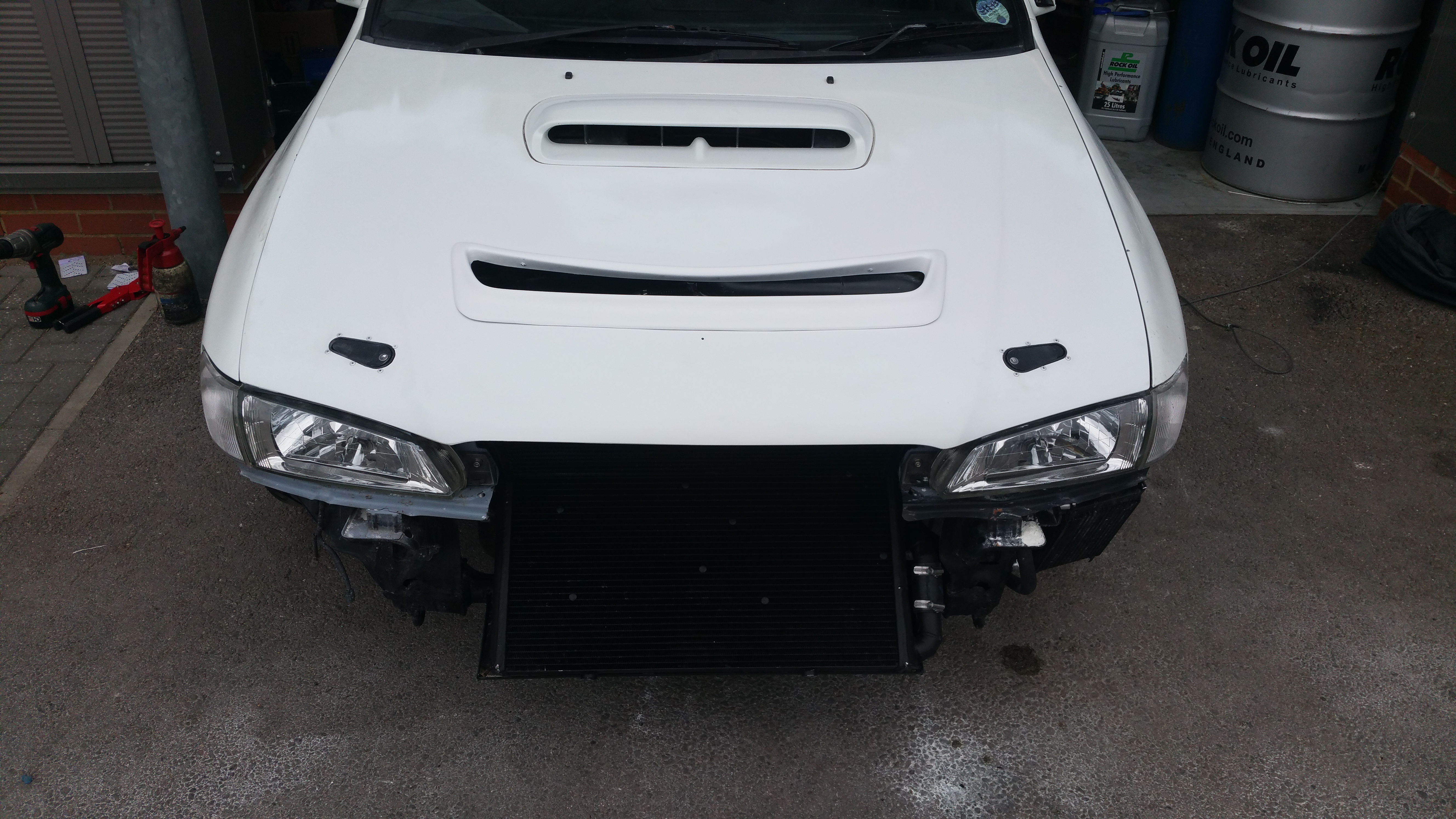

Few other little bits got done whilst I was waiting for the Syvecs. Bonnet is now finished and ready for paint

Name:  20150502_122016_zpsvk47xlaz.jpg
Views: 0
Size:  5.17 MB

Name:  20150502_122024_zpsds0jplfz.jpg
Views: 0
Size:  5.18 MB

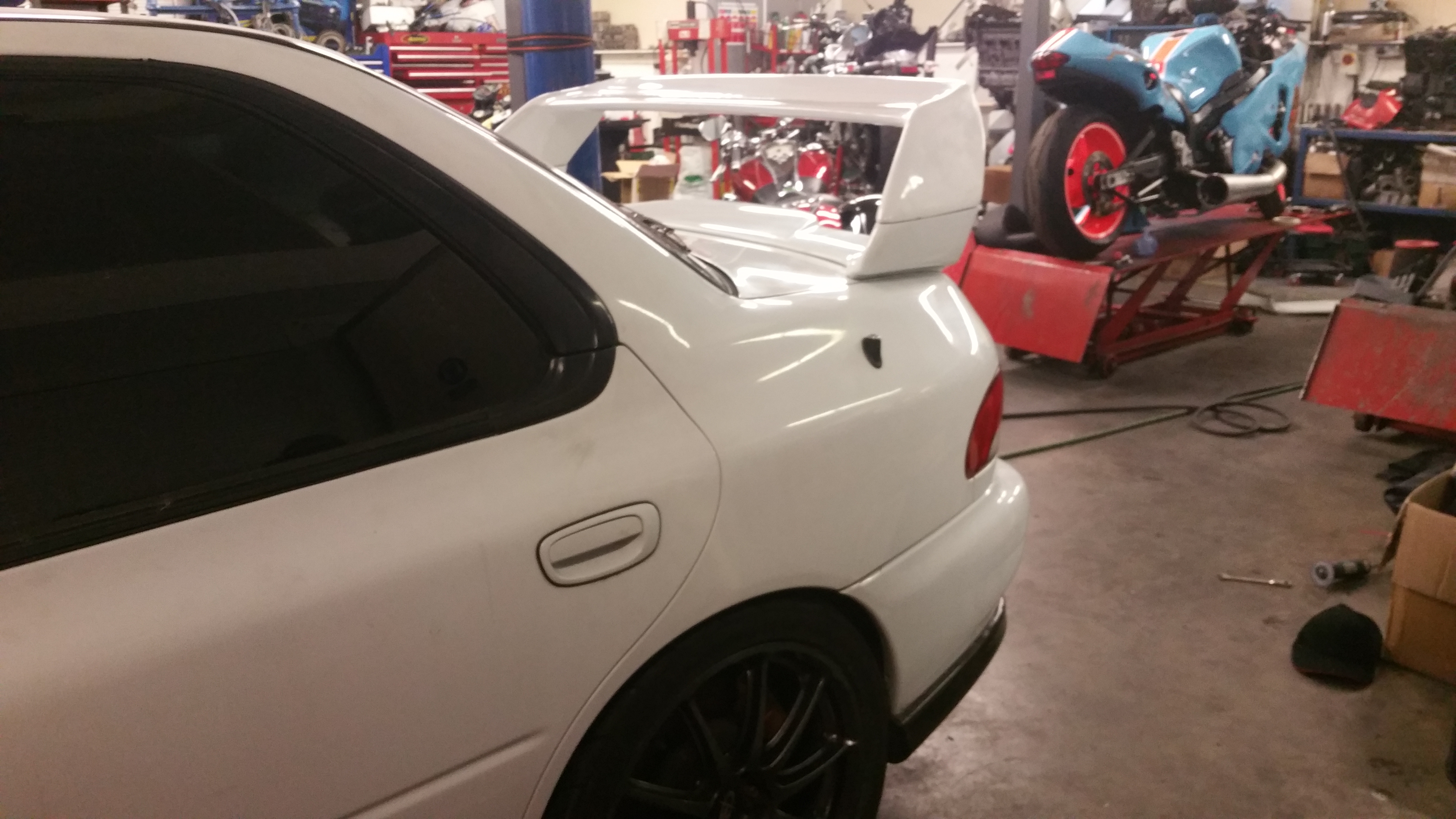

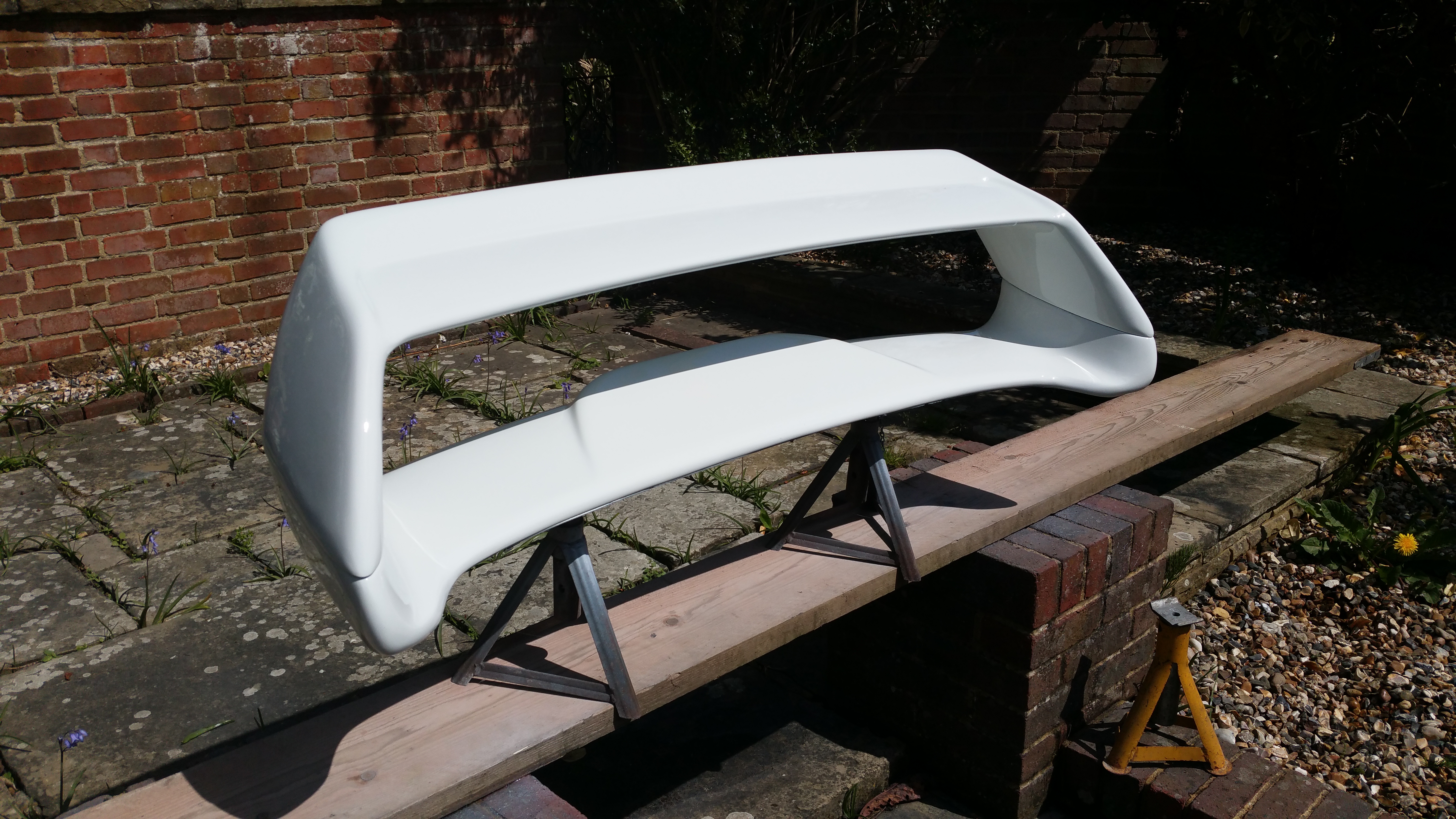

Finally got around to painting and fitting the STI 6 spoiler. I was hoping to paint the front bumper today but the weather is looking a bit bad.

Name:  20150427_125134_zpsj6oh1kab.jpg
Views: 0
Size:  5.45 MB

Name:  20150502_104910_zpstrvdb7al.jpg
Views: 0
Size:  3.64 MB

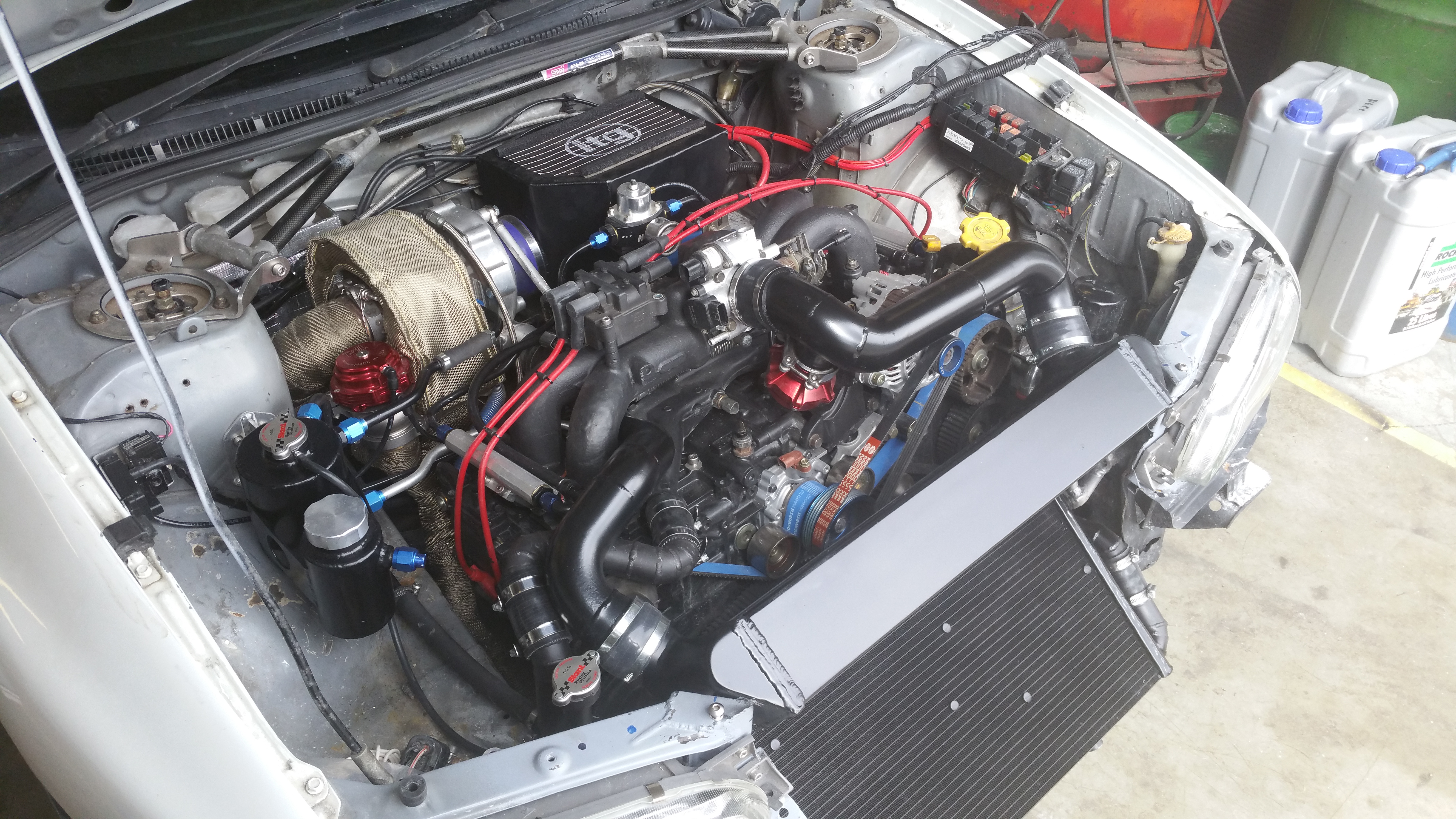

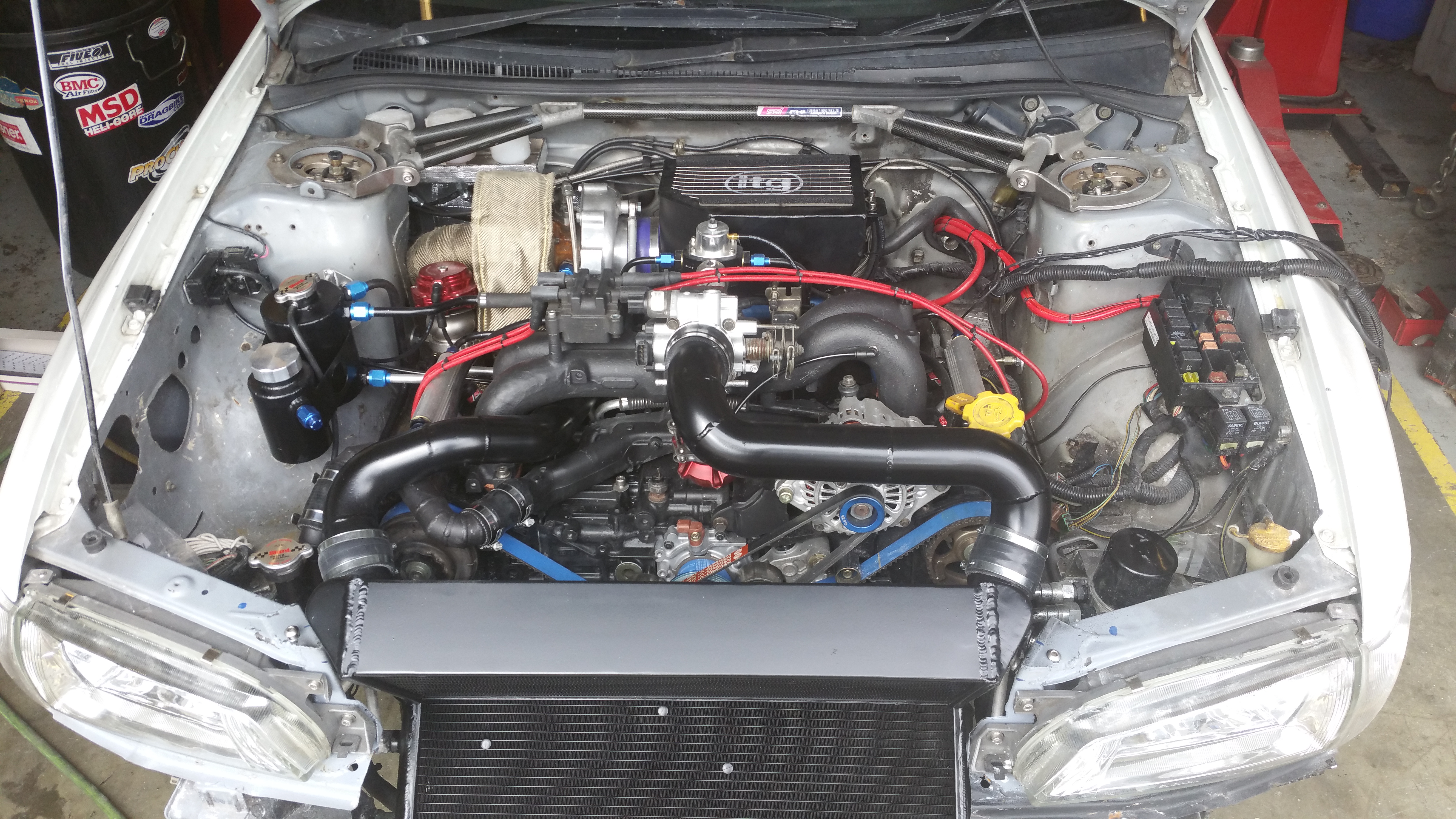

Also got all the water system back in the bay and thought I'd treat the turbo to a cozy blanket

Name:  20150502_131617_zpsxdu6mvvp.jpg
Views: 0
Size:  5.53 MB

Name:  20150502_131636_zpsxjl2i2lo.jpg
Views: 0
Size:  5.49 MB

All the bits for the loom are ordered. Hopefully all be with me next week and I can look towards actually driving the old girl

Last edited by seventune; 14 August 2015 at 01:48 AM.
seventune is offline
Old 03 May 2015, 11:56 AM
  #170
Dibbles00
Scooby Regular

Join Date: Feb 2014
Location: Midlands
Posts: 209
Default

Brilliant thread. Great choice with syvecs! Everyone wants one of those Good luck with the build.
Dibbles00 is offline
Old 04 May 2015, 09:59 AM
  #171
seventune
Scooby Regular
Thread Starter

Join Date: Aug 2013
Location: Esher, Surrey
Posts: 213
Default

Thanks. To be honest it seemed like a no brainer with the ecu. Can't wait to get it plumbed in
seventune is offline
Old 11 May 2015, 07:46 AM
  #172
seventune
Scooby Regular
Thread Starter

Join Date: Aug 2013
Location: Esher, Surrey
Posts: 213
Default

Not much progress with the FC. But a little.

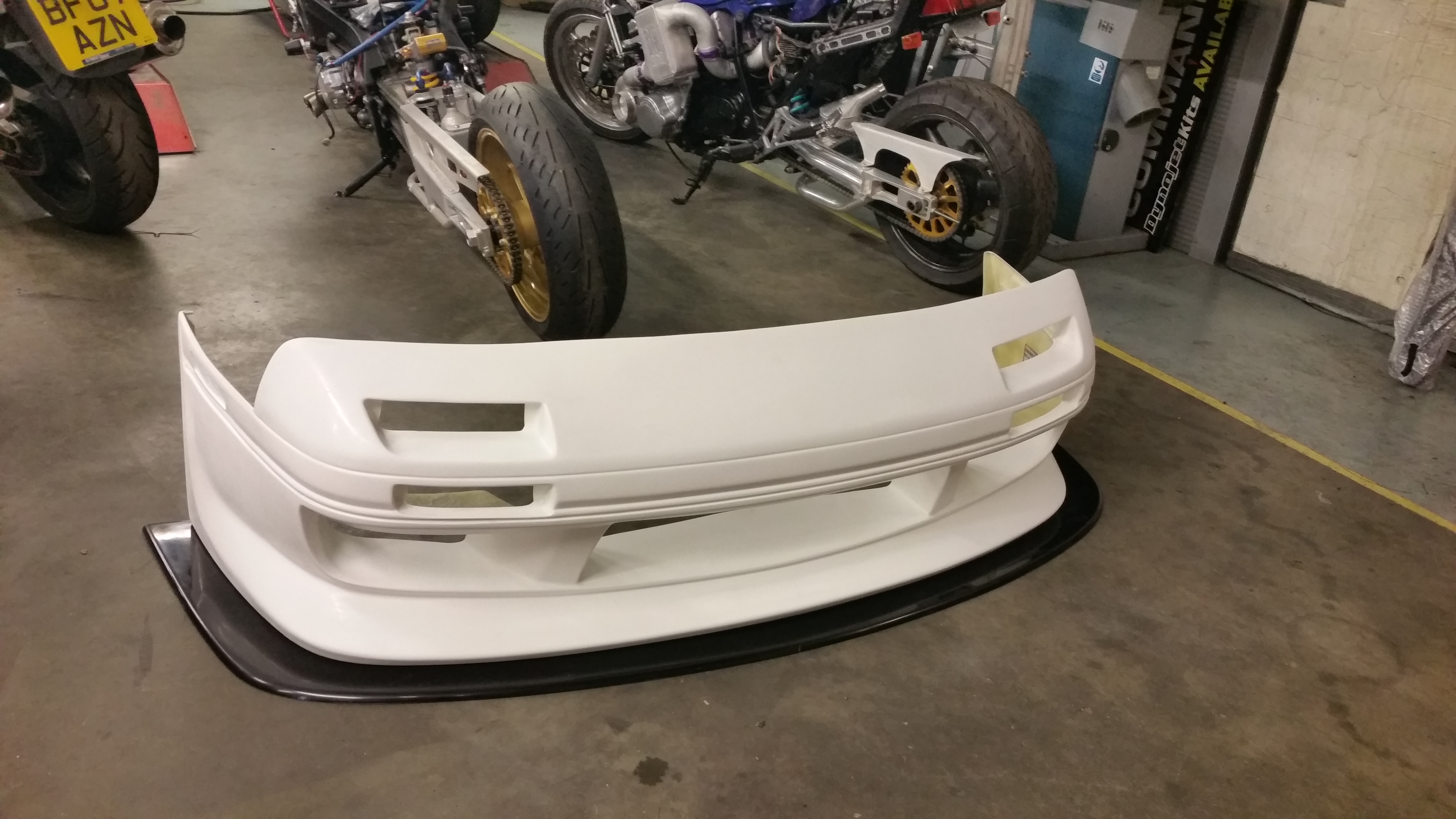

New front bumper turned up a while back with a splitter that needed a little modding

Name:  20150106_094558_zpstqe1vb0z.jpg
Views: 0
Size:  3.36 MB

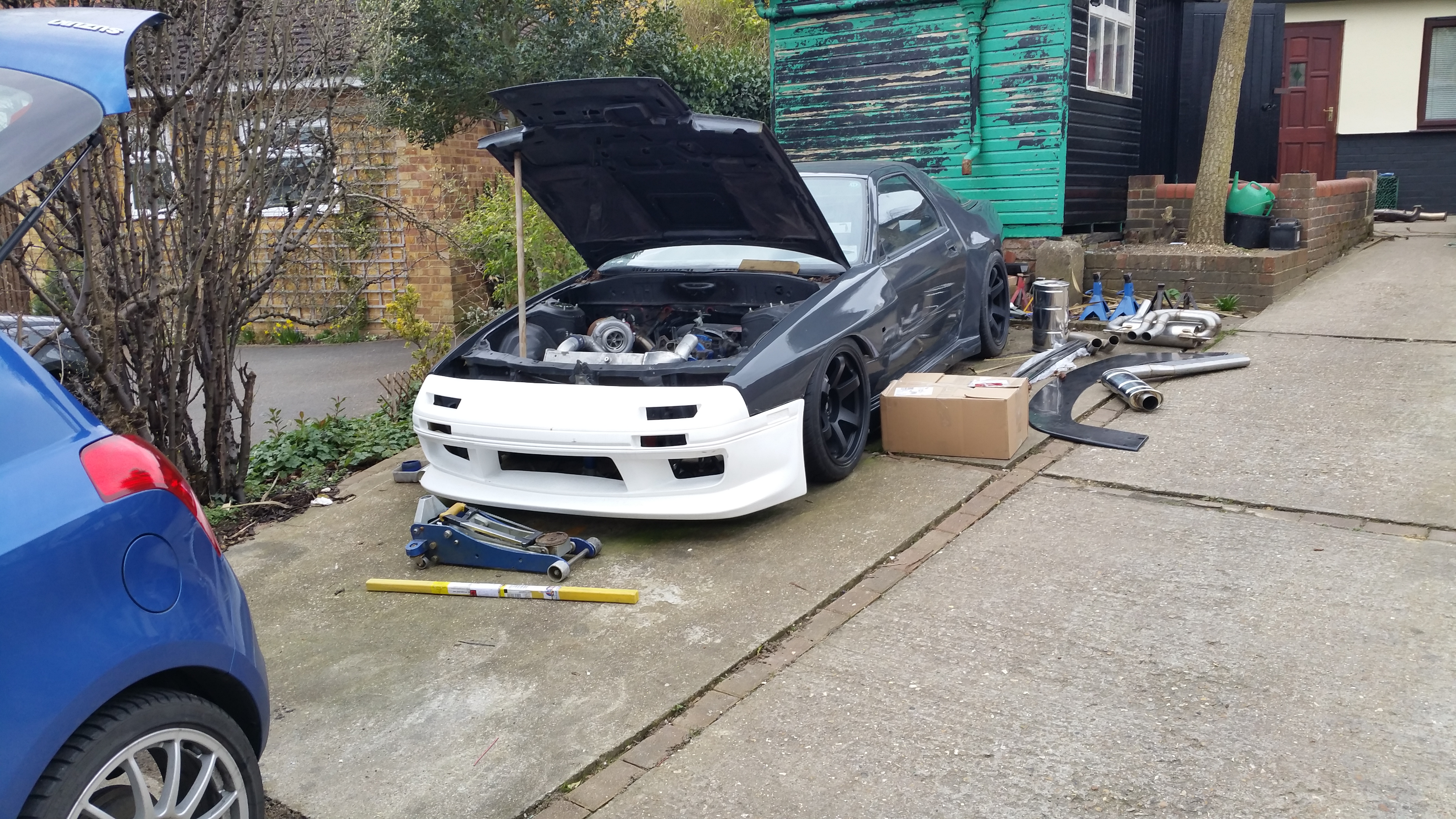

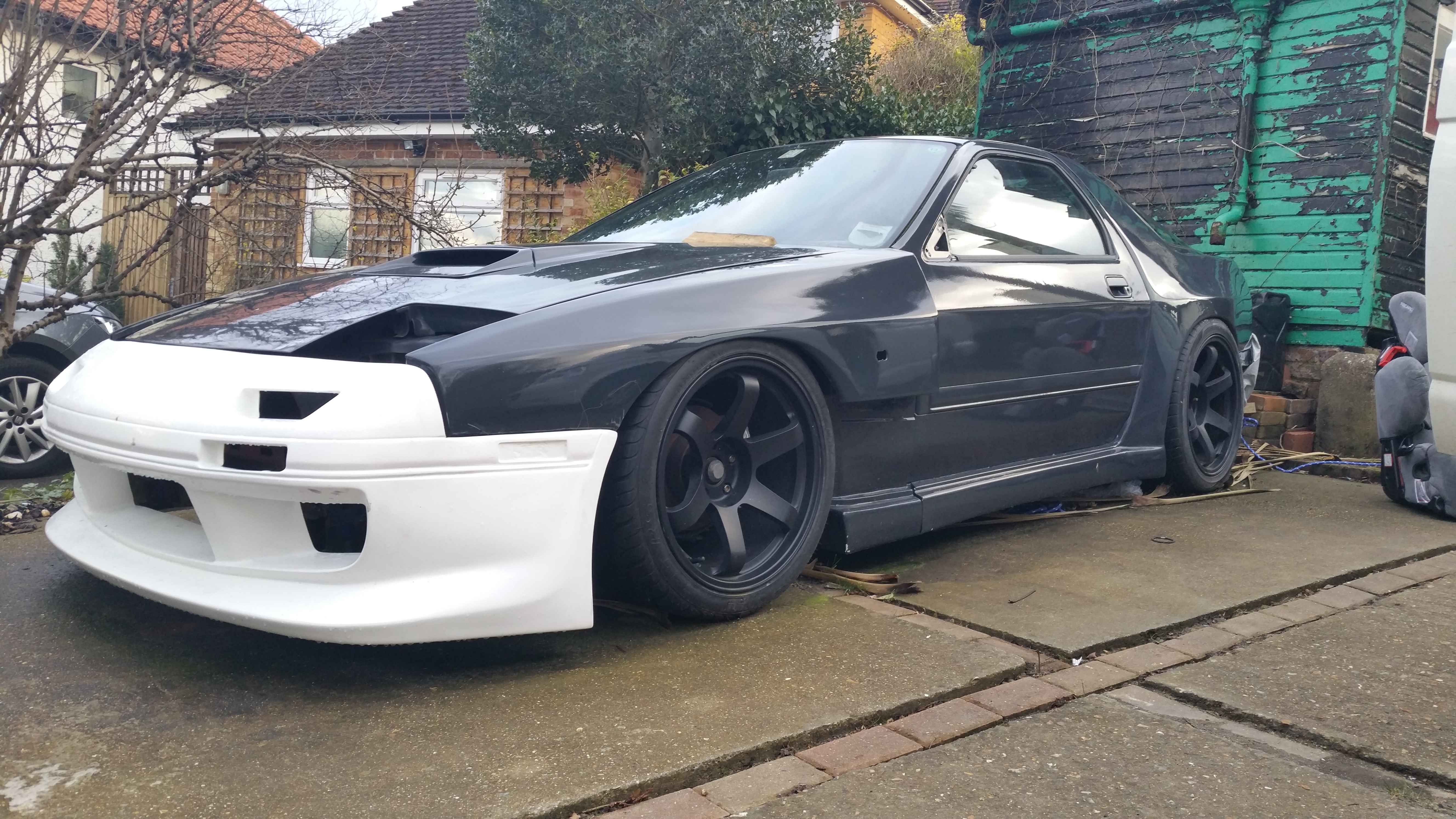

Test fit

Name:  20150225_160942_zpstx2mlf9o.jpg
Views: 0
Size:  5.27 MB

Name:  20150321_093514_zpsnogb0xnn.jpg
Views: 0
Size:  5.67 MB

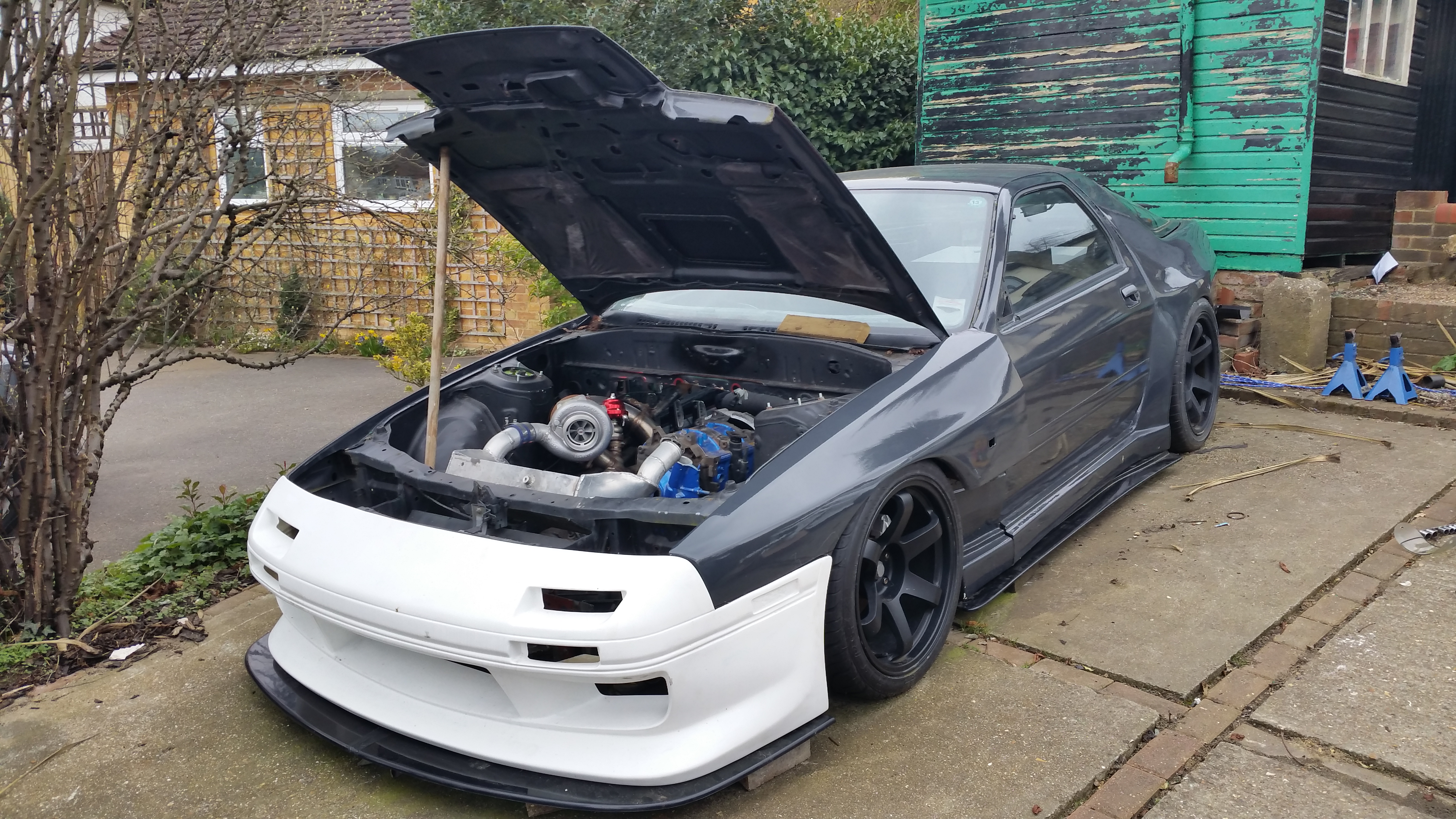

offered up the splitter and extensions to make sure that it was all going to work. Result they did. Since they had been fitted properly.

Name:  20150321_125138_zps2eliu4lo.jpg
Views: 0
Size:  5.50 MB

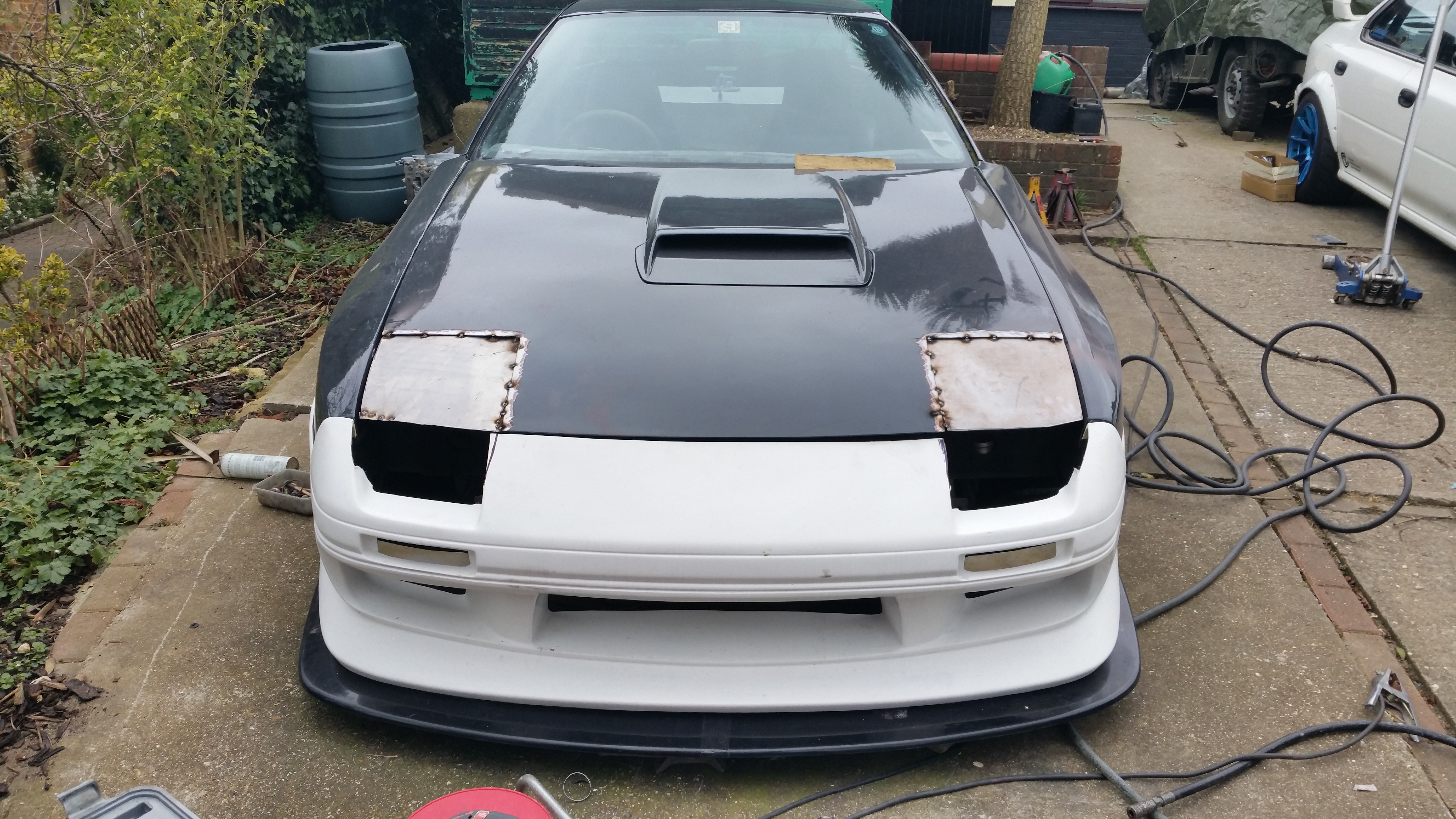

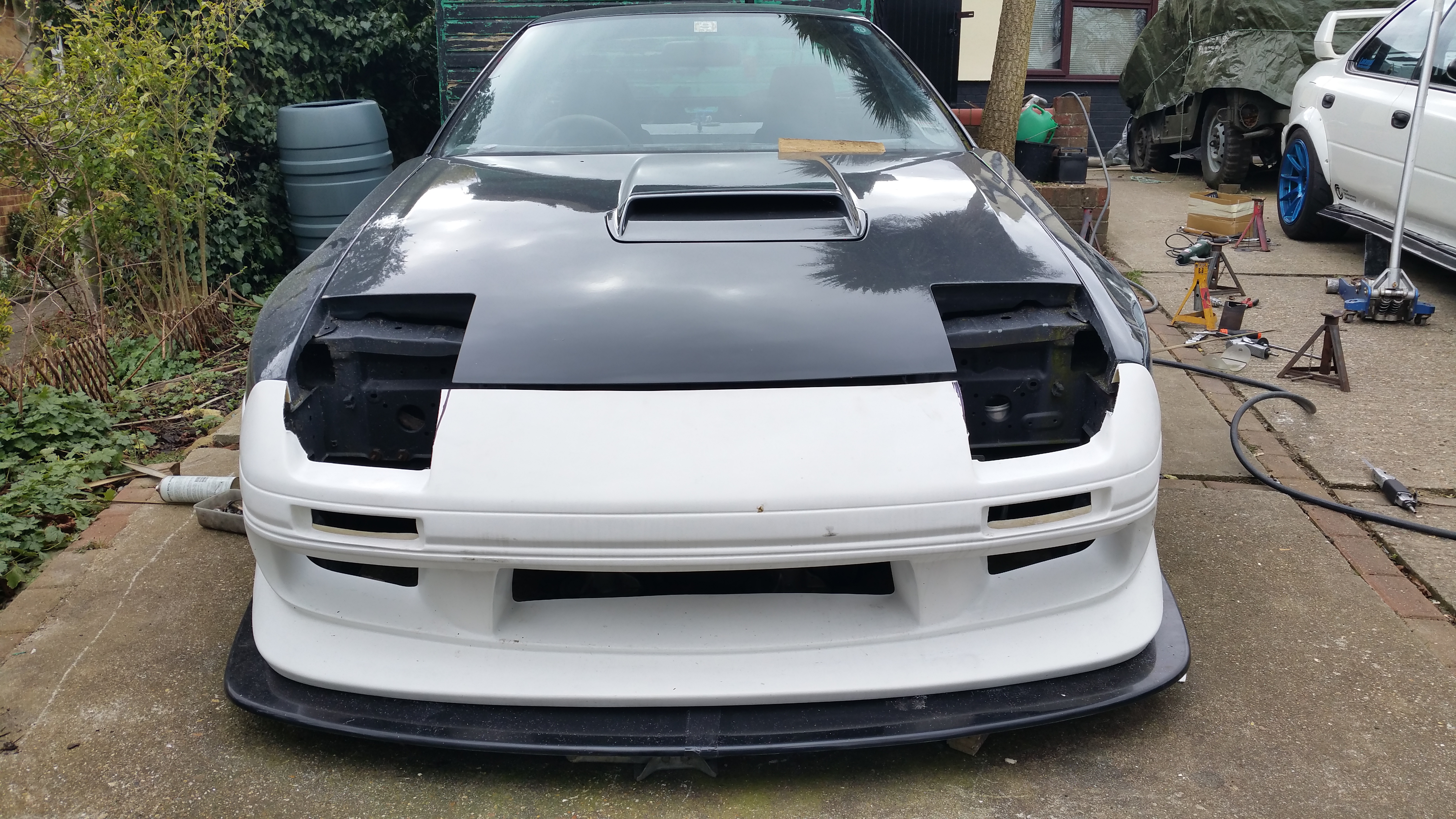

I have had long term plans to get rid of the pop ups for aero reasons so. Trimmed the bumper to fit fixed lights and started the mods on bonnet.

Name:  20150321_131544_zpsg7ki0m06.jpg
Views: 0
Size:  5.41 MB

Name:  20150321_142141_zpsudxpktqn.jpg
Views: 0
Size:  4.80 MB

So not much very much concentrating on the Impreza. Will be nice to get that running to I can get on with the FC.
seventune is offline
Old 11 May 2015, 07:56 AM
  #173
JonMc
Scooby Senior
iTrader: (51)

JonMc's Avatar

Join Date: Nov 2005
Location: Wherever I park my car, that's my home
Posts: 20,490
Default

Very nice, I always fancied one of the original RX-7s when I was a kid
JonMc is offline
Old 11 May 2015, 09:51 AM
  #174
BrownPantsRacing
Scooby Regular
iTrader: (6)

BrownPantsRacing's Avatar

Join Date: Oct 2010
Location: Herts & Bucks
Posts: 7,547
Default

Love it! I had a very fast FD3S some years back. Such great fun cars to drive and drift everywhere. Very well balanced cars.
BrownPantsRacing is offline
Old 15 May 2015, 08:56 PM
  #175
seventune
Scooby Regular
Thread Starter

Join Date: Aug 2013
Location: Esher, Surrey
Posts: 213
Default

Thanks Guys,

Started getting the power steering in. Buried it in behind the front bumper on the drivers side. Its an electric MR2 pump. Will be interested to see how it works. I also found some grot under there so sorted that out too while I was there. need to add to the bracket and some extra support as its a heavy pump.

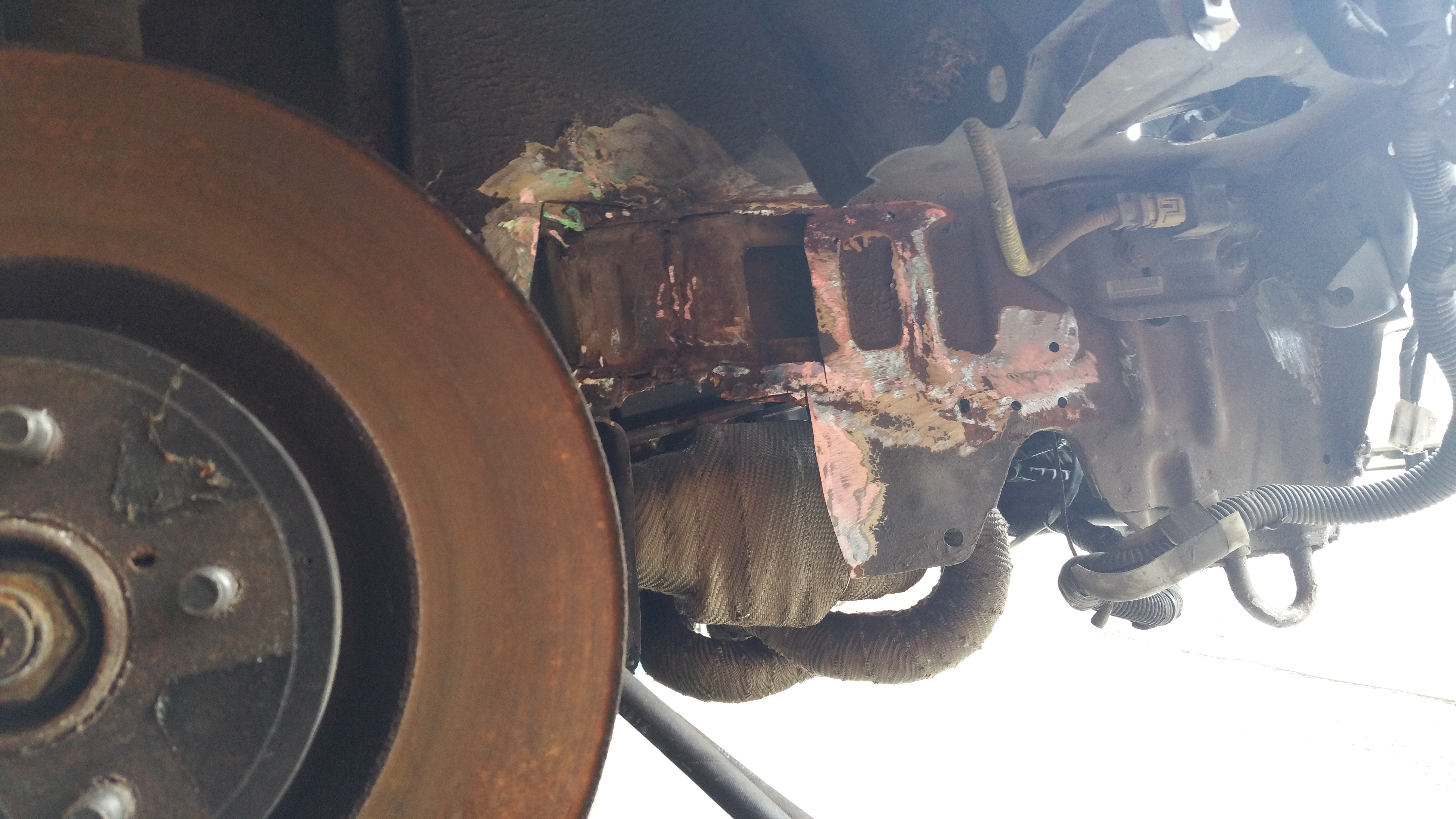

Grot:

Name:  20150515_165052_zps9bzllozd.jpg
Views: 0
Size:  4.74 MB

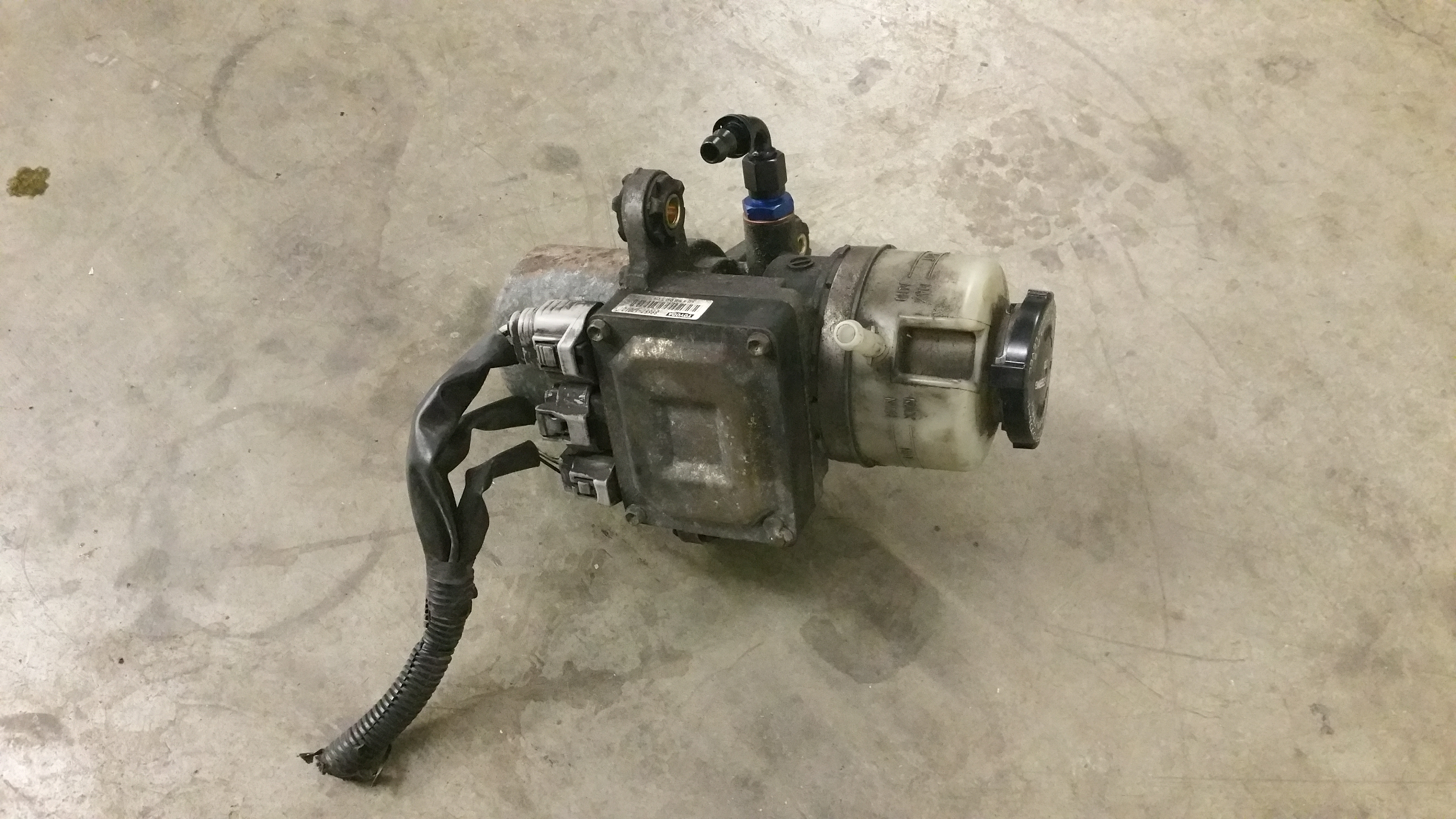

Pump:

Name:  20150506_081238_zpsablqok8t.jpg
Views: 0
Size:  4.55 MB

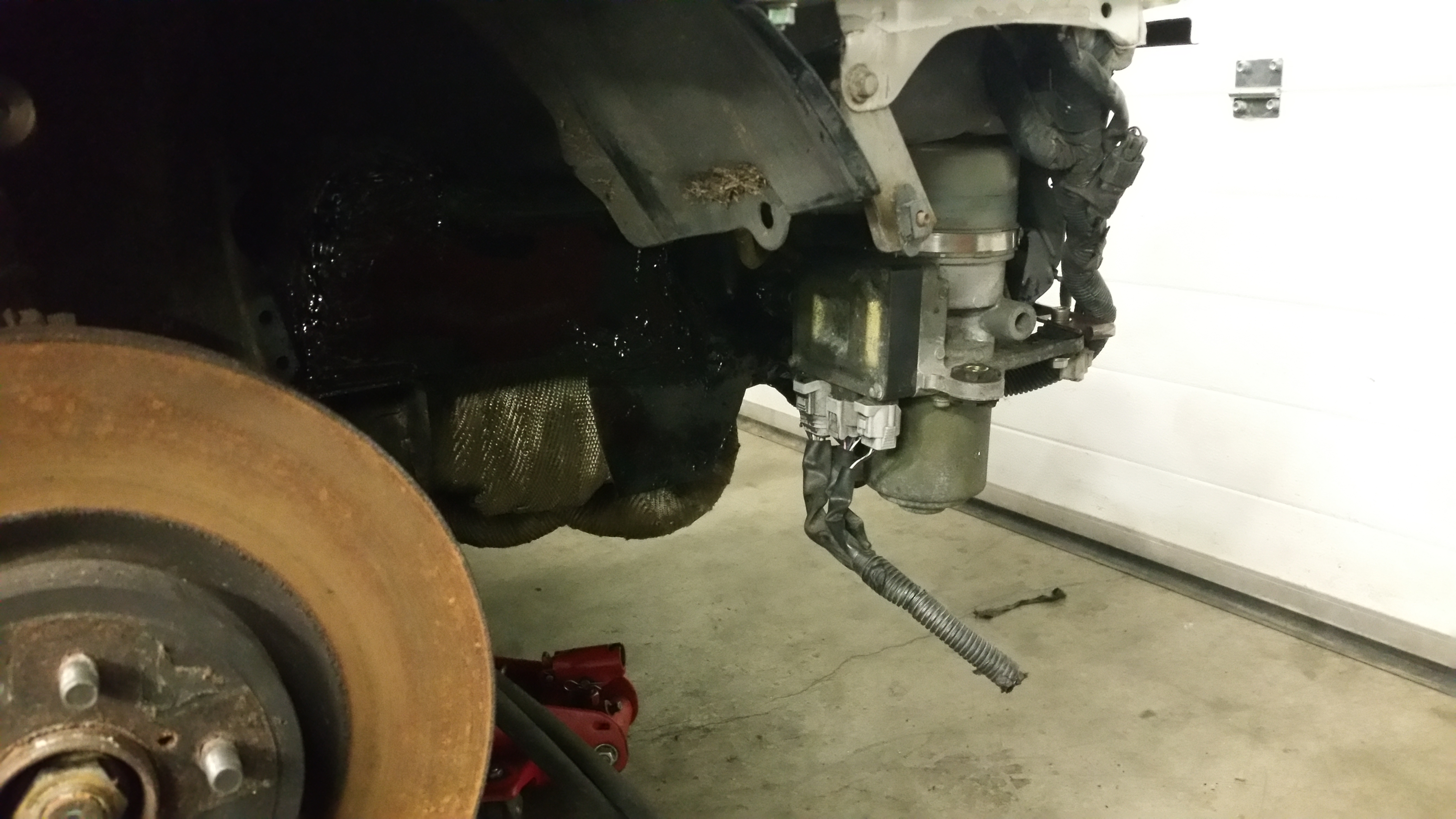

Grot fixed and pump in place (but not finished)

Name:  20150515_180211_zps2eq6w43p.jpg
Views: 0
Size:  2.97 MB

Last edited by seventune; 14 August 2015 at 01:49 AM.
seventune is offline
Old 17 May 2015, 07:30 AM
  #176
seventune
Scooby Regular
Thread Starter

Join Date: Aug 2013
Location: Esher, Surrey
Posts: 213
Default

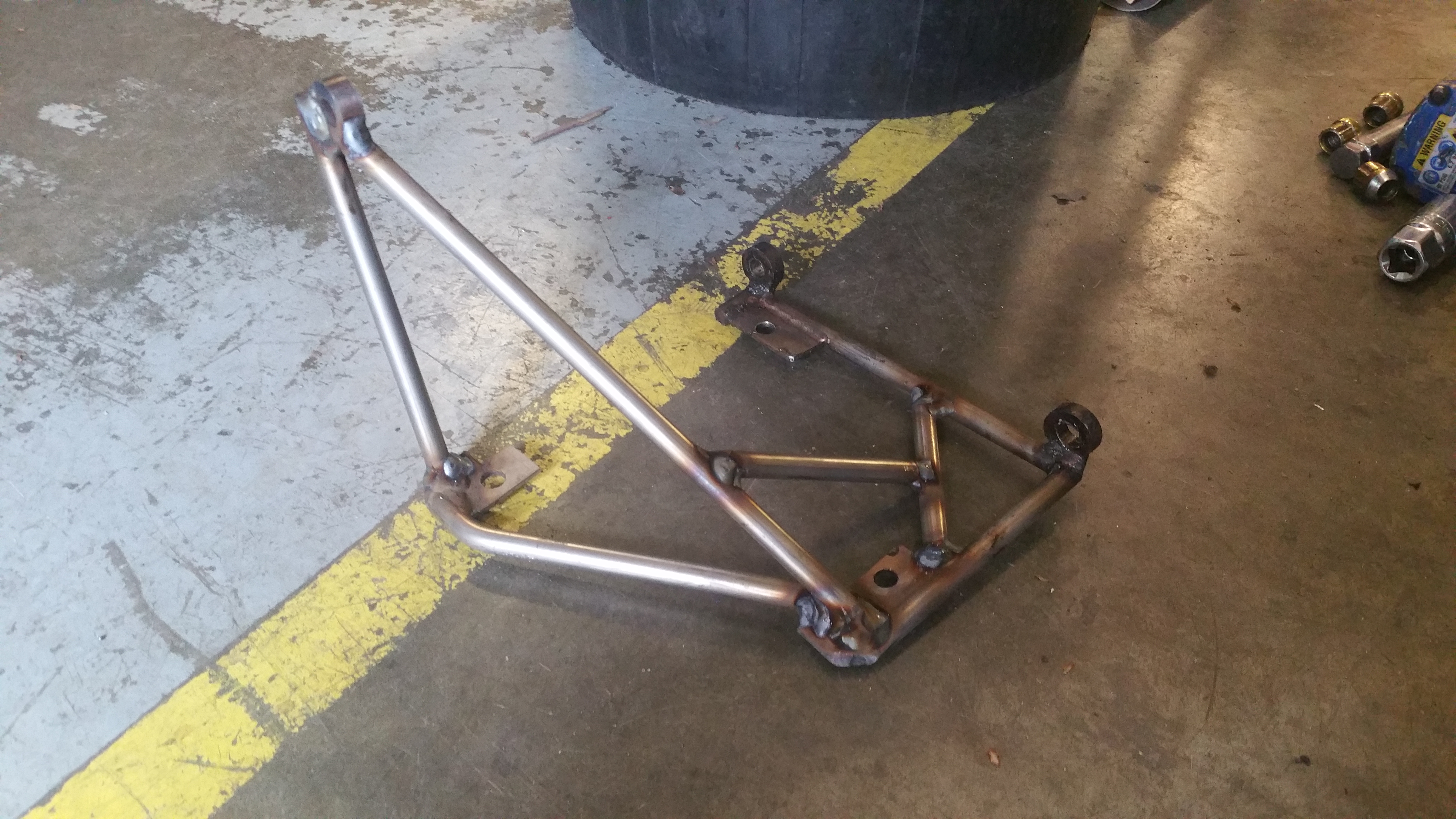

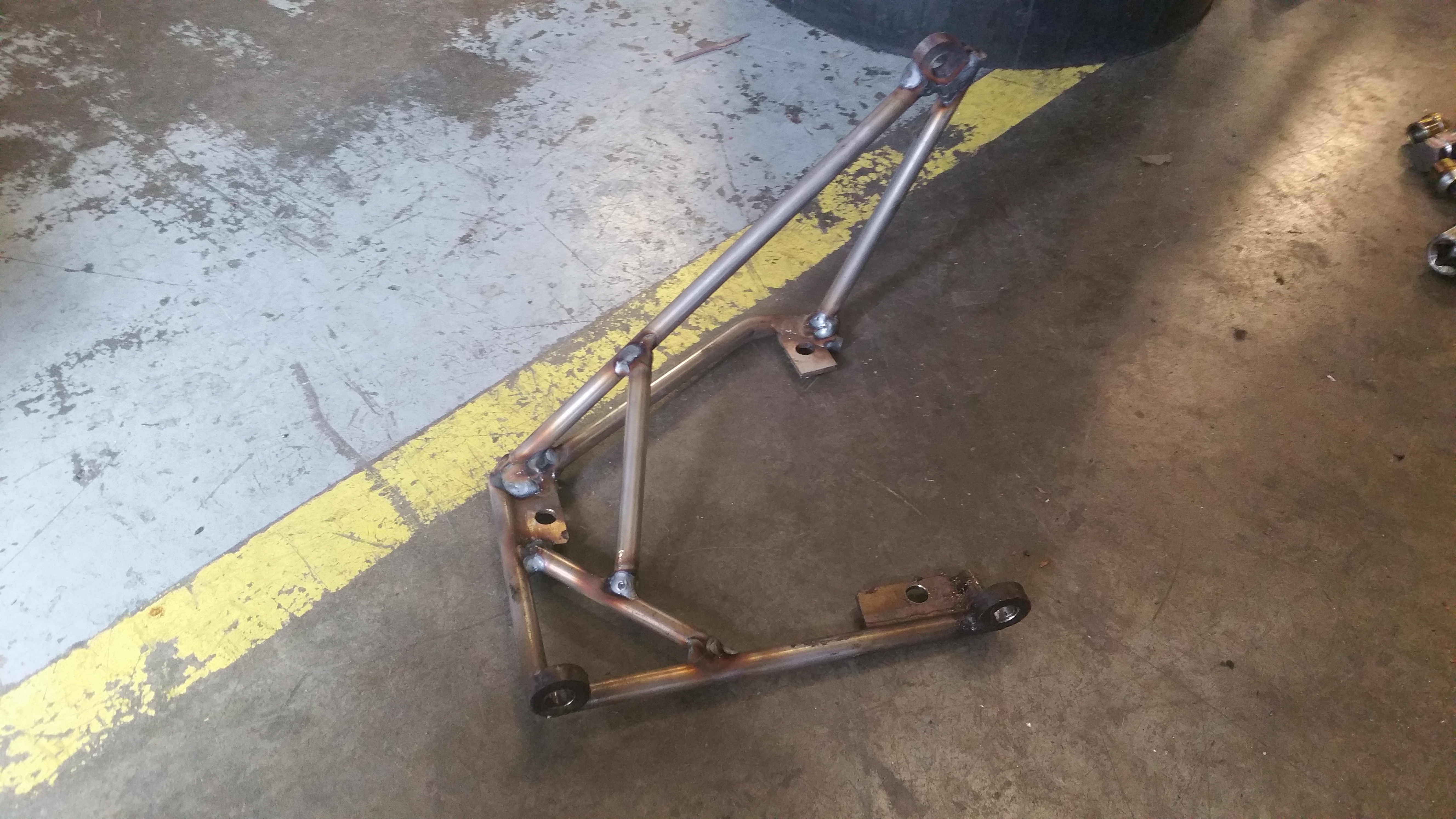

So added some extra support to the power steering brace. It's now all ready for wiring. As it's sitting up in behind the front bumper I just mig'd it up a bit brashly. Does the job.

Name:  20150516_090756_zpsvunwa6jf.jpg
Views: 0
Size:  4.43 MB


Name:  20150516_090809_zpsyvdljsg7.jpg
Views: 0
Size:  4.37 MB

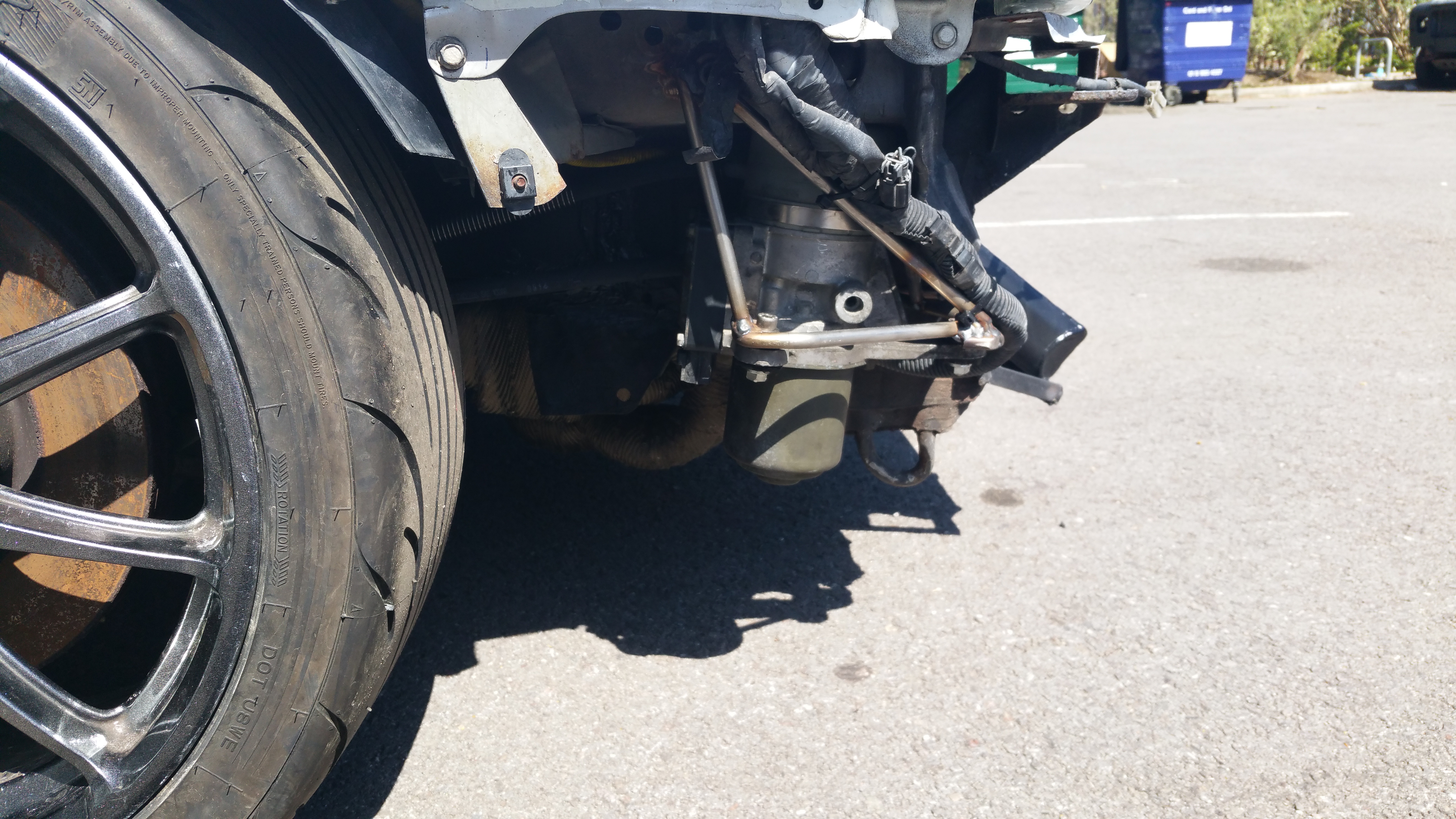

So that ended up down here like this

Name:  20150516_145005_zps2totreuv.jpg
Views: 0
Size:  5.06 MB

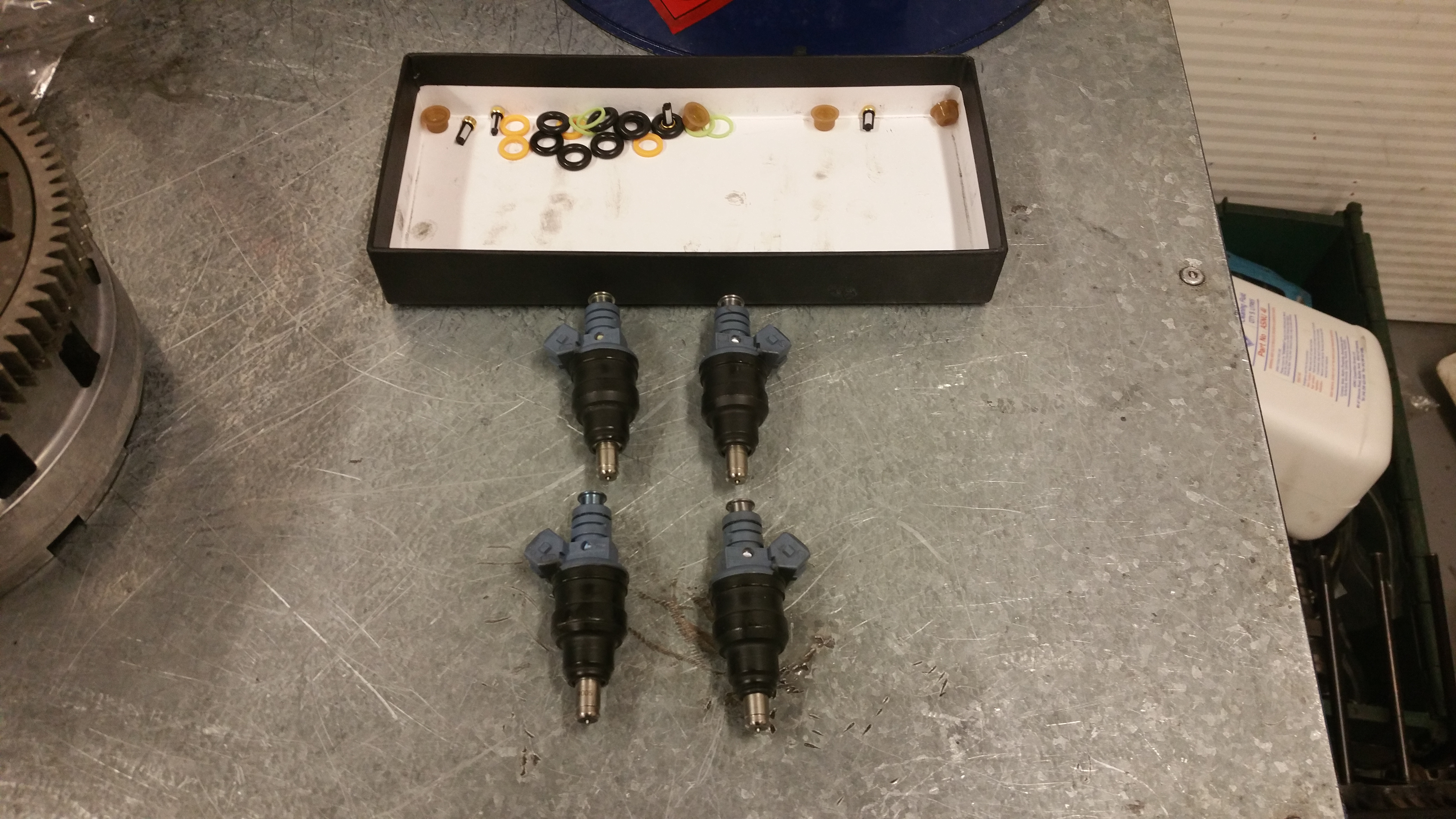

Now slight chance on the fueling front. I was going to run 8 injectors long term (still might) but in order to get a few more functions out of the Syvecs I have changed the 750cc RC injectors for some bigger Bosch units that I have 'borrowed' from the RX7 build. Just given how long I've had them I bought a refurb pack and gave the a bath

Name:  20150516_135950_zpszfiuewej.jpg
Views: 0
Size:  5.34 MB

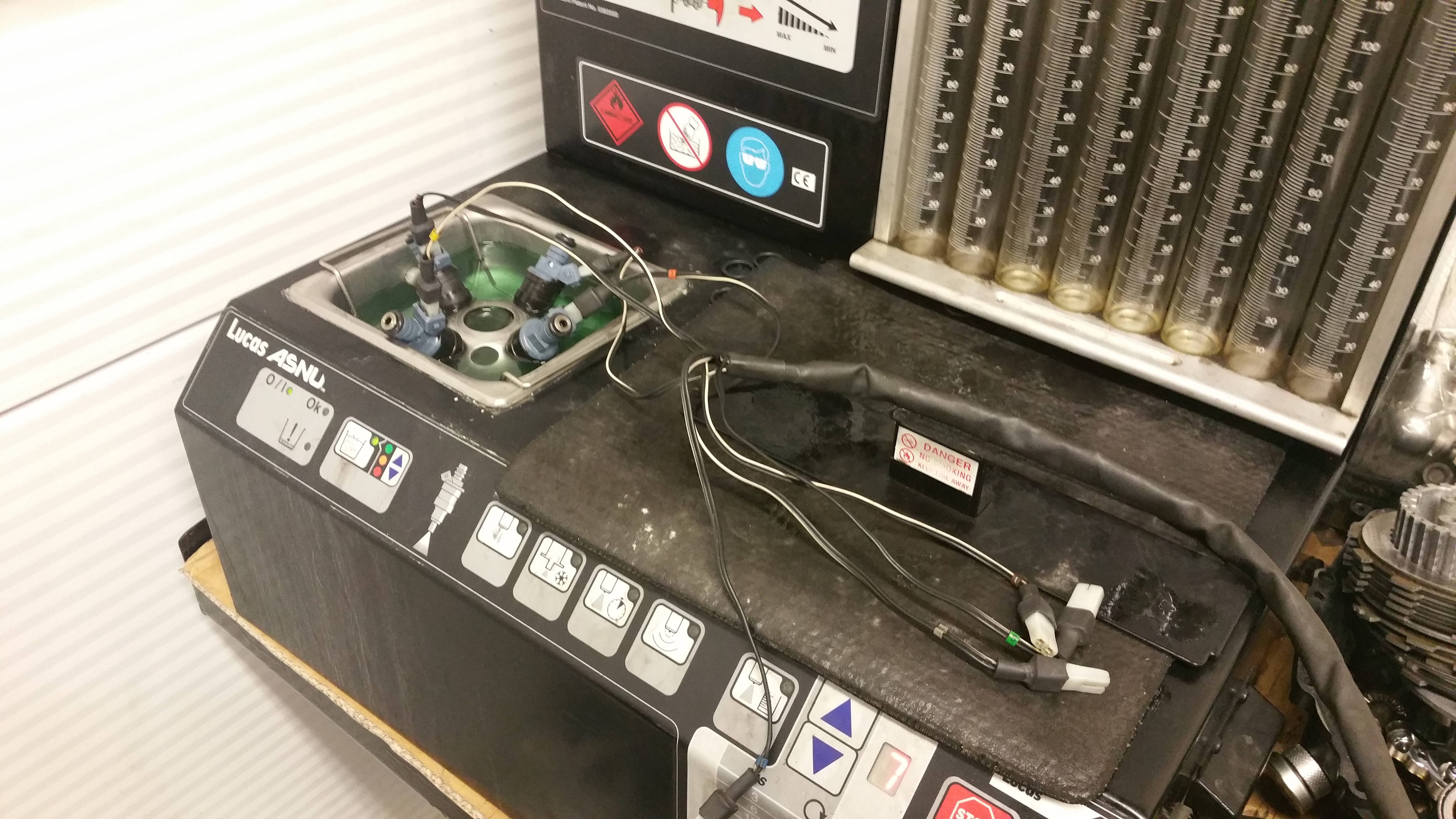

Mid cleaning



Name:  20150516_143009_zps7hw97qwu.jpg
Views: 0
Size:  4.35 MB

So onto the next job.....

Last edited by seventune; 14 August 2015 at 01:51 AM.
seventune is offline
Old 27 May 2015, 10:18 PM
  #177
seventune
Scooby Regular
Thread Starter

Join Date: Aug 2013
Location: Esher, Surrey
Posts: 213
Default

Couple of trivial bits on the go while I'm sorting out the wiring loom plugs and pins etc...

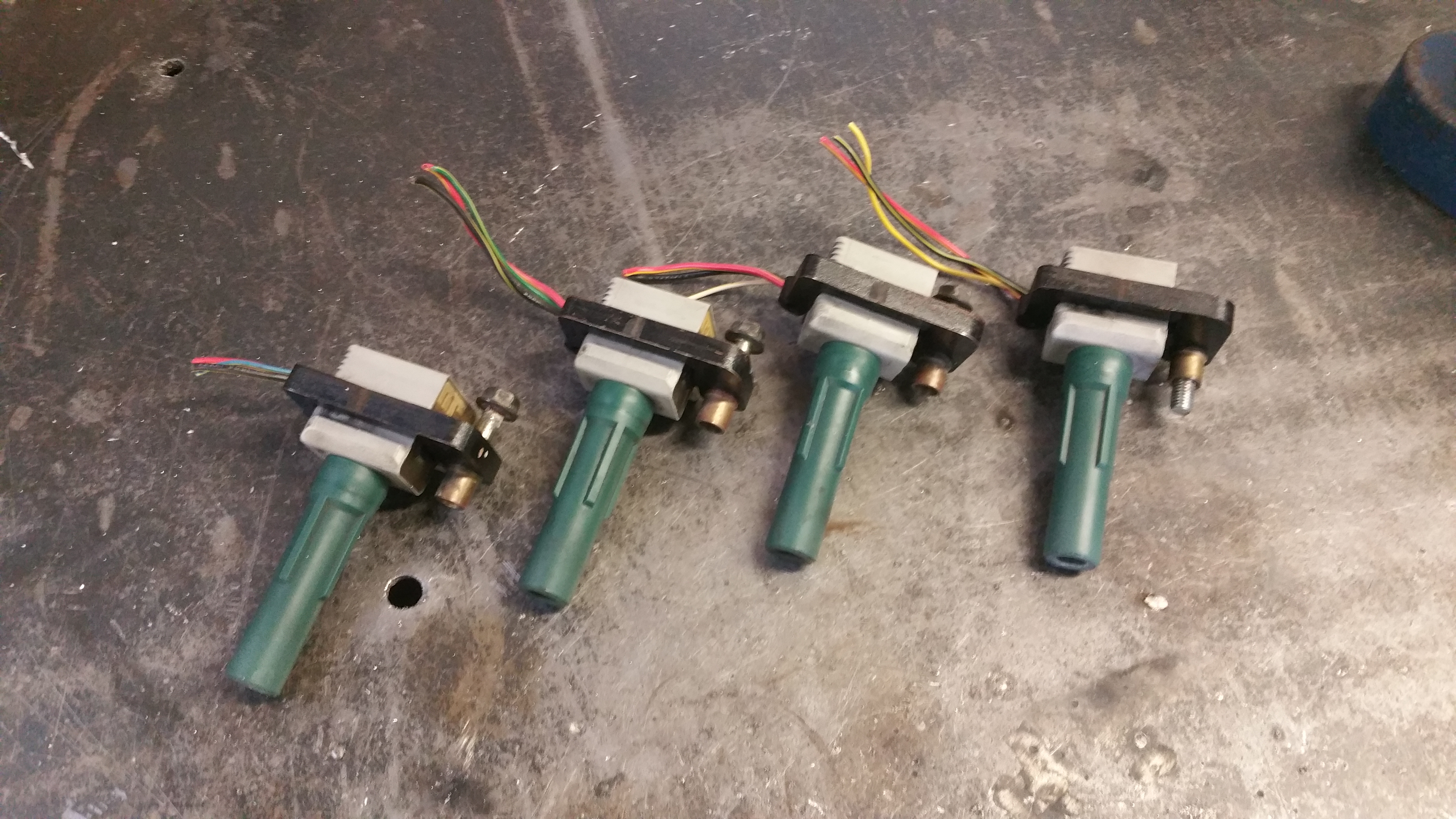

First thing was to get a set of late model individual coils. Hopefully this should help with the performance and if nothing else makes for a nicer tidy engine bay in loosing the mid mounted coil pack and bright red HT leads!

Name:  20150527_122652_zps3exsykc8.jpg
Views: 0
Size:  4.63 MB

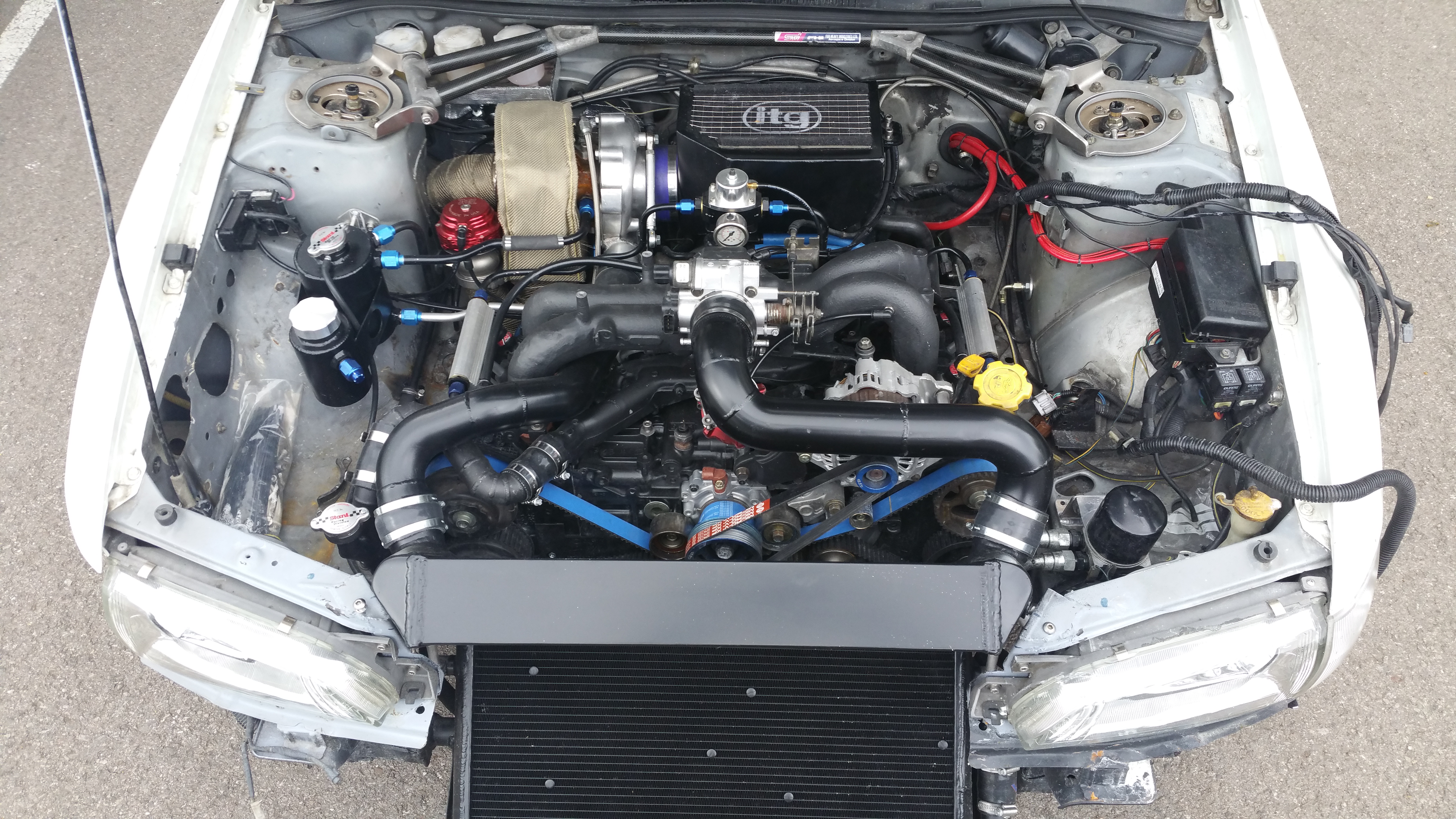

net result without the coil in there.... much neater

Name:  20150523_152831_zpszpdmfgy0.jpg
Views: 0
Size:  5.93 MB

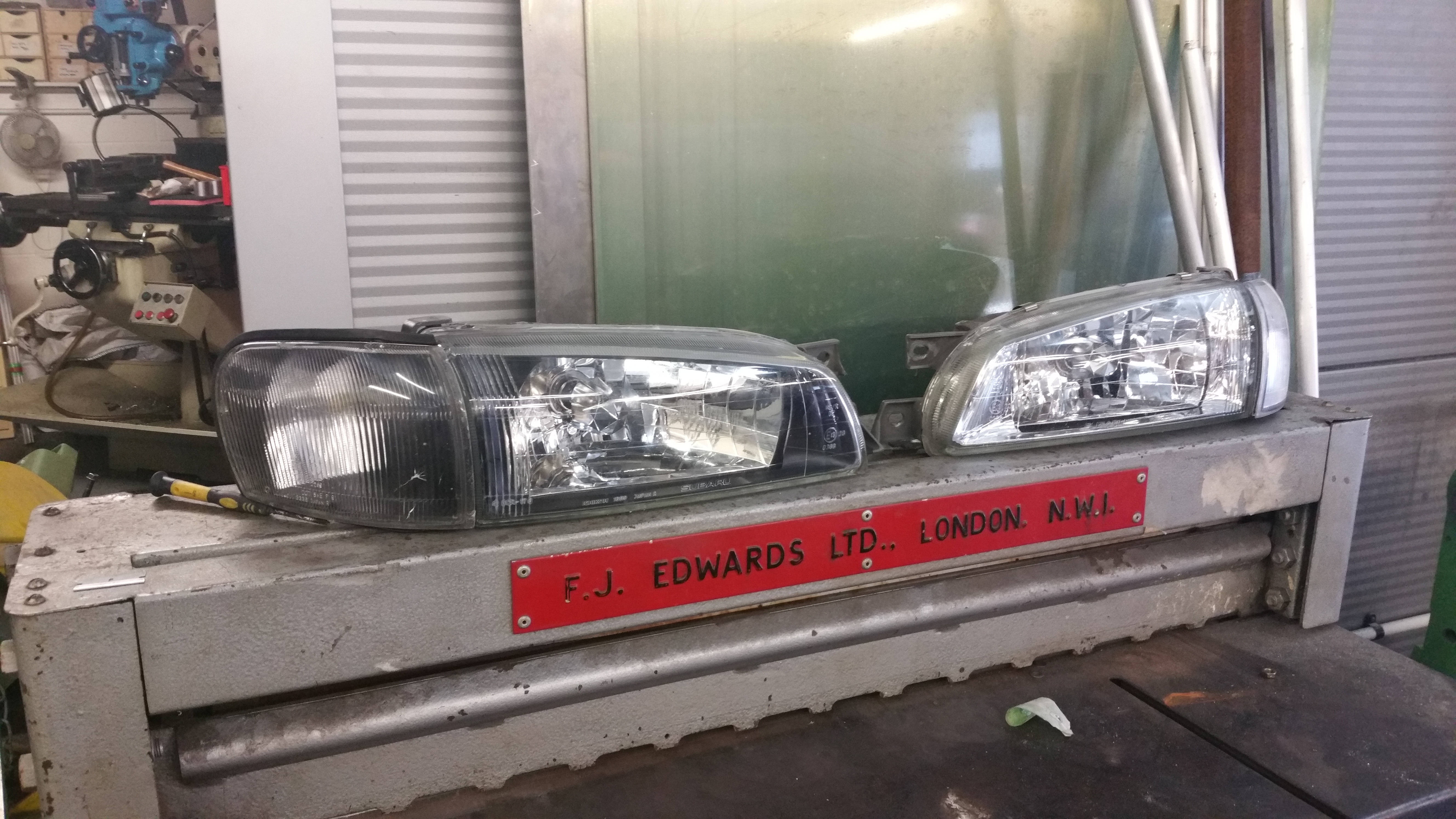

The other thing I have been poking around at is the lights. I have seen a couple of the version 5/6 cars with modded blacked headlights. I think it look very cool so I have set about doing mine. There was another small issue to tackle too. As I have the oil cooler one side of the front bumper and the power steeing pump the other I have removed the indicators and little black plastic infill from the bumper. My decision was to move LED indicators into the side light housing whilst blacking them. I used a set of LED bike indicators.

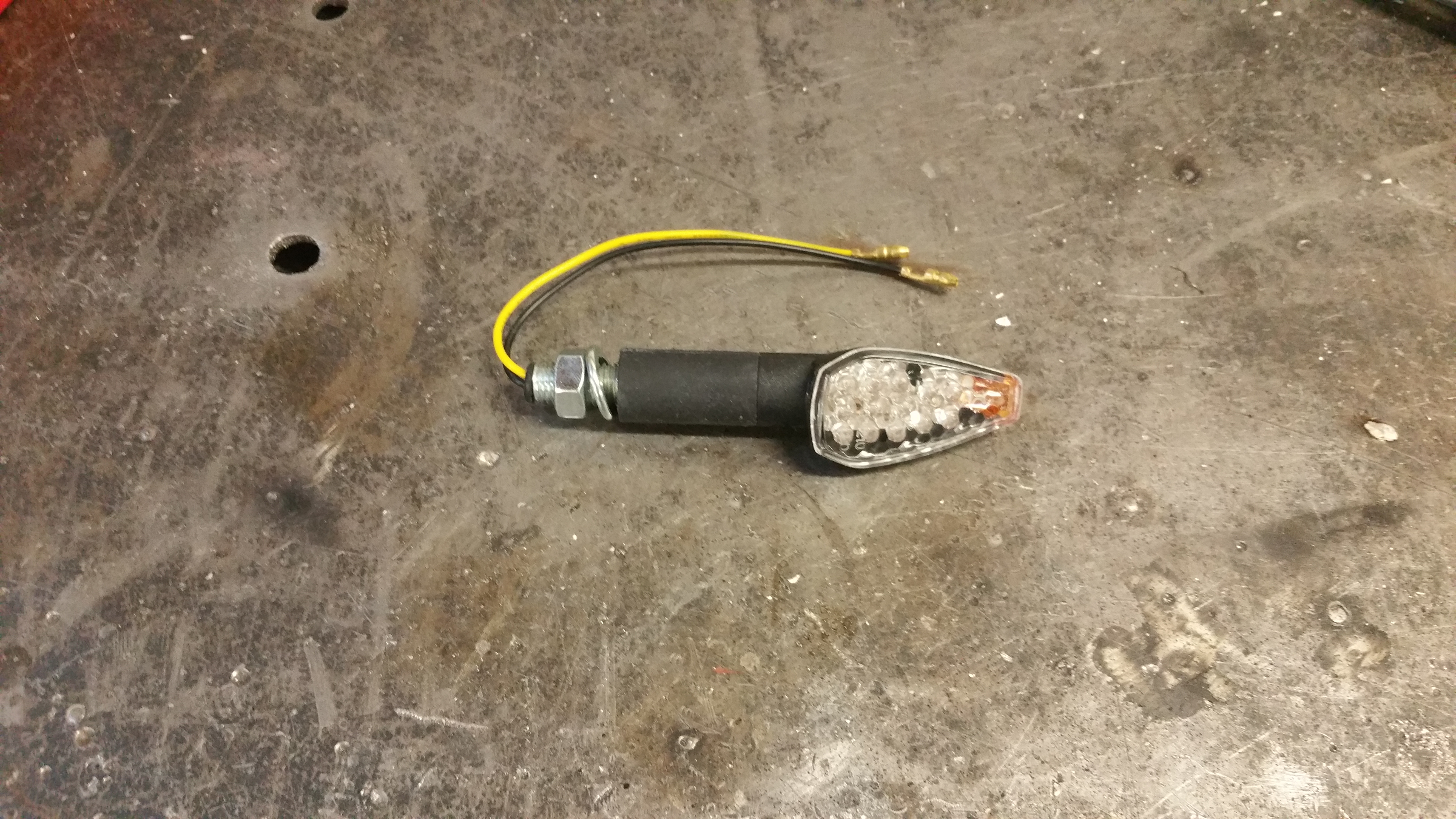

Started with these:

Name:  20150527_163723_zpsokpatyz3.jpg
Views: 0
Size:  4.94 MB

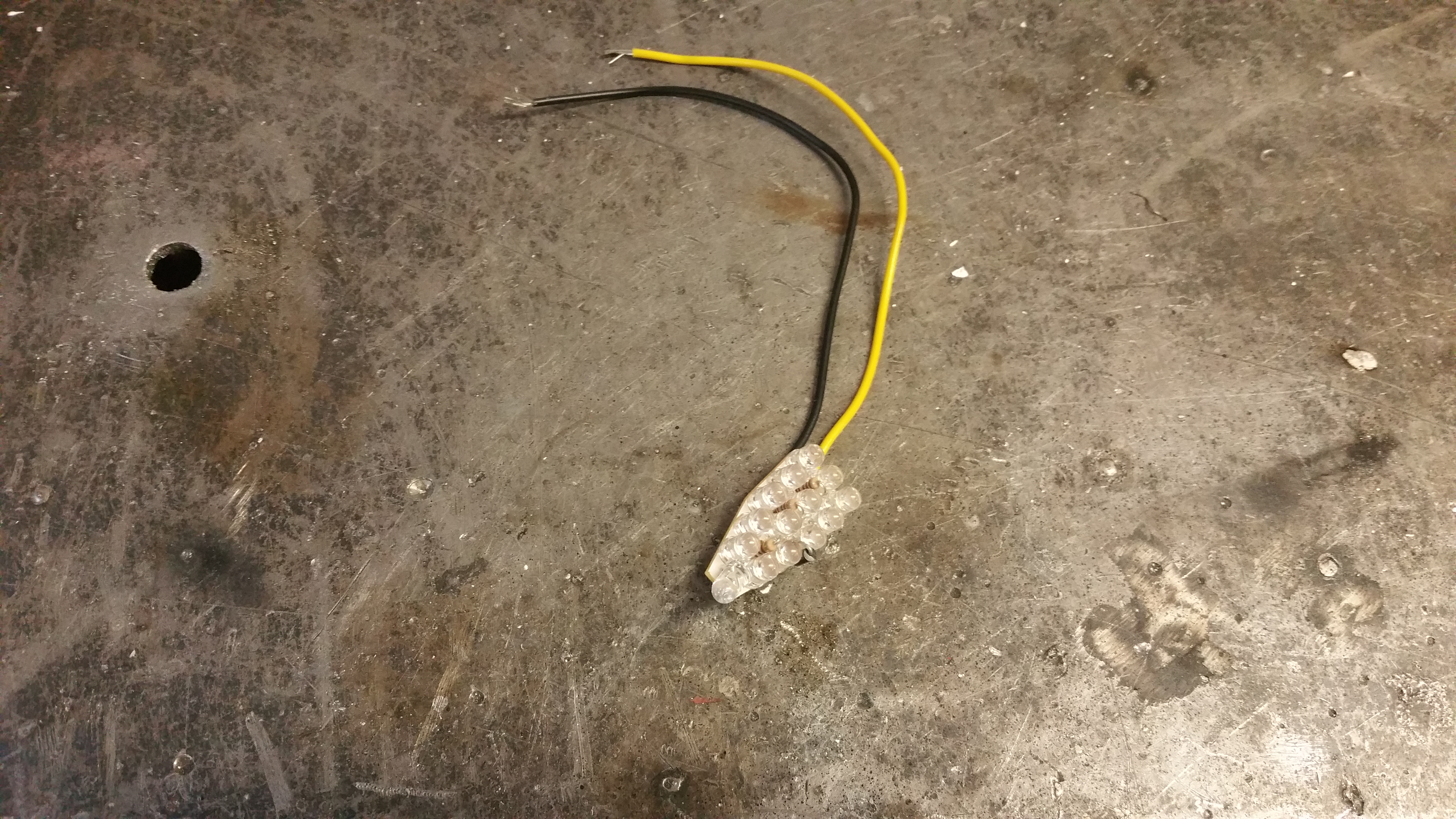

Then did this:

Name:  20150527_163740_zpsc8gdvc2k.jpg
Views: 0
Size:  5.49 MB

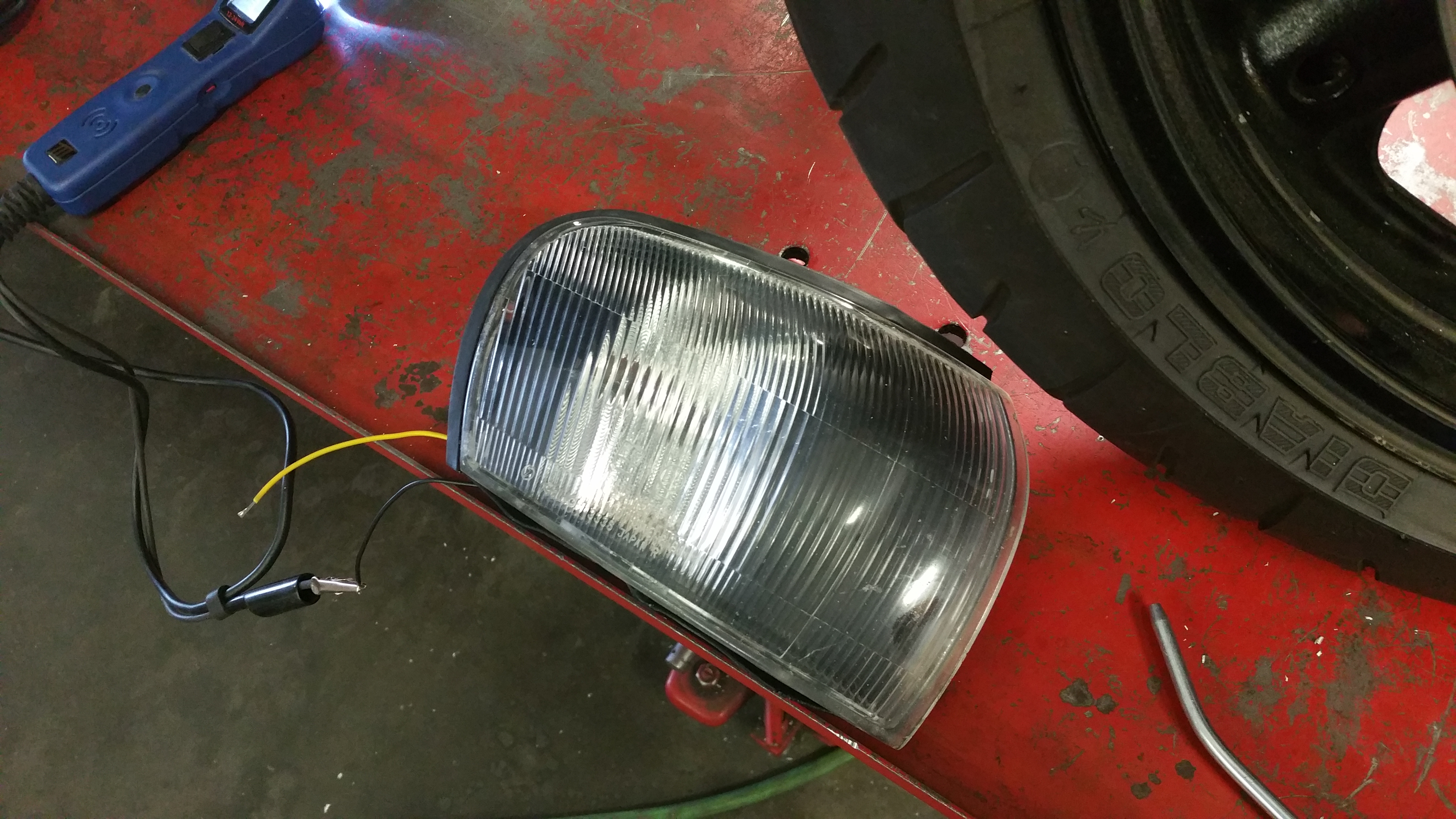

Threw them in here:

Name:  20150527_174434_zpszvekjacq.jpg
Views: 0
Size:  4.30 MB

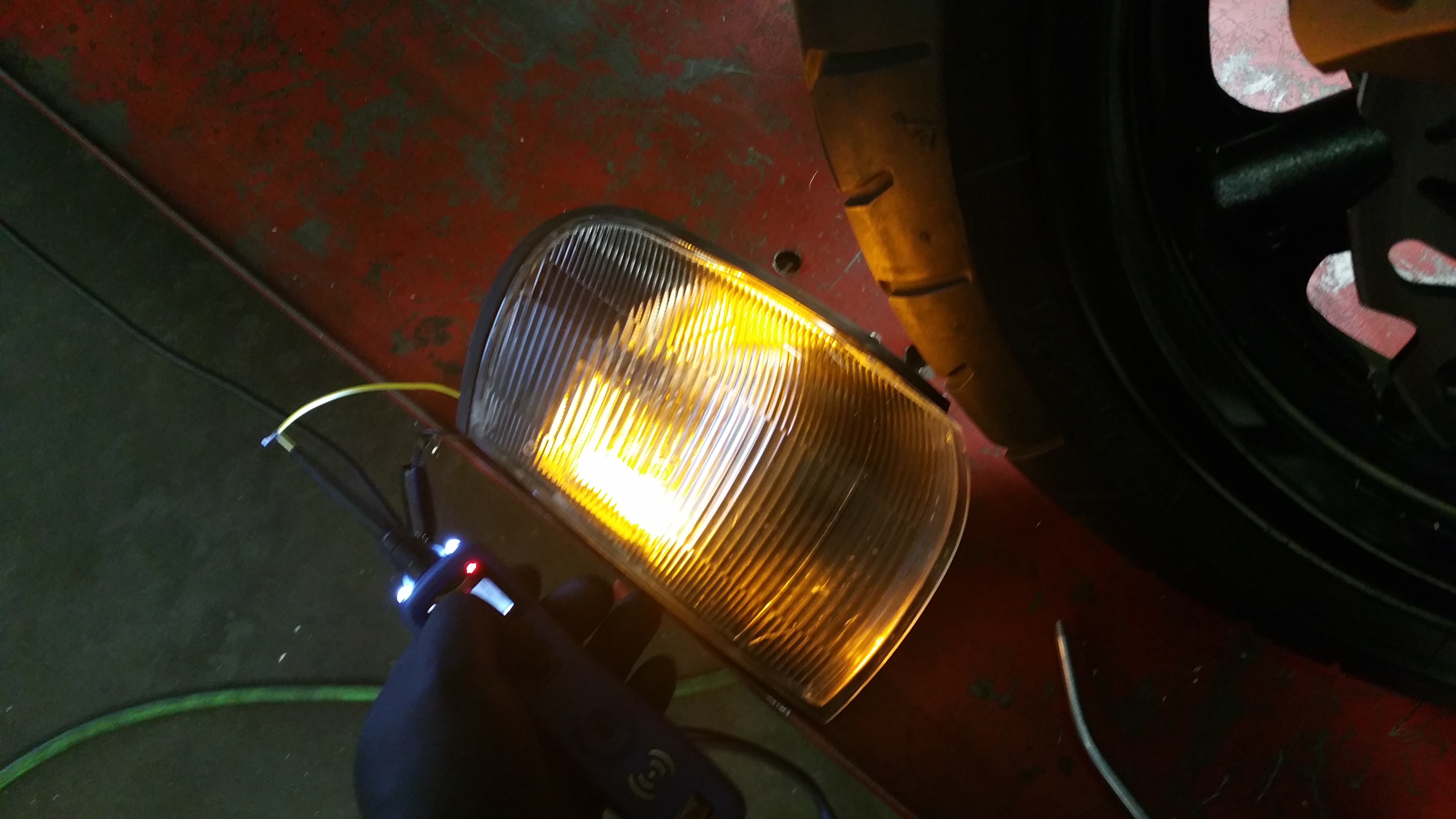

And wayhay:

Name:  20150527_174453_zpsp7wesooc.jpg
Views: 0
Size:  3.55 MB

So with the indicstors and side lights in the one housing I can set about ducting the cooler and pump

Oh and here is a painted pair next to the pair I'll be doing in the morning

Name:  20150527_121735_zpskeb2fybe.jpg
Views: 0
Size:  5.42 MB

Last edited by seventune; 14 August 2015 at 01:51 AM.
seventune is offline
Old 28 May 2015, 04:04 PM
  #178
Ste333
Scooby Regular
iTrader: (3)

Ste333's Avatar

Join Date: Sep 2008
Location: Solihull, UK
Posts: 957
Default

Absolutely incredible builds. I was following your Rx7 build over on DW, but had no idea you were on here too with an Impreza

The turbo setup and orientation is awesome. Great work mate. Makes me wish I had more of a fabrication brain and welding skills to match.
Ste333 is offline
Old 28 May 2015, 05:53 PM
  #179
bioforger
Scooby Regular
iTrader: (1)

bioforger's Avatar

Join Date: Jan 2002
Location: Pig Hill, Wiltsh1te
Posts: 16,977
Default

Originally Posted by Ste333 View Post
Makes me wish I had more of a fabrication brain and welding skills to match.
And a dedicated workshop, tools to hand
bioforger is online now
Old 28 May 2015, 08:18 PM
  #180
seventune
Scooby Regular
Thread Starter

Join Date: Aug 2013
Location: Esher, Surrey
Posts: 213
Default

Cheers dude. To be fair the 7 isn't really doing much at the moment. Need the scoob finished first. Then I'll get back on the other one. Too much to do and not enough time!
seventune is offline

Thread Tools
Search this Thread
Quick Reply: The Four and the Rotary


Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service

© 2018 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
