Vf43 max BHP
#31
Scooby Regular
Thread Starter
iTrader: (1)
Join Date: Feb 2013
Location: Bagshot
Posts: 423
Likes: 0
Received 0 Likes
on
0 Posts
So just to summarise based on the above comments;
2.0 - VF35 unported with supporting mods. 330 to 360 BHP
2.0 - VF35 ported with supporting mods. 350 to 370BHP
2.5 - VF35 unported with supporting mods. 320-340BHP
2.5 - VF35 ported with supporting mods. 340-360BHP
2.0 - VF43 unported with supporting mods. 350 - 380
2.0 - VF43 ported with supporting mods. 370 - 400
2.5 - VF43 unported with supporting mods 370 - 400bhp
2.5 - VF43 ported. No figures shared
2.0 - VF35 unported with supporting mods. 330 to 360 BHP
2.0 - VF35 ported with supporting mods. 350 to 370BHP
2.5 - VF35 unported with supporting mods. 320-340BHP
2.5 - VF35 ported with supporting mods. 340-360BHP
2.0 - VF43 unported with supporting mods. 350 - 380
2.0 - VF43 ported with supporting mods. 370 - 400
2.5 - VF43 unported with supporting mods 370 - 400bhp
2.5 - VF43 ported. No figures shared
#33
That's quite a low figure for the 2.5 with a vf43. Most make 360 with a cat . De-cat should see 370's 380's and some as high as 390.
#35
True but he said it was "maxed out ". Im running about 1.6-1.65 bar which is about the limit on my VF43. Any more and i'm just making hot air.
#37
Scooby Regular
Join Date: Aug 2011
Location: Wiltshire
Posts: 95
Likes: 0
Received 0 Likes
on
0 Posts
Well on my hawk with a ported vf43 I'm running 396/420 but obviously with all the supporting mods... Still on standard injectors and internals! Makes for a great road car, and very little lag
Before it was ported it was running 393/470!!!! Massive boost creep hence the huge torque figure, was a very bad drive. Porting made the car totally different and safe, running 1.4 bar and so much more driveable, best mod ever.
Before it was ported it was running 393/470!!!! Massive boost creep hence the huge torque figure, was a very bad drive. Porting made the car totally different and safe, running 1.4 bar and so much more driveable, best mod ever.
Last edited by Pez; 11 August 2013 at 08:29 PM.
#38
Scooby Regular
iTrader: (16)
Well on my hawk with a ported vf43 I'm running 396/420 but obviously with all the supporting mods... Still on standard injectors and internals! Makes for a great road car, and very little lag
Before it was ported it was running 396/470!!!! Massive boost creep hence the huge torque figure, was a very bad drive. Porting made the car totally different and safe, running 1.4 bar and so much more driveable, best mod ever.
Before it was ported it was running 396/470!!!! Massive boost creep hence the huge torque figure, was a very bad drive. Porting made the car totally different and safe, running 1.4 bar and so much more driveable, best mod ever.
470lb/ft thats crazy, where was this dyno'd at???
#39
Scooby Regular
Join Date: Aug 2011
Location: Wiltshire
Posts: 95
Likes: 0
Received 0 Likes
on
0 Posts

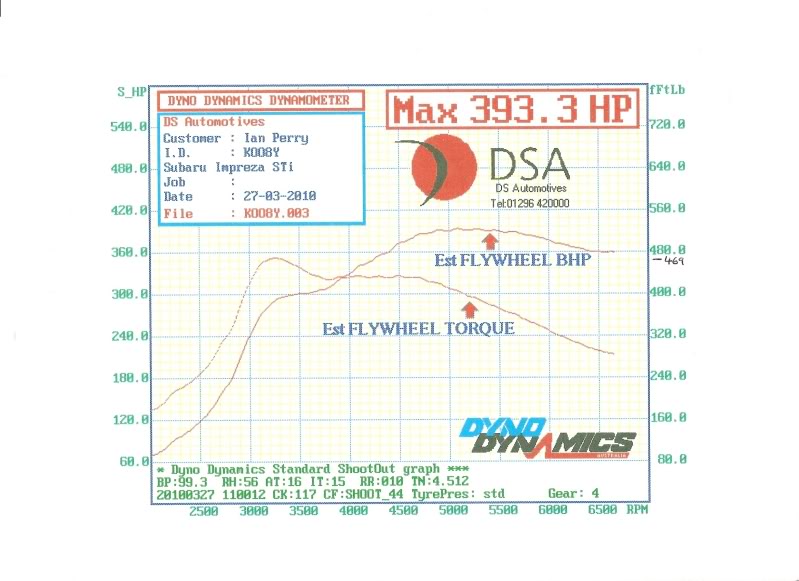

Yeah it was crazy and I hated the way it drove, anything over 60mph and the accelerator was just a switch, either full power on or nothing. It was dyno'd at DSA... Think i may have to graph some where.....
#41
@ chopperman
Regards to maxxed out, all I can relate is the person I bought the 43 off said he had the car mapped and as much as the turbo would give and it made 347.
He changed it for a sc42.
Just Thiught it maybe if some Internet in your findings and research.
Likewise my blob Sti only made 317 after a remap @ 1.5 bar
Regards to maxxed out, all I can relate is the person I bought the 43 off said he had the car mapped and as much as the turbo would give and it made 347.
He changed it for a sc42.
Just Thiught it maybe if some Internet in your findings and research.
Likewise my blob Sti only made 317 after a remap @ 1.5 bar
#44
@ chopperman
Regards to maxxed out, all I can relate is the person I bought the 43 off said he had the car mapped and as much as the turbo would give and it made 347.
He changed it for a sc42.
Just Thiught it maybe if some Internet in your findings and research.
Likewise my blob Sti only made 317 after a remap @ 1.5 bar
Regards to maxxed out, all I can relate is the person I bought the 43 off said he had the car mapped and as much as the turbo would give and it made 347.
He changed it for a sc42.
Just Thiught it maybe if some Internet in your findings and research.
Likewise my blob Sti only made 317 after a remap @ 1.5 bar

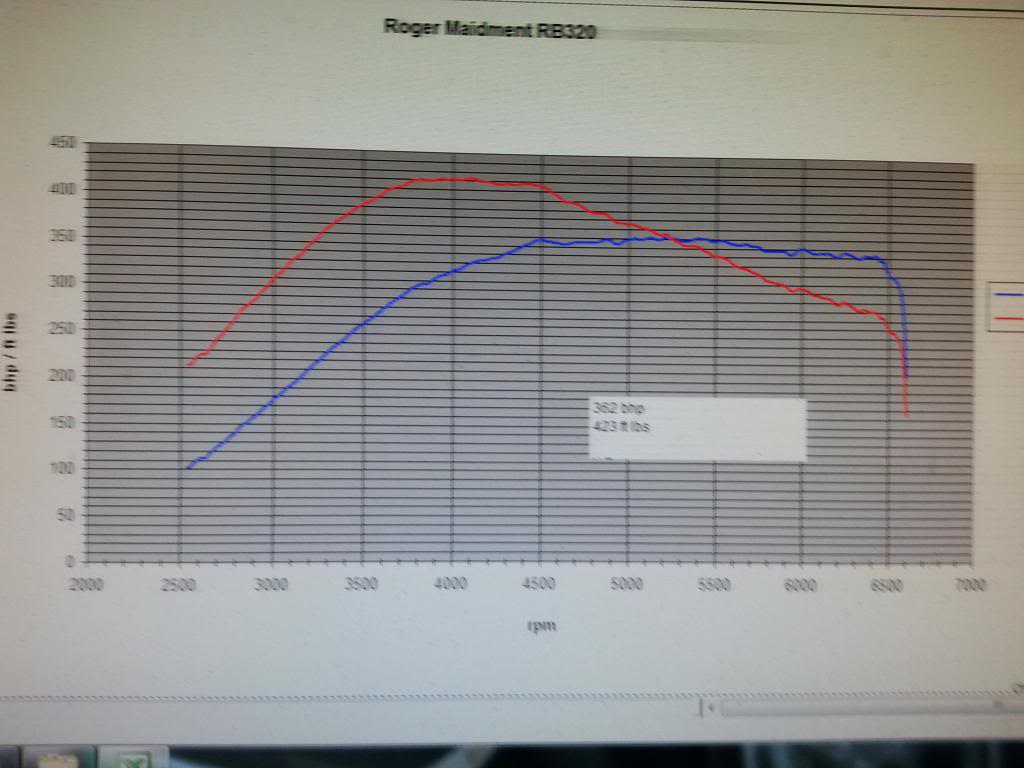

This is a BR delta dash graph of mine with a non ported VF43 and running a cat. The graph was done on a hot muggy day with a freshly forged engine that had only covered 1000 miles, so still tight and not fully bedded in.
#46
#47

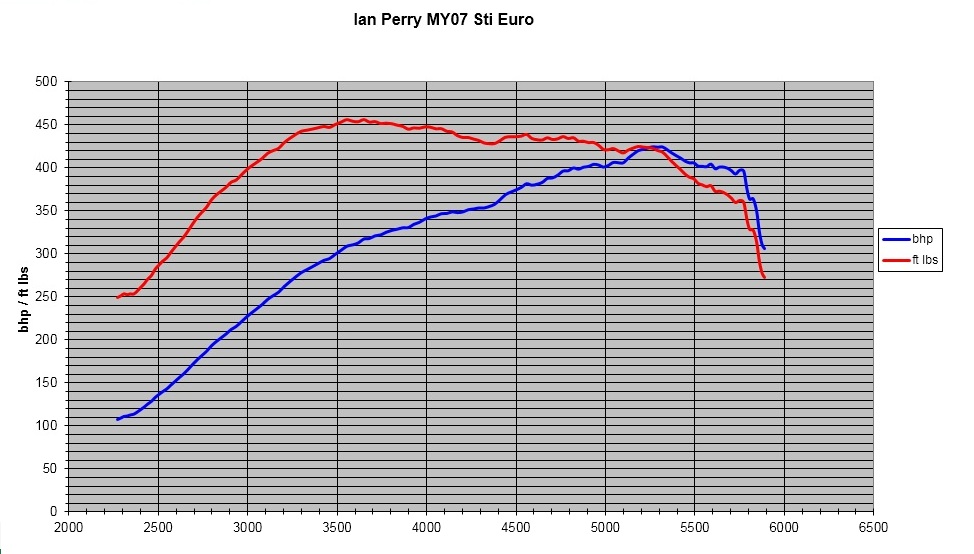

I was just going to post this up, it made a huge 424bhp and 456 torques on Bobs delta dash, however more importantly Bob had also done the previous map and purely by altering the wastegate port size and actuator pressure plus the intake setup huge positive changes were made.
Cheers Iain
Cheers Iain
#49
I was just going to post this up, it made a huge 424bhp and 456 torques on Bobs delta dash, however more importantly Bob had also done the previous map and purely by altering the wastegate port size and actuator pressure plus the intake setup huge positive changes were made.
Cheers Iain
Cheers Iain
#52
#53
#54
Cheers Iain
Last edited by Big 'D'; 11 August 2013 at 10:16 PM.
#55
The main issue is boost creep, on Pez's Sti the boost creep was probably the worst I had ever seen, it was pushing 1.5+ running actuator pressure only on the factory actuator. As there is a choking at the wastegate port the thermal loading at that point will be different than the rest of the turbine casing, due to this difference in temp the turbine housing is continually expanding and contracting at different rates, eventually this will cause a crack. The cracking appears more common on cars that have been modified and driven hard, by removing the choke effect at the wastegate through porting you greatly reduce the difference in thermal loading and in turn reduce the likelihood of a crack forming. We have discovered however that if a crack has formed and is weld repaired that it may reappear as there is already a weak point in the casing.
Cheers Iain
Cheers Iain
#57
Scooby Regular
iTrader: (16)
I love my hawkeye STi, drives nice, fast when you want it to be, comftable to drive, would love to forge my engine at some point and push the VF43. After seeing some figures on here with the VF43, think I might do some porting in the winter months.
Love the way the VF43 spools up on the 2.5, so dont really want to change it unless it breaks.
#58
Scooby Regular
iTrader: (16)
Spec D is a nice car, love the discreet look of them.
I love my hawkeye STi, drives nice, fast when you want it to be, comftable to drive, would love to forge my engine at some point and push the VF43. After seeing some figures on here with the VF43, think I might do some porting in the winter months.
Love the way the VF43 spools up on the 2.5, so dont really want to change it unless it breaks.
I love my hawkeye STi, drives nice, fast when you want it to be, comftable to drive, would love to forge my engine at some point and push the VF43. After seeing some figures on here with the VF43, think I might do some porting in the winter months.
Love the way the VF43 spools up on the 2.5, so dont really want to change it unless it breaks.
#60
Scooby Regular
iTrader: (2)
Join Date: Mar 2013
Location: Fraserburgh
Posts: 848
Likes: 0
Received 0 Likes
on
0 Posts
@ chopperman
Regards to maxxed out, all I can relate is the person I bought the 43 off said he had the car mapped and as much as the turbo would give and it made 347.
He changed it for a sc42.
Just Thiught it maybe if some Internet in your findings and research.
Likewise my blob Sti only made 317 after a remap @ 1.5 bar
Regards to maxxed out, all I can relate is the person I bought the 43 off said he had the car mapped and as much as the turbo would give and it made 347.
He changed it for a sc42.
Just Thiught it maybe if some Internet in your findings and research.
Likewise my blob Sti only made 317 after a remap @ 1.5 bar
i was only running 1.45bar just to be safe as wasn't forger, sc46 i'm running now much happier lol. was good seeing the vf43 getting over 400
